Vacuum-assisted Resin Transfer Molding (VARTM) is a closed-mold process that has revolutionized the manufacturing of fiber-reinforced polymer (FRP) composite parts. This chapter introduces the basic concepts of VARTM, its historical development, and how it compares to other composite manufacturing processes.

1.1 Definition and Basic Concept

VARTM is a manufacturing process that combines the benefits of traditional Resin Transfer Molding (RTM) with the advantages of open-mold hand layup processing. The process involves the following key elements:

• A one-sided mold (typically an open mold)
• Dry fiber reinforcement (preform)
• A vacuum bag to seal the preform against the mold
• Resin injection under vacuum pressure
• The use of atmospheric pressure for compaction

Learn more about composite materials

In VARTM, the pressure difference between the environmental (atmospheric) pressure and the vacuum pressure is utilized to compact the fiber preform and draw the resin into the mold. This unique approach allows for the production of high-quality, large-scale composite parts with relatively low tooling costs.

1.2 Historical Development

VARTM has been developed over the past two decades as an evolution of traditional RTM processes. Key milestones include:

• The introduction of the SCRIMP (Seemann Composites Resin Infusion Molding Process) in 1990
• Continuous improvements in vacuum bagging materials and techniques
• Development of flow modeling and optimization tools
• Integration of advanced sensors and control systems

These advancements have led to VARTM becoming a widely adopted process in various industries, including marine, aerospace, automotive, and renewable energy.

1.3 Comparison with Other Composite Manufacturing Processes

VARTM offers several advantages over traditional composite manufacturing methods:

Explore challenges in switching to composite materials

VARTM combines the following key benefits:

1. High part quality and repeatability (similar to RTM)
2. Flexibility and scalability (similar to hand layup)
3. Reduced volatile organic compound (VOC) emissions
4. Cost-effectiveness for large structures

However, VARTM also has some limitations:

1. Potential for air leakage and dry spot formation
2. Limited control over fiber volume fraction
3. Challenges in achieving uniform part thickness

Despite these challenges, VARTM has become a preferred method for manufacturing large composite parts in many industries due to its versatility and cost-effectiveness.

Discover more about composites manufacturing methods

In the following chapters, we will delve deeper into the fundamentals of VARTM, explore the process setup and procedure, and discuss the critical elements of VARTM process design.

Understanding the fundamental principles behind Vacuum-assisted Resin Transfer Molding (VARTM) is crucial for optimizing the process and producing high-quality composite parts. This chapter explores the key physical phenomena that govern the VARTM process.

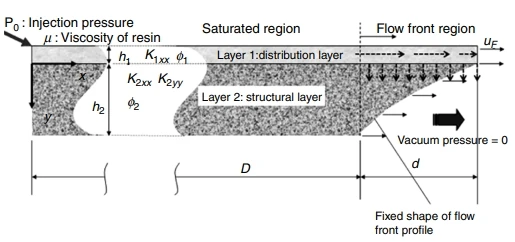

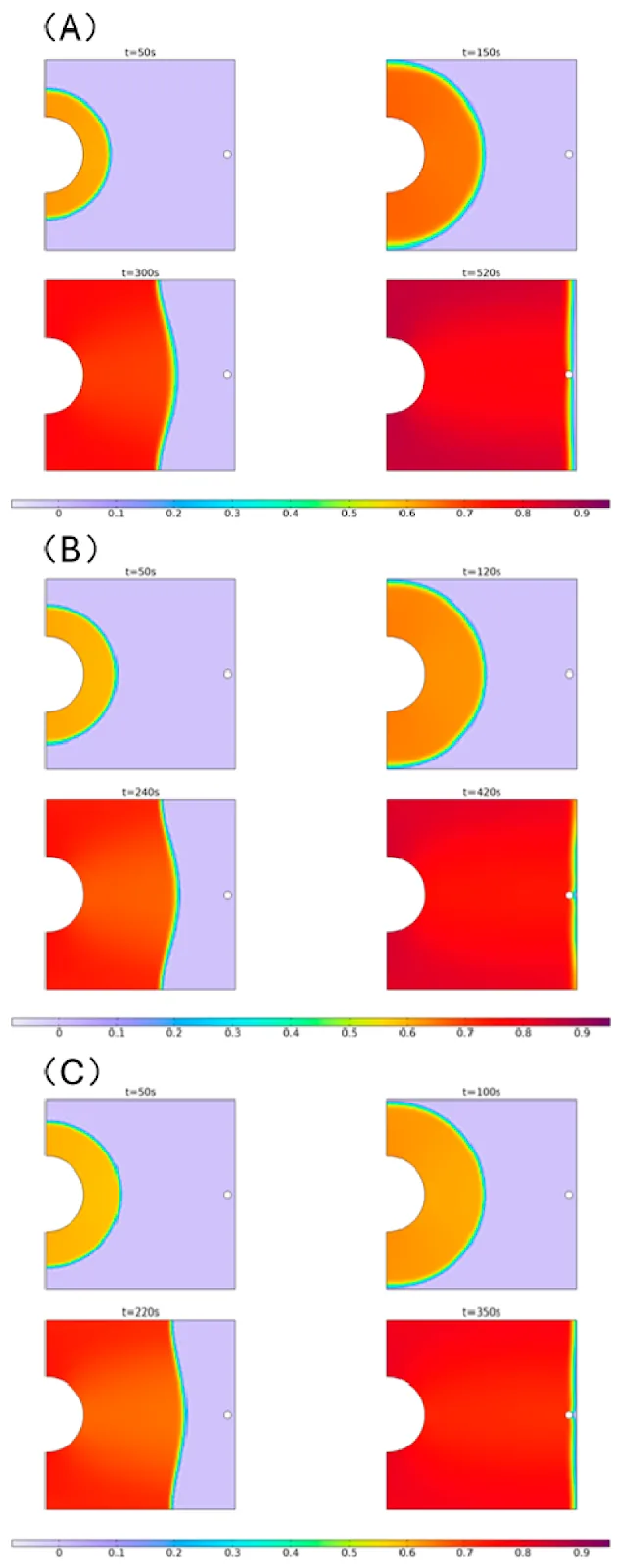

2.1 Resin Flow Phenomenon

The resin flow in VARTM is governed by Darcy's law, which describes fluid flow through porous media. The generalized Darcy's law is given by:

u_D = -(K/μ) * ∇P

Where:

• u_D is the Darcy velocity (volume-averaged velocity)
• K is the permeability tensor of the porous medium
• μ is the dynamic viscosity of the resin
• ∇P is the pressure gradient

Continuity equation:

∇ · u_D = 0

Learn more about resin flow in composite manufacturing

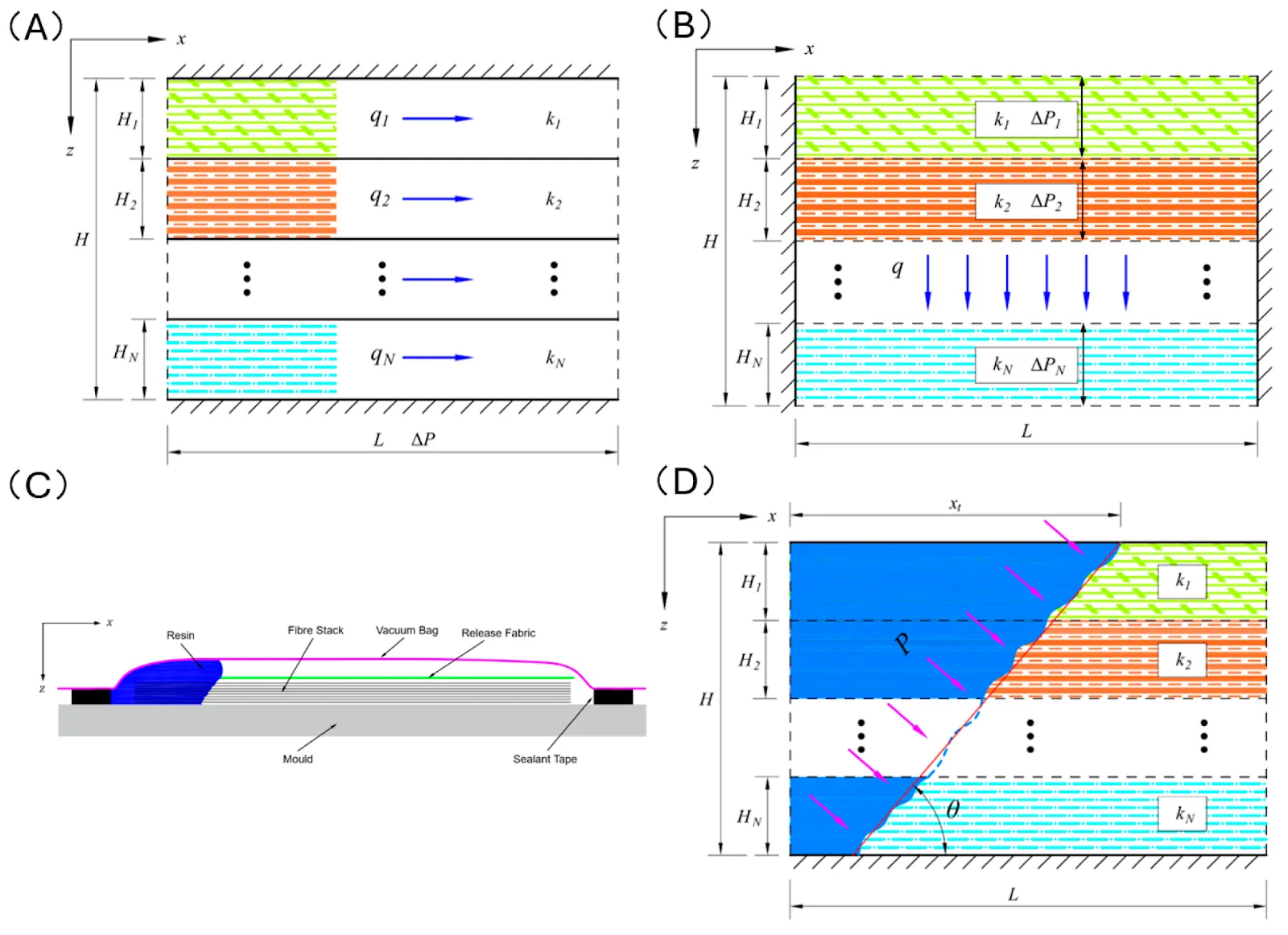

Key aspects of resin flow in VARTM include:

1. Through-thickness flow: The primary direction of resin flow is through the thickness of the preform, facilitated by the flow distribution medium.
2. Race-tracking: Resin may flow faster along edges or channels, leading to non-uniform filling.
3. Dual-scale flow: Resin flows both between fiber tows (macro-flow) and within fiber tows (micro-flow).

2.2 Fiber Preform Compaction

Fiber preform compaction is a critical aspect of VARTM that affects the final part quality and fiber volume fraction. The relationship between compaction pressure and fiber volume fraction can be described by models such as:

1. Gutowski's model:

P_comp = A * ((V_f - V_f0) / (V_f∞ - V_f))^4

2. Robitaille and Gauvin's model:

V_f = V_f1 * P_comp^BWhere:

• P_comp is the compaction pressure
• V_f is the fiber volume fraction
• A, V_f0, V_f∞, V_f1, and B are empirical constants

Where:

• $P_{comp}$ is the compaction pressure
• $V_f$ is the fiber volume fraction
• $A$, $V_{f0}$, $V_{f\infty}$, $V_{f1}$, and $B$ are empirical constants

Explore more about fiber reinforcements

Compaction affects:

• Preform thickness
• Porosity
• Permeability

2.3 Resin Viscosity

Resin viscosity plays a crucial role in the VARTM process, affecting flow behavior and filling time. The viscosity of thermoset resins used in VARTM is typically modeled as a function of temperature and degree of cure:

μ = μ_0 * exp(E/(R*T)) * exp(a_c * α)

Where:

• μ is the resin viscosity
• μ_0 is a constant
• E is the flow activation energy
• R is the universal gas constant
• T is the absolute temperature
• a_c is a constant
• α is the degree of cure

Key considerations for resin viscosity in VARTM:

1. Temperature control to maintain optimal viscosity during infusion
2. Pot life (working time) of the resin system
3. Viscosity changes during the curing process

2.4 Composite Curing Behavior

The curing process in VARTM involves complex heat transfer and chemical reactions. The one-dimensional energy balance equation for the curing process is:

ρ_c * c_pc * ∂T/∂t = ∂/∂z(k_czz * ∂T/∂z) + ρ_r * ε_r * H_r * ∂α/∂t

Where:

• ρ_c, c_pc, and k_czz are the density, specific heat capacity, and thermal conductivity of the composite
• ρ_r, ε_r, and H_r are the density, porosity, and reaction heat of the resin
• α is the degree of cure

The cure kinetics can be modeled using equations such as:

∂α/∂t = A * exp(-E/(R*T)) * α^m * (1-α)^n

Where A, E, m, and n are cure kinetic parameters.

Learn about composite curing and processing

Important aspects of curing in VARTM:

1. Exothermic reactions and heat management
2. Shrinkage and residual stress development
3. Gel time and vitrification

Understanding these fundamental principles allows for better process control and optimization in VARTM, leading to improved part quality and reduced manufacturing defects.

The Vacuum-assisted Resin Transfer Molding (VARTM) process requires careful setup and execution to produce high-quality composite parts. This chapter provides a detailed guide to the VARTM process setup and procedure, highlighting key steps and considerations.

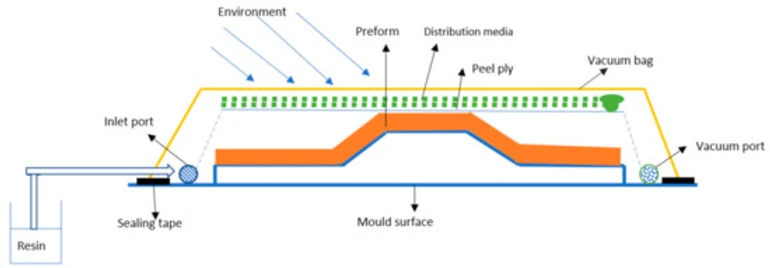

3.1 VARTM Setup Overview

A typical VARTM setup consists of the following components:

1. Mold
2. Fiber preform
3. Peel ply
4. Flow distribution medium
5. Resin injection port(s)
6. Vacuum port(s)
7. Vacuum bag
8. Sealing tape

Learn more about VARTM setup

3.2 Step-by-Step VARTM Procedure

Follow these steps to set up and execute a VARTM process:

1. Mold Preparation
   • Clean the mold surface thoroughly
   • Apply mold release agent
   • Ensure the mold is level and stable
2. Fiber Preform Layup
   • Cut fiber reinforcement to size
   • Stack layers according to the designed layup sequence
   • Ensure proper fiber orientation
3. Peel Ply Application
   • Place peel ply over the entire fiber preform
   • Ensure it extends beyond the part edges
4. Flow Distribution Medium Placement
   • Position the flow distribution medium over the peel ply
   • Extend it to cover most of the part, but not to the vacuum port
5. Resin Injection Port Installation
   • Place the resin injection port(s) at the designed location(s)
   • Use spiral tubing or omega channels for even resin distribution
6. Vacuum Port Placement
   • Position the vacuum port(s) at the opposite end from the injection port(s)
   • Ensure they're not in direct contact with the flow distribution medium
7. Vacuum Bagging
   • Apply sealing tape around the perimeter of the mold
   • Carefully place the vacuum bag over the entire layup
   • Seal the bag to the mold, ensuring no air leaks
8. Leak Testing
   • Connect the vacuum port to the vacuum pump
   • Apply vacuum and check for leaks
   • Fix any leaks found
9. Resin Preparation
   • Mix resin and hardener according to the manufacturer's instructions
   • Degas the resin mixture if necessary
10. Resin Infusion
    • Connect the resin inlet to the resin reservoir
    • Open the inlet and allow resin to flow into the preform
    • Monitor the resin flow front progression

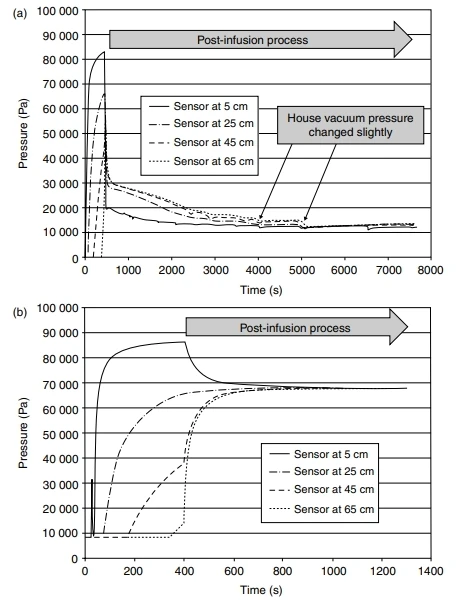

11. Post-Filling Procedure
    • Once the part is fully wetted, close the resin inlet
    • Maintain vacuum for the specified curing time
12. Curing
    • Allow the part to cure according to the resin system's cure cycle
    • Maintain vacuum throughout the curing process
13. Demolding
    • After full cure, remove the vacuum bag and ancillary materials
    • Carefully remove the part from the mold

Explore composites manufacturing methods

3.3 Key Considerations

To ensure a successful VARTM process, keep the following points in mind:

1. Preform Compaction: Consider using a debulking process to better compact the fiber preform before infusion.
2. Flow Front Control: Monitor the resin flow front and adjust injection as needed to prevent dry spots or race-tracking.
3. Temperature Management: Control the mold temperature to optimize resin viscosity and cure kinetics.
4. Vacuum Integrity: Continuously monitor vacuum pressure and address any leaks immediately.
5. Resin Bleeding: Allow some extra resin to bleed out after full wetting to remove tiny air bubbles.
6. Post-Cure: Depending on the resin system, a post-cure cycle may be necessary to achieve optimal mechanical properties.

Learn about process monitoring in composites manufacturing

By carefully following these steps and considering the key points, you can successfully execute a VARTM process to produce high-quality composite parts. The next chapter will delve into the critical elements of VARTM process design, which will help you optimize your setup for specific applications.

Vacuum-assisted Resin Transfer Molding (VARTM) has gained popularity in various industries due to its unique combination of benefits. However, like any manufacturing process, it also has its limitations. This chapter explores the advantages and disadvantages of VARTM, providing a balanced view of its capabilities and challenges.

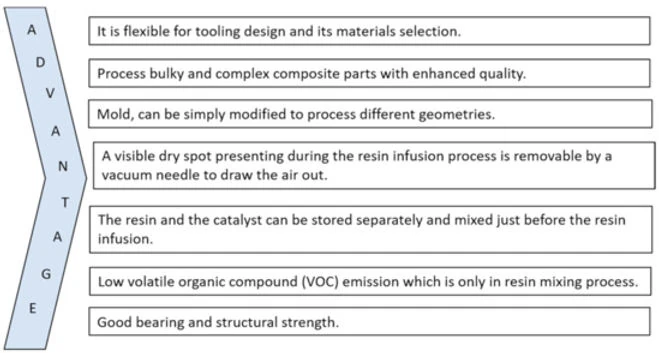

4.1 Advantages of VARTM

VARTM offers several significant benefits that make it an attractive option for composite manufacturing:

1. Flexibility in Mold Design
   • Utilizes one-sided, open molds similar to hand layup processes
   • Allows for easier modification of mold geometries
   • Enables the production of large, complex parts
2. Cost-Effectiveness for Large Parts
   • Lower tooling costs compared to traditional RTM, especially for large components
   • Reduced equipment investment compared to autoclave processing
3. High Part Quality
   • Produces parts with good surface finish on the mold side
   • Achieves relatively high fiber volume fractions (typically 40-55%)
   • Allows for the production of thick sections with proper process control
4. Low VOC Emissions
   • Closed-mold process with reduced volatile organic compound (VOC) emissions
   • Improves workplace safety and environmental compliance
5. Scalability
   • Suitable for both small prototype runs and large production volumes
   • Easily scalable for different part sizes
6. Material Flexibility
   • Compatible with a wide range of fiber reinforcements and resin systems
   • Allows for the use of preforms and complex fiber architectures
7. In-Process Quality Control
   • Transparent vacuum bag enables visual monitoring of resin flow
   • Allows for real-time adjustments during infusion

Learn more about advantages of composite materials

4.2 Disadvantages of VARTM

Despite its many advantages, VARTM also has some limitations and challenges:

1. Air Leakage Risks
   • Heavily dependent on proper vacuum bag sealing
   • Leaks can lead to dry spots and incomplete resin infusion
   • Requires careful preparation and skilled technicians

2. Limited Fiber Volume Fraction Control
   • Maximum achievable fiber volume fraction is lower than in autoclave processing
   • Variations in part thickness can occur due to resin pressure gradients
3. Consumable Materials
   • Requires single-use materials such as vacuum bags, peel ply, and flow media
   • Increases per-part material costs and generates more waste
4. Complex Flow Behavior
   • Resin flow paths can be difficult to predict, especially for complex geometries
   • May require flow simulation and optimization for consistent results
5. Limited Pressure Range
   • Resin injection pressure is limited to 1 atmosphere or less
   • Can limit the ability to compress and remove voids in some cases
6. Post-Processing Requirements
   • Often requires trimming of excess resin and edge finishing
   • May need additional surface treatment for high-quality finishes
7. Temperature Control Challenges
   • Difficulty in maintaining uniform temperature across large parts
   • May require additional heating systems for optimal curing

Explore challenges in composite manufacturing

4.3 Comparison with Other Processes

To better understand the position of VARTM in the landscape of composite manufacturing, let's compare it with other common processes:

Learn about various composites manufacturing methods

4.4 Conclusion

VARTM offers a unique combination of benefits, making it particularly suitable for large, complex composite parts where cost-effectiveness is crucial. Its main advantages lie in its flexibility, scalability, and relatively low tooling costs. However, users must be aware of its limitations, particularly in terms of air leakage risks and fiber volume fraction control.

By understanding these advantages and disadvantages, manufacturers can make informed decisions about when to use VARTM and how to optimize the process for their specific applications. As technology continues to advance, many of the current limitations of VARTM are being addressed through innovations in materials, process control, and simulation tools.

Successful implementation of Vacuum-assisted Resin Transfer Molding (VARTM) requires careful consideration of several critical elements. This chapter focuses on three key aspects of VARTM process design: mold temperature selection, flow process design, and fiber preform compaction and fiber volume fraction control.

5.1 Mold Temperature Selection

Mold temperature plays a crucial role in VARTM process optimization, affecting various aspects of the manufacturing process and final part quality.

5.1.1 Importance of Mold Temperature

1. Resin Viscosity Control: Temperature directly impacts resin viscosity, which affects flow behavior and infusion time.
2. Curing Management: Proper temperature selection ensures optimal curing kinetics and avoids issues like premature gelation.
3. Material Compatibility: Temperature influences the selection of vacuum bagging materials, sealants, and release agents.

5.1.2 Factors Influencing Mold Temperature Selection

• Resin system characteristics (pot life, cure kinetics)
• Part geometry and thickness
• Desired cycle time
• Tooling material thermal properties

5.1.3 Temperature Control Strategies

1. Isothermal Processing: Maintaining a constant mold temperature throughout infusion and cure.
2. Staged Temperature Profile: Varying temperature for optimal infusion and curing conditions.
3. Zoned Heating: Using multiple temperature zones for large or complex parts.

‍

Learn more about composite curing processes

5.2 Flow Process Design

Optimizing the resin flow process is critical for achieving complete wet-out and minimizing defects in VARTM parts.

5.2.1 Key Elements of Flow Process Design

1. Injection Strategy:
   • Point injection vs. line injection
   • Single vs. multiple injection ports
2. Vent Placement:
   • Location and number of vents
   • Use of auxiliary vents for complex geometries
3. Flow Media Design:
   • Selection of distribution media type
   • Optimization of media coverage and overlap
4. Flow Front Control:
   • Use of flow channels or omega tubes
   • Implementation of race-tracking control strategies

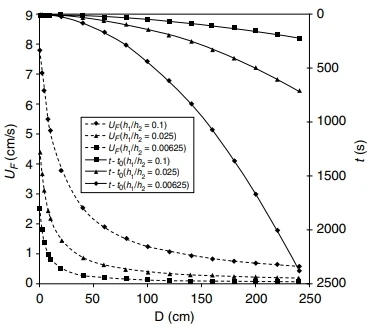

5.2.2 Flow Simulation and Optimization

Utilizing flow simulation software can help optimize the VARTM process:

• Predict filling patterns and times
• Identify potential dry spots or race-tracking issues
• Optimize injection and vent locations

Explore flow process design in composite manufacturing

5.3 Fiber Preform Compaction and Fiber Volume Fraction Control

Achieving the desired fiber volume fraction and maintaining uniform part thickness are critical for part quality and performance.

5.3.1 Factors Affecting Compaction and Fiber Volume Fraction

1. Preform Architecture:
   • Fiber type and orientation
   • Ply count and stacking sequence
2. Compaction Pressure:
   • Vacuum level
   • Atmospheric pressure variations
3. Resin Pressure:
   • Injection pressure
   • Pressure gradients during infusion
4. Time-Dependent Effects:
   • Preform relaxation
   • Resin bleeding and consolidation

5.3.2 Compaction Control Strategies

1. Preform Debulking:
   • Applying vacuum cycles before infusion
   • Using sacrificial bleeder layers
2. Staged Pressure Application:
   • Gradually increasing compaction pressure
   • Utilizing dual vacuum systems
3. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin bleeding

5.3.3 Fiber Volume Fraction Prediction and Control

Utilize compaction models to predict and control fiber volume fraction:

1. Empirical Models:some text
   • Gutowski's model
   • Robitaille and Gauvin's model
2. Experimental Characterization:some text
   • Compaction testing of preform materials
   • In-situ thickness monitoring during VARTM

‍

Learn about fiber reinforcements in composites

5.4 Integrated Process Design

Successful VARTM process design requires the integration of these critical elements:

1. Temperature-Flow Coupling:
   • Optimize mold temperature for desired flow characteristics
   • Consider temperature effects on resin viscosity and cure kinetics
2. Flow-Compaction Interaction:
   • Design flow media to achieve uniform compaction
   • Account for permeability changes due to preform compaction
3. Adaptive Process Control:
   • Implement real-time monitoring and control systems
   • Adjust process parameters based on in-situ measurements

By carefully considering and optimizing these critical elements, manufacturers can design robust VARTM processes that consistently produce high-quality composite parts.

Despite its many advantages, Vacuum-assisted Resin Transfer Molding (VARTM) can present several challenges that may lead to defects in the final composite part. This chapter explores four major areas of concern: air entrapment and dry spots, thickness and fiber volume fraction uniformity, curing and thermal management, and the spring-in phenomenon.

6.1 Air Entrapment and Dry Spots

Air entrapment and dry spots are common issues in VARTM that can significantly impact the quality and performance of the final part.

6.1.1 Causes of Air Entrapment and Dry Spots

1. Improper Mold Filling Design:
   • Poor placement of injection ports and vents
   • Inadequate flow media design
2. Race-Tracking:
   • Preferential flow along edges or channels
   • Uneven flow front progression
3. Slow Filling Process:
   • Resin gelling before complete mold filling
   • Insufficient injection pressure
4. Vacuum System Issues:
   • Leaks in the vacuum bag or sealing
   • Inadequate vacuum level

6.1.2 Mitigation Strategies

1. Optimized Flow Simulation:
   • Use of flow modeling software to predict and prevent dry spots
   • Strategic placement of injection ports and vents
2. Active Flow Control:
   • Implementation of sequential injection strategies
   • Use of flow sensors and adaptive injection control
3. Enhanced Vacuum Integrity:
   • Rigorous leak detection and sealing procedures
   • Use of double vacuum bagging for critical applications
4. Resin Degassing:
   • Proper degassing of resin before injection
   • Use of vacuum-assisted resin degassing during injection

Learn more about defects in composite materials

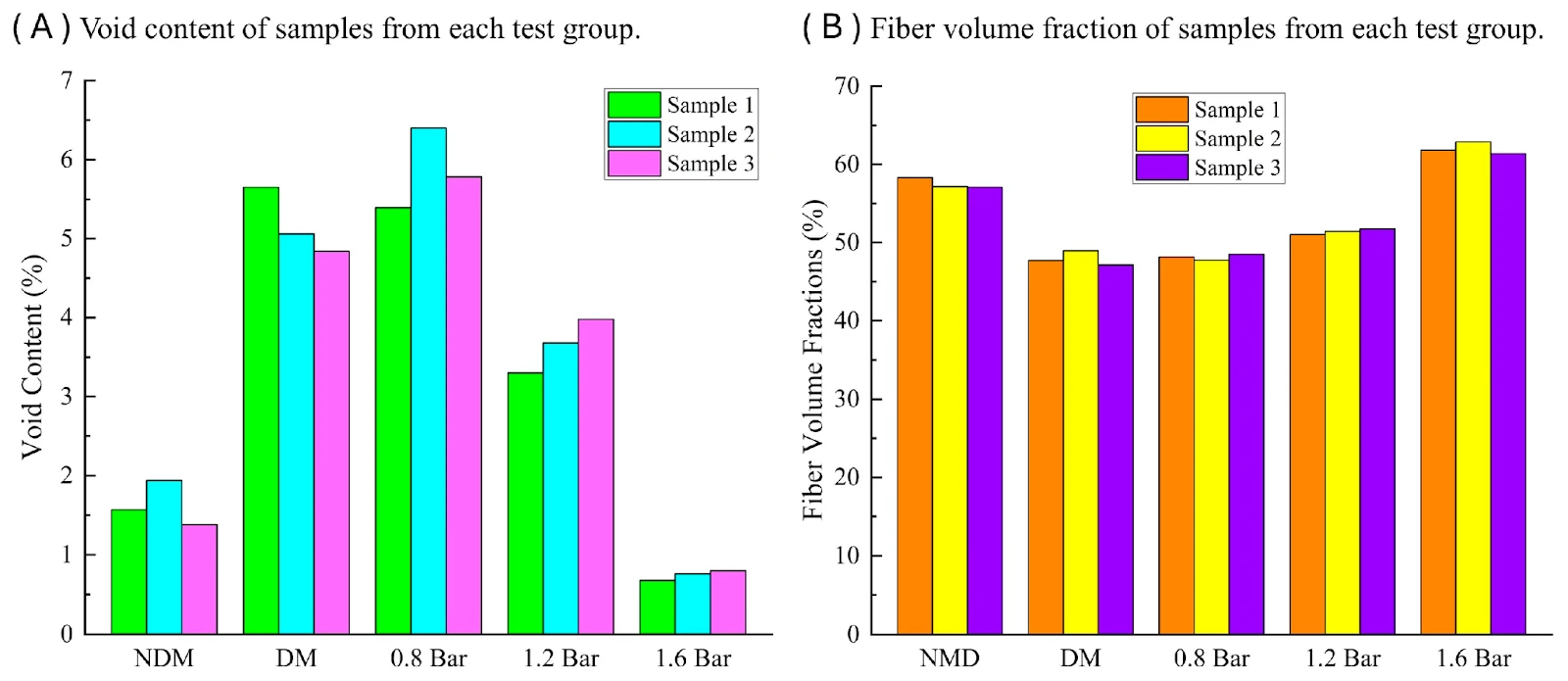

6.2 Thickness and Fiber Volume Fraction Uniformity

Achieving consistent part thickness and fiber volume fraction across large or complex parts can be challenging in VARTM.

6.2.1 Factors Affecting Uniformity

1. Preform Compaction Behavior:
   • Variations in local preform architecture
   • Time-dependent relaxation effects
2. Resin Pressure Gradients:
   • Pressure drop along the flow path
   • Edge effects and race-tracking
3. Tooling Deflection:
   • Flexibility of large molds under vacuum pressure
   • Non-uniform pressure distribution

6.2.2 Control Strategies

1. Graduated Flow Media:
   • Use of variable permeability flow media
   • Tailored flow channel designs
2. Zoned Vacuum Control:
   • Implementation of multiple vacuum zones
   • Gradual pressure application and release
3. In-situ Thickness Monitoring:
   • Use of embedded sensors or external measurement systems
   • Real-time adjustment of process parameters
4. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin redistribution

‍

Explore composite manufacturing process control

6.3 Curing and Thermal Management

Proper curing and thermal management are crucial for producing high-quality VARTM parts, especially for thick or large components.

6.3.1 Challenges in Curing and Thermal Management

1. Exothermic Reactions:
   • Heat buildup in thick sections
   • Potential for thermal degradation or fire
2. Thermal Gradients:
   • Non-uniform curing across the part
   • Residual stress development
3. Cure Shrinkage:
   • Dimensional changes during curing
   • Potential for warpage or internal stresses

6.3.2 Management Strategies

1. Temperature-Controlled Tooling:
   • Use of heated or cooled molds
   • Implementation of zoned temperature control
2. Staged Curing Cycles:
   • Gradual temperature ramps and holds
   • Optimization of cure kinetics for specific resin systems
3. In-situ Cure Monitoring:
   • Use of dielectric sensors or fiber optic systems
   • Real-time adjustment of cure parameters
4. Multi-Stage Curing (MSC) Technique:
   • Sequential curing of manageable layers
   • Mitigation of thermal spiking in thick parts

‍

Learn about curing in composite manufacturing

6.4 Spring-in Phenomenon

Spring-in is a common dimensional accuracy issue in curved composite parts manufactured using VARTM.

6.4.1 Causes of Spring-in

1. Anisotropic Thermal Contraction:
   • Different coefficients of thermal expansion in-plane and through-thickness
2. Cure Shrinkage:
   • Non-uniform shrinkage between fiber and matrix
3. Tool-Part Interaction:
   • Friction between the part and mold during cooling

6.4.2 Prediction and Mitigation Strategies

1. Analytical Modeling:
   • Use of spring-in prediction models (e.g., Hsiao and Gangireddy model)
   • Incorporation of material properties and process parameters
2. Tooling Compensation:
   • Design of molds with adjusted curvature to account for spring-in
   • Use of adjustable or modular tooling
3. Fiber Architecture Optimization:
   • Strategic placement of off-axis plies
   • Use of fabric systems with reduced through-thickness CTE
4. Nano-enhanced Matrices:
   • Addition of nanofillers (e.g., CNFs) to reduce matrix shrinkage
   • Tailoring of matrix properties to minimize spring-in
5. Multi-Stage Curing (MSC) Technique:
   • Reduction of spring-in through sequential curing of layers
   • Optimization of inter-layer sliding effects

‍

Explore challenges in composite manufacturing

6.5 Conclusion

Understanding and addressing these defects and challenges is crucial for successful implementation of VARTM in industrial applications. By employing advanced process control, simulation tools, and innovative material solutions, manufacturers can mitigate these issues and produce high-quality, dimensionally accurate composite parts using VARTM.

Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, with recent advancements addressing sustainability concerns, enhancing material properties, and improving process efficiency. This chapter explores three key areas of recent development: green composites and bio-based materials, nanocomposites manufacturing, and process variations for improved performance.

7.1 Green Composites and Bio-based Materials

The growing emphasis on sustainability has led to increased interest in green composites and bio-based materials in VARTM processes.

7.1.1 Bio-based Reinforcements

1. Cellulose Fibers:
   • Derived from plants such as flax, hemp, and jute
   • Challenges: Moisture sensitivity, fiber-matrix compatibility
2. Wood Fibers:some text
   • Sustainable alternative to glass fibers
   • Applications in non-structural components

7.1.2 Bio-based Resins

1. Soy-based Resins:
   • Derived from soybean oil
   • Reduced environmental impact compared to petroleum-based resins
2. Linseed Oil-based Resins:
   • Renewable alternative to traditional thermosets
   • Improved toughness and impact resistance

7.1.3 VARTM Adaptations for Green Composites

1. Fiber Drying:
   • Critical pre-processing step for natural fibers
   • Prevents moisture-induced curing inhibition
2. Fiber Treatment:
   • Surface modifications to improve fiber-matrix compatibility
   • Enhances mechanical properties and moisture resistance
3. Resin Formulation:
   • Tailored viscosity profiles for natural fiber impregnation
   • Optimized cure kinetics for bio-based systems

Learn more about natural fiber composites

7.2 Nanocomposites Manufacturing

The incorporation of nanomaterials in VARTM processes has opened new avenues for enhancing composite properties and functionality.

7.2.1 Types of Nanomaterials

1. Carbon Nanofibers (CNFs):
   • Improved mechanical and electrical properties
   • Reduced spring-in effect in curved parts
2. Carbon Nanotubes (CNTs):
   • Single-walled (SWCNTs) and multi-walled (MWCNTs) variants
   • Enhanced strength, stiffness, and conductivity
3. Nanoclays:
   • Improved barrier properties and flame retardancy
   • Enhanced matrix toughness

7.2.2 Nanocomposite VARTM Challenges

1. Nanoparticle Dispersion:
   • Achieving uniform distribution in the resin
   • Preventing agglomeration during infusion
2. Filtration Effects:
   • Nanoparticle retention by fiber preforms
   • Non-uniform nanoparticle distribution in the final part
3. Viscosity Increase:
   • Impact on resin flow and infusion time
   • Potential for incomplete wet-out

7.2.3 Advanced VARTM Techniques for Nanocomposites

1. IDVARTM (Injection and Double Vacuum-assisted RTM):
   • Uses a secondary vacuum chamber to control preform porosity
   • Facilitates higher nanoparticle loadings


2. Sprayed Nanoparticle Preforms:
   • Pre-bonding nanoparticles to fiber mats
   • Reduces filtration effects during infusion
3. In-situ Polymerization:
   • Infusion of nanoparticle-monomer mixtures
   • Polymerization occurs after complete impregnation

Explore innovations in composite materials

7.3 Process Variations for Improved Performance

Continuous innovation in VARTM processes has led to several variations aimed at enhancing part quality, reducing cycle times, and expanding application ranges.

7.3.1 SCRIMP (Seemann Composites Resin Infusion Molding Process)

1. Key Features:
   • Utilizes a high-permeability distribution medium
   • Enables faster infusion of large parts
2. Advantages:
   • Reduced cycle times
   • Improved thickness uniformity

7.3.2 CAPRI (Controlled Atmospheric Pressure Resin Infusion)

1. Process Characteristics:
   • Uses a partial vacuum in the resin reservoir
   • Allows for precise control of resin flow rate
2. Benefits:
   • Reduced void content
   • Enhanced fiber volume fraction control

7.3.3 VAP (Vacuum-Assisted Process)

1. Unique Aspect:
   • Incorporates a semi-permeable membrane
   • Allows for continuous degassing during infusion and cure
2. Advantages:
   • Reduced void content
   • Improved surface quality



7.3.4 CARTM (Continuous Automated Resin Transfer Molding)

1. Process Innovation:
   • Combines continuous fiber placement with in-situ resin infusion
   • Enables production of large, complex structures
2. Key Benefits:
   • Reduced labor costs
   • Improved repeatability and quality control

7.3.5 Multi-stage Curing (MSC) Technique

1. Approach:
   • Sequential curing of manageable layers
   • Particularly useful for thick composites
2. Advantages:
   • Mitigates thermal spiking issues
   • Reduces spring-in effect in curved parts

Learn about advanced manufacturing techniques

7.4 Conclusion

These recent advances in VARTM technology demonstrate the process's adaptability and potential for future growth. The integration of sustainable materials, nanomaterials, and innovative process variations is expanding the capabilities of VARTM, making it an increasingly attractive option for a wide range of applications. As research continues, we can expect further improvements in part quality, process efficiency, and the environmental impact of composite manufacturing using VARTM techniques.

The Vacuum-Assisted Process (VAP) is an innovative variation of VARTM that incorporates a semi-permeable membrane to enhance process control and part quality. This chapter explores the VAP process, its unique characteristics, and the benefits it offers over traditional VARTM.

8.1 Process Description and Infusion Behavior

VAP introduces a crucial modification to the standard VARTM setup by incorporating a membrane layer that is permeable to gases but impermeable to resin.

8.1.1 VAP Setup

The typical VAP layup consists of the following components (from bottom to top):

1. Mold
2. Dry fiber preform
3. Peel ply
4. Distribution media
5. Semi-permeable membrane
6. Breather material
7. Vacuum bag

8.1.2 Infusion Behavior

1. Initial Stage:
   • Resin flows through the distribution media and into the preform
   • Behavior similar to standard VARTM
2. Mid-Infusion:
   • Uniform vacuum maintained across the part surface
   • Continuous degassing occurs through the membrane
3. Post-Filling:
   • No resin bleeding through vents
   • Pressure equilibrium reached based on total infused resin amount

8.1.3 Key Differences from Standard VARTM

1. Vacuum Distribution:
   • Entire surface connected to vacuum, reducing need for optimized vent placement
2. Degassing:
   • Continuous removal of volatiles during infusion and cure
3. Pressure Behavior:
   • Distinct post-infusion pressure profile due to lack of resin bleeding

‍

Learn more about VARTM process variations

8.2 Membrane Evaluation

The success of the VAP process heavily relies on the properties and performance of the semi-permeable membrane.

8.2.1 Membrane Structure

1. Composition:
   • Typically made of polytetrafluoroethylene (PTFE)
   • Two-layer structure: membrane and support layer
2. Pore Characteristics:
   • Nanoporous structure
   • Pore size distribution critical for performance

8.2.2 Key Membrane Properties

1. Gas Permeability:
   • Allows for continuous degassing
   • Maintains uniform vacuum across the part
2. Resin Impermeability:
   • Prevents resin penetration at typical process pressures
   • Pressure-dependent barrier properties
3. Temperature Resistance:
   • Suitable for use up to at least 200°C
   • Compatible with high-temperature resin systems

8.2.3 Membrane Performance Modeling

Membrane performance can be modeled based on:

1. Pore Size Distribution:
   • Measured using standard porometry techniques
2. Resin-Membrane Interaction:
   • Contact angle between resin and membrane surface
   • Surface tension of the resin
3. Applied Pressure:
   • Permeability changes as a function of pressure

Explore advanced materials in composite manufacturing

8.3 Process and Material Property Improvements

The VAP process offers several advantages over standard VARTM, leading to improvements in both the manufacturing process and the final part properties.

8.3.1 Process Improvements

1. Enhanced Robustness:
   • Reduced sensitivity to vent placement
   • Minimized risk of dry spot formation
2. Improved Filling Control:
   • Uniform vacuum distribution across the part surface
   • Better management of race-tracking effects
3. Simplified Setup:
   • Reduced need for complex vent systems
   • Potential for more consistent results across different part geometries
4. Extended Processing Window:
   • Continuous degassing allows for longer infusion times
   • Beneficial for large or complex parts

8.3.2 Material Property Enhancements

1. Reduced Void Content:
   • Continuous degassing during infusion and cure
   • Typical void content below 1% achievable
2. Improved Surface Quality:
   • Reduced surface porosity due to enhanced degassing
   • Potential for Class A surface finish on mold side
3. Consistent Fiber Volume Fraction:
   • Better control of resin content across the part
   • Improved mechanical property consistency

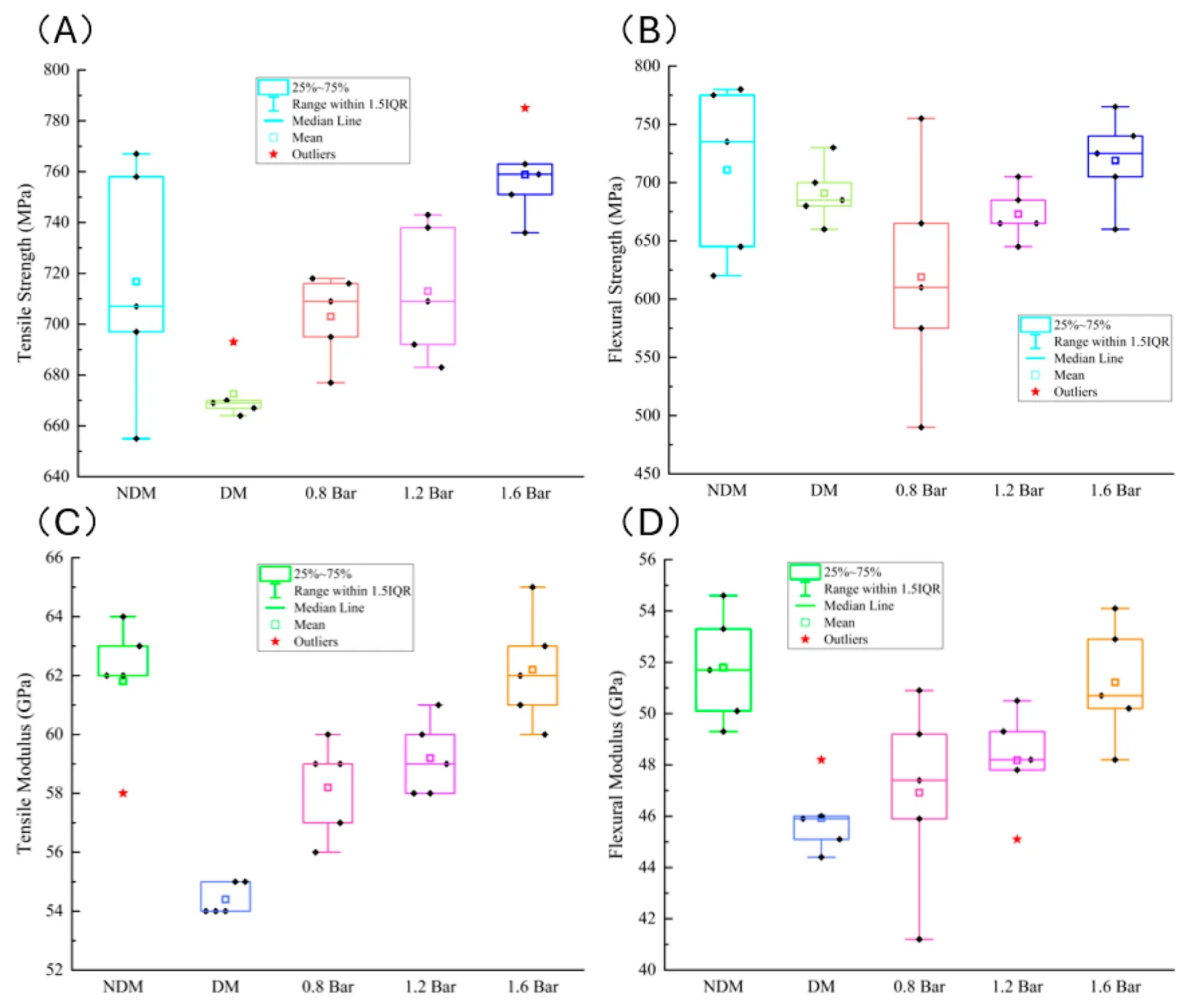

8.3.3 Comparative Study Results

Key observations:

• VAP achieved lower void content with slightly lower fiber volume fraction
• More consistent results (lower standard deviation) with VAP

8.3.4 Optimization Opportunities

1. Resin Inlet Control:
   • Optimized closing of resin inlet before complete filling
   • Potential to maximize fiber volume fraction while minimizing voids
2. Temperature Profiling:
   • Tailored temperature cycles for specific resin systems
   • Optimization of cure kinetics and degassing efficiency
3. Membrane Selection:
   • Customized membranes for specific resin systems and process conditions
   • Balancing gas permeability and resin barrier properties

Learn about process optimization in composite manufacturing

8.4 Conclusion

The Vacuum-Assisted Process (VAP) represents a significant advancement in VARTM technology. By incorporating a semi-permeable membrane, VAP offers improved process control, reduced defects, and enhanced material properties. As membrane technology continues to evolve and process optimization techniques advance, VAP is likely to find increasing application in the production of high-performance composite parts, particularly in industries demanding high quality and consistency, such as aerospace and automotive.

As Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, new applications emerge, and research drives further improvements. This chapter explores the future of VARTM technology, highlighting emerging applications, ongoing research and development efforts, and potential areas for process enhancement.

9.1 Emerging Applications

VARTM's versatility and cost-effectiveness are opening doors to new applications across various industries.

9.1.1 Aerospace

1. Large Structural Components:
   • Wing spars and fuselage sections
   • Potential for reduced weight and assembly costs
2. Urban Air Mobility:
   • Structural components for electric vertical takeoff and landing (eVTOL) vehicles
   • Emphasis on high-performance, lightweight structures

9.1.2 Renewable Energy

1. Wind Energy:
   • Larger wind turbine blades (100+ meters)
   • Integration of smart materials for structural health monitoring
2. Tidal and Wave Energy:
   • Corrosion-resistant composite structures
   • Complex geometries for improved energy capture

9.1.3 Automotive

1. Electric Vehicles:
   • Battery enclosures and structural battery components
   • Lightweight body panels and chassis structures
2. Hydrogen Fuel Cell Vehicles:
   • High-pressure hydrogen storage tanks
   • Integration of composite bipolar plates in fuel cells

9.1.4 Infrastructure

1. Bridge Construction:
   • Modular composite bridge decks
   • Corrosion-resistant reinforcement for concrete structures
2. Pipelines and Storage Tanks:
   • Large-diameter composite pipes for oil and gas industry
   • Chemical and corrosion-resistant storage tanks

Explore innovations in composite materials applications

9.2 Ongoing Research and Development

Continuous research efforts are driving VARTM technology forward, addressing current limitations and exploring new possibilities.

9.2.1 Advanced Simulation and Modeling

1. Multi-physics Simulation:
   • Coupled flow-thermal-cure models
   • Prediction of residual stresses and part distortion
2. Machine Learning Integration:
   • Optimization of process parameters
   • Real-time defect prediction and prevention

9.2.2 Smart Manufacturing Technologies

1. In-situ Sensing:
   • Distributed fiber optic sensors for flow and cure monitoring
   • Integration of nanoparticle-based sensors in composites
2. Augmented Reality (AR) Assisted Manufacturing:
   • Guided layup and bagging processes
   • Real-time visualization of flow progression and potential issues

9.2.3 Novel Materials and Hybrid Processes

1. Thermoplastic VARTM:
   • Development of low-viscosity thermoplastic resins
   • In-situ polymerization techniques
2. Multifunctional Composites:
   • Integration of energy harvesting and storage capabilities
   • Self-healing and self-sensing composites
3. Additive Manufacturing Hybrid Processes:
   • Combination of 3D printed cores or reinforcements with VARTM
   • Tailored preforms for optimized performance

Learn about advancements in composite manufacturing

9.3 Potential for Further Process Improvements

Several areas show promise for enhancing VARTM technology and expanding its capabilities.

9.3.1 Enhanced Process Control

1. Adaptive Injection Strategies:
   • Real-time adjustment of injection parameters based on sensor feedback
   • Multi-gate systems with individually controlled injection points
2. Advanced Vacuum Control:
   • Zoned vacuum systems for improved thickness control
   • Pulsed vacuum techniques for enhanced air removal

9.3.2 Improved Resin Systems

1. Snap-Curing Resins:
   • Ultra-fast curing systems for reduced cycle times
   • Tailored rheology for optimal flow and impregnation
2. Self-Regulating Cure Systems:
   • Temperature-triggered catalysts for uniform curing in thick parts
   • Latent curing agents for extended pot life and rapid final cure

9.3.3 Automation and Robotics

1. Automated Preform Assembly:some text
   • Robotic layup and stitching of complex preforms
   • Integration with automated cutting and kitting systems
2. Intelligent Bagging Systems:some text
   • Reusable vacuum bagging solutions
   • Self-sealing and self-diagnosing vacuum systems

9.3.4 Sustainability Enhancements

1. Closed-Loop Recycling:
   • Development of easily recyclable composite systems
   • In-situ resin recovery and reuse technologies
2. Bio-based and CO2-neutral Materials:
   • Advanced natural fiber reinforcements with improved properties
   • Carbon-negative resin systems derived from atmospheric CO2

Explore sustainable manufacturing in composites

9.4 Conclusion

VARTM technology stands at the forefront of advanced composite manufacturing, poised for continued growth and innovation. The emerging applications across aerospace, renewable energy, automotive, and infrastructure sectors highlight the versatility and potential of this process. Ongoing research in areas such as advanced simulation, smart manufacturing technologies, and novel materials promises to address current limitations and unlock new possibilities.

The potential for further process improvements, particularly in areas of enhanced control, improved resin systems, automation, and sustainability, suggests that VARTM will continue to evolve and maintain its relevance in the composites industry. As these advancements materialize, we can expect to see VARTM playing an increasingly important role in the production of high-performance, cost-effective composite structures across a wide range of applications.

The future of VARTM lies in its ability to adapt to changing industry needs, incorporate cutting-edge technologies, and address growing sustainability concerns. By leveraging these opportunities and overcoming existing challenges, VARTM is set to remain a key player in shaping the future of composite manufacturing.

This chapter provides hands-on exercises and real-world case studies to reinforce the theoretical concepts of Vacuum-assisted Resin Transfer Molding (VARTM). Through these practical applications, readers will gain a deeper understanding of VARTM process design, troubleshooting, and industrial implementation.

10.1 Designing a VARTM Setup for a Simple Part

In this exercise, we'll walk through the process of designing a VARTM setup for a simple flat panel.

10.1.1 Exercise Scenario

Design a VARTM setup for a flat composite panel with the following specifications:

• Dimensions: 500 mm x 500 mm x 5 mm
• Material: E-glass fiber / epoxy resin
• Target fiber volume fraction: 50%

10.1.2 Step-by-Step Design Process

1. Mold Selection
   • Choose a flat, rigid mold with dimensions slightly larger than the part
   • Ensure the mold surface is smooth and treated with release agent
2. Fiber Preform Design
   • Calculate the number of fabric layers needed to achieve the target thickness and fiber volume fraction


3. Flow Media Design
   • Select a flow distribution medium that covers the entire part
   • Leave a 25 mm gap around the edges to prevent race-tracking
4. Injection Strategy
   • Choose a line injection along one edge of the part
   • Use spiral tubing or an omega channel for even distribution
5. Vent Placement
   • Position the vent on the opposite edge from the injection line
   • Use a breather strip to ensure uniform vacuum
6. Vacuum Bagging
   • Select a vacuum bag material compatible with the resin system
   • Ensure the bag is larger than the mold to accommodate depth
7. Resin System Selection
   • Choose a low-viscosity epoxy resin suitable for VARTM

Calculate the required resin volume:

Resin volume = Part volume * (1 - Target Vf)

Resin volume = (500 mm * 500 mm * 5 mm) * (1 - 0.50) = 625,000 mm³ ≈ 625 mL

• Add 20% excess: 625 mL * 1.2 = 750 mL

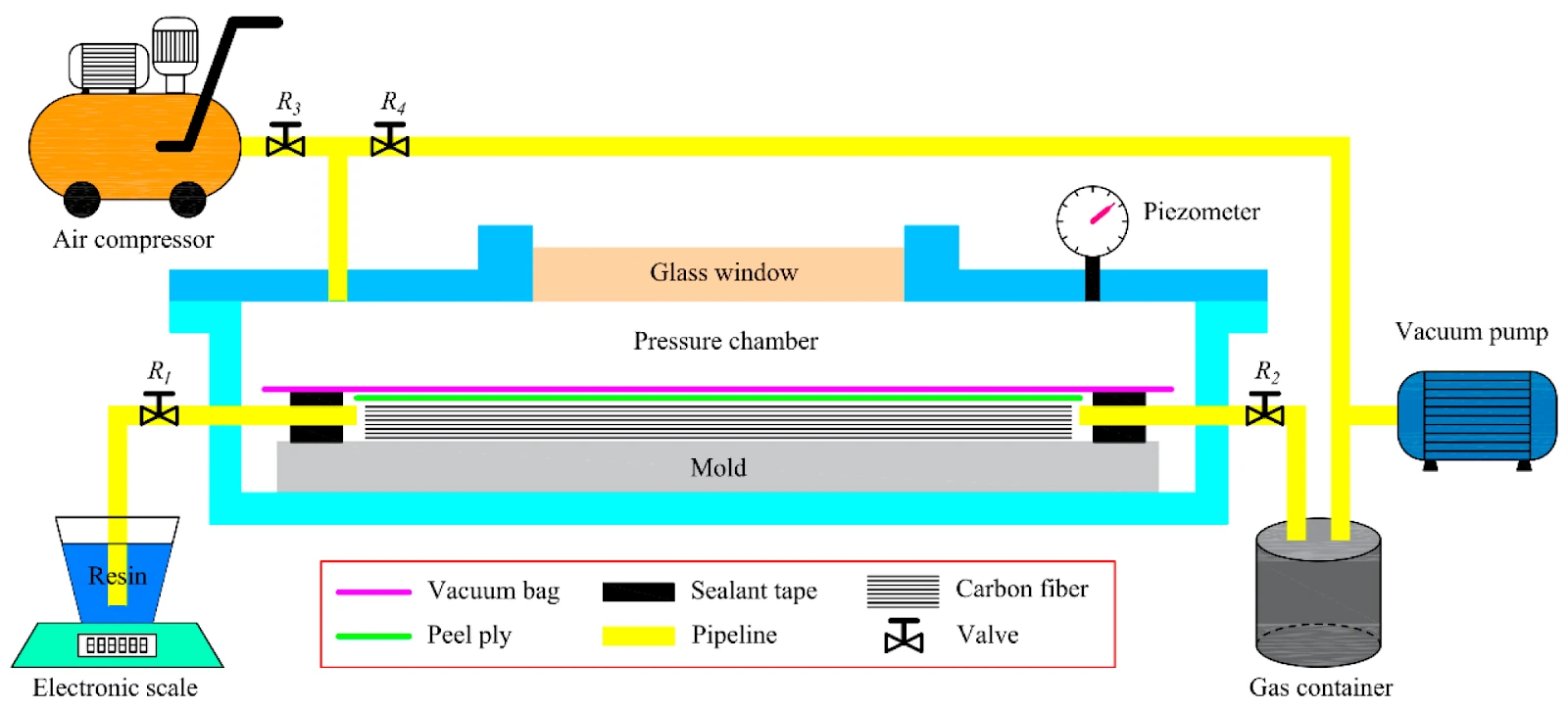

10.1.3 VARTM Setup Diagram

Learn more about VARTM setup

10.2 Troubleshooting Common VARTM Issues

This section presents common VARTM issues and strategies to resolve them.

10.2.1 Scenario 1: Dry Spots

Problem: After infusion, a 10 cm diameter dry spot is observed near the vent.

Potential Causes and Solutions:

1. Inadequate Vacuum
   • Check for leaks in the vacuum bag or sealing
   • Ensure proper vacuum pump capacity
2. Race-Tracking
   • Adjust flow media layout to prevent preferential flow paths
   • Use edge dams or sealant tape to control resin flow
3. Incorrect Vent Placement
   • Reposition vent to ensure it's the last point to be filled
   • Add multiple vents for complex geometries
4. Resin Gelation
   • Verify resin pot life and adjust infusion strategy for faster filling
   • Consider using heated molds to reduce viscosity

10.2.2 Scenario 2: Thickness Variations

Problem: The cured part shows significant thickness variations, with the area near the injection point being thicker.

Potential Causes and Solutions:

1. Non-Uniform Compaction
   • Implement staged pressure application during infusion
   • Use caul plates for improved thickness control
2. Insufficient Bleeding
   • Extend post-filling vacuum time to allow for resin redistribution
   • Optimize resin volume calculations
3. Flow Media Design
   • Use graduated permeability flow media
   • Adjust flow media coverage to promote uniform resin distribution

10.2.3 Scenario 3: Void Content

Problem: Microscopic analysis reveals high void content (>2%) throughout the part.

Potential Causes and Solutions:

1. Inadequate Degassing
   • Improve resin degassing procedures before infusion
   • Consider using a resin trap in the vacuum line
2. Improper Infusion Pressure
   • Optimize vacuum level to balance flow rate and air removal
   • Implement pressure gradients for better air displacement
3. Micro-Voids in Fiber Tows
   • Adjust infusion speed to balance macro and micro-flow
   • Consider using surfactants or coupling agents to improve fiber wetting

Explore defects in composite materials

10.3 Analysis of Real-World VARTM Applications

This section examines case studies of VARTM applications in various industries.

10.3.1 Case Study 1: Wind Turbine Blade Manufacturing

Company: GreenWind Energy Solutions Component: 60-meter wind turbine blade

VARTM Implementation:

• Used a female mold with integrated heating system
• Employed a multi-injection strategy with flow simulation optimization
• Implemented in-situ cure monitoring using fiber optic sensors

Challenges and Solutions:

1. Scale: Developed a modular flow media system for easy handling
2. Cure Management: Utilized zoned heating for uniform curing in thick sections
3. Quality Control: Implemented real-time monitoring and adaptive control systems

Outcomes:

• 15% reduction in manufacturing time
• 8% decrease in overall blade weight
• Improved consistency in mechanical properties

10.3.2 Case Study 2: Aerospace Fuselage Panel

Company: AeroComposites Inc. Component: 3m x 2m fuselage panel with integrated stiffeners

VARTM Implementation:

• Utilized a hybrid process combining VARTM with prepreg stiffeners
• Employed Vacuum-Assisted Process (VAP) with semi-permeable membrane
• Integrated shape-memory alloy sensors for in-service health monitoring

Challenges and Solutions:

1. Complex Geometry: Developed custom 3D-printed flow channels
2. Porosity Control: Implemented oscillating pressure technique during infusion
3. Residual Stress Management: Used staged post-cure cycle optimized through FEA

Outcomes:

• Achieved void content <0.5% consistently
• 20% cost reduction compared to traditional autoclave processing
• Successfully integrated multifunctional capabilities

10.3.3 Case Study 3: Automotive Battery Enclosure

Company: ElectroDrive Innovations Component: Electric vehicle battery enclosure (1.8m x 1.2m x 0.3m)

VARTM Implementation:

• Used a light RTM variant with closable mold for improved surface finish
• Employed carbon fiber/epoxy system with integrated copper mesh for EMI shielding
• Implemented robotic preform assembly and handling

Challenges and Solutions:

1. Fire Resistance: Developed a specialized resin system with intumescent additives
2. Thermal Management: Integrated phase-change materials within the laminate
3. High-Volume Production: Designed a semi-automated VARTM cell with quick-change tooling

Outcomes:

• Met stringent safety and EMI shielding requirements
• Achieved 40% weight reduction compared to metallic alternatives
• Reduced cycle time to 45 minutes, enabling higher production volumes

Explore composite applications in automotive industry

10.4 Conclusion

These practical exercises and case studies demonstrate the versatility and potential of VARTM in various applications. By working through the design exercise, troubleshooting scenarios, and analyzing real-world implementations, readers can gain valuable insights into the practical aspects of VARTM processing. The ability to adapt the VARTM process to different scales, geometries, and performance requirements highlights its continued relevance in advanced composite manufacturing.

As the technology continues to evolve, with innovations in materials, process control, and automation, VARTM is expected to play an increasingly important role in producing high-performance, cost-effective composite structures across multiple industries.

Vacuum-assisted Resin Transfer Molding (VARTM) is a closed-mold process that has revolutionized the manufacturing of fiber-reinforced polymer (FRP) composite parts. This chapter introduces the basic concepts of VARTM, its historical development, and how it compares to other composite manufacturing processes.

1.1 Definition and Basic Concept

VARTM is a manufacturing process that combines the benefits of traditional Resin Transfer Molding (RTM) with the advantages of open-mold hand layup processing. The process involves the following key elements:

• A one-sided mold (typically an open mold)
• Dry fiber reinforcement (preform)
• A vacuum bag to seal the preform against the mold
• Resin injection under vacuum pressure
• The use of atmospheric pressure for compaction

Learn more about composite materials

In VARTM, the pressure difference between the environmental (atmospheric) pressure and the vacuum pressure is utilized to compact the fiber preform and draw the resin into the mold. This unique approach allows for the production of high-quality, large-scale composite parts with relatively low tooling costs.

1.2 Historical Development

VARTM has been developed over the past two decades as an evolution of traditional RTM processes. Key milestones include:

• The introduction of the SCRIMP (Seemann Composites Resin Infusion Molding Process) in 1990
• Continuous improvements in vacuum bagging materials and techniques
• Development of flow modeling and optimization tools
• Integration of advanced sensors and control systems

These advancements have led to VARTM becoming a widely adopted process in various industries, including marine, aerospace, automotive, and renewable energy.

1.3 Comparison with Other Composite Manufacturing Processes

VARTM offers several advantages over traditional composite manufacturing methods:

Explore challenges in switching to composite materials

VARTM combines the following key benefits:

1. High part quality and repeatability (similar to RTM)
2. Flexibility and scalability (similar to hand layup)
3. Reduced volatile organic compound (VOC) emissions
4. Cost-effectiveness for large structures

However, VARTM also has some limitations:

1. Potential for air leakage and dry spot formation
2. Limited control over fiber volume fraction
3. Challenges in achieving uniform part thickness

Despite these challenges, VARTM has become a preferred method for manufacturing large composite parts in many industries due to its versatility and cost-effectiveness.

Discover more about composites manufacturing methods

In the following chapters, we will delve deeper into the fundamentals of VARTM, explore the process setup and procedure, and discuss the critical elements of VARTM process design.

Understanding the fundamental principles behind Vacuum-assisted Resin Transfer Molding (VARTM) is crucial for optimizing the process and producing high-quality composite parts. This chapter explores the key physical phenomena that govern the VARTM process.

2.1 Resin Flow Phenomenon

The resin flow in VARTM is governed by Darcy's law, which describes fluid flow through porous media. The generalized Darcy's law is given by:

u_D = -(K/μ) * ∇P

Where:

• u_D is the Darcy velocity (volume-averaged velocity)
• K is the permeability tensor of the porous medium
• μ is the dynamic viscosity of the resin
• ∇P is the pressure gradient

Continuity equation:

∇ · u_D = 0

Learn more about resin flow in composite manufacturing

Key aspects of resin flow in VARTM include:

1. Through-thickness flow: The primary direction of resin flow is through the thickness of the preform, facilitated by the flow distribution medium.
2. Race-tracking: Resin may flow faster along edges or channels, leading to non-uniform filling.
3. Dual-scale flow: Resin flows both between fiber tows (macro-flow) and within fiber tows (micro-flow).

2.2 Fiber Preform Compaction

Fiber preform compaction is a critical aspect of VARTM that affects the final part quality and fiber volume fraction. The relationship between compaction pressure and fiber volume fraction can be described by models such as:

1. Gutowski's model:

P_comp = A * ((V_f - V_f0) / (V_f∞ - V_f))^4

2. Robitaille and Gauvin's model:

V_f = V_f1 * P_comp^BWhere:

• P_comp is the compaction pressure
• V_f is the fiber volume fraction
• A, V_f0, V_f∞, V_f1, and B are empirical constants

Where:

• $P_{comp}$ is the compaction pressure
• $V_f$ is the fiber volume fraction
• $A$, $V_{f0}$, $V_{f\infty}$, $V_{f1}$, and $B$ are empirical constants

Explore more about fiber reinforcements

Compaction affects:

• Preform thickness
• Porosity
• Permeability

2.3 Resin Viscosity

Resin viscosity plays a crucial role in the VARTM process, affecting flow behavior and filling time. The viscosity of thermoset resins used in VARTM is typically modeled as a function of temperature and degree of cure:

μ = μ_0 * exp(E/(R*T)) * exp(a_c * α)

Where:

• μ is the resin viscosity
• μ_0 is a constant
• E is the flow activation energy
• R is the universal gas constant
• T is the absolute temperature
• a_c is a constant
• α is the degree of cure

Key considerations for resin viscosity in VARTM:

1. Temperature control to maintain optimal viscosity during infusion
2. Pot life (working time) of the resin system
3. Viscosity changes during the curing process

2.4 Composite Curing Behavior

The curing process in VARTM involves complex heat transfer and chemical reactions. The one-dimensional energy balance equation for the curing process is:

ρ_c * c_pc * ∂T/∂t = ∂/∂z(k_czz * ∂T/∂z) + ρ_r * ε_r * H_r * ∂α/∂t

Where:

• ρ_c, c_pc, and k_czz are the density, specific heat capacity, and thermal conductivity of the composite
• ρ_r, ε_r, and H_r are the density, porosity, and reaction heat of the resin
• α is the degree of cure

The cure kinetics can be modeled using equations such as:

∂α/∂t = A * exp(-E/(R*T)) * α^m * (1-α)^n

Where A, E, m, and n are cure kinetic parameters.

Learn about composite curing and processing

Important aspects of curing in VARTM:

1. Exothermic reactions and heat management
2. Shrinkage and residual stress development
3. Gel time and vitrification

Understanding these fundamental principles allows for better process control and optimization in VARTM, leading to improved part quality and reduced manufacturing defects.

The Vacuum-assisted Resin Transfer Molding (VARTM) process requires careful setup and execution to produce high-quality composite parts. This chapter provides a detailed guide to the VARTM process setup and procedure, highlighting key steps and considerations.

3.1 VARTM Setup Overview

A typical VARTM setup consists of the following components:

1. Mold
2. Fiber preform
3. Peel ply
4. Flow distribution medium
5. Resin injection port(s)
6. Vacuum port(s)
7. Vacuum bag
8. Sealing tape

Learn more about VARTM setup

3.2 Step-by-Step VARTM Procedure

Follow these steps to set up and execute a VARTM process:

1. Mold Preparation
   • Clean the mold surface thoroughly
   • Apply mold release agent
   • Ensure the mold is level and stable
2. Fiber Preform Layup
   • Cut fiber reinforcement to size
   • Stack layers according to the designed layup sequence
   • Ensure proper fiber orientation
3. Peel Ply Application
   • Place peel ply over the entire fiber preform
   • Ensure it extends beyond the part edges
4. Flow Distribution Medium Placement
   • Position the flow distribution medium over the peel ply
   • Extend it to cover most of the part, but not to the vacuum port
5. Resin Injection Port Installation
   • Place the resin injection port(s) at the designed location(s)
   • Use spiral tubing or omega channels for even resin distribution
6. Vacuum Port Placement
   • Position the vacuum port(s) at the opposite end from the injection port(s)
   • Ensure they're not in direct contact with the flow distribution medium
7. Vacuum Bagging
   • Apply sealing tape around the perimeter of the mold
   • Carefully place the vacuum bag over the entire layup
   • Seal the bag to the mold, ensuring no air leaks
8. Leak Testing
   • Connect the vacuum port to the vacuum pump
   • Apply vacuum and check for leaks
   • Fix any leaks found
9. Resin Preparation
   • Mix resin and hardener according to the manufacturer's instructions
   • Degas the resin mixture if necessary
10. Resin Infusion
    • Connect the resin inlet to the resin reservoir
    • Open the inlet and allow resin to flow into the preform
    • Monitor the resin flow front progression
11. Post-Filling Procedure
    • Once the part is fully wetted, close the resin inlet
    • Maintain vacuum for the specified curing time
12. Curing
    • Allow the part to cure according to the resin system's cure cycle
    • Maintain vacuum throughout the curing process
13. Demolding
    • After full cure, remove the vacuum bag and ancillary materials
    • Carefully remove the part from the mold

Explore composites manufacturing methods

3.3 Key Considerations

To ensure a successful VARTM process, keep the following points in mind:

1. Preform Compaction: Consider using a debulking process to better compact the fiber preform before infusion.
2. Flow Front Control: Monitor the resin flow front and adjust injection as needed to prevent dry spots or race-tracking.
3. Temperature Management: Control the mold temperature to optimize resin viscosity and cure kinetics.
4. Vacuum Integrity: Continuously monitor vacuum pressure and address any leaks immediately.
5. Resin Bleeding: Allow some extra resin to bleed out after full wetting to remove tiny air bubbles.
6. Post-Cure: Depending on the resin system, a post-cure cycle may be necessary to achieve optimal mechanical properties.

Learn about process monitoring in composites manufacturing

By carefully following these steps and considering the key points, you can successfully execute a VARTM process to produce high-quality composite parts. The next chapter will delve into the critical elements of VARTM process design, which will help you optimize your setup for specific applications.

Vacuum-assisted Resin Transfer Molding (VARTM) has gained popularity in various industries due to its unique combination of benefits. However, like any manufacturing process, it also has its limitations. This chapter explores the advantages and disadvantages of VARTM, providing a balanced view of its capabilities and challenges.

4.1 Advantages of VARTM

VARTM offers several significant benefits that make it an attractive option for composite manufacturing:

1. Flexibility in Mold Design
   • Utilizes one-sided, open molds similar to hand layup processes
   • Allows for easier modification of mold geometries
   • Enables the production of large, complex parts
2. Cost-Effectiveness for Large Parts
   • Lower tooling costs compared to traditional RTM, especially for large components
   • Reduced equipment investment compared to autoclave processing
3. High Part Quality
   • Produces parts with good surface finish on the mold side
   • Achieves relatively high fiber volume fractions (typically 40-55%)
   • Allows for the production of thick sections with proper process control
4. Low VOC Emissions
   • Closed-mold process with reduced volatile organic compound (VOC) emissions
   • Improves workplace safety and environmental compliance
5. Scalability
   • Suitable for both small prototype runs and large production volumes
   • Easily scalable for different part sizes
6. Material Flexibility
   • Compatible with a wide range of fiber reinforcements and resin systems
   • Allows for the use of preforms and complex fiber architectures
7. In-Process Quality Control
   • Transparent vacuum bag enables visual monitoring of resin flow
   • Allows for real-time adjustments during infusion

Learn more about advantages of composite materials

4.2 Disadvantages of VARTM

Despite its many advantages, VARTM also has some limitations and challenges:

1. Air Leakage Risks
   • Heavily dependent on proper vacuum bag sealing
   • Leaks can lead to dry spots and incomplete resin infusion
   • Requires careful preparation and skilled technicians

2. Limited Fiber Volume Fraction Control
   • Maximum achievable fiber volume fraction is lower than in autoclave processing
   • Variations in part thickness can occur due to resin pressure gradients
3. Consumable Materials
   • Requires single-use materials such as vacuum bags, peel ply, and flow media
   • Increases per-part material costs and generates more waste
4. Complex Flow Behavior
   • Resin flow paths can be difficult to predict, especially for complex geometries
   • May require flow simulation and optimization for consistent results
5. Limited Pressure Range
   • Resin injection pressure is limited to 1 atmosphere or less
   • Can limit the ability to compress and remove voids in some cases
6. Post-Processing Requirements
   • Often requires trimming of excess resin and edge finishing
   • May need additional surface treatment for high-quality finishes
7. Temperature Control Challenges
   • Difficulty in maintaining uniform temperature across large parts
   • May require additional heating systems for optimal curing

Explore challenges in composite manufacturing

4.3 Comparison with Other Processes

To better understand the position of VARTM in the landscape of composite manufacturing, let's compare it with other common processes:

Learn about various composites manufacturing methods

4.4 Conclusion

VARTM offers a unique combination of benefits, making it particularly suitable for large, complex composite parts where cost-effectiveness is crucial. Its main advantages lie in its flexibility, scalability, and relatively low tooling costs. However, users must be aware of its limitations, particularly in terms of air leakage risks and fiber volume fraction control.

By understanding these advantages and disadvantages, manufacturers can make informed decisions about when to use VARTM and how to optimize the process for their specific applications. As technology continues to advance, many of the current limitations of VARTM are being addressed through innovations in materials, process control, and simulation tools.

Successful implementation of Vacuum-assisted Resin Transfer Molding (VARTM) requires careful consideration of several critical elements. This chapter focuses on three key aspects of VARTM process design: mold temperature selection, flow process design, and fiber preform compaction and fiber volume fraction control.

5.1 Mold Temperature Selection

Mold temperature plays a crucial role in VARTM process optimization, affecting various aspects of the manufacturing process and final part quality.

5.1.1 Importance of Mold Temperature

1. Resin Viscosity Control: Temperature directly impacts resin viscosity, which affects flow behavior and infusion time.
2. Curing Management: Proper temperature selection ensures optimal curing kinetics and avoids issues like premature gelation.
3. Material Compatibility: Temperature influences the selection of vacuum bagging materials, sealants, and release agents.

5.1.2 Factors Influencing Mold Temperature Selection

• Resin system characteristics (pot life, cure kinetics)
• Part geometry and thickness
• Desired cycle time
• Tooling material thermal properties

5.1.3 Temperature Control Strategies

1. Isothermal Processing: Maintaining a constant mold temperature throughout infusion and cure.
2. Staged Temperature Profile: Varying temperature for optimal infusion and curing conditions.
3. Zoned Heating: Using multiple temperature zones for large or complex parts.

‍

Learn more about composite curing processes

5.2 Flow Process Design

Optimizing the resin flow process is critical for achieving complete wet-out and minimizing defects in VARTM parts.

5.2.1 Key Elements of Flow Process Design

1. Injection Strategy:
   • Point injection vs. line injection
   • Single vs. multiple injection ports
2. Vent Placement:
   • Location and number of vents
   • Use of auxiliary vents for complex geometries
3. Flow Media Design:
   • Selection of distribution media type
   • Optimization of media coverage and overlap
4. Flow Front Control:
   • Use of flow channels or omega tubes
   • Implementation of race-tracking control strategies

5.2.2 Flow Simulation and Optimization

Utilizing flow simulation software can help optimize the VARTM process:

• Predict filling patterns and times
• Identify potential dry spots or race-tracking issues
• Optimize injection and vent locations

Explore flow process design in composite manufacturing

5.3 Fiber Preform Compaction and Fiber Volume Fraction Control

Achieving the desired fiber volume fraction and maintaining uniform part thickness are critical for part quality and performance.

5.3.1 Factors Affecting Compaction and Fiber Volume Fraction

1. Preform Architecture:
   • Fiber type and orientation
   • Ply count and stacking sequence
2. Compaction Pressure:
   • Vacuum level
   • Atmospheric pressure variations
3. Resin Pressure:
   • Injection pressure
   • Pressure gradients during infusion
4. Time-Dependent Effects:
   • Preform relaxation
   • Resin bleeding and consolidation

5.3.2 Compaction Control Strategies

1. Preform Debulking:
   • Applying vacuum cycles before infusion
   • Using sacrificial bleeder layers
2. Staged Pressure Application:
   • Gradually increasing compaction pressure
   • Utilizing dual vacuum systems
3. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin bleeding

5.3.3 Fiber Volume Fraction Prediction and Control

Utilize compaction models to predict and control fiber volume fraction:

1. Empirical Models:some text
   • Gutowski's model
   • Robitaille and Gauvin's model
2. Experimental Characterization:some text
   • Compaction testing of preform materials
   • In-situ thickness monitoring during VARTM

‍

Learn about fiber reinforcements in composites

5.4 Integrated Process Design

Successful VARTM process design requires the integration of these critical elements:

1. Temperature-Flow Coupling:
   • Optimize mold temperature for desired flow characteristics
   • Consider temperature effects on resin viscosity and cure kinetics
2. Flow-Compaction Interaction:
   • Design flow media to achieve uniform compaction
   • Account for permeability changes due to preform compaction
3. Adaptive Process Control:
   • Implement real-time monitoring and control systems
   • Adjust process parameters based on in-situ measurements

By carefully considering and optimizing these critical elements, manufacturers can design robust VARTM processes that consistently produce high-quality composite parts.

Despite its many advantages, Vacuum-assisted Resin Transfer Molding (VARTM) can present several challenges that may lead to defects in the final composite part. This chapter explores four major areas of concern: air entrapment and dry spots, thickness and fiber volume fraction uniformity, curing and thermal management, and the spring-in phenomenon.

6.1 Air Entrapment and Dry Spots

Air entrapment and dry spots are common issues in VARTM that can significantly impact the quality and performance of the final part.

6.1.1 Causes of Air Entrapment and Dry Spots

1. Improper Mold Filling Design:
   • Poor placement of injection ports and vents
   • Inadequate flow media design
2. Race-Tracking:
   • Preferential flow along edges or channels
   • Uneven flow front progression
3. Slow Filling Process:
   • Resin gelling before complete mold filling
   • Insufficient injection pressure
4. Vacuum System Issues:
   • Leaks in the vacuum bag or sealing
   • Inadequate vacuum level

6.1.2 Mitigation Strategies

1. Optimized Flow Simulation:
   • Use of flow modeling software to predict and prevent dry spots
   • Strategic placement of injection ports and vents
2. Active Flow Control:
   • Implementation of sequential injection strategies
   • Use of flow sensors and adaptive injection control
3. Enhanced Vacuum Integrity:
   • Rigorous leak detection and sealing procedures
   • Use of double vacuum bagging for critical applications
4. Resin Degassing:
   • Proper degassing of resin before injection
   • Use of vacuum-assisted resin degassing during injection

Learn more about defects in composite materials

6.2 Thickness and Fiber Volume Fraction Uniformity

Achieving consistent part thickness and fiber volume fraction across large or complex parts can be challenging in VARTM.

6.2.1 Factors Affecting Uniformity

1. Preform Compaction Behavior:
   • Variations in local preform architecture
   • Time-dependent relaxation effects
2. Resin Pressure Gradients:
   • Pressure drop along the flow path
   • Edge effects and race-tracking
3. Tooling Deflection:
   • Flexibility of large molds under vacuum pressure
   • Non-uniform pressure distribution

6.2.2 Control Strategies

1. Graduated Flow Media:
   • Use of variable permeability flow media
   • Tailored flow channel designs
2. Zoned Vacuum Control:
   • Implementation of multiple vacuum zones
   • Gradual pressure application and release
3. In-situ Thickness Monitoring:
   • Use of embedded sensors or external measurement systems
   • Real-time adjustment of process parameters
4. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin redistribution

‍

Explore composite manufacturing process control

6.3 Curing and Thermal Management

Proper curing and thermal management are crucial for producing high-quality VARTM parts, especially for thick or large components.

6.3.1 Challenges in Curing and Thermal Management

1. Exothermic Reactions:
   • Heat buildup in thick sections
   • Potential for thermal degradation or fire
2. Thermal Gradients:
   • Non-uniform curing across the part
   • Residual stress development
3. Cure Shrinkage:
   • Dimensional changes during curing
   • Potential for warpage or internal stresses

6.3.2 Management Strategies

1. Temperature-Controlled Tooling:
   • Use of heated or cooled molds
   • Implementation of zoned temperature control
2. Staged Curing Cycles:
   • Gradual temperature ramps and holds
   • Optimization of cure kinetics for specific resin systems
3. In-situ Cure Monitoring:
   • Use of dielectric sensors or fiber optic systems
   • Real-time adjustment of cure parameters
4. Multi-Stage Curing (MSC) Technique:
   • Sequential curing of manageable layers
   • Mitigation of thermal spiking in thick parts

‍

Learn about curing in composite manufacturing

6.4 Spring-in Phenomenon

Spring-in is a common dimensional accuracy issue in curved composite parts manufactured using VARTM.

6.4.1 Causes of Spring-in

1. Anisotropic Thermal Contraction:
   • Different coefficients of thermal expansion in-plane and through-thickness
2. Cure Shrinkage:
   • Non-uniform shrinkage between fiber and matrix
3. Tool-Part Interaction:
   • Friction between the part and mold during cooling

6.4.2 Prediction and Mitigation Strategies

1. Analytical Modeling:
   • Use of spring-in prediction models (e.g., Hsiao and Gangireddy model)
   • Incorporation of material properties and process parameters
2. Tooling Compensation:
   • Design of molds with adjusted curvature to account for spring-in
   • Use of adjustable or modular tooling
3. Fiber Architecture Optimization:
   • Strategic placement of off-axis plies
   • Use of fabric systems with reduced through-thickness CTE
4. Nano-enhanced Matrices:
   • Addition of nanofillers (e.g., CNFs) to reduce matrix shrinkage
   • Tailoring of matrix properties to minimize spring-in
5. Multi-Stage Curing (MSC) Technique:
   • Reduction of spring-in through sequential curing of layers
   • Optimization of inter-layer sliding effects

‍

Explore challenges in composite manufacturing

6.5 Conclusion

Understanding and addressing these defects and challenges is crucial for successful implementation of VARTM in industrial applications. By employing advanced process control, simulation tools, and innovative material solutions, manufacturers can mitigate these issues and produce high-quality, dimensionally accurate composite parts using VARTM.

Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, with recent advancements addressing sustainability concerns, enhancing material properties, and improving process efficiency. This chapter explores three key areas of recent development: green composites and bio-based materials, nanocomposites manufacturing, and process variations for improved performance.

7.1 Green Composites and Bio-based Materials

The growing emphasis on sustainability has led to increased interest in green composites and bio-based materials in VARTM processes.

7.1.1 Bio-based Reinforcements

1. Cellulose Fibers:
   • Derived from plants such as flax, hemp, and jute
   • Challenges: Moisture sensitivity, fiber-matrix compatibility
2. Wood Fibers:some text
   • Sustainable alternative to glass fibers
   • Applications in non-structural components

7.1.2 Bio-based Resins

1. Soy-based Resins:
   • Derived from soybean oil
   • Reduced environmental impact compared to petroleum-based resins
2. Linseed Oil-based Resins:
   • Renewable alternative to traditional thermosets
   • Improved toughness and impact resistance

7.1.3 VARTM Adaptations for Green Composites

1. Fiber Drying:
   • Critical pre-processing step for natural fibers
   • Prevents moisture-induced curing inhibition
2. Fiber Treatment:
   • Surface modifications to improve fiber-matrix compatibility
   • Enhances mechanical properties and moisture resistance
3. Resin Formulation:
   • Tailored viscosity profiles for natural fiber impregnation
   • Optimized cure kinetics for bio-based systems

Learn more about natural fiber composites

7.2 Nanocomposites Manufacturing

The incorporation of nanomaterials in VARTM processes has opened new avenues for enhancing composite properties and functionality.

7.2.1 Types of Nanomaterials

1. Carbon Nanofibers (CNFs):
   • Improved mechanical and electrical properties
   • Reduced spring-in effect in curved parts
2. Carbon Nanotubes (CNTs):
   • Single-walled (SWCNTs) and multi-walled (MWCNTs) variants
   • Enhanced strength, stiffness, and conductivity
3. Nanoclays:
   • Improved barrier properties and flame retardancy
   • Enhanced matrix toughness

7.2.2 Nanocomposite VARTM Challenges

1. Nanoparticle Dispersion:
   • Achieving uniform distribution in the resin
   • Preventing agglomeration during infusion
2. Filtration Effects:
   • Nanoparticle retention by fiber preforms
   • Non-uniform nanoparticle distribution in the final part
3. Viscosity Increase:
   • Impact on resin flow and infusion time
   • Potential for incomplete wet-out

7.2.3 Advanced VARTM Techniques for Nanocomposites

1. IDVARTM (Injection and Double Vacuum-assisted RTM):
   • Uses a secondary vacuum chamber to control preform porosity
   • Facilitates higher nanoparticle loadings


2. Sprayed Nanoparticle Preforms:
   • Pre-bonding nanoparticles to fiber mats
   • Reduces filtration effects during infusion
3. In-situ Polymerization:
   • Infusion of nanoparticle-monomer mixtures
   • Polymerization occurs after complete impregnation

Explore innovations in composite materials

7.3 Process Variations for Improved Performance

Continuous innovation in VARTM processes has led to several variations aimed at enhancing part quality, reducing cycle times, and expanding application ranges.

7.3.1 SCRIMP (Seemann Composites Resin Infusion Molding Process)

1. Key Features:
   • Utilizes a high-permeability distribution medium
   • Enables faster infusion of large parts
2. Advantages:
   • Reduced cycle times
   • Improved thickness uniformity

7.3.2 CAPRI (Controlled Atmospheric Pressure Resin Infusion)

1. Process Characteristics:
   • Uses a partial vacuum in the resin reservoir
   • Allows for precise control of resin flow rate
2. Benefits:
   • Reduced void content
   • Enhanced fiber volume fraction control

7.3.3 VAP (Vacuum-Assisted Process)

1. Unique Aspect:
   • Incorporates a semi-permeable membrane
   • Allows for continuous degassing during infusion and cure
2. Advantages:
   • Reduced void content
   • Improved surface quality



7.3.4 CARTM (Continuous Automated Resin Transfer Molding)

1. Process Innovation:
   • Combines continuous fiber placement with in-situ resin infusion
   • Enables production of large, complex structures
2. Key Benefits:
   • Reduced labor costs
   • Improved repeatability and quality control

7.3.5 Multi-stage Curing (MSC) Technique

1. Approach:
   • Sequential curing of manageable layers
   • Particularly useful for thick composites
2. Advantages:
   • Mitigates thermal spiking issues
   • Reduces spring-in effect in curved parts

Learn about advanced manufacturing techniques

7.4 Conclusion

These recent advances in VARTM technology demonstrate the process's adaptability and potential for future growth. The integration of sustainable materials, nanomaterials, and innovative process variations is expanding the capabilities of VARTM, making it an increasingly attractive option for a wide range of applications. As research continues, we can expect further improvements in part quality, process efficiency, and the environmental impact of composite manufacturing using VARTM techniques.

Vacuum-assisted Resin Transfer Molding (VARTM) is a closed-mold process that has revolutionized the manufacturing of fiber-reinforced polymer (FRP) composite parts. This chapter introduces the basic concepts of VARTM, its historical development, and how it compares to other composite manufacturing processes.

1.1 Definition and Basic Concept

VARTM is a manufacturing process that combines the benefits of traditional Resin Transfer Molding (RTM) with the advantages of open-mold hand layup processing. The process involves the following key elements:

• A one-sided mold (typically an open mold)
• Dry fiber reinforcement (preform)
• A vacuum bag to seal the preform against the mold
• Resin injection under vacuum pressure
• The use of atmospheric pressure for compaction

Learn more about composite materials

In VARTM, the pressure difference between the environmental (atmospheric) pressure and the vacuum pressure is utilized to compact the fiber preform and draw the resin into the mold. This unique approach allows for the production of high-quality, large-scale composite parts with relatively low tooling costs.

1.2 Historical Development

VARTM has been developed over the past two decades as an evolution of traditional RTM processes. Key milestones include:

• The introduction of the SCRIMP (Seemann Composites Resin Infusion Molding Process) in 1990
• Continuous improvements in vacuum bagging materials and techniques
• Development of flow modeling and optimization tools
• Integration of advanced sensors and control systems

These advancements have led to VARTM becoming a widely adopted process in various industries, including marine, aerospace, automotive, and renewable energy.

1.3 Comparison with Other Composite Manufacturing Processes

VARTM offers several advantages over traditional composite manufacturing methods:

Explore challenges in switching to composite materials

VARTM combines the following key benefits:

1. High part quality and repeatability (similar to RTM)
2. Flexibility and scalability (similar to hand layup)
3. Reduced volatile organic compound (VOC) emissions
4. Cost-effectiveness for large structures

However, VARTM also has some limitations:

1. Potential for air leakage and dry spot formation
2. Limited control over fiber volume fraction
3. Challenges in achieving uniform part thickness

Despite these challenges, VARTM has become a preferred method for manufacturing large composite parts in many industries due to its versatility and cost-effectiveness.

Discover more about composites manufacturing methods

In the following chapters, we will delve deeper into the fundamentals of VARTM, explore the process setup and procedure, and discuss the critical elements of VARTM process design.

Understanding the fundamental principles behind Vacuum-assisted Resin Transfer Molding (VARTM) is crucial for optimizing the process and producing high-quality composite parts. This chapter explores the key physical phenomena that govern the VARTM process.

2.1 Resin Flow Phenomenon

The resin flow in VARTM is governed by Darcy's law, which describes fluid flow through porous media. The generalized Darcy's law is given by:

u_D = -(K/μ) * ∇P

Where:

• u_D is the Darcy velocity (volume-averaged velocity)
• K is the permeability tensor of the porous medium
• μ is the dynamic viscosity of the resin
• ∇P is the pressure gradient

Continuity equation:

∇ · u_D = 0

Learn more about resin flow in composite manufacturing

Key aspects of resin flow in VARTM include:

1. Through-thickness flow: The primary direction of resin flow is through the thickness of the preform, facilitated by the flow distribution medium.
2. Race-tracking: Resin may flow faster along edges or channels, leading to non-uniform filling.
3. Dual-scale flow: Resin flows both between fiber tows (macro-flow) and within fiber tows (micro-flow).

2.2 Fiber Preform Compaction

Fiber preform compaction is a critical aspect of VARTM that affects the final part quality and fiber volume fraction. The relationship between compaction pressure and fiber volume fraction can be described by models such as:

1. Gutowski's model:

P_comp = A * ((V_f - V_f0) / (V_f∞ - V_f))^4

2. Robitaille and Gauvin's model:

V_f = V_f1 * P_comp^BWhere:

• P_comp is the compaction pressure
• V_f is the fiber volume fraction
• A, V_f0, V_f∞, V_f1, and B are empirical constants

Where:

• $P_{comp}$ is the compaction pressure
• $V_f$ is the fiber volume fraction
• $A$, $V_{f0}$, $V_{f\infty}$, $V_{f1}$, and $B$ are empirical constants

Explore more about fiber reinforcements

Compaction affects:

• Preform thickness
• Porosity
• Permeability

2.3 Resin Viscosity

Resin viscosity plays a crucial role in the VARTM process, affecting flow behavior and filling time. The viscosity of thermoset resins used in VARTM is typically modeled as a function of temperature and degree of cure:

μ = μ_0 * exp(E/(R*T)) * exp(a_c * α)

Where:

• μ is the resin viscosity
• μ_0 is a constant
• E is the flow activation energy
• R is the universal gas constant
• T is the absolute temperature
• a_c is a constant
• α is the degree of cure

Key considerations for resin viscosity in VARTM:

1. Temperature control to maintain optimal viscosity during infusion
2. Pot life (working time) of the resin system
3. Viscosity changes during the curing process

2.4 Composite Curing Behavior

The curing process in VARTM involves complex heat transfer and chemical reactions. The one-dimensional energy balance equation for the curing process is:

ρ_c * c_pc * ∂T/∂t = ∂/∂z(k_czz * ∂T/∂z) + ρ_r * ε_r * H_r * ∂α/∂t

Where:

• ρ_c, c_pc, and k_czz are the density, specific heat capacity, and thermal conductivity of the composite
• ρ_r, ε_r, and H_r are the density, porosity, and reaction heat of the resin
• α is the degree of cure

The cure kinetics can be modeled using equations such as:

∂α/∂t = A * exp(-E/(R*T)) * α^m * (1-α)^n

Where A, E, m, and n are cure kinetic parameters.

Learn about composite curing and processing

Important aspects of curing in VARTM:

1. Exothermic reactions and heat management
2. Shrinkage and residual stress development
3. Gel time and vitrification

Understanding these fundamental principles allows for better process control and optimization in VARTM, leading to improved part quality and reduced manufacturing defects.

The Vacuum-assisted Resin Transfer Molding (VARTM) process requires careful setup and execution to produce high-quality composite parts. This chapter provides a detailed guide to the VARTM process setup and procedure, highlighting key steps and considerations.

3.1 VARTM Setup Overview

A typical VARTM setup consists of the following components:

1. Mold
2. Fiber preform
3. Peel ply
4. Flow distribution medium
5. Resin injection port(s)
6. Vacuum port(s)
7. Vacuum bag
8. Sealing tape

Learn more about VARTM setup

3.2 Step-by-Step VARTM Procedure

Follow these steps to set up and execute a VARTM process:

1. Mold Preparation
   • Clean the mold surface thoroughly
   • Apply mold release agent
   • Ensure the mold is level and stable
2. Fiber Preform Layup
   • Cut fiber reinforcement to size
   • Stack layers according to the designed layup sequence
   • Ensure proper fiber orientation
3. Peel Ply Application
   • Place peel ply over the entire fiber preform
   • Ensure it extends beyond the part edges
4. Flow Distribution Medium Placement
   • Position the flow distribution medium over the peel ply
   • Extend it to cover most of the part, but not to the vacuum port
5. Resin Injection Port Installation
   • Place the resin injection port(s) at the designed location(s)
   • Use spiral tubing or omega channels for even resin distribution
6. Vacuum Port Placement
   • Position the vacuum port(s) at the opposite end from the injection port(s)
   • Ensure they're not in direct contact with the flow distribution medium
7. Vacuum Bagging
   • Apply sealing tape around the perimeter of the mold
   • Carefully place the vacuum bag over the entire layup
   • Seal the bag to the mold, ensuring no air leaks
8. Leak Testing
   • Connect the vacuum port to the vacuum pump
   • Apply vacuum and check for leaks
   • Fix any leaks found
9. Resin Preparation
   • Mix resin and hardener according to the manufacturer's instructions
   • Degas the resin mixture if necessary
10. Resin Infusion
    • Connect the resin inlet to the resin reservoir
    • Open the inlet and allow resin to flow into the preform
    • Monitor the resin flow front progression
11. Post-Filling Procedure
    • Once the part is fully wetted, close the resin inlet
    • Maintain vacuum for the specified curing time
12. Curing
    • Allow the part to cure according to the resin system's cure cycle
    • Maintain vacuum throughout the curing process
13. Demolding
    • After full cure, remove the vacuum bag and ancillary materials
    • Carefully remove the part from the mold

Explore composites manufacturing methods

3.3 Key Considerations

To ensure a successful VARTM process, keep the following points in mind:

1. Preform Compaction: Consider using a debulking process to better compact the fiber preform before infusion.
2. Flow Front Control: Monitor the resin flow front and adjust injection as needed to prevent dry spots or race-tracking.
3. Temperature Management: Control the mold temperature to optimize resin viscosity and cure kinetics.
4. Vacuum Integrity: Continuously monitor vacuum pressure and address any leaks immediately.
5. Resin Bleeding: Allow some extra resin to bleed out after full wetting to remove tiny air bubbles.
6. Post-Cure: Depending on the resin system, a post-cure cycle may be necessary to achieve optimal mechanical properties.

Learn about process monitoring in composites manufacturing

By carefully following these steps and considering the key points, you can successfully execute a VARTM process to produce high-quality composite parts. The next chapter will delve into the critical elements of VARTM process design, which will help you optimize your setup for specific applications.

Vacuum-assisted Resin Transfer Molding (VARTM) has gained popularity in various industries due to its unique combination of benefits. However, like any manufacturing process, it also has its limitations. This chapter explores the advantages and disadvantages of VARTM, providing a balanced view of its capabilities and challenges.

4.1 Advantages of VARTM

VARTM offers several significant benefits that make it an attractive option for composite manufacturing:

1. Flexibility in Mold Design
   • Utilizes one-sided, open molds similar to hand layup processes
   • Allows for easier modification of mold geometries
   • Enables the production of large, complex parts
2. Cost-Effectiveness for Large Parts
   • Lower tooling costs compared to traditional RTM, especially for large components
   • Reduced equipment investment compared to autoclave processing
3. High Part Quality
   • Produces parts with good surface finish on the mold side
   • Achieves relatively high fiber volume fractions (typically 40-55%)
   • Allows for the production of thick sections with proper process control
4. Low VOC Emissions
   • Closed-mold process with reduced volatile organic compound (VOC) emissions
   • Improves workplace safety and environmental compliance
5. Scalability
   • Suitable for both small prototype runs and large production volumes
   • Easily scalable for different part sizes
6. Material Flexibility
   • Compatible with a wide range of fiber reinforcements and resin systems
   • Allows for the use of preforms and complex fiber architectures
7. In-Process Quality Control
   • Transparent vacuum bag enables visual monitoring of resin flow
   • Allows for real-time adjustments during infusion

Learn more about advantages of composite materials

4.2 Disadvantages of VARTM

Despite its many advantages, VARTM also has some limitations and challenges:

1. Air Leakage Risks
   • Heavily dependent on proper vacuum bag sealing
   • Leaks can lead to dry spots and incomplete resin infusion
   • Requires careful preparation and skilled technicians

2. Limited Fiber Volume Fraction Control
   • Maximum achievable fiber volume fraction is lower than in autoclave processing
   • Variations in part thickness can occur due to resin pressure gradients
3. Consumable Materials
   • Requires single-use materials such as vacuum bags, peel ply, and flow media
   • Increases per-part material costs and generates more waste
4. Complex Flow Behavior
   • Resin flow paths can be difficult to predict, especially for complex geometries
   • May require flow simulation and optimization for consistent results
5. Limited Pressure Range
   • Resin injection pressure is limited to 1 atmosphere or less
   • Can limit the ability to compress and remove voids in some cases
6. Post-Processing Requirements
   • Often requires trimming of excess resin and edge finishing
   • May need additional surface treatment for high-quality finishes
7. Temperature Control Challenges
   • Difficulty in maintaining uniform temperature across large parts
   • May require additional heating systems for optimal curing

Explore challenges in composite manufacturing

4.3 Comparison with Other Processes

To better understand the position of VARTM in the landscape of composite manufacturing, let's compare it with other common processes:

Learn about various composites manufacturing methods

4.4 Conclusion

VARTM offers a unique combination of benefits, making it particularly suitable for large, complex composite parts where cost-effectiveness is crucial. Its main advantages lie in its flexibility, scalability, and relatively low tooling costs. However, users must be aware of its limitations, particularly in terms of air leakage risks and fiber volume fraction control.

By understanding these advantages and disadvantages, manufacturers can make informed decisions about when to use VARTM and how to optimize the process for their specific applications. As technology continues to advance, many of the current limitations of VARTM are being addressed through innovations in materials, process control, and simulation tools.

Successful implementation of Vacuum-assisted Resin Transfer Molding (VARTM) requires careful consideration of several critical elements. This chapter focuses on three key aspects of VARTM process design: mold temperature selection, flow process design, and fiber preform compaction and fiber volume fraction control.

5.1 Mold Temperature Selection

Mold temperature plays a crucial role in VARTM process optimization, affecting various aspects of the manufacturing process and final part quality.

5.1.1 Importance of Mold Temperature

1. Resin Viscosity Control: Temperature directly impacts resin viscosity, which affects flow behavior and infusion time.
2. Curing Management: Proper temperature selection ensures optimal curing kinetics and avoids issues like premature gelation.
3. Material Compatibility: Temperature influences the selection of vacuum bagging materials, sealants, and release agents.

5.1.2 Factors Influencing Mold Temperature Selection

• Resin system characteristics (pot life, cure kinetics)
• Part geometry and thickness
• Desired cycle time
• Tooling material thermal properties

5.1.3 Temperature Control Strategies

1. Isothermal Processing: Maintaining a constant mold temperature throughout infusion and cure.
2. Staged Temperature Profile: Varying temperature for optimal infusion and curing conditions.
3. Zoned Heating: Using multiple temperature zones for large or complex parts.

‍

Learn more about composite curing processes

5.2 Flow Process Design

Optimizing the resin flow process is critical for achieving complete wet-out and minimizing defects in VARTM parts.

5.2.1 Key Elements of Flow Process Design

1. Injection Strategy:
   • Point injection vs. line injection
   • Single vs. multiple injection ports
2. Vent Placement:
   • Location and number of vents
   • Use of auxiliary vents for complex geometries
3. Flow Media Design:
   • Selection of distribution media type
   • Optimization of media coverage and overlap
4. Flow Front Control:
   • Use of flow channels or omega tubes
   • Implementation of race-tracking control strategies

5.2.2 Flow Simulation and Optimization

Utilizing flow simulation software can help optimize the VARTM process:

• Predict filling patterns and times
• Identify potential dry spots or race-tracking issues
• Optimize injection and vent locations

Explore flow process design in composite manufacturing

5.3 Fiber Preform Compaction and Fiber Volume Fraction Control

Achieving the desired fiber volume fraction and maintaining uniform part thickness are critical for part quality and performance.

5.3.1 Factors Affecting Compaction and Fiber Volume Fraction

1. Preform Architecture:
   • Fiber type and orientation
   • Ply count and stacking sequence
2. Compaction Pressure:
   • Vacuum level
   • Atmospheric pressure variations
3. Resin Pressure:
   • Injection pressure
   • Pressure gradients during infusion
4. Time-Dependent Effects:
   • Preform relaxation
   • Resin bleeding and consolidation

5.3.2 Compaction Control Strategies

1. Preform Debulking:
   • Applying vacuum cycles before infusion
   • Using sacrificial bleeder layers
2. Staged Pressure Application:
   • Gradually increasing compaction pressure
   • Utilizing dual vacuum systems
3. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin bleeding

5.3.3 Fiber Volume Fraction Prediction and Control

Utilize compaction models to predict and control fiber volume fraction:

1. Empirical Models:some text
   • Gutowski's model
   • Robitaille and Gauvin's model
2. Experimental Characterization:some text
   • Compaction testing of preform materials
   • In-situ thickness monitoring during VARTM

‍

Learn about fiber reinforcements in composites

5.4 Integrated Process Design

Successful VARTM process design requires the integration of these critical elements:

1. Temperature-Flow Coupling:
   • Optimize mold temperature for desired flow characteristics
   • Consider temperature effects on resin viscosity and cure kinetics
2. Flow-Compaction Interaction:
   • Design flow media to achieve uniform compaction
   • Account for permeability changes due to preform compaction
3. Adaptive Process Control:
   • Implement real-time monitoring and control systems
   • Adjust process parameters based on in-situ measurements

By carefully considering and optimizing these critical elements, manufacturers can design robust VARTM processes that consistently produce high-quality composite parts.

Despite its many advantages, Vacuum-assisted Resin Transfer Molding (VARTM) can present several challenges that may lead to defects in the final composite part. This chapter explores four major areas of concern: air entrapment and dry spots, thickness and fiber volume fraction uniformity, curing and thermal management, and the spring-in phenomenon.

6.1 Air Entrapment and Dry Spots

Air entrapment and dry spots are common issues in VARTM that can significantly impact the quality and performance of the final part.

6.1.1 Causes of Air Entrapment and Dry Spots

1. Improper Mold Filling Design:
   • Poor placement of injection ports and vents
   • Inadequate flow media design
2. Race-Tracking:
   • Preferential flow along edges or channels
   • Uneven flow front progression
3. Slow Filling Process:
   • Resin gelling before complete mold filling
   • Insufficient injection pressure
4. Vacuum System Issues:
   • Leaks in the vacuum bag or sealing
   • Inadequate vacuum level

6.1.2 Mitigation Strategies

1. Optimized Flow Simulation:
   • Use of flow modeling software to predict and prevent dry spots
   • Strategic placement of injection ports and vents
2. Active Flow Control:
   • Implementation of sequential injection strategies
   • Use of flow sensors and adaptive injection control
3. Enhanced Vacuum Integrity:
   • Rigorous leak detection and sealing procedures
   • Use of double vacuum bagging for critical applications
4. Resin Degassing:
   • Proper degassing of resin before injection
   • Use of vacuum-assisted resin degassing during injection

Learn more about defects in composite materials

6.2 Thickness and Fiber Volume Fraction Uniformity

Achieving consistent part thickness and fiber volume fraction across large or complex parts can be challenging in VARTM.

6.2.1 Factors Affecting Uniformity

1. Preform Compaction Behavior:
   • Variations in local preform architecture
   • Time-dependent relaxation effects
2. Resin Pressure Gradients:
   • Pressure drop along the flow path
   • Edge effects and race-tracking
3. Tooling Deflection:
   • Flexibility of large molds under vacuum pressure
   • Non-uniform pressure distribution

6.2.2 Control Strategies

1. Graduated Flow Media:
   • Use of variable permeability flow media
   • Tailored flow channel designs
2. Zoned Vacuum Control:
   • Implementation of multiple vacuum zones
   • Gradual pressure application and release
3. In-situ Thickness Monitoring:
   • Use of embedded sensors or external measurement systems
   • Real-time adjustment of process parameters
4. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin redistribution

‍

Explore composite manufacturing process control

6.3 Curing and Thermal Management

Proper curing and thermal management are crucial for producing high-quality VARTM parts, especially for thick or large components.

6.3.1 Challenges in Curing and Thermal Management

1. Exothermic Reactions:
   • Heat buildup in thick sections
   • Potential for thermal degradation or fire
2. Thermal Gradients:
   • Non-uniform curing across the part
   • Residual stress development
3. Cure Shrinkage:
   • Dimensional changes during curing
   • Potential for warpage or internal stresses

6.3.2 Management Strategies

1. Temperature-Controlled Tooling:
   • Use of heated or cooled molds
   • Implementation of zoned temperature control
2. Staged Curing Cycles:
   • Gradual temperature ramps and holds
   • Optimization of cure kinetics for specific resin systems
3. In-situ Cure Monitoring:
   • Use of dielectric sensors or fiber optic systems
   • Real-time adjustment of cure parameters
4. Multi-Stage Curing (MSC) Technique:
   • Sequential curing of manageable layers
   • Mitigation of thermal spiking in thick parts

‍

Learn about curing in composite manufacturing

6.4 Spring-in Phenomenon

Spring-in is a common dimensional accuracy issue in curved composite parts manufactured using VARTM.

6.4.1 Causes of Spring-in

1. Anisotropic Thermal Contraction:
   • Different coefficients of thermal expansion in-plane and through-thickness
2. Cure Shrinkage:
   • Non-uniform shrinkage between fiber and matrix
3. Tool-Part Interaction:
   • Friction between the part and mold during cooling

6.4.2 Prediction and Mitigation Strategies

1. Analytical Modeling:
   • Use of spring-in prediction models (e.g., Hsiao and Gangireddy model)
   • Incorporation of material properties and process parameters
2. Tooling Compensation:
   • Design of molds with adjusted curvature to account for spring-in
   • Use of adjustable or modular tooling
3. Fiber Architecture Optimization:
   • Strategic placement of off-axis plies
   • Use of fabric systems with reduced through-thickness CTE
4. Nano-enhanced Matrices:
   • Addition of nanofillers (e.g., CNFs) to reduce matrix shrinkage
   • Tailoring of matrix properties to minimize spring-in
5. Multi-Stage Curing (MSC) Technique:
   • Reduction of spring-in through sequential curing of layers
   • Optimization of inter-layer sliding effects

‍

Explore challenges in composite manufacturing

6.5 Conclusion

Understanding and addressing these defects and challenges is crucial for successful implementation of VARTM in industrial applications. By employing advanced process control, simulation tools, and innovative material solutions, manufacturers can mitigate these issues and produce high-quality, dimensionally accurate composite parts using VARTM.

Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, with recent advancements addressing sustainability concerns, enhancing material properties, and improving process efficiency. This chapter explores three key areas of recent development: green composites and bio-based materials, nanocomposites manufacturing, and process variations for improved performance.

7.1 Green Composites and Bio-based Materials

The growing emphasis on sustainability has led to increased interest in green composites and bio-based materials in VARTM processes.

7.1.1 Bio-based Reinforcements

1. Cellulose Fibers:
   • Derived from plants such as flax, hemp, and jute
   • Challenges: Moisture sensitivity, fiber-matrix compatibility
2. Wood Fibers:some text
   • Sustainable alternative to glass fibers
   • Applications in non-structural components

7.1.2 Bio-based Resins

1. Soy-based Resins:
   • Derived from soybean oil
   • Reduced environmental impact compared to petroleum-based resins
2. Linseed Oil-based Resins:
   • Renewable alternative to traditional thermosets
   • Improved toughness and impact resistance

7.1.3 VARTM Adaptations for Green Composites

1. Fiber Drying:
   • Critical pre-processing step for natural fibers
   • Prevents moisture-induced curing inhibition
2. Fiber Treatment:
   • Surface modifications to improve fiber-matrix compatibility
   • Enhances mechanical properties and moisture resistance
3. Resin Formulation:
   • Tailored viscosity profiles for natural fiber impregnation
   • Optimized cure kinetics for bio-based systems

Learn more about natural fiber composites

7.2 Nanocomposites Manufacturing

The incorporation of nanomaterials in VARTM processes has opened new avenues for enhancing composite properties and functionality.

7.2.1 Types of Nanomaterials

1. Carbon Nanofibers (CNFs):
   • Improved mechanical and electrical properties
   • Reduced spring-in effect in curved parts
2. Carbon Nanotubes (CNTs):
   • Single-walled (SWCNTs) and multi-walled (MWCNTs) variants
   • Enhanced strength, stiffness, and conductivity
3. Nanoclays:
   • Improved barrier properties and flame retardancy
   • Enhanced matrix toughness

7.2.2 Nanocomposite VARTM Challenges

1. Nanoparticle Dispersion:
   • Achieving uniform distribution in the resin
   • Preventing agglomeration during infusion
2. Filtration Effects:
   • Nanoparticle retention by fiber preforms
   • Non-uniform nanoparticle distribution in the final part
3. Viscosity Increase:
   • Impact on resin flow and infusion time
   • Potential for incomplete wet-out

7.2.3 Advanced VARTM Techniques for Nanocomposites

1. IDVARTM (Injection and Double Vacuum-assisted RTM):
   • Uses a secondary vacuum chamber to control preform porosity
   • Facilitates higher nanoparticle loadings


2. Sprayed Nanoparticle Preforms:
   • Pre-bonding nanoparticles to fiber mats
   • Reduces filtration effects during infusion
3. In-situ Polymerization:
   • Infusion of nanoparticle-monomer mixtures
   • Polymerization occurs after complete impregnation

Explore innovations in composite materials

7.3 Process Variations for Improved Performance

Continuous innovation in VARTM processes has led to several variations aimed at enhancing part quality, reducing cycle times, and expanding application ranges.

7.3.1 SCRIMP (Seemann Composites Resin Infusion Molding Process)

1. Key Features:
   • Utilizes a high-permeability distribution medium
   • Enables faster infusion of large parts
2. Advantages:
   • Reduced cycle times
   • Improved thickness uniformity

7.3.2 CAPRI (Controlled Atmospheric Pressure Resin Infusion)

1. Process Characteristics:
   • Uses a partial vacuum in the resin reservoir
   • Allows for precise control of resin flow rate
2. Benefits:
   • Reduced void content
   • Enhanced fiber volume fraction control

7.3.3 VAP (Vacuum-Assisted Process)

1. Unique Aspect:
   • Incorporates a semi-permeable membrane
   • Allows for continuous degassing during infusion and cure
2. Advantages:
   • Reduced void content
   • Improved surface quality



7.3.4 CARTM (Continuous Automated Resin Transfer Molding)

1. Process Innovation:
   • Combines continuous fiber placement with in-situ resin infusion
   • Enables production of large, complex structures
2. Key Benefits:
   • Reduced labor costs
   • Improved repeatability and quality control

7.3.5 Multi-stage Curing (MSC) Technique

1. Approach:
   • Sequential curing of manageable layers
   • Particularly useful for thick composites
2. Advantages:
   • Mitigates thermal spiking issues
   • Reduces spring-in effect in curved parts

Learn about advanced manufacturing techniques

7.4 Conclusion

These recent advances in VARTM technology demonstrate the process's adaptability and potential for future growth. The integration of sustainable materials, nanomaterials, and innovative process variations is expanding the capabilities of VARTM, making it an increasingly attractive option for a wide range of applications. As research continues, we can expect further improvements in part quality, process efficiency, and the environmental impact of composite manufacturing using VARTM techniques.

The Vacuum-Assisted Process (VAP) is an innovative variation of VARTM that incorporates a semi-permeable membrane to enhance process control and part quality. This chapter explores the VAP process, its unique characteristics, and the benefits it offers over traditional VARTM.

8.1 Process Description and Infusion Behavior

VAP introduces a crucial modification to the standard VARTM setup by incorporating a membrane layer that is permeable to gases but impermeable to resin.

8.1.1 VAP Setup

The typical VAP layup consists of the following components (from bottom to top):

1. Mold
2. Dry fiber preform
3. Peel ply
4. Distribution media
5. Semi-permeable membrane
6. Breather material
7. Vacuum bag

8.1.2 Infusion Behavior

1. Initial Stage:
   • Resin flows through the distribution media and into the preform
   • Behavior similar to standard VARTM
2. Mid-Infusion:
   • Uniform vacuum maintained across the part surface
   • Continuous degassing occurs through the membrane
3. Post-Filling:
   • No resin bleeding through vents
   • Pressure equilibrium reached based on total infused resin amount

8.1.3 Key Differences from Standard VARTM

1. Vacuum Distribution:
   • Entire surface connected to vacuum, reducing need for optimized vent placement
2. Degassing:
   • Continuous removal of volatiles during infusion and cure
3. Pressure Behavior:
   • Distinct post-infusion pressure profile due to lack of resin bleeding

‍

Learn more about VARTM process variations

8.2 Membrane Evaluation

The success of the VAP process heavily relies on the properties and performance of the semi-permeable membrane.

8.2.1 Membrane Structure

1. Composition:
   • Typically made of polytetrafluoroethylene (PTFE)
   • Two-layer structure: membrane and support layer
2. Pore Characteristics:
   • Nanoporous structure
   • Pore size distribution critical for performance

8.2.2 Key Membrane Properties

1. Gas Permeability:
   • Allows for continuous degassing
   • Maintains uniform vacuum across the part
2. Resin Impermeability:
   • Prevents resin penetration at typical process pressures
   • Pressure-dependent barrier properties
3. Temperature Resistance:
   • Suitable for use up to at least 200°C
   • Compatible with high-temperature resin systems

8.2.3 Membrane Performance Modeling

Membrane performance can be modeled based on:

1. Pore Size Distribution:
   • Measured using standard porometry techniques
2. Resin-Membrane Interaction:
   • Contact angle between resin and membrane surface
   • Surface tension of the resin
3. Applied Pressure:
   • Permeability changes as a function of pressure

Explore advanced materials in composite manufacturing

8.3 Process and Material Property Improvements

The VAP process offers several advantages over standard VARTM, leading to improvements in both the manufacturing process and the final part properties.

8.3.1 Process Improvements

1. Enhanced Robustness:
   • Reduced sensitivity to vent placement
   • Minimized risk of dry spot formation
2. Improved Filling Control:
   • Uniform vacuum distribution across the part surface
   • Better management of race-tracking effects
3. Simplified Setup:
   • Reduced need for complex vent systems
   • Potential for more consistent results across different part geometries
4. Extended Processing Window:
   • Continuous degassing allows for longer infusion times
   • Beneficial for large or complex parts

8.3.2 Material Property Enhancements

1. Reduced Void Content:
   • Continuous degassing during infusion and cure
   • Typical void content below 1% achievable
2. Improved Surface Quality:
   • Reduced surface porosity due to enhanced degassing
   • Potential for Class A surface finish on mold side
3. Consistent Fiber Volume Fraction:
   • Better control of resin content across the part
   • Improved mechanical property consistency

8.3.3 Comparative Study Results

Key observations:

• VAP achieved lower void content with slightly lower fiber volume fraction
• More consistent results (lower standard deviation) with VAP

8.3.4 Optimization Opportunities

1. Resin Inlet Control:
   • Optimized closing of resin inlet before complete filling
   • Potential to maximize fiber volume fraction while minimizing voids
2. Temperature Profiling:
   • Tailored temperature cycles for specific resin systems
   • Optimization of cure kinetics and degassing efficiency
3. Membrane Selection:
   • Customized membranes for specific resin systems and process conditions
   • Balancing gas permeability and resin barrier properties

Learn about process optimization in composite manufacturing

8.4 Conclusion

The Vacuum-Assisted Process (VAP) represents a significant advancement in VARTM technology. By incorporating a semi-permeable membrane, VAP offers improved process control, reduced defects, and enhanced material properties. As membrane technology continues to evolve and process optimization techniques advance, VAP is likely to find increasing application in the production of high-performance composite parts, particularly in industries demanding high quality and consistency, such as aerospace and automotive.

As Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, new applications emerge, and research drives further improvements. This chapter explores the future of VARTM technology, highlighting emerging applications, ongoing research and development efforts, and potential areas for process enhancement.

9.1 Emerging Applications

VARTM's versatility and cost-effectiveness are opening doors to new applications across various industries.

9.1.1 Aerospace

1. Large Structural Components:
   • Wing spars and fuselage sections
   • Potential for reduced weight and assembly costs
2. Urban Air Mobility:
   • Structural components for electric vertical takeoff and landing (eVTOL) vehicles
   • Emphasis on high-performance, lightweight structures

9.1.2 Renewable Energy

1. Wind Energy:
   • Larger wind turbine blades (100+ meters)
   • Integration of smart materials for structural health monitoring
2. Tidal and Wave Energy:
   • Corrosion-resistant composite structures
   • Complex geometries for improved energy capture

9.1.3 Automotive

1. Electric Vehicles:
   • Battery enclosures and structural battery components
   • Lightweight body panels and chassis structures
2. Hydrogen Fuel Cell Vehicles:
   • High-pressure hydrogen storage tanks
   • Integration of composite bipolar plates in fuel cells

9.1.4 Infrastructure

1. Bridge Construction:
   • Modular composite bridge decks
   • Corrosion-resistant reinforcement for concrete structures
2. Pipelines and Storage Tanks:
   • Large-diameter composite pipes for oil and gas industry
   • Chemical and corrosion-resistant storage tanks

Explore innovations in composite materials applications

9.2 Ongoing Research and Development

Continuous research efforts are driving VARTM technology forward, addressing current limitations and exploring new possibilities.

9.2.1 Advanced Simulation and Modeling

1. Multi-physics Simulation:
   • Coupled flow-thermal-cure models
   • Prediction of residual stresses and part distortion
2. Machine Learning Integration:
   • Optimization of process parameters
   • Real-time defect prediction and prevention

9.2.2 Smart Manufacturing Technologies

1. In-situ Sensing:
   • Distributed fiber optic sensors for flow and cure monitoring
   • Integration of nanoparticle-based sensors in composites
2. Augmented Reality (AR) Assisted Manufacturing:
   • Guided layup and bagging processes
   • Real-time visualization of flow progression and potential issues

9.2.3 Novel Materials and Hybrid Processes

1. Thermoplastic VARTM:
   • Development of low-viscosity thermoplastic resins
   • In-situ polymerization techniques
2. Multifunctional Composites:
   • Integration of energy harvesting and storage capabilities
   • Self-healing and self-sensing composites
3. Additive Manufacturing Hybrid Processes:
   • Combination of 3D printed cores or reinforcements with VARTM
   • Tailored preforms for optimized performance

Learn about advancements in composite manufacturing

9.3 Potential for Further Process Improvements

Several areas show promise for enhancing VARTM technology and expanding its capabilities.

9.3.1 Enhanced Process Control

1. Adaptive Injection Strategies:
   • Real-time adjustment of injection parameters based on sensor feedback
   • Multi-gate systems with individually controlled injection points
2. Advanced Vacuum Control:
   • Zoned vacuum systems for improved thickness control
   • Pulsed vacuum techniques for enhanced air removal

9.3.2 Improved Resin Systems

1. Snap-Curing Resins:
   • Ultra-fast curing systems for reduced cycle times
   • Tailored rheology for optimal flow and impregnation
2. Self-Regulating Cure Systems:
   • Temperature-triggered catalysts for uniform curing in thick parts
   • Latent curing agents for extended pot life and rapid final cure

9.3.3 Automation and Robotics

1. Automated Preform Assembly:some text
   • Robotic layup and stitching of complex preforms
   • Integration with automated cutting and kitting systems
2. Intelligent Bagging Systems:some text
   • Reusable vacuum bagging solutions
   • Self-sealing and self-diagnosing vacuum systems

9.3.4 Sustainability Enhancements

1. Closed-Loop Recycling:
   • Development of easily recyclable composite systems
   • In-situ resin recovery and reuse technologies
2. Bio-based and CO2-neutral Materials:
   • Advanced natural fiber reinforcements with improved properties
   • Carbon-negative resin systems derived from atmospheric CO2

Explore sustainable manufacturing in composites

9.4 Conclusion

VARTM technology stands at the forefront of advanced composite manufacturing, poised for continued growth and innovation. The emerging applications across aerospace, renewable energy, automotive, and infrastructure sectors highlight the versatility and potential of this process. Ongoing research in areas such as advanced simulation, smart manufacturing technologies, and novel materials promises to address current limitations and unlock new possibilities.

The potential for further process improvements, particularly in areas of enhanced control, improved resin systems, automation, and sustainability, suggests that VARTM will continue to evolve and maintain its relevance in the composites industry. As these advancements materialize, we can expect to see VARTM playing an increasingly important role in the production of high-performance, cost-effective composite structures across a wide range of applications.

The future of VARTM lies in its ability to adapt to changing industry needs, incorporate cutting-edge technologies, and address growing sustainability concerns. By leveraging these opportunities and overcoming existing challenges, VARTM is set to remain a key player in shaping the future of composite manufacturing.

This chapter provides hands-on exercises and real-world case studies to reinforce the theoretical concepts of Vacuum-assisted Resin Transfer Molding (VARTM). Through these practical applications, readers will gain a deeper understanding of VARTM process design, troubleshooting, and industrial implementation.

10.1 Designing a VARTM Setup for a Simple Part

In this exercise, we'll walk through the process of designing a VARTM setup for a simple flat panel.

10.1.1 Exercise Scenario

Design a VARTM setup for a flat composite panel with the following specifications:

• Dimensions: 500 mm x 500 mm x 5 mm
• Material: E-glass fiber / epoxy resin
• Target fiber volume fraction: 50%

10.1.2 Step-by-Step Design Process

1. Mold Selection
   • Choose a flat, rigid mold with dimensions slightly larger than the part
   • Ensure the mold surface is smooth and treated with release agent
2. Fiber Preform Design
   • Calculate the number of fabric layers needed to achieve the target thickness and fiber volume fraction


3. Flow Media Design
   • Select a flow distribution medium that covers the entire part
   • Leave a 25 mm gap around the edges to prevent race-tracking
4. Injection Strategy
   • Choose a line injection along one edge of the part
   • Use spiral tubing or an omega channel for even distribution
5. Vent Placement
   • Position the vent on the opposite edge from the injection line
   • Use a breather strip to ensure uniform vacuum
6. Vacuum Bagging
   • Select a vacuum bag material compatible with the resin system
   • Ensure the bag is larger than the mold to accommodate depth
7. Resin System Selection
   • Choose a low-viscosity epoxy resin suitable for VARTM

Calculate the required resin volume:

Resin volume = Part volume * (1 - Target Vf)

Resin volume = (500 mm * 500 mm * 5 mm) * (1 - 0.50) = 625,000 mm³ ≈ 625 mL

• Add 20% excess: 625 mL * 1.2 = 750 mL



10.1.3 VARTM Setup Diagram

Learn more about VARTM setup

10.2 Troubleshooting Common VARTM Issues

This section presents common VARTM issues and strategies to resolve them.

10.2.1 Scenario 1: Dry Spots

Problem: After infusion, a 10 cm diameter dry spot is observed near the vent.

Potential Causes and Solutions:

1. Inadequate Vacuum
   • Check for leaks in the vacuum bag or sealing
   • Ensure proper vacuum pump capacity
2. Race-Tracking
   • Adjust flow media layout to prevent preferential flow paths
   • Use edge dams or sealant tape to control resin flow
3. Incorrect Vent Placement
   • Reposition vent to ensure it's the last point to be filled
   • Add multiple vents for complex geometries
4. Resin Gelation
   • Verify resin pot life and adjust infusion strategy for faster filling
   • Consider using heated molds to reduce viscosity

10.2.2 Scenario 2: Thickness Variations

Problem: The cured part shows significant thickness variations, with the area near the injection point being thicker.

Potential Causes and Solutions:

1. Non-Uniform Compaction
   • Implement staged pressure application during infusion
   • Use caul plates for improved thickness control
2. Insufficient Bleeding
   • Extend post-filling vacuum time to allow for resin redistribution
   • Optimize resin volume calculations
3. Flow Media Design
   • Use graduated permeability flow media
   • Adjust flow media coverage to promote uniform resin distribution

10.2.3 Scenario 3: Void Content

Problem: Microscopic analysis reveals high void content (>2%) throughout the part.

Potential Causes and Solutions:

1. Inadequate Degassing
   • Improve resin degassing procedures before infusion
   • Consider using a resin trap in the vacuum line
2. Improper Infusion Pressure
   • Optimize vacuum level to balance flow rate and air removal
   • Implement pressure gradients for better air displacement
3. Micro-Voids in Fiber Tows
   • Adjust infusion speed to balance macro and micro-flow
   • Consider using surfactants or coupling agents to improve fiber wetting

Explore defects in composite materials

10.3 Analysis of Real-World VARTM Applications

This section examines case studies of VARTM applications in various industries.

10.3.1 Case Study 1: Wind Turbine Blade Manufacturing

Company: GreenWind Energy Solutions Component: 60-meter wind turbine blade

VARTM Implementation:

• Used a female mold with integrated heating system
• Employed a multi-injection strategy with flow simulation optimization
• Implemented in-situ cure monitoring using fiber optic sensors

Challenges and Solutions:

1. Scale: Developed a modular flow media system for easy handling
2. Cure Management: Utilized zoned heating for uniform curing in thick sections
3. Quality Control: Implemented real-time monitoring and adaptive control systems

Outcomes:

• 15% reduction in manufacturing time
• 8% decrease in overall blade weight
• Improved consistency in mechanical properties

10.3.2 Case Study 2: Aerospace Fuselage Panel

Company: AeroComposites Inc. Component: 3m x 2m fuselage panel with integrated stiffeners

VARTM Implementation:

• Utilized a hybrid process combining VARTM with prepreg stiffeners
• Employed Vacuum-Assisted Process (VAP) with semi-permeable membrane
• Integrated shape-memory alloy sensors for in-service health monitoring

Challenges and Solutions:

1. Complex Geometry: Developed custom 3D-printed flow channels
2. Porosity Control: Implemented oscillating pressure technique during infusion
3. Residual Stress Management: Used staged post-cure cycle optimized through FEA

Outcomes:

• Achieved void content <0.5% consistently
• 20% cost reduction compared to traditional autoclave processing
• Successfully integrated multifunctional capabilities

10.3.3 Case Study 3: Automotive Battery Enclosure

Company: ElectroDrive Innovations Component: Electric vehicle battery enclosure (1.8m x 1.2m x 0.3m)

VARTM Implementation:

• Used a light RTM variant with closable mold for improved surface finish
• Employed carbon fiber/epoxy system with integrated copper mesh for EMI shielding
• Implemented robotic preform assembly and handling

Challenges and Solutions:

1. Fire Resistance: Developed a specialized resin system with intumescent additives
2. Thermal Management: Integrated phase-change materials within the laminate
3. High-Volume Production: Designed a semi-automated VARTM cell with quick-change tooling

Outcomes:

• Met stringent safety and EMI shielding requirements
• Achieved 40% weight reduction compared to metallic alternatives
• Reduced cycle time to 45 minutes, enabling higher production volumes

Explore composite applications in automotive industry

10.4 Conclusion

These practical exercises and case studies demonstrate the versatility and potential of VARTM in various applications. By working through the design exercise, troubleshooting scenarios, and analyzing real-world implementations, readers can gain valuable insights into the practical aspects of VARTM processing. The ability to adapt the VARTM process to different scales, geometries, and performance requirements highlights its continued relevance in advanced composite manufacturing.

As the technology continues to evolve, with innovations in materials, process control, and automation, VARTM is expected to play an increasingly important role in producing high-performance, cost-effective composite structures across multiple industries.

Vacuum-assisted Resin Transfer Molding (VARTM) is a closed-mold process that has revolutionized the manufacturing of fiber-reinforced polymer (FRP) composite parts. This chapter introduces the basic concepts of VARTM, its historical development, and how it compares to other composite manufacturing processes.

1.1 Definition and Basic Concept

VARTM is a manufacturing process that combines the benefits of traditional Resin Transfer Molding (RTM) with the advantages of open-mold hand layup processing. The process involves the following key elements:

• A one-sided mold (typically an open mold)
• Dry fiber reinforcement (preform)
• A vacuum bag to seal the preform against the mold
• Resin injection under vacuum pressure
• The use of atmospheric pressure for compaction

Learn more about composite materials

In VARTM, the pressure difference between the environmental (atmospheric) pressure and the vacuum pressure is utilized to compact the fiber preform and draw the resin into the mold. This unique approach allows for the production of high-quality, large-scale composite parts with relatively low tooling costs.

1.2 Historical Development

VARTM has been developed over the past two decades as an evolution of traditional RTM processes. Key milestones include:

• The introduction of the SCRIMP (Seemann Composites Resin Infusion Molding Process) in 1990
• Continuous improvements in vacuum bagging materials and techniques
• Development of flow modeling and optimization tools
• Integration of advanced sensors and control systems

These advancements have led to VARTM becoming a widely adopted process in various industries, including marine, aerospace, automotive, and renewable energy.

1.3 Comparison with Other Composite Manufacturing Processes

VARTM offers several advantages over traditional composite manufacturing methods:

Explore challenges in switching to composite materials

VARTM combines the following key benefits:

1. High part quality and repeatability (similar to RTM)
2. Flexibility and scalability (similar to hand layup)
3. Reduced volatile organic compound (VOC) emissions
4. Cost-effectiveness for large structures

However, VARTM also has some limitations:

1. Potential for air leakage and dry spot formation
2. Limited control over fiber volume fraction
3. Challenges in achieving uniform part thickness

Despite these challenges, VARTM has become a preferred method for manufacturing large composite parts in many industries due to its versatility and cost-effectiveness.

Discover more about composites manufacturing methods

In the following chapters, we will delve deeper into the fundamentals of VARTM, explore the process setup and procedure, and discuss the critical elements of VARTM process design.

Understanding the fundamental principles behind Vacuum-assisted Resin Transfer Molding (VARTM) is crucial for optimizing the process and producing high-quality composite parts. This chapter explores the key physical phenomena that govern the VARTM process.

2.1 Resin Flow Phenomenon

The resin flow in VARTM is governed by Darcy's law, which describes fluid flow through porous media. The generalized Darcy's law is given by:

u_D = -(K/μ) * ∇P

Where:

• u_D is the Darcy velocity (volume-averaged velocity)
• K is the permeability tensor of the porous medium
• μ is the dynamic viscosity of the resin
• ∇P is the pressure gradient

Continuity equation:

∇ · u_D = 0

Learn more about resin flow in composite manufacturing

Key aspects of resin flow in VARTM include:

1. Through-thickness flow: The primary direction of resin flow is through the thickness of the preform, facilitated by the flow distribution medium.
2. Race-tracking: Resin may flow faster along edges or channels, leading to non-uniform filling.
3. Dual-scale flow: Resin flows both between fiber tows (macro-flow) and within fiber tows (micro-flow).

2.2 Fiber Preform Compaction

Fiber preform compaction is a critical aspect of VARTM that affects the final part quality and fiber volume fraction. The relationship between compaction pressure and fiber volume fraction can be described by models such as:

1. Gutowski's model:

P_comp = A * ((V_f - V_f0) / (V_f∞ - V_f))^4

2. Robitaille and Gauvin's model:

V_f = V_f1 * P_comp^BWhere:

• P_comp is the compaction pressure
• V_f is the fiber volume fraction
• A, V_f0, V_f∞, V_f1, and B are empirical constants

Where:

• $P_{comp}$ is the compaction pressure
• $V_f$ is the fiber volume fraction
• $A$, $V_{f0}$, $V_{f\infty}$, $V_{f1}$, and $B$ are empirical constants

Explore more about fiber reinforcements

Compaction affects:

• Preform thickness
• Porosity
• Permeability

2.3 Resin Viscosity

Resin viscosity plays a crucial role in the VARTM process, affecting flow behavior and filling time. The viscosity of thermoset resins used in VARTM is typically modeled as a function of temperature and degree of cure:

μ = μ_0 * exp(E/(R*T)) * exp(a_c * α)

Where:

• μ is the resin viscosity
• μ_0 is a constant
• E is the flow activation energy
• R is the universal gas constant
• T is the absolute temperature
• a_c is a constant
• α is the degree of cure

Key considerations for resin viscosity in VARTM:

1. Temperature control to maintain optimal viscosity during infusion
2. Pot life (working time) of the resin system
3. Viscosity changes during the curing process

2.4 Composite Curing Behavior

The curing process in VARTM involves complex heat transfer and chemical reactions. The one-dimensional energy balance equation for the curing process is:

ρ_c * c_pc * ∂T/∂t = ∂/∂z(k_czz * ∂T/∂z) + ρ_r * ε_r * H_r * ∂α/∂t

Where:

• ρ_c, c_pc, and k_czz are the density, specific heat capacity, and thermal conductivity of the composite
• ρ_r, ε_r, and H_r are the density, porosity, and reaction heat of the resin
• α is the degree of cure

The cure kinetics can be modeled using equations such as:

∂α/∂t = A * exp(-E/(R*T)) * α^m * (1-α)^n

Where A, E, m, and n are cure kinetic parameters.

Learn about composite curing and processing

Important aspects of curing in VARTM:

1. Exothermic reactions and heat management
2. Shrinkage and residual stress development
3. Gel time and vitrification

Understanding these fundamental principles allows for better process control and optimization in VARTM, leading to improved part quality and reduced manufacturing defects.

The Vacuum-assisted Resin Transfer Molding (VARTM) process requires careful setup and execution to produce high-quality composite parts. This chapter provides a detailed guide to the VARTM process setup and procedure, highlighting key steps and considerations.

3.1 VARTM Setup Overview

A typical VARTM setup consists of the following components:

1. Mold
2. Fiber preform
3. Peel ply
4. Flow distribution medium
5. Resin injection port(s)
6. Vacuum port(s)
7. Vacuum bag
8. Sealing tape

Learn more about VARTM setup

3.2 Step-by-Step VARTM Procedure

Follow these steps to set up and execute a VARTM process:

1. Mold Preparation
   • Clean the mold surface thoroughly
   • Apply mold release agent
   • Ensure the mold is level and stable
2. Fiber Preform Layup
   • Cut fiber reinforcement to size
   • Stack layers according to the designed layup sequence
   • Ensure proper fiber orientation
3. Peel Ply Application
   • Place peel ply over the entire fiber preform
   • Ensure it extends beyond the part edges
4. Flow Distribution Medium Placement
   • Position the flow distribution medium over the peel ply
   • Extend it to cover most of the part, but not to the vacuum port
5. Resin Injection Port Installation
   • Place the resin injection port(s) at the designed location(s)
   • Use spiral tubing or omega channels for even resin distribution
6. Vacuum Port Placement
   • Position the vacuum port(s) at the opposite end from the injection port(s)
   • Ensure they're not in direct contact with the flow distribution medium
7. Vacuum Bagging
   • Apply sealing tape around the perimeter of the mold
   • Carefully place the vacuum bag over the entire layup
   • Seal the bag to the mold, ensuring no air leaks
8. Leak Testing
   • Connect the vacuum port to the vacuum pump
   • Apply vacuum and check for leaks
   • Fix any leaks found
9. Resin Preparation
   • Mix resin and hardener according to the manufacturer's instructions
   • Degas the resin mixture if necessary
10. Resin Infusion
    • Connect the resin inlet to the resin reservoir
    • Open the inlet and allow resin to flow into the preform
    • Monitor the resin flow front progression
11. Post-Filling Procedure
    • Once the part is fully wetted, close the resin inlet
    • Maintain vacuum for the specified curing time
12. Curing
    • Allow the part to cure according to the resin system's cure cycle
    • Maintain vacuum throughout the curing process
13. Demolding
    • After full cure, remove the vacuum bag and ancillary materials
    • Carefully remove the part from the mold

Explore composites manufacturing methods

3.3 Key Considerations

To ensure a successful VARTM process, keep the following points in mind:

1. Preform Compaction: Consider using a debulking process to better compact the fiber preform before infusion.
2. Flow Front Control: Monitor the resin flow front and adjust injection as needed to prevent dry spots or race-tracking.
3. Temperature Management: Control the mold temperature to optimize resin viscosity and cure kinetics.
4. Vacuum Integrity: Continuously monitor vacuum pressure and address any leaks immediately.
5. Resin Bleeding: Allow some extra resin to bleed out after full wetting to remove tiny air bubbles.
6. Post-Cure: Depending on the resin system, a post-cure cycle may be necessary to achieve optimal mechanical properties.

Learn about process monitoring in composites manufacturing

By carefully following these steps and considering the key points, you can successfully execute a VARTM process to produce high-quality composite parts. The next chapter will delve into the critical elements of VARTM process design, which will help you optimize your setup for specific applications.

Vacuum-assisted Resin Transfer Molding (VARTM) has gained popularity in various industries due to its unique combination of benefits. However, like any manufacturing process, it also has its limitations. This chapter explores the advantages and disadvantages of VARTM, providing a balanced view of its capabilities and challenges.

4.1 Advantages of VARTM

VARTM offers several significant benefits that make it an attractive option for composite manufacturing:

1. Flexibility in Mold Design
   • Utilizes one-sided, open molds similar to hand layup processes
   • Allows for easier modification of mold geometries
   • Enables the production of large, complex parts
2. Cost-Effectiveness for Large Parts
   • Lower tooling costs compared to traditional RTM, especially for large components
   • Reduced equipment investment compared to autoclave processing
3. High Part Quality
   • Produces parts with good surface finish on the mold side
   • Achieves relatively high fiber volume fractions (typically 40-55%)
   • Allows for the production of thick sections with proper process control
4. Low VOC Emissions
   • Closed-mold process with reduced volatile organic compound (VOC) emissions
   • Improves workplace safety and environmental compliance
5. Scalability
   • Suitable for both small prototype runs and large production volumes
   • Easily scalable for different part sizes
6. Material Flexibility
   • Compatible with a wide range of fiber reinforcements and resin systems
   • Allows for the use of preforms and complex fiber architectures
7. In-Process Quality Control
   • Transparent vacuum bag enables visual monitoring of resin flow
   • Allows for real-time adjustments during infusion

Learn more about advantages of composite materials

4.2 Disadvantages of VARTM

Despite its many advantages, VARTM also has some limitations and challenges:

1. Air Leakage Risks
   • Heavily dependent on proper vacuum bag sealing
   • Leaks can lead to dry spots and incomplete resin infusion
   • Requires careful preparation and skilled technicians

2. Limited Fiber Volume Fraction Control
   • Maximum achievable fiber volume fraction is lower than in autoclave processing
   • Variations in part thickness can occur due to resin pressure gradients
3. Consumable Materials
   • Requires single-use materials such as vacuum bags, peel ply, and flow media
   • Increases per-part material costs and generates more waste
4. Complex Flow Behavior
   • Resin flow paths can be difficult to predict, especially for complex geometries
   • May require flow simulation and optimization for consistent results
5. Limited Pressure Range
   • Resin injection pressure is limited to 1 atmosphere or less
   • Can limit the ability to compress and remove voids in some cases
6. Post-Processing Requirements
   • Often requires trimming of excess resin and edge finishing
   • May need additional surface treatment for high-quality finishes
7. Temperature Control Challenges
   • Difficulty in maintaining uniform temperature across large parts
   • May require additional heating systems for optimal curing

Explore challenges in composite manufacturing

4.3 Comparison with Other Processes

To better understand the position of VARTM in the landscape of composite manufacturing, let's compare it with other common processes:

Learn about various composites manufacturing methods

4.4 Conclusion

VARTM offers a unique combination of benefits, making it particularly suitable for large, complex composite parts where cost-effectiveness is crucial. Its main advantages lie in its flexibility, scalability, and relatively low tooling costs. However, users must be aware of its limitations, particularly in terms of air leakage risks and fiber volume fraction control.

By understanding these advantages and disadvantages, manufacturers can make informed decisions about when to use VARTM and how to optimize the process for their specific applications. As technology continues to advance, many of the current limitations of VARTM are being addressed through innovations in materials, process control, and simulation tools.

Successful implementation of Vacuum-assisted Resin Transfer Molding (VARTM) requires careful consideration of several critical elements. This chapter focuses on three key aspects of VARTM process design: mold temperature selection, flow process design, and fiber preform compaction and fiber volume fraction control.

5.1 Mold Temperature Selection

Mold temperature plays a crucial role in VARTM process optimization, affecting various aspects of the manufacturing process and final part quality.

5.1.1 Importance of Mold Temperature

1. Resin Viscosity Control: Temperature directly impacts resin viscosity, which affects flow behavior and infusion time.
2. Curing Management: Proper temperature selection ensures optimal curing kinetics and avoids issues like premature gelation.
3. Material Compatibility: Temperature influences the selection of vacuum bagging materials, sealants, and release agents.

5.1.2 Factors Influencing Mold Temperature Selection

• Resin system characteristics (pot life, cure kinetics)
• Part geometry and thickness
• Desired cycle time
• Tooling material thermal properties

5.1.3 Temperature Control Strategies

1. Isothermal Processing: Maintaining a constant mold temperature throughout infusion and cure.
2. Staged Temperature Profile: Varying temperature for optimal infusion and curing conditions.
3. Zoned Heating: Using multiple temperature zones for large or complex parts.

‍

Learn more about composite curing processes

5.2 Flow Process Design

Optimizing the resin flow process is critical for achieving complete wet-out and minimizing defects in VARTM parts.

5.2.1 Key Elements of Flow Process Design

1. Injection Strategy:
   • Point injection vs. line injection
   • Single vs. multiple injection ports
2. Vent Placement:
   • Location and number of vents
   • Use of auxiliary vents for complex geometries
3. Flow Media Design:
   • Selection of distribution media type
   • Optimization of media coverage and overlap
4. Flow Front Control:
   • Use of flow channels or omega tubes
   • Implementation of race-tracking control strategies

5.2.2 Flow Simulation and Optimization

Utilizing flow simulation software can help optimize the VARTM process:

• Predict filling patterns and times
• Identify potential dry spots or race-tracking issues
• Optimize injection and vent locations

Explore flow process design in composite manufacturing

5.3 Fiber Preform Compaction and Fiber Volume Fraction Control

Achieving the desired fiber volume fraction and maintaining uniform part thickness are critical for part quality and performance.

5.3.1 Factors Affecting Compaction and Fiber Volume Fraction

1. Preform Architecture:
   • Fiber type and orientation
   • Ply count and stacking sequence
2. Compaction Pressure:
   • Vacuum level
   • Atmospheric pressure variations
3. Resin Pressure:
   • Injection pressure
   • Pressure gradients during infusion
4. Time-Dependent Effects:
   • Preform relaxation
   • Resin bleeding and consolidation

5.3.2 Compaction Control Strategies

1. Preform Debulking:
   • Applying vacuum cycles before infusion
   • Using sacrificial bleeder layers
2. Staged Pressure Application:
   • Gradually increasing compaction pressure
   • Utilizing dual vacuum systems
3. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin bleeding

5.3.3 Fiber Volume Fraction Prediction and Control

Utilize compaction models to predict and control fiber volume fraction:

1. Empirical Models:some text
   • Gutowski's model
   • Robitaille and Gauvin's model
2. Experimental Characterization:some text
   • Compaction testing of preform materials
   • In-situ thickness monitoring during VARTM

‍

Learn about fiber reinforcements in composites

5.4 Integrated Process Design

Successful VARTM process design requires the integration of these critical elements:

1. Temperature-Flow Coupling:
   • Optimize mold temperature for desired flow characteristics
   • Consider temperature effects on resin viscosity and cure kinetics
2. Flow-Compaction Interaction:
   • Design flow media to achieve uniform compaction
   • Account for permeability changes due to preform compaction
3. Adaptive Process Control:
   • Implement real-time monitoring and control systems
   • Adjust process parameters based on in-situ measurements

By carefully considering and optimizing these critical elements, manufacturers can design robust VARTM processes that consistently produce high-quality composite parts.

Despite its many advantages, Vacuum-assisted Resin Transfer Molding (VARTM) can present several challenges that may lead to defects in the final composite part. This chapter explores four major areas of concern: air entrapment and dry spots, thickness and fiber volume fraction uniformity, curing and thermal management, and the spring-in phenomenon.

6.1 Air Entrapment and Dry Spots

Air entrapment and dry spots are common issues in VARTM that can significantly impact the quality and performance of the final part.

6.1.1 Causes of Air Entrapment and Dry Spots

1. Improper Mold Filling Design:
   • Poor placement of injection ports and vents
   • Inadequate flow media design
2. Race-Tracking:
   • Preferential flow along edges or channels
   • Uneven flow front progression
3. Slow Filling Process:
   • Resin gelling before complete mold filling
   • Insufficient injection pressure
4. Vacuum System Issues:
   • Leaks in the vacuum bag or sealing
   • Inadequate vacuum level

6.1.2 Mitigation Strategies

1. Optimized Flow Simulation:
   • Use of flow modeling software to predict and prevent dry spots
   • Strategic placement of injection ports and vents
2. Active Flow Control:
   • Implementation of sequential injection strategies
   • Use of flow sensors and adaptive injection control
3. Enhanced Vacuum Integrity:
   • Rigorous leak detection and sealing procedures
   • Use of double vacuum bagging for critical applications
4. Resin Degassing:
   • Proper degassing of resin before injection
   • Use of vacuum-assisted resin degassing during injection

Learn more about defects in composite materials

6.2 Thickness and Fiber Volume Fraction Uniformity

Achieving consistent part thickness and fiber volume fraction across large or complex parts can be challenging in VARTM.

6.2.1 Factors Affecting Uniformity

1. Preform Compaction Behavior:
   • Variations in local preform architecture
   • Time-dependent relaxation effects
2. Resin Pressure Gradients:
   • Pressure drop along the flow path
   • Edge effects and race-tracking
3. Tooling Deflection:
   • Flexibility of large molds under vacuum pressure
   • Non-uniform pressure distribution

6.2.2 Control Strategies

1. Graduated Flow Media:
   • Use of variable permeability flow media
   • Tailored flow channel designs
2. Zoned Vacuum Control:
   • Implementation of multiple vacuum zones
   • Gradual pressure application and release
3. In-situ Thickness Monitoring:
   • Use of embedded sensors or external measurement systems
   • Real-time adjustment of process parameters
4. Post-Filling Consolidation:
   • Maintaining vacuum after complete wet-out
   • Allowing for preform relaxation and resin redistribution

‍

Explore composite manufacturing process control

6.3 Curing and Thermal Management

Proper curing and thermal management are crucial for producing high-quality VARTM parts, especially for thick or large components.

6.3.1 Challenges in Curing and Thermal Management

1. Exothermic Reactions:
   • Heat buildup in thick sections
   • Potential for thermal degradation or fire
2. Thermal Gradients:
   • Non-uniform curing across the part
   • Residual stress development
3. Cure Shrinkage:
   • Dimensional changes during curing
   • Potential for warpage or internal stresses

6.3.2 Management Strategies

1. Temperature-Controlled Tooling:
   • Use of heated or cooled molds
   • Implementation of zoned temperature control
2. Staged Curing Cycles:
   • Gradual temperature ramps and holds
   • Optimization of cure kinetics for specific resin systems
3. In-situ Cure Monitoring:
   • Use of dielectric sensors or fiber optic systems
   • Real-time adjustment of cure parameters
4. Multi-Stage Curing (MSC) Technique:
   • Sequential curing of manageable layers
   • Mitigation of thermal spiking in thick parts

‍

Learn about curing in composite manufacturing

6.4 Spring-in Phenomenon

Spring-in is a common dimensional accuracy issue in curved composite parts manufactured using VARTM.

6.4.1 Causes of Spring-in

1. Anisotropic Thermal Contraction:
   • Different coefficients of thermal expansion in-plane and through-thickness
2. Cure Shrinkage:
   • Non-uniform shrinkage between fiber and matrix
3. Tool-Part Interaction:
   • Friction between the part and mold during cooling

6.4.2 Prediction and Mitigation Strategies

1. Analytical Modeling:
   • Use of spring-in prediction models (e.g., Hsiao and Gangireddy model)
   • Incorporation of material properties and process parameters
2. Tooling Compensation:
   • Design of molds with adjusted curvature to account for spring-in
   • Use of adjustable or modular tooling
3. Fiber Architecture Optimization:
   • Strategic placement of off-axis plies
   • Use of fabric systems with reduced through-thickness CTE
4. Nano-enhanced Matrices:
   • Addition of nanofillers (e.g., CNFs) to reduce matrix shrinkage
   • Tailoring of matrix properties to minimize spring-in
5. Multi-Stage Curing (MSC) Technique:
   • Reduction of spring-in through sequential curing of layers
   • Optimization of inter-layer sliding effects

‍

Explore challenges in composite manufacturing

6.5 Conclusion

Understanding and addressing these defects and challenges is crucial for successful implementation of VARTM in industrial applications. By employing advanced process control, simulation tools, and innovative material solutions, manufacturers can mitigate these issues and produce high-quality, dimensionally accurate composite parts using VARTM.

Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, with recent advancements addressing sustainability concerns, enhancing material properties, and improving process efficiency. This chapter explores three key areas of recent development: green composites and bio-based materials, nanocomposites manufacturing, and process variations for improved performance.

7.1 Green Composites and Bio-based Materials

The growing emphasis on sustainability has led to increased interest in green composites and bio-based materials in VARTM processes.

7.1.1 Bio-based Reinforcements

1. Cellulose Fibers:
   • Derived from plants such as flax, hemp, and jute
   • Challenges: Moisture sensitivity, fiber-matrix compatibility
2. Wood Fibers:some text
   • Sustainable alternative to glass fibers
   • Applications in non-structural components

7.1.2 Bio-based Resins

1. Soy-based Resins:
   • Derived from soybean oil
   • Reduced environmental impact compared to petroleum-based resins
2. Linseed Oil-based Resins:
   • Renewable alternative to traditional thermosets
   • Improved toughness and impact resistance

7.1.3 VARTM Adaptations for Green Composites

1. Fiber Drying:
   • Critical pre-processing step for natural fibers
   • Prevents moisture-induced curing inhibition
2. Fiber Treatment:
   • Surface modifications to improve fiber-matrix compatibility
   • Enhances mechanical properties and moisture resistance
3. Resin Formulation:
   • Tailored viscosity profiles for natural fiber impregnation
   • Optimized cure kinetics for bio-based systems

Learn more about natural fiber composites

7.2 Nanocomposites Manufacturing

The incorporation of nanomaterials in VARTM processes has opened new avenues for enhancing composite properties and functionality.

7.2.1 Types of Nanomaterials

1. Carbon Nanofibers (CNFs):
   • Improved mechanical and electrical properties
   • Reduced spring-in effect in curved parts
2. Carbon Nanotubes (CNTs):
   • Single-walled (SWCNTs) and multi-walled (MWCNTs) variants
   • Enhanced strength, stiffness, and conductivity
3. Nanoclays:
   • Improved barrier properties and flame retardancy
   • Enhanced matrix toughness

7.2.2 Nanocomposite VARTM Challenges

1. Nanoparticle Dispersion:
   • Achieving uniform distribution in the resin
   • Preventing agglomeration during infusion
2. Filtration Effects:
   • Nanoparticle retention by fiber preforms
   • Non-uniform nanoparticle distribution in the final part
3. Viscosity Increase:
   • Impact on resin flow and infusion time
   • Potential for incomplete wet-out

7.2.3 Advanced VARTM Techniques for Nanocomposites

1. IDVARTM (Injection and Double Vacuum-assisted RTM):
   • Uses a secondary vacuum chamber to control preform porosity
   • Facilitates higher nanoparticle loadings


2. Sprayed Nanoparticle Preforms:
   • Pre-bonding nanoparticles to fiber mats
   • Reduces filtration effects during infusion
3. In-situ Polymerization:
   • Infusion of nanoparticle-monomer mixtures
   • Polymerization occurs after complete impregnation

Explore innovations in composite materials

7.3 Process Variations for Improved Performance

Continuous innovation in VARTM processes has led to several variations aimed at enhancing part quality, reducing cycle times, and expanding application ranges.

7.3.1 SCRIMP (Seemann Composites Resin Infusion Molding Process)

1. Key Features:
   • Utilizes a high-permeability distribution medium
   • Enables faster infusion of large parts
2. Advantages:
   • Reduced cycle times
   • Improved thickness uniformity

7.3.2 CAPRI (Controlled Atmospheric Pressure Resin Infusion)

1. Process Characteristics:
   • Uses a partial vacuum in the resin reservoir
   • Allows for precise control of resin flow rate
2. Benefits:
   • Reduced void content
   • Enhanced fiber volume fraction control

7.3.3 VAP (Vacuum-Assisted Process)

1. Unique Aspect:
   • Incorporates a semi-permeable membrane
   • Allows for continuous degassing during infusion and cure
2. Advantages:
   • Reduced void content
   • Improved surface quality



7.3.4 CARTM (Continuous Automated Resin Transfer Molding)

1. Process Innovation:
   • Combines continuous fiber placement with in-situ resin infusion
   • Enables production of large, complex structures
2. Key Benefits:
   • Reduced labor costs
   • Improved repeatability and quality control

7.3.5 Multi-stage Curing (MSC) Technique

1. Approach:
   • Sequential curing of manageable layers
   • Particularly useful for thick composites
2. Advantages:
   • Mitigates thermal spiking issues
   • Reduces spring-in effect in curved parts

Learn about advanced manufacturing techniques

7.4 Conclusion

These recent advances in VARTM technology demonstrate the process's adaptability and potential for future growth. The integration of sustainable materials, nanomaterials, and innovative process variations is expanding the capabilities of VARTM, making it an increasingly attractive option for a wide range of applications. As research continues, we can expect further improvements in part quality, process efficiency, and the environmental impact of composite manufacturing using VARTM techniques.

The Vacuum-Assisted Process (VAP) is an innovative variation of VARTM that incorporates a semi-permeable membrane to enhance process control and part quality. This chapter explores the VAP process, its unique characteristics, and the benefits it offers over traditional VARTM.

8.1 Process Description and Infusion Behavior

VAP introduces a crucial modification to the standard VARTM setup by incorporating a membrane layer that is permeable to gases but impermeable to resin.

8.1.1 VAP Setup

The typical VAP layup consists of the following components (from bottom to top):

1. Mold
2. Dry fiber preform
3. Peel ply
4. Distribution media
5. Semi-permeable membrane
6. Breather material
7. Vacuum bag

8.1.2 Infusion Behavior

1. Initial Stage:
   • Resin flows through the distribution media and into the preform
   • Behavior similar to standard VARTM
2. Mid-Infusion:
   • Uniform vacuum maintained across the part surface
   • Continuous degassing occurs through the membrane
3. Post-Filling:
   • No resin bleeding through vents
   • Pressure equilibrium reached based on total infused resin amount

8.1.3 Key Differences from Standard VARTM

1. Vacuum Distribution:
   • Entire surface connected to vacuum, reducing need for optimized vent placement
2. Degassing:
   • Continuous removal of volatiles during infusion and cure
3. Pressure Behavior:
   • Distinct post-infusion pressure profile due to lack of resin bleeding

‍

Learn more about VARTM process variations

8.2 Membrane Evaluation

The success of the VAP process heavily relies on the properties and performance of the semi-permeable membrane.

8.2.1 Membrane Structure

1. Composition:
   • Typically made of polytetrafluoroethylene (PTFE)
   • Two-layer structure: membrane and support layer
2. Pore Characteristics:
   • Nanoporous structure
   • Pore size distribution critical for performance

8.2.2 Key Membrane Properties

1. Gas Permeability:
   • Allows for continuous degassing
   • Maintains uniform vacuum across the part
2. Resin Impermeability:
   • Prevents resin penetration at typical process pressures
   • Pressure-dependent barrier properties
3. Temperature Resistance:
   • Suitable for use up to at least 200°C
   • Compatible with high-temperature resin systems

8.2.3 Membrane Performance Modeling

Membrane performance can be modeled based on:

1. Pore Size Distribution:
   • Measured using standard porometry techniques
2. Resin-Membrane Interaction:
   • Contact angle between resin and membrane surface
   • Surface tension of the resin
3. Applied Pressure:
   • Permeability changes as a function of pressure

Explore advanced materials in composite manufacturing

8.3 Process and Material Property Improvements

The VAP process offers several advantages over standard VARTM, leading to improvements in both the manufacturing process and the final part properties.

8.3.1 Process Improvements

1. Enhanced Robustness:
   • Reduced sensitivity to vent placement
   • Minimized risk of dry spot formation
2. Improved Filling Control:
   • Uniform vacuum distribution across the part surface
   • Better management of race-tracking effects
3. Simplified Setup:
   • Reduced need for complex vent systems
   • Potential for more consistent results across different part geometries
4. Extended Processing Window:
   • Continuous degassing allows for longer infusion times
   • Beneficial for large or complex parts

8.3.2 Material Property Enhancements

1. Reduced Void Content:
   • Continuous degassing during infusion and cure
   • Typical void content below 1% achievable
2. Improved Surface Quality:
   • Reduced surface porosity due to enhanced degassing
   • Potential for Class A surface finish on mold side
3. Consistent Fiber Volume Fraction:
   • Better control of resin content across the part
   • Improved mechanical property consistency

8.3.3 Comparative Study Results

Key observations:

• VAP achieved lower void content with slightly lower fiber volume fraction
• More consistent results (lower standard deviation) with VAP

8.3.4 Optimization Opportunities

1. Resin Inlet Control:
   • Optimized closing of resin inlet before complete filling
   • Potential to maximize fiber volume fraction while minimizing voids
2. Temperature Profiling:
   • Tailored temperature cycles for specific resin systems
   • Optimization of cure kinetics and degassing efficiency
3. Membrane Selection:
   • Customized membranes for specific resin systems and process conditions
   • Balancing gas permeability and resin barrier properties

Learn about process optimization in composite manufacturing

8.4 Conclusion

The Vacuum-Assisted Process (VAP) represents a significant advancement in VARTM technology. By incorporating a semi-permeable membrane, VAP offers improved process control, reduced defects, and enhanced material properties. As membrane technology continues to evolve and process optimization techniques advance, VAP is likely to find increasing application in the production of high-performance composite parts, particularly in industries demanding high quality and consistency, such as aerospace and automotive.

As Vacuum-assisted Resin Transfer Molding (VARTM) continues to evolve, new applications emerge, and research drives further improvements. This chapter explores the future of VARTM technology, highlighting emerging applications, ongoing research and development efforts, and potential areas for process enhancement.

9.1 Emerging Applications
