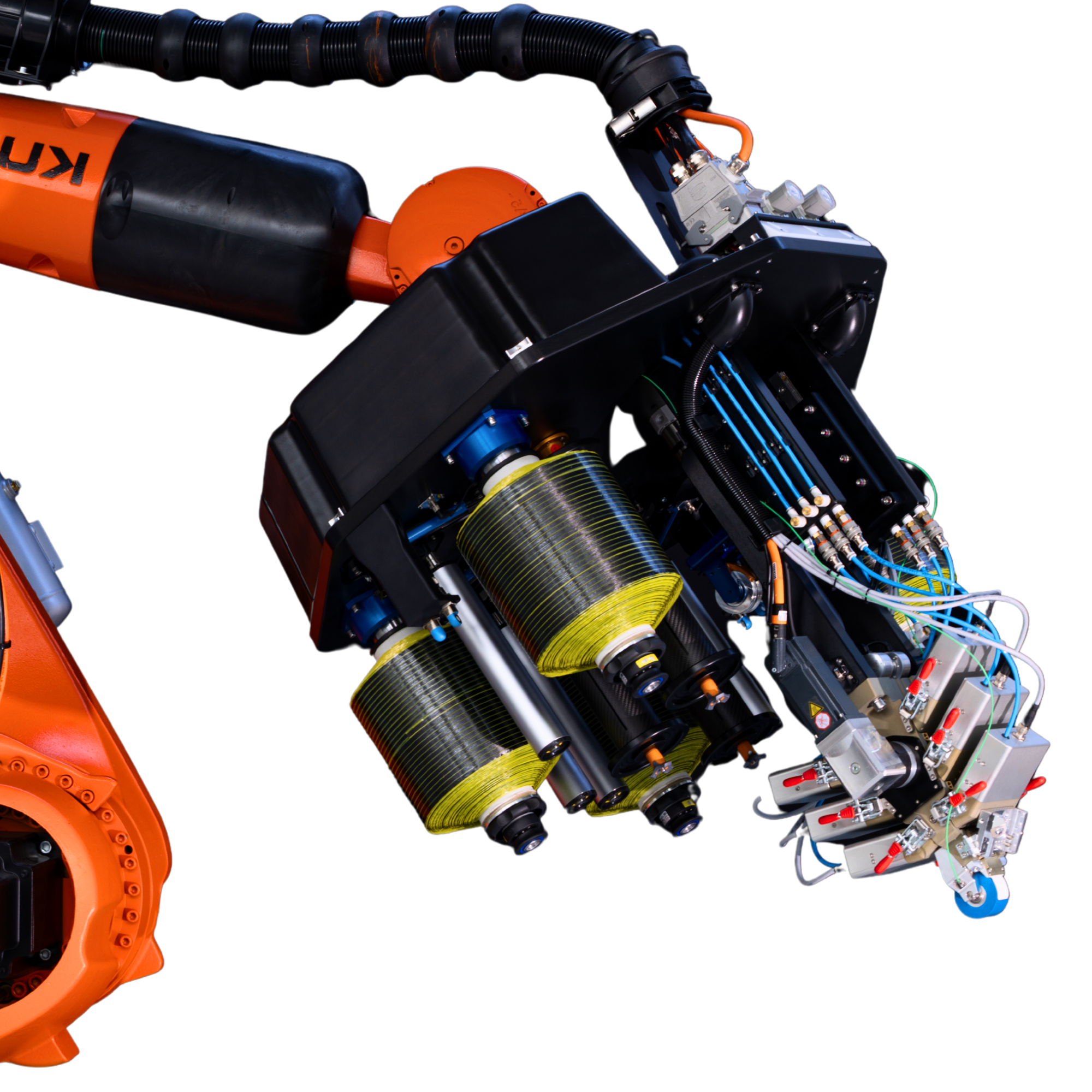

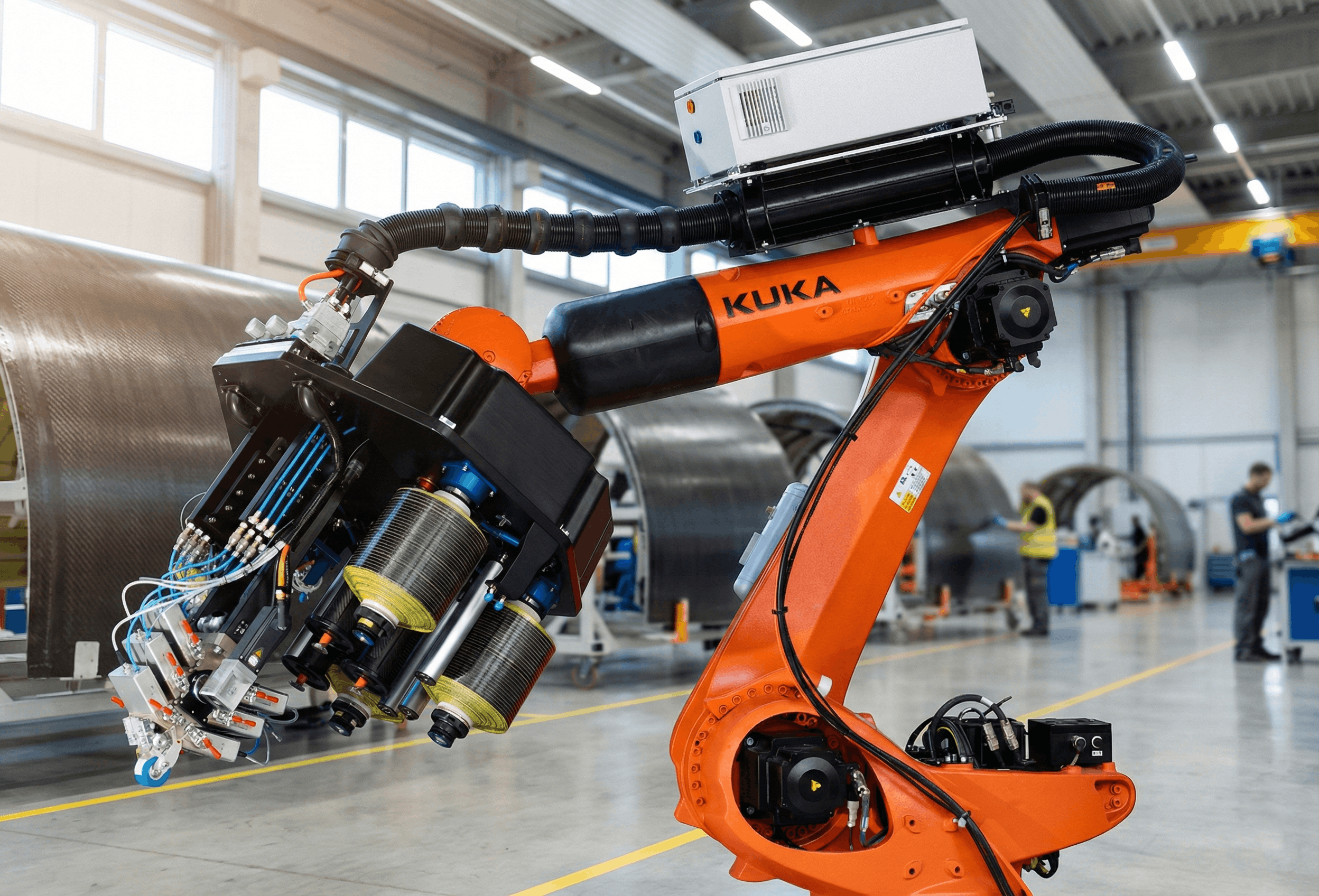

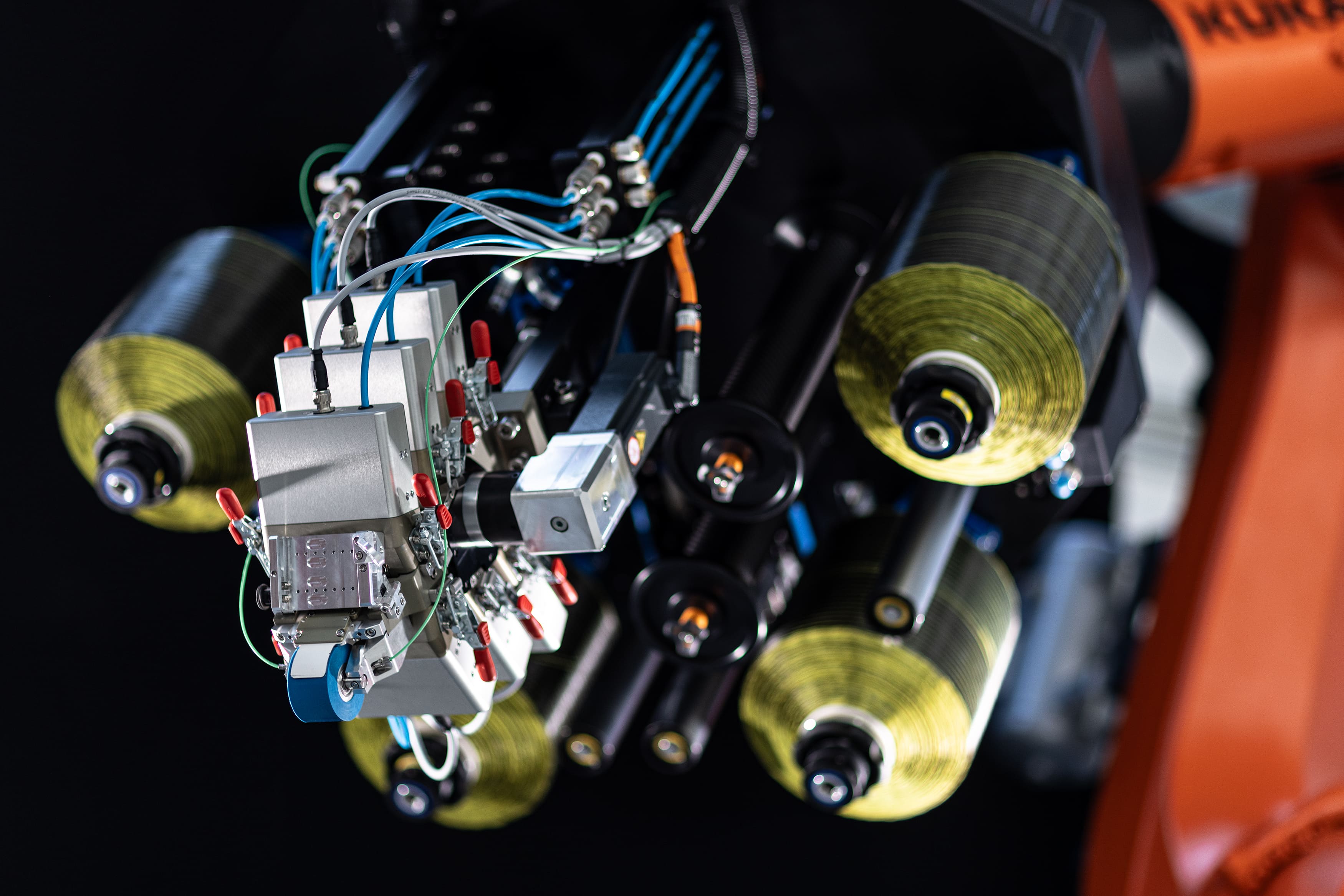

The robust, multi-tow AFP-X system — built for high-volume production, packed with increased material capacity and advanced sensors. Ensures continuous, precise operations, optimizing throughput for complex aerospace and large components.
AFP-X is a pioneer in fiber placement when it comes to manufacturing. It is used in multiple fields such as:
Our water-cooled compaction roller is designed for enhanced durability during high-temperature AFP operations, providing precise cooling control in thermoplastic layups. This minimizes roller aging and reduces the risk of impurities from prolonged exposure to heat, ensuring optimal layup quality and extended roller life.
The Laser Line Scanner, optimally positioned in the AFP process, captures precise point cloud data. This data, processed through Addcomposites' proprietary computer vision model, enables real-time identification of gap/overlap defects during layup. Users have full access to the raw data, ensuring transparency. The advanced model ensures top-notch defect detection, elevating the AFP process's quality.
Addcomposites seamlessly integrates a force sensor, strategically mounted between the robot flange and the AFP mounting plate. This sensor provides real-time data on compaction forces during the AFP process, ensuring consistent fiber placement and optimal bond strength.
The Ultrasonic Trimmer is designed to make precise cuts in fiber-reinforced materials, leveraging ultrasonic technology to minimize fraying and ensure clean edges. Integrated into the AFP system, this trimmer enhances layup precision by creating smooth, exact trimming, essential for complex contours and high-performance composite applications.
Addcomposites designs and provides a quick tool changer to switch between the end-effectors, in which the wires and materials can pass through the quick tool changer.
Addcomposites provides high-quality layup tables in various sizes, with patterned holes for accurate positioning of molds and plates, including heated options . The hole pattern is replicated in the path planning software, enabling precise recognition of mold and plate locations for accurate
layup results.
Our dedicated thermal camera accessory ensures high-quality AFP processing through real-time monitoring. Mounted directly on the AFP system with adjustable positioning, it captures detailed thermal data to enhance quality control and seamlessly integrates with the system for precise heating management.
The Flash Lamp Heater provides rapid, localized heating critical for thermoplastic processing, effectively supporting high-speed AFP operations. Positioned near the fiber laydown area, it delivers controlled bursts of heat to optimize fiber adhesion without compromising material integrity, suitable for high-demand layup scenarios.
The Laser Heater operates at temperatures up to 200℃, offering precise, non-contact heating ideal for thermoset and thermoplastic materials. Positioned for direct fiber heating, it allows fine-tuned thermal management, ensuring consistent bonding and enhancing material strength and durability in AFP processes.
AddPath is a strategic path planning software developed in-house by Addcomposites meticulously designed to cater to the automated composites production programming and monitoring. It empowers users to effortlessly program and simulate the AFP process, enhancing production efficiency.
Users can define, modify, and edit placement paths, visualize planned layups to identify and correct errors, accurately calculate material requirements, time, and costs, and generate precise robot programs for the AFP process.
