04 — ROBOTIC TAPE WINDING

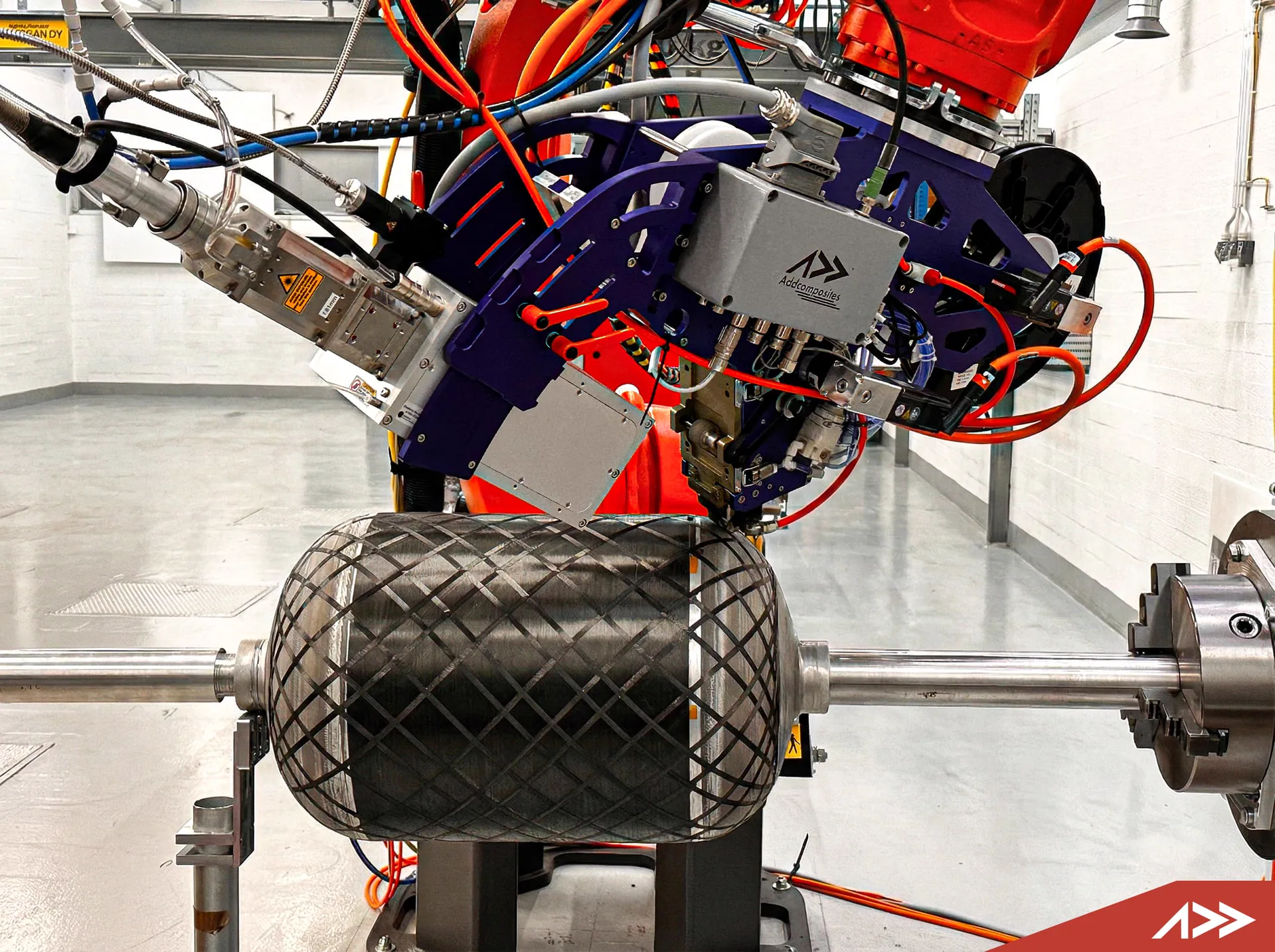

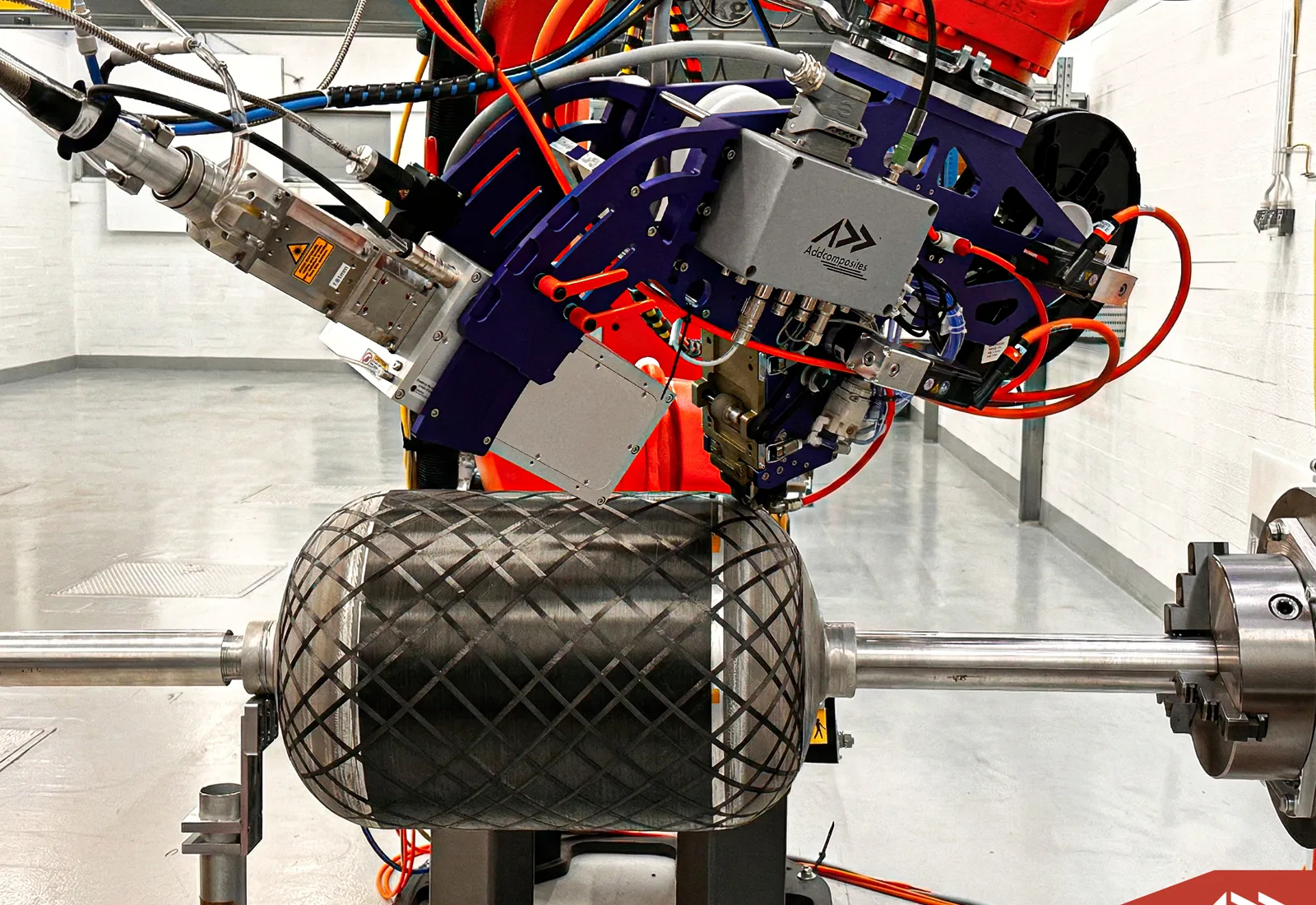

Automated Tape Winding
One robotic platform for compaction-based and tension-based winding — from rapid thermoset pipes to engineered Type V tanks, thermoplastic rotor sleeves, isogrids and non-axisymmetric structures.
Up to 1000 N
TENSION MODE PRETENSION
Laser or humm3
THERMOPLASTIC HEATING
AddPath
ROBOT + POSITIONER MOTION
THE SYSTEM
Two winding modes, one machine
Compaction-based winding enables in-situ thermoplastic consolidation and finite-fiber control. Tension mode raises throughput and pretensions material for tanks, pipes and tubes.
THE GEOMETRY
Beyond a surface of revolution
Stop and restart tapes for selective reinforcement, build isogrids without unnecessary mass, and wind non-axisymmetric shapes with precise fiber orientation under AddPath control.
MATERIAL COMPATIBILITY
Towpreg
THERMOSET / THERMOPLASTIC
Thermoset
PREPREG TAPE
Thermoplastic
PREPREG TAPE
Dry Fiber
RESIN-FREE
SYSTEM SPECIFICATIONS
What to check before you call
| Robot brands | KUKA, ABB, FANUC, Kawasaki, Yaskawa |
| Modes | Compaction-based or tension-based winding |
| Heating | Laser or humm3, selected around the material |
| Structures | Type V tanks, pipes, tubes, motor sleeves, isogrids, non-axisymmetric parts |
| Materials | Thermoset and thermoplastic tape systems |
Robot, positioner, heating, compaction or tension mode and tooling are configured around the part, material and required rate.
WHAT HAPPENS ON THE CALL
01
Vessel or structure geometry
02
Material system and tape format
03
Compaction, tension and quality targets
04
Robot, positioner, heating and tooling
05
Required rate and commissioning date
Configure the winding cell around the structure
REQUEST A FEASIBILITY CALL →
