Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

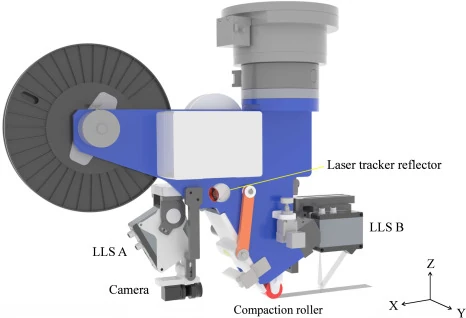

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

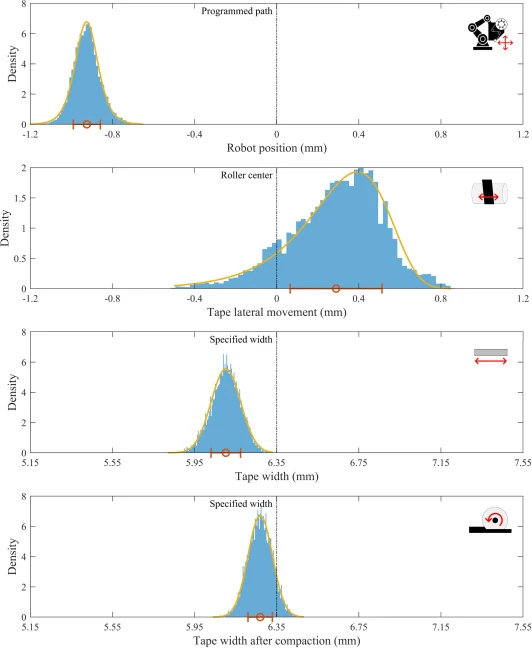

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

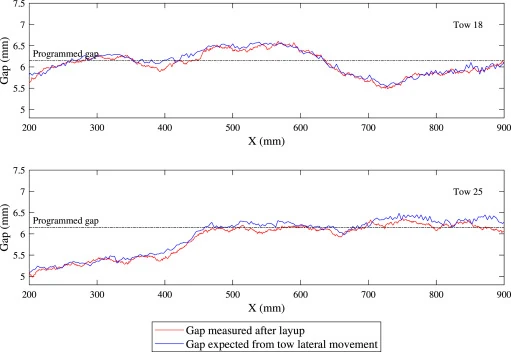

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Introduction

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Introduction

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

Additional Resources

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

References

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Introduction

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Introduction

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

References

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

Introduction

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Innovative Research Methodology: Measuring Manufacturing Variations in AFP

The Experimental Setup

To understand and predict manufacturing variations in AFP composites, researchers developed a sophisticated measurement system using the AFP-XS system. This compact yet powerful setup represents a significant advancement in process monitoring for AFP manufacturing.

Core Components

The experimental setup consisted of four key elements:

  1. AFP Systems
    • ADD Composites AFP-XS head mounted on a KUKA KR 210 R2700 robot
    • 31mm wide silicone compaction roller with 40mm diameter
    • Infrared heater for thermoset tow processing
    • Capability to handle various tow widths (6.35mm, 12.7mm, and 25.4mm)
  2. Advanced Sensor Suite
    • Laser tracker (Leica AT960 MR) for precise position monitoring
    • High-resolution camera (Ximea xiC USB 3.1) for tow tracking
    • Two laser line scanners for measuring tow geometry:
      • Scanner A: Monitoring incoming tow dimensions
      • Scanner B: Measuring laid tow characteristics

Measurement Strategy

The research team employed a comprehensive approach to measure four critical aspects of manufacturing variation:

  1. Robot Position Accuracy
    • Tracked using the laser system with ±7 μm accuracy
    • Position measurements recorded every 10ms
    • Focus on Y-direction deviations (perpendicular to layup direction)
  2. Tow Movement
  • Real-time camera monitoring at 62.5 Hz
  • High-precision edge detection (∼16 microns resolution)
  • Tracking of tow position relative to roller centerline
  1. Tow Width Measurements
  • Dual laser scanner setup
  • Profile measurements at 83 Hz
  • Resolution: 12.2 microns (width) and 1.5 microns (thickness)
  1. Compaction Effects
    • Before and after measurements of tow geometry
    • Analysis of width changes under compaction
    • Correlation with process parameters

The Layup Process

The experimental procedure involved:

  • Laying 31 straight lines of 6.35mm wide thermoset composite tow
  • Each run spanning 1 meter in length
  • Maximum speed of 200 mm/s
  • Controlled tension (6.7 N) using magnetic brake
  • Compaction force of 377 N

Data Collection and Analysis

The research implemented sophisticated data acquisition methods:

  1. Position Tracking
    • Continuous monitoring of robot path deviations
    • Correlation with programmed coordinates
    • High-frequency sampling for detailed movement analysis
  2. Image Processing
    • Custom algorithms for edge detection
    • Precise calibration using reference images
    • Real-time tow position monitoring
  3. Profile Measurement
    • Continuous scanning of tow geometry
    • Automated detection of edge positions
    • Analysis of width and thickness variations

This comprehensive measurement approach allows for a detailed understanding of how AFP machines and components interact during the manufacturing process, providing valuable insights into defect formation mechanisms.

Why This Matters

This sophisticated measurement system represents a significant advancement in understanding AFP manufacturing variations. By simultaneously tracking multiple parameters, researchers can:

  • Identify the primary sources of manufacturing variations
  • Quantify their relative impact on defect formation
  • Develop predictive models for quality control
  • Guide process optimization efforts

The insights gained from this research are particularly valuable for implementing automated fiber placement systems, as they provide a scientific basis for process improvement and quality control strategies.

Revealing Patterns: Key Findings in AFP Manufacturing Variations

Understanding the Sources of Variation

The research revealed fascinating insights into how different manufacturing variations contribute to gaps and overlaps in AFP composites. Let's break down each source of variation and its significance.

1. Robot Inaccuracy

The study found that robot positioning showed interesting patterns:

  • Mean deviation: -0.93 mm from programmed path
  • Range of deviation: 0.54 mm (8.5% of specified tow width)
  • Distribution pattern: Follows a Logistic distribution
  • Key insight: Consistent systematic offset suggesting tool surface effects

This finding aligns with previous observations in AFP process monitoring, highlighting the importance of precise robot control in automated manufacturing.

2. Tow Lateral Movement

Perhaps the most significant finding was related to tow movement on the roller:

  • Largest contributor to variations
  • Range of deviation: 1.4 mm (22.1% of tow width)
  • Mean offset: 0.29 mm from roller center
  • Distribution pattern: Follows an Extreme Value distribution

This discovery has important implications for AFP machine design and operation, particularly in feed system optimization.

3. Tow Width Variation

The analysis of incoming tow dimensions revealed:

  • Mean width: 6.10 mm (less than specified 6.35 mm)
  • Standard deviation: 0.07 mm
  • Range of variation: 0.63 mm (9.9% of specified width)
  • Distribution pattern: Follows a Normal distribution

These findings are crucial for understanding material quality control in AFP processes.

4. Tow Compaction Effects

The study showed interesting effects of compaction:

  • Mean width after compaction: 6.27 mm
  • Smallest spread among all variations (7.5% of tow width)
  • Distribution pattern: Follows a Normal distribution
  • Notable width increase from initial measurements

Predicting Defect Occurrence

One of the most valuable outcomes of this research was the development of a predictive model for gaps and overlaps. The model showed:

  1. High Accuracy in Gap Prediction
    • Mean predicted gap: 6.23 mm
    • Actual measured gap: 6.24 mm
    • Prediction accuracy: 99.84%
  2. Distribution Matching
    • 90th percentile prediction: 6.67 mm
    • 99th percentile prediction: 7.13 mm
    • Close alignment with experimental measurements
  3. Practical Applications
    • Ability to predict defect probability for different programmed gaps
    • Tool for optimizing manufacturing parameters
    • Framework for quality control improvements

Impact of Individual Variations

The research provided valuable insights into how eliminating different sources of variation could improve manufacturing quality:

  1. Position Variations
    • Create twice the defect magnitude compared to geometry variations
    • Critical for both gaps and overlaps
    • Primary target for process improvement
  2. Geometry Variations
    • More predictable impact on defect formation
    • Easier to control through material specifications
    • Less critical but still significant

Real-Time Applications

Perhaps most excitingly, the research demonstrated potential for real-time defect prediction:

  • Camera-based tow position monitoring showed strong correlation with final gap measurements
  • Potential for automated process control
  • Framework for future AI-driven quality control systems

Statistical Modeling Breakthrough

The research successfully validated that:

  • Distribution fits from limited samples can predict defects in larger production runs
  • Monte Carlo simulations using these distributions provide accurate predictions
  • Statistical approach offers a practical tool for production planning

These findings represent a significant step forward in understanding defects and damage in composite materials, providing a foundation for improved manufacturing processes and quality control strategies.

Transforming AFP Manufacturing: Practical Implications and Future Directions

Revolutionary Implications for Industry

The findings from this research have far-reaching implications for advancing composite manufacturing. Let's explore how these insights can transform AFP processes and quality control strategies.

Immediate Applications

  1. Optimizing Programmed Gaps
    • Use predictive models to balance structural benefits against defect risks
    • Reduce manufacturing steps like debulking and autoclave cycles
    • Minimize overlap defects requiring manual repair
    • Better understanding of trade-offs between gap size and defect probability
  2. Process Improvement Prioritization The research provides clear direction for improvement efforts:
    • Focus on tow lateral movement as the primary variation source
    • Implement feed system improvements for better tow control
    • Consider roller design modifications for improved tow guidance
    • Enhance robot accuracy through targeted improvements
  3. Quality Control Enhancement The findings enable:
    • More informed defect allowable determinations
    • Reduced inspection requirements through predictive modeling
    • Better understanding of process capability
    • Data-driven approach to quality management

Implementation Strategies

For Manufacturers

  1. Process Monitoring Systems
  2. Manufacturing Parameters
    • Optimization of tow tension settings
    • Adjustment of compaction force based on material behavior
    • Speed optimization considering accuracy requirements
    • Temperature control for optimal tack and flow
  3. Equipment Modifications

For Material Suppliers

  1. Material Specifications
    • Tighter control on tow width variations
    • Enhanced consistency in material properties
    • Better understanding of material behavior under processing conditions
    • Development of materials optimized for AFP processing
  2. Quality Assurance
    • Implementation of improved width measurement systems
    • Enhanced material characterization methods
    • Better documentation of material variability
    • Development of material-specific process windows

Future Directions

Emerging Technologies

  1. Artificial Intelligence Integration
  2. Digital Twin Development
    • Virtual process simulation
    • Real-time process monitoring
    • Predictive modeling integration
    • Enhanced process control strategies

Research Opportunities

  1. Advanced Materials
    • Investigation of thermoplastic material behavior
    • Development of new material systems
    • Understanding of material-process interactions
    • Optimization of material properties for AFP
  2. Process Improvements
    • Enhanced sensor technologies
    • New roller designs
    • Improved feed systems
    • Advanced control strategies

Conclusion

This groundbreaking research provides a scientific foundation for understanding and controlling manufacturing variations in AFP processes. The ability to predict and control gaps and overlaps represents a significant step forward in composite manufacturing technology.

Key takeaways include:

  1. The dominant role of tow lateral movement in causing defects
  2. The effectiveness of statistical modeling in predicting defect occurrence
  3. The potential for real-time process control based on tow position monitoring
  4. The importance of integrated measurement systems for process control

The future of AFP manufacturing looks promising, with these findings paving the way for:

  • More efficient production processes
  • Improved part quality
  • Reduced inspection and rework requirements
  • Enhanced process control capabilities

As we continue to advance in automated composite manufacturing, these insights will prove invaluable in developing the next generation of AFP systems and processes.

Additional Resources

Further Reading

To deepen your understanding of AFP manufacturing and composite materials, we recommend exploring these related topics:

  1. AFP Technology and Applications
  2. Quality Control and Process Monitoring
  3. Advanced Manufacturing Techniques

Equipment and Solutions

Learn more about the equipment used in this research:

References

Primary Research Reference

This blog is based on the research paper:

Pantoji, S., Kassapoglou, C., & Peeters, D. (2024). Predicting gaps and overlaps in automated fiber placement composites by measuring sources of manufacturing process variations. Composites Part B. DOI: https://doi.org/10.1016/j.compositesb.2024.111891

The authors would like to acknowledge the original researchers and their groundbreaking work in advancing our understanding of AFP manufacturing processes.

Additional References

For those interested in diving deeper into specific aspects of AFP manufacturing and composite materials, please explore our comprehensive resource library:

  1. SAM XL - Smart Advanced Manufacturing research facility
  2. Faculty of Aerospace Engineering, Delft University of Technology
  3. ADD Composites technical documentation and research papers

Take Your AFP Manufacturing to the Next Level

Ready to Transform Your Composite Manufacturing?

The insights shared in this blog represent just a fraction of what's possible with modern AFP technology. At ADD Composites, we're dedicated to making advanced composite manufacturing accessible and efficient for organizations of all sizes.

How We Can Help

  • Experience AFP-XS: Discover our compact, powerful AFP system that's revolutionizing composite manufacturing
  • Expert Consultation: Connect with our team to discuss your specific manufacturing challenges
  • Training & Support: Access comprehensive training and ongoing technical support
  • Custom Solutions: Explore tailored solutions for your unique production needs

Get Started Today

  1. Schedule a Demo
    • See the AFP-XS system in action
    • Discuss your specific applications
    • Get expert advice on implementation
  2. Download Resources
    • Technical specifications
    • Case studies
    • Implementation guides
  3. Contact Our Experts
    • Discuss your manufacturing challenges
    • Get personalized recommendations
    • Learn about financing options

📞 Ready to start? Contact us today to learn how ADD Composites can help optimize your manufacturing processes and reduce defects with our advanced AFP solutions.

In the world of advanced manufacturing, Automated Fiber Placement (AFP) has emerged as a cornerstone technology for producing high-performance composite parts. From the latest generation of commercial airliners to cutting-edge space vehicles, AFP-manufactured components are increasingly prevalent in demanding applications where precision and reliability are paramount.

The Growing Challenge of Manufacturing Quality

However, with great capability comes great complexity. One of the most persistent challenges in AFP manufacturing is the occurrence of gaps and overlaps during the layup process. These seemingly minor imperfections can have significant implications for part quality, structural integrity, and production efficiency.

Consider this striking statistic: inspection and rework activities consume approximately 32% of AFP cell time. That's nearly one-third of valuable production capacity dedicated to quality control and defect remediation. For manufacturers striving to meet growing demand and tight production schedules, this represents a significant bottleneck.

Understanding Gaps and Overlaps

Defects in composite materials can manifest in various ways, but gaps and overlaps are particularly common in AFP processes. A gap occurs when adjacent tows (strips of composite material) don't touch each other, leaving a space between them. Conversely, an overlap happens when the edges of adjacent tows cross over each other.

These defects are particularly concerning because:

  • For thermoset composites, gaps can lead to non-uniform fiber volume fractions, even though they may partially fill during the curing process
  • In thermoplastic composites with in-situ consolidation, gaps and overlaps remain largely unchanged, potentially creating voids or fiber waviness
  • Overlaps often result in localized thickness variations and fiber waviness, which can significantly impact structural performance
  • Both types of defects contribute to part-to-part variation, potentially affecting the selection of design allowables

The Manufacturing Variation Challenge

While some gaps and overlaps are inherent to the design process (particularly in complex geometries), many occur due to manufacturing process variations. These variations can be broadly categorized into two main types:

  1. Path-Related Defects: These are inherent to the design and occur due to the geometry of the part or the chosen fiber paths.
  2. Manufacturing Process Variations: These are the focus of our investigation and include:
    • Robot inaccuracy
    • Tow lateral movement on the roller
    • Tow width variation
    • Tow compaction effects

Understanding and predicting these manufacturing variations is crucial for several reasons:

  • It enables more accurate prediction of part quality
  • It helps optimize manufacturing parameters
  • It can potentially reduce inspection and rework time
  • It provides insights for improving AFP system design and operation

Recent research has made significant strides in measuring and characterizing these variations, offering new possibilities for predicting and controlling defect formation. The engineering behind AFP continues to evolve, with new approaches to process monitoring and control emerging regularly.

In the following sections, we'll explore groundbreaking research that provides a comprehensive framework for measuring, analyzing, and predicting these manufacturing variations. Through this understanding, we can work towards more efficient and reliable AFP manufacturing processes.

Quick Contact

Stay Updated with Our Latest Innovations
