Automated Fiber Placement (AFP) technology has revolutionized the manufacturing of composite structures across various industries. As we explore the intricacies of this advanced manufacturing process, we'll also highlight innovative solutions from companies like Addcomposites, a Finnish pioneer in AFP technology.

The Limitations of Traditional Materials

In the quest for superior performance across various industries, engineers have long grappled with the limitations of traditional materials. Plastics, while lightweight and easily moldable, often fall short in strength and stiffness, making them unsuitable for many high-performance applications. Metals, the backbone of engineering for centuries, offer excellent strength and durability but at the cost of high density, a critical drawback in weight-sensitive fields like aerospace and automotive engineering.

‍The Promise and Challenges of Composite Materials

Enter composite materials – a revolutionary solution that combines the best attributes of different material classes. Composites offer an enticing array of possibilities: structures that are incredibly strong yet remarkably light, with customizable thermal properties and design flexibility. From aircraft components lighter than aluminum yet stronger than steel to wind turbine blades that withstand immense forces while maintaining optimal aerodynamics, composites have opened new frontiers in material engineering.

However, the road to composite supremacy was initially paved with significant challenges:

1. High Manufacturing Costs: Early composite production was labor-intensive and expensive.
2. Material Expenses: Advanced fibers and resins came with hefty price tags.
3. Equipment Investment: Specialized machinery for composite manufacturing required substantial capital.

The Rise of Automated Fiber Placement (AFP)

Automated Fiber Placement (AFP) technology emerged as a game-changer, addressing many of the challenges associated with composite manufacturing. The evolution of AFP has been nothing short of remarkable:

1. Labor Reduction: AFP systems have dramatically reduced the need for manual labor, replacing teams of skilled workers with efficient, precise machines operated by a single technician.
2. Material Cost Optimization: As AFP technology matured, it drove demand for composite materials, leading to increased production and lower costs. Today, many composite materials are competitively priced against traditional engineering materials.
3. Accessible Equipment: Once the domain of aerospace giants with multi-million euro budgets, AFP systems are now available at a fraction of their original cost. Entry-level systems can be acquired for just a few thousand euros, democratizing access to this technology.
4. Increased Efficiency and Quality: AFP systems offer unparalleled precision and repeatability, significantly improving part quality while reducing material waste.

The Current Landscape and Future Potential

Today, AFP technology stands at the forefront of advanced manufacturing, poised to revolutionize industries far beyond its aerospace origins. From automotive to renewable energy, from marine applications to the burgeoning field of humanoid robotics, AFP is opening new possibilities in design and production.

Overview of the Article

This comprehensive exploration of Automated Fiber Placement technology will guide you through:

1. Understanding AFP: A deep dive into the core concepts, components, and capabilities of AFP systems.
2. The AFP Process: A step-by-step breakdown of how AFP works, from material preparation to final layup.
3. Materials and AFP: An examination of the diverse materials compatible with AFP and how they influence the process.
4. Engineering Challenges and Solutions: Insights into the technical hurdles faced in AFP and innovative solutions developed.
5. Applications and Case Studies: Real-world examples of AFP in action across various industries.
6. The Future of AFP Technology: A look at emerging trends and potential future developments in the field.

As we embark on this journey through the world of Automated Fiber Placement, prepare to discover how this technology is not just changing the way we manufacture but also expanding the boundaries of what's possible in material engineering and product design. Whether you're an industry professional, an engineering student, or simply curious about cutting-edge technology, this exploration of AFP will provide you with a comprehensive understanding of a technology that's shaping the future of manufacturing.

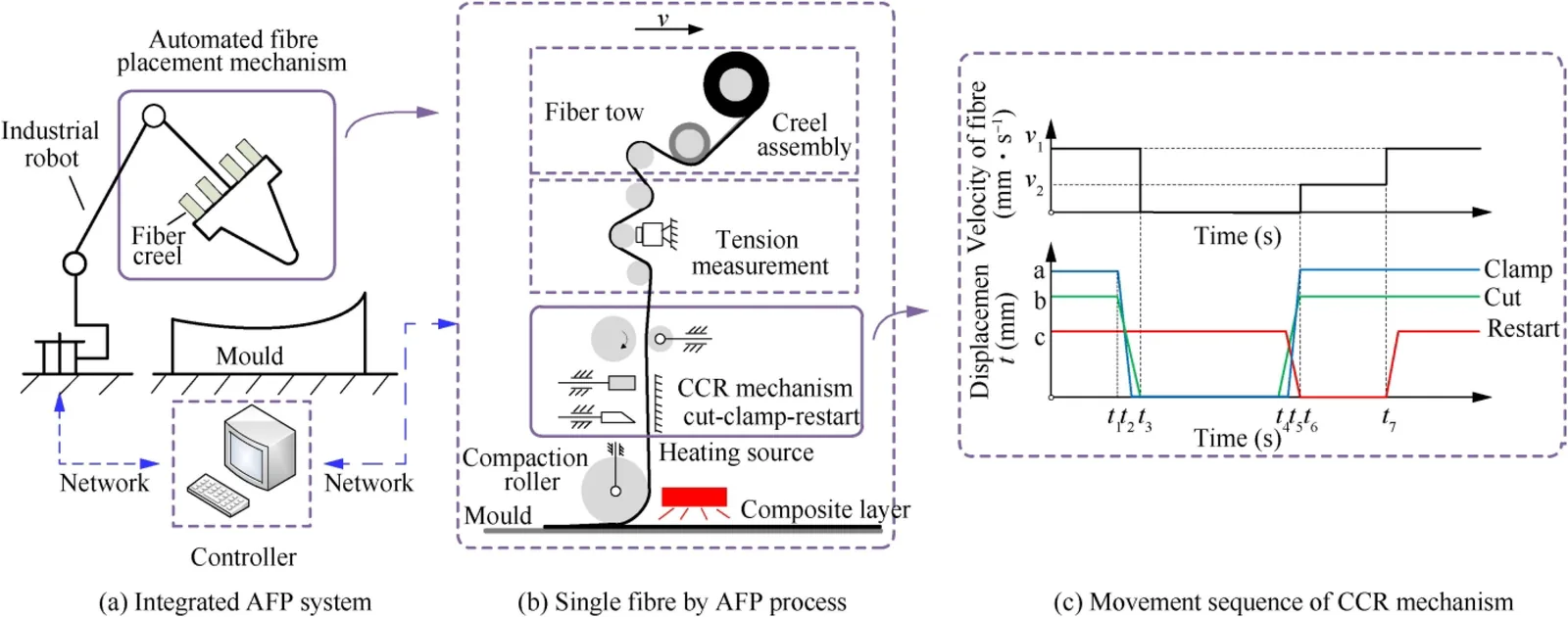

Definition and Basic Concept

Automated Fiber Placement (AFP) is an advanced manufacturing process designed to efficiently create complex composite structures. At its core, an AFP system draws composite material from a storage unit, routes it through a sophisticated delivery system, and precisely places it onto a substrate using a combination of heat and pressure.

The process begins with material spools, which may include a backing film for certain materials like thermoset prepregs. The composite tape is then guided through a cut, clamp, and feed (CCF) mechanism before being applied to the substrate. This basic process remains consistent across various material types, including thermosets, thermoplastics, and dry fibers, with minor adjustments to accommodate each material's specific requirements.

‍

Historical Context

The journey of AFP technology began in the late 1960s and early 1970s, evolving from earlier composite manufacturing techniques. The concept of using individual tows instead of wide tapes was first documented in 1974, marking a significant shift from Automated Tape Laying (ATL) methods.

Hercules Aerospace (now part of ATK) and Cincinnati Machine were pioneers, starting development of AFP systems in the early 1980s. These early machines combined the differential payout capability of filament winding with the compaction and cut-restart capabilities of ATL. By the late 1980s, AFP machines became commercially available and were adopted by major aerospace companies like Boeing, Lockheed, and Northrop.

The 1990s saw significant advancements in AFP technology. Systems capable of delivering up to 24 tows at once were developed, dramatically increasing productivity. The ability to steer fibers along curvilinear paths was a game-changer, allowing for more complex geometries and optimized fiber orientations.

The turn of the millennium brought focus to improving process reliability and productivity. Innovations in automated inspection, high-speed systems, and modular AFP heads marked this era. By 2010, highly accurate robots were demonstrating remarkable precision, with a 3-sigma accuracy of ±0.08 mm.

Today, AFP technology continues to evolve, with current research focusing on high-throughput systems, minimal defect layups, and in-situ thermoplastic processing. The integration of AFP with other advanced manufacturing technologies promises to further expand its capabilities and applications.

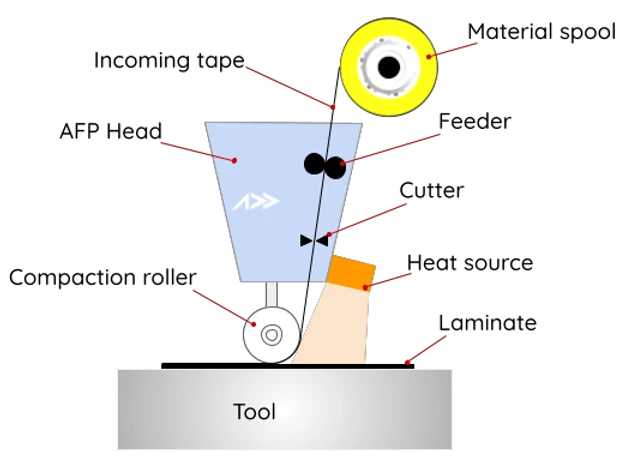

Key Components of an AFP System

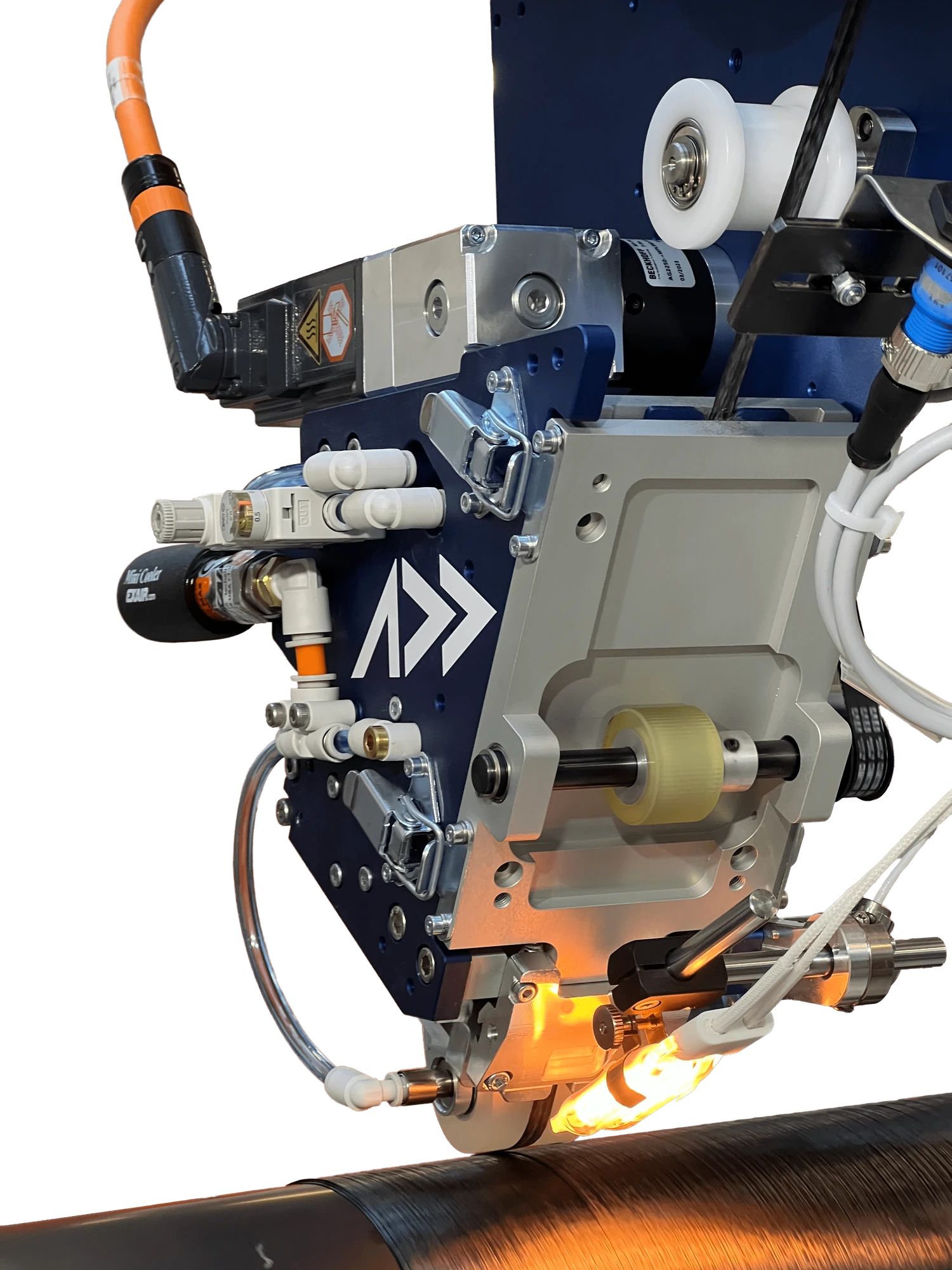

1. Fiber Placement Head: The fiber placement head is the heart of the AFP system. Typically mounted on a robotic arm or gantry, it's a marvel of precision engineering. The key components of an AFP system include the fiber placement head, motion platform, material delivery system, control system, and software system.The head houses the material guiding system, which ensures the composite tapes are fed smoothly and accurately. The cut, clamp, and feed (CCF) mechanism is a critical component, allowing for precise control over tow length and placement. Integrated heating elements, which may use technologies like infrared or laser heating, ensure the material reaches the optimal temperature for adhesion. An array of sensors, including thermal sensors and laser line scanners, constantly monitor the process, providing real-time data for quality control and placement accuracy.
2. Motion Platform: While gantry systems were once the norm, robotic arms have become the gold standard in AFP systems. This shift is due to their exceptional continuous path following accuracy, often achieving tolerances measured in fractions of a millimeter. The flexibility of robotic arms allows them to navigate complex geometries with ease, reaching angles and positions that would be challenging for traditional gantry systems. Modern robotic systems offer plug-and-play compatibility with AFP heads, significantly reducing setup time and complexity. This accessibility has democratized AFP technology, making it available to a broader range of manufacturers.
3. Material Delivery System: The material delivery system is a sophisticated network of spools, guides, and tensioners that ensure a consistent supply of composite material to the placement head. Managing multiple spools simultaneously is a complex task, requiring precise control over tension and feed rates for each individual tow. This system must adapt to different material types, from sticky thermoset prepregs to dry fibers, each with its own handling characteristics. Advanced systems may include climate-controlled storage for temperature-sensitive materials, ensuring consistent material properties throughout the manufacturing process.
4. Control System: The control system is the brain of the AFP operation, orchestrating the intricate dance between the robot, placement head, and material delivery system. It processes a vast amount of data in real-time, from robot positioning to material temperature and tension. At its core, the control system translates the programmed layup path into a series of coordinated movements and actions. It sends precise commands to the robot controller, dictating not just position but also speed and acceleration. Simultaneously, it manages the AFP head, triggering tow cuts, activating compaction rollers, and adjusting heating elements as needed. Advanced control systems integrate feedback from multiple sensors, allowing for on-the-fly adjustments to maintain optimal layup conditions. This might involve tweaking the heater intensity based on ambient temperature changes or adjusting compaction pressure to accommodate varying surface geometries.
5. Software System: The software system is the unsung hero of AFP technology, turning complex composite designs into manufacturable realities. It begins with sophisticated path planning algorithms that optimize fiber orientation for structural performance while considering manufacturability constraints. Simulation capabilities allow engineers to virtually test layup strategies, identifying potential issues like gaps, overlaps, or areas of excessive steering before a single fiber is placed. This predictive power significantly reduces material waste and improves first-time quality. During production, the software acts as a digital twin of the physical process, comparing real-time data from the AFP system against the simulated ideal. This allows for immediate detection of deviations and, in advanced systems, automatic correction of errors. Quality control is deeply integrated into the software, with algorithms analyzing data from various sensors to ensure each ply meets specified tolerances. This data is also archived, providing a comprehensive digital record of the manufacturing process for each part – a crucial feature for industries with stringent traceability requirements.

AFP's Versatility: Filament Winding Capabilities

Modern AFP systems have evolved to incorporate filament winding capabilities, offering a best-of-both-worlds approach that significantly expands manufacturing possibilities. This convergence of technologies represents a major leap forward in composite manufacturing flexibility.

Filament winding, traditionally used for creating cylindrical or spherical structures, excels in high-speed production of parts with continuous fiber reinforcement. By integrating these capabilities into AFP systems, manufacturers can now switch seamlessly between precise layup and high-speed winding operations within a single setup.

The advantages of this hybrid approach are numerous. For complex parts with both open and closed sections, the system can use AFP for precise layup on open surfaces and switch to filament winding for closed, cylindrical sections. This is particularly beneficial in industries like aerospace, where components often combine multiple geometric features.

The key to this versatility lies in advanced control systems and software. These systems manage the transition between AFP and winding modes, adjusting parameters like fiber tension, compaction pressure, and heating on the fly. For winding operations, the software calculates optimal winding angles and patterns, ensuring structural integrity while maximizing production speed.

Moreover, this combined capability allows for innovative manufacturing strategies. For instance, a part might start with a filament-wound core for speed and continuous reinforcement, followed by precisely placed AFP layers for local reinforcement or to create specific surface features.

The integration of AFP and filament winding capabilities in a single system not only enhances production flexibility but also opens up new possibilities in part design. Engineers can now conceive of structures that leverage the strengths of both processes, potentially leading to lighter, stronger, and more efficient composite parts.

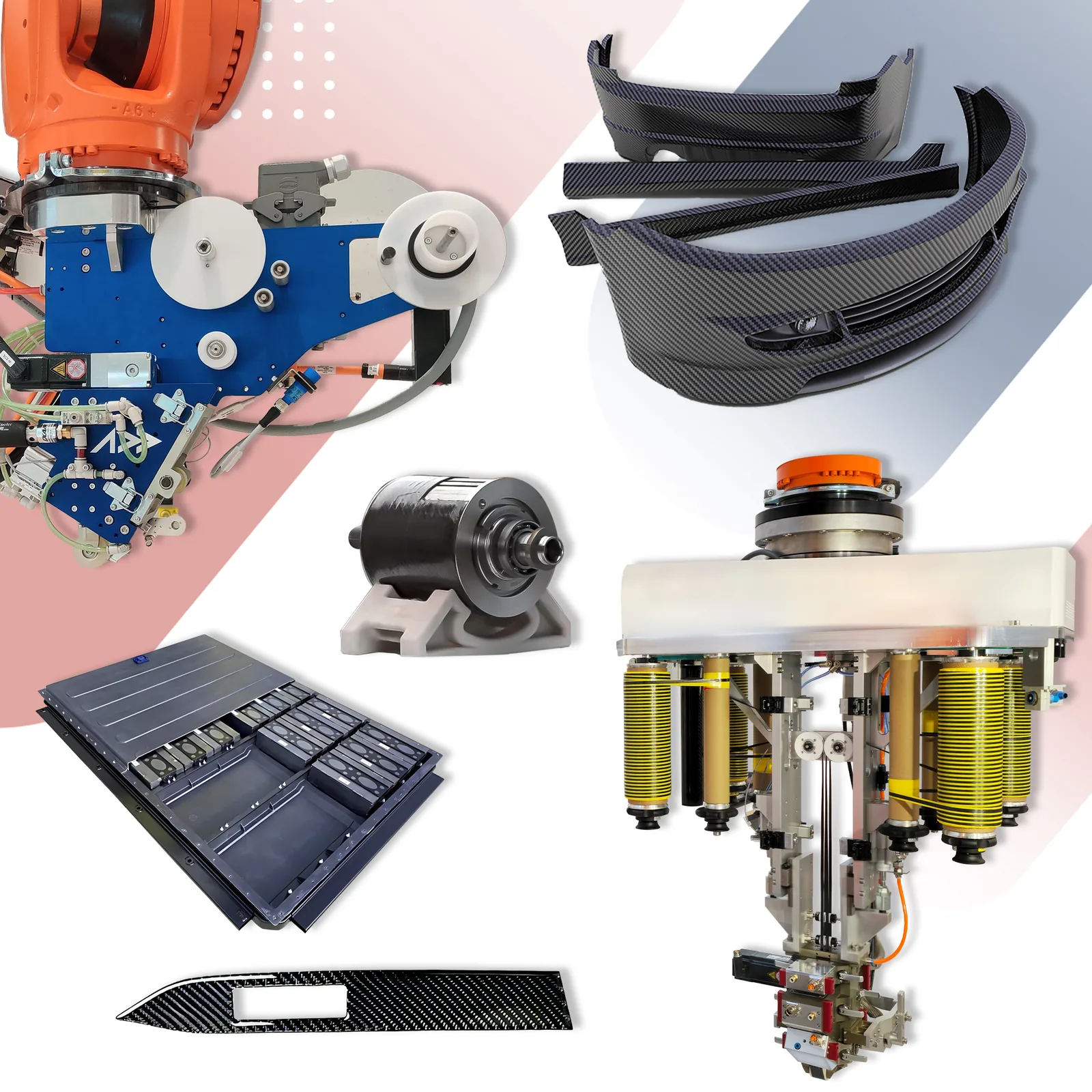

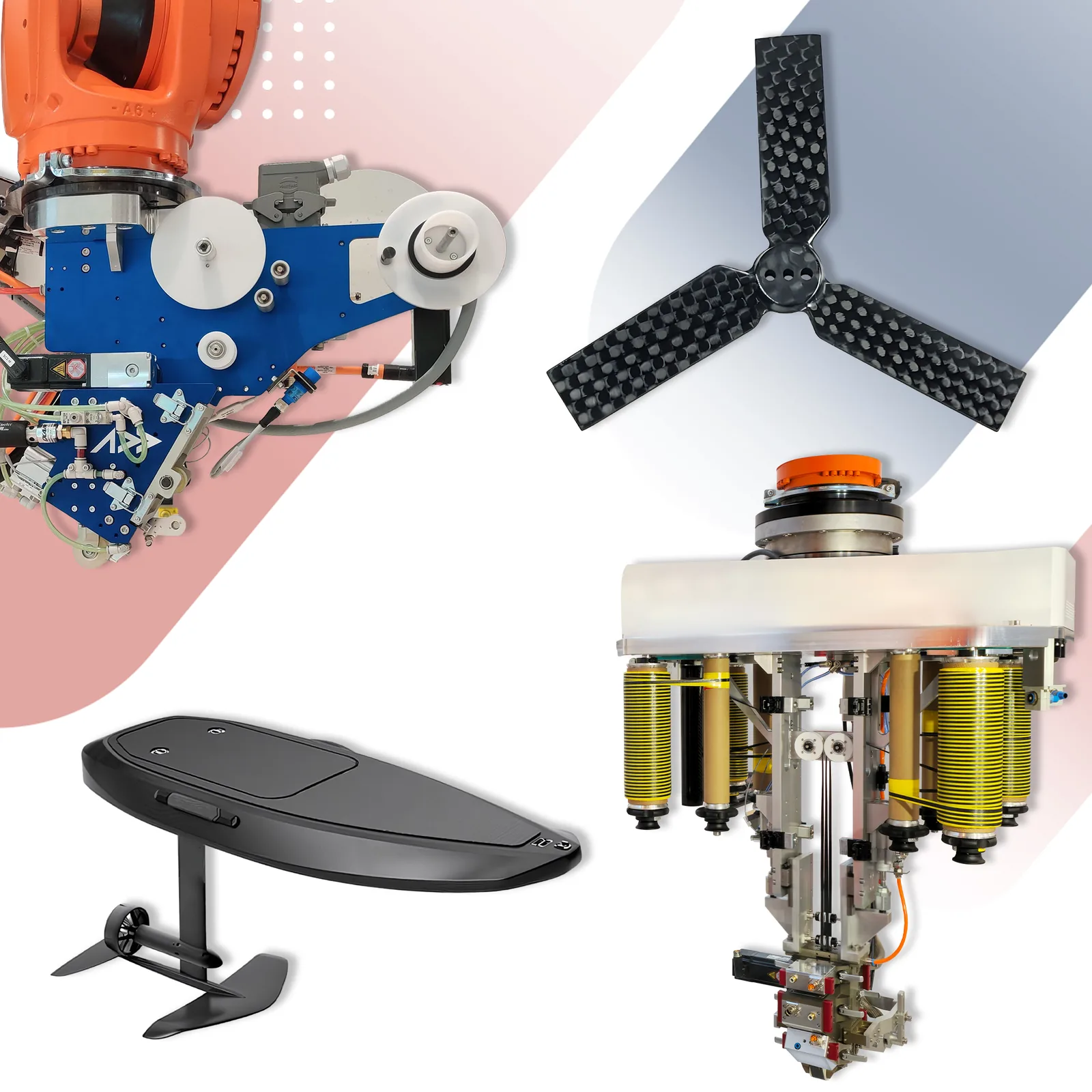

Addcomposites' AFP Solutions

Addcomposites offers two advanced AFP systems that exemplify the latest in fiber placement technology:

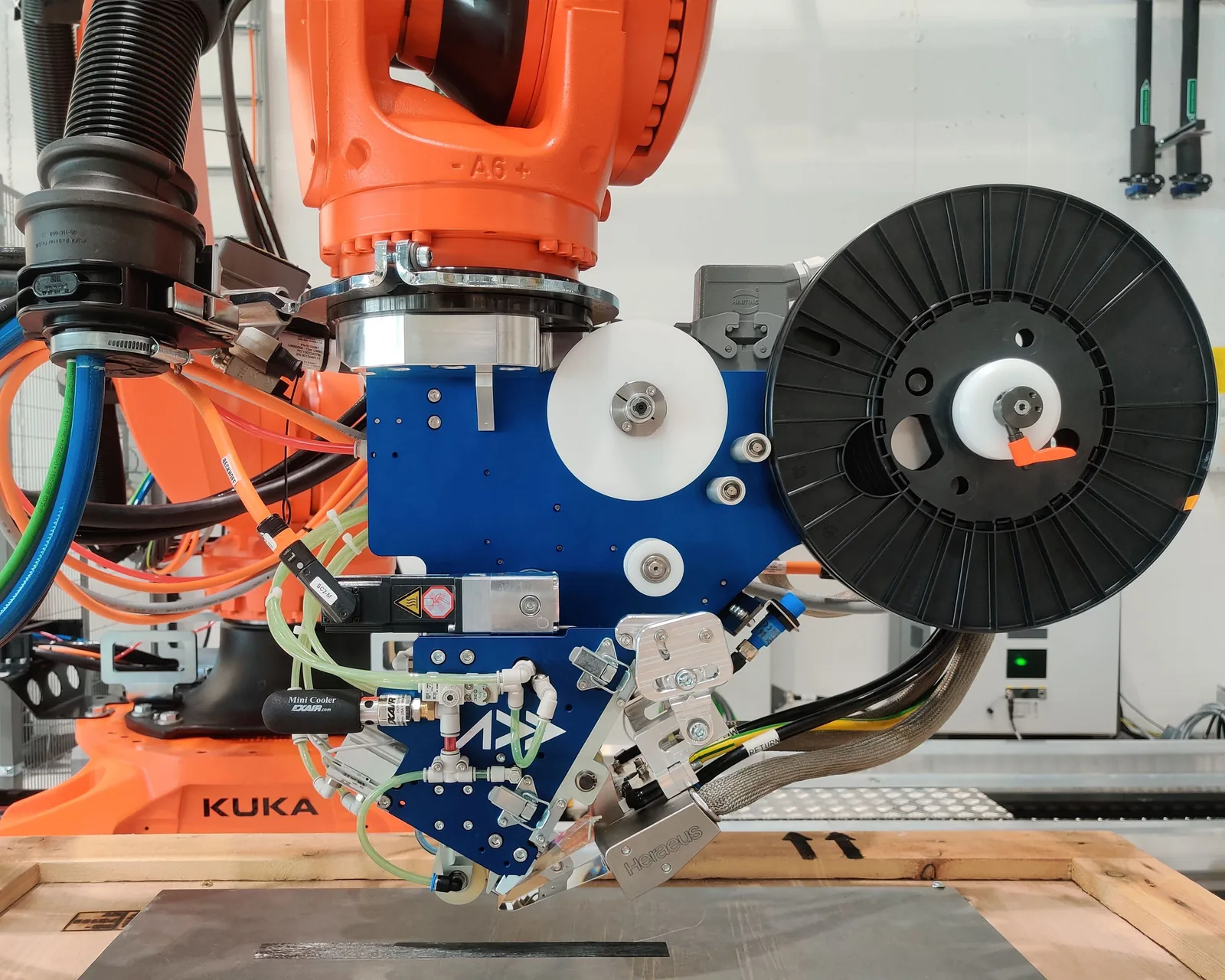

AFP-XS: A compact system designed to upgrade existing robots for research and small batch production. It's capable of aerospace-grade quality layups and is compatible with a wide range of materials.

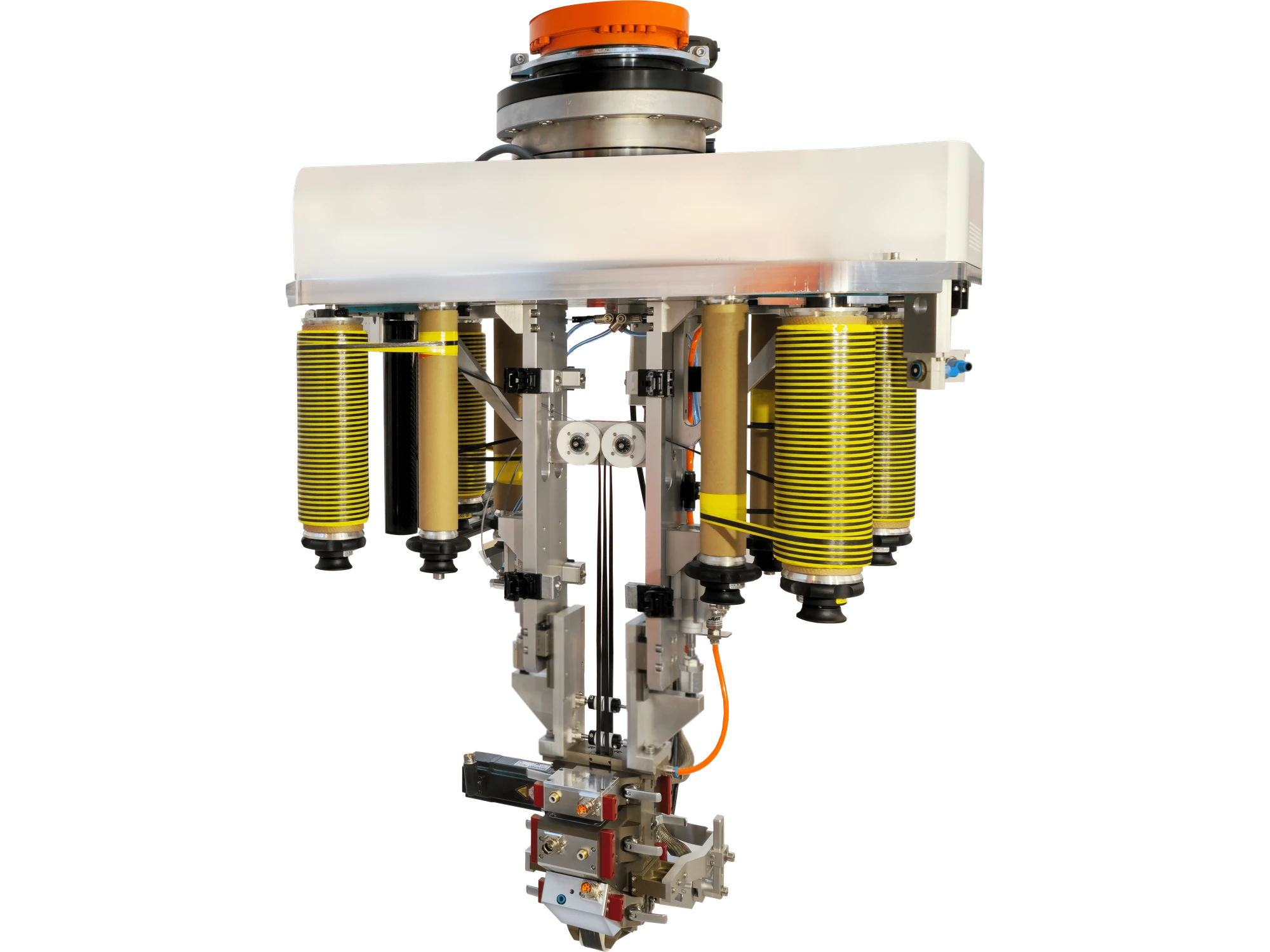

AFP-X: A robust system for high-volume production, featuring increased material capacity and advanced sensors for continuous, precise operations on complex aerospace and large components.

These systems represent significant advancements in making AFP technology more accessible and versatile across industries.

Preparing the Composite Material

The journey of automated fiber placement begins with proper material preparation. Composite materials typically come in the form of tapes, which require specific handling:

1. Storage: Depending on the material type, tapes are stored in either cold or dry environments. Thermoset prepregs, for instance, often require refrigeration to prevent premature curing.
2. Formatting: Materials may arrive in large spools and need to be transferred to smaller, machine-compatible formats.
3. Thawing: For materials stored in freezers, a crucial step is thawing. This process involves allowing the material to gradually reach room temperature, typically overnight. Proper thawing ensures the material's optimal properties for processing.
4. Environmental Control: Throughout preparation, maintaining the right environment is critical. This might involve controlling humidity for dry fibers or managing temperature for thermosets.

Loading and Feeding the Material

Once prepared, the material must be carefully loaded into the AFP system:

1. Loading: The material is mounted onto the head or material creel. This step requires precision to ensure proper alignment and tension.
2. Guiding: The tape is then threaded through an integrated set of rollers. This process demands attention to maintain consistent tension while avoiding any twisting or self-adhesion of the tape.
3. Material-Specific Challenges: Thermosets and tow pregs present unique challenges due to their tacky nature, requiring extra care to prevent sticking. Dry fibers and thermoplastics are generally easier to handle at this stage.
4. Feeding: The final step involves guiding the material into the cut, clamp, and feed (CCF) mechanism. This compact area requires careful maneuvering:some text
   • The material is gently pushed into the designated channel.
   • Operators rely on the material's stiffness to navigate through the intricate path.
   • Once in place, the feed motor can be engaged to automate further material advancement.

Precise Placement and Compaction

With the material loaded and the AFP program ready, the actual layup process begins:

1. Program Initiation: A pre-created program, developed using planning software and simulations, is loaded into the robot controller.
2. First Layer Challenges: The initial layer presents unique difficulties:some text
   • Adhesion to the mold (often metal or plastic) can be problematic.
   • Operators typically reduce speed, increase heat, and maintain lower tension for better adhesion.
   • This layer sets the foundation for subsequent plies, making precision crucial.
3. Layup Process:
   • The AFP head approaches the layup table.
   • As it moves, the tape is fed under the compaction roller.
   • A heater in front of the roller pre-heats the material and substrate.
   • The compaction roller applies pressure, bonding the new material to the substrate.
   • Throughout this process, the tape is kept under controlled tension.
4. Subsequent Layers: After the first layer, the process can often be accelerated, with adjustments to speed, heat, and tension as needed.

Cutting and Restarting

The cutting and restarting process is crucial for creating complex layups:

1. End of Pass: As the AFP head nears the end of a programmed path, it initiates a cut at a predetermined distance from the end.
2. Cutting: The CCF mechanism precisely cuts the tape.
3. Completion and Retraction: After completing the pass, the head retracts from the mold surface.
4. Repositioning: The system moves to the starting point of the next pass.
5. Restarting:
   • The feed mechanism is reengaged to advance new material.
   • Care is taken to ensure the previously laid material has cooled sufficiently to prevent sticking.
   • The process then repeats for the new pass.

Building Up Layers to Form the Final Part

As layers accumulate, several factors come into play:

1. Compaction Force Management: The system must adjust compaction force to account for the increasing thickness of the layup.
2. Thickness Compensation: Pre-preg tapes compress during layup (debulking). The AFP system must account for this reduction in thickness as layers build up.
3. Complex Geometries: For parts with features like ply drop-offs, holes, edges, or selective reinforcements, the AFP program must adapt:
   • Paths are designed to navigate around or reinforce these features.
   • Consistent pressure must be maintained to avoid over-debulking in specific areas.
4. Debulking Elimination: Proper management of these factors can often eliminate the need for separate debulking steps, streamlining the manufacturing process.
5. Quality Control: The result of this carefully managed process is a high-quality layup:
   • Minimal defects
   • Consistent fiber orientation
   • Optimal thickness control
   • Enhanced structural integrity

Through this meticulous step-by-step process, AFP systems can create complex, high-performance composite parts with a level of precision and consistency unattainable through manual methods. The ability to fine-tune each aspect of the layup process contributes to the production of lightweight, strong, and highly engineered composite structures.

Addcomposites' Software Solutions

To streamline the AFP process, Addcomposites offers sophisticated software solutions:

1. AddPath: This software optimizes path planning, simulation, and data streaming for AFP processes. It's designed to enhance efficiency and precision for teams of all sizes.
2. AddPrint: While primarily for continuous fiber 3D printing, this software complements AFP processes by offering advanced features for precise and efficient production of composite parts.

The choice of material in Automated Fiber Placement (AFP) significantly influences the manufacturing process, final product characteristics, and production economics. Let's explore the main material types used in AFP and their implications:

Prepregs

Prepregs, or pre-impregnated fibers, are the traditional go-to material for AFP in high-performance applications:

• Characteristics: Fibers pre-impregnated with partially cured resin.
• Advantages:
  • Consistent resin content and fiber distribution
  • Excellent mechanical properties
  • Well-established in aerospace and high-performance applications
• Considerations:
  • Relatively expensive
  • Require careful storage (often refrigerated) and have limited shelf life
  • Need precise temperature control during layup
• Best for: Aerospace parts and other high-performance, low-volume applications where material cost is less critical than performance.

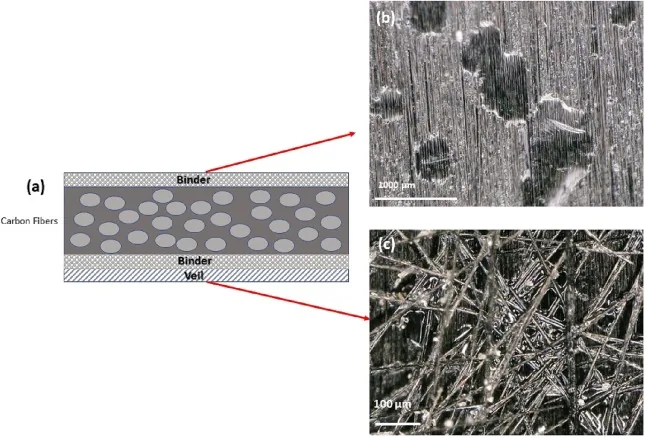

Dry Fibers

Dry fiber tapes are increasingly popular, especially when combined with subsequent resin infusion processes:

• Characteristics: Fibers without resin, often held together with a light binder.
• Advantages:
  • Lower material cost compared to prepregs
  • Easier to store and handle (no refrigeration needed)
  • Can be combined with various resin systems post-layup
• Considerations:
  • Requires a separate infusion process (e.g., Resin Transfer Molding - RTM)
  • May have challenges with fiber alignment and control during placement
• Best for: Medium to high volume production where the cost of RTM equipment can be justified by lower material costs and higher production rates.

Thermoplastics

Thermoplastic composites offer unique advantages in AFP:

• Characteristics: Fibers impregnated with thermoplastic resin.
• Advantages:
  • Can be remelted and reshaped
  • Potential for in-situ consolidation
  • Excellent chemical resistance and impact properties
• Considerations:
  • Require higher processing temperatures
  • May need additional forming steps (e.g., thermoforming)
  • Equipment may need modifications to handle higher temperatures
• Best for: Applications requiring high toughness, chemical resistance, or the ability to be reformed. Production volume can range from low to high, depending on the specific process (in-situ consolidation vs. post-forming).

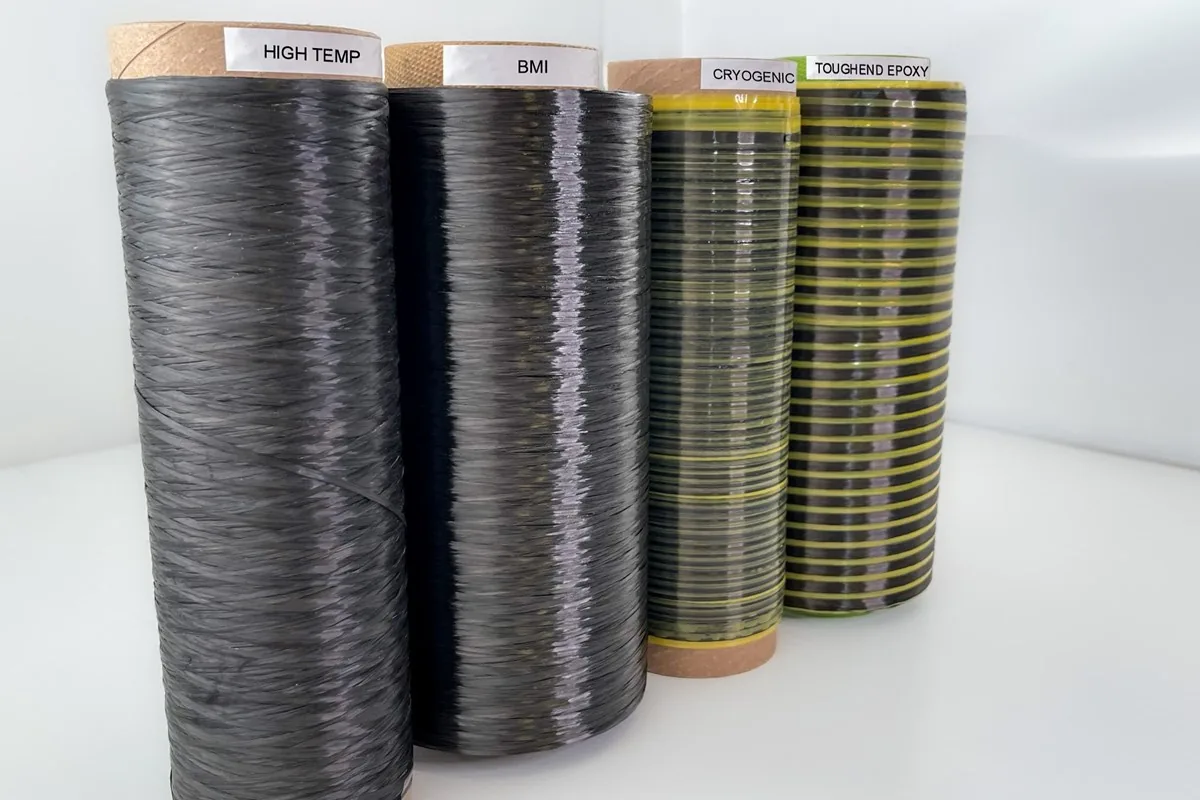

Towpregs

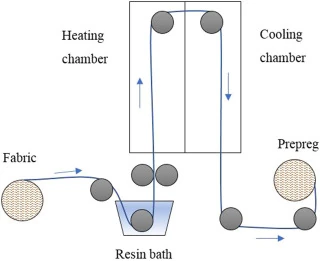

Towpregs represent an innovative approach to prepreg manufacturing:

• Characteristics: Tows directly impregnated with resin during the fiber manufacturing process.
• Advantages:
  • Lower cost compared to traditional prepregs
  • Excellent width and thickness control
  • No slitting process required, reducing waste and cost
• Considerations:
  • May have different handling characteristics compared to traditional prepregs
  • Less established in some industries compared to traditional prepregs
• Best for: High-volume production where material cost is a significant factor, but the performance of prepreg-like materials is desired.

Material Choice Considerations in AFP

When selecting materials for AFP, several factors come into play:

1. Production Volume:
   • Low volume, high-performance: Prepregs are often preferred.
   • Medium to high volume: Dry fibers with RTM or Towpregs become more economical.
2. Performance Requirements:
   • Aerospace-grade parts typically use prepregs for their consistent quality and established certification processes.
   • Automotive or industrial applications might lean towards thermoplastics or Towpregs for cost-effectiveness and cycle time reduction.
3. Processing Considerations:
   • Prepregs require careful temperature control and often need refrigerated storage.
   • Dry fibers need a separate infusion step but offer more flexibility in resin selection.
   • Thermoplastics require higher processing temperatures but can offer faster cycle times with in-situ consolidation.
4. Cost Factors:
   • Material cost: Prepregs > Thermoplastics > Towpregs > Dry Fibers (generally)
   • Equipment cost: Consider additional systems like RTM for dry fibers or high-temperature capabilities for thermoplastics.
5. Industry and Certification:
   • Aerospace industry often requires the use of certified prepreg systems.
   • Automotive and industrial sectors may have more flexibility to adopt newer materials like Towpregs.

The choice of material in AFP is not just about the final part properties, but also about optimizing the entire manufacturing process. As AFP technology continues to evolve, the ability to process a wide range of materials efficiently is becoming a key factor in its adoption across various industries. The trend towards materials like Towpregs showcases the industry's drive towards combining high performance with cost-effectiveness, potentially opening up new applications for AFP technology.

Material Versatility with Addcomposites

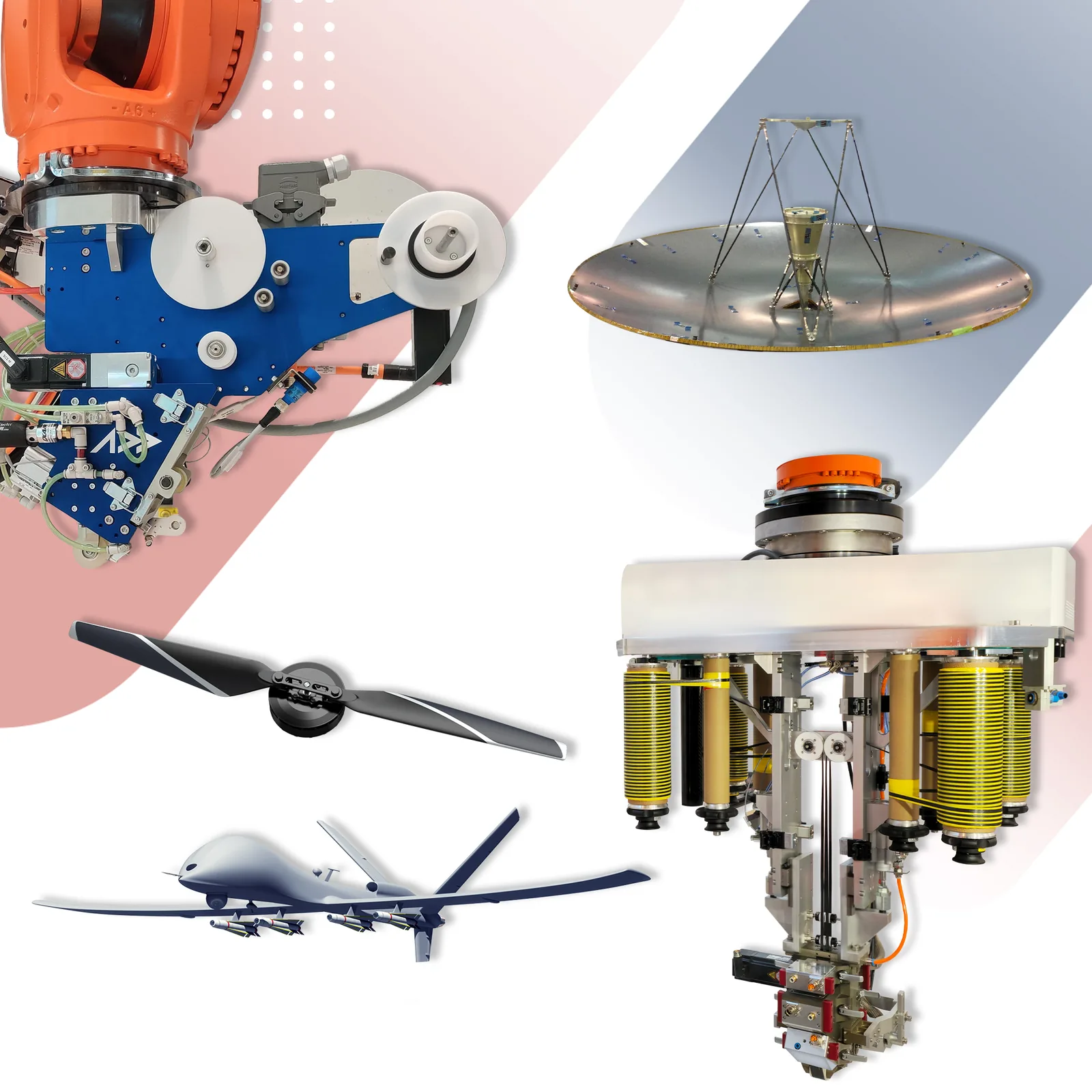

Addcomposites' AFP systems, particularly the AFP-XS, showcase remarkable material versatility:

• Compatible with Towpreg, Thermoset, Thermoplastic, and Dry fiber materials
• Capable of handling experimental materials
• Supports material widths from ¼" to 1"
• Can function as both Automated Tape Laying and Filament Winding systems

This versatility allows manufacturers to explore a wide range of composite materials and manufacturing techniques using a single system.

Automated Fiber Placement (AFP) technology, while advanced, still faces several engineering challenges. However, innovative solutions and evolving technologies are continuously addressing these issues, making AFP more accessible and efficient.

Managing Curved Surfaces and Complex Geometries

Challenge:

• Material stiffness limits draping capabilities, leading to issues like bridging on sharp corners and edges.
• Steering paths on curved surfaces to maintain fiber orientation can cause defects.

Solutions:

1. Advanced Path Planning: Sophisticated software simulations to optimize fiber placement strategies.
2. Design for Manufacturability: Collaborating with designers to create AFP-friendly part geometries.
3. Innovative Layup Strategies: Implementing patch placements to manage challenging areas.
4. Adaptive Programming: Utilizing dynamic control systems to adjust placement in real-time.

Heat Management and Consolidation

Challenge:

• Crucial for thermoplastics and important for prepreg debulking.
• Balancing heat application, compaction force, and layup speed for optimal bonding.

Solutions:

1. Material Preparation: Proper dehydration of hygroscopic materials before processing.
2. Temperature Control: Precise management of material, room, and tooling temperatures.
3. Process Parameter Optimization: Fine-tuning heat application, compaction force, and layup speed.
4. Real-time Monitoring: Implementing NDI sensors for immediate feedback on bond quality.
5. Adaptive Systems: Developing systems that can adjust parameters on-the-fly based on sensor feedback.

Defect Prevention and Quality Control

Challenge:

• Various defects like wrinkling, bridging, gaps, and overlaps can occur due to material, machine, or programming issues.

Solutions:

1. Advanced Inspection Systems: Integrating laser scanners, cameras, and thermal imaging for real-time defect detection.
2. Layer-by-Layer Quality Check: Implementing software that assesses each layer before proceeding to the next.
3. Adaptive Manufacturing: Developing systems that can pause production or suggest corrections based on quality data.
4. Predictive Modeling: Using AI and machine learning to anticipate and prevent defects before they occur.

Budgetary Challenges and Accessibility

Challenge:

• Traditional AFP machines are expensive to purchase, operate, and maintain.
• High complexity systems require multiple operators and extensive programming time.

Solutions:

1. Compact AFP Systems: Developing smaller, more versatile systems that can transform existing robots into AFP machines.
2. Simplified Operation: Creating user-friendly interfaces that allow a single operator to program, run, and maintain the system.
3. Multi-functional Systems: Designing AFP heads that can also perform filament winding, increasing versatility and value.
4. Cost-Effective Entry Points: Offering more affordable systems to make AFP technology accessible to smaller companies and research institutions.

Material-Specific Challenges

1. Towpregs

Challenge: Higher resin content leading to more residue in the AFP system.

‍Solution: Implementing regular cleaning routines and designing systems for easy maintenance access.

2. Prepregs

Challenge: Potential for resin buildup, though less than towpregs.

‍Solution: Developing streamlined cleaning processes and using materials optimized for AFP processing.

3. Dry Fibers

Challenge: Accumulation of fiber debris in narrow channels, particularly in the cutter area.

‍Solution:

• Designing systems with easily accessible cleaning points.
• Implementing regular maintenance schedules to clear debris accumulation.

4. Thermoplastics

Challenge: High heat exposure causing roller degradation.

‍Solution:

• Implementing water-cooled roller systems.
• Developing heat-resistant materials for roller construction.
• Designing quick-change roller systems for easy maintenance.

Ongoing Developments and Future Directions

1. Integrated Design and Manufacturing: Closer collaboration between part designers and AFP engineers to create optimized designs for AFP manufacturing.
2. AI and Machine Learning Integration: Developing intelligent systems that can learn from past runs to optimize future productions.
3. Hybrid Systems: Creating AFP systems that can easily switch between different material types and processing methods.
4. In-situ Quality Assurance: Advancing technologies for real-time, in-process quality control and defect correction.
5. Sustainable Manufacturing: Developing AFP processes that minimize waste and energy consumption, aligning with green manufacturing initiatives.

By addressing these challenges with innovative solutions, the AFP industry is moving towards more accessible, efficient, and versatile systems. The shift from large, complex machines to more compact, user-friendly systems is democratizing AFP technology, making it available to a broader range of industries and applications. This evolution is not only solving existing problems but also opening up new possibilities in composite manufacturing.

Addcomposites' Innovative Solutions

Addcomposites addresses several key challenges in AFP technology:

1. Accessibility: By offering AFP systems starting at €3499 per month, Addcomposites makes this technology accessible to a broader range of manufacturers and researchers.
2. Versatility: The ability to convert any pre-existing robot into an AFP system works with all major robotic brands, reducing the need for specialized equipment.
3. Quality Control: AddPath software provides real-time digital twin capabilities, enhancing quality control and process optimization.
4. Multi-functionality: Addcomposites' systems can switch between AFP and filament winding modes, offering greater flexibility in manufacturing processes.

Automated Fiber Placement (AFP) technology has found its way into a diverse range of industries, revolutionizing the manufacturing of composite structures. From traditional aerospace applications to emerging fields like humanoid robotics, AFP systems are proving their versatility and value. Let's explore the key applications and case studies across various sectors:

Aerospace Industry

In the aerospace industry, AFP technology has found applications in manufacturing traditional aircraft components such as fuselage sections, wing structures, nose cones, and floor panels

1. Traditional Aircraft Components:
   • Fuselage sections
   • Wing structures
   • Nose cones
   • Floor panels and stiffeners
2. Evolving Materials and Rapid Prototyping:
   • Versatile AFP systems like AFP-XS enabling quick material changes
   • Adaptation to thin materials, dry fibers, and thermoplastics
   • Rapid validation of new composite materials for aerospace applications
3. Urban Air Mobility: Flying Taxis and Small Aircraft:
   • Compact AFP systems ideal for manufacturing smaller aircraft structures
   • Electric motor sleeves for high-RPM efficiency
   • Hydrogen fuel tank production for extended range capabilities
   • Drone components for both civilian and military applications

Space Industry

1. Satellite Structures:
   • Transition from hand layup to automated processes for increased production volumes
   • Manufacture of structural components for small satellites
2. Launch Vehicles:
   • Interstage structures
   • Nozzle components
   • High-pressure tanks
3. Combined AFP and Filament Winding Capabilities:
   • Versatile production of various space vehicle components
   • Enabling cost-effective manufacturing for the growing commercial space sector

Defense Sector

1. Military Aircraft:
   • Fighter plane fuselages and wings
   • Lightweight, high-performance structural components
2. Missile Systems:
   • Lighter, more precise missile structures
3. Unmanned Aerial Vehicles (UAVs):
   • Rapid production of lightweight, durable drone structures
   • Enhancing strategic capabilities through advanced composite manufacturing

Automotive Industry

In the automotive sector, AFP is being used to produce lightweight body panels, impact-resistant structures, and components for electric and hydrogen-powered vehicles

1. Clean Energy Transition:
   • Hydrogen fuel tanks for passenger cars and trucks
   • Electric motor sleeves combining carbon and glass fibers
2. Structural Components:
   • Lightweight body panels
   • Impact-resistant structures
3. Material Hybridization:
   • Combining thermoset and thermoplastic materials for optimal performance
   • Integration of carbon and glass fibers in single components

Humanoid Robots

1. Structural Components:
   • Lightweight yet rigid limbs, torsos, and head structures
   • Impact-resistant designs for improved durability
2. Functional Integration:
   • RF-transparent structures for enhanced communication capabilities
   • Sensor integration within composite structures
3. Sustainability Considerations:
   • Use of recyclable composite materials
   • Design for disassembly and material recovery

Marine Industry

1. High-Performance Vessels:
   • Hydrofoils for increased speed and efficiency
   • Lightweight masts and hull structures
2. Recreational Boating:
   • Composite hulls and decks for improved performance and longevity

Clean Energy Sector

In the clean energy sector, AFP technology is being employed for the production of efficient, large-scale wind turbine blades

1. Wind Energy:
   • Production of efficient, large-scale wind turbine blades (up to 50-60 meters)
   • Integration of AFP with 3D printing for complex blade designs
   • Sensor integration for smart blade monitoring
2. Solar Energy:
   • Lightweight support structures for solar panels
   • Potential for integrated solar cell and composite structure manufacturing

Benefits of AFP Over Manual Processes

1. Consistent Quality:
   • Repeatable, precise fiber placement
   • Reduction in human error and variability
2. Data-Driven Manufacturing:
   • Comprehensive quality data capture for each part
   • Enables continuous process improvement and traceability
3. Cost-Effectiveness:
   • Lower total cost of ownership for components
   • Reduced material waste through optimized fiber placement
4. Energy Efficiency:
   • Lower energy consumption in both manufacturing and end-use applications
   • Lightweight structures contributing to overall system efficiency
5. Flexibility and Rapid Adaptation:
   • Quick changeover between different materials and part designs
   • Enables cost-effective small batch production and prototyping
6. Sustainability:
   • Reduced material usage through precise placement
   • Potential for easier recycling and material recovery in some applications

The versatility of modern AFP systems, particularly compact and adaptable designs, is enabling a new era of composite manufacturing across these diverse sectors. By offering consistent quality, data-driven production, and the ability to work with a wide range of materials, AFP technology is not only improving existing applications but also opening doors to new possibilities in composite structure design and manufacturing. As industries continue to demand lighter, stronger, and more efficient components, AFP systems are poised to play an increasingly crucial role in meeting these evolving needs.

Addcomposites in Action

Addcomposites' solutions have found applications across various industries:

1. Aerospace and Space: The AFP-XS and AFP-X systems are proven in aerospace applications, offering the precision and quality required for this demanding sector.
2. Automotive: Addcomposites' systems enable the production of lightweight, high-performance components for the automotive industry.
3. Marine and Energy: The versatility of Addcomposites' AFP systems makes them suitable for producing large-scale components in these sectors.
4. Research and Development: With over 40 AFP-XS systems installed worldwide, Addcomposites has become a favorite among research institutions for its unparalleled versatility and modularity.

As Automated Fiber Placement (AFP) technology continues to evolve, it is poised to play an increasingly crucial role in advanced manufacturing. The future of AFP is characterized by greater versatility, integration with other technologies, and expansion into new markets. Here are the key trends and developments shaping the future of AFP:

Integration with Robotics and Automation

1. Compact and Versatile Systems:
   • Development of adaptable AFP systems that can be easily integrated with existing industrial robots
   • Increasing adoption in various industries due to improved accessibility and flexibility
2. Humanoid Robot Manufacturing:
   • AFP systems tailored for producing lightweight, strong components for humanoid robots
   • Enabling the production of complex, multi-functional parts for the growing robotics industry

Advanced Software and Digital Integration

The future of AFP technology is characterized by enhanced software capabilities for path planning, process simulation, and optimization, integrating design, manufacturing, and quality assurance into a unified digital ecosystem

1. Comprehensive Simulation and Planning:
   • Enhanced software capabilities for path planning, process simulation, and optimization
   • Integration of design, manufacturing, and quality assurance into a unified digital ecosystem
2. Digital Twin Technology:
   • Real-time monitoring and adjustment of AFP processes through digital twin implementations
   • Improved quality control and process optimization through continuous data feedback loops
3. Cross-Process Digital Thread:
   • Seamless data flow between AFP and other manufacturing processes
   • Optimization of the entire production chain, from design to final assembly

Material Innovations and Multi-Material AFP

The development of integrated hybrid manufacturing cells, combining AFP, filament winding, and additive manufacturing in single, flexible production units, represents a significant trend in the evolution of AFP technology

1. Rapid-Cure Resins:
   • Development of fast-processing composites to increase production rates
   • Chemical innovations to reduce overall processing steps and cure times
2. Advanced Thermoplastics:
   • Improvements in thermoplastic bonding technologies for faster processing
   • Integration of sophisticated heating and compaction algorithms for optimal bonding
3. Multi-Material Capabilities:
   • AFP systems capable of rapidly switching between different fiber types (e.g., carbon, glass)
   • Enabling the production of hybrid composites with optimized performance and cost

Convergence with Additive Manufacturing

1. Moldless AFP Manufacturing:
   • Integration of large-format additive manufacturing with AFP processes
   • 3D printed tooling and support structures for AFP layup
2. Structural Continuous Fiber 3D Printing:
   • Development of hybrid systems combining AFP principles with additive manufacturing
   • Enabling the creation of complex, fiber-reinforced structures without traditional molds
3. Integrated Hybrid Manufacturing Cells:
   • Combining AFP, filament winding, and additive manufacturing in single, flexible production units
   • Adaptive manufacturing systems capable of switching between processes as needed

Expanding Applications and Markets

1. Urban Air Mobility:
   • Tailored AFP solutions for manufacturing flying taxis and small aircraft
   • Rapid prototyping and production of lightweight, high-performance aerospace structures
2. Sustainable Transportation:
   • AFP systems optimized for producing components for electric vehicles and hydrogen fuel systems
   • Lightweight structures contributing to improved energy efficiency in transportation
3. Renewable Energy Structures:
   • Advanced AFP techniques for manufacturing larger, more efficient wind turbine blades
   • Integration of smart materials and sensors in composite energy-generating structures
4. Infrastructure and Construction:
   • Exploration of AFP applications in creating lightweight, durable structural components for buildings and bridges
   • Potential for on-site AFP manufacturing in large-scale construction projects

Sustainability and Cost Reduction

1. Material Efficiency:
   • Continued improvements in fiber placement accuracy to minimize material waste
   • Development of recycling-friendly composite materials and structures
2. Energy-Efficient Processing:
   • Advancements in low-energy curing technologies for thermoset composites
   • Optimized heating and cooling cycles for thermoplastic AFP
3. Accessible Technology:
   • Reduction in AFP system costs to make the technology accessible to smaller businesses
   • Development of modular, scalable AFP solutions for various production volumes
4. New Material Sources:
   • Exploration of sustainable and bio-based fibers and resins for AFP processes
   • Integration of recycled materials into high-performance composite structures

The future of AFP technology is characterized by its increasing versatility, integration with other advanced manufacturing technologies, and expansion into new markets. As AFP systems become more compact, adaptable, and cost-effective, they are likely to find applications in a wider range of industries, from aerospace and automotive to robotics and sustainable energy.

The convergence of AFP with additive manufacturing, advanced robotics, and sophisticated digital tools is set to revolutionize how complex composite structures are designed and produced. This evolution will not only enhance the capabilities of AFP but also contribute to more sustainable, efficient, and innovative manufacturing practices across various sectors.

As these technologies mature, we can expect to see AFP playing a crucial role in addressing global challenges, from climate change mitigation through lightweight transportation to the development of advanced robotics for various applications. The future of AFP is not just about improving existing processes, but about reimagining what's possible in composite manufacturing and opening new frontiers in material science and engineering.

Addcomposites' Vision for the Future

Addcomposites is at the forefront of several trends shaping the future of AFP technology:

1. Integration with 3D Printing: The SCF3D system represents Addcomposites' foray into structural continuous fiber 3D printing, complementing traditional AFP processes.
2. Customized Manufacturing Cells: AddCell offers tailored robotic cell solutions, enabling seamless integration of AFP technology into existing manufacturing environments.
3. Sustainable Manufacturing: By optimizing material usage and enabling the use of various fiber types, Addcomposites' systems contribute to more sustainable composite manufacturing practices.
4. Democratization of AFP Technology: Through cost-effective solutions and user-friendly software, Addcomposites is making AFP technology accessible to a broader range of manufacturers, from small businesses to large OEMs.

As AFP technology continues to evolve, companies like Addcomposites are playing a crucial role in driving innovation, improving accessibility, and expanding the applications of this transformative manufacturing process.

As we've explored throughout this comprehensive look at Automated Fiber Placement (AFP) technology, it's clear that we are witnessing a revolutionary shift in composite manufacturing. AFP has not only overcome many of the initial challenges associated with composite production but has also opened up new possibilities in design, efficiency, and application across a wide range of industries.

Key Takeaways

1. Technological Evolution: AFP has progressed from a niche, high-cost technology to an increasingly accessible and versatile manufacturing process. The development of compact, adaptable systems has democratized access to advanced composite manufacturing.
2. Material Advancements: The symbiotic relationship between AFP technology and material science has driven innovations in both fields. From rapid-cure resins to advanced thermoplastics and multi-material capabilities, AFP is pushing the boundaries of what's possible with composite materials.
3. Expanding Applications: While aerospace remains a key industry for AFP, we've seen how this technology is making significant inroads into automotive, renewable energy, marine, and even emerging fields like humanoid robotics. The versatility of AFP is opening up new markets and applications previously unthinkable for composite structures.
4. Integration and Digitalization: The convergence of AFP with other advanced manufacturing technologies, particularly additive manufacturing and sophisticated digital tools, is creating new paradigms in production. Digital twins, comprehensive simulation capabilities, and integrated manufacturing cells are setting new standards for efficiency and quality control.
5. Sustainability Impact: AFP's precision and efficiency are contributing to more sustainable manufacturing practices. By optimizing material usage, enabling lightweight designs, and facilitating the use of recycled or bio-based materials, AFP is aligned with global efforts towards more environmentally friendly production methods.

Looking to the Future

The future of AFP technology is bright and full of potential. As systems become more compact, versatile, and cost-effective, we can expect to see AFP playing a crucial role in addressing some of the most pressing challenges of our time:

• Climate Change Mitigation: Through the production of lightweight structures for transportation and renewable energy systems.
• Advanced Robotics: Enabling the creation of high-performance, multi-functional components for next-generation robots.
• Sustainable Infrastructure: Exploring new applications in construction and civil engineering for durable, lightweight structures.
• Space Exploration: Facilitating the production of advanced spacecraft and satellite components, supporting the growing commercial space industry.

The ongoing developments in AFP technology – from enhanced process control and multi-material capabilities to integration with additive manufacturing – promise to further expand its capabilities and applications. As the technology continues to mature, we can anticipate more industries recognizing the potential of AFP to revolutionize their manufacturing processes and product designs.

Final Thoughts

Automated Fiber Placement stands at the intersection of materials science, robotics, and digital manufacturing. It represents not just an improvement in how we make things, but a fundamental shift in what we can make. As we look to a future that demands stronger, lighter, and more efficient structures across all sectors, AFP emerges as a key enabling technology.

For engineers, designers, and industry leaders, staying abreast of AFP developments will be crucial in maintaining a competitive edge. For researchers and innovators, AFP presents a rich field for exploration, with the potential for groundbreaking discoveries in materials, processes, and applications.

The journey of AFP from a specialized aerospace technology to a versatile, accessible manufacturing process is a testament to the power of innovation and the importance of cross-disciplinary collaboration. As we continue to push the boundaries of what's possible with composites, AFP will undoubtedly play a central role in shaping the future of manufacturing and material science.

In conclusion, Automated Fiber Placement is not just a manufacturing technology; it's a gateway to new possibilities in design, efficiency, and sustainability across industries. As we move forward, the potential of AFP to transform our world – from the cars we drive to the energy we harness and even the robots that may one day work alongside us – is limited only by our imagination and ingenuity.

1. Wambua P, Ivens J, Verpoest I. Natural fibres: can they replace glass in fibre reinforced plastics? Compos Sci Technol 2003;63(9):1259–64.
2. Oldani T. Fiber placement machine platform system having interchangeable head and creel assemblies. United States patent US 20090095410. 2009 Apr 10.
3. Lindback JE, Bjornsson A, Johansen K. New automated composite manufacturing process: Is it possible to find a cost effective manufacturing method with the use of robotic equipment? 5th Int. Swedish Prod. Symp; 2012 Nov 6-8; Linkoping, Sweden. 2012. p. 523–31.
4. Grimshaw MN, Grant CG, Diaz JML. Advanced technology tape laying for affordable manufacturing of large composite structures. Int. Sampe Symp. Exhib. 2001;2484–94.
5. Skinner ML. Trends, advances and innovations in filament winding. Reinf Plast 2006;50(2):28–33.
6. Smith F, Grant C. Automated processes for composite aircraft structure. Ind Robot An Int J 2006;33(2):117–21.
7. Evans DO. Handbook of composites. Boston, MA: Springer US; 1998. p. 476–87.
8. Astrom BT. Manufacturing of Polymer Composites. 1997.
9. Campbell JFC. Manufacturing processes for advanced composites. 2003.
10. Gutowski TGP. Advanced Composites Manufacturing. 1997.
11. Sloan J. ATL and AFP: Defining the megatrends in composite aerostructures. 2008.
12. Lukaszewicz D-J-A, Ward C, Potter KD. The engineering aspects of automated prepreg layup: History, present and future. Compos Part B Eng 2012;43(3):997–1009.
13. Frketic J, Dickens T, Ramakrishnan S. Automated manufacturing and processing of fiber-reinforced polymer (FRP) composites: An additive review of contemporary and modern techniques for advanced materials manufacturing. Addit Manuf 2017;14:69–86.
14. Kozaczuk K. Automated fiber placement systems overview. 2016.
15. August Z, Ostrander G, Michasiow J, et al. Recent developments in automated fiber placement of thermoplastic composites. SAMPE J 2014;50(2):30–7.
16. Madhok KS. Comparative characterization of out-of-autoclave materials made by automated fiber placement and hand-lay-up processes [dissertation]. Montreal: Concordia University; 2013.
17. Flynn R, Rudberg T, Stamen J. Automated fiber placement machine developments: Modular heads, tool point programming and volumetric compensation bring new flexibility in a scalable AFP cell. SME Compos. Manuf. Conf. Dayton, OH; 2011.
18. Marsh G. Automating aerospace composites production with fibre placement. Reinf Plast 2011;55(3):32–7.
19. Izco L, Isturiz J, Motilva M. High speed tow placement system for complex surfaces with cut / clamp / & restart capabilities at 85 m/min (3350 IPM). 2006. Report No.: 2006-01-3138.
20. Sorrentino L, Carrino L, Tersigni L, et al. Innovative tape placement robotic cell: High flexibility system to manufacture composite structural parts with variable thickness. J Manuf Sci Eng 2009;131(4):041002.
21. Raspall F, Velu R, Vaheed NM. Fabrication of complex 3D composites by fusing automated fiber placement (AFP) and additive manufacturing (AM) technologies. Adv Manuf Polym Compos Sci 2019;5(1):6–16.
22. Gan D, Dai JS, Dias J, Umer R, Seneviratne L. Singularity-free workspace aimed optimal design of a 2T2R parallel mechanism for automated fiber placement. J Mech Robot 2015;7(4).
23. Zhang X, Xie W, Hoa SV, et al. Design and analysis of collaborative automated fiber placement machine. Int J Adv Robot Autom 2016;1:1–14.
24. Rousseau G, Wehbe R, Halbritter J, Harik R. Automated fiber placement path planning: A state-of-the-art review. Comput Aided Des Appl 2019;16(2):172–203.
25. Goldsworthy WB. Geodesic path length compensator for composite-tape placement method. United States patent US 3810805. 1974 May 14.
26. Wisbey JD. Multi-tow fiber placement machine with full band width clamp, cut, and restart capability. United States patent US 4943338. 1990 Jul 24.
27. Pugh JH. Strand laying head. United States patent US 4569716. 1986 Feb 11.
28. Vaniglia MM. Fiber placement head. United States patent US 5110395. 1992 May 5.
29. Borgmann RE, Evans DO. Fiber placement machine. European patent EP 1719610. 2008 Oct 29.
30. McCowin PD. Tow width adaptable placement head device and method. United States patent application US 20070029030. 2007 Feb 08.
31. Belhaj M, Deleglise M, Comas-Cardona S, et al. Dry fiber automated placement of carbon fibrous preforms. Compos Part B Eng 2013;50:107–11.
32. Zhang W, Liu F, Lv Y, Ding X. Modelling and layout design for an automated fibre placement mechanism. Mech Mach Theory 2020;144:103651.
33. Martin JP. Multiple tape laying apparatus and method. United States patent US 7293590. 2007 Nov 13.
34. Hamlyn A, Hardy Y. Applicator head for fibers with particular systems for cutting fibers. United States patent US 7926537. 2011 Apr 19.
35. Hauber DE, Langone RJ, Martin JP. Composite tape laying apparatus and method. United States patent US 7063118. 2006 Jun 20.
36. Tingley MC. Add roller for a fiber placement machine. United States patent US 7628882. 2009 Dec 08.
37. Oldani T, Jarvi D. Performing high-speed events "on-the-fly" during fabrication of a composite structure by automated fiber placement. United States patent US 7513965. 2009 Apr 7.
38. Vaniglia MM. Motorized cut and feed head. United States patent US 7849903. 2010 Dec 14.
39. Zhang W, Liu F, Lv Y, Ding X. Design and analysis of a metamorphic mechanism for automated fibre placement. Mech Mach Theory 2018;130:463–76.
40. Liu F, Zhang W, Xu K, et al. A planar mechanism with variable topology for automated fiber placement. 2018 Int. Conf. Reconfigurable Mech. Robot; 2018. p. 1–6.

Automated Fiber Placement (AFP) technology has revolutionized the manufacturing of composite structures across various industries. As we explore the intricacies of this advanced manufacturing process, we'll also highlight innovative solutions from companies like Addcomposites, a Finnish pioneer in AFP technology.

The Limitations of Traditional Materials

In the quest for superior performance across various industries, engineers have long grappled with the limitations of traditional materials. Plastics, while lightweight and easily moldable, often fall short in strength and stiffness, making them unsuitable for many high-performance applications. Metals, the backbone of engineering for centuries, offer excellent strength and durability but at the cost of high density, a critical drawback in weight-sensitive fields like aerospace and automotive engineering.

‍The Promise and Challenges of Composite Materials

Enter composite materials – a revolutionary solution that combines the best attributes of different material classes. Composites offer an enticing array of possibilities: structures that are incredibly strong yet remarkably light, with customizable thermal properties and design flexibility. From aircraft components lighter than aluminum yet stronger than steel to wind turbine blades that withstand immense forces while maintaining optimal aerodynamics, composites have opened new frontiers in material engineering.

However, the road to composite supremacy was initially paved with significant challenges:

1. High Manufacturing Costs: Early composite production was labor-intensive and expensive.
2. Material Expenses: Advanced fibers and resins came with hefty price tags.
3. Equipment Investment: Specialized machinery for composite manufacturing required substantial capital.

The Rise of Automated Fiber Placement (AFP)

Automated Fiber Placement (AFP) technology emerged as a game-changer, addressing many of the challenges associated with composite manufacturing. The evolution of AFP has been nothing short of remarkable:

1. Labor Reduction: AFP systems have dramatically reduced the need for manual labor, replacing teams of skilled workers with efficient, precise machines operated by a single technician.
2. Material Cost Optimization: As AFP technology matured, it drove demand for composite materials, leading to increased production and lower costs. Today, many composite materials are competitively priced against traditional engineering materials.
3. Accessible Equipment: Once the domain of aerospace giants with multi-million euro budgets, AFP systems are now available at a fraction of their original cost. Entry-level systems can be acquired for just a few thousand euros, democratizing access to this technology.
4. Increased Efficiency and Quality: AFP systems offer unparalleled precision and repeatability, significantly improving part quality while reducing material waste.

The Current Landscape and Future Potential

Today, AFP technology stands at the forefront of advanced manufacturing, poised to revolutionize industries far beyond its aerospace origins. From automotive to renewable energy, from marine applications to the burgeoning field of humanoid robotics, AFP is opening new possibilities in design and production.

Overview of the Article

This comprehensive exploration of Automated Fiber Placement technology will guide you through:

1. Understanding AFP: A deep dive into the core concepts, components, and capabilities of AFP systems.
2. The AFP Process: A step-by-step breakdown of how AFP works, from material preparation to final layup.
3. Materials and AFP: An examination of the diverse materials compatible with AFP and how they influence the process.
4. Engineering Challenges and Solutions: Insights into the technical hurdles faced in AFP and innovative solutions developed.
5. Applications and Case Studies: Real-world examples of AFP in action across various industries.
6. The Future of AFP Technology: A look at emerging trends and potential future developments in the field.

As we embark on this journey through the world of Automated Fiber Placement, prepare to discover how this technology is not just changing the way we manufacture but also expanding the boundaries of what's possible in material engineering and product design. Whether you're an industry professional, an engineering student, or simply curious about cutting-edge technology, this exploration of AFP will provide you with a comprehensive understanding of a technology that's shaping the future of manufacturing.

Definition and Basic Concept

Automated Fiber Placement (AFP) is an advanced manufacturing process designed to efficiently create complex composite structures. At its core, an AFP system draws composite material from a storage unit, routes it through a sophisticated delivery system, and precisely places it onto a substrate using a combination of heat and pressure.

The process begins with material spools, which may include a backing film for certain materials like thermoset prepregs. The composite tape is then guided through a cut, clamp, and feed (CCF) mechanism before being applied to the substrate. This basic process remains consistent across various material types, including thermosets, thermoplastics, and dry fibers, with minor adjustments to accommodate each material's specific requirements.

‍

Historical Context

The journey of AFP technology began in the late 1960s and early 1970s, evolving from earlier composite manufacturing techniques. The concept of using individual tows instead of wide tapes was first documented in 1974, marking a significant shift from Automated Tape Laying (ATL) methods.

Hercules Aerospace (now part of ATK) and Cincinnati Machine were pioneers, starting development of AFP systems in the early 1980s. These early machines combined the differential payout capability of filament winding with the compaction and cut-restart capabilities of ATL. By the late 1980s, AFP machines became commercially available and were adopted by major aerospace companies like Boeing, Lockheed, and Northrop.

The 1990s saw significant advancements in AFP technology. Systems capable of delivering up to 24 tows at once were developed, dramatically increasing productivity. The ability to steer fibers along curvilinear paths was a game-changer, allowing for more complex geometries and optimized fiber orientations.

The turn of the millennium brought focus to improving process reliability and productivity. Innovations in automated inspection, high-speed systems, and modular AFP heads marked this era. By 2010, highly accurate robots were demonstrating remarkable precision, with a 3-sigma accuracy of ±0.08 mm.

Today, AFP technology continues to evolve, with current research focusing on high-throughput systems, minimal defect layups, and in-situ thermoplastic processing. The integration of AFP with other advanced manufacturing technologies promises to further expand its capabilities and applications.

Key Components of an AFP System

1. Fiber Placement Head: The fiber placement head is the heart of the AFP system. Typically mounted on a robotic arm or gantry, it's a marvel of precision engineering. The key components of an AFP system include the fiber placement head, motion platform, material delivery system, control system, and software system.The head houses the material guiding system, which ensures the composite tapes are fed smoothly and accurately. The cut, clamp, and feed (CCF) mechanism is a critical component, allowing for precise control over tow length and placement. Integrated heating elements, which may use technologies like infrared or laser heating, ensure the material reaches the optimal temperature for adhesion. An array of sensors, including thermal sensors and laser line scanners, constantly monitor the process, providing real-time data for quality control and placement accuracy.
2. Motion Platform: While gantry systems were once the norm, robotic arms have become the gold standard in AFP systems. This shift is due to their exceptional continuous path following accuracy, often achieving tolerances measured in fractions of a millimeter. The flexibility of robotic arms allows them to navigate complex geometries with ease, reaching angles and positions that would be challenging for traditional gantry systems. Modern robotic systems offer plug-and-play compatibility with AFP heads, significantly reducing setup time and complexity. This accessibility has democratized AFP technology, making it available to a broader range of manufacturers.
3. Material Delivery System: The material delivery system is a sophisticated network of spools, guides, and tensioners that ensure a consistent supply of composite material to the placement head. Managing multiple spools simultaneously is a complex task, requiring precise control over tension and feed rates for each individual tow. This system must adapt to different material types, from sticky thermoset prepregs to dry fibers, each with its own handling characteristics. Advanced systems may include climate-controlled storage for temperature-sensitive materials, ensuring consistent material properties throughout the manufacturing process.
4. Control System: The control system is the brain of the AFP operation, orchestrating the intricate dance between the robot, placement head, and material delivery system. It processes a vast amount of data in real-time, from robot positioning to material temperature and tension. At its core, the control system translates the programmed layup path into a series of coordinated movements and actions. It sends precise commands to the robot controller, dictating not just position but also speed and acceleration. Simultaneously, it manages the AFP head, triggering tow cuts, activating compaction rollers, and adjusting heating elements as needed. Advanced control systems integrate feedback from multiple sensors, allowing for on-the-fly adjustments to maintain optimal layup conditions. This might involve tweaking the heater intensity based on ambient temperature changes or adjusting compaction pressure to accommodate varying surface geometries.
5. Software System: The software system is the unsung hero of AFP technology, turning complex composite designs into manufacturable realities. It begins with sophisticated path planning algorithms that optimize fiber orientation for structural performance while considering manufacturability constraints. Simulation capabilities allow engineers to virtually test layup strategies, identifying potential issues like gaps, overlaps, or areas of excessive steering before a single fiber is placed. This predictive power significantly reduces material waste and improves first-time quality. During production, the software acts as a digital twin of the physical process, comparing real-time data from the AFP system against the simulated ideal. This allows for immediate detection of deviations and, in advanced systems, automatic correction of errors. Quality control is deeply integrated into the software, with algorithms analyzing data from various sensors to ensure each ply meets specified tolerances. This data is also archived, providing a comprehensive digital record of the manufacturing process for each part – a crucial feature for industries with stringent traceability requirements.

AFP's Versatility: Filament Winding Capabilities

Modern AFP systems have evolved to incorporate filament winding capabilities, offering a best-of-both-worlds approach that significantly expands manufacturing possibilities. This convergence of technologies represents a major leap forward in composite manufacturing flexibility.

Filament winding, traditionally used for creating cylindrical or spherical structures, excels in high-speed production of parts with continuous fiber reinforcement. By integrating these capabilities into AFP systems, manufacturers can now switch seamlessly between precise layup and high-speed winding operations within a single setup.

The advantages of this hybrid approach are numerous. For complex parts with both open and closed sections, the system can use AFP for precise layup on open surfaces and switch to filament winding for closed, cylindrical sections. This is particularly beneficial in industries like aerospace, where components often combine multiple geometric features.

The key to this versatility lies in advanced control systems and software. These systems manage the transition between AFP and winding modes, adjusting parameters like fiber tension, compaction pressure, and heating on the fly. For winding operations, the software calculates optimal winding angles and patterns, ensuring structural integrity while maximizing production speed.

Moreover, this combined capability allows for innovative manufacturing strategies. For instance, a part might start with a filament-wound core for speed and continuous reinforcement, followed by precisely placed AFP layers for local reinforcement or to create specific surface features.

The integration of AFP and filament winding capabilities in a single system not only enhances production flexibility but also opens up new possibilities in part design. Engineers can now conceive of structures that leverage the strengths of both processes, potentially leading to lighter, stronger, and more efficient composite parts.

Addcomposites' AFP Solutions

Addcomposites offers two advanced AFP systems that exemplify the latest in fiber placement technology:

AFP-XS: A compact system designed to upgrade existing robots for research and small batch production. It's capable of aerospace-grade quality layups and is compatible with a wide range of materials.

AFP-X: A robust system for high-volume production, featuring increased material capacity and advanced sensors for continuous, precise operations on complex aerospace and large components.

These systems represent significant advancements in making AFP technology more accessible and versatile across industries.

Preparing the Composite Material

The journey of automated fiber placement begins with proper material preparation. Composite materials typically come in the form of tapes, which require specific handling:

1. Storage: Depending on the material type, tapes are stored in either cold or dry environments. Thermoset prepregs, for instance, often require refrigeration to prevent premature curing.
2. Formatting: Materials may arrive in large spools and need to be transferred to smaller, machine-compatible formats.
3. Thawing: For materials stored in freezers, a crucial step is thawing. This process involves allowing the material to gradually reach room temperature, typically overnight. Proper thawing ensures the material's optimal properties for processing.
4. Environmental Control: Throughout preparation, maintaining the right environment is critical. This might involve controlling humidity for dry fibers or managing temperature for thermosets.

Loading and Feeding the Material

Once prepared, the material must be carefully loaded into the AFP system:

1. Loading: The material is mounted onto the head or material creel. This step requires precision to ensure proper alignment and tension.
2. Guiding: The tape is then threaded through an integrated set of rollers. This process demands attention to maintain consistent tension while avoiding any twisting or self-adhesion of the tape.
3. Material-Specific Challenges: Thermosets and tow pregs present unique challenges due to their tacky nature, requiring extra care to prevent sticking. Dry fibers and thermoplastics are generally easier to handle at this stage.
4. Feeding: The final step involves guiding the material into the cut, clamp, and feed (CCF) mechanism. This compact area requires careful maneuvering:some text
   • The material is gently pushed into the designated channel.
   • Operators rely on the material's stiffness to navigate through the intricate path.
   • Once in place, the feed motor can be engaged to automate further material advancement.

Precise Placement and Compaction

With the material loaded and the AFP program ready, the actual layup process begins:

1. Program Initiation: A pre-created program, developed using planning software and simulations, is loaded into the robot controller.
2. First Layer Challenges: The initial layer presents unique difficulties:some text
   • Adhesion to the mold (often metal or plastic) can be problematic.
   • Operators typically reduce speed, increase heat, and maintain lower tension for better adhesion.
   • This layer sets the foundation for subsequent plies, making precision crucial.
3. Layup Process:
   • The AFP head approaches the layup table.
   • As it moves, the tape is fed under the compaction roller.
   • A heater in front of the roller pre-heats the material and substrate.
   • The compaction roller applies pressure, bonding the new material to the substrate.
   • Throughout this process, the tape is kept under controlled tension.
4. Subsequent Layers: After the first layer, the process can often be accelerated, with adjustments to speed, heat, and tension as needed.

Cutting and Restarting

The cutting and restarting process is crucial for creating complex layups:

1. End of Pass: As the AFP head nears the end of a programmed path, it initiates a cut at a predetermined distance from the end.
2. Cutting: The CCF mechanism precisely cuts the tape.
3. Completion and Retraction: After completing the pass, the head retracts from the mold surface.
4. Repositioning: The system moves to the starting point of the next pass.
5. Restarting:
   • The feed mechanism is reengaged to advance new material.
   • Care is taken to ensure the previously laid material has cooled sufficiently to prevent sticking.
   • The process then repeats for the new pass.

Building Up Layers to Form the Final Part

As layers accumulate, several factors come into play:

1. Compaction Force Management: The system must adjust compaction force to account for the increasing thickness of the layup.
2. Thickness Compensation: Pre-preg tapes compress during layup (debulking). The AFP system must account for this reduction in thickness as layers build up.
3. Complex Geometries: For parts with features like ply drop-offs, holes, edges, or selective reinforcements, the AFP program must adapt:
   • Paths are designed to navigate around or reinforce these features.
   • Consistent pressure must be maintained to avoid over-debulking in specific areas.
4. Debulking Elimination: Proper management of these factors can often eliminate the need for separate debulking steps, streamlining the manufacturing process.
5. Quality Control: The result of this carefully managed process is a high-quality layup:
   • Minimal defects
   • Consistent fiber orientation
   • Optimal thickness control
   • Enhanced structural integrity

Through this meticulous step-by-step process, AFP systems can create complex, high-performance composite parts with a level of precision and consistency unattainable through manual methods. The ability to fine-tune each aspect of the layup process contributes to the production of lightweight, strong, and highly engineered composite structures.

Addcomposites' Software Solutions

To streamline the AFP process, Addcomposites offers sophisticated software solutions:

1. AddPath: This software optimizes path planning, simulation, and data streaming for AFP processes. It's designed to enhance efficiency and precision for teams of all sizes.
2. AddPrint: While primarily for continuous fiber 3D printing, this software complements AFP processes by offering advanced features for precise and efficient production of composite parts.

The choice of material in Automated Fiber Placement (AFP) significantly influences the manufacturing process, final product characteristics, and production economics. Let's explore the main material types used in AFP and their implications:

Prepregs

Prepregs, or pre-impregnated fibers, are the traditional go-to material for AFP in high-performance applications:

• Characteristics: Fibers pre-impregnated with partially cured resin.
• Advantages:
  • Consistent resin content and fiber distribution
  • Excellent mechanical properties
  • Well-established in aerospace and high-performance applications
• Considerations:
  • Relatively expensive
  • Require careful storage (often refrigerated) and have limited shelf life
  • Need precise temperature control during layup
• Best for: Aerospace parts and other high-performance, low-volume applications where material cost is less critical than performance.

Dry Fibers

Dry fiber tapes are increasingly popular, especially when combined with subsequent resin infusion processes:

• Characteristics: Fibers without resin, often held together with a light binder.
• Advantages:
  • Lower material cost compared to prepregs
  • Easier to store and handle (no refrigeration needed)
  • Can be combined with various resin systems post-layup
• Considerations:
  • Requires a separate infusion process (e.g., Resin Transfer Molding - RTM)
  • May have challenges with fiber alignment and control during placement
• Best for: Medium to high volume production where the cost of RTM equipment can be justified by lower material costs and higher production rates.

Thermoplastics

Thermoplastic composites offer unique advantages in AFP:

• Characteristics: Fibers impregnated with thermoplastic resin.
• Advantages:
  • Can be remelted and reshaped
  • Potential for in-situ consolidation
  • Excellent chemical resistance and impact properties
• Considerations:
  • Require higher processing temperatures
  • May need additional forming steps (e.g., thermoforming)
  • Equipment may need modifications to handle higher temperatures
• Best for: Applications requiring high toughness, chemical resistance, or the ability to be reformed. Production volume can range from low to high, depending on the specific process (in-situ consolidation vs. post-forming).

Towpregs

Towpregs represent an innovative approach to prepreg manufacturing:

• Characteristics: Tows directly impregnated with resin during the fiber manufacturing process.
• Advantages:
  • Lower cost compared to traditional prepregs
  • Excellent width and thickness control
  • No slitting process required, reducing waste and cost
• Considerations:
  • May have different handling characteristics compared to traditional prepregs
  • Less established in some industries compared to traditional prepregs
• Best for: High-volume production where material cost is a significant factor, but the performance of prepreg-like materials is desired.

Material Choice Considerations in AFP

When selecting materials for AFP, several factors come into play:

1. Production Volume:
   • Low volume, high-performance: Prepregs are often preferred.
   • Medium to high volume: Dry fibers with RTM or Towpregs become more economical.
2. Performance Requirements:
   • Aerospace-grade parts typically use prepregs for their consistent quality and established certification processes.
   • Automotive or industrial applications might lean towards thermoplastics or Towpregs for cost-effectiveness and cycle time reduction.
3. Processing Considerations:
   • Prepregs require careful temperature control and often need refrigerated storage.
   • Dry fibers need a separate infusion step but offer more flexibility in resin selection.
   • Thermoplastics require higher processing temperatures but can offer faster cycle times with in-situ consolidation.
4. Cost Factors:
   • Material cost: Prepregs > Thermoplastics > Towpregs > Dry Fibers (generally)
   • Equipment cost: Consider additional systems like RTM for dry fibers or high-temperature capabilities for thermoplastics.
5. Industry and Certification:
   • Aerospace industry often requires the use of certified prepreg systems.
   • Automotive and industrial sectors may have more flexibility to adopt newer materials like Towpregs.

The choice of material in AFP is not just about the final part properties, but also about optimizing the entire manufacturing process. As AFP technology continues to evolve, the ability to process a wide range of materials efficiently is becoming a key factor in its adoption across various industries. The trend towards materials like Towpregs showcases the industry's drive towards combining high performance with cost-effectiveness, potentially opening up new applications for AFP technology.

Material Versatility with Addcomposites

Addcomposites' AFP systems, particularly the AFP-XS, showcase remarkable material versatility:

• Compatible with Towpreg, Thermoset, Thermoplastic, and Dry fiber materials
• Capable of handling experimental materials
• Supports material widths from ¼" to 1"
• Can function as both Automated Tape Laying and Filament Winding systems

This versatility allows manufacturers to explore a wide range of composite materials and manufacturing techniques using a single system.

Automated Fiber Placement (AFP) technology, while advanced, still faces several engineering challenges. However, innovative solutions and evolving technologies are continuously addressing these issues, making AFP more accessible and efficient.

Managing Curved Surfaces and Complex Geometries

Challenge:

• Material stiffness limits draping capabilities, leading to issues like bridging on sharp corners and edges.
• Steering paths on curved surfaces to maintain fiber orientation can cause defects.

Solutions:

1. Advanced Path Planning: Sophisticated software simulations to optimize fiber placement strategies.
2. Design for Manufacturability: Collaborating with designers to create AFP-friendly part geometries.
3. Innovative Layup Strategies: Implementing patch placements to manage challenging areas.
4. Adaptive Programming: Utilizing dynamic control systems to adjust placement in real-time.

Heat Management and Consolidation

Challenge:

• Crucial for thermoplastics and important for prepreg debulking.
• Balancing heat application, compaction force, and layup speed for optimal bonding.

Solutions:

1. Material Preparation: Proper dehydration of hygroscopic materials before processing.
2. Temperature Control: Precise management of material, room, and tooling temperatures.
3. Process Parameter Optimization: Fine-tuning heat application, compaction force, and layup speed.
4. Real-time Monitoring: Implementing NDI sensors for immediate feedback on bond quality.
5. Adaptive Systems: Developing systems that can adjust parameters on-the-fly based on sensor feedback.

Defect Prevention and Quality Control

Challenge:

• Various defects like wrinkling, bridging, gaps, and overlaps can occur due to material, machine, or programming issues.

Solutions:

1. Advanced Inspection Systems: Integrating laser scanners, cameras, and thermal imaging for real-time defect detection.
2. Layer-by-Layer Quality Check: Implementing software that assesses each layer before proceeding to the next.
3. Adaptive Manufacturing: Developing systems that can pause production or suggest corrections based on quality data.
4. Predictive Modeling: Using AI and machine learning to anticipate and prevent defects before they occur.

Budgetary Challenges and Accessibility

Challenge:

• Traditional AFP machines are expensive to purchase, operate, and maintain.
• High complexity systems require multiple operators and extensive programming time.

Solutions:

1. Compact AFP Systems: Developing smaller, more versatile systems that can transform existing robots into AFP machines.
2. Simplified Operation: Creating user-friendly interfaces that allow a single operator to program, run, and maintain the system.
3. Multi-functional Systems: Designing AFP heads that can also perform filament winding, increasing versatility and value.
4. Cost-Effective Entry Points: Offering more affordable systems to make AFP technology accessible to smaller companies and research institutions.

Material-Specific Challenges

1. Towpregs

Challenge: Higher resin content leading to more residue in the AFP system.

‍Solution: Implementing regular cleaning routines and designing systems for easy maintenance access.

2. Prepregs

Challenge: Potential for resin buildup, though less than towpregs.

‍Solution: Developing streamlined cleaning processes and using materials optimized for AFP processing.

3. Dry Fibers

Challenge: Accumulation of fiber debris in narrow channels, particularly in the cutter area.

‍Solution:

• Designing systems with easily accessible cleaning points.
• Implementing regular maintenance schedules to clear debris accumulation.

4. Thermoplastics

Challenge: High heat exposure causing roller degradation.

‍Solution:

• Implementing water-cooled roller systems.
• Developing heat-resistant materials for roller construction.
• Designing quick-change roller systems for easy maintenance.

Ongoing Developments and Future Directions

1. Integrated Design and Manufacturing: Closer collaboration between part designers and AFP engineers to create optimized designs for AFP manufacturing.
2. AI and Machine Learning Integration: Developing intelligent systems that can learn from past runs to optimize future productions.
3. Hybrid Systems: Creating AFP systems that can easily switch between different material types and processing methods.
4. In-situ Quality Assurance: Advancing technologies for real-time, in-process quality control and defect correction.
5. Sustainable Manufacturing: Developing AFP processes that minimize waste and energy consumption, aligning with green manufacturing initiatives.

By addressing these challenges with innovative solutions, the AFP industry is moving towards more accessible, efficient, and versatile systems. The shift from large, complex machines to more compact, user-friendly systems is democratizing AFP technology, making it available to a broader range of industries and applications. This evolution is not only solving existing problems but also opening up new possibilities in composite manufacturing.

Addcomposites' Innovative Solutions

Addcomposites addresses several key challenges in AFP technology:

1. Accessibility: By offering AFP systems starting at €3499 per month, Addcomposites makes this technology accessible to a broader range of manufacturers and researchers.
2. Versatility: The ability to convert any pre-existing robot into an AFP system works with all major robotic brands, reducing the need for specialized equipment.
3. Quality Control: AddPath software provides real-time digital twin capabilities, enhancing quality control and process optimization.
4. Multi-functionality: Addcomposites' systems can switch between AFP and filament winding modes, offering greater flexibility in manufacturing processes.

Automated Fiber Placement (AFP) technology has found its way into a diverse range of industries, revolutionizing the manufacturing of composite structures. From traditional aerospace applications to emerging fields like humanoid robotics, AFP systems are proving their versatility and value. Let's explore the key applications and case studies across various sectors:

Aerospace Industry

In the aerospace industry, AFP technology has found applications in manufacturing traditional aircraft components such as fuselage sections, wing structures, nose cones, and floor panels

1. Traditional Aircraft Components:
   • Fuselage sections
   • Wing structures
   • Nose cones
   • Floor panels and stiffeners
2. Evolving Materials and Rapid Prototyping:
   • Versatile AFP systems like AFP-XS enabling quick material changes
   • Adaptation to thin materials, dry fibers, and thermoplastics
   • Rapid validation of new composite materials for aerospace applications
3. Urban Air Mobility: Flying Taxis and Small Aircraft:
   • Compact AFP systems ideal for manufacturing smaller aircraft structures
   • Electric motor sleeves for high-RPM efficiency
   • Hydrogen fuel tank production for extended range capabilities
   • Drone components for both civilian and military applications

Space Industry

1. Satellite Structures:
   • Transition from hand layup to automated processes for increased production volumes
   • Manufacture of structural components for small satellites
2. Launch Vehicles:
   • Interstage structures
   • Nozzle components
   • High-pressure tanks
3. Combined AFP and Filament Winding Capabilities:
   • Versatile production of various space vehicle components
   • Enabling cost-effective manufacturing for the growing commercial space sector

Defense Sector

1. Military Aircraft:
   • Fighter plane fuselages and wings
   • Lightweight, high-performance structural components
2. Missile Systems:
   • Lighter, more precise missile structures
3. Unmanned Aerial Vehicles (UAVs):
   • Rapid production of lightweight, durable drone structures
   • Enhancing strategic capabilities through advanced composite manufacturing

Automotive Industry

In the automotive sector, AFP is being used to produce lightweight body panels, impact-resistant structures, and components for electric and hydrogen-powered vehicles

1. Clean Energy Transition:
   • Hydrogen fuel tanks for passenger cars and trucks
   • Electric motor sleeves combining carbon and glass fibers
2. Structural Components:
   • Lightweight body panels
   • Impact-resistant structures
3. Material Hybridization:
   • Combining thermoset and thermoplastic materials for optimal performance
   • Integration of carbon and glass fibers in single components

Humanoid Robots

1. Structural Components:
   • Lightweight yet rigid limbs, torsos, and head structures
   • Impact-resistant designs for improved durability
2. Functional Integration:
   • RF-transparent structures for enhanced communication capabilities
   • Sensor integration within composite structures
3. Sustainability Considerations:
   • Use of recyclable composite materials
   • Design for disassembly and material recovery

Marine Industry

1. High-Performance Vessels:
   • Hydrofoils for increased speed and efficiency
   • Lightweight masts and hull structures
2. Recreational Boating:
   • Composite hulls and decks for improved performance and longevity

Clean Energy Sector

In the clean energy sector, AFP technology is being employed for the production of efficient, large-scale wind turbine blades

1. Wind Energy:
   • Production of efficient, large-scale wind turbine blades (up to 50-60 meters)
   • Integration of AFP with 3D printing for complex blade designs
   • Sensor integration for smart blade monitoring
2. Solar Energy:
   • Lightweight support structures for solar panels
   • Potential for integrated solar cell and composite structure manufacturing

Benefits of AFP Over Manual Processes

1. Consistent Quality:
   • Repeatable, precise fiber placement
   • Reduction in human error and variability
2. Data-Driven Manufacturing:
   • Comprehensive quality data capture for each part
   • Enables continuous process improvement and traceability
3. Cost-Effectiveness:
   • Lower total cost of ownership for components
   • Reduced material waste through optimized fiber placement
4. Energy Efficiency:
   • Lower energy consumption in both manufacturing and end-use applications
   • Lightweight structures contributing to overall system efficiency
5. Flexibility and Rapid Adaptation:
   • Quick changeover between different materials and part designs
   • Enables cost-effective small batch production and prototyping
6. Sustainability:
   • Reduced material usage through precise placement
   • Potential for easier recycling and material recovery in some applications

The versatility of modern AFP systems, particularly compact and adaptable designs, is enabling a new era of composite manufacturing across these diverse sectors. By offering consistent quality, data-driven production, and the ability to work with a wide range of materials, AFP technology is not only improving existing applications but also opening doors to new possibilities in composite structure design and manufacturing. As industries continue to demand lighter, stronger, and more efficient components, AFP systems are poised to play an increasingly crucial role in meeting these evolving needs.

Addcomposites in Action

Addcomposites' solutions have found applications across various industries:

1. Aerospace and Space: The AFP-XS and AFP-X systems are proven in aerospace applications, offering the precision and quality required for this demanding sector.
2. Automotive: Addcomposites' systems enable the production of lightweight, high-performance components for the automotive industry.
3. Marine and Energy: The versatility of Addcomposites' AFP systems makes them suitable for producing large-scale components in these sectors.
4. Research and Development: With over 40 AFP-XS systems installed worldwide, Addcomposites has become a favorite among research institutions for its unparalleled versatility and modularity.

As Automated Fiber Placement (AFP) technology continues to evolve, it is poised to play an increasingly crucial role in advanced manufacturing. The future of AFP is characterized by greater versatility, integration with other technologies, and expansion into new markets. Here are the key trends and developments shaping the future of AFP:

Integration with Robotics and Automation

1. Compact and Versatile Systems:
   • Development of adaptable AFP systems that can be easily integrated with existing industrial robots
   • Increasing adoption in various industries due to improved accessibility and flexibility
2. Humanoid Robot Manufacturing:
   • AFP systems tailored for producing lightweight, strong components for humanoid robots
   • Enabling the production of complex, multi-functional parts for the growing robotics industry

Advanced Software and Digital Integration

The future of AFP technology is characterized by enhanced software capabilities for path planning, process simulation, and optimization, integrating design, manufacturing, and quality assurance into a unified digital ecosystem

1. Comprehensive Simulation and Planning:
   • Enhanced software capabilities for path planning, process simulation, and optimization
   • Integration of design, manufacturing, and quality assurance into a unified digital ecosystem
2. Digital Twin Technology:
   • Real-time monitoring and adjustment of AFP processes through digital twin implementations
   • Improved quality control and process optimization through continuous data feedback loops
3. Cross-Process Digital Thread:
   • Seamless data flow between AFP and other manufacturing processes
   • Optimization of the entire production chain, from design to final assembly

Material Innovations and Multi-Material AFP

The development of integrated hybrid manufacturing cells, combining AFP, filament winding, and additive manufacturing in single, flexible production units, represents a significant trend in the evolution of AFP technology

1. Rapid-Cure Resins:
   • Development of fast-processing composites to increase production rates
   • Chemical innovations to reduce overall processing steps and cure times
2. Advanced Thermoplastics:
   • Improvements in thermoplastic bonding technologies for faster processing
   • Integration of sophisticated heating and compaction algorithms for optimal bonding
3. Multi-Material Capabilities:
   • AFP systems capable of rapidly switching between different fiber types (e.g., carbon, glass)
   • Enabling the production of hybrid composites with optimized performance and cost

Convergence with Additive Manufacturing

1. Moldless AFP Manufacturing:
   • Integration of large-format additive manufacturing with AFP processes
   • 3D printed tooling and support structures for AFP layup
2. Structural Continuous Fiber 3D Printing:
   • Development of hybrid systems combining AFP principles with additive manufacturing
   • Enabling the creation of complex, fiber-reinforced structures without traditional molds
3. Integrated Hybrid Manufacturing Cells:
   • Combining AFP, filament winding, and additive manufacturing in single, flexible production units
   • Adaptive manufacturing systems capable of switching between processes as needed

Expanding Applications and Markets

1. Urban Air Mobility:
   • Tailored AFP solutions for manufacturing flying taxis and small aircraft
   • Rapid prototyping and production of lightweight, high-performance aerospace structures
2. Sustainable Transportation:
   • AFP systems optimized for producing components for electric vehicles and hydrogen fuel systems
   • Lightweight structures contributing to improved energy efficiency in transportation
3. Renewable Energy Structures:
   • Advanced AFP techniques for manufacturing larger, more efficient wind turbine blades
   • Integration of smart materials and sensors in composite energy-generating structures
4. Infrastructure and Construction:
   • Exploration of AFP applications in creating lightweight, durable structural components for buildings and bridges
   • Potential for on-site AFP manufacturing in large-scale construction projects

Sustainability and Cost Reduction

1. Material Efficiency:
   • Continued improvements in fiber placement accuracy to minimize material waste
   • Development of recycling-friendly composite materials and structures
2. Energy-Efficient Processing:
   • Advancements in low-energy curing technologies for thermoset composites
   • Optimized heating and cooling cycles for thermoplastic AFP
3. Accessible Technology:
   • Reduction in AFP system costs to make the technology accessible to smaller businesses
   • Development of modular, scalable AFP solutions for various production volumes
4. New Material Sources:
   • Exploration of sustainable and bio-based fibers and resins for AFP processes
   • Integration of recycled materials into high-performance composite structures

The future of AFP technology is characterized by its increasing versatility, integration with other advanced manufacturing technologies, and expansion into new markets. As AFP systems become more compact, adaptable, and cost-effective, they are likely to find applications in a wider range of industries, from aerospace and automotive to robotics and sustainable energy.

The convergence of AFP with additive manufacturing, advanced robotics, and sophisticated digital tools is set to revolutionize how complex composite structures are designed and produced. This evolution will not only enhance the capabilities of AFP but also contribute to more sustainable, efficient, and innovative manufacturing practices across various sectors.

As these technologies mature, we can expect to see AFP playing a crucial role in addressing global challenges, from climate change mitigation through lightweight transportation to the development of advanced robotics for various applications. The future of AFP is not just about improving existing processes, but about reimagining what's possible in composite manufacturing and opening new frontiers in material science and engineering.

Addcomposites' Vision for the Future

Addcomposites is at the forefront of several trends shaping the future of AFP technology:

1. Integration with 3D Printing: The SCF3D system represents Addcomposites' foray into structural continuous fiber 3D printing, complementing traditional AFP processes.
2. Customized Manufacturing Cells: AddCell offers tailored robotic cell solutions, enabling seamless integration of AFP technology into existing manufacturing environments.
3. Sustainable Manufacturing: By optimizing material usage and enabling the use of various fiber types, Addcomposites' systems contribute to more sustainable composite manufacturing practices.
4. Democratization of AFP Technology: Through cost-effective solutions and user-friendly software, Addcomposites is making AFP technology accessible to a broader range of manufacturers, from small businesses to large OEMs.

As AFP technology continues to evolve, companies like Addcomposites are playing a crucial role in driving innovation, improving accessibility, and expanding the applications of this transformative manufacturing process.

Automated Fiber Placement (AFP) technology has revolutionized the manufacturing of composite structures across various industries. As we explore the intricacies of this advanced manufacturing process, we'll also highlight innovative solutions from companies like Addcomposites, a Finnish pioneer in AFP technology.

The Limitations of Traditional Materials

In the quest for superior performance across various industries, engineers have long grappled with the limitations of traditional materials. Plastics, while lightweight and easily moldable, often fall short in strength and stiffness, making them unsuitable for many high-performance applications. Metals, the backbone of engineering for centuries, offer excellent strength and durability but at the cost of high density, a critical drawback in weight-sensitive fields like aerospace and automotive engineering.

‍The Promise and Challenges of Composite Materials

Enter composite materials – a revolutionary solution that combines the best attributes of different material classes. Composites offer an enticing array of possibilities: structures that are incredibly strong yet remarkably light, with customizable thermal properties and design flexibility. From aircraft components lighter than aluminum yet stronger than steel to wind turbine blades that withstand immense forces while maintaining optimal aerodynamics, composites have opened new frontiers in material engineering.

However, the road to composite supremacy was initially paved with significant challenges:

1. High Manufacturing Costs: Early composite production was labor-intensive and expensive.
2. Material Expenses: Advanced fibers and resins came with hefty price tags.
3. Equipment Investment: Specialized machinery for composite manufacturing required substantial capital.

The Rise of Automated Fiber Placement (AFP)

Automated Fiber Placement (AFP) technology emerged as a game-changer, addressing many of the challenges associated with composite manufacturing. The evolution of AFP has been nothing short of remarkable:

1. Labor Reduction: AFP systems have dramatically reduced the need for manual labor, replacing teams of skilled workers with efficient, precise machines operated by a single technician.
2. Material Cost Optimization: As AFP technology matured, it drove demand for composite materials, leading to increased production and lower costs. Today, many composite materials are competitively priced against traditional engineering materials.
3. Accessible Equipment: Once the domain of aerospace giants with multi-million euro budgets, AFP systems are now available at a fraction of their original cost. Entry-level systems can be acquired for just a few thousand euros, democratizing access to this technology.
4. Increased Efficiency and Quality: AFP systems offer unparalleled precision and repeatability, significantly improving part quality while reducing material waste.

The Current Landscape and Future Potential

Today, AFP technology stands at the forefront of advanced manufacturing, poised to revolutionize industries far beyond its aerospace origins. From automotive to renewable energy, from marine applications to the burgeoning field of humanoid robotics, AFP is opening new possibilities in design and production.

Overview of the Article

This comprehensive exploration of Automated Fiber Placement technology will guide you through:

1. Understanding AFP: A deep dive into the core concepts, components, and capabilities of AFP systems.
2. The AFP Process: A step-by-step breakdown of how AFP works, from material preparation to final layup.
3. Materials and AFP: An examination of the diverse materials compatible with AFP and how they influence the process.
4. Engineering Challenges and Solutions: Insights into the technical hurdles faced in AFP and innovative solutions developed.
5. Applications and Case Studies: Real-world examples of AFP in action across various industries.
6. The Future of AFP Technology: A look at emerging trends and potential future developments in the field.

As we embark on this journey through the world of Automated Fiber Placement, prepare to discover how this technology is not just changing the way we manufacture but also expanding the boundaries of what's possible in material engineering and product design. Whether you're an industry professional, an engineering student, or simply curious about cutting-edge technology, this exploration of AFP will provide you with a comprehensive understanding of a technology that's shaping the future of manufacturing.

Definition and Basic Concept

Automated Fiber Placement (AFP) is an advanced manufacturing process designed to efficiently create complex composite structures. At its core, an AFP system draws composite material from a storage unit, routes it through a sophisticated delivery system, and precisely places it onto a substrate using a combination of heat and pressure.

The process begins with material spools, which may include a backing film for certain materials like thermoset prepregs. The composite tape is then guided through a cut, clamp, and feed (CCF) mechanism before being applied to the substrate. This basic process remains consistent across various material types, including thermosets, thermoplastics, and dry fibers, with minor adjustments to accommodate each material's specific requirements.

‍

Historical Context

The journey of AFP technology began in the late 1960s and early 1970s, evolving from earlier composite manufacturing techniques. The concept of using individual tows instead of wide tapes was first documented in 1974, marking a significant shift from Automated Tape Laying (ATL) methods.

Hercules Aerospace (now part of ATK) and Cincinnati Machine were pioneers, starting development of AFP systems in the early 1980s. These early machines combined the differential payout capability of filament winding with the compaction and cut-restart capabilities of ATL. By the late 1980s, AFP machines became commercially available and were adopted by major aerospace companies like Boeing, Lockheed, and Northrop.

The 1990s saw significant advancements in AFP technology. Systems capable of delivering up to 24 tows at once were developed, dramatically increasing productivity. The ability to steer fibers along curvilinear paths was a game-changer, allowing for more complex geometries and optimized fiber orientations.

The turn of the millennium brought focus to improving process reliability and productivity. Innovations in automated inspection, high-speed systems, and modular AFP heads marked this era. By 2010, highly accurate robots were demonstrating remarkable precision, with a 3-sigma accuracy of ±0.08 mm.

Today, AFP technology continues to evolve, with current research focusing on high-throughput systems, minimal defect layups, and in-situ thermoplastic processing. The integration of AFP with other advanced manufacturing technologies promises to further expand its capabilities and applications.

Key Components of an AFP System

1. Fiber Placement Head: The fiber placement head is the heart of the AFP system. Typically mounted on a robotic arm or gantry, it's a marvel of precision engineering. The key components of an AFP system include the fiber placement head, motion platform, material delivery system, control system, and software system.The head houses the material guiding system, which ensures the composite tapes are fed smoothly and accurately. The cut, clamp, and feed (CCF) mechanism is a critical component, allowing for precise control over tow length and placement. Integrated heating elements, which may use technologies like infrared or laser heating, ensure the material reaches the optimal temperature for adhesion. An array of sensors, including thermal sensors and laser line scanners, constantly monitor the process, providing real-time data for quality control and placement accuracy.
2. Motion Platform: While gantry systems were once the norm, robotic arms have become the gold standard in AFP systems. This shift is due to their exceptional continuous path following accuracy, often achieving tolerances measured in fractions of a millimeter. The flexibility of robotic arms allows them to navigate complex geometries with ease, reaching angles and positions that would be challenging for traditional gantry systems. Modern robotic systems offer plug-and-play compatibility with AFP heads, significantly reducing setup time and complexity. This accessibility has democratized AFP technology, making it available to a broader range of manufacturers.
3. Material Delivery System: The material delivery system is a sophisticated network of spools, guides, and tensioners that ensure a consistent supply of composite material to the placement head. Managing multiple spools simultaneously is a complex task, requiring precise control over tension and feed rates for each individual tow. This system must adapt to different material types, from sticky thermoset prepregs to dry fibers, each with its own handling characteristics. Advanced systems may include climate-controlled storage for temperature-sensitive materials, ensuring consistent material properties throughout the manufacturing process.
4. Control System: The control system is the brain of the AFP operation, orchestrating the intricate dance between the robot, placement head, and material delivery system. It processes a vast amount of data in real-time, from robot positioning to material temperature and tension. At its core, the control system translates the programmed layup path into a series of coordinated movements and actions. It sends precise commands to the robot controller, dictating not just position but also speed and acceleration. Simultaneously, it manages the AFP head, triggering tow cuts, activating compaction rollers, and adjusting heating elements as needed. Advanced control systems integrate feedback from multiple sensors, allowing for on-the-fly adjustments to maintain optimal layup conditions. This might involve tweaking the heater intensity based on ambient temperature changes or adjusting compaction pressure to accommodate varying surface geometries.
5. Software System: The software system is the unsung hero of AFP technology, turning complex composite designs into manufacturable realities. It begins with sophisticated path planning algorithms that optimize fiber orientation for structural performance while considering manufacturability constraints. Simulation capabilities allow engineers to virtually test layup strategies, identifying potential issues like gaps, overlaps, or areas of excessive steering before a single fiber is placed. This predictive power significantly reduces material waste and improves first-time quality. During production, the software acts as a digital twin of the physical process, comparing real-time data from the AFP system against the simulated ideal. This allows for immediate detection of deviations and, in advanced systems, automatic correction of errors. Quality control is deeply integrated into the software, with algorithms analyzing data from various sensors to ensure each ply meets specified tolerances. This data is also archived, providing a comprehensive digital record of the manufacturing process for each part – a crucial feature for industries with stringent traceability requirements.

AFP's Versatility: Filament Winding Capabilities

Modern AFP systems have evolved to incorporate filament winding capabilities, offering a best-of-both-worlds approach that significantly expands manufacturing possibilities. This convergence of technologies represents a major leap forward in composite manufacturing flexibility.

Filament winding, traditionally used for creating cylindrical or spherical structures, excels in high-speed production of parts with continuous fiber reinforcement. By integrating these capabilities into AFP systems, manufacturers can now switch seamlessly between precise layup and high-speed winding operations within a single setup.

The advantages of this hybrid approach are numerous. For complex parts with both open and closed sections, the system can use AFP for precise layup on open surfaces and switch to filament winding for closed, cylindrical sections. This is particularly beneficial in industries like aerospace, where components often combine multiple geometric features.

The key to this versatility lies in advanced control systems and software. These systems manage the transition between AFP and winding modes, adjusting parameters like fiber tension, compaction pressure, and heating on the fly. For winding operations, the software calculates optimal winding angles and patterns, ensuring structural integrity while maximizing production speed.

Moreover, this combined capability allows for innovative manufacturing strategies. For instance, a part might start with a filament-wound core for speed and continuous reinforcement, followed by precisely placed AFP layers for local reinforcement or to create specific surface features.

The integration of AFP and filament winding capabilities in a single system not only enhances production flexibility but also opens up new possibilities in part design. Engineers can now conceive of structures that leverage the strengths of both processes, potentially leading to lighter, stronger, and more efficient composite parts.

Addcomposites' AFP Solutions

Addcomposites offers two advanced AFP systems that exemplify the latest in fiber placement technology:

AFP-XS: A compact system designed to upgrade existing robots for research and small batch production. It's capable of aerospace-grade quality layups and is compatible with a wide range of materials.

AFP-X: A robust system for high-volume production, featuring increased material capacity and advanced sensors for continuous, precise operations on complex aerospace and large components.

These systems represent significant advancements in making AFP technology more accessible and versatile across industries.

Preparing the Composite Material

The journey of automated fiber placement begins with proper material preparation. Composite materials typically come in the form of tapes, which require specific handling:

1. Storage: Depending on the material type, tapes are stored in either cold or dry environments. Thermoset prepregs, for instance, often require refrigeration to prevent premature curing.
2. Formatting: Materials may arrive in large spools and need to be transferred to smaller, machine-compatible formats.
3. Thawing: For materials stored in freezers, a crucial step is thawing. This process involves allowing the material to gradually reach room temperature, typically overnight. Proper thawing ensures the material's optimal properties for processing.
4. Environmental Control: Throughout preparation, maintaining the right environment is critical. This might involve controlling humidity for dry fibers or managing temperature for thermosets.

Loading and Feeding the Material

Once prepared, the material must be carefully loaded into the AFP system:

1. Loading: The material is mounted onto the head or material creel. This step requires precision to ensure proper alignment and tension.
2. Guiding: The tape is then threaded through an integrated set of rollers. This process demands attention to maintain consistent tension while avoiding any twisting or self-adhesion of the tape.
3. Material-Specific Challenges: Thermosets and tow pregs present unique challenges due to their tacky nature, requiring extra care to prevent sticking. Dry fibers and thermoplastics are generally easier to handle at this stage.
4. Feeding: The final step involves guiding the material into the cut, clamp, and feed (CCF) mechanism. This compact area requires careful maneuvering:some text
   • The material is gently pushed into the designated channel.
   • Operators rely on the material's stiffness to navigate through the intricate path.
   • Once in place, the feed motor can be engaged to automate further material advancement.

Precise Placement and Compaction

With the material loaded and the AFP program ready, the actual layup process begins:

1. Program Initiation: A pre-created program, developed using planning software and simulations, is loaded into the robot controller.
2. First Layer Challenges: The initial layer presents unique difficulties:some text
   • Adhesion to the mold (often metal or plastic) can be problematic.
   • Operators typically reduce speed, increase heat, and maintain lower tension for better adhesion.
   • This layer sets the foundation for subsequent plies, making precision crucial.
3. Layup Process:
   • The AFP head approaches the layup table.
   • As it moves, the tape is fed under the compaction roller.
   • A heater in front of the roller pre-heats the material and substrate.
   • The compaction roller applies pressure, bonding the new material to the substrate.
   • Throughout this process, the tape is kept under controlled tension.
4. Subsequent Layers: After the first layer, the process can often be accelerated, with adjustments to speed, heat, and tension as needed.

Cutting and Restarting

The cutting and restarting process is crucial for creating complex layups:

1. End of Pass: As the AFP head nears the end of a programmed path, it initiates a cut at a predetermined distance from the end.
2. Cutting: The CCF mechanism precisely cuts the tape.
3. Completion and Retraction: After completing the pass, the head retracts from the mold surface.
4. Repositioning: The system moves to the starting point of the next pass.
5. Restarting:
   • The feed mechanism is reengaged to advance new material.
   • Care is taken to ensure the previously laid material has cooled sufficiently to prevent sticking.
   • The process then repeats for the new pass.

Building Up Layers to Form the Final Part

As layers accumulate, several factors come into play:

1. Compaction Force Management: The system must adjust compaction force to account for the increasing thickness of the layup.
2. Thickness Compensation: Pre-preg tapes compress during layup (debulking). The AFP system must account for this reduction in thickness as layers build up.
3. Complex Geometries: For parts with features like ply drop-offs, holes, edges, or selective reinforcements, the AFP program must adapt:
   • Paths are designed to navigate around or reinforce these features.
   • Consistent pressure must be maintained to avoid over-debulking in specific areas.
4. Debulking Elimination: Proper management of these factors can often eliminate the need for separate debulking steps, streamlining the manufacturing process.
5. Quality Control: The result of this carefully managed process is a high-quality layup:
   • Minimal defects
   • Consistent fiber orientation
   • Optimal thickness control
   • Enhanced structural integrity

Through this meticulous step-by-step process, AFP systems can create complex, high-performance composite parts with a level of precision and consistency unattainable through manual methods. The ability to fine-tune each aspect of the layup process contributes to the production of lightweight, strong, and highly engineered composite structures.

Addcomposites' Software Solutions

To streamline the AFP process, Addcomposites offers sophisticated software solutions:

1. AddPath: This software optimizes path planning, simulation, and data streaming for AFP processes. It's designed to enhance efficiency and precision for teams of all sizes.
2. AddPrint: While primarily for continuous fiber 3D printing, this software complements AFP processes by offering advanced features for precise and efficient production of composite parts.

The choice of material in Automated Fiber Placement (AFP) significantly influences the manufacturing process, final product characteristics, and production economics. Let's explore the main material types used in AFP and their implications:

Prepregs

Prepregs, or pre-impregnated fibers, are the traditional go-to material for AFP in high-performance applications:

• Characteristics: Fibers pre-impregnated with partially cured resin.
• Advantages:
  • Consistent resin content and fiber distribution
  • Excellent mechanical properties
  • Well-established in aerospace and high-performance applications
• Considerations:
  • Relatively expensive
  • Require careful storage (often refrigerated) and have limited shelf life
  • Need precise temperature control during layup
• Best for: Aerospace parts and other high-performance, low-volume applications where material cost is less critical than performance.

Dry Fibers

Dry fiber tapes are increasingly popular, especially when combined with subsequent resin infusion processes:

• Characteristics: Fibers without resin, often held together with a light binder.
• Advantages:
  • Lower material cost compared to prepregs
  • Easier to store and handle (no refrigeration needed)
  • Can be combined with various resin systems post-layup
• Considerations:
  • Requires a separate infusion process (e.g., Resin Transfer Molding - RTM)
  • May have challenges with fiber alignment and control during placement
• Best for: Medium to high volume production where the cost of RTM equipment can be justified by lower material costs and higher production rates.

Thermoplastics

Thermoplastic composites offer unique advantages in AFP:

• Characteristics: Fibers impregnated with thermoplastic resin.
• Advantages:
  • Can be remelted and reshaped
  • Potential for in-situ consolidation
  • Excellent chemical resistance and impact properties
• Considerations:
  • Require higher processing temperatures
  • May need additional forming steps (e.g., thermoforming)
  • Equipment may need modifications to handle higher temperatures
• Best for: Applications requiring high toughness, chemical resistance, or the ability to be reformed. Production volume can range from low to high, depending on the specific process (in-situ consolidation vs. post-forming).

Towpregs

Towpregs represent an innovative approach to prepreg manufacturing:

• Characteristics: Tows directly impregnated with resin during the fiber manufacturing process.
• Advantages:
  • Lower cost compared to traditional prepregs
  • Excellent width and thickness control
  • No slitting process required, reducing waste and cost
• Considerations:
  • May have different handling characteristics compared to traditional prepregs
  • Less established in some industries compared to traditional prepregs
• Best for: High-volume production where material cost is a significant factor, but the performance of prepreg-like materials is desired.

Material Choice Considerations in AFP

When selecting materials for AFP, several factors come into play:

1. Production Volume:
   • Low volume, high-performance: Prepregs are often preferred.
   • Medium to high volume: Dry fibers with RTM or Towpregs become more economical.
2. Performance Requirements:
   • Aerospace-grade parts typically use prepregs for their consistent quality and established certification processes.
   • Automotive or industrial applications might lean towards thermoplastics or Towpregs for cost-effectiveness and cycle time reduction.
3. Processing Considerations:
   • Prepregs require careful temperature control and often need refrigerated storage.
   • Dry fibers need a separate infusion step but offer more flexibility in resin selection.
   • Thermoplastics require higher processing temperatures but can offer faster cycle times with in-situ consolidation.
4. Cost Factors:
   • Material cost: Prepregs > Thermoplastics > Towpregs > Dry Fibers (generally)
   • Equipment cost: Consider additional systems like RTM for dry fibers or high-temperature capabilities for thermoplastics.
5. Industry and Certification:
   • Aerospace industry often requires the use of certified prepreg systems.
   • Automotive and industrial sectors may have more flexibility to adopt newer materials like Towpregs.

The choice of material in AFP is not just about the final part properties, but also about optimizing the entire manufacturing process. As AFP technology continues to evolve, the ability to process a wide range of materials efficiently is becoming a key factor in its adoption across various industries. The trend towards materials like Towpregs showcases the industry's drive towards combining high performance with cost-effectiveness, potentially opening up new applications for AFP technology.

Material Versatility with Addcomposites

Addcomposites' AFP systems, particularly the AFP-XS, showcase remarkable material versatility:

• Compatible with Towpreg, Thermoset, Thermoplastic, and Dry fiber materials
• Capable of handling experimental materials
• Supports material widths from ¼" to 1"
• Can function as both Automated Tape Laying and Filament Winding systems

This versatility allows manufacturers to explore a wide range of composite materials and manufacturing techniques using a single system.

Automated Fiber Placement (AFP) technology, while advanced, still faces several engineering challenges. However, innovative solutions and evolving technologies are continuously addressing these issues, making AFP more accessible and efficient.

Managing Curved Surfaces and Complex Geometries

Challenge:

• Material stiffness limits draping capabilities, leading to issues like bridging on sharp corners and edges.
• Steering paths on curved surfaces to maintain fiber orientation can cause defects.

Solutions:

1. Advanced Path Planning: Sophisticated software simulations to optimize fiber placement strategies.
2. Design for Manufacturability: Collaborating with designers to create AFP-friendly part geometries.
3. Innovative Layup Strategies: Implementing patch placements to manage challenging areas.
4. Adaptive Programming: Utilizing dynamic control systems to adjust placement in real-time.

Heat Management and Consolidation

Challenge:

• Crucial for thermoplastics and important for prepreg debulking.
• Balancing heat application, compaction force, and layup speed for optimal bonding.

Solutions:

1. Material Preparation: Proper dehydration of hygroscopic materials before processing.
2. Temperature Control: Precise management of material, room, and tooling temperatures.
3. Process Parameter Optimization: Fine-tuning heat application, compaction force, and layup speed.
4. Real-time Monitoring: Implementing NDI sensors for immediate feedback on bond quality.
5. Adaptive Systems: Developing systems that can adjust parameters on-the-fly based on sensor feedback.

Defect Prevention and Quality Control

Challenge:

• Various defects like wrinkling, bridging, gaps, and overlaps can occur due to material, machine, or programming issues.

Solutions:

1. Advanced Inspection Systems: Integrating laser scanners, cameras, and thermal imaging for real-time defect detection.
2. Layer-by-Layer Quality Check: Implementing software that assesses each layer before proceeding to the next.
3. Adaptive Manufacturing: Developing systems that can pause production or suggest corrections based on quality data.
4. Predictive Modeling: Using AI and machine learning to anticipate and prevent defects before they occur.

Budgetary Challenges and Accessibility

Challenge:

• Traditional AFP machines are expensive to purchase, operate, and maintain.
• High complexity systems require multiple operators and extensive programming time.

Solutions:

1. Compact AFP Systems: Developing smaller, more versatile systems that can transform existing robots into AFP machines.
2. Simplified Operation: Creating user-friendly interfaces that allow a single operator to program, run, and maintain the system.
3. Multi-functional Systems: Designing AFP heads that can also perform filament winding, increasing versatility and value.
4. Cost-Effective Entry Points: Offering more affordable systems to make AFP technology accessible to smaller companies and research institutions.

Material-Specific Challenges

1. Towpregs

Challenge: Higher resin content leading to more residue in the AFP system.

‍Solution: Implementing regular cleaning routines and designing systems for easy maintenance access.

2. Prepregs

Challenge: Potential for resin buildup, though less than towpregs.

‍Solution: Developing streamlined cleaning processes and using materials optimized for AFP processing.

3. Dry Fibers

Challenge: Accumulation of fiber debris in narrow channels, particularly in the cutter area.

‍Solution:

• Designing systems with easily accessible cleaning points.
• Implementing regular maintenance schedules to clear debris accumulation.

4. Thermoplastics

Challenge: High heat exposure causing roller degradation.

‍Solution:

• Implementing water-cooled roller systems.
• Developing heat-resistant materials for roller construction.
• Designing quick-change roller systems for easy maintenance.

Ongoing Developments and Future Directions

1. Integrated Design and Manufacturing: Closer collaboration between part designers and AFP engineers to create optimized designs for AFP manufacturing.
2. AI and Machine Learning Integration: Developing intelligent systems that can learn from past runs to optimize future productions.
3. Hybrid Systems: Creating AFP systems that can easily switch between different material types and processing methods.
4. In-situ Quality Assurance: Advancing technologies for real-time, in-process quality control and defect correction.
5. Sustainable Manufacturing: Developing AFP processes that minimize waste and energy consumption, aligning with green manufacturing initiatives.

By addressing these challenges with innovative solutions, the AFP industry is moving towards more accessible, efficient, and versatile systems. The shift from large, complex machines to more compact, user-friendly systems is democratizing AFP technology, making it available to a broader range of industries and applications. This evolution is not only solving existing problems but also opening up new possibilities in composite manufacturing.

Addcomposites' Innovative Solutions

Addcomposites addresses several key challenges in AFP technology:

1. Accessibility: By offering AFP systems starting at €3499 per month, Addcomposites makes this technology accessible to a broader range of manufacturers and researchers.
2. Versatility: The ability to convert any pre-existing robot into an AFP system works with all major robotic brands, reducing the need for specialized equipment.
3. Quality Control: AddPath software provides real-time digital twin capabilities, enhancing quality control and process optimization.
4. Multi-functionality: Addcomposites' systems can switch between AFP and filament winding modes, offering greater flexibility in manufacturing processes.

Automated Fiber Placement (AFP) technology has found its way into a diverse range of industries, revolutionizing the manufacturing of composite structures. From traditional aerospace applications to emerging fields like humanoid robotics, AFP systems are proving their versatility and value. Let's explore the key applications and case studies across various sectors:

Aerospace Industry

In the aerospace industry, AFP technology has found applications in manufacturing traditional aircraft components such as fuselage sections, wing structures, nose cones, and floor panels

1. Traditional Aircraft Components:
   • Fuselage sections
   • Wing structures
   • Nose cones
   • Floor panels and stiffeners
2. Evolving Materials and Rapid Prototyping:
   • Versatile AFP systems like AFP-XS enabling quick material changes
   • Adaptation to thin materials, dry fibers, and thermoplastics
   • Rapid validation of new composite materials for aerospace applications
3. Urban Air Mobility: Flying Taxis and Small Aircraft:
   • Compact AFP systems ideal for manufacturing smaller aircraft structures
   • Electric motor sleeves for high-RPM efficiency
   • Hydrogen fuel tank production for extended range capabilities
   • Drone components for both civilian and military applications

Space Industry

1. Satellite Structures:
   • Transition from hand layup to automated processes for increased production volumes
   • Manufacture of structural components for small satellites
2. Launch Vehicles:
   • Interstage structures
   • Nozzle components
   • High-pressure tanks
3. Combined AFP and Filament Winding Capabilities:
   • Versatile production of various space vehicle components
   • Enabling cost-effective manufacturing for the growing commercial space sector

Defense Sector

1. Military Aircraft:
   • Fighter plane fuselages and wings
   • Lightweight, high-performance structural components
2. Missile Systems:
   • Lighter, more precise missile structures
3. Unmanned Aerial Vehicles (UAVs):
   • Rapid production of lightweight, durable drone structures
   • Enhancing strategic capabilities through advanced composite manufacturing

Automotive Industry

In the automotive sector, AFP is being used to produce lightweight body panels, impact-resistant structures, and components for electric and hydrogen-powered vehicles

1. Clean Energy Transition:
   • Hydrogen fuel tanks for passenger cars and trucks
   • Electric motor sleeves combining carbon and glass fibers
2. Structural Components:
   • Lightweight body panels
   • Impact-resistant structures
3. Material Hybridization:
   • Combining thermoset and thermoplastic materials for optimal performance
   • Integration of carbon and glass fibers in single components

Humanoid Robots

1. Structural Components:
   • Lightweight yet rigid limbs, torsos, and head structures
   • Impact-resistant designs for improved durability
2. Functional Integration:
   • RF-transparent structures for enhanced communication capabilities
   • Sensor integration within composite structures
3. Sustainability Considerations:
   • Use of recyclable composite materials
   • Design for disassembly and material recovery

Marine Industry

1. High-Performance Vessels:
   • Hydrofoils for increased speed and efficiency
   • Lightweight masts and hull structures
2. Recreational Boating:
   • Composite hulls and decks for improved performance and longevity

Clean Energy Sector

In the clean energy sector, AFP technology is being employed for the production of efficient, large-scale wind turbine blades

1. Wind Energy:
   • Production of efficient, large-scale wind turbine blades (up to 50-60 meters)
   • Integration of AFP with 3D printing for complex blade designs
   • Sensor integration for smart blade monitoring
2. Solar Energy:
   • Lightweight support structures for solar panels
   • Potential for integrated solar cell and composite structure manufacturing

Benefits of AFP Over Manual Processes

1. Consistent Quality:
   • Repeatable, precise fiber placement
   • Reduction in human error and variability
2. Data-Driven Manufacturing:
   • Comprehensive quality data capture for each part
   • Enables continuous process improvement and traceability
3. Cost-Effectiveness:
   • Lower total cost of ownership for components
   • Reduced material waste through optimized fiber placement
4. Energy Efficiency:
   • Lower energy consumption in both manufacturing and end-use applications
   • Lightweight structures contributing to overall system efficiency
5. Flexibility and Rapid Adaptation:
   • Quick changeover between different materials and part designs
   • Enables cost-effective small batch production and prototyping
6. Sustainability:
   • Reduced material usage through precise placement
   • Potential for easier recycling and material recovery in some applications

The versatility of modern AFP systems, particularly compact and adaptable designs, is enabling a new era of composite manufacturing across these diverse sectors. By offering consistent quality, data-driven production, and the ability to work with a wide range of materials, AFP technology is not only improving existing applications but also opening doors to new possibilities in composite structure design and manufacturing. As industries continue to demand lighter, stronger, and more efficient components, AFP systems are poised to play an increasingly crucial role in meeting these evolving needs.

Addcomposites in Action

Addcomposites' solutions have found applications across various industries:

1. Aerospace and Space: The AFP-XS and AFP-X systems are proven in aerospace applications, offering the precision and quality required for this demanding sector.
2. Automotive: Addcomposites' systems enable the production of lightweight, high-performance components for the automotive industry.
3. Marine and Energy: The versatility of Addcomposites' AFP systems makes them suitable for producing large-scale components in these sectors.
4. Research and Development: With over 40 AFP-XS systems installed worldwide, Addcomposites has become a favorite among research institutions for its unparalleled versatility and modularity.

As Automated Fiber Placement (AFP) technology continues to evolve, it is poised to play an increasingly crucial role in advanced manufacturing. The future of AFP is characterized by greater versatility, integration with other technologies, and expansion into new markets. Here are the key trends and developments shaping the future of AFP:

Integration with Robotics and Automation

1. Compact and Versatile Systems:
   • Development of adaptable AFP systems that can be easily integrated with existing industrial robots
   • Increasing adoption in various industries due to improved accessibility and flexibility
2. Humanoid Robot Manufacturing:
   • AFP systems tailored for producing lightweight, strong components for humanoid robots
   • Enabling the production of complex, multi-functional parts for the growing robotics industry

Advanced Software and Digital Integration

The future of AFP technology is characterized by enhanced software capabilities for path planning, process simulation, and optimization, integrating design, manufacturing, and quality assurance into a unified digital ecosystem

1. Comprehensive Simulation and Planning:
   • Enhanced software capabilities for path planning, process simulation, and optimization
   • Integration of design, manufacturing, and quality assurance into a unified digital ecosystem
2. Digital Twin Technology:
   • Real-time monitoring and adjustment of AFP processes through digital twin implementations
   • Improved quality control and process optimization through continuous data feedback loops
3. Cross-Process Digital Thread:
   • Seamless data flow between AFP and other manufacturing processes
   • Optimization of the entire production chain, from design to final assembly

Material Innovations and Multi-Material AFP

The development of integrated hybrid manufacturing cells, combining AFP, filament winding, and additive manufacturing in single, flexible production units, represents a significant trend in the evolution of AFP technology

1. Rapid-Cure Resins:
   • Development of fast-processing composites to increase production rates
   • Chemical innovations to reduce overall processing steps and cure times
2. Advanced Thermoplastics:
   • Improvements in thermoplastic bonding technologies for faster processing
   • Integration of sophisticated heating and compaction algorithms for optimal bonding
3. Multi-Material Capabilities:
   • AFP systems capable of rapidly switching between different fiber types (e.g., carbon, glass)
   • Enabling the production of hybrid composites with optimized performance and cost

Convergence with Additive Manufacturing

1. Moldless AFP Manufacturing:
   • Integration of large-format additive manufacturing with AFP processes
   • 3D printed tooling and support structures for AFP layup
2. Structural Continuous Fiber 3D Printing:
   • Development of hybrid systems combining AFP principles with additive manufacturing
   • Enabling the creation of complex, fiber-reinforced structures without traditional molds
3. Integrated Hybrid Manufacturing Cells:
   • Combining AFP, filament winding, and additive manufacturing in single, flexible production units
   • Adaptive manufacturing systems capable of switching between processes as needed

Expanding Applications and Markets

1. Urban Air Mobility:
   • Tailored AFP solutions for manufacturing flying taxis and small aircraft
   • Rapid prototyping and production of lightweight, high-performance aerospace structures
2. Sustainable Transportation:
   • AFP systems optimized for producing components for electric vehicles and hydrogen fuel systems
   • Lightweight structures contributing to improved energy efficiency in transportation
3. Renewable Energy Structures:
   • Advanced AFP techniques for manufacturing larger, more efficient wind turbine blades
   • Integration of smart materials and sensors in composite energy-generating structures
4. Infrastructure and Construction:
   • Exploration of AFP applications in creating lightweight, durable structural components for buildings and bridges
   • Potential for on-site AFP manufacturing in large-scale construction projects

Sustainability and Cost Reduction

1. Material Efficiency:
   • Continued improvements in fiber placement accuracy to minimize material waste
   • Development of recycling-friendly composite materials and structures
2. Energy-Efficient Processing:
   • Advancements in low-energy curing technologies for thermoset composites
   • Optimized heating and cooling cycles for thermoplastic AFP
3. Accessible Technology:
   • Reduction in AFP system costs to make the technology accessible to smaller businesses
   • Development of modular, scalable AFP solutions for various production volumes
4. New Material Sources:
   • Exploration of sustainable and bio-based fibers and resins for AFP processes
   • Integration of recycled materials into high-performance composite structures

The future of AFP technology is characterized by its increasing versatility, integration with other advanced manufacturing technologies, and expansion into new markets. As AFP systems become more compact, adaptable, and cost-effective, they are likely to find applications in a wider range of industries, from aerospace and automotive to robotics and sustainable energy.

The convergence of AFP with additive manufacturing, advanced robotics, and sophisticated digital tools is set to revolutionize how complex composite structures are designed and produced. This evolution will not only enhance the capabilities of AFP but also contribute to more sustainable, efficient, and innovative manufacturing practices across various sectors.

As these technologies mature, we can expect to see AFP playing a crucial role in addressing global challenges, from climate change mitigation through lightweight transportation to the development of advanced robotics for various applications. The future of AFP is not just about improving existing processes, but about reimagining what's possible in composite manufacturing and opening new frontiers in material science and engineering.

Addcomposites' Vision for the Future

Addcomposites is at the forefront of several trends shaping the future of AFP technology:

1. Integration with 3D Printing: The SCF3D system represents Addcomposites' foray into structural continuous fiber 3D printing, complementing traditional AFP processes.
2. Customized Manufacturing Cells: AddCell offers tailored robotic cell solutions, enabling seamless integration of AFP technology into existing manufacturing environments.
3. Sustainable Manufacturing: By optimizing material usage and enabling the use of various fiber types, Addcomposites' systems contribute to more sustainable composite manufacturing practices.
4. Democratization of AFP Technology: Through cost-effective solutions and user-friendly software, Addcomposites is making AFP technology accessible to a broader range of manufacturers, from small businesses to large OEMs.

As AFP technology continues to evolve, companies like Addcomposites are playing a crucial role in driving innovation, improving accessibility, and expanding the applications of this transformative manufacturing process.

As we've explored throughout this comprehensive look at Automated Fiber Placement (AFP) technology, it's clear that we are witnessing a revolutionary shift in composite manufacturing. AFP has not only overcome many of the initial challenges associated with composite production but has also opened up new possibilities in design, efficiency, and application across a wide range of industries.

Key Takeaways

1. Technological Evolution: AFP has progressed from a niche, high-cost technology to an increasingly accessible and versatile manufacturing process. The development of compact, adaptable systems has democratized access to advanced composite manufacturing.
2. Material Advancements: The symbiotic relationship between AFP technology and material science has driven innovations in both fields. From rapid-cure resins to advanced thermoplastics and multi-material capabilities, AFP is pushing the boundaries of what's possible with composite materials.
3. Expanding Applications: While aerospace remains a key industry for AFP, we've seen how this technology is making significant inroads into automotive, renewable energy, marine, and even emerging fields like humanoid robotics. The versatility of AFP is opening up new markets and applications previously unthinkable for composite structures.
4. Integration and Digitalization: The convergence of AFP with other advanced manufacturing technologies, particularly additive manufacturing and sophisticated digital tools, is creating new paradigms in production. Digital twins, comprehensive simulation capabilities, and integrated manufacturing cells are setting new standards for efficiency and quality control.
5. Sustainability Impact: AFP's precision and efficiency are contributing to more sustainable manufacturing practices. By optimizing material usage, enabling lightweight designs, and facilitating the use of recycled or bio-based materials, AFP is aligned with global efforts towards more environmentally friendly production methods.

Looking to the Future

The future of AFP technology is bright and full of potential. As systems become more compact, versatile, and cost-effective, we can expect to see AFP playing a crucial role in addressing some of the most pressing challenges of our time:

• Climate Change Mitigation: Through the production of lightweight structures for transportation and renewable energy systems.
• Advanced Robotics: Enabling the creation of high-performance, multi-functional components for next-generation robots.
• Sustainable Infrastructure: Exploring new applications in construction and civil engineering for durable, lightweight structures.
• Space Exploration: Facilitating the production of advanced spacecraft and satellite components, supporting the growing commercial space industry.

The ongoing developments in AFP technology – from enhanced process control and multi-material capabilities to integration with additive manufacturing – promise to further expand its capabilities and applications. As the technology continues to mature, we can anticipate more industries recognizing the potential of AFP to revolutionize their manufacturing processes and product designs.

Final Thoughts

Automated Fiber Placement stands at the intersection of materials science, robotics, and digital manufacturing. It represents not just an improvement in how we make things, but a fundamental shift in what we can make. As we look to a future that demands stronger, lighter, and more efficient structures across all sectors, AFP emerges as a key enabling technology.

For engineers, designers, and industry leaders, staying abreast of AFP developments will be crucial in maintaining a competitive edge. For researchers and innovators, AFP presents a rich field for exploration, with the potential for groundbreaking discoveries in materials, processes, and applications.

The journey of AFP from a specialized aerospace technology to a versatile, accessible manufacturing process is a testament to the power of innovation and the importance of cross-disciplinary collaboration. As we continue to push the boundaries of what's possible with composites, AFP will undoubtedly play a central role in shaping the future of manufacturing and material science.

In conclusion, Automated Fiber Placement is not just a manufacturing technology; it's a gateway to new possibilities in design, efficiency, and sustainability across industries. As we move forward, the potential of AFP to transform our world – from the cars we drive to the energy we harness and even the robots that may one day work alongside us – is limited only by our imagination and ingenuity.

1. Wambua P, Ivens J, Verpoest I. Natural fibres: can they replace glass in fibre reinforced plastics? Compos Sci Technol 2003;63(9):1259–64.
2. Oldani T. Fiber placement machine platform system having interchangeable head and creel assemblies. United States patent US 20090095410. 2009 Apr 10.
3. Lindback JE, Bjornsson A, Johansen K. New automated composite manufacturing process: Is it possible to find a cost effective manufacturing method with the use of robotic equipment? 5th Int. Swedish Prod. Symp; 2012 Nov 6-8; Linkoping, Sweden. 2012. p. 523–31.
4. Grimshaw MN, Grant CG, Diaz JML. Advanced technology tape laying for affordable manufacturing of large composite structures. Int. Sampe Symp. Exhib. 2001;2484–94.
5. Skinner ML. Trends, advances and innovations in filament winding. Reinf Plast 2006;50(2):28–33.
6. Smith F, Grant C. Automated processes for composite aircraft structure. Ind Robot An Int J 2006;33(2):117–21.
7. Evans DO. Handbook of composites. Boston, MA: Springer US; 1998. p. 476–87.
8. Astrom BT. Manufacturing of Polymer Composites. 1997.
9. Campbell JFC. Manufacturing processes for advanced composites. 2003.
10. Gutowski TGP. Advanced Composites Manufacturing. 1997.
11. Sloan J. ATL and AFP: Defining the megatrends in composite aerostructures. 2008.
12. Lukaszewicz D-J-A, Ward C, Potter KD. The engineering aspects of automated prepreg layup: History, present and future. Compos Part B Eng 2012;43(3):997–1009.
13. Frketic J, Dickens T, Ramakrishnan S. Automated manufacturing and processing of fiber-reinforced polymer (FRP) composites: An additive review of contemporary and modern techniques for advanced materials manufacturing. Addit Manuf 2017;14:69–86.
14. Kozaczuk K. Automated fiber placement systems overview. 2016.
15. August Z, Ostrander G, Michasiow J, et al. Recent developments in automated fiber placement of thermoplastic composites. SAMPE J 2014;50(2):30–7.
16. Madhok KS. Comparative characterization of out-of-autoclave materials made by automated fiber placement and hand-lay-up processes [dissertation]. Montreal: Concordia University; 2013.
17. Flynn R, Rudberg T, Stamen J. Automated fiber placement machine developments: Modular heads, tool point programming and volumetric compensation bring new flexibility in a scalable AFP cell. SME Compos. Manuf. Conf. Dayton, OH; 2011.
18. Marsh G. Automating aerospace composites production with fibre placement. Reinf Plast 2011;55(3):32–7.
19. Izco L, Isturiz J, Motilva M. High speed tow placement system for complex surfaces with cut / clamp / & restart capabilities at 85 m/min (3350 IPM). 2006. Report No.: 2006-01-3138.
20. Sorrentino L, Carrino L, Tersigni L, et al. Innovative tape placement robotic cell: High flexibility system to manufacture composite structural parts with variable thickness. J Manuf Sci Eng 2009;131(4):041002.
21. Raspall F, Velu R, Vaheed NM. Fabrication of complex 3D composites by fusing automated fiber placement (AFP) and additive manufacturing (AM) technologies. Adv Manuf Polym Compos Sci 2019;5(1):6–16.
22. Gan D, Dai JS, Dias J, Umer R, Seneviratne L. Singularity-free workspace aimed optimal design of a 2T2R parallel mechanism for automated fiber placement. J Mech Robot 2015;7(4).
23. Zhang X, Xie W, Hoa SV, et al. Design and analysis of collaborative automated fiber placement machine. Int J Adv Robot Autom 2016;1:1–14.
24. Rousseau G, Wehbe R, Halbritter J, Harik R. Automated fiber placement path planning: A state-of-the-art review. Comput Aided Des Appl 2019;16(2):172–203.
25. Goldsworthy WB. Geodesic path length compensator for composite-tape placement method. United States patent US 3810805. 1974 May 14.
26. Wisbey JD. Multi-tow fiber placement machine with full band width clamp, cut, and restart capability. United States patent US 4943338. 1990 Jul 24.
27. Pugh JH. Strand laying head. United States patent US 4569716. 1986 Feb 11.
28. Vaniglia MM. Fiber placement head. United States patent US 5110395. 1992 May 5.
29. Borgmann RE, Evans DO. Fiber placement machine. European patent EP 1719610. 2008 Oct 29.
30. McCowin PD. Tow width adaptable placement head device and method. United States patent application US 20070029030. 2007 Feb 08.
31. Belhaj M, Deleglise M, Comas-Cardona S, et al. Dry fiber automated placement of carbon fibrous preforms. Compos Part B Eng 2013;50:107–11.
32. Zhang W, Liu F, Lv Y, Ding X. Modelling and layout design for an automated fibre placement mechanism. Mech Mach Theory 2020;144:103651.
33. Martin JP. Multiple tape laying apparatus and method. United States patent US 7293590. 2007 Nov 13.
34. Hamlyn A, Hardy Y. Applicator head for fibers with particular systems for cutting fibers. United States patent US 7926537. 2011 Apr 19.
35. Hauber DE, Langone RJ, Martin JP. Composite tape laying apparatus and method. United States patent US 7063118. 2006 Jun 20.
36. Tingley MC. Add roller for a fiber placement machine. United States patent US 7628882. 2009 Dec 08.
37. Oldani T, Jarvi D. Performing high-speed events "on-the-fly" during fabrication of a composite structure by automated fiber placement. United States patent US 7513965. 2009 Apr 7.
38. Vaniglia MM. Motorized cut and feed head. United States patent US 7849903. 2010 Dec 14.
39. Zhang W, Liu F, Lv Y, Ding X. Design and analysis of a metamorphic mechanism for automated fibre placement. Mech Mach Theory 2018;130:463–76.
40. Liu F, Zhang W, Xu K, et al. A planar mechanism with variable topology for automated fiber placement. 2018 Int. Conf. Reconfigurable Mech. Robot; 2018. p. 1–6.

Automated Fiber Placement (AFP) technology has revolutionized the manufacturing of composite structures across various industries. As we explore the intricacies of this advanced manufacturing process, we'll also highlight innovative solutions from companies like Addcomposites, a Finnish pioneer in AFP technology.

The Limitations of Traditional Materials

In the quest for superior performance across various industries, engineers have long grappled with the limitations of traditional materials. Plastics, while lightweight and easily moldable, often fall short in strength and stiffness, making them unsuitable for many high-performance applications. Metals, the backbone of engineering for centuries, offer excellent strength and durability but at the cost of high density, a critical drawback in weight-sensitive fields like aerospace and automotive engineering.

‍The Promise and Challenges of Composite Materials

Enter composite materials – a revolutionary solution that combines the best attributes of different material classes. Composites offer an enticing array of possibilities: structures that are incredibly strong yet remarkably light, with customizable thermal properties and design flexibility. From aircraft components lighter than aluminum yet stronger than steel to wind turbine blades that withstand immense forces while maintaining optimal aerodynamics, composites have opened new frontiers in material engineering.

However, the road to composite supremacy was initially paved with significant challenges:

1. High Manufacturing Costs: Early composite production was labor-intensive and expensive.
2. Material Expenses: Advanced fibers and resins came with hefty price tags.
3. Equipment Investment: Specialized machinery for composite manufacturing required substantial capital.

The Rise of Automated Fiber Placement (AFP)

Automated Fiber Placement (AFP) technology emerged as a game-changer, addressing many of the challenges associated with composite manufacturing. The evolution of AFP has been nothing short of remarkable:

1. Labor Reduction: AFP systems have dramatically reduced the need for manual labor, replacing teams of skilled workers with efficient, precise machines operated by a single technician.
2. Material Cost Optimization: As AFP technology matured, it drove demand for composite materials, leading to increased production and lower costs. Today, many composite materials are competitively priced against traditional engineering materials.
3. Accessible Equipment: Once the domain of aerospace giants with multi-million euro budgets, AFP systems are now available at a fraction of their original cost. Entry-level systems can be acquired for just a few thousand euros, democratizing access to this technology.
4. Increased Efficiency and Quality: AFP systems offer unparalleled precision and repeatability, significantly improving part quality while reducing material waste.

The Current Landscape and Future Potential

Today, AFP technology stands at the forefront of advanced manufacturing, poised to revolutionize industries far beyond its aerospace origins. From automotive to renewable energy, from marine applications to the burgeoning field of humanoid robotics, AFP is opening new possibilities in design and production.

Overview of the Article

This comprehensive exploration of Automated Fiber Placement technology will guide you through:

1. Understanding AFP: A deep dive into the core concepts, components, and capabilities of AFP systems.
2. The AFP Process: A step-by-step breakdown of how AFP works, from material preparation to final layup.
3. Materials and AFP: An examination of the diverse materials compatible with AFP and how they influence the process.
4. Engineering Challenges and Solutions: Insights into the technical hurdles faced in AFP and innovative solutions developed.
5. Applications and Case Studies: Real-world examples of AFP in action across various industries.
6. The Future of AFP Technology: A look at emerging trends and potential future developments in the field.

As we embark on this journey through the world of Automated Fiber Placement, prepare to discover how this technology is not just changing the way we manufacture but also expanding the boundaries of what's possible in material engineering and product design. Whether you're an industry professional, an engineering student, or simply curious about cutting-edge technology, this exploration of AFP will provide you with a comprehensive understanding of a technology that's shaping the future of manufacturing.

Definition and Basic Concept

Automated Fiber Placement (AFP) is an advanced manufacturing process designed to efficiently create complex composite structures. At its core, an AFP system draws composite material from a storage unit, routes it through a sophisticated delivery system, and precisely places it onto a substrate using a combination of heat and pressure.

The process begins with material spools, which may include a backing film for certain materials like thermoset prepregs. The composite tape is then guided through a cut, clamp, and feed (CCF) mechanism before being applied to the substrate. This basic process remains consistent across various material types, including thermosets, thermoplastics, and dry fibers, with minor adjustments to accommodate each material's specific requirements.

‍

Historical Context

The journey of AFP technology began in the late 1960s and early 1970s, evolving from earlier composite manufacturing techniques. The concept of using individual tows instead of wide tapes was first documented in 1974, marking a significant shift from Automated Tape Laying (ATL) methods.

Hercules Aerospace (now part of ATK) and Cincinnati Machine were pioneers, starting development of AFP systems in the early 1980s. These early machines combined the differential payout capability of filament winding with the compaction and cut-restart capabilities of ATL. By the late 1980s, AFP machines became commercially available and were adopted by major aerospace companies like Boeing, Lockheed, and Northrop.

The 1990s saw significant advancements in AFP technology. Systems capable of delivering up to 24 tows at once were developed, dramatically increasing productivity. The ability to steer fibers along curvilinear paths was a game-changer, allowing for more complex geometries and optimized fiber orientations.

The turn of the millennium brought focus to improving process reliability and productivity. Innovations in automated inspection, high-speed systems, and modular AFP heads marked this era. By 2010, highly accurate robots were demonstrating remarkable precision, with a 3-sigma accuracy of ±0.08 mm.

Today, AFP technology continues to evolve, with current research focusing on high-throughput systems, minimal defect layups, and in-situ thermoplastic processing. The integration of AFP with other advanced manufacturing technologies promises to further expand its capabilities and applications.

Key Components of an AFP System

1. Fiber Placement Head: The fiber placement head is the heart of the AFP system. Typically mounted on a robotic arm or gantry, it's a marvel of precision engineering. The key components of an AFP system include the fiber placement head, motion platform, material delivery system, control system, and software system.The head houses the material guiding system, which ensures the composite tapes are fed smoothly and accurately. The cut, clamp, and feed (CCF) mechanism is a critical component, allowing for precise control over tow length and placement. Integrated heating elements, which may use technologies like infrared or laser heating, ensure the material reaches the optimal temperature for adhesion. An array of sensors, including thermal sensors and laser line scanners, constantly monitor the process, providing real-time data for quality control and placement accuracy.
2. Motion Platform: While gantry systems were once the norm, robotic arms have become the gold standard in AFP systems. This shift is due to their exceptional continuous path following accuracy, often achieving tolerances measured in fractions of a millimeter. The flexibility of robotic arms allows them to navigate complex geometries with ease, reaching angles and positions that would be challenging for traditional gantry systems. Modern robotic systems offer plug-and-play compatibility with AFP heads, significantly reducing setup time and complexity. This accessibility has democratized AFP technology, making it available to a broader range of manufacturers.
3. Material Delivery System: The material delivery system is a sophisticated network of spools, guides, and tensioners that ensure a consistent supply of composite material to the placement head. Managing multiple spools simultaneously is a complex task, requiring precise control over tension and feed rates for each individual tow. This system must adapt to different material types, from sticky thermoset prepregs to dry fibers, each with its own handling characteristics. Advanced systems may include climate-controlled storage for temperature-sensitive materials, ensuring consistent material properties throughout the manufacturing process.
4. Control System: The control system is the brain of the AFP operation, orchestrating the intricate dance between the robot, placement head, and material delivery system. It processes a vast amount of data in real-time, from robot positioning to material temperature and tension. At its core, the control system translates the programmed layup path into a series of coordinated movements and actions. It sends precise commands to the robot controller, dictating not just position but also speed and acceleration. Simultaneously, it manages the AFP head, triggering tow cuts, activating compaction rollers, and adjusting heating elements as needed. Advanced control systems integrate feedback from multiple sensors, allowing for on-the-fly adjustments to maintain optimal layup conditions. This might involve tweaking the heater intensity based on ambient temperature changes or adjusting compaction pressure to accommodate varying surface geometries.
5. Software System: The software system is the unsung hero of AFP technology, turning complex composite designs into manufacturable realities. It begins with sophisticated path planning algorithms that optimize fiber orientation for structural performance while considering manufacturability constraints. Simulation capabilities allow engineers to virtually test layup strategies, identifying potential issues like gaps, overlaps, or areas of excessive steering before a single fiber is placed. This predictive power significantly reduces material waste and improves first-time quality. During production, the software acts as a digital twin of the physical process, comparing real-time data from the AFP system against the simulated ideal. This allows for immediate detection of deviations and, in advanced systems, automatic correction of errors. Quality control is deeply integrated into the software, with algorithms analyzing data from various sensors to ensure each ply meets specified tolerances. This data is also archived, providing a comprehensive digital record of the manufacturing process for each part – a crucial feature for industries with stringent traceability requirements.

AFP's Versatility: Filament Winding Capabilities

Modern AFP systems have evolved to incorporate filament winding capabilities, offering a best-of-both-worlds approach that significantly expands manufacturing possibilities. This convergence of technologies represents a major leap forward in composite manufacturing flexibility.

Filament winding, traditionally used for creating cylindrical or spherical structures, excels in high-speed production of parts with continuous fiber reinforcement. By integrating these capabilities into AFP systems, manufacturers can now switch seamlessly between precise layup and high-speed winding operations within a single setup.

The advantages of this hybrid approach are numerous. For complex parts with both open and closed sections, the system can use AFP for precise layup on open surfaces and switch to filament winding for closed, cylindrical sections. This is particularly beneficial in industries like aerospace, where components often combine multiple geometric features.

The key to this versatility lies in advanced control systems and software. These systems manage the transition between AFP and winding modes, adjusting parameters like fiber tension, compaction pressure, and heating on the fly. For winding operations, the software calculates optimal winding angles and patterns, ensuring structural integrity while maximizing production speed.

Moreover, this combined capability allows for innovative manufacturing strategies. For instance, a part might start with a filament-wound core for speed and continuous reinforcement, followed by precisely placed AFP layers for local reinforcement or to create specific surface features.

The integration of AFP and filament winding capabilities in a single system not only enhances production flexibility but also opens up new possibilities in part design. Engineers can now conceive of structures that leverage the strengths of both processes, potentially leading to lighter, stronger, and more efficient composite parts.

Addcomposites' AFP Solutions

Addcomposites offers two advanced AFP systems that exemplify the latest in fiber placement technology:

AFP-XS: A compact system designed to upgrade existing robots for research and small batch production. It's capable of aerospace-grade quality layups and is compatible with a wide range of materials.

AFP-X: A robust system for high-volume production, featuring increased material capacity and advanced sensors for continuous, precise operations on complex aerospace and large components.

These systems represent significant advancements in making AFP technology more accessible and versatile across industries.

Preparing the Composite Material

The journey of automated fiber placement begins with proper material preparation. Composite materials typically come in the form of tapes, which require specific handling:

1. Storage: Depending on the material type, tapes are stored in either cold or dry environments. Thermoset prepregs, for instance, often require refrigeration to prevent premature curing.
2. Formatting: Materials may arrive in large spools and need to be transferred to smaller, machine-compatible formats.
3. Thawing: For materials stored in freezers, a crucial step is thawing. This process involves allowing the material to gradually reach room temperature, typically overnight. Proper thawing ensures the material's optimal properties for processing.
4. Environmental Control: Throughout preparation, maintaining the right environment is critical. This might involve controlling humidity for dry fibers or managing temperature for thermosets.

Loading and Feeding the Material

Once prepared, the material must be carefully loaded into the AFP system:

1. Loading: The material is mounted onto the head or material creel. This step requires precision to ensure proper alignment and tension.
2. Guiding: The tape is then threaded through an integrated set of rollers. This process demands attention to maintain consistent tension while avoiding any twisting or self-adhesion of the tape.
3. Material-Specific Challenges: Thermosets and tow pregs present unique challenges due to their tacky nature, requiring extra care to prevent sticking. Dry fibers and thermoplastics are generally easier to handle at this stage.
4. Feeding: The final step involves guiding the material into the cut, clamp, and feed (CCF) mechanism. This compact area requires careful maneuvering:some text
   • The material is gently pushed into the designated channel.
   • Operators rely on the material's stiffness to navigate through the intricate path.
   • Once in place, the feed motor can be engaged to automate further material advancement.

Precise Placement and Compaction

With the material loaded and the AFP program ready, the actual layup process begins:

1. Program Initiation: A pre-created program, developed using planning software and simulations, is loaded into the robot controller.
2. First Layer Challenges: The initial layer presents unique difficulties:some text
   • Adhesion to the mold (often metal or plastic) can be problematic.
   • Operators typically reduce speed, increase heat, and maintain lower tension for better adhesion.
   • This layer sets the foundation for subsequent plies, making precision crucial.
3. Layup Process:
   • The AFP head approaches the layup table.
   • As it moves, the tape is fed under the compaction roller.
   • A heater in front of the roller pre-heats the material and substrate.
   • The compaction roller applies pressure, bonding the new material to the substrate.
   • Throughout this process, the tape is kept under controlled tension.
4. Subsequent Layers: After the first layer, the process can often be accelerated, with adjustments to speed, heat, and tension as needed.

Cutting and Restarting

The cutting and restarting process is crucial for creating complex layups:

1. End of Pass: As the AFP head nears the end of a programmed path, it initiates a cut at a predetermined distance from the end.
2. Cutting: The CCF mechanism precisely cuts the tape.
3. Completion and Retraction: After completing the pass, the head retracts from the mold surface.
4. Repositioning: The system moves to the starting point of the next pass.
5. Restarting:
   • The feed mechanism is reengaged to advance new material.
   • Care is taken to ensure the previously laid material has cooled sufficiently to prevent sticking.
   • The process then repeats for the new pass.

Building Up Layers to Form the Final Part

As layers accumulate, several factors come into play:

1. Compaction Force Management: The system must adjust compaction force to account for the increasing thickness of the layup.
2. Thickness Compensation: Pre-preg tapes compress during layup (debulking). The AFP system must account for this reduction in thickness as layers build up.
3. Complex Geometries: For parts with features like ply drop-offs, holes, edges, or selective reinforcements, the AFP program must adapt:
   • Paths are designed to navigate around or reinforce these features.
   • Consistent pressure must be maintained to avoid over-debulking in specific areas.
4. Debulking Elimination: Proper management of these factors can often eliminate the need for separate debulking steps, streamlining the manufacturing process.
5. Quality Control: The result of this carefully managed process is a high-quality layup:
   • Minimal defects
   • Consistent fiber orientation
   • Optimal thickness control
   • Enhanced structural integrity

Through this meticulous step-by-step process, AFP systems can create complex, high-performance composite parts with a level of precision and consistency unattainable through manual methods. The ability to fine-tune each aspect of the layup process contributes to the production of lightweight, strong, and highly engineered composite structures.

Addcomposites' Software Solutions

To streamline the AFP process, Addcomposites offers sophisticated software solutions:

1. AddPath: This software optimizes path planning, simulation, and data streaming for AFP processes. It's designed to enhance efficiency and precision for teams of all sizes.
2. AddPrint: While primarily for continuous fiber 3D printing, this software complements AFP processes by offering advanced features for precise and efficient production of composite parts.

The choice of material in Automated Fiber Placement (AFP) significantly influences the manufacturing process, final product characteristics, and production economics. Let's explore the main material types used in AFP and their implications:

Prepregs

Prepregs, or pre-impregnated fibers, are the traditional go-to material for AFP in high-performance applications:

• Characteristics: Fibers pre-impregnated with partially cured resin.
• Advantages:
  • Consistent resin content and fiber distribution
  • Excellent mechanical properties
  • Well-established in aerospace and high-performance applications
• Considerations:
  • Relatively expensive
  • Require careful storage (often refrigerated) and have limited shelf life
  • Need precise temperature control during layup
• Best for: Aerospace parts and other high-performance, low-volume applications where material cost is less critical than performance.

Dry Fibers

Dry fiber tapes are increasingly popular, especially when combined with subsequent resin infusion processes:

• Characteristics: Fibers without resin, often held together with a light binder.
• Advantages:
  • Lower material cost compared to prepregs
  • Easier to store and handle (no refrigeration needed)
  • Can be combined with various resin systems post-layup
• Considerations:
  • Requires a separate infusion process (e.g., Resin Transfer Molding - RTM)
  • May have challenges with fiber alignment and control during placement
• Best for: Medium to high volume production where the cost of RTM equipment can be justified by lower material costs and higher production rates.

Thermoplastics

Thermoplastic composites offer unique advantages in AFP:

• Characteristics: Fibers impregnated with thermoplastic resin.
• Advantages:
  • Can be remelted and reshaped
  • Potential for in-situ consolidation
  • Excellent chemical resistance and impact properties
• Considerations:
  • Require higher processing temperatures
  • May need additional forming steps (e.g., thermoforming)
  • Equipment may need modifications to handle higher temperatures
• Best for: Applications requiring high toughness, chemical resistance, or the ability to be reformed. Production volume can range from low to high, depending on the specific process (in-situ consolidation vs. post-forming).

Towpregs

Towpregs represent an innovative approach to prepreg manufacturing:

• Characteristics: Tows directly impregnated with resin during the fiber manufacturing process.
• Advantages:
  • Lower cost compared to traditional prepregs
  • Excellent width and thickness control
  • No slitting process required, reducing waste and cost
• Considerations:
  • May have different handling characteristics compared to traditional prepregs
  • Less established in some industries compared to traditional prepregs
• Best for: High-volume production where material cost is a significant factor, but the performance of prepreg-like materials is desired.

Material Choice Considerations in AFP

When selecting materials for AFP, several factors come into play:

1. Production Volume:
   • Low volume, high-performance: Prepregs are often preferred.
   • Medium to high volume: Dry fibers with RTM or Towpregs become more economical.
2. Performance Requirements:
   • Aerospace-grade parts typically use prepregs for their consistent quality and established certification processes.
   • Automotive or industrial applications might lean towards thermoplastics or Towpregs for cost-effectiveness and cycle time reduction.
3. Processing Considerations:
   • Prepregs require careful temperature control and often need refrigerated storage.
   • Dry fibers need a separate infusion step but offer more flexibility in resin selection.
   • Thermoplastics require higher processing temperatures but can offer faster cycle times with in-situ consolidation.
4. Cost Factors:
   • Material cost: Prepregs > Thermoplastics > Towpregs > Dry Fibers (generally)
   • Equipment cost: Consider additional systems like RTM for dry fibers or high-temperature capabilities for thermoplastics.
5. Industry and Certification:
   • Aerospace industry often requires the use of certified prepreg systems.
   • Automotive and industrial sectors may have more flexibility to adopt newer materials like Towpregs.

The choice of material in AFP is not just about the final part properties, but also about optimizing the entire manufacturing process. As AFP technology continues to evolve, the ability to process a wide range of materials efficiently is becoming a key factor in its adoption across various industries. The trend towards materials like Towpregs showcases the industry's drive towards combining high performance with cost-effectiveness, potentially opening up new applications for AFP technology.

Material Versatility with Addcomposites

Addcomposites' AFP systems, particularly the AFP-XS, showcase remarkable material versatility:

• Compatible with Towpreg, Thermoset, Thermoplastic, and Dry fiber materials
• Capable of handling experimental materials
• Supports material widths from ¼" to 1"
• Can function as both Automated Tape Laying and Filament Winding systems

This versatility allows manufacturers to explore a wide range of composite materials and manufacturing techniques using a single system.

Automated Fiber Placement (AFP) technology, while advanced, still faces several engineering challenges. However, innovative solutions and evolving technologies are continuously addressing these issues, making AFP more accessible and efficient.

Managing Curved Surfaces and Complex Geometries

Challenge:

• Material stiffness limits draping capabilities, leading to issues like bridging on sharp corners and edges.
• Steering paths on curved surfaces to maintain fiber orientation can cause defects.

Solutions:

1. Advanced Path Planning: Sophisticated software simulations to optimize fiber placement strategies.
2. Design for Manufacturability: Collaborating with designers to create AFP-friendly part geometries.
3. Innovative Layup Strategies: Implementing patch placements to manage challenging areas.
4. Adaptive Programming: Utilizing dynamic control systems to adjust placement in real-time.

Heat Management and Consolidation

Challenge:

• Crucial for thermoplastics and important for prepreg debulking.
• Balancing heat application, compaction force, and layup speed for optimal bonding.

Solutions:

1. Material Preparation: Proper dehydration of hygroscopic materials before processing.
2. Temperature Control: Precise management of material, room, and tooling temperatures.
3. Process Parameter Optimization: Fine-tuning heat application, compaction force, and layup speed.
4. Real-time Monitoring: Implementing NDI sensors for immediate feedback on bond quality.
5. Adaptive Systems: Developing systems that can adjust parameters on-the-fly based on sensor feedback.

Defect Prevention and Quality Control

Challenge:

• Various defects like wrinkling, bridging, gaps, and overlaps can occur due to material, machine, or programming issues.

Solutions:

1. Advanced Inspection Systems: Integrating laser scanners, cameras, and thermal imaging for real-time defect detection.
2. Layer-by-Layer Quality Check: Implementing software that assesses each layer before proceeding to the next.
3. Adaptive Manufacturing: Developing systems that can pause production or suggest corrections based on quality data.
4. Predictive Modeling: Using AI and machine learning to anticipate and prevent defects before they occur.

Budgetary Challenges and Accessibility

Challenge:

• Traditional AFP machines are expensive to purchase, operate, and maintain.
• High complexity systems require multiple operators and extensive programming time.

Solutions:

1. Compact AFP Systems: Developing smaller, more versatile systems that can transform existing robots into AFP machines.
2. Simplified Operation: Creating user-friendly interfaces that allow a single operator to program, run, and maintain the system.
3. Multi-functional Systems: Designing AFP heads that can also perform filament winding, increasing versatility and value.
4. Cost-Effective Entry Points: Offering more affordable systems to make AFP technology accessible to smaller companies and research institutions.

Material-Specific Challenges

1. Towpregs

Challenge: Higher resin content leading to more residue in the AFP system.

‍Solution: Implementing regular cleaning routines and designing systems for easy maintenance access.

2. Prepregs

Challenge: Potential for resin buildup, though less than towpregs.

‍Solution: Developing streamlined cleaning processes and using materials optimized for AFP processing.

3. Dry Fibers

Challenge: Accumulation of fiber debris in narrow channels, particularly in the cutter area.

‍Solution:

• Designing systems with easily accessible cleaning points.
• Implementing regular maintenance schedules to clear debris accumulation.

4. Thermoplastics

Challenge: High heat exposure causing roller degradation.

‍Solution:

• Implementing water-cooled roller systems.
• Developing heat-resistant materials for roller construction.
• Designing quick-change roller systems for easy maintenance.

Ongoing Developments and Future Directions

1. Integrated Design and Manufacturing: Closer collaboration between part designers and AFP engineers to create optimized designs for AFP manufacturing.
2. AI and Machine Learning Integration: Developing intelligent systems that can learn from past runs to optimize future productions.
3. Hybrid Systems: Creating AFP systems that can easily switch between different material types and processing methods.
4. In-situ Quality Assurance: Advancing technologies for real-time, in-process quality control and defect correction.
5. Sustainable Manufacturing: Developing AFP processes that minimize waste and energy consumption, aligning with green manufacturing initiatives.

By addressing these challenges with innovative solutions, the AFP industry is moving towards more accessible, efficient, and versatile systems. The shift from large, complex machines to more compact, user-friendly systems is democratizing AFP technology, making it available to a broader range of industries and applications. This evolution is not only solving existing problems but also opening up new possibilities in composite manufacturing.

Addcomposites' Innovative Solutions

Addcomposites addresses several key challenges in AFP technology:

1. Accessibility: By offering AFP systems starting at €3499 per month, Addcomposites makes this technology accessible to a broader range of manufacturers and researchers.
2. Versatility: The ability to convert any pre-existing robot into an AFP system works with all major robotic brands, reducing the need for specialized equipment.
3. Quality Control: AddPath software provides real-time digital twin capabilities, enhancing quality control and process optimization.
4. Multi-functionality: Addcomposites' systems can switch between AFP and filament winding modes, offering greater flexibility in manufacturing processes.

Automated Fiber Placement (AFP) technology has found its way into a diverse range of industries, revolutionizing the manufacturing of composite structures. From traditional aerospace applications to emerging fields like humanoid robotics, AFP systems are proving their versatility and value. Let's explore the key applications and case studies across various sectors:

Aerospace Industry

In the aerospace industry, AFP technology has found applications in manufacturing traditional aircraft components such as fuselage sections, wing structures, nose cones, and floor panels

1. Traditional Aircraft Components:
   • Fuselage sections
   • Wing structures
   • Nose cones
   • Floor panels and stiffeners
2. Evolving Materials and Rapid Prototyping:
   • Versatile AFP systems like AFP-XS enabling quick material changes
   • Adaptation to thin materials, dry fibers, and thermoplastics
   • Rapid validation of new composite materials for aerospace applications
3. Urban Air Mobility: Flying Taxis and Small Aircraft:
   • Compact AFP systems ideal for manufacturing smaller aircraft structures
   • Electric motor sleeves for high-RPM efficiency
   • Hydrogen fuel tank production for extended range capabilities
   • Drone components for both civilian and military applications

Space Industry

1. Satellite Structures:
   • Transition from hand layup to automated processes for increased production volumes
   • Manufacture of structural components for small satellites
2. Launch Vehicles:
   • Interstage structures
   • Nozzle components
   • High-pressure tanks
3. Combined AFP and Filament Winding Capabilities:
   • Versatile production of various space vehicle components
   • Enabling cost-effective manufacturing for the growing commercial space sector

Defense Sector

1. Military Aircraft:
   • Fighter plane fuselages and wings
   • Lightweight, high-performance structural components
2. Missile Systems:
   • Lighter, more precise missile structures
3. Unmanned Aerial Vehicles (UAVs):
   • Rapid production of lightweight, durable drone structures
   • Enhancing strategic capabilities through advanced composite manufacturing

Automotive Industry

In the automotive sector, AFP is being used to produce lightweight body panels, impact-resistant structures, and components for electric and hydrogen-powered vehicles

1. Clean Energy Transition:
   • Hydrogen fuel tanks for passenger cars and trucks
   • Electric motor sleeves combining carbon and glass fibers
2. Structural Components:
   • Lightweight body panels
   • Impact-resistant structures
3. Material Hybridization:
   • Combining thermoset and thermoplastic materials for optimal performance
   • Integration of carbon and glass fibers in single components

Humanoid Robots

1. Structural Components:
   • Lightweight yet rigid limbs, torsos, and head structures
   • Impact-resistant designs for improved durability
2. Functional Integration:
   • RF-transparent structures for enhanced communication capabilities
   • Sensor integration within composite structures
3. Sustainability Considerations:
   • Use of recyclable composite materials
   • Design for disassembly and material recovery

Marine Industry

1. High-Performance Vessels:
   • Hydrofoils for increased speed and efficiency
   • Lightweight masts and hull structures
2. Recreational Boating:
   • Composite hulls and decks for improved performance and longevity

Clean Energy Sector

In the clean energy sector, AFP technology is being employed for the production of efficient, large-scale wind turbine blades

1. Wind Energy:
   • Production of efficient, large-scale wind turbine blades (up to 50-60 meters)
   • Integration of AFP with 3D printing for complex blade designs
   • Sensor integration for smart blade monitoring
2. Solar Energy:
   • Lightweight support structures for solar panels
   • Potential for integrated solar cell and composite structure manufacturing

Benefits of AFP Over Manual Processes

1. Consistent Quality:
   • Repeatable, precise fiber placement
   • Reduction in human error and variability
2. Data-Driven Manufacturing:
   • Comprehensive quality data capture for each part
   • Enables continuous process improvement and traceability
3. Cost-Effectiveness:
   • Lower total cost of ownership for components
   • Reduced material waste through optimized fiber placement
4. Energy Efficiency:
   • Lower energy consumption in both manufacturing and end-use applications
   • Lightweight structures contributing to overall system efficiency
5. Flexibility and Rapid Adaptation:
   • Quick changeover between different materials and part designs
   • Enables cost-effective small batch production and prototyping
6. Sustainability:
   • Reduced material usage through precise placement
   • Potential for easier recycling and material recovery in some applications

The versatility of modern AFP systems, particularly compact and adaptable designs, is enabling a new era of composite manufacturing across these diverse sectors. By offering consistent quality, data-driven production, and the ability to work with a wide range of materials, AFP technology is not only improving existing applications but also opening doors to new possibilities in composite structure design and manufacturing. As industries continue to demand lighter, stronger, and more efficient components, AFP systems are poised to play an increasingly crucial role in meeting these evolving needs.

Addcomposites in Action

Addcomposites' solutions have found applications across various industries:

1. Aerospace and Space: The AFP-XS and AFP-X systems are proven in aerospace applications, offering the precision and quality required for this demanding sector.
2. Automotive: Addcomposites' systems enable the production of lightweight, high-performance components for the automotive industry.
3. Marine and Energy: The versatility of Addcomposites' AFP systems makes them suitable for producing large-scale components in these sectors.
4. Research and Development: With over 40 AFP-XS systems installed worldwide, Addcomposites has become a favorite among research institutions for its unparalleled versatility and modularity.

As Automated Fiber Placement (AFP) technology continues to evolve, it is poised to play an increasingly crucial role in advanced manufacturing. The future of AFP is characterized by greater versatility, integration with other technologies, and expansion into new markets. Here are the key trends and developments shaping the future of AFP:

Integration with Robotics and Automation

1. Compact and Versatile Systems:
   • Development of adaptable AFP systems that can be easily integrated with existing industrial robots
   • Increasing adoption in various industries due to improved accessibility and flexibility
2. Humanoid Robot Manufacturing:
   • AFP systems tailored for producing lightweight, strong components for humanoid robots
   • Enabling the production of complex, multi-functional parts for the growing robotics industry

Advanced Software and Digital Integration

The future of AFP technology is characterized by enhanced software capabilities for path planning, process simulation, and optimization, integrating design, manufacturing, and quality assurance into a unified digital ecosystem

1. Comprehensive Simulation and Planning:
   • Enhanced software capabilities for path planning, process simulation, and optimization
   • Integration of design, manufacturing, and quality assurance into a unified digital ecosystem
2. Digital Twin Technology:
   • Real-time monitoring and adjustment of AFP processes through digital twin implementations
   • Improved quality control and process optimization through continuous data feedback loops
3. Cross-Process Digital Thread:
   • Seamless data flow between AFP and other manufacturing processes
   • Optimization of the entire production chain, from design to final assembly

Material Innovations and Multi-Material AFP

The development of integrated hybrid manufacturing cells, combining AFP, filament winding, and additive manufacturing in single, flexible production units, represents a significant trend in the evolution of AFP technology

1. Rapid-Cure Resins:
   • Development of fast-processing composites to increase production rates
   • Chemical innovations to reduce overall processing steps and cure times
2. Advanced Thermoplastics:
   • Improvements in thermoplastic bonding technologies for faster processing
   • Integration of sophisticated heating and compaction algorithms for optimal bonding
3. Multi-Material Capabilities:
   • AFP systems capable of rapidly switching between different fiber types (e.g., carbon, glass)
   • Enabling the production of hybrid composites with optimized performance and cost

Convergence with Additive Manufacturing

1. Moldless AFP Manufacturing:
   • Integration of large-format additive manufacturing with AFP processes
   • 3D printed tooling and support structures for AFP layup
2. Structural Continuous Fiber 3D Printing:
   • Development of hybrid systems combining AFP principles with additive manufacturing
   • Enabling the creation of complex, fiber-reinforced structures without traditional molds
3. Integrated Hybrid Manufacturing Cells:
   • Combining AFP, filament winding, and additive manufacturing in single, flexible production units
   • Adaptive manufacturing systems capable of switching between processes as needed

Expanding Applications and Markets

1. Urban Air Mobility:
   • Tailored AFP solutions for manufacturing flying taxis and small aircraft
   • Rapid prototyping and production of lightweight, high-performance aerospace structures
2. Sustainable Transportation:
   • AFP systems optimized for producing components for electric vehicles and hydrogen fuel systems
   • Lightweight structures contributing to improved energy efficiency in transportation
3. Renewable Energy Structures:
   • Advanced AFP techniques for manufacturing larger, more efficient wind turbine blades
   • Integration of smart materials and sensors in composite energy-generating structures
4. Infrastructure and Construction:
   • Exploration of AFP applications in creating lightweight, durable structural components for buildings and bridges
   • Potential for on-site AFP manufacturing in large-scale construction projects

Sustainability and Cost Reduction

1. Material Efficiency:
   • Continued improvements in fiber placement accuracy to minimize material waste
   • Development of recycling-friendly composite materials and structures
2. Energy-Efficient Processing:
   • Advancements in low-energy curing technologies for thermoset composites
   • Optimized heating and cooling cycles for thermoplastic AFP
3. Accessible Technology:
   • Reduction in AFP system costs to make the technology accessible to smaller businesses
   • Development of modular, scalable AFP solutions for various production volumes
4. New Material Sources:
   • Exploration of sustainable and bio-based fibers and resins for AFP processes
   • Integration of recycled materials into high-performance composite structures

The future of AFP technology is characterized by its increasing versatility, integration with other advanced manufacturing technologies, and expansion into new markets. As AFP systems become more compact, adaptable, and cost-effective, they are likely to find applications in a wider range of industries, from aerospace and automotive to robotics and sustainable energy.

The convergence of AFP with additive manufacturing, advanced robotics, and sophisticated digital tools is set to revolutionize how complex composite structures are designed and produced. This evolution will not only enhance the capabilities of AFP but also contribute to more sustainable, efficient, and innovative manufacturing practices across various sectors.

As these technologies mature, we can expect to see AFP playing a crucial role in addressing global challenges, from climate change mitigation through lightweight transportation to the development of advanced robotics for various applications. The future of AFP is not just about improving existing processes, but about reimagining what's possible in composite manufacturing and opening new frontiers in material science and engineering.

Addcomposites' Vision for the Future

Addcomposites is at the forefront of several trends shaping the future of AFP technology:

1. Integration with 3D Printing: The SCF3D system represents Addcomposites' foray into structural continuous fiber 3D printing, complementing traditional AFP processes.
2. Customized Manufacturing Cells: AddCell offers tailored robotic cell solutions, enabling seamless integration of AFP technology into existing manufacturing environments.
3. Sustainable Manufacturing: By optimizing material usage and enabling the use of various fiber types, Addcomposites' systems contribute to more sustainable composite manufacturing practices.
4. Democratization of AFP Technology: Through cost-effective solutions and user-friendly software, Addcomposites is making AFP technology accessible to a broader range of manufacturers, from small businesses to large OEMs.

As AFP technology continues to evolve, companies like Addcomposites are playing a crucial role in driving innovation, improving accessibility, and expanding the applications of this transformative manufacturing process.

As we've explored throughout this comprehensive look at Automated Fiber Placement (AFP) technology, it's clear that we are witnessing a revolutionary shift in composite manufacturing. AFP has not only overcome many of the initial challenges associated with composite production but has also opened up new possibilities in design, efficiency, and application across a wide range of industries.

Key Takeaways

1. Technological Evolution: AFP has progressed from a niche, high-cost technology to an increasingly accessible and versatile manufacturing process. The development of compact, adaptable systems has democratized access to advanced composite manufacturing.
2. Material Advancements: The symbiotic relationship between AFP technology and material science has driven innovations in both fields. From rapid-cure resins to advanced thermoplastics and multi-material capabilities, AFP is pushing the boundaries of what's possible with composite materials.
3. Expanding Applications: While aerospace remains a key industry for AFP, we've seen how this technology is making significant inroads into automotive, renewable energy, marine, and even emerging fields like humanoid robotics. The versatility of AFP is opening up new markets and applications previously unthinkable for composite structures.
4. Integration and Digitalization: The convergence of AFP with other advanced manufacturing technologies, particularly additive manufacturing and sophisticated digital tools, is creating new paradigms in production. Digital twins, comprehensive simulation capabilities, and integrated manufacturing cells are setting new standards for efficiency and quality control.
5. Sustainability Impact: AFP's precision and efficiency are contributing to more sustainable manufacturing practices. By optimizing material usage, enabling lightweight designs, and facilitating the use of recycled or bio-based materials, AFP is aligned with global efforts towards more environmentally friendly production methods.

Looking to the Future

The future of AFP technology is bright and full of potential. As systems become more compact, versatile, and cost-effective, we can expect to see AFP playing a crucial role in addressing some of the most pressing challenges of our time:

• Climate Change Mitigation: Through the production of lightweight structures for transportation and renewable energy systems.
• Advanced Robotics: Enabling the creation of high-performance, multi-functional components for next-generation robots.
• Sustainable Infrastructure: Exploring new applications in construction and civil engineering for durable, lightweight structures.
• Space Exploration: Facilitating the production of advanced spacecraft and satellite components, supporting the growing commercial space industry.

The ongoing developments in AFP technology – from enhanced process control and multi-material capabilities to integration with additive manufacturing – promise to further expand its capabilities and applications. As the technology continues to mature, we can anticipate more industries recognizing the potential of AFP to revolutionize their manufacturing processes and product designs.

Final Thoughts

Automated Fiber Placement stands at the intersection of materials science, robotics, and digital manufacturing. It represents not just an improvement in how we make things, but a fundamental shift in what we can make. As we look to a future that demands stronger, lighter, and more efficient structures across all sectors, AFP emerges as a key enabling technology.

For engineers, designers, and industry leaders, staying abreast of AFP developments will be crucial in maintaining a competitive edge. For researchers and innovators, AFP presents a rich field for exploration, with the potential for groundbreaking discoveries in materials, processes, and applications.

The journey of AFP from a specialized aerospace technology to a versatile, accessible manufacturing process is a testament to the power of innovation and the importance of cross-disciplinary collaboration. As we continue to push the boundaries of what's possible with composites, AFP will undoubtedly play a central role in shaping the future of manufacturing and material science.

In conclusion, Automated Fiber Placement is not just a manufacturing technology; it's a gateway to new possibilities in design, efficiency, and sustainability across industries. As we move forward, the potential of AFP to transform our world – from the cars we drive to the energy we harness and even the robots that may one day work alongside us – is limited only by our imagination and ingenuity.

1. Wambua P, Ivens J, Verpoest I. Natural fibres: can they replace glass in fibre reinforced plastics? Compos Sci Technol 2003;63(9):1259–64.
2. Oldani T. Fiber placement machine platform system having interchangeable head and creel assemblies. United States patent US 20090095410. 2009 Apr 10.
3. Lindback JE, Bjornsson A, Johansen K. New automated composite manufacturing process: Is it possible to find a cost effective manufacturing method with the use of robotic equipment? 5th Int. Swedish Prod. Symp; 2012 Nov 6-8; Linkoping, Sweden. 2012. p. 523–31.
4. Grimshaw MN, Grant CG, Diaz JML. Advanced technology tape laying for affordable manufacturing of large composite structures. Int. Sampe Symp. Exhib. 2001;2484–94.
5. Skinner ML. Trends, advances and innovations in filament winding. Reinf Plast 2006;50(2):28–33.
6. Smith F, Grant C. Automated processes for composite aircraft structure. Ind Robot An Int J 2006;33(2):117–21.
7. Evans DO. Handbook of composites. Boston, MA: Springer US; 1998. p. 476–87.
8. Astrom BT. Manufacturing of Polymer Composites. 1997.
9. Campbell JFC. Manufacturing processes for advanced composites. 2003.
10. Gutowski TGP. Advanced Composites Manufacturing. 1997.
11. Sloan J. ATL and AFP: Defining the megatrends in composite aerostructures. 2008.
12. Lukaszewicz D-J-A, Ward C, Potter KD. The engineering aspects of automated prepreg layup: History, present and future. Compos Part B Eng 2012;43(3):997–1009.
13. Frketic J, Dickens T, Ramakrishnan S. Automated manufacturing and processing of fiber-reinforced polymer (FRP) composites: An additive review of contemporary and modern techniques for advanced materials manufacturing. Addit Manuf 2017;14:69–86.
14. Kozaczuk K. Automated fiber placement systems overview. 2016.
15. August Z, Ostrander G, Michasiow J, et al. Recent developments in automated fiber placement of thermoplastic composites. SAMPE J 2014;50(2):30–7.
16. Madhok KS. Comparative characterization of out-of-autoclave materials made by automated fiber placement and hand-lay-up processes [dissertation]. Montreal: Concordia University; 2013.
17. Flynn R, Rudberg T, Stamen J. Automated fiber placement machine developments: Modular heads, tool point programming and volumetric compensation bring new flexibility in a scalable AFP cell. SME Compos. Manuf. Conf. Dayton, OH; 2011.
18. Marsh G. Automating aerospace composites production with fibre placement. Reinf Plast 2011;55(3):32–7.
19. Izco L, Isturiz J, Motilva M. High speed tow placement system for complex surfaces with cut / clamp / & restart capabilities at 85 m/min (3350 IPM). 2006. Report No.: 2006-01-3138.
20. Sorrentino L, Carrino L, Tersigni L, et al. Innovative tape placement robotic cell: High flexibility system to manufacture composite structural parts with variable thickness. J Manuf Sci Eng 2009;131(4):041002.
21. Raspall F, Velu R, Vaheed NM. Fabrication of complex 3D composites by fusing automated fiber placement (AFP) and additive manufacturing (AM) technologies. Adv Manuf Polym Compos Sci 2019;5(1):6–16.
22. Gan D, Dai JS, Dias J, Umer R, Seneviratne L. Singularity-free workspace aimed optimal design of a 2T2R parallel mechanism for automated fiber placement. J Mech Robot 2015;7(4).
23. Zhang X, Xie W, Hoa SV, et al. Design and analysis of collaborative automated fiber placement machine. Int J Adv Robot Autom 2016;1:1–14.
24. Rousseau G, Wehbe R, Halbritter J, Harik R. Automated fiber placement path planning: A state-of-the-art review. Comput Aided Des Appl 2019;16(2):172–203.
25. Goldsworthy WB. Geodesic path length compensator for composite-tape placement method. United States patent US 3810805. 1974 May 14.
26. Wisbey JD. Multi-tow fiber placement machine with full band width clamp, cut, and restart capability. United States patent US 4943338. 1990 Jul 24.
27. Pugh JH. Strand laying head. United States patent US 4569716. 1986 Feb 11.
28. Vaniglia MM. Fiber placement head. United States patent US 5110395. 1992 May 5.
29. Borgmann RE, Evans DO. Fiber placement machine. European patent EP 1719610. 2008 Oct 29.
30. McCowin PD. Tow width adaptable placement head device and method. United States patent application US 20070029030. 2007 Feb 08.
31. Belhaj M, Deleglise M, Comas-Cardona S, et al. Dry fiber automated placement of carbon fibrous preforms. Compos Part B Eng 2013;50:107–11.
32. Zhang W, Liu F, Lv Y, Ding X. Modelling and layout design for an automated fibre placement mechanism. Mech Mach Theory 2020;144:103651.
33. Martin JP. Multiple tape laying apparatus and method. United States patent US 7293590. 2007 Nov 13.
34. Hamlyn A, Hardy Y. Applicator head for fibers with particular systems for cutting fibers. United States patent US 7926537. 2011 Apr 19.
35. Hauber DE, Langone RJ, Martin JP. Composite tape laying apparatus and method. United States patent US 7063118. 2006 Jun 20.
36. Tingley MC. Add roller for a fiber placement machine. United States patent US 7628882. 2009 Dec 08.
37. Oldani T, Jarvi D. Performing high-speed events "on-the-fly" during fabrication of a composite structure by automated fiber placement. United States patent US 7513965. 2009 Apr 7.
38. Vaniglia MM. Motorized cut and feed head. United States patent US 7849903. 2010 Dec 14.
39. Zhang W, Liu F, Lv Y, Ding X. Design and analysis of a metamorphic mechanism for automated fibre placement. Mech Mach Theory 2018;130:463–76.
40. Liu F, Zhang W, Xu K, et al. A planar mechanism with variable topology for automated fiber placement. 2018 Int. Conf. Reconfigurable Mech. Robot; 2018. p. 1–6.

Automated Fiber Placement (AFP) technology has revolutionized the manufacturing of composite structures across various industries. As we explore the intricacies of this advanced manufacturing process, we'll also highlight innovative solutions from companies like Addcomposites, a Finnish pioneer in AFP technology.

The Limitations of Traditional Materials

In the quest for superior performance across various industries, engineers have long grappled with the limitations of traditional materials. Plastics, while lightweight and easily moldable, often fall short in strength and stiffness, making them unsuitable for many high-performance applications. Metals, the backbone of engineering for centuries, offer excellent strength and durability but at the cost of high density, a critical drawback in weight-sensitive fields like aerospace and automotive engineering.

‍The Promise and Challenges of Composite Materials

Enter composite materials – a revolutionary solution that combines the best attributes of different material classes. Composites offer an enticing array of possibilities: structures that are incredibly strong yet remarkably light, with customizable thermal properties and design flexibility. From aircraft components lighter than aluminum yet stronger than steel to wind turbine blades that withstand immense forces while maintaining optimal aerodynamics, composites have opened new frontiers in material engineering.

However, the road to composite supremacy was initially paved with significant challenges:

1. High Manufacturing Costs: Early composite production was labor-intensive and expensive.
2. Material Expenses: Advanced fibers and resins came with hefty price tags.
3. Equipment Investment: Specialized machinery for composite manufacturing required substantial capital.

The Rise of Automated Fiber Placement (AFP)

Automated Fiber Placement (AFP) technology emerged as a game-changer, addressing many of the challenges associated with composite manufacturing. The evolution of AFP has been nothing short of remarkable:

1. Labor Reduction: AFP systems have dramatically reduced the need for manual labor, replacing teams of skilled workers with efficient, precise machines operated by a single technician.
2. Material Cost Optimization: As AFP technology matured, it drove demand for composite materials, leading to increased production and lower costs. Today, many composite materials are competitively priced against traditional engineering materials.
3. Accessible Equipment: Once the domain of aerospace giants with multi-million euro budgets, AFP systems are now available at a fraction of their original cost. Entry-level systems can be acquired for just a few thousand euros, democratizing access to this technology.
4. Increased Efficiency and Quality: AFP systems offer unparalleled precision and repeatability, significantly improving part quality while reducing material waste.

The Current Landscape and Future Potential

Today, AFP technology stands at the forefront of advanced manufacturing, poised to revolutionize industries far beyond its aerospace origins. From automotive to renewable energy, from marine applications to the burgeoning field of humanoid robotics, AFP is opening new possibilities in design and production.

Overview of the Article

This comprehensive exploration of Automated Fiber Placement technology will guide you through:

1. Understanding AFP: A deep dive into the core concepts, components, and capabilities of AFP systems.
2. The AFP Process: A step-by-step breakdown of how AFP works, from material preparation to final layup.
3. Materials and AFP: An examination of the diverse materials compatible with AFP and how they influence the process.
4. Engineering Challenges and Solutions: Insights into the technical hurdles faced in AFP and innovative solutions developed.
5. Applications and Case Studies: Real-world examples of AFP in action across various industries.
6. The Future of AFP Technology: A look at emerging trends and potential future developments in the field.

As we embark on this journey through the world of Automated Fiber Placement, prepare to discover how this technology is not just changing the way we manufacture but also expanding the boundaries of what's possible in material engineering and product design. Whether you're an industry professional, an engineering student, or simply curious about cutting-edge technology, this exploration of AFP will provide you with a comprehensive understanding of a technology that's shaping the future of manufacturing.

Definition and Basic Concept

Automated Fiber Placement (AFP) is an advanced manufacturing process designed to efficiently create complex composite structures. At its core, an AFP system draws composite material from a storage unit, routes it through a sophisticated delivery system, and precisely places it onto a substrate using a combination of heat and pressure.

The process begins with material spools, which may include a backing film for certain materials like thermoset prepregs. The composite tape is then guided through a cut, clamp, and feed (CCF) mechanism before being applied to the substrate. This basic process remains consistent across various material types, including thermosets, thermoplastics, and dry fibers, with minor adjustments to accommodate each material's specific requirements.

‍

Historical Context

The journey of AFP technology began in the late 1960s and early 1970s, evolving from earlier composite manufacturing techniques. The concept of using individual tows instead of wide tapes was first documented in 1974, marking a significant shift from Automated Tape Laying (ATL) methods.

Hercules Aerospace (now part of ATK) and Cincinnati Machine were pioneers, starting development of AFP systems in the early 1980s. These early machines combined the differential payout capability of filament winding with the compaction and cut-restart capabilities of ATL. By the late 1980s, AFP machines became commercially available and were adopted by major aerospace companies like Boeing, Lockheed, and Northrop.

The 1990s saw significant advancements in AFP technology. Systems capable of delivering up to 24 tows at once were developed, dramatically increasing productivity. The ability to steer fibers along curvilinear paths was a game-changer, allowing for more complex geometries and optimized fiber orientations.

The turn of the millennium brought focus to improving process reliability and productivity. Innovations in automated inspection, high-speed systems, and modular AFP heads marked this era. By 2010, highly accurate robots were demonstrating remarkable precision, with a 3-sigma accuracy of ±0.08 mm.

Today, AFP technology continues to evolve, with current research focusing on high-throughput systems, minimal defect layups, and in-situ thermoplastic processing. The integration of AFP with other advanced manufacturing technologies promises to further expand its capabilities and applications.

Key Components of an AFP System

1. Fiber Placement Head: The fiber placement head is the heart of the AFP system. Typically mounted on a robotic arm or gantry, it's a marvel of precision engineering. The key components of an AFP system include the fiber placement head, motion platform, material delivery system, control system, and software system.The head houses the material guiding system, which ensures the composite tapes are fed smoothly and accurately. The cut, clamp, and feed (CCF) mechanism is a critical component, allowing for precise control over tow length and placement. Integrated heating elements, which may use technologies like infrared or laser heating, ensure the material reaches the optimal temperature for adhesion. An array of sensors, including thermal sensors and laser line scanners, constantly monitor the process, providing real-time data for quality control and placement accuracy.
2. Motion Platform: While gantry systems were once the norm, robotic arms have become the gold standard in AFP systems. This shift is due to their exceptional continuous path following accuracy, often achieving tolerances measured in fractions of a millimeter. The flexibility of robotic arms allows them to navigate complex geometries with ease, reaching angles and positions that would be challenging for traditional gantry systems. Modern robotic systems offer plug-and-play compatibility with AFP heads, significantly reducing setup time and complexity. This accessibility has democratized AFP technology, making it available to a broader range of manufacturers.
3. Material Delivery System: The material delivery system is a sophisticated network of spools, guides, and tensioners that ensure a consistent supply of composite material to the placement head. Managing multiple spools simultaneously is a complex task, requiring precise control over tension and feed rates for each individual tow. This system must adapt to different material types, from sticky thermoset prepregs to dry fibers, each with its own handling characteristics. Advanced systems may include climate-controlled storage for temperature-sensitive materials, ensuring consistent material properties throughout the manufacturing process.
4. Control System: The control system is the brain of the AFP operation, orchestrating the intricate dance between the robot, placement head, and material delivery system. It processes a vast amount of data in real-time, from robot positioning to material temperature and tension. At its core, the control system translates the programmed layup path into a series of coordinated movements and actions. It sends precise commands to the robot controller, dictating not just position but also speed and acceleration. Simultaneously, it manages the AFP head, triggering tow cuts, activating compaction rollers, and adjusting heating elements as needed. Advanced control systems integrate feedback from multiple sensors, allowing for on-the-fly adjustments to maintain optimal layup conditions. This might involve tweaking the heater intensity based on ambient temperature changes or adjusting compaction pressure to accommodate varying surface geometries.
5. Software System: The software system is the unsung hero of AFP technology, turning complex composite designs into manufacturable realities. It begins with sophisticated path planning algorithms that optimize fiber orientation for structural performance while considering manufacturability constraints. Simulation capabilities allow engineers to virtually test layup strategies, identifying potential issues like gaps, overlaps, or areas of excessive steering before a single fiber is placed. This predictive power significantly reduces material waste and improves first-time quality. During production, the software acts as a digital twin of the physical process, comparing real-time data from the AFP system against the simulated ideal. This allows for immediate detection of deviations and, in advanced systems, automatic correction of errors. Quality control is deeply integrated into the software, with algorithms analyzing data from various sensors to ensure each ply meets specified tolerances. This data is also archived, providing a comprehensive digital record of the manufacturing process for each part – a crucial feature for industries with stringent traceability requirements.

AFP's Versatility: Filament Winding Capabilities

Modern AFP systems have evolved to incorporate filament winding capabilities, offering a best-of-both-worlds approach that significantly expands manufacturing possibilities. This convergence of technologies represents a major leap forward in composite manufacturing flexibility.

Filament winding, traditionally used for creating cylindrical or spherical structures, excels in high-speed production of parts with continuous fiber reinforcement. By integrating these capabilities into AFP systems, manufacturers can now switch seamlessly between precise layup and high-speed winding operations within a single setup.

The advantages of this hybrid approach are numerous. For complex parts with both open and closed sections, the system can use AFP for precise layup on open surfaces and switch to filament winding for closed, cylindrical sections. This is particularly beneficial in industries like aerospace, where components often combine multiple geometric features.

The key to this versatility lies in advanced control systems and software. These systems manage the transition between AFP and winding modes, adjusting parameters like fiber tension, compaction pressure, and heating on the fly. For winding operations, the software calculates optimal winding angles and patterns, ensuring structural integrity while maximizing production speed.

Moreover, this combined capability allows for innovative manufacturing strategies. For instance, a part might start with a filament-wound core for speed and continuous reinforcement, followed by precisely placed AFP layers for local reinforcement or to create specific surface features.

The integration of AFP and filament winding capabilities in a single system not only enhances production flexibility but also opens up new possibilities in part design. Engineers can now conceive of structures that leverage the strengths of both processes, potentially leading to lighter, stronger, and more efficient composite parts.

Addcomposites' AFP Solutions

Addcomposites offers two advanced AFP systems that exemplify the latest in fiber placement technology:

AFP-XS: A compact system designed to upgrade existing robots for research and small batch production. It's capable of aerospace-grade quality layups and is compatible with a wide range of materials.

AFP-X: A robust system for high-volume production, featuring increased material capacity and advanced sensors for continuous, precise operations on complex aerospace and large components.

These systems represent significant advancements in making AFP technology more accessible and versatile across industries.

Preparing the Composite Material

The journey of automated fiber placement begins with proper material preparation. Composite materials typically come in the form of tapes, which require specific handling:

1. Storage: Depending on the material type, tapes are stored in either cold or dry environments. Thermoset prepregs, for instance, often require refrigeration to prevent premature curing.
2. Formatting: Materials may arrive in large spools and need to be transferred to smaller, machine-compatible formats.
3. Thawing: For materials stored in freezers, a crucial step is thawing. This process involves allowing the material to gradually reach room temperature, typically overnight. Proper thawing ensures the material's optimal properties for processing.
4. Environmental Control: Throughout preparation, maintaining the right environment is critical. This might involve controlling humidity for dry fibers or managing temperature for thermosets.

Loading and Feeding the Material

Once prepared, the material must be carefully loaded into the AFP system:

1. Loading: The material is mounted onto the head or material creel. This step requires precision to ensure proper alignment and tension.
2. Guiding: The tape is then threaded through an integrated set of rollers. This process demands attention to maintain consistent tension while avoiding any twisting or self-adhesion of the tape.
3. Material-Specific Challenges: Thermosets and tow pregs present unique challenges due to their tacky nature, requiring extra care to prevent sticking. Dry fibers and thermoplastics are generally easier to handle at this stage.
4. Feeding: The final step involves guiding the material into the cut, clamp, and feed (CCF) mechanism. This compact area requires careful maneuvering:some text
   • The material is gently pushed into the designated channel.
   • Operators rely on the material's stiffness to navigate through the intricate path.
   • Once in place, the feed motor can be engaged to automate further material advancement.

Precise Placement and Compaction

With the material loaded and the AFP program ready, the actual layup process begins:

1. Program Initiation: A pre-created program, developed using planning software and simulations, is loaded into the robot controller.
2. First Layer Challenges: The initial layer presents unique difficulties:some text
   • Adhesion to the mold (often metal or plastic) can be problematic.
   • Operators typically reduce speed, increase heat, and maintain lower tension for better adhesion.
   • This layer sets the foundation for subsequent plies, making precision crucial.
3. Layup Process:
   • The AFP head approaches the layup table.
   • As it moves, the tape is fed under the compaction roller.
   • A heater in front of the roller pre-heats the material and substrate.
   • The compaction roller applies pressure, bonding the new material to the substrate.
   • Throughout this process, the tape is kept under controlled tension.
4. Subsequent Layers: After the first layer, the process can often be accelerated, with adjustments to speed, heat, and tension as needed.

Cutting and Restarting

The cutting and restarting process is crucial for creating complex layups:

1. End of Pass: As the AFP head nears the end of a programmed path, it initiates a cut at a predetermined distance from the end.
2. Cutting: The CCF mechanism precisely cuts the tape.
3. Completion and Retraction: After completing the pass, the head retracts from the mold surface.
4. Repositioning: The system moves to the starting point of the next pass.
5. Restarting:
   • The feed mechanism is reengaged to advance new material.
   • Care is taken to ensure the previously laid material has cooled sufficiently to prevent sticking.
   • The process then repeats for the new pass.

Building Up Layers to Form the Final Part

As layers accumulate, several factors come into play:

1. Compaction Force Management: The system must adjust compaction force to account for the increasing thickness of the layup.
2. Thickness Compensation: Pre-preg tapes compress during layup (debulking). The AFP system must account for this reduction in thickness as layers build up.
3. Complex Geometries: For parts with features like ply drop-offs, holes, edges, or selective reinforcements, the AFP program must adapt:
   • Paths are designed to navigate around or reinforce these features.
   • Consistent pressure must be maintained to avoid over-debulking in specific areas.
4. Debulking Elimination: Proper management of these factors can often eliminate the need for separate debulking steps, streamlining the manufacturing process.
5. Quality Control: The result of this carefully managed process is a high-quality layup:
   • Minimal defects
   • Consistent fiber orientation
   • Optimal thickness control
   • Enhanced structural integrity

Through this meticulous step-by-step process, AFP systems can create complex, high-performance composite parts with a level of precision and consistency unattainable through manual methods. The ability to fine-tune each aspect of the layup process contributes to the production of lightweight, strong, and highly engineered composite structures.

Addcomposites' Software Solutions

To streamline the AFP process, Addcomposites offers sophisticated software solutions:

1. AddPath: This software optimizes path planning, simulation, and data streaming for AFP processes. It's designed to enhance efficiency and precision for teams of all sizes.
2. AddPrint: While primarily for continuous fiber 3D printing, this software complements AFP processes by offering advanced features for precise and efficient production of composite parts.

The choice of material in Automated Fiber Placement (AFP) significantly influences the manufacturing process, final product characteristics, and production economics. Let's explore the main material types used in AFP and their implications:

Prepregs

Prepregs, or pre-impregnated fibers, are the traditional go-to material for AFP in high-performance applications:

• Characteristics: Fibers pre-impregnated with partially cured resin.
• Advantages:
  • Consistent resin content and fiber distribution
  • Excellent mechanical properties
  • Well-established in aerospace and high-performance applications
• Considerations:
  • Relatively expensive
  • Require careful storage (often refrigerated) and have limited shelf life
  • Need precise temperature control during layup
• Best for: Aerospace parts and other high-performance, low-volume applications where material cost is less critical than performance.

Dry Fibers

Dry fiber tapes are increasingly popular, especially when combined with subsequent resin infusion processes:

• Characteristics: Fibers without resin, often held together with a light binder.
• Advantages:
  • Lower material cost compared to prepregs
  • Easier to store and handle (no refrigeration needed)
  • Can be combined with various resin systems post-layup
• Considerations:
  • Requires a separate infusion process (e.g., Resin Transfer Molding - RTM)
  • May have challenges with fiber alignment and control during placement
• Best for: Medium to high volume production where the cost of RTM equipment can be justified by lower material costs and higher production rates.

Thermoplastics

Thermoplastic composites offer unique advantages in AFP:

• Characteristics: Fibers impregnated with thermoplastic resin.
• Advantages:
  • Can be remelted and reshaped
  • Potential for in-situ consolidation
  • Excellent chemical resistance and impact properties
• Considerations:
  • Require higher processing temperatures
  • May need additional forming steps (e.g., thermoforming)
  • Equipment may need modifications to handle higher temperatures
• Best for: Applications requiring high toughness, chemical resistance, or the ability to be reformed. Production volume can range from low to high, depending on the specific process (in-situ consolidation vs. post-forming).

Towpregs

Towpregs represent an innovative approach to prepreg manufacturing:

• Characteristics: Tows directly impregnated with resin during the fiber manufacturing process.
• Advantages:
  • Lower cost compared to traditional prepregs
  • Excellent width and thickness control
  • No slitting process required, reducing waste and cost
• Considerations:
  • May have different handling characteristics compared to traditional prepregs
  • Less established in some industries compared to traditional prepregs
• Best for: High-volume production where material cost is a significant factor, but the performance of prepreg-like materials is desired.

Material Choice Considerations in AFP

When selecting materials for AFP, several factors come into play:

1. Production Volume:
   • Low volume, high-performance: Prepregs are often preferred.
   • Medium to high volume: Dry fibers with RTM or Towpregs become more economical.
2. Performance Requirements:
   • Aerospace-grade parts typically use prepregs for their consistent quality and established certification processes.
   • Automotive or industrial applications might lean towards thermoplastics or Towpregs for cost-effectiveness and cycle time reduction.
3. Processing Considerations:
   • Prepregs require careful temperature control and often need refrigerated storage.
   • Dry fibers need a separate infusion step but offer more flexibility in resin selection.
   • Thermoplastics require higher processing temperatures but can offer faster cycle times with in-situ consolidation.
4. Cost Factors:
   • Material cost: Prepregs > Thermoplastics > Towpregs > Dry Fibers (generally)
   • Equipment cost: Consider additional systems like RTM for dry fibers or high-temperature capabilities for thermoplastics.
5. Industry and Certification:
   • Aerospace industry often requires the use of certified prepreg systems.
   • Automotive and industrial sectors may have more flexibility to adopt newer materials like Towpregs.

The choice of material in AFP is not just about the final part properties, but also about optimizing the entire manufacturing process. As AFP technology continues to evolve, the ability to process a wide range of materials efficiently is becoming a key factor in its adoption across various industries. The trend towards materials like Towpregs showcases the industry's drive towards combining high performance with cost-effectiveness, potentially opening up new applications for AFP technology.

Material Versatility with Addcomposites

Addcomposites' AFP systems, particularly the AFP-XS, showcase remarkable material versatility:

• Compatible with Towpreg, Thermoset, Thermoplastic, and Dry fiber materials
• Capable of handling experimental materials
• Supports material widths from ¼" to 1"
• Can function as both Automated Tape Laying and Filament Winding systems

This versatility allows manufacturers to explore a wide range of composite materials and manufacturing techniques using a single system.

Automated Fiber Placement (AFP) technology, while advanced, still faces several engineering challenges. However, innovative solutions and evolving technologies are continuously addressing these issues, making AFP more accessible and efficient.

Managing Curved Surfaces and Complex Geometries

Challenge:

• Material stiffness limits draping capabilities, leading to issues like bridging on sharp corners and edges.
• Steering paths on curved surfaces to maintain fiber orientation can cause defects.

Solutions:

1. Advanced Path Planning: Sophisticated software simulations to optimize fiber placement strategies.
2. Design for Manufacturability: Collaborating with designers to create AFP-friendly part geometries.
3. Innovative Layup Strategies: Implementing patch placements to manage challenging areas.
4. Adaptive Programming: Utilizing dynamic control systems to adjust placement in real-time.

Heat Management and Consolidation

Challenge:

• Crucial for thermoplastics and important for prepreg debulking.
• Balancing heat application, compaction force, and layup speed for optimal bonding.

Solutions:

1. Material Preparation: Proper dehydration of hygroscopic materials before processing.
2. Temperature Control: Precise management of material, room, and tooling temperatures.
3. Process Parameter Optimization: Fine-tuning heat application, compaction force, and layup speed.
4. Real-time Monitoring: Implementing NDI sensors for immediate feedback on bond quality.
5. Adaptive Systems: Developing systems that can adjust parameters on-the-fly based on sensor feedback.

Defect Prevention and Quality Control

Challenge:

• Various defects like wrinkling, bridging, gaps, and overlaps can occur due to material, machine, or programming issues.

Solutions:

1. Advanced Inspection Systems: Integrating laser scanners, cameras, and thermal imaging for real-time defect detection.
2. Layer-by-Layer Quality Check: Implementing software that assesses each layer before proceeding to the next.
3. Adaptive Manufacturing: Developing systems that can pause production or suggest corrections based on quality data.
4. Predictive Modeling: Using AI and machine learning to anticipate and prevent defects before they occur.

Budgetary Challenges and Accessibility

Challenge:

• Traditional AFP machines are expensive to purchase, operate, and maintain.
• High complexity systems require multiple operators and extensive programming time.

Solutions:

1. Compact AFP Systems: Developing smaller, more versatile systems that can transform existing robots into AFP machines.
2. Simplified Operation: Creating user-friendly interfaces that allow a single operator to program, run, and maintain the system.
3. Multi-functional Systems: Designing AFP heads that can also perform filament winding, increasing versatility and value.
4. Cost-Effective Entry Points: Offering more affordable systems to make AFP technology accessible to smaller companies and research institutions.

Material-Specific Challenges

1. Towpregs

Challenge: Higher resin content leading to more residue in the AFP system.

‍Solution: Implementing regular cleaning routines and designing systems for easy maintenance access.

2. Prepregs

Challenge: Potential for resin buildup, though less than towpregs.

‍Solution: Developing streamlined cleaning processes and using materials optimized for AFP processing.

3. Dry Fibers

Challenge: Accumulation of fiber debris in narrow channels, particularly in the cutter area.

‍Solution:

• Designing systems with easily accessible cleaning points.
• Implementing regular maintenance schedules to clear debris accumulation.

4. Thermoplastics

Challenge: High heat exposure causing roller degradation.

‍Solution:

• Implementing water-cooled roller systems.
• Developing heat-resistant materials for roller construction.
• Designing quick-change roller systems for easy maintenance.

Ongoing Developments and Future Directions

1. Integrated Design and Manufacturing: Closer collaboration between part designers and AFP engineers to create optimized designs for AFP manufacturing.
2. AI and Machine Learning Integration: Developing intelligent systems that can learn from past runs to optimize future productions.
3. Hybrid Systems: Creating AFP systems that can easily switch between different material types and processing methods.
4. In-situ Quality Assurance: Advancing technologies for real-time, in-process quality control and defect correction.
5. Sustainable Manufacturing: Developing AFP processes that minimize waste and energy consumption, aligning with green manufacturing initiatives.

By addressing these challenges with innovative solutions, the AFP industry is moving towards more accessible, efficient, and versatile systems. The shift from large, complex machines to more compact, user-friendly systems is democratizing AFP technology, making it available to a broader range of industries and applications. This evolution is not only solving existing problems but also opening up new possibilities in composite manufacturing.

Addcomposites' Innovative Solutions

Addcomposites addresses several key challenges in AFP technology:

1. Accessibility: By offering AFP systems starting at €3499 per month, Addcomposites makes this technology accessible to a broader range of manufacturers and researchers.
2. Versatility: The ability to convert any pre-existing robot into an AFP system works with all major robotic brands, reducing the need for specialized equipment.
3. Quality Control: AddPath software provides real-time digital twin capabilities, enhancing quality control and process optimization.
4. Multi-functionality: Addcomposites' systems can switch between AFP and filament winding modes, offering greater flexibility in manufacturing processes.

Automated Fiber Placement (AFP) technology has found its way into a diverse range of industries, revolutionizing the manufacturing of composite structures. From traditional aerospace applications to emerging fields like humanoid robotics, AFP systems are proving their versatility and value. Let's explore the key applications and case studies across various sectors:

Aerospace Industry

In the aerospace industry, AFP technology has found applications in manufacturing traditional aircraft components such as fuselage sections, wing structures, nose cones, and floor panels

1. Traditional Aircraft Components:
   • Fuselage sections
   • Wing structures
   • Nose cones
   • Floor panels and stiffeners
2. Evolving Materials and Rapid Prototyping:
   • Versatile AFP systems like AFP-XS enabling quick material changes
   • Adaptation to thin materials, dry fibers, and thermoplastics
   • Rapid validation of new composite materials for aerospace applications
3. Urban Air Mobility: Flying Taxis and Small Aircraft:
   • Compact AFP systems ideal for manufacturing smaller aircraft structures
   • Electric motor sleeves for high-RPM efficiency
   • Hydrogen fuel tank production for extended range capabilities
   • Drone components for both civilian and military applications

Space Industry

1. Satellite Structures:
   • Transition from hand layup to automated processes for increased production volumes
   • Manufacture of structural components for small satellites
2. Launch Vehicles:
   • Interstage structures
   • Nozzle components
   • High-pressure tanks
3. Combined AFP and Filament Winding Capabilities:
   • Versatile production of various space vehicle components
   • Enabling cost-effective manufacturing for the growing commercial space sector

Defense Sector

1. Military Aircraft:
   • Fighter plane fuselages and wings
   • Lightweight, high-performance structural components
2. Missile Systems:
   • Lighter, more precise missile structures
3. Unmanned Aerial Vehicles (UAVs):
   • Rapid production of lightweight, durable drone structures
   • Enhancing strategic capabilities through advanced composite manufacturing

Automotive Industry

In the automotive sector, AFP is being used to produce lightweight body panels, impact-resistant structures, and components for electric and hydrogen-powered vehicles

1. Clean Energy Transition:
   • Hydrogen fuel tanks for passenger cars and trucks
   • Electric motor sleeves combining carbon and glass fibers
2. Structural Components:
   • Lightweight body panels
   • Impact-resistant structures
3. Material Hybridization:
   • Combining thermoset and thermoplastic materials for optimal performance
   • Integration of carbon and glass fibers in single components

Humanoid Robots

1. Structural Components:
   • Lightweight yet rigid limbs, torsos, and head structures
   • Impact-resistant designs for improved durability
2. Functional Integration:
   • RF-transparent structures for enhanced communication capabilities
   • Sensor integration within composite structures
3. Sustainability Considerations:
   • Use of recyclable composite materials
   • Design for disassembly and material recovery

Marine Industry

1. High-Performance Vessels:
   • Hydrofoils for increased speed and efficiency
   • Lightweight masts and hull structures
2. Recreational Boating:
   • Composite hulls and decks for improved performance and longevity

Clean Energy Sector

In the clean energy sector, AFP technology is being employed for the production of efficient, large-scale wind turbine blades

1. Wind Energy:
   • Production of efficient, large-scale wind turbine blades (up to 50-60 meters)
   • Integration of AFP with 3D printing for complex blade designs
   • Sensor integration for smart blade monitoring
2. Solar Energy:
   • Lightweight support structures for solar panels
   • Potential for integrated solar cell and composite structure manufacturing

Benefits of AFP Over Manual Processes

1. Consistent Quality:
   • Repeatable, precise fiber placement
   • Reduction in human error and variability
2. Data-Driven Manufacturing:
   • Comprehensive quality data capture for each part
   • Enables continuous process improvement and traceability
3. Cost-Effectiveness:
   • Lower total cost of ownership for components
   • Reduced material waste through optimized fiber placement
4. Energy Efficiency:
   • Lower energy consumption in both manufacturing and end-use applications
   • Lightweight structures contributing to overall system efficiency
5. Flexibility and Rapid Adaptation:
   • Quick changeover between different materials and part designs
   • Enables cost-effective small batch production and prototyping
6. Sustainability:
   • Reduced material usage through precise placement
   • Potential for easier recycling and material recovery in some applications

The versatility of modern AFP systems, particularly compact and adaptable designs, is enabling a new era of composite manufacturing across these diverse sectors. By offering consistent quality, data-driven production, and the ability to work with a wide range of materials, AFP technology is not only improving existing applications but also opening doors to new possibilities in composite structure design and manufacturing. As industries continue to demand lighter, stronger, and more efficient components, AFP systems are poised to play an increasingly crucial role in meeting these evolving needs.

Addcomposites in Action

Addcomposites' solutions have found applications across various industries:

1. Aerospace and Space: The AFP-XS and AFP-X systems are proven in aerospace applications, offering the precision and quality required for this demanding sector.
2. Automotive: Addcomposites' systems enable the production of lightweight, high-performance components for the automotive industry.
3. Marine and Energy: The versatility of Addcomposites' AFP systems makes them suitable for producing large-scale components in these sectors.
4. Research and Development: With over 40 AFP-XS systems installed worldwide, Addcomposites has become a favorite among research institutions for its unparalleled versatility and modularity.

As Automated Fiber Placement (AFP) technology continues to evolve, it is poised to play an increasingly crucial role in advanced manufacturing. The future of AFP is characterized by greater versatility, integration with other technologies, and expansion into new markets. Here are the key trends and developments shaping the future of AFP:

Integration with Robotics and Automation

1. Compact and Versatile Systems:
   • Development of adaptable AFP systems that can be easily integrated with existing industrial robots
   • Increasing adoption in various industries due to improved accessibility and flexibility
2. Humanoid Robot Manufacturing:
   • AFP systems tailored for producing lightweight, strong components for humanoid robots
   • Enabling the production of complex, multi-functional parts for the growing robotics industry

Advanced Software and Digital Integration

The future of AFP technology is characterized by enhanced software capabilities for path planning, process simulation, and optimization, integrating design, manufacturing, and quality assurance into a unified digital ecosystem

1. Comprehensive Simulation and Planning:
   • Enhanced software capabilities for path planning, process simulation, and optimization
   • Integration of design, manufacturing, and quality assurance into a unified digital ecosystem
2. Digital Twin Technology:
   • Real-time monitoring and adjustment of AFP processes through digital twin implementations
   • Improved quality control and process optimization through continuous data feedback loops
3. Cross-Process Digital Thread:
   • Seamless data flow between AFP and other manufacturing processes
   • Optimization of the entire production chain, from design to final assembly

Material Innovations and Multi-Material AFP

The development of integrated hybrid manufacturing cells, combining AFP, filament winding, and additive manufacturing in single, flexible production units, represents a significant trend in the evolution of AFP technology

1. Rapid-Cure Resins:
   • Development of fast-processing composites to increase production rates
   • Chemical innovations to reduce overall processing steps and cure times
2. Advanced Thermoplastics:
   • Improvements in thermoplastic bonding technologies for faster processing
   • Integration of sophisticated heating and compaction algorithms for optimal bonding
3. Multi-Material Capabilities:
   • AFP systems capable of rapidly switching between different fiber types (e.g., carbon, glass)
   • Enabling the production of hybrid composites with optimized performance and cost

Convergence with Additive Manufacturing

1. Moldless AFP Manufacturing:
   • Integration of large-format additive manufacturing with AFP processes
   • 3D printed tooling and support structures for AFP layup
2. Structural Continuous Fiber 3D Printing:
   • Development of hybrid systems combining AFP principles with additive manufacturing
   • Enabling the creation of complex, fiber-reinforced structures without traditional molds
3. Integrated Hybrid Manufacturing Cells:
   • Combining AFP, filament winding, and additive manufacturing in single, flexible production units
   • Adaptive manufacturing systems capable of switching between processes as needed

Expanding Applications and Markets

1. Urban Air Mobility:
   • Tailored AFP solutions for manufacturing flying taxis and small aircraft
   • Rapid prototyping and production of lightweight, high-performance aerospace structures
2. Sustainable Transportation:
   • AFP systems optimized for producing components for electric vehicles and hydrogen fuel systems
   • Lightweight structures contributing to improved energy efficiency in transportation
3. Renewable Energy Structures:
   • Advanced AFP techniques for manufacturing larger, more efficient wind turbine blades
   • Integration of smart materials and sensors in composite energy-generating structures
4. Infrastructure and Construction:
   • Exploration of AFP applications in creating lightweight, durable structural components for buildings and bridges
   • Potential for on-site AFP manufacturing in large-scale construction projects

Sustainability and Cost Reduction

1. Material Efficiency:
   • Continued improvements in fiber placement accuracy to minimize material waste
   • Development of recycling-friendly composite materials and structures
2. Energy-Efficient Processing:
   • Advancements in low-energy curing technologies for thermoset composites
   • Optimized heating and cooling cycles for thermoplastic AFP
3. Accessible Technology:
   • Reduction in AFP system costs to make the technology accessible to smaller businesses
   • Development of modular, scalable AFP solutions for various production volumes
4. New Material Sources:
   • Exploration of sustainable and bio-based fibers and resins for AFP processes
   • Integration of recycled materials into high-performance composite structures

The future of AFP technology is characterized by its increasing versatility, integration with other advanced manufacturing technologies, and expansion into new markets. As AFP systems become more compact, adaptable, and cost-effective, they are likely to find applications in a wider range of industries, from aerospace and automotive to robotics and sustainable energy.

The convergence of AFP with additive manufacturing, advanced robotics, and sophisticated digital tools is set to revolutionize how complex composite structures are designed and produced. This evolution will not only enhance the capabilities of AFP but also contribute to more sustainable, efficient, and innovative manufacturing practices across various sectors.

As these technologies mature, we can expect to see AFP playing a crucial role in addressing global challenges, from climate change mitigation through lightweight transportation to the development of advanced robotics for various applications. The future of AFP is not just about improving existing processes, but about reimagining what's possible in composite manufacturing and opening new frontiers in material science and engineering.

Addcomposites' Vision for the Future

Addcomposites is at the forefront of several trends shaping the future of AFP technology:

1. Integration with 3D Printing: The SCF3D system represents Addcomposites' foray into structural continuous fiber 3D printing, complementing traditional AFP processes.
2. Customized Manufacturing Cells: AddCell offers tailored robotic cell solutions, enabling seamless integration of AFP technology into existing manufacturing environments.
3. Sustainable Manufacturing: By optimizing material usage and enabling the use of various fiber types, Addcomposites' systems contribute to more sustainable composite manufacturing practices.
4. Democratization of AFP Technology: Through cost-effective solutions and user-friendly software, Addcomposites is making AFP technology accessible to a broader range of manufacturers, from small businesses to large OEMs.

As AFP technology continues to evolve, companies like Addcomposites are playing a crucial role in driving innovation, improving accessibility, and expanding the applications of this transformative manufacturing process.

As we've explored throughout this comprehensive look at Automated Fiber Placement (AFP) technology, it's clear that we are witnessing a revolutionary shift in composite manufacturing. AFP has not only overcome many of the initial challenges associated with composite production but has also opened up new possibilities in design, efficiency, and application across a wide range of industries.

Key Takeaways

1. Technological Evolution: AFP has progressed from a niche, high-cost technology to an increasingly accessible and versatile manufacturing process. The development of compact, adaptable systems has democratized access to advanced composite manufacturing.
2. Material Advancements: The symbiotic relationship between AFP technology and material science has driven innovations in both fields. From rapid-cure resins to advanced thermoplastics and multi-material capabilities, AFP is pushing the boundaries of what's possible with composite materials.
3. Expanding Applications: While aerospace remains a key industry for AFP, we've seen how this technology is making significant inroads into automotive, renewable energy, marine, and even emerging fields like humanoid robotics. The versatility of AFP is opening up new markets and applications previously unthinkable for composite structures.
4. Integration and Digitalization: The convergence of AFP with other advanced manufacturing technologies, particularly additive manufacturing and sophisticated digital tools, is creating new paradigms in production. Digital twins, comprehensive simulation capabilities, and integrated manufacturing cells are setting new standards for efficiency and quality control.
5. Sustainability Impact: AFP's precision and efficiency are contributing to more sustainable manufacturing practices. By optimizing material usage, enabling lightweight designs, and facilitating the use of recycled or bio-based materials, AFP is aligned with global efforts towards more environmentally friendly production methods.

Looking to the Future

The future of AFP technology is bright and full of potential. As systems become more compact, versatile, and cost-effective, we can expect to see AFP playing a crucial role in addressing some of the most pressing challenges of our time:

• Climate Change Mitigation: Through the production of lightweight structures for transportation and renewable energy systems.
• Advanced Robotics: Enabling the creation of high-performance, multi-functional components for next-generation robots.
• Sustainable Infrastructure: Exploring new applications in construction and civil engineering for durable, lightweight structures.
• Space Exploration: Facilitating the production of advanced spacecraft and satellite components, supporting the growing commercial space industry.

The ongoing developments in AFP technology – from enhanced process control and multi-material capabilities to integration with additive manufacturing – promise to further expand its capabilities and applications. As the technology continues to mature, we can anticipate more industries recognizing the potential of AFP to revolutionize their manufacturing processes and product designs.

Final Thoughts

Automated Fiber Placement stands at the intersection of materials science, robotics, and digital manufacturing. It represents not just an improvement in how we make things, but a fundamental shift in what we can make. As we look to a future that demands stronger, lighter, and more efficient structures across all sectors, AFP emerges as a key enabling technology.

For engineers, designers, and industry leaders, staying abreast of AFP developments will be crucial in maintaining a competitive edge. For researchers and innovators, AFP presents a rich field for exploration, with the potential for groundbreaking discoveries in materials, processes, and applications.

The journey of AFP from a specialized aerospace technology to a versatile, accessible manufacturing process is a testament to the power of innovation and the importance of cross-disciplinary collaboration. As we continue to push the boundaries of what's possible with composites, AFP will undoubtedly play a central role in shaping the future of manufacturing and material science.

In conclusion, Automated Fiber Placement is not just a manufacturing technology; it's a gateway to new possibilities in design, efficiency, and sustainability across industries. As we move forward, the potential of AFP to transform our world – from the cars we drive to the energy we harness and even the robots that may one day work alongside us – is limited only by our imagination and ingenuity.

1. Wambua P, Ivens J, Verpoest I. Natural fibres: can they replace glass in fibre reinforced plastics? Compos Sci Technol 2003;63(9):1259–64.
2. Oldani T. Fiber placement machine platform system having interchangeable head and creel assemblies. United States patent US 20090095410. 2009 Apr 10.
3. Lindback JE, Bjornsson A, Johansen K. New automated composite manufacturing process: Is it possible to find a cost effective manufacturing method with the use of robotic equipment? 5th Int. Swedish Prod. Symp; 2012 Nov 6-8; Linkoping, Sweden. 2012. p. 523–31.
4. Grimshaw MN, Grant CG, Diaz JML. Advanced technology tape laying for affordable manufacturing of large composite structures. Int. Sampe Symp. Exhib. 2001;2484–94.
5. Skinner ML. Trends, advances and innovations in filament winding. Reinf Plast 2006;50(2):28–33.
6. Smith F, Grant C. Automated processes for composite aircraft structure. Ind Robot An Int J 2006;33(2):117–21.
7. Evans DO. Handbook of composites. Boston, MA: Springer US; 1998. p. 476–87.
8. Astrom BT. Manufacturing of Polymer Composites. 1997.
9. Campbell JFC. Manufacturing processes for advanced composites. 2003.
10. Gutowski TGP. Advanced Composites Manufacturing. 1997.
11. Sloan J. ATL and AFP: Defining the megatrends in composite aerostructures. 2008.
12. Lukaszewicz D-J-A, Ward C, Potter KD. The engineering aspects of automated prepreg layup: History, present and future. Compos Part B Eng 2012;43(3):997–1009.
13. Frketic J, Dickens T, Ramakrishnan S. Automated manufacturing and processing of fiber-reinforced polymer (FRP) composites: An additive review of contemporary and modern techniques for advanced materials manufacturing. Addit Manuf 2017;14:69–86.
14. Kozaczuk K. Automated fiber placement systems overview. 2016.
15. August Z, Ostrander G, Michasiow J, et al. Recent developments in automated fiber placement of thermoplastic composites. SAMPE J 2014;50(2):30–7.
16. Madhok KS. Comparative characterization of out-of-autoclave materials made by automated fiber placement and hand-lay-up processes [dissertation]. Montreal: Concordia University; 2013.
17. Flynn R, Rudberg T, Stamen J. Automated fiber placement machine developments: Modular heads, tool point programming and volumetric compensation bring new flexibility in a scalable AFP cell. SME Compos. Manuf. Conf. Dayton, OH; 2011.
18. Marsh G. Automating aerospace composites production with fibre placement. Reinf Plast 2011;55(3):32–7.
19. Izco L, Isturiz J, Motilva M. High speed tow placement system for complex surfaces with cut / clamp / & restart capabilities at 85 m/min (3350 IPM). 2006. Report No.: 2006-01-3138.
20. Sorrentino L, Carrino L, Tersigni L, et al. Innovative tape placement robotic cell: High flexibility system to manufacture composite structural parts with variable thickness. J Manuf Sci Eng 2009;131(4):041002.
21. Raspall F, Velu R, Vaheed NM. Fabrication of complex 3D composites by fusing automated fiber placement (AFP) and additive manufacturing (AM) technologies. Adv Manuf Polym Compos Sci 2019;5(1):6–16.
22. Gan D, Dai JS, Dias J, Umer R, Seneviratne L. Singularity-free workspace aimed optimal design of a 2T2R parallel mechanism for automated fiber placement. J Mech Robot 2015;7(4).
23. Zhang X, Xie W, Hoa SV, et al. Design and analysis of collaborative automated fiber placement machine. Int J Adv Robot Autom 2016;1:1–14.
24. Rousseau G, Wehbe R, Halbritter J, Harik R. Automated fiber placement path planning: A state-of-the-art review. Comput Aided Des Appl 2019;16(2):172–203.
25. Goldsworthy WB. Geodesic path length compensator for composite-tape placement method. United States patent US 3810805. 1974 May 14.
26. Wisbey JD. Multi-tow fiber placement machine with full band width clamp, cut, and restart capability. United States patent US 4943338. 1990 Jul 24.
27. Pugh JH. Strand laying head. United States patent US 4569716. 1986 Feb 11.
28. Vaniglia MM. Fiber placement head. United States patent US 5110395. 1992 May 5.
29. Borgmann RE, Evans DO. Fiber placement machine. European patent EP 1719610. 2008 Oct 29.
30. McCowin PD. Tow width adaptable placement head device and method. United States patent application US 20070029030. 2007 Feb 08.
31. Belhaj M, Deleglise M, Comas-Cardona S, et al. Dry fiber automated placement of carbon fibrous preforms. Compos Part B Eng 2013;50:107–11.
32. Zhang W, Liu F, Lv Y, Ding X. Modelling and layout design for an automated fibre placement mechanism. Mech Mach Theory 2020;144:103651.
33. Martin JP. Multiple tape laying apparatus and method. United States patent US 7293590. 2007 Nov 13.
34. Hamlyn A, Hardy Y. Applicator head for fibers with particular systems for cutting fibers. United States patent US 7926537. 2011 Apr 19.
35. Hauber DE, Langone RJ, Martin JP. Composite tape laying apparatus and method. United States patent US 7063118. 2006 Jun 20.
36. Tingley MC. Add roller for a fiber placement machine. United States patent US 7628882. 2009 Dec 08.
37. Oldani T, Jarvi D. Performing high-speed events "on-the-fly" during fabrication of a composite structure by automated fiber placement. United States patent US 7513965. 2009 Apr 7.
38. Vaniglia MM. Motorized cut and feed head. United States patent US 7849903. 2010 Dec 14.
39. Zhang W, Liu F, Lv Y, Ding X. Design and analysis of a metamorphic mechanism for automated fibre placement. Mech Mach Theory 2018;130:463–76.
40. Liu F, Zhang W, Xu K, et al. A planar mechanism with variable topology for automated fiber placement. 2018 Int. Conf. Reconfigurable Mech. Robot; 2018. p. 1–6.
