Composite materials, typically consisting of a reinforcing fiber and a polymer matrix, have emerged as a crucial element in modern EV design. Their high strength-to-weight ratio allows for significant weight reduction compared to traditional materials like steel and aluminum, directly contributing to improved energy efficiency and extended driving range¹. This is particularly important for EVs, where battery weight is a major factor affecting performance. By reducing the overall mass of the vehicle, composites enable EVs to travel further on a single charge, addressing one of the key concerns for potential EV buyers².

Types of Composite Materials

Several types of composite materials are used in EV design, each with its own set of properties and advantages:

• Carbon fiber: Known for its exceptional strength-to-weight ratio, carbon fiber is an ideal material for electric vehicles. Its lightweight nature can significantly reduce vehicle weight while providing exceptional strength and stiffness³.
• Fiberglass: Another commonly used composite material, fiberglass is both lightweight and strong. It is more affordable than carbon fiber and can still provide weight reduction benefits for electric vehicles³.
• Kevlar: Renowned for its use in bulletproof vests, Kevlar is a robust and lightweight material that can be used in electric vehicle design for added strength and impact resistance³.

Energy Harvesting Applications

Beyond lightweighting and structural applications, composite materials show promise in energy harvesting for electric vehicles. Energy harvesting involves converting ambient energy into usable electrical energy, which can reduce reliance on the vehicle's battery and enhance overall energy efficiency⁴. Composites can be used in various types of energy harvesters:

• Piezoelectric energy harvesters: These utilize piezoelectric materials, which generate an electrical charge when subjected to mechanical stress. Composites have shown high piezoelectric output, making them suitable for harvesting energy from vibrations or road-induced stresses⁴.
• Electromagnetic energy harvesters: These convert ambient electromagnetic energy into usable electrical energy. Composites with high electrical conductivity are well-suited for this application⁴.
• Thermoelectric energy harvesters: These convert heat energy into electrical energy. Composites with good thermal stability are suitable for harvesting energy from sources like exhaust gas or ambient heat⁴.

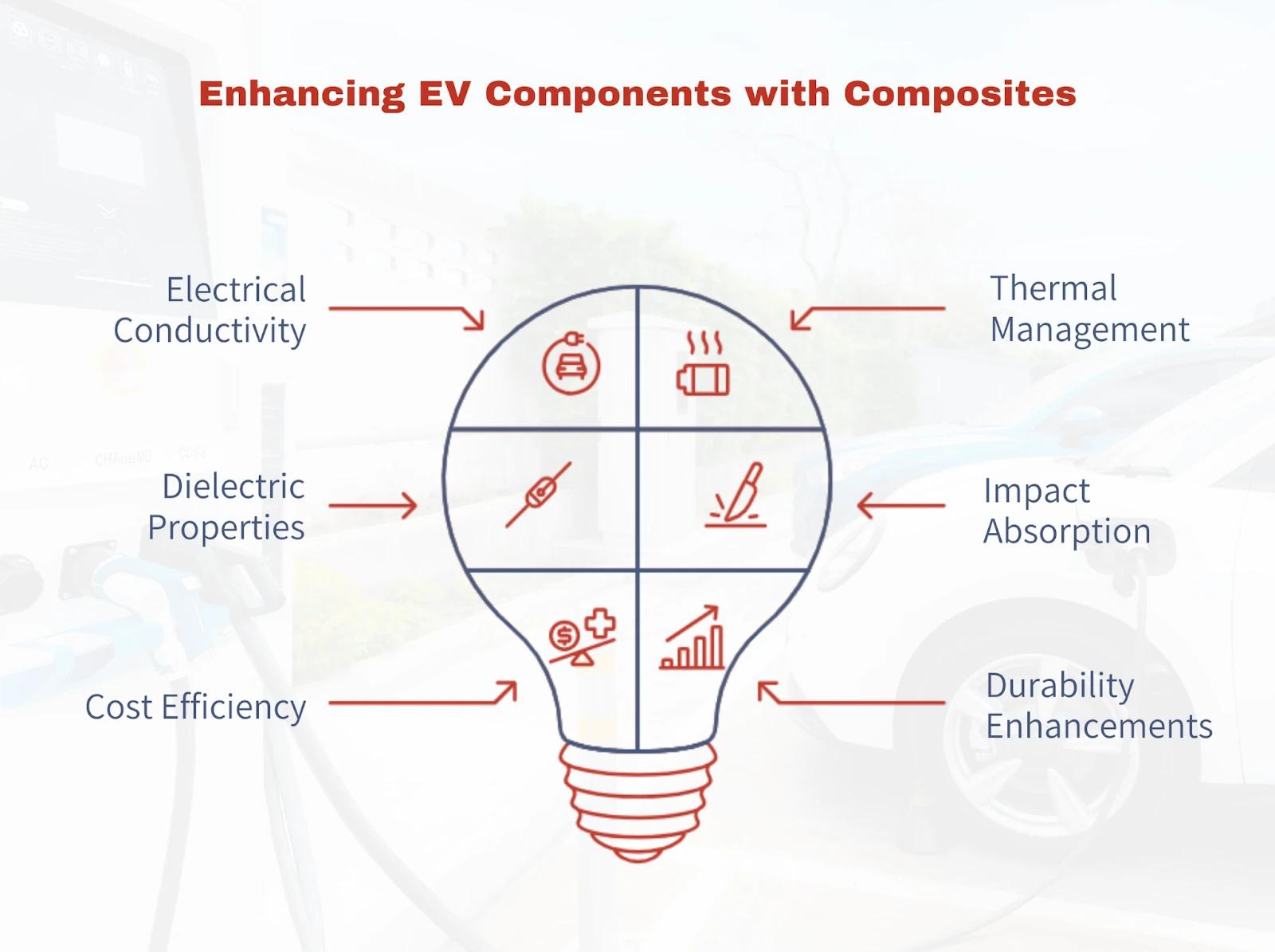

Key Insights and Advantages

Studies have shown that incorporating carbon nanotubes into a copper matrix can increase the electrical current capacity of copper wires by up to 14%, leading to more efficient and power-dense electric motors⁵. This highlights the potential of composite materials to enhance the performance of key EV components.

The ability to engineer composite materials with specific thermal properties is crucial for managing the temperature of EV batteries⁶. By effectively regulating battery temperature, composites can contribute to improved battery efficiency, lifespan, and overall vehicle performance.

Composites also exhibit dielectric properties, meaning they can act as electrical insulators⁷. This is crucial in EVs for protecting sensitive electronic components and ensuring safety.

Furthermore, composites excel at absorbing and dispersing impact energy, contributing to improved crashworthiness and passenger safety⁸.

Specifically, glass reinforced composites (GRC) offer a cost advantage compared to other high-performance materials like aluminum and titanium, making them an attractive option for EV battery enclosures and structural components⁹.

To further enhance their properties, composite materials can be modified with additions like polyurethane coatings and polyamide fibers to increase abrasion resistance¹⁰. This allows for the creation of even more durable and long-lasting components.

The EV industry is increasingly adopting automation techniques to enhance the manufacturing process of composite parts. These techniques not only improve production efficiency and reduce costs ¹¹ but also enable the creation of complex designs and optimized structures.

‍Automated Fiber Placement (AFP)

AFP is a sophisticated manufacturing process that involves the precise and automated laying of continuous fiber reinforcements onto a mold or mandrel¹². A robotic arm or gantry system, guided by advanced software, places the fibers in predetermined paths, ensuring optimal fiber orientation and compaction. This technology offers several benefits in EV manufacturing:

• Increased Precision: AFP systems can place fibers with extreme accuracy, ensuring consistent thickness and fiber orientation, which is crucial for maintaining tight tolerances and achieving desired mechanical properties¹³.
• Complexity Handling: AFP excels at creating complex geometries with ease, allowing for the production of intricate parts that would be challenging or impossible with traditional methods¹³.
• Material Efficiency: AFP minimizes material waste by precisely placing only the necessary amount of material where it's needed¹³.
• Speed: Compared to manual layup processes, AFP significantly reduces production time, making it suitable for high-volume manufacturing¹³.

From a technical standpoint, AFP allows engineers to apply classical laminate theory in new ways. By manipulating the orientation of fibers in each ply of a laminate, engineers can tailor the material's anisotropic properties to withstand specific stress profiles¹⁴. This enables the creation of highly optimized composite parts with enhanced performance.

AFP is being used in the EV industry to manufacture a variety of components, including:

• Chassis Components: AFP allows for the creation of lighter and stiffer chassis structures, enhancing vehicle dynamics and safety¹⁴.
• Battery Enclosures: AFP enables the manufacturing of robust battery enclosures that are lightweight, ensuring protection and contributing to the overall energy efficiency of electric vehicles¹⁴.
• Body Panels: AFP allows for the creation of aerodynamic, lightweight body panels with varying thicknesses and material composition, optimizing them for strength and impact resistance while contributing to fuel efficiency¹⁴.
• Motor Sleeves: AFP allows for the creation of high-strength motor sleeves using thermoplastic material while reducing weight, allowing for high rpm motors, increasing range efficiency, and better performance at higher speeds¹⁴.

Filament Winding

Filament winding is another widely used automated process for manufacturing composite parts, particularly those with cylindrical or tubular shapes¹⁵. This technique involves winding continuous fiber rovings, impregnated with resin, onto a rotating mandrel. The fibers are laid down in precise geometric patterns to create a structural solid of revolution. Filament winding offers several advantages in EV manufacturing:

• High Strength and Stiffness: Filament winding allows for precise control over fiber orientation, enabling the creation of structures with exceptional strength and stiffness in the desired directions¹⁶.
• Lightweight: The process results in lightweight components, contributing to overall vehicle weight reduction and improved efficiency¹⁶.
• Corrosion Resistance: Filament-wound structures are highly resistant to corrosion, ensuring long-term durability¹⁶.
• Cost-Effectiveness: Filament winding is a relatively cost-effective manufacturing process, especially for high-volume production¹⁵.

Filament winding is ideal for manufacturing cylindrical composite structures like pipes, compressed gas cylinders, or huge rolls. This process can be performed using either wet winding, where fibers are impregnated with resin during the winding process, or dry winding, where pre-impregnated fibers are used¹⁶.

In the EV industry, filament winding is used to manufacture components such as:

• Drive Shafts: Filament winding can create lightweight and strong drive shafts with optimized fiber orientations for transmitting torque efficiently¹⁷.
• Pressure Vessels: Filament winding is ideal for manufacturing pressure vessels used in various EV systems, such as hydrogen storage tanks¹⁸.
• Motor Sleeves: Filament winding can be used to create motor sleeves that can withstand high tension and heat, making them suitable for EV motor applications¹⁸.

Large Format Additive Manufacturing (LFAM)

LFAM is an emerging technology that combines additive and subtractive manufacturing techniques to produce large-scale parts from thermoplastic materials¹⁹. This process involves the deposition of molten thermoplastic material layer by layer, followed by machining to achieve the final shape and surface finish. LFAM offers several benefits in EV manufacturing:

• Large Part Production: LFAM can produce large and complex parts that are difficult or impossible to manufacture using traditional methods¹⁹.
• Material Efficiency: LFAM minimizes material waste by only depositing material where it's needed²⁰.
• Design Freedom: LFAM allows for the creation of intricate designs and complex geometries, enabling greater design freedom²⁰.
• Reduced Lead Times: LFAM can significantly reduce lead times compared to traditional manufacturing methods²¹.

While LFAM is still a relatively new technology in the EV industry, it has the potential to be used for manufacturing components such as:

• Body Panels: LFAM can produce large body panels with complex shapes and integrated features²¹.
• Interior Components: LFAM can create customized interior parts with intricate designs²¹.
• Molds and Tooling: LFAM can be used to produce molds and tooling for composite part manufacturing, reducing lead times and costs²¹.

Large-Format Continuous Fiber 3D Printing

Large-format continuous fiber 3D printing is another emerging technology that is gaining traction in the EV industry. This process involves the integration of continuous fibers, such as carbon or glass, into a polymer matrix during the 3D printing process²². This technology offers several advantages:

• Enhanced Strength and Stiffness: Continuous fiber reinforcement significantly enhances the strength and stiffness of 3D printed parts, making them suitable for structural applications²².
• Lightweight: The process results in lightweight components, contributing to overall vehicle weight reduction²².
• Design Flexibility: Large-format continuous fiber 3D printing allows for the creation of complex geometries and customized designs²².

In the EV industry, large-format continuous fiber 3D printing can be used to manufacture components such as:

• Structural Components: This technology can produce lightweight and high-strength structural parts for EVs, such as chassis components and body panels³.
• Battery Enclosures: Large-format continuous fiber 3D printing can create customized battery enclosures with optimized strength and weight³.
• Interior Components: This technology can produce complex and lightweight interior parts with integrated features³.

Addcomposites is a leading provider of advanced composite manufacturing solutions, offering a range of systems and software that are transforming the EV industry. Their innovative technologies are helping EV manufacturers produce lighter, stronger, and more efficient vehicles. Addcomposites is committed to making composite manufacturing more accessible and efficient, enabling wider adoption of these materials in the EV industry.

Addcomposites offers a comprehensive ecosystem of solutions for composite manufacturing, including:

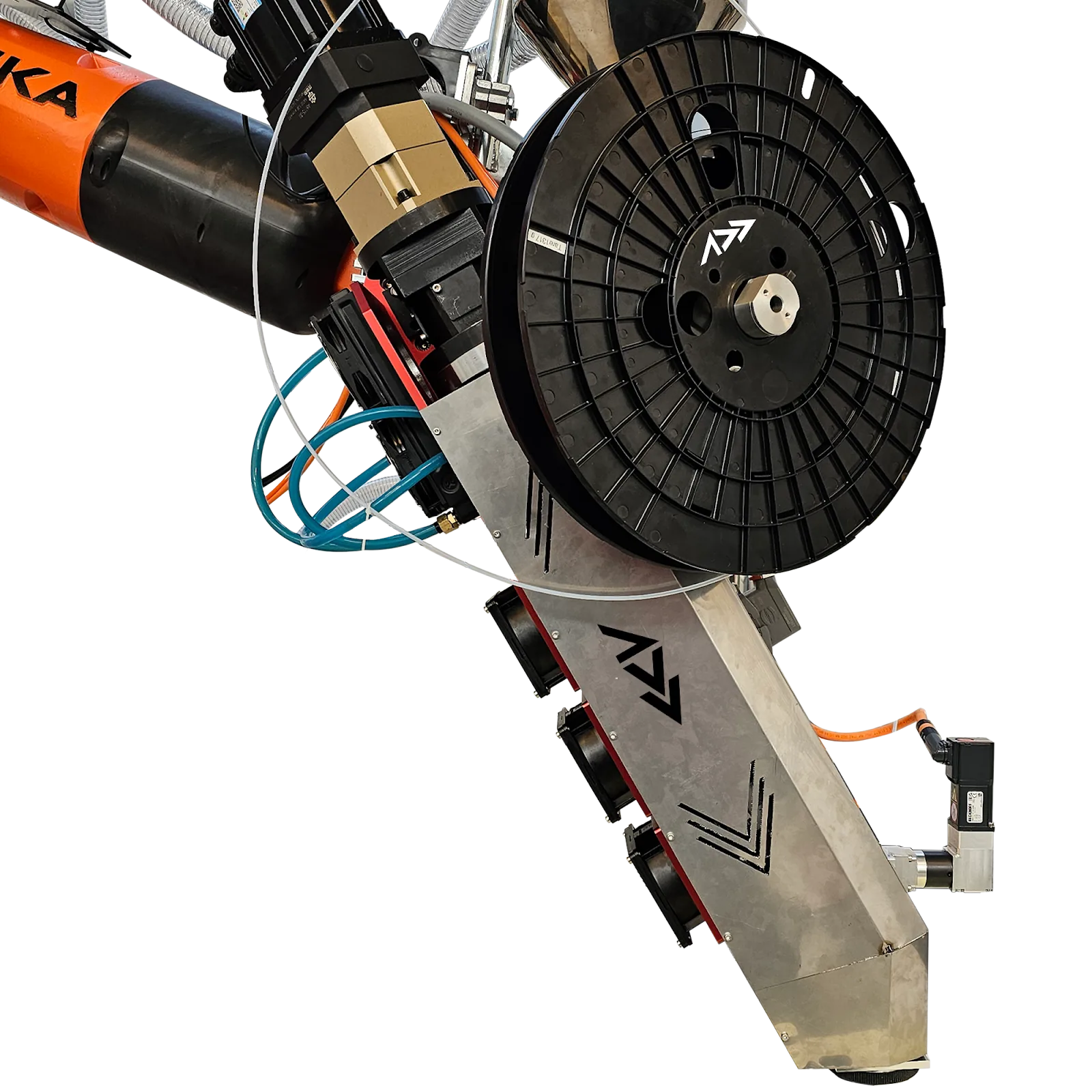

• AFP Systems: Addcomposites' AFP systems, such as the AFP-XS, are designed to meet the specific needs of EV manufacturers. These systems offer high-temperature thermoplastic compatibility, the ability to convert existing robots into AFP systems, digital twin technology for process optimization, and automated defect detection for quality control¹³. These systems are ideal for manufacturing complex EV components like chassis parts, battery enclosures, and motor sleeves.
• Filament Winding Systems: Addcomposites provides filament winding solutions that combine high-speed winding with precise fiber placement. These systems offer material flexibility, allowing manufacturers to process a wide range of materials, including thermoplastics²³. These systems are well-suited for producing EV components like drive shafts, pressure vessels, and motor sleeves.
• LFAM Systems: Addcomposites' LFAM systems offer versatile printing modes, substrate heating and compaction, and advanced process control through the AddPrint software²⁴. These systems are capable of producing large-scale EV components like body panels and interior parts.
• Large-Format Continuous Fiber 3D Printing Systems: Addcomposites is pushing the boundaries of composite 3D printing with its large-format continuous fiber 3D printing systems. These systems enhance the strength and stiffness of printed parts while maintaining lightweight and design flexibility²⁴. They are suitable for manufacturing structural components, battery enclosures, and interior parts for EVs.

AddPath Software

Addcomposites' AddPath software is a key component of their composite manufacturing ecosystem. This software provides advanced features for planning, simulating, and analyzing the composite manufacturing process. AddPath can read CAD surfaces, allowing for precise planning and execution of the manufacturing process²⁵. It also allows for the input of various parameters and provides visual notifications to guide the user. With AddPath, users can simulate programmed AFP tape courses, predict and measure the effects of various factors on their process, and plan single or multiple tow paths in one course of motion²⁵. AddPath also facilitates data analysis by allowing users to export tape course geometry to standard CAD formats and import captured data during the process for production data analysis²⁵.

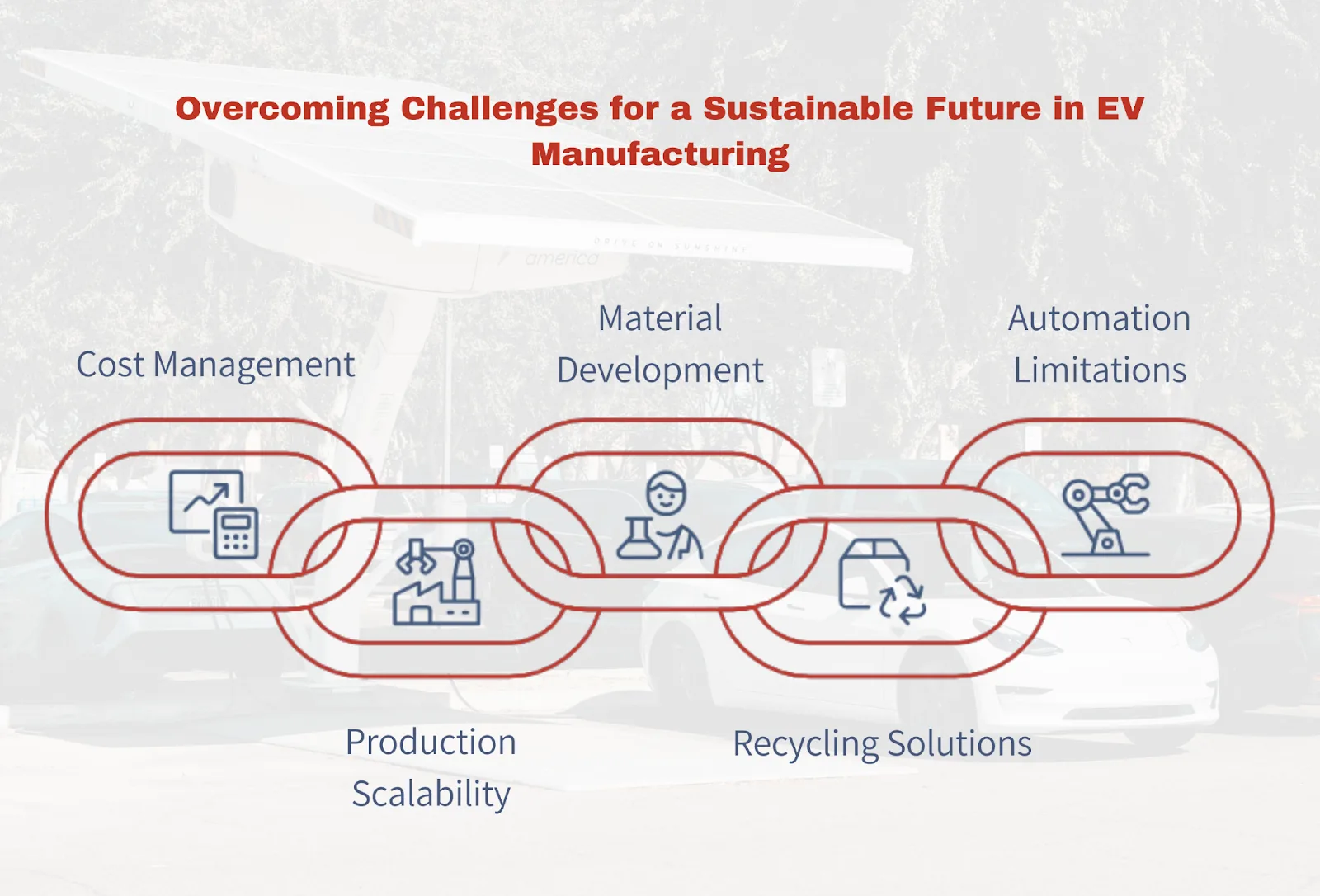

While composite materials and automation techniques offer significant advantages in EV manufacturing, there are also challenges that need to be addressed:

• Cost: Composite materials can be more expensive than traditional materials, and the initial investment in automation technologies can be substantial⁹. This can be a barrier to wider adoption, especially for smaller EV manufacturers.
• Production Scalability: Scaling up production to meet the growing demand for EVs can be challenging⁹. This requires significant investment in infrastructure, workforce training, and process optimization.
• Material Development: Ongoing research and development are needed to create new composite materials with improved properties and lower costs⁹. This includes exploring new fiber types, resin systems, and manufacturing processes.
• Recycling: Recycling of composite materials can be challenging due to the complex combination of materials involved⁹. More sustainable and efficient recycling methods need to be developed to minimize environmental impact.
• Limitations of Automation Technologies: Current automation technologies, while advanced, still have limitations²⁰. For example, LFAM is a relatively new technology with limited material options, and large-format continuous fiber 3D printing can be slower and more expensive than other methods.

Despite these challenges, the future outlook for composite materials and automation techniques in the EV industry is promising. The increasing demand for lightweight, efficient, and high-performance EVs is driving innovation in composite materials and manufacturing processes. Automation technologies are becoming more sophisticated and cost-effective, making them more accessible to EV manufacturers. Addcomposites, with its innovative systems and software, is playing a crucial role in shaping the future of composite manufacturing in the EV industry. Their technologies are helping to overcome the challenges and unlock the full potential of composite materials, enabling the production of next-generation EVs that are lighter, stronger, and more sustainable.

Composite materials and automation technologies are revolutionizing the EV industry, enabling the production of vehicles that are lighter, more efficient, and safer. AFP, filament winding, LFAM, and large-format continuous fiber 3D printing are key automation technologies that are adding value to the manufacturing process. These technologies offer increased precision, complexity handling, material efficiency, and speed, enabling the creation of highly optimized composite parts. Addcomposites, with its innovative systems and software, is at the forefront of this transformation, providing EV manufacturers with the tools they need to produce next-generation vehicles. As the EV industry continues to grow, composite materials and automation technologies will play an increasingly important role in driving innovation and sustainability. Addcomposites is committed to pushing the boundaries of composite manufacturing, making these technologies more accessible and efficient, and enabling the creation of EVs that are better for the environment and offer superior performance.

Composite materials and automation techniques are revolutionizing the EV industry, enabling the production of vehicles that are lighter, more efficient, and safer. AFP, filament winding, LFAM, and large-format continuous fiber 3D printing are key automation technologies that are adding value to the manufacturing process. Addcomposites, with its innovative systems and software, is at the forefront of this transformation, providing EV manufacturers with the tools they need to produce next-generation vehicles. As the EV industry continues to grow, composite materials and automation technologies will play an increasingly important role in driving innovation and sustainability.
