3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

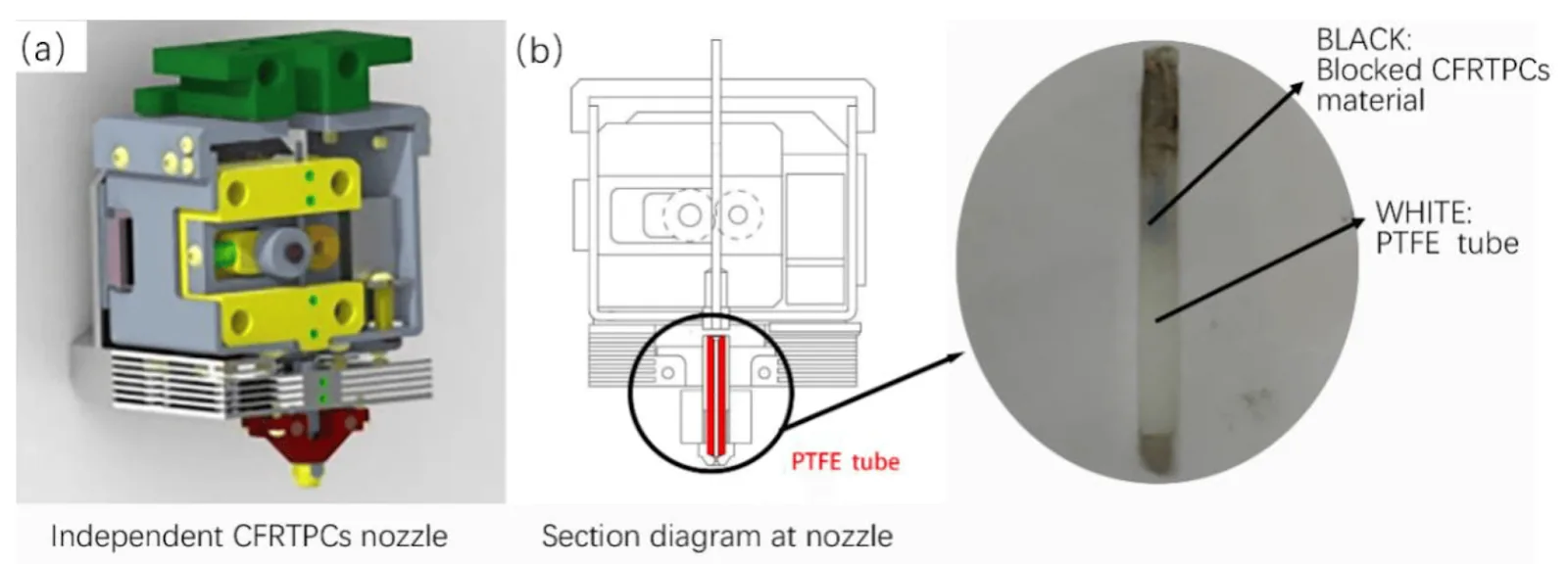

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

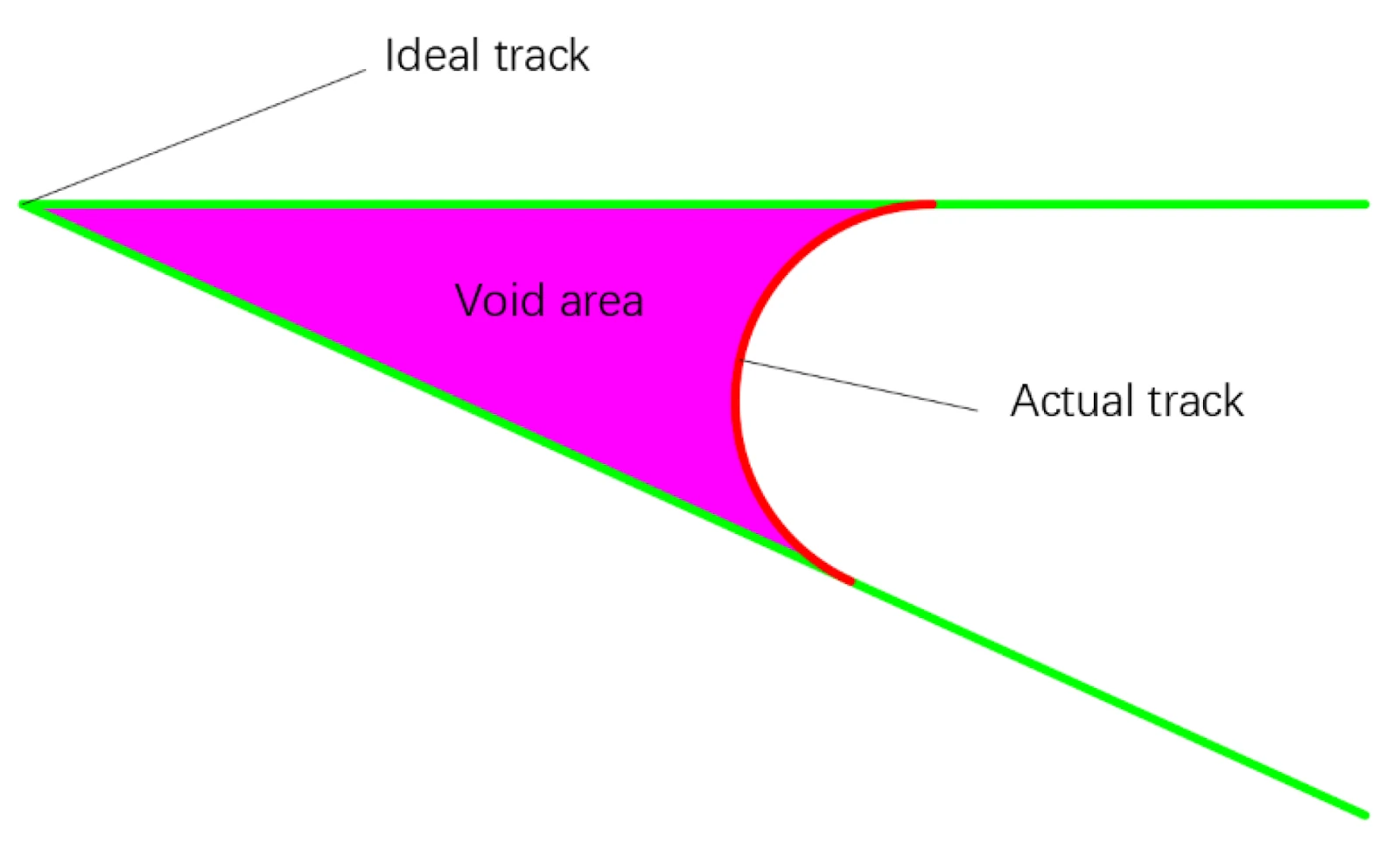

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

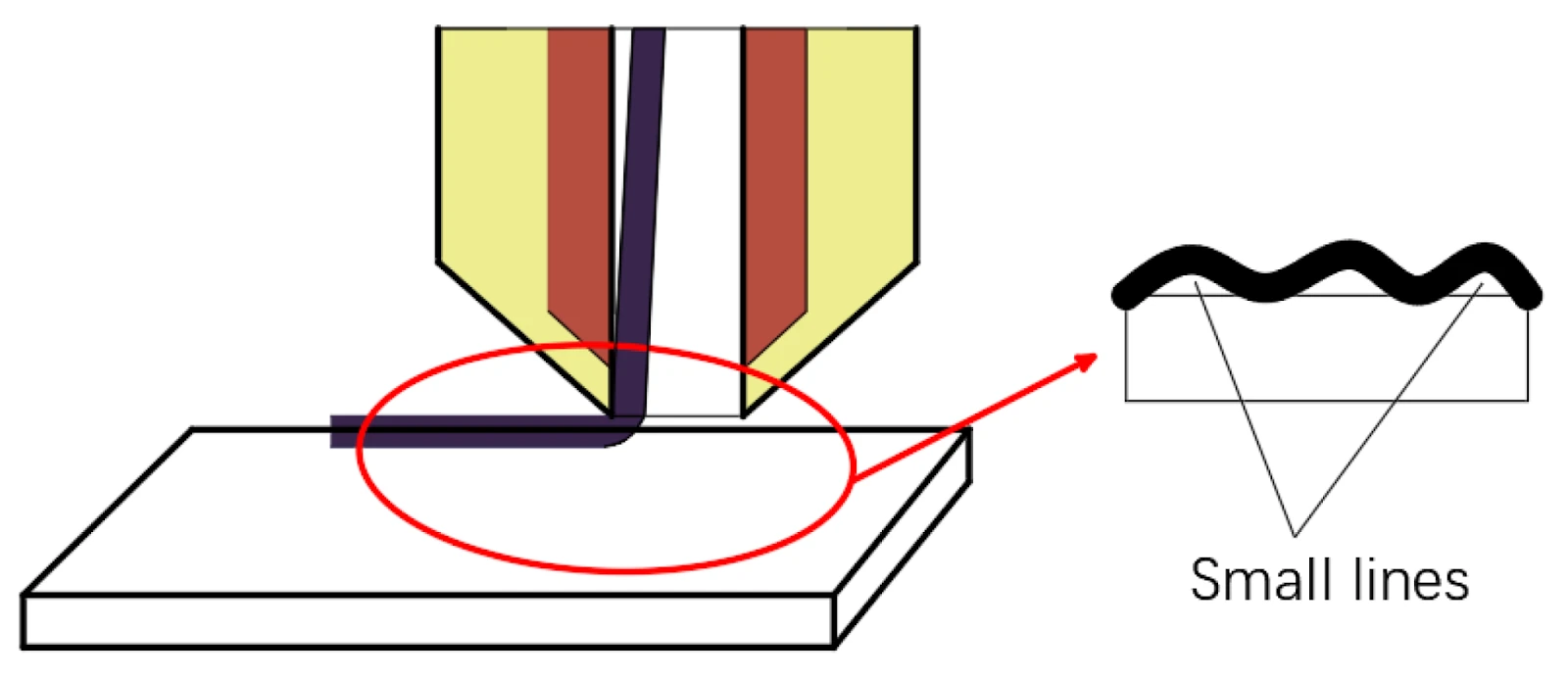

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

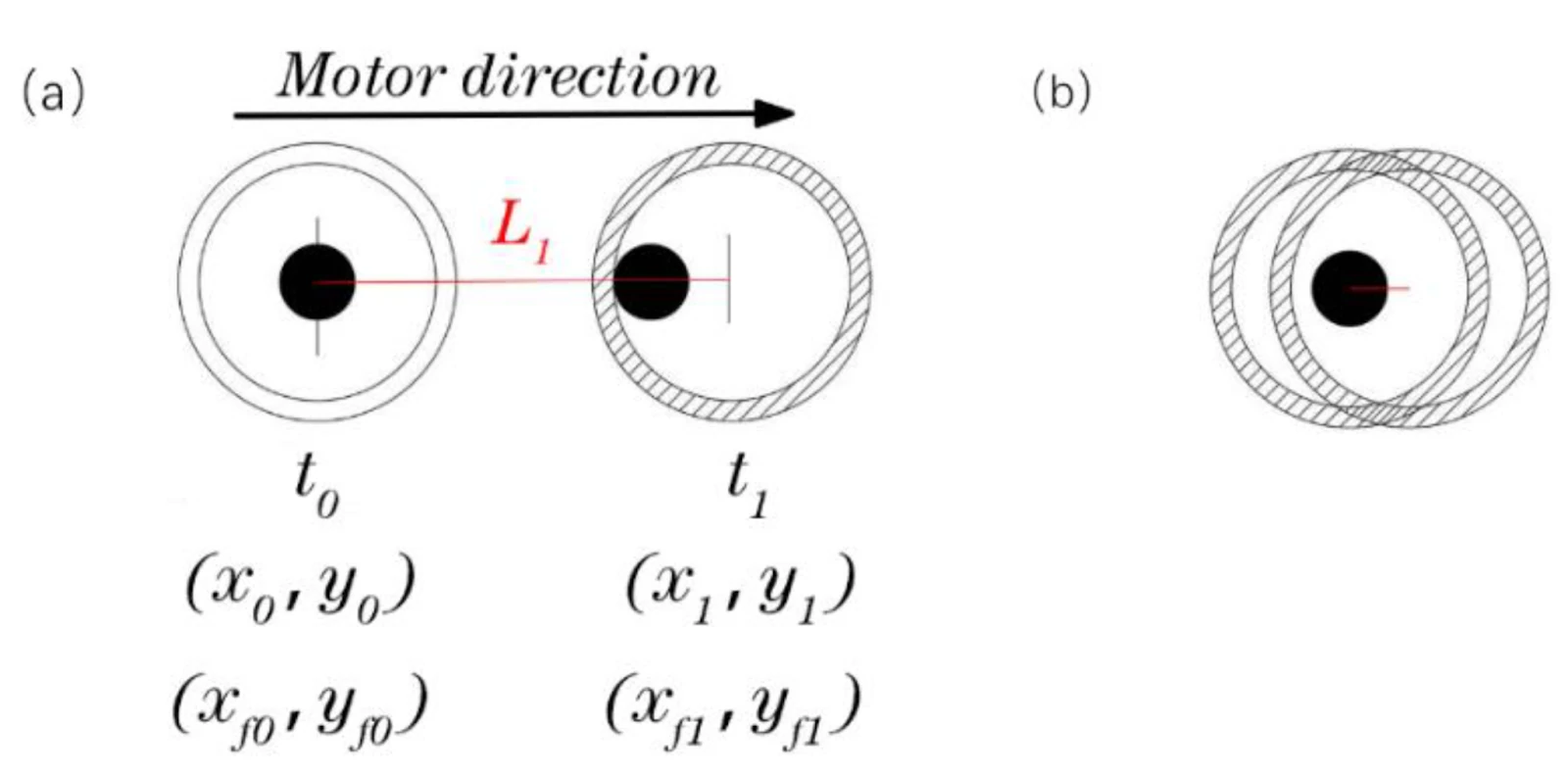

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

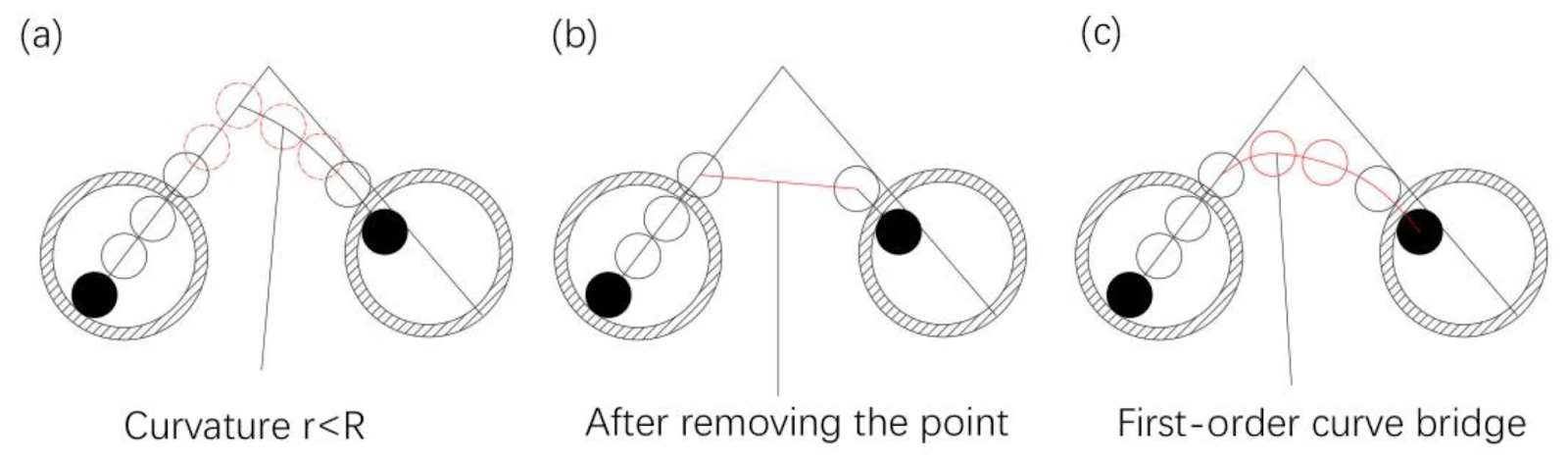

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.

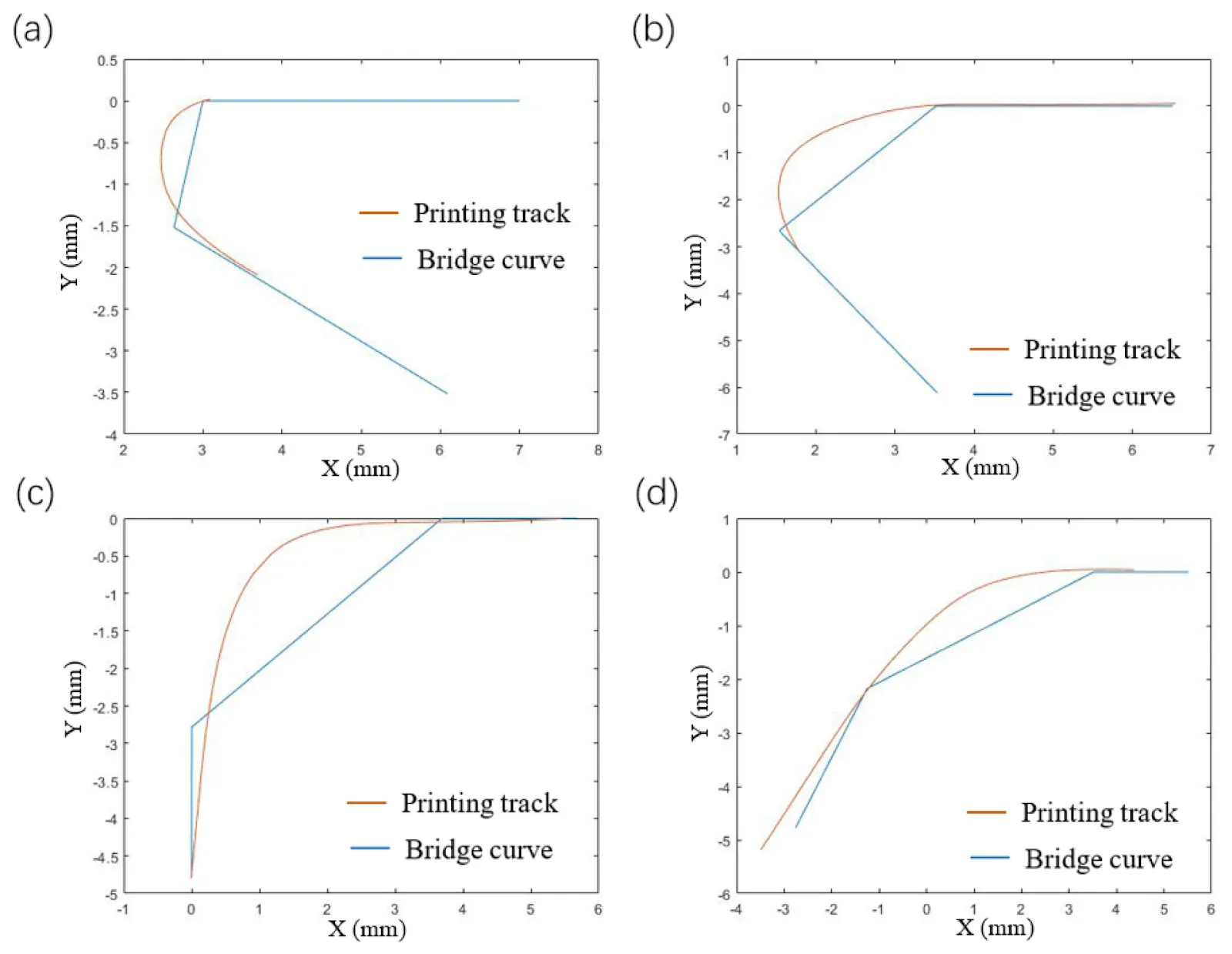

2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

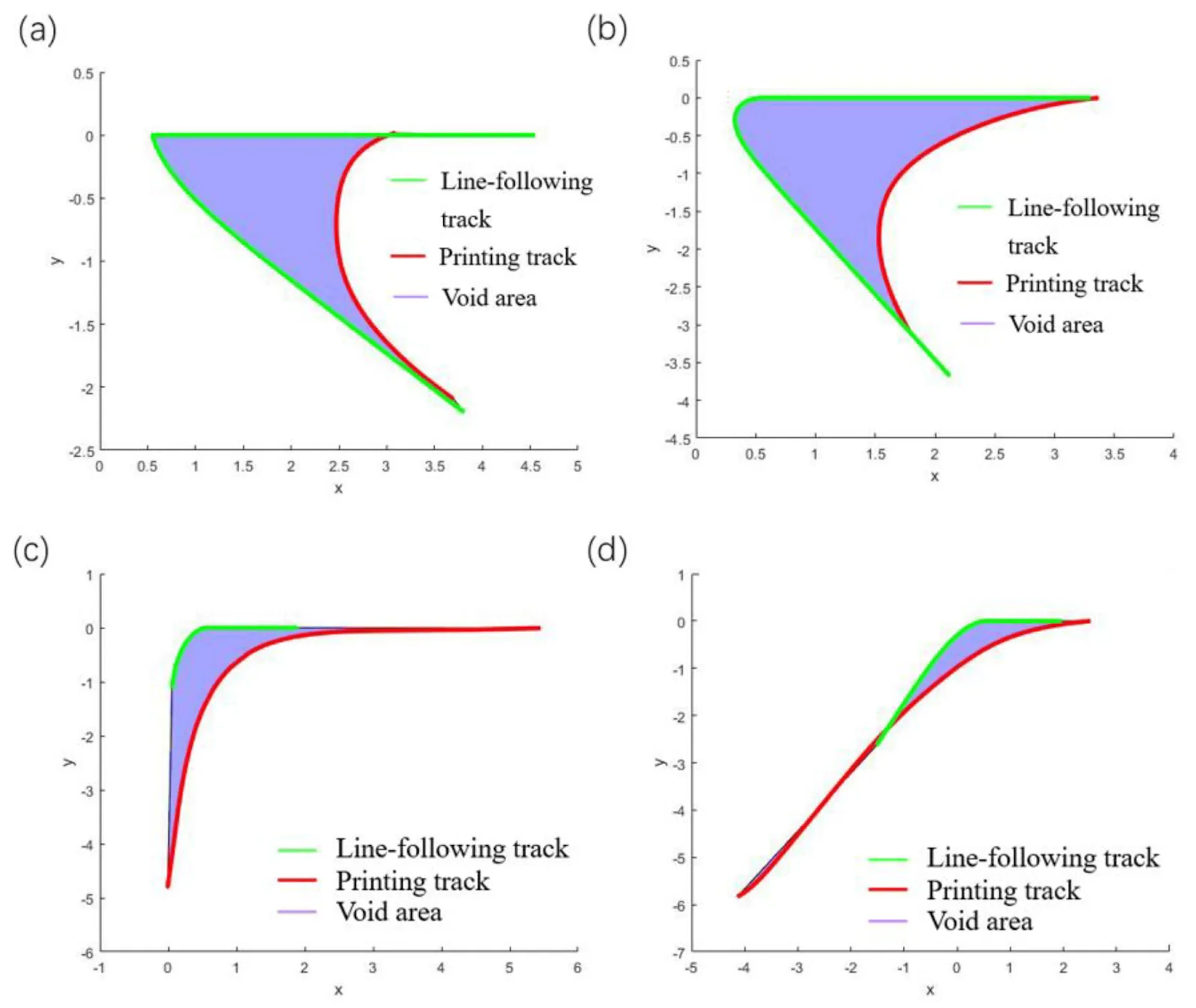

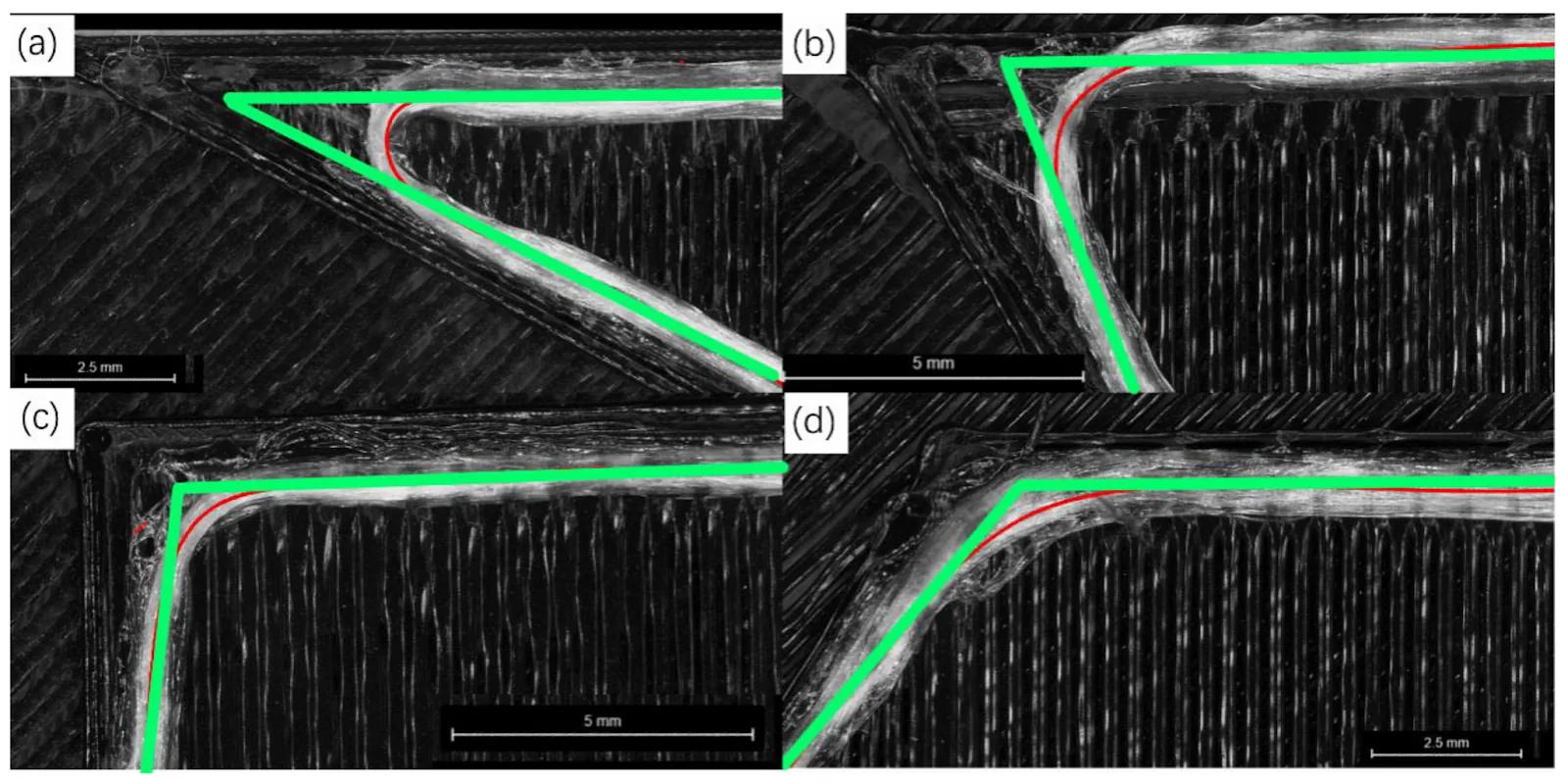

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

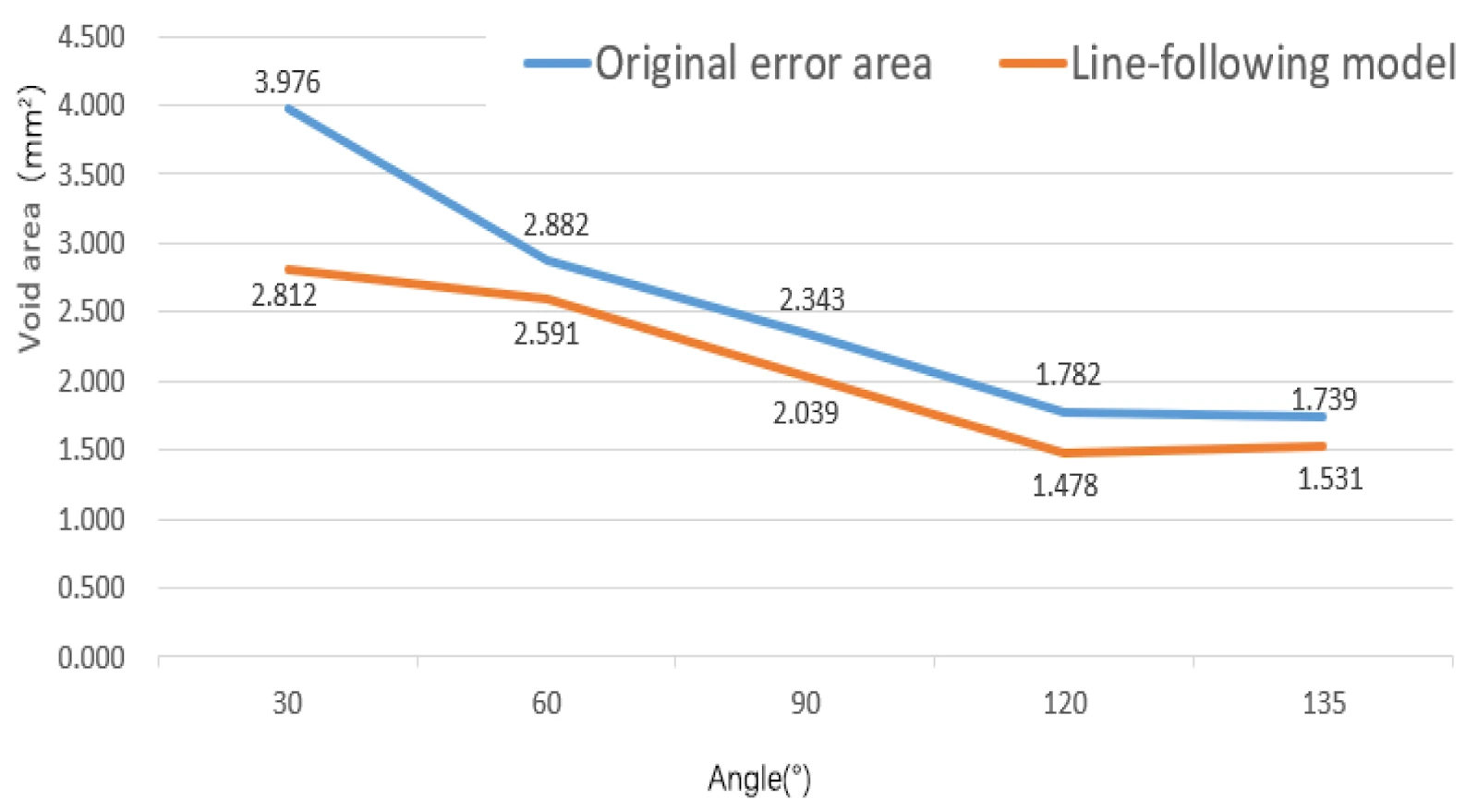

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

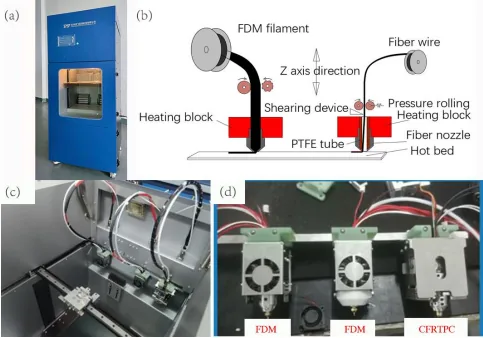

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!

3D printing, also known as additive manufacturing, has revolutionized the way we create complex parts and prototypes. This technology allows for the rapid production of intricate geometries by building objects layer by layer. However, traditional 3D printing using polymer materials often results in parts with limited strength and performance, which can restrict their use in demanding applications.

To address these limitations, researchers and manufacturers have been exploring ways to enhance the mechanical properties of 3D printed parts. One promising approach is the use of Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) in 3D printing. This method combines the versatility of 3D printing with the superior strength and stiffness of continuous fiber reinforcements.

CFRTPC 3D printing involves laying down continuous fibers, such as carbon or glass fibers, along with a thermoplastic matrix material. This process can significantly improve the mechanical properties of the printed parts, making them suitable for a wider range of applications in industries such as aerospace, automotive, and consumer products.

However, CFRTPC 3D printing faces a significant challenge: the discrepancy between the planned (ideal) printing tracks and the actual tracks produced during the printing process. This discrepancy can lead to several issues, including:

1. Reduced part quality due to internal voids and defects
2. Decreased mechanical performance of the printed components
3. Printing failures, such as nozzle clogging, which can interrupt the manufacturing process

Understanding and addressing these discrepancies is crucial for improving the reliability and effectiveness of CFRTPC 3D printing. This blog post will explore recent research into simulating CFRTPC printing tracks, with the goal of developing more accurate models that can help predict and mitigate track errors.

By improving our ability to simulate and predict the behavior of continuous fibers during the printing process, we can take significant steps towards enhancing the quality and performance of 3D printed composite parts. This research has the potential to unlock new applications for CFRTPC 3D printing and contribute to the ongoing advancement of additive manufacturing technologies.

While Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing offers significant advantages in terms of part strength and performance, it also presents unique challenges. One of the most prevalent issues is the discrepancy between the planned printing path and the actual path of the deposited material. Let's explore the key aspects of these print track errors.

A. Common Issue: Nozzle Clogging in CFRTPC Printing

A frequent problem encountered during CFRTPC printing is nozzle clogging. This occurs when excess fiber material accumulates inside the printer nozzle, specifically in the PTFE (polytetrafluoroethylene) tube. The clogging can lead to printing interruptions and failures, significantly impacting the manufacturing process.

The root cause of this issue lies in the mismatch between the theoretical (planned) fiber path and the actual path taken by the fiber during printing. As the printer extrudes material based on the theoretical path, which is longer than the actual path, excess material builds up in the nozzle over time.

B. Analysis of Track Errors

To better understand and quantify these track errors, researchers have focused on two key aspects:

1. Void Areas at Corners: When the printing path changes direction, especially at sharp corners, the actual fiber path doesn't perfectly follow the planned path. This results in void areas - gaps between the ideal path and the actual path. These voids can compromise the structural integrity of the printed part.
2. Minimum Curvature Radius: Each fiber material has a minimum radius of curvature it can achieve without breaking or causing printing issues. If the planned path includes curves tighter than this minimum radius, it can lead to printing failures or significant deviations from the intended path.

C. Causes of Track Deviations

Understanding the causes of these track deviations is crucial for developing effective solutions. Two primary factors contribute to the discrepancies:

1. Non-Perpendicular Fiber Printing: The fiber doesn't always exit the nozzle perfectly perpendicular to the printing surface. This is due to the necessary gap between the nozzle and the platform, as well as the pulling force generated by the nozzle's movement. As a result, the center of the fiber's cross-section doesn't align with the center of the nozzle, leading to track deviations.
2. Matrix Pulling Force on Filaments: As the nozzle moves, particularly around corners, it exerts a pulling force on the already deposited fiber. If this force exceeds the bonding strength between the fiber and the substrate, it can cause the fiber to shift from its intended position, further contributing to track errors.

By identifying and analyzing these print track errors, researchers can develop more accurate models and simulation techniques. These advancements are crucial for improving the reliability and quality of CFRTPC 3D printing, ultimately leading to better performance of the printed parts.

To address the challenges of track errors in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, researchers have developed mathematical models to simulate and predict fiber paths. These models aim to bridge the gap between the ideal printing tracks and the actual paths taken by the fibers during the printing process. Let's explore two key models: the line-following model and its modified version.

A. The Line-Following Model

The line-following model is the initial approach to simulating fiber paths in CFRTPC printing. This model is based on the following principles:

1. Basic Principles:
   • The fiber is assumed to follow the movement of the nozzle center.
   • The position of the current fiber center point is always on the line connecting the previous fiber center point and the current nozzle center point.
   • The fiber position is constrained within or tangent to the inner circle of the nozzle.

This model provides a first approximation of how the fiber behaves during the printing process, taking into account the physical constraints of the nozzle and the continuous nature of the fiber.

2. Limitations at Sharp Corners: While the line-following model improves upon the ideal path, it still faces challenges when dealing with sharp corners. At these points, the model may predict paths with curvatures tighter than what the fiber can physically achieve, leading to potential defects or printing failures.

B. The Modified Line-Following Model

To address the limitations of the initial model, particularly at sharp corners, researchers developed a modified line-following model. This enhanced model introduces two key improvements:

1. Removing Minimum Curvature Points:
   • The model identifies points where the predicted path has a curvature radius smaller than the minimum allowed for the fiber material.
   • These points are removed from the path, creating gaps in the predicted trajectory.
2. Implementing Transition Curves (Bezier Curves):
   • To fill the gaps created by removing minimum curvature points, the model introduces transition curves.
   • These transition curves are implemented using Bezier curves, which provide smooth, continuous paths that respect the minimum curvature radius of the fiber.
   • The Bezier curves are carefully calculated to maintain tangency with the existing path at the start and end points of the transition.

This modified model offers several advantages:

• It prevents the prediction of physically impossible fiber paths.
• It provides a more accurate simulation of how fibers actually behave during printing, especially around sharp corners.
• It helps in predicting and minimizing void areas, potentially leading to improved part quality.

By developing and refining these mathematical models, researchers are taking significant steps towards improving the reliability and accuracy of CFRTPC 3D printing. These advancements in simulation techniques pave the way for better print path planning, reduced defects, and ultimately, higher quality 3D printed composite parts.

After developing the mathematical models for simulating fiber paths in Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing, it's crucial to evaluate their performance and understand their implications for real-world applications. This evaluation process involves comparing the models with actual printing results, assessing their effectiveness in reducing void areas, and analyzing the relationship between model parameters and corner angles.

A. Comparison of Models with Actual Printing Results

To validate the accuracy of the line-following model and its modified version, researchers compared the simulated fiber paths with those observed in actual CFRTPC printing processes. This comparison involved:

1. Printing test samples with various corner angles (30°, 60°, 90°, and 120°).
2. Analyzing the printed samples using image processing techniques.
3. Comparing the observed fiber paths with those predicted by the models.

The results showed that the modified line-following model, which incorporates the removal of minimum curvature points and the addition of Bezier curve transitions, provided a much closer approximation to the actual fiber paths, especially at sharp corners.

B. Effectiveness in Reducing Void Areas

One of the primary goals of developing these models was to reduce the void areas that occur during CFRTPC printing, particularly at corners. The evaluation revealed:

1. The original line-following model reduced void areas compared to the ideal (planned) path but still showed significant discrepancies at sharp corners.
2. The modified line-following model demonstrated a substantial improvement in reducing void areas, especially for corner angles below 60°.
3. For corner angles above 60°, both models showed similar performance, with void areas controlled within 1 mm².

These findings suggest that the modified model could significantly improve the quality of printed parts by minimizing internal voids and defects, particularly in complex geometries with sharp corners.

C. Relationship Between Model Parameters and Corner Angles

An important aspect of the research was understanding how the model parameters relate to different corner angles. Key findings include:

1. The minimum curvature radius (R_min) increases as the corner angle increases, indicating that sharper corners require a larger minimum radius to avoid fiber breakage or printing failures.
2. The K_p parameter, which controls the position of control points in the Bezier curve transitions, shows a relatively stable linear relationship with the corner angle.
3. As the corner angle increases, the difference in performance between the original and modified models decreases, suggesting that the modification is most beneficial for sharper corners.

These relationships provide valuable insights for optimizing printing parameters and path planning strategies in CFRTPC 3D printing.

The evaluation of these models demonstrates their potential to significantly improve the accuracy and reliability of CFRTPC 3D printing. By providing more accurate predictions of fiber behavior, especially around corners, these models can help manufacturers:

1. Reduce internal defects and improve part quality.
2. Optimize print paths for complex geometries.
3. Potentially increase the range of parts that can be successfully produced using CFRTPC 3D printing.

As research in this field continues, these models may play a crucial role in advancing additive manufacturing technologies and expanding the applications of 3D printed composite materials.

The development of accurate simulation models for Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) 3D printing opens up a range of practical applications and avenues for future research. Let's explore how these advancements can be applied in real-world scenarios and what future directions this field might take.

A. Improving CFRTPC Printing Reliability

One of the most immediate practical applications of this research is the potential to significantly enhance the reliability of CFRTPC 3D printing processes. By implementing the modified line-following model, manufacturers can:

1. Reduce nozzle clogging: Better prediction of fiber paths can help prevent excess material accumulation in the nozzle, reducing the frequency of printing interruptions.
2. Optimize print paths: The model can inform better path planning strategies, particularly for parts with complex geometries and sharp corners.
3. Minimize printing failures: By avoiding physically impossible fiber paths, the model can help reduce instances of fiber breakage or misalignment during printing.

These improvements could lead to more consistent print quality and reduced material waste, making CFRTPC 3D printing a more viable option for a wider range of applications.

B. Potential for Enhancing Part Quality and Performance

The insights gained from this research have the potential to significantly improve the quality and performance of 3D printed composite parts:

1. Reduced void areas: By more accurately predicting and minimizing void formation, especially at corners, the overall structural integrity of printed parts can be improved.
2. Enhanced mechanical properties: With better fiber placement and reduced defects, the mechanical performance of printed parts could be significantly enhanced.
3. Expanded design possibilities: More accurate fiber path prediction could allow for the creation of more complex geometries while maintaining structural integrity.

These improvements could expand the use of CFRTPC 3D printing in industries such as aerospace, automotive, and high-performance sports equipment.

C. Directions for Future Research

While this research represents a significant step forward, there are still many exciting avenues for future investigation:

1. Machine Learning Integration: Exploring the use of machine learning algorithms to further refine fiber path predictions and optimize printing parameters.
2. Multi-material modeling: Extending the model to account for different types of fibers and matrix materials.
3. Real-time process monitoring: Developing systems that can adjust printing parameters in real-time based on model predictions and sensor feedback.
4. Sustainability considerations: Investigating how improved print accuracy can contribute to material efficiency and recyclability of composite parts.
5. Scaling to larger structures: Exploring how these models perform when applied to larger-scale printing projects.

These research directions could lead to even more significant advancements in CFRTPC 3D printing technology, potentially revolutionizing how we approach the design and manufacture of composite parts.

As the field of additive manufacturing continues to evolve, the insights gained from this research into fiber path simulation will play a crucial role in pushing the boundaries of what's possible with 3D printed composites. By continuing to refine our understanding and control of the printing process, we can unlock new potentials for creating stronger, lighter, and more complex parts than ever before.

The research into simulating Continuous Fiber-Reinforced Thermoplastic Composites (CFRTPC) printing tracks represents a significant step forward in the field of additive manufacturing. By developing and refining mathematical models to predict fiber behavior during the printing process, this study has paved the way for substantial improvements in CFRTPC 3D printing technology.

A. Summary of Key Findings

1. Track Error Identification: The study highlighted the discrepancies between planned and actual fiber paths, particularly at corners, leading to void areas and potential printing failures.
2. Model Development: Two models were introduced:
   • The line-following model, which provided an initial approximation of fiber behavior.
   • The modified line-following model, which incorporated minimum curvature constraints and Bezier curve transitions, offering a more accurate representation of actual fiber paths.
3. Performance Evaluation: The modified model demonstrated significant improvements in reducing void areas, especially for sharp corners (angles below 60°), potentially leading to enhanced part quality and performance.
4. Practical Implications: The findings suggest potential for:
   • Improved printing reliability
   • Enhanced part quality
   • Expanded design possibilities for complex geometries

B. The Role of Simulation in Advancing Additive Manufacturing Technologies

The importance of simulation in advancing CFRTPC 3D printing and broader additive manufacturing technologies cannot be overstated:

1. Predictive Capability: Accurate simulations allow manufacturers to anticipate and mitigate potential issues before they occur in the actual printing process, saving time and resources.
2. Optimization: By understanding the relationship between printing parameters and outcomes, manufacturers can optimize their processes for specific materials, geometries, and applications.
3. Innovation Enabler: Improved simulations open the door to more ambitious designs and applications, pushing the boundaries of what's possible with 3D printed composites.
4. Quality Assurance: Simulation tools can serve as a valuable quality control measure, helping to ensure consistency and reliability in the production of high-performance composite parts.
5. Cost Reduction: By reducing material waste and minimizing failed prints, accurate simulations can significantly lower the overall cost of CFRTPC 3D printing.

As we look to the future, the continued refinement of these simulation models, potentially incorporating advanced technologies like AI and machine learning, will play a crucial role in realizing the full potential of CFRTPC 3D printing.

The journey towards perfecting CFRTPC 3D printing is ongoing, with each advancement bringing us closer to a future where complex, high-performance composite parts can be produced reliably, efficiently, and at scale. This research into fiber path simulation is a vital step in that journey, contributing to the broader goal of revolutionizing manufacturing processes across various industries.

As we continue to push the boundaries of what's possible with 3D printed composites, the insights gained from this research will undoubtedly play a crucial role in shaping the future of additive manufacturing, opening up new possibilities for innovation in aerospace, automotive, and beyond.

References

1. Wang, Y., Liu, J., Yu, Y., Zhang, Q., Li, H., & Shi, G. (2022). Research on the Simulation Model of Continuous Fiber-Reinforced Composites Printing Track. Polymers, 14(13), 2730. https://doi.org/10.3390/polym14132730
2. Introduction to Composite Materials
3. What is Additive Manufacturing?
4. Overview of Automated Fiber Placement Process
5. Mechanical Testing of Composites
6. Defects and Damage in Composite Materials and Structures
7. AFP Machines and Components
8. Virtual Composite Manufacturing Simulation
9. Automated Composite Manufacturing: The Disruptive Force Redefining an Industry
10. Non-Destructive Testing for Composites: Different Inspection Methods
11. Composites Manufacturing: Tracking and Reducing Waste
12. Mastering Automated Fiber Placement: A Comprehensive Guide for Manufacturers
13. Path Planning, Simulation, and Defect Detection Platform for Automated Fiber Placement
14. The Composite Sky: Advanced Materials Defining Modern Aerospace
15. Driving Forward with Composite Materials in Automotive Innovation
16. Machine Learning to Optimize AFP Composite Production

‍

Elevate Your Composite Manufacturing with Addcomposites

Are you ready to take your composite manufacturing to the next level? Addcomposites offers cutting-edge solutions for CFRTPC 3D printing and automated fiber placement that can help you achieve higher quality parts, improved efficiency, and reduced waste.

Explore Our Solutions:

1. AFP-XS: Our compact, versatile automated fiber placement system, perfect for research and small-scale production.
2. AddPath: Advanced path planning software that optimizes your fiber placement strategies for complex geometries.
3. AddPrint: Our innovative solution for continuous fiber 3D printing, pushing the boundaries of additive manufacturing.

Whether you're in aerospace, automotive, or any industry requiring high-performance composite parts, Addcomposites has the tools and expertise to support your manufacturing goals.

Contact us today to learn how we can help you harness the power of advanced composite manufacturing technologies. Let's innovate together!
