Key Takeaways

  • EFP enables mould-free manufacturing of complex curved composites
  • Reduces capital costs and increases design flexibility
  • Successfully created a NACA 4412 aerofoil profile
  • Potential applications in aerospace, automotive, marine, and renewable energy industries
  • Further research needed for scalability and process automation

I. Introduction

Imagine crafting a sleek airplane wing or a streamlined boat hull without the need for expensive, custom-made moulds. This scenario, once a distant dream for composite manufacturers, is now inching closer to reality thanks to an innovative technique called Eccentric Fibre Prestress (EFP).

In the world of advanced materials, fibre-reinforced polymer (FRP) composites have long been celebrated for their exceptional strength-to-weight ratio. These materials are the unsung heroes in industries where every gram matters, from aerospace to high-performance automobiles. However, the creation of complex curved structures using FRPs has traditionally been a costly and inflexible process, often requiring substantial investments in moulding equipment.

Enter Eccentric Fibre Prestress - a groundbreaking approach that promises to reshape the landscape of composite manufacturing. By cleverly manipulating the internal stresses within composite laminates, EFP allows engineers to create compound curvatures without the need for complex moulds. This technique not only has the potential to significantly reduce production costs but also opens up new avenues for design innovation.

In this post, we'll dive into the fascinating world of EFP, exploring how this technique works, its experimental validation, and its potential to revolutionize industries reliant on advanced composite materials. From simplified manufacturing processes to the creation of intricate aerofoil shapes, EFP is poised to usher in a new era of composite design and production.

II. Background

To fully appreciate the innovation of Eccentric Fibre Prestress (EFP), it's crucial to understand the current landscape of composite manufacturing and some key concepts.

A. Context: Current State of Composite Manufacturing

Fibre-reinforced polymer (FRP) composites have become indispensable in industries where high strength and low weight are paramount. These materials consist of strong fibres (such as carbon or glass) embedded in a polymer matrix, resulting in a material that's both lightweight and incredibly strong.

Traditionally, creating complex shapes with FRP composites involves laying the composite material over or into a mould, then curing it to retain the desired shape. This process, while effective, comes with significant drawbacks:

  1. High Capital Costs: Custom moulds for complex shapes can be extremely expensive to produce, especially for large components like aircraft parts or boat hulls.
  2. Design Inflexibility: Once a mould is created, changing the design becomes costly and time-consuming.
  3. Material Waste: The moulding process often results in excess material that must be trimmed away, leading to waste.

B. Key Concepts

Before delving into EFP, let's clarify some important terms:

  1. FRP Composites: Materials made by embedding strong fibres (like carbon or glass) in a polymer matrix. The fibres provide strength and stiffness, while the matrix binds the fibres together and transfers loads between them.
  2. Prestressing: The application of stress to a material before it's put into service. In the case of EFP, stress is applied to some fibres during the curing process.
  3. Compound Curvatures: Surfaces that curve in two directions, like the shape of a saddle or the complex contours of an aircraft wing.
  4. Laminate: A material made by stacking multiple layers (plies) of composite material.
  5. Unidirectional Fabrics: Composite reinforcements where all fibres are aligned in a single direction, providing maximum strength along that axis.

Understanding these concepts sets the stage for appreciating how EFP works and why it represents such a significant advancement in composite manufacturing. By manipulating these elements, EFP offers a novel approach to creating complex shapes without the need for expensive moulds.

III. Main Body

A. The Problem: Limitations of Traditional Composite Manufacturing

Despite the numerous advantages of FRP composites, their manufacturing process has long been plagued by several limitations:

  1. High Capital Costs: The need for precise moulds, especially for large or complex parts, can drive up initial investment costs significantly. For instance, a mould for a single aircraft component can cost millions of dollars.
  2. Design Inflexibility: Once a mould is created, any design changes become extremely costly and time-consuming. This rigidity can stifle innovation and make it difficult to iterate designs quickly.
  3. Material Waste: The traditional layup process often results in excess material around the edges of the mould, which must be trimmed away. This not only wastes expensive composite materials but also adds an extra step to the manufacturing process.
  4. Geometric Limitations: Creating compound curvatures or complex shapes often requires multi-part moulds or advanced manufacturing techniques, further increasing costs and complexity.

These limitations have long been accepted as necessary trade-offs for the benefits of composite materials. However, they have also restricted the wider adoption of composites in various industries, particularly where cost-effectiveness and design flexibility are crucial.

B. The Solution: Eccentric Fibre Prestress (EFP)

Eccentric Fibre Prestress emerges as an innovative solution to address these longstanding challenges. At its core, EFP is a technique that manipulates the internal stresses within a composite laminate to create desired curvatures without the need for a shaped mould.

Here's how EFP works:

  1. Selective Prestressing: During the manufacturing process, specific fibres within the laminate are put under tension (prestressed).
  2. Eccentric Positioning: These prestressed fibres are positioned off-center (eccentrically) within the laminate stack.
  3. Stress Release: After the composite is cured, the prestress is released. This creates an internal bending moment within the laminate.
  4. Curvature Formation: The internal bending moment causes the laminate to curve, with the shape determined by the arrangement and magnitude of the prestressed fibres.

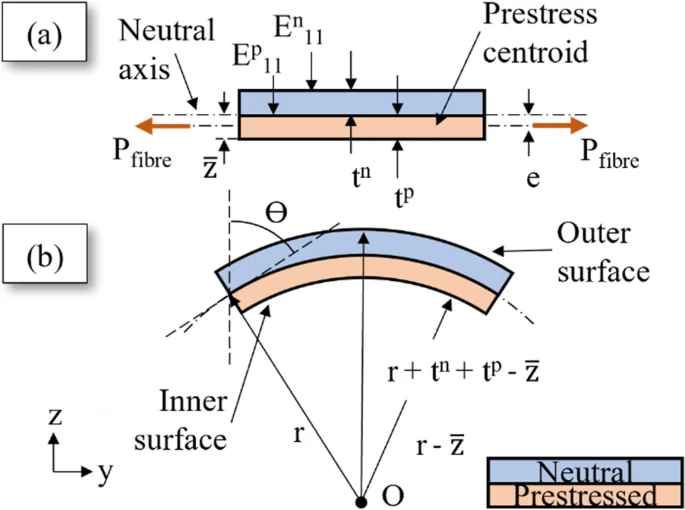

figure 1
Schematic representation of the EFP process

The advantages of EFP over traditional methods are significant:

  1. Mould-Free Manufacturing: By eliminating the need for shaped moulds, EFP drastically reduces capital costs and increases design flexibility.
  2. Material Efficiency: With no need to trim excess material from mould edges, material waste is minimized.
  3. Design Flexibility: Changes in curvature can be achieved by adjusting the prestress configuration, allowing for rapid design iterations.
  4. Complex Geometries: EFP enables the creation of compound curvatures and complex shapes that would be challenging or costly to produce with traditional moulds.
  5. Cost-Effective Customization: Small production runs or custom parts become more economically viable without the need for expensive moulds.

By addressing the core limitations of traditional composite manufacturing, EFP opens up new possibilities for the use of composites across various industries, from aerospace and automotive to marine and renewable energy.

C. Experimental Validation

To demonstrate the effectiveness of EFP, researchers conducted a series of experiments using different laminate configurations:

  1. Single-Curvature BeamThe first experiment involved a simple [0₂] carbon fiber laminate with one ply pretensioned to 4250 N. The result was a consistently curved profile with a radius of 108.4 mm, closely matching the analytical prediction.
  2. Quasi-Sine Wave BeamThis more complex experiment used a hybrid laminate with alternating glass fiber (prestressed) and carbon fiber (neutral) plies. The surface of the reinforcement fiber was alternated relative to the prestressed ply, creating a wave-like profile. Despite some minor discrepancies due to fiber tension variations, the experiment achieved a radius of 101.7 mm, demonstrating EFP's ability to create more intricate shapes.
  3. Compound CurveThe final experiment produced a compound curvature by varying segment lengths across the laminate. With an increased prestress of 7000 N, this test showcased EFP's capability to create more pronounced and complex profiles.

These experiments not only validated the EFP concept but also highlighted its versatility in creating various curved profiles using different material combinations and prestress configurations.

D. Analytical Modeling

To predict and optimize EFP outcomes, researchers developed an analytical model based on Euler-Bernoulli beam theory. This model provides a mathematical framework for understanding and designing EFP laminates.

Key aspects of the analytical model include:

  1. Bending Moment Calculation: The model calculates the internal bending moment created by the eccentric prestress.
  2. Curvature Prediction: Using the calculated bending moment and laminate properties, the model predicts the resulting curvature.
  3. Hybrid Material Consideration: The model accounts for different material properties in hybrid laminates by using a modulus ratio.
  4. Compound Curvature Modeling: For more complex shapes, the model treats the laminate as a series of segments with different curvatures.

The accuracy of this model was demonstrated by comparing its predictions with the experimental results. Across all experiments, the model showed good correlation with actual outcomes, with low root mean square errors (RMSE) between predicted and measured profiles.

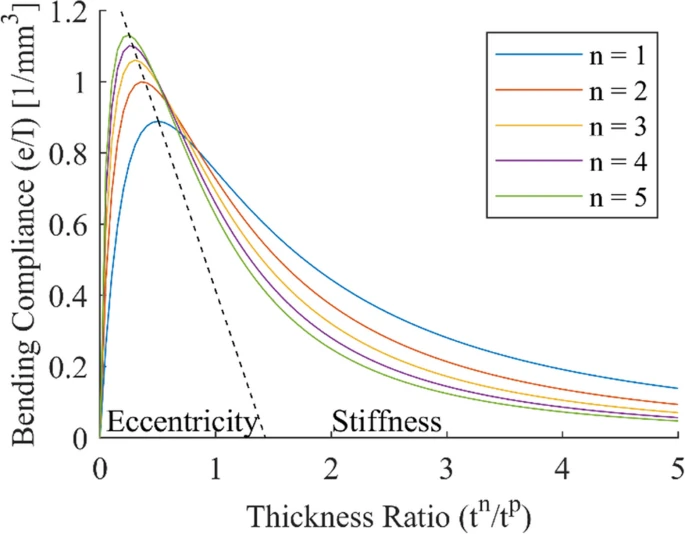

figure 2
Bending compliance versus thickness ratio for a series of mixed modulus laminates

For instance:

  • Single-curvature beam: RMSE of 1.19
  • Quasi-sine wave beam: RMSE of 2.18
  • Compound curve: RMSE of 1.32

This close agreement between analytical predictions and experimental results validates the model's effectiveness as a design tool for EFP laminates.

The development of this accurate analytical model is crucial for the practical application of EFP. It allows engineers to design and optimize EFP laminates for specific curvatures without extensive trial and error, potentially saving time and resources in the manufacturing process.

E. Advanced Application: NACA 4412 Aerofoil

To demonstrate the practical potential of EFP in real-world applications, the researchers tackled a challenging and relevant example: creating the upper surface of a NACA 4412 aerofoil.

  1. Inverse Design using Genetic Algorithm

The NACA 4412 aerofoil presents a complex, compound curvature that's crucial for its aerodynamic performance. To achieve this shape using EFP, the researchers employed an inverse design approach utilizing a Genetic Algorithm (GA).

Here's how the process worked:

a) Problem Definition: The goal was to determine the optimal laminate configuration to produce the desired aerofoil shape.

b) GA Setup:

  • The algorithm divided a 350 mm laminate into 12 equal segments.
  • The prestress load was set at 150 N/mm width, applied to a single carbon fiber ply.
  • The maximum number of neutral plies was constrained to 14, all made of carbon fiber.
  • To ensure manufacturability, the algorithm was constrained to a maximum of three ply changes between adjacent segments.

c) Optimization Process: The GA iteratively adjusted the number and arrangement of plies in each segment, comparing the resulting shape to the target aerofoil profile.

d) Convergence: After 150 generations, the algorithm converged on a solution with a low root mean square error (RMSE) of 1.98, indicating a close match to the desired profile.

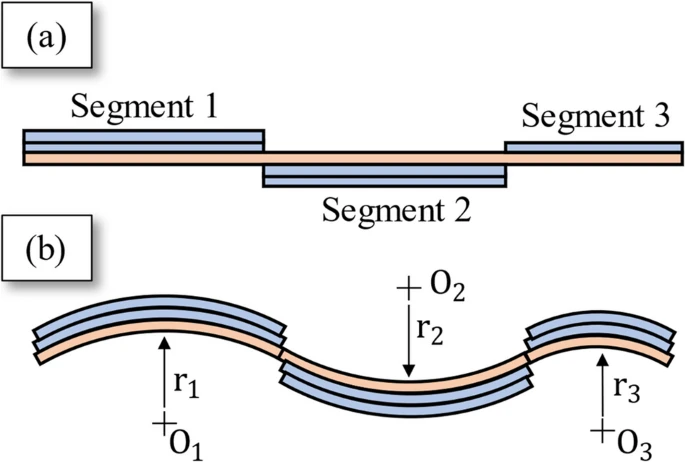

figure 3
Laminate variation across length (a). Resulting 2D beam geometry (b). Prestressed fibre shown in orange and neutral fibre in grey

This inverse design approach demonstrates the power of combining EFP with computational optimization techniques, enabling the creation of complex, precisely defined shapes.

  1. Manufacturing and Analysis Results

Following the GA optimization, an aerofoil demonstrator was manufactured using the determined laminate configuration:

a) Manufacturing Process:

  • The laminate was created using pre-cut dry fibers stacked according to the GA-optimized design.
  • A vacuum infusion process was used instead of wet layup due to the thicker, more complex laminate structure.
  • A prestress of 15 kN was applied before resin infusion.

b) Results Analysis:

  • The manufactured aerofoil was 3D scanned to compare its profile with the designed shape.
  • The experimental profile showed excellent agreement with the GA-designed profile, achieving a low RMSE of 0.89.
  • The scan captured the presence of ply steps (abrupt changes in thickness) that corresponded closely to the analytical prediction.

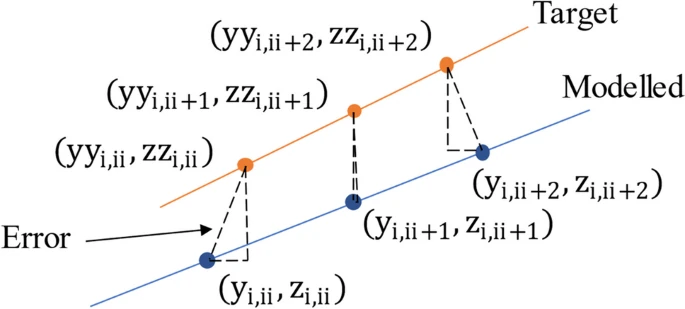

figure 4
Fitness function of minimisation problem between two curves

This successful creation of a complex aerofoil shape demonstrates the potential of EFP for producing high-precision, aerodynamic structures without the need for expensive moulds. It showcases the technique's ability to create shapes that would be challenging or costly to produce using traditional composite manufacturing methods.

The NACA 4412 aerofoil example serves as a powerful proof-of-concept for EFP, illustrating its potential applications in aerospace, wind energy, and other industries where precise, complex curvatures are crucial. It highlights how EFP, combined with advanced optimization techniques, can open new possibilities in composite design and manufacturing.

IV. Practical Takeaways

The development of Eccentric Fibre Prestress (EFP) represents a significant advancement in composite manufacturing. Here are the key practical implications and potential applications of this technology:

A. Potential Applications in Various Industries

  1. Aerospace:
    • Creation of complex wing profiles and fuselage sections without large, expensive moulds
    • Rapid prototyping of new aerodynamic designs
    • Lightweight, customized interior components for aircraft
  2. Automotive:
    • Manufacturing of curved body panels and aerodynamic elements
    • Production of customized parts for low-volume, high-performance vehicles
    • Development of lightweight structural components for improved fuel efficiency
  3. Marine:
    • Fabrication of hull sections and hydrodynamic elements
    • Creation of custom boat parts and accessories
    • Manufacturing of propeller blades with complex curvatures
  4. Renewable Energy:
    • Production of wind turbine blades with optimized aerodynamic profiles
    • Creation of curved solar panels for improved efficiency and integration into structures
  5. Sports Equipment:
    • Manufacturing of high-performance equipment like bicycle frames, helmets, or snowboards
    • Creation of customized, ergonomic designs for individual athletes

B. Implications for Cost Reduction and Design Flexibility

  1. Reduced Capital Costs:
    • Elimination of expensive moulds for each design iteration
    • Lower barriers to entry for small-scale or start-up manufacturers
  2. Increased Design Flexibility:
    • Ability to quickly prototype and test new designs
    • Easier customization for specific applications or customer requirements
  3. Material Efficiency:
    • Reduction in material waste typically associated with mould-based manufacturing
    • Potential for more sustainable manufacturing processes
  4. Rapid Iteration:
    • Faster design-to-production cycles, enabling more responsive product development
    • Easier implementation of design improvements based on performance data

C. Limitations and Areas for Future Research

While EFP shows great promise, there are still areas that require further investigation:

  1. Scalability:
    • Research is needed to determine the feasibility of EFP for larger structures
  2. Material Compatibility:
    • Further studies on different fiber types and resin systems to expand EFP applications
  3. Mechanical Properties:
    • In-depth analysis of how EFP affects the long-term strength and durability of composites
  4. Process Automation:
    • Development of automated systems for precise fiber prestressing and placement
  5. Design Tools:
    • Creation of user-friendly software for EFP design, integrating the analytical model and optimization algorithms
  6. Multi-directional Prestressing:
    • Exploration of prestressing in multiple directions for even more complex geometries

By addressing these areas, EFP could become an even more powerful tool in the composite manufacturing toolkit, potentially revolutionizing how we approach the design and production of complex curved structures across numerous industries.

V. Conclusion

Eccentric Fibre Prestress (EFP) represents a significant leap forward in the field of composite manufacturing, offering a novel solution to long-standing challenges in the industry. Let's recap the key points and consider the future implications of this technology:

A. Summary of EFP Benefits

  1. Mould-Free Manufacturing: EFP eliminates the need for expensive, complex moulds, significantly reducing capital costs and increasing production flexibility.
  2. Design Freedom: The ability to create compound curvatures and complex shapes without moulds opens up new possibilities for innovative designs across various industries.
  3. Material Efficiency: By reducing waste associated with traditional moulding processes, EFP contributes to more sustainable manufacturing practices.
  4. Cost-Effective Customization: EFP makes small production runs and custom parts more economically viable, potentially democratizing access to advanced composite manufacturing.
  5. Rapid Prototyping: The technique allows for faster design iterations, accelerating the product development cycle.

B. Future Directions for the Technology

As promising as EFP is, it's important to recognize that this is just the beginning. The future of EFP could include:

  1. Advanced Automation: Integration with robotic systems could further improve precision and repeatability in the EFP process.
  2. Multi-Material Applications: Exploring the use of EFP with a wider range of fiber types and resin systems could expand its applicability.
  3. Hybrid Manufacturing: Combining EFP with other advanced manufacturing techniques, such as 3D printing, could lead to even more innovative production methods.
  4. Improved Modeling: Further refinement of analytical models and optimization algorithms could make EFP design more accessible and user-friendly.
  5. Large-Scale Applications: Research into scaling up EFP could open doors for its use in larger structures, potentially revolutionizing industries like construction or renewable energy.

In conclusion, Eccentric Fibre Prestress represents not just a new manufacturing technique, but a paradigm shift in how we approach the design and production of composite structures. By freeing composite manufacturing from the constraints of traditional moulding processes, EFP opens up a world of possibilities for innovation across numerous industries. As we continue to push the boundaries of what's possible with composites, technologies like EFP will play a crucial role in shaping a more flexible, efficient, and sustainable manufacturing future.

The journey of EFP is just beginning, and its full potential is yet to be realized. As research continues and the technology matures, we can expect to see even more exciting developments in this field. The future of composite manufacturing looks bright, and EFP is poised to play a significant role in shaping that future.

What's Next!

Robotics Power displayed through Tesla Optimus Robot

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

  1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
  2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
  3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
  4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
  5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

Revolutionizing Composite Manufacturing: The Promise of Eccentric Fibre Prestress

August 29, 2024
This is some text inside of a div block.

Key Takeaways

  • EFP enables mould-free manufacturing of complex curved composites
  • Reduces capital costs and increases design flexibility
  • Successfully created a NACA 4412 aerofoil profile
  • Potential applications in aerospace, automotive, marine, and renewable energy industries
  • Further research needed for scalability and process automation

I. Introduction

Imagine crafting a sleek airplane wing or a streamlined boat hull without the need for expensive, custom-made moulds. This scenario, once a distant dream for composite manufacturers, is now inching closer to reality thanks to an innovative technique called Eccentric Fibre Prestress (EFP).

In the world of advanced materials, fibre-reinforced polymer (FRP) composites have long been celebrated for their exceptional strength-to-weight ratio. These materials are the unsung heroes in industries where every gram matters, from aerospace to high-performance automobiles. However, the creation of complex curved structures using FRPs has traditionally been a costly and inflexible process, often requiring substantial investments in moulding equipment.

Enter Eccentric Fibre Prestress - a groundbreaking approach that promises to reshape the landscape of composite manufacturing. By cleverly manipulating the internal stresses within composite laminates, EFP allows engineers to create compound curvatures without the need for complex moulds. This technique not only has the potential to significantly reduce production costs but also opens up new avenues for design innovation.

In this post, we'll dive into the fascinating world of EFP, exploring how this technique works, its experimental validation, and its potential to revolutionize industries reliant on advanced composite materials. From simplified manufacturing processes to the creation of intricate aerofoil shapes, EFP is poised to usher in a new era of composite design and production.

II. Background

To fully appreciate the innovation of Eccentric Fibre Prestress (EFP), it's crucial to understand the current landscape of composite manufacturing and some key concepts.

A. Context: Current State of Composite Manufacturing

Fibre-reinforced polymer (FRP) composites have become indispensable in industries where high strength and low weight are paramount. These materials consist of strong fibres (such as carbon or glass) embedded in a polymer matrix, resulting in a material that's both lightweight and incredibly strong.

Traditionally, creating complex shapes with FRP composites involves laying the composite material over or into a mould, then curing it to retain the desired shape. This process, while effective, comes with significant drawbacks:

  1. High Capital Costs: Custom moulds for complex shapes can be extremely expensive to produce, especially for large components like aircraft parts or boat hulls.
  2. Design Inflexibility: Once a mould is created, changing the design becomes costly and time-consuming.
  3. Material Waste: The moulding process often results in excess material that must be trimmed away, leading to waste.

B. Key Concepts

Before delving into EFP, let's clarify some important terms:

  1. FRP Composites: Materials made by embedding strong fibres (like carbon or glass) in a polymer matrix. The fibres provide strength and stiffness, while the matrix binds the fibres together and transfers loads between them.
  2. Prestressing: The application of stress to a material before it's put into service. In the case of EFP, stress is applied to some fibres during the curing process.
  3. Compound Curvatures: Surfaces that curve in two directions, like the shape of a saddle or the complex contours of an aircraft wing.
  4. Laminate: A material made by stacking multiple layers (plies) of composite material.
  5. Unidirectional Fabrics: Composite reinforcements where all fibres are aligned in a single direction, providing maximum strength along that axis.

Understanding these concepts sets the stage for appreciating how EFP works and why it represents such a significant advancement in composite manufacturing. By manipulating these elements, EFP offers a novel approach to creating complex shapes without the need for expensive moulds.

III. Main Body

A. The Problem: Limitations of Traditional Composite Manufacturing

Despite the numerous advantages of FRP composites, their manufacturing process has long been plagued by several limitations:

  1. High Capital Costs: The need for precise moulds, especially for large or complex parts, can drive up initial investment costs significantly. For instance, a mould for a single aircraft component can cost millions of dollars.
  2. Design Inflexibility: Once a mould is created, any design changes become extremely costly and time-consuming. This rigidity can stifle innovation and make it difficult to iterate designs quickly.
  3. Material Waste: The traditional layup process often results in excess material around the edges of the mould, which must be trimmed away. This not only wastes expensive composite materials but also adds an extra step to the manufacturing process.
  4. Geometric Limitations: Creating compound curvatures or complex shapes often requires multi-part moulds or advanced manufacturing techniques, further increasing costs and complexity.

These limitations have long been accepted as necessary trade-offs for the benefits of composite materials. However, they have also restricted the wider adoption of composites in various industries, particularly where cost-effectiveness and design flexibility are crucial.

B. The Solution: Eccentric Fibre Prestress (EFP)

Eccentric Fibre Prestress emerges as an innovative solution to address these longstanding challenges. At its core, EFP is a technique that manipulates the internal stresses within a composite laminate to create desired curvatures without the need for a shaped mould.

Here's how EFP works:

  1. Selective Prestressing: During the manufacturing process, specific fibres within the laminate are put under tension (prestressed).
  2. Eccentric Positioning: These prestressed fibres are positioned off-center (eccentrically) within the laminate stack.
  3. Stress Release: After the composite is cured, the prestress is released. This creates an internal bending moment within the laminate.
  4. Curvature Formation: The internal bending moment causes the laminate to curve, with the shape determined by the arrangement and magnitude of the prestressed fibres.
figure 1
Schematic representation of the EFP process

The advantages of EFP over traditional methods are significant:

  1. Mould-Free Manufacturing: By eliminating the need for shaped moulds, EFP drastically reduces capital costs and increases design flexibility.
  2. Material Efficiency: With no need to trim excess material from mould edges, material waste is minimized.
  3. Design Flexibility: Changes in curvature can be achieved by adjusting the prestress configuration, allowing for rapid design iterations.
  4. Complex Geometries: EFP enables the creation of compound curvatures and complex shapes that would be challenging or costly to produce with traditional moulds.
  5. Cost-Effective Customization: Small production runs or custom parts become more economically viable without the need for expensive moulds.

By addressing the core limitations of traditional composite manufacturing, EFP opens up new possibilities for the use of composites across various industries, from aerospace and automotive to marine and renewable energy.

C. Experimental Validation

To demonstrate the effectiveness of EFP, researchers conducted a series of experiments using different laminate configurations:

  1. Single-Curvature BeamThe first experiment involved a simple [0₂] carbon fiber laminate with one ply pretensioned to 4250 N. The result was a consistently curved profile with a radius of 108.4 mm, closely matching the analytical prediction.
  2. Quasi-Sine Wave BeamThis more complex experiment used a hybrid laminate with alternating glass fiber (prestressed) and carbon fiber (neutral) plies. The surface of the reinforcement fiber was alternated relative to the prestressed ply, creating a wave-like profile. Despite some minor discrepancies due to fiber tension variations, the experiment achieved a radius of 101.7 mm, demonstrating EFP's ability to create more intricate shapes.
  3. Compound CurveThe final experiment produced a compound curvature by varying segment lengths across the laminate. With an increased prestress of 7000 N, this test showcased EFP's capability to create more pronounced and complex profiles.

These experiments not only validated the EFP concept but also highlighted its versatility in creating various curved profiles using different material combinations and prestress configurations.

D. Analytical Modeling

To predict and optimize EFP outcomes, researchers developed an analytical model based on Euler-Bernoulli beam theory. This model provides a mathematical framework for understanding and designing EFP laminates.

Key aspects of the analytical model include:

  1. Bending Moment Calculation: The model calculates the internal bending moment created by the eccentric prestress.
  2. Curvature Prediction: Using the calculated bending moment and laminate properties, the model predicts the resulting curvature.
  3. Hybrid Material Consideration: The model accounts for different material properties in hybrid laminates by using a modulus ratio.
  4. Compound Curvature Modeling: For more complex shapes, the model treats the laminate as a series of segments with different curvatures.

The accuracy of this model was demonstrated by comparing its predictions with the experimental results. Across all experiments, the model showed good correlation with actual outcomes, with low root mean square errors (RMSE) between predicted and measured profiles.

figure 2
Bending compliance versus thickness ratio for a series of mixed modulus laminates

For instance:

  • Single-curvature beam: RMSE of 1.19
  • Quasi-sine wave beam: RMSE of 2.18
  • Compound curve: RMSE of 1.32

This close agreement between analytical predictions and experimental results validates the model's effectiveness as a design tool for EFP laminates.

The development of this accurate analytical model is crucial for the practical application of EFP. It allows engineers to design and optimize EFP laminates for specific curvatures without extensive trial and error, potentially saving time and resources in the manufacturing process.

E. Advanced Application: NACA 4412 Aerofoil

To demonstrate the practical potential of EFP in real-world applications, the researchers tackled a challenging and relevant example: creating the upper surface of a NACA 4412 aerofoil.

  1. Inverse Design using Genetic Algorithm

The NACA 4412 aerofoil presents a complex, compound curvature that's crucial for its aerodynamic performance. To achieve this shape using EFP, the researchers employed an inverse design approach utilizing a Genetic Algorithm (GA).

Here's how the process worked:

a) Problem Definition: The goal was to determine the optimal laminate configuration to produce the desired aerofoil shape.

b) GA Setup:

  • The algorithm divided a 350 mm laminate into 12 equal segments.
  • The prestress load was set at 150 N/mm width, applied to a single carbon fiber ply.
  • The maximum number of neutral plies was constrained to 14, all made of carbon fiber.
  • To ensure manufacturability, the algorithm was constrained to a maximum of three ply changes between adjacent segments.

c) Optimization Process: The GA iteratively adjusted the number and arrangement of plies in each segment, comparing the resulting shape to the target aerofoil profile.

d) Convergence: After 150 generations, the algorithm converged on a solution with a low root mean square error (RMSE) of 1.98, indicating a close match to the desired profile.

figure 3
Laminate variation across length (a). Resulting 2D beam geometry (b). Prestressed fibre shown in orange and neutral fibre in grey

This inverse design approach demonstrates the power of combining EFP with computational optimization techniques, enabling the creation of complex, precisely defined shapes.

  1. Manufacturing and Analysis Results

Following the GA optimization, an aerofoil demonstrator was manufactured using the determined laminate configuration:

a) Manufacturing Process:

  • The laminate was created using pre-cut dry fibers stacked according to the GA-optimized design.
  • A vacuum infusion process was used instead of wet layup due to the thicker, more complex laminate structure.
  • A prestress of 15 kN was applied before resin infusion.

b) Results Analysis:

  • The manufactured aerofoil was 3D scanned to compare its profile with the designed shape.
  • The experimental profile showed excellent agreement with the GA-designed profile, achieving a low RMSE of 0.89.
  • The scan captured the presence of ply steps (abrupt changes in thickness) that corresponded closely to the analytical prediction.
figure 4
Fitness function of minimisation problem between two curves

This successful creation of a complex aerofoil shape demonstrates the potential of EFP for producing high-precision, aerodynamic structures without the need for expensive moulds. It showcases the technique's ability to create shapes that would be challenging or costly to produce using traditional composite manufacturing methods.

The NACA 4412 aerofoil example serves as a powerful proof-of-concept for EFP, illustrating its potential applications in aerospace, wind energy, and other industries where precise, complex curvatures are crucial. It highlights how EFP, combined with advanced optimization techniques, can open new possibilities in composite design and manufacturing.

IV. Practical Takeaways

The development of Eccentric Fibre Prestress (EFP) represents a significant advancement in composite manufacturing. Here are the key practical implications and potential applications of this technology:

A. Potential Applications in Various Industries

  1. Aerospace:
    • Creation of complex wing profiles and fuselage sections without large, expensive moulds
    • Rapid prototyping of new aerodynamic designs
    • Lightweight, customized interior components for aircraft
  2. Automotive:
    • Manufacturing of curved body panels and aerodynamic elements
    • Production of customized parts for low-volume, high-performance vehicles
    • Development of lightweight structural components for improved fuel efficiency
  3. Marine:
    • Fabrication of hull sections and hydrodynamic elements
    • Creation of custom boat parts and accessories
    • Manufacturing of propeller blades with complex curvatures
  4. Renewable Energy:
    • Production of wind turbine blades with optimized aerodynamic profiles
    • Creation of curved solar panels for improved efficiency and integration into structures
  5. Sports Equipment:
    • Manufacturing of high-performance equipment like bicycle frames, helmets, or snowboards
    • Creation of customized, ergonomic designs for individual athletes

B. Implications for Cost Reduction and Design Flexibility

  1. Reduced Capital Costs:
    • Elimination of expensive moulds for each design iteration
    • Lower barriers to entry for small-scale or start-up manufacturers
  2. Increased Design Flexibility:
    • Ability to quickly prototype and test new designs
    • Easier customization for specific applications or customer requirements
  3. Material Efficiency:
    • Reduction in material waste typically associated with mould-based manufacturing
    • Potential for more sustainable manufacturing processes
  4. Rapid Iteration:
    • Faster design-to-production cycles, enabling more responsive product development
    • Easier implementation of design improvements based on performance data

C. Limitations and Areas for Future Research

While EFP shows great promise, there are still areas that require further investigation:

  1. Scalability:
    • Research is needed to determine the feasibility of EFP for larger structures
  2. Material Compatibility:
    • Further studies on different fiber types and resin systems to expand EFP applications
  3. Mechanical Properties:
    • In-depth analysis of how EFP affects the long-term strength and durability of composites
  4. Process Automation:
    • Development of automated systems for precise fiber prestressing and placement
  5. Design Tools:
    • Creation of user-friendly software for EFP design, integrating the analytical model and optimization algorithms
  6. Multi-directional Prestressing:
    • Exploration of prestressing in multiple directions for even more complex geometries

By addressing these areas, EFP could become an even more powerful tool in the composite manufacturing toolkit, potentially revolutionizing how we approach the design and production of complex curved structures across numerous industries.

V. Conclusion

Eccentric Fibre Prestress (EFP) represents a significant leap forward in the field of composite manufacturing, offering a novel solution to long-standing challenges in the industry. Let's recap the key points and consider the future implications of this technology:

A. Summary of EFP Benefits

  1. Mould-Free Manufacturing: EFP eliminates the need for expensive, complex moulds, significantly reducing capital costs and increasing production flexibility.
  2. Design Freedom: The ability to create compound curvatures and complex shapes without moulds opens up new possibilities for innovative designs across various industries.
  3. Material Efficiency: By reducing waste associated with traditional moulding processes, EFP contributes to more sustainable manufacturing practices.
  4. Cost-Effective Customization: EFP makes small production runs and custom parts more economically viable, potentially democratizing access to advanced composite manufacturing.
  5. Rapid Prototyping: The technique allows for faster design iterations, accelerating the product development cycle.

B. Future Directions for the Technology

As promising as EFP is, it's important to recognize that this is just the beginning. The future of EFP could include:

  1. Advanced Automation: Integration with robotic systems could further improve precision and repeatability in the EFP process.
  2. Multi-Material Applications: Exploring the use of EFP with a wider range of fiber types and resin systems could expand its applicability.
  3. Hybrid Manufacturing: Combining EFP with other advanced manufacturing techniques, such as 3D printing, could lead to even more innovative production methods.
  4. Improved Modeling: Further refinement of analytical models and optimization algorithms could make EFP design more accessible and user-friendly.
  5. Large-Scale Applications: Research into scaling up EFP could open doors for its use in larger structures, potentially revolutionizing industries like construction or renewable energy.

In conclusion, Eccentric Fibre Prestress represents not just a new manufacturing technique, but a paradigm shift in how we approach the design and production of composite structures. By freeing composite manufacturing from the constraints of traditional moulding processes, EFP opens up a world of possibilities for innovation across numerous industries. As we continue to push the boundaries of what's possible with composites, technologies like EFP will play a crucial role in shaping a more flexible, efficient, and sustainable manufacturing future.

The journey of EFP is just beginning, and its full potential is yet to be realized. As research continues and the technology matures, we can expect to see even more exciting developments in this field. The future of composite manufacturing looks bright, and EFP is poised to play a significant role in shaping that future.

What's Next!

Robotics Power displayed through Tesla Optimus Robot

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

  1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
  2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
  3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
  4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
  5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

Quick Contact

Stay Updated with Our Latest Innovations
