Fibers are usually circular or nearly circular and are significantly stronger in the long direction because they are normally made by either drawing or pulling during the manufacturing process. Drawing orients the molecules so that tension loads on the fibers pull more against the molecular chains themselves than against a mere entanglement of chains. Due to the strength and stiffness advantages of fibers, they are the predominant reinforcement for advanced composites. Fibers may be continuous or discontinuous, depending on the application and manufacturing process.

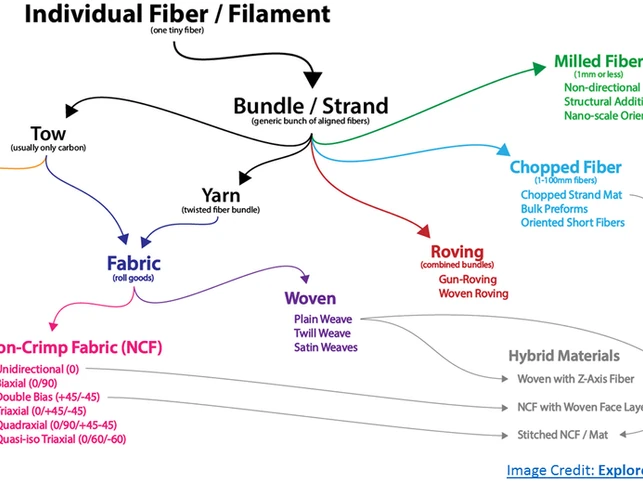

Fiber terminology

Before going over various types of fibers used as composite reinforcements, the major terminology used for fiber technology will be reviewed. Fibers are produced and sold in many forms

  • Fiber - the general term for a material that has a long axis that is many times greater than its diameter. The term aspect ratio, which refers to fiber length divided by diameter (l/d), is frequently used to describe short fiber lengths. Aspect ratios are normally greater than 100 for fibers.
  • Filament - the smallest unit of fibrous material. For spun fibers, this is the unit formed by a single hole in the spinning process. The term filament is synonymous with fiber.
  • End - the term used primarily for glass fibers that refer to a group of filaments in long parallel lengths.
  • Strand - another term associated with glass fibers that refer to a bundle or group of untwisted filaments. Continuous strand rovings provide good overall processing characteristics through fast wet-out (penetration of resin into the strand), even tension, and abrasion resistance during processing. They can be cut cleanly, and they disperse evenly throughout the resin matrix during molding.
  • Tow - similar to a strand of glass fiber, the tow is used for carbon and graphite fibers to describe the number of untwisted filaments produced at one time. Tow size is usually expressed in thousands, denoted by "k"; for example, a 12k tow contains 12,000 filaments.
  • Roving - the number of strands or tows collected into a parallel bundle without twisting. Rovings can be chopped into short fiber segments for sheet molding compound, bulk molding compound, or injection molding.
  • Yarn - a number of strands or tows collected into a parallel bundle with twisting. Twisting improves handleability and makes processes such as weaving easier, but the twist also reduces the strength properties.
  • Band - the thickness or width of several rovings, yarns, or tows as it is applied to a mandrel or tool; a common term used in filament winding.
  • Tape - the composite product form in which a large number of parallel filaments (such as tows) are held together with an organic matrix material (such as epoxy) commonly referred to as prepreg (pre-impregnated with resin). The length of the tape in the direction of the fibers is much greater than the width, and the width is much greater than the thickness. Typical tape product forms are several hundred feet long, 6 to 60 in. (15 cm to 1.5 m) wide, and 0.005 to 0.010 in. (125 to 255 mm) thick.
  • Woven Cloth - another composite product form made by weaving yarns or tows in various patterns to provide reinforcement in two directions, usually zero and 90 degrees. Typical two-dimensional woven cloth is several hundred feet long, 24 to 60 in. (60 cm to 1.5 m) wide, and 0.010 to 0.015 in. (255 to 380) mm thick. Woven cloth is normally supplied either without resin (dry) or as prepreg with resin.
  • GSM stands for Grams per Square Meter (g/m2) - the weight of the fabric if you take a sheet of material that is one meter by one-meter square and weigh it in grams.

​​It is a benchmark specification to meet production manufacturing requirements. It is also a standard (one of many) upon which different materials are compared.

Types of Fiber Reinforcement

There are many different types of fibers that can be used to reinforce polymer matrix composites. The most common are carbon fibers (AS4, IM7, etc.) and fiberglass (S-glass, E-glass, etc.). As with the matrix, the fiber chosen will be determined by the end application.

Carbon Fibers

Carbon fibers are conductive, have an excellent combination of high modulus and high tensile strength, have a very low (slightly negative) CTE, and offer good resistance to high temperatures.

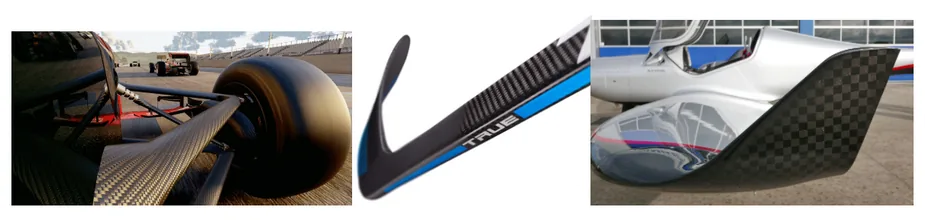

Figure 1. Carbon Fiber Composites Examples

Carbon fibers are frequently categorized using tensile modulus. There are five categories of carbon fibers generally used in composites; low modulus, standard modulus, intermediate modulus, high modulus, and ultra-high modulus. The exact cut-off for these categories will vary depending on the reference consulted, but in general, low modulus fibers have a tensile modulus of less than 30Msi and ultra-high-modulus fibers have a tensile modulus greater than 75Msi. As a point of comparison, steel has a tensile modulus of 29Msi.

As the modulus increases, the fibers tend to get more brittle, more expensive, and harder to handle. Further, the tensile strength of the fibers generally increases as the modulus increases from low to intermediate but then tends to fall off in the high and ultra-high modulus fibers. I.e. the tensile strength of carbon fibers tends to be the greatest for the intermediate modulus fibers. For these reasons, standard and intermediate modulus fibers tend to give the best overall performance, unless the application is very stiffness oriented. This is illustrated even more clearly when fiber price and availability are also taken into consideration.

Fiberglass or Glass fiber

Fiberglass is, as its name implies, glass that has been spun into the form of fibers. Fiberglass is not as strong or stiff as carbon fibers, but it has characteristics that make it desirable in many applications. Fiberglass is non-conductive (i.e. an insulator) and it is generally invisible to most types of transmissions. This makes it a good choice when dealing with electrical or broadcast applications.

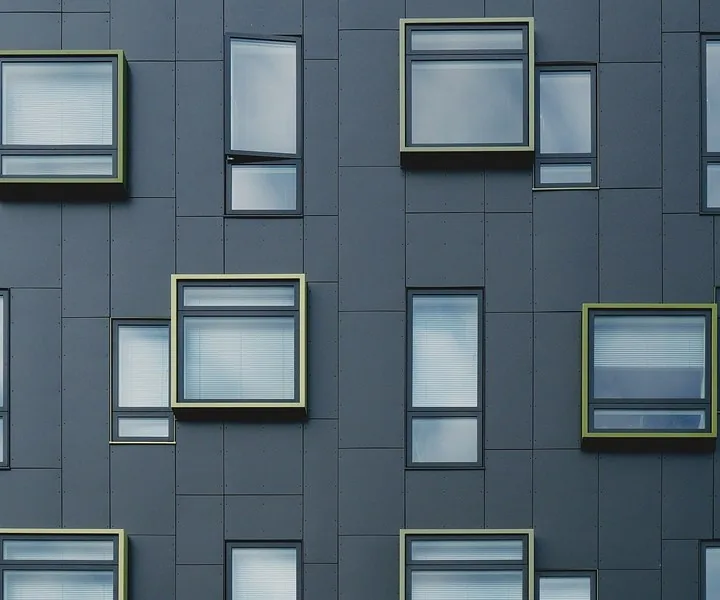

Figure 2. The application of fiberglass in infrastructure efficiency and sustainability (Source: CompositesWorld)

There are five major types of fiberglass.

  • A-glass (alkali glass) has good chemical resistance, but lower electrical properties.
  • C-glass (chemical glass) has very high chemical resistance.
  • E-glass (electrical glass) is an excellent insulator and resists attacks from the water.
  • S-Glass (structural glass) is optimized for mechanical properties.
  • D-glass (dielectric glass) has the best electrical properties but lacks mechanical properties when compared to E and S glass.

E-glass and S-glass are, by far, the most common types found in composites. These types have good combinations of chemical resistance, mechanical properties, and insulating properties. Of the two, E-glass offers the more attractive economics, and S-glass offers better mechanical performance.

Natural fiber

Natural fiber can be wood, sisal, hemp, coconut, cotton, kenaf, flax, jute, abaca, banana leaf fibers, bamboo, wheat straw, or other fibrous material. Natural fibers have low density, high specific properties, are biodegradable, are derived from renewable resources, have a small carbon footprint, and provide good thermal and acoustical insulation.

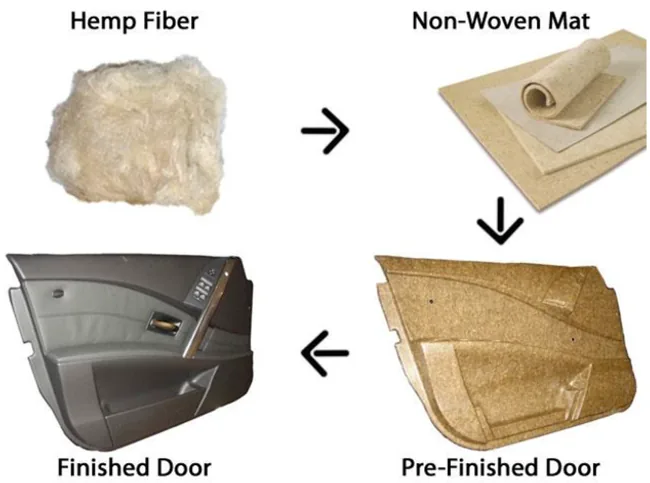

Figure 3. Natural Fiber Composites Application (Source: MDI)

A political/social advantage is that some products can be ‘farmed out’ to semi-skilled indigenous workers. Replacement of fiberglass with natural fiber removes the concern about the potential of lung disease caused by the former and is a move toward sustainable development.

Aramid fibers

Aramid fibers are most commonly known as Kevlar, Nomex, and Technora. Aramids are generally prepared by the reaction between an amine group and a carboxylic acid halide group (aramid); commonly this occurs when an aromatic polyamide is spun from a liquid concentration of sulfuric acid into a crystallized fiber. Fibers are then spun into larger threads in order to weave into large ropes or woven fabrics (Aramid). Aramid fibers are manufactured with varying grades based on varying qualities for strength and rigidity, so that the material can be somewhat tailored to specific design needs concerns, such as cutting the tough material during manufacture.

Each fiber mentioned above has many unique variables that must be taken into consideration when determining which to use for your project. This blog shows some examples of common products where each of the different fibers excels at.

Fibers, Prepregs, Feedstocks

Fibers are usually supplied in the form of rovings (glass fibers) or tows (carbon fibers). Rovings consist of straight continuous glass fiber strands or bundles of about 200 filaments; the number of strands depends on the end user, and these may be several kilometers long. Tows are likewise available in various configurations. The fibers are typically sized (coated) during production to promote wetting and adhesion, silane coupling agents being widely used for glass fibers. They may be woven into fabrics if required, including ad hoc fiber preforms for specific applications. Chopped fiber lengths range from less than 1 mm for injection to around 50 mm in randomly oriented mats for laminates.

Tow or Strands in a bobbin

Tow is the thread used to weave carbon fiber fabrics. As a standalone product, it can be used to make wound parts, pultrusion, or chopped for local reinforcement. A 24K tow (or strand) is composed of 24,000 individual filaments.

Tape in a roll

Tapes consist of unidirectionally aligned fiber tows pre-impregnated, prepregged for short, with a thermoset or thermoplastic resin. The resins most commonly used in aerospace and other high-performance applications are high-performance 2 part thermoset epoxies, and the following high-performance thermoplastics: polyetheretherketone (PEEK), polyetherketoneketone (PEKK), polyaryletherketone (PAEK), polyetherimide (PEI), and polyphenylene sulfide (PPS)

Woven Fabrics in rolls

Two-dimensional woven products are usually offered as a 0º, 90º construction. However, bias weaves (45º, -45º) can be made by twisting the basic 0º, 90º construction. Weaves are made on a loom by interlacing two orthogonal (mutually perpendicular) sets of yarns (warp and fill). The warp direction is parallel to the length of the roll, while the fill, weft, or woof direction is perpendicular to the length of the roll. Textile looms (Fig. 2.18) produce woven cloth by separation of the warp yarns and insertion of the fill yarns. Most weaves contain similar numbers of fibers and use the same material in both the warp and fill directions.

Reinforced Mats

Reinforced mats are made of either chopped strands or continuous strands lay down in a swirl pattern. Chopped strand mats are just that, mats made up of strands of glass fiber that have been chopped to shorter lengths, while continuous strand mats consist of fibers that run the full length of the mat. Mats are generally held together by resinous binders. They are used for medium-strength parts having uniform cross-sections. Both chopped and continuous-strand reinforcing mats are available in weights varying from 240 to 1430 g/m2 and in various widths. Surfacing mats, or veils, are thin, lightweight materials used in conjunction with reinforcing mats and fabrics to provide a good surface finish.

Prepregs

Prepregs are composite materials in which a reinforcement fiber is pre-impregnated with a thermoplastic or thermoset resin matrix in a specific ratio. Prepregs are most commonly found in conjunction with carbon fiber, as they have unique properties stemming from the fact that they have specific heat and pressure requirements. These materials are more widely used in aerospace and other high-end industries.

About Addcomposites

Addcomposites is the provider of the Automated Fiber Placement (AFP) ecosystem - including the Fiber Placement System (AFP-XS), 3D Simulation and Programming Software (AddPath), and Robotic Cells (AddCell). With the leasing program for the AFP system (AFPnext), composites manufacturers can work with thermosets, thermoplastics, dry fiber placement, or in combination with 3D Printers on a monthly basis.

Sources:

Introduction to composites materials by Tri-Dung Ngo
