Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

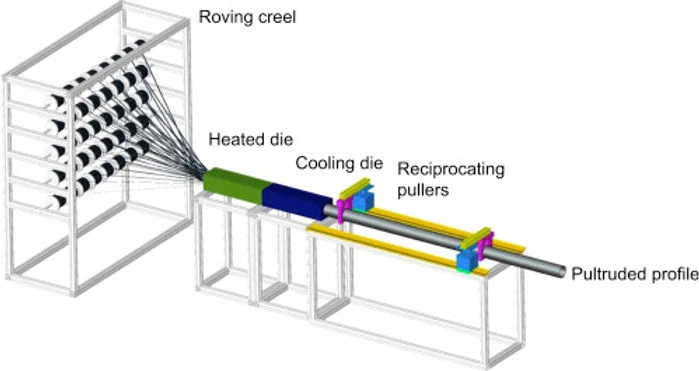

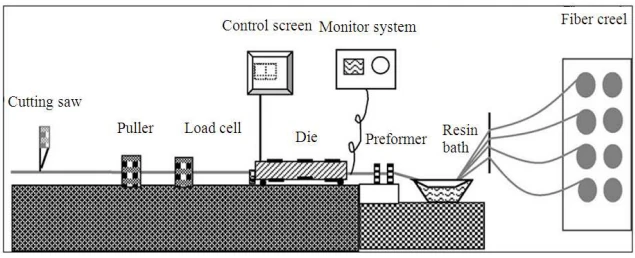

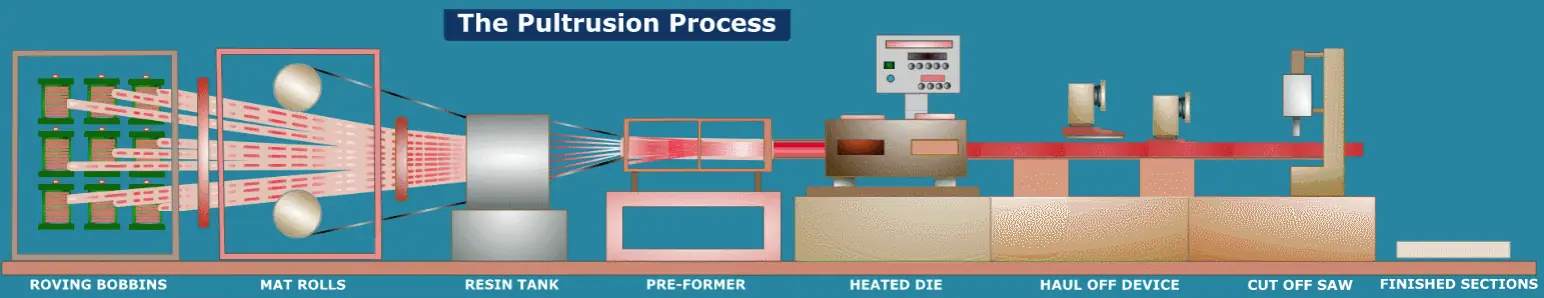

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

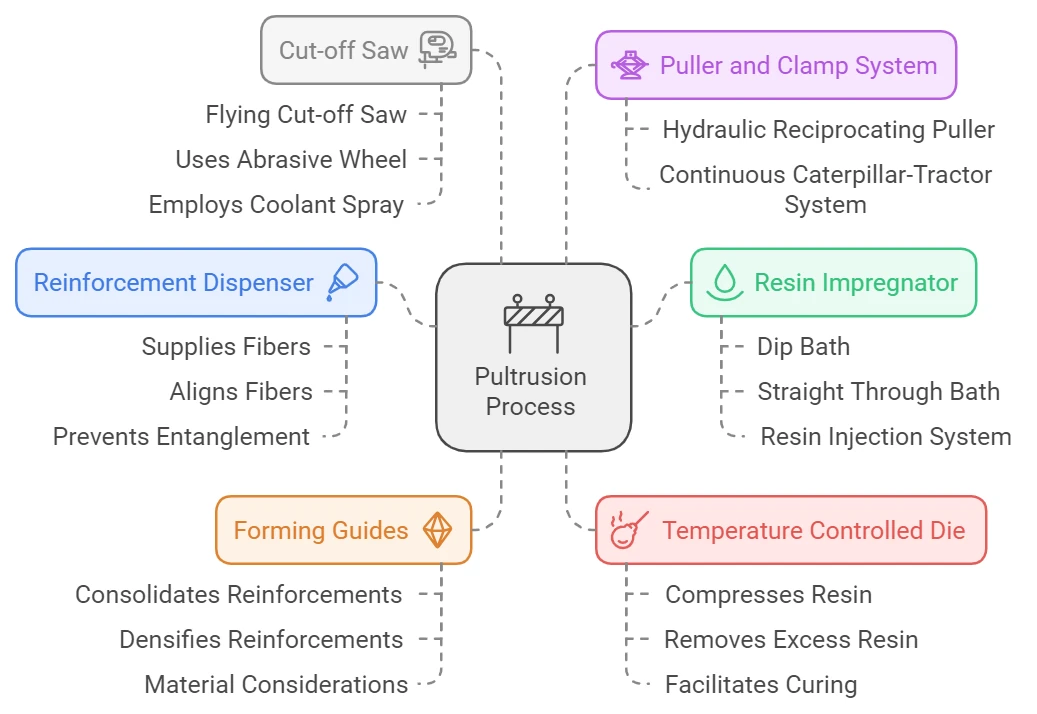

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

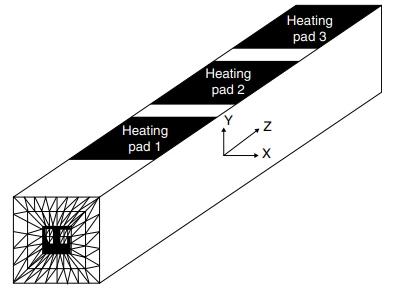

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

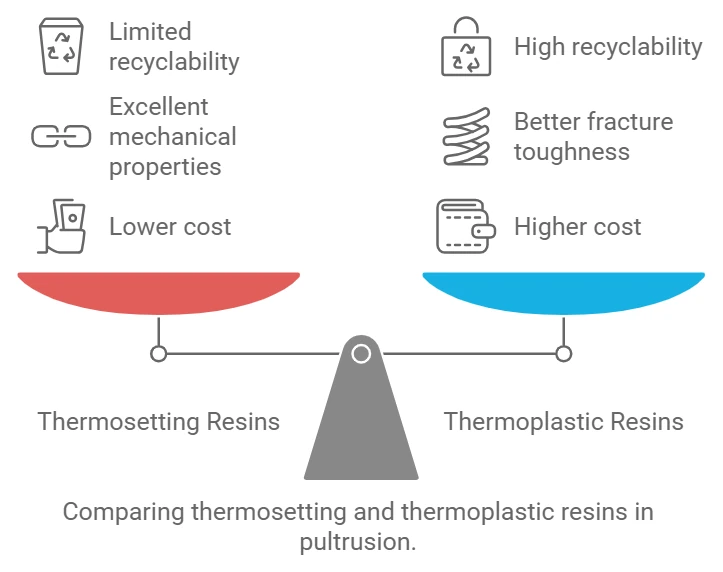

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

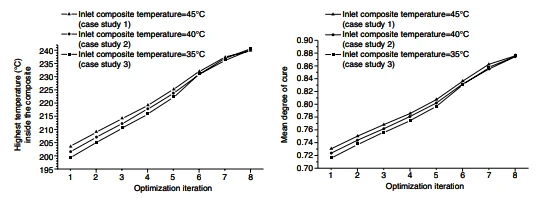

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

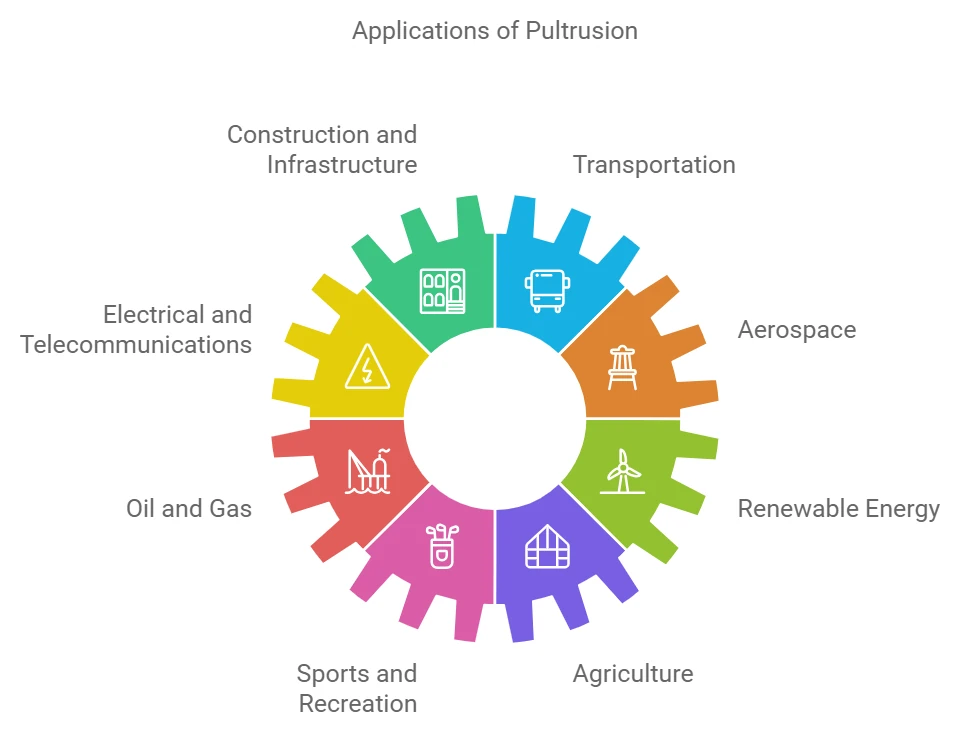

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

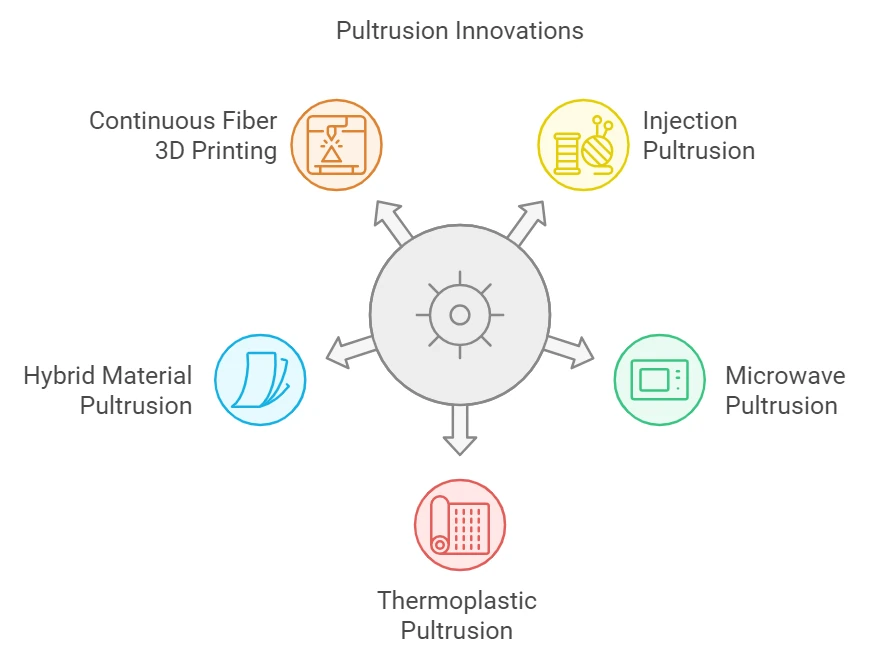

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

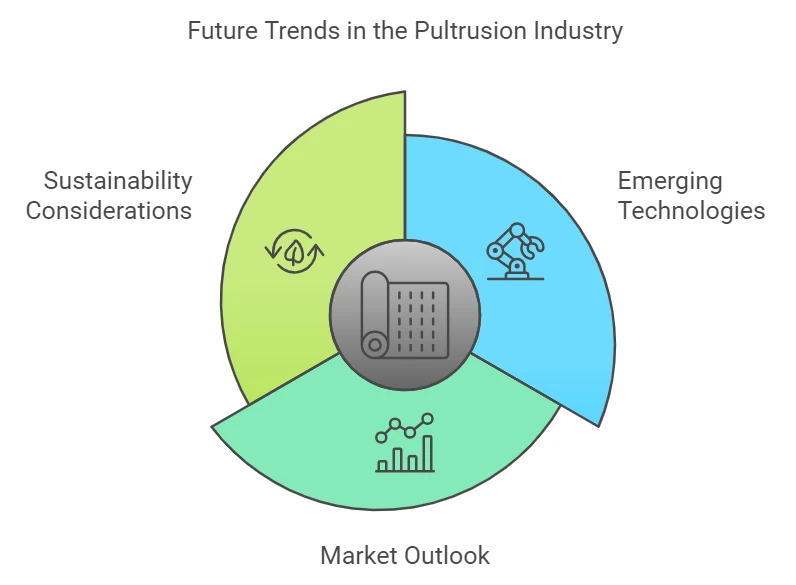

As the pultrusion industry continues to evolve, several trends and developments are shaping its future. This chapter explores emerging technologies, market outlook, and sustainability considerations that are likely to influence the pultrusion landscape in the coming years.

Emerging Technologies

1. Advanced Process Control and Automation:
   • Implementation of Industry 4.0 concepts
   • Real-time monitoring and adaptive control systems
   • Use of artificial intelligence and machine learning for process optimization
2. In-situ Sensing and Quality Assurance:
   • Integration of fiber optic sensors for real-time monitoring of curing and structural health
   • Advanced non-destructive testing techniques for inline quality control
3. Hybrid and Multi-material Pultrusion:
   • Combination of different fiber types and resins in a single profile
   • Integration of metallic components or smart materials
4. Nano-enhanced Composites:
   • Incorporation of nanomaterials to improve mechanical, thermal, and electrical properties
   • Development of multifunctional pultruded composites
5. Additive Manufacturing Integration:
   • Combination of pultrusion with 3D printing technologies
   • Enables creation of complex, customized structures with continuous fiber reinforcement
6. High-Performance Thermoplastic Pultrusion:
   • Development of new thermoplastic resin systems for high-temperature applications
   • In-situ polymerization techniques for improved fiber-matrix adhesion
7. Green Technologies:
   • Bio-based and recyclable resin systems
   • Natural fiber reinforcements
   • Energy-efficient curing methods (e.g., UV, microwave, electron beam)

Explore innovations in composite materials

Market Outlook

The pultrusion market is poised for significant growth:

1. Geographic Expansion:
   • Increasing adoption in emerging markets, particularly in Asia-Pacific and Eastern Europe
   • Potential for market growth in regions with developing infrastructure
2. Industry-specific Growth:
   • Continued expansion in construction and infrastructure sectors
   • Increasing use in automotive and aerospace industries for lightweight applications
   • Growing demand in renewable energy sector (e.g., wind turbine components)
3. Technological Advancements:
   • Development of new resin systems and fiber types
   • Improved process efficiency and product quality driving market growth
4. Customization and Flexibility:
   • Increasing demand for tailored solutions and small-batch production
   • Development of modular and flexible pultrusion systems
5. Market Consolidation:
   • Potential for mergers and acquisitions as the industry matures
   • Collaboration between material suppliers, equipment manufacturers, and end-users
6. Regulatory Influences:
   • Stricter environmental and safety regulations driving demand for corrosion-resistant and fire-retardant pultruded products
   • Increasing focus on life-cycle assessment and sustainability

Discover where composites are used

Sustainability Considerations

Sustainability is becoming increasingly important in the pultrusion industry:

1. Energy Efficiency:
   • Development of low-energy curing technologies
   • Optimization of process parameters to reduce energy consumption
   • Use of renewable energy sources in manufacturing facilities
2. Raw Material Sustainability:
   • Increased use of recycled and bio-based fibers
   • Development of sustainable resin systems (e.g., bio-based, recyclable)
   • Reduction of volatile organic compound (VOC) emissions
3. Waste Reduction:
   • Implementation of closed-loop manufacturing systems
   • Development of in-process recycling techniques for waste materials
   • Design for recyclability and end-of-life considerations
4. Life Cycle Assessment:
   • Comprehensive evaluation of environmental impact throughout the product lifecycle
   • Development of tools for eco-design of pultruded products
5. Circular Economy Principles:
   • Design of pultruded products for easy disassembly and material recovery
   • Exploration of business models promoting product-as-a-service concepts
6. Green Building and Infrastructure:
   • Growing demand for sustainable construction materials
   • Potential for pultruded products to contribute to green building certifications
7. Regulatory Compliance:
   • Anticipation of stricter environmental regulations
   • Development of products and processes that exceed current standards

Learn about sustainable composites manufacturing

As the pultrusion industry embraces these emerging technologies, responds to market trends, and addresses sustainability concerns, it is well-positioned for continued growth and innovation. The future of pultrusion lies in its ability to provide high-performance, cost-effective, and environmentally friendly solutions to meet the evolving needs of various industries.

Recap of Key Points

Throughout this course, we've explored the pultrusion manufacturing process in detail. Let's recap the key points:

1. Definition and Basic Concept:
   • Pultrusion is a continuous manufacturing process for producing composite materials with constant cross-sections.
   • It involves pulling reinforcing fibers through a resin bath and a heated die to form a solid composite profile.
2. Historical Development:
   • Pioneered in the 1950s, pultrusion has evolved significantly over the decades.
   • The industry has grown from about 20 manufacturers in the 1960s to over 300 worldwide by 2006.
3. Process Components:
   • Key components include the reinforcement dispenser, resin impregnator, forming guides, temperature-controlled die, puller and clamp system, and cut-off saw.
   • Each component plays a crucial role in ensuring the quality and efficiency of the process.
4. Materials:
   • Reinforcements include glass, carbon, aramid, and other specialty fibers.
   • Matrix materials can be thermosetting or thermoplastic resins.
   • Fillers and additives are used to enhance specific properties or reduce costs.
5. Process Parameters and Optimization:
   • Critical parameters include pull speed, die temperature, resin viscosity, and fiber content.
   • Optimization techniques involve statistical design of experiments, numerical simulation, and real-time process monitoring.
6. Applications:
   • Pultruded products find use in diverse sectors including construction, transportation, electrical, and renewable energy industries.
   • Examples range from structural profiles and ladder rails to wind turbine components and automotive parts.
7. Innovations and Variants:
   • Injection pultrusion, microwave pultrusion, and other variants have expanded the capabilities of the process.
   • These innovations address specific challenges and open up new application areas.
8. Future Trends:
   • Emerging technologies include advanced process control, in-situ sensing, and integration with additive manufacturing.
   • The market outlook is positive, with growth expected in various geographical regions and industry sectors.
   • Sustainability is becoming increasingly important, driving developments in energy efficiency, raw material selection, and waste reduction.

Explore fundamentals of composites manufacturing

The Role of Pultrusion in Composite Manufacturing

Pultrusion plays a crucial and expanding role in the composite manufacturing landscape:

1. Continuous Production of Constant Cross-Section Profiles:
   • Pultrusion excels in producing long, straight composite profiles efficiently and consistently.
   • It fills a niche that other processes like hand lay-up or compression molding can't easily address.
2. Cost-Effective Manufacturing:
   • The continuous nature of pultrusion allows for high production rates and lower labor costs compared to many other composite manufacturing methods.
   • It's particularly cost-effective for large volume production of standard profiles.
3. High-Performance Products:
   • Pultrusion can produce composites with high fiber content and excellent alignment, resulting in superior mechanical properties.
   • The process allows for the creation of profiles with consistent quality and properties along their entire length.
4. Versatility in Material Combinations:
   • Pultrusion can work with a wide range of fiber types and resin systems, allowing for tailored material properties.
   • The process can incorporate different reinforcement architectures (unidirectional, multidirectional, hybrid) to meet specific performance requirements.
5. Sustainability Potential:
   • As the industry moves towards more sustainable practices, pultrusion offers opportunities for using bio-based resins, natural fibers, and recyclable thermoplastics.
   • The efficiency of the process and potential for waste reduction contribute to its sustainability profile.
6. Enabling New Applications:
   • Pultrusion has opened up new possibilities for using composites in structural applications, particularly in construction and infrastructure.
   • Innovations in pultrusion technology continue to expand its capabilities, allowing it to address more complex geometries and material combinations.
7. Complementing Other Manufacturing Processes:
   • Pultrusion can be combined with other processes (e.g., overbraiding, winding) to create more complex composite structures.
   • Pultruded profiles can serve as reinforcements or core materials in other composite manufacturing methods.
8. Driving Material and Process Innovations:
   • The unique requirements of pultrusion drive innovations in resin systems, fiber forms, and process control technologies.
   • These innovations often have spillover effects, benefiting the broader composite manufacturing industry.

Discover innovations in composite materials

In conclusion, pultrusion stands as a critical technology in the composite manufacturing landscape. Its ability to produce high-quality, consistent profiles efficiently makes it indispensable for many applications. As the industry continues to evolve, pultrusion is likely to play an even more significant role, driven by technological advancements, market demands, and the push for more sustainable manufacturing practices. The future of pultrusion looks bright, with ongoing innovations promising to expand its capabilities and application areas even further.

‍

References

1. Joshi, S. C. (2012). The pultrusion process for polymer matrix composites. In Manufacturing Techniques for Polymer Matrix Composites (PMCs) (pp. 381-413). Woodhead Publishing.
2. Strong, A. B. (2008). Fundamentals of Composites Manufacturing: Materials, Methods and Applications. Society of Manufacturing Engineers.
3. Starr, T. F. (2000). Pultrusion for engineers. Woodhead Publishing.
4. Reinforced Plastics. (2006). Globalisation of the pultrusion industry. Reinforced Plastics, 50(5), 38-41.
5. Baran, I., Tutum, C. C., & Hattel, J. H. (2013). The effect of thermal contact resistance on the thermosetting pultrusion process. Composites Part A: Applied Science and Manufacturing, 45, 68-77.
6. Carlone, P., Palazzo, G. S., & Pasquino, R. (2006). Pultrusion manufacturing process development by computational modelling and methods. Mathematical and Computer Modelling, 44(7-8), 701-709.
7. Beckwith, S. W. (2012). Pultrusion: The big picture. Composites Manufacturing, 28(5), 6-9.

‍

Expand Your Knowledge

We hope this comprehensive guide to pultrusion manufacturing has been informative and valuable. To further enhance your understanding of composite materials and manufacturing processes, we encourage you to:

1. Explore our other in-depth articles on composite manufacturing techniques:
   • Fundamentals of Composites Manufacturing
   • Automated Fiber Placement Process
2. Stay updated with the latest innovations in the field:
   • Innovations in Composite Materials: Real-World Applications
3. Discover how composites are transforming various industries:
   • Where Are Composites Used?
4. Learn about sustainable practices in composite manufacturing:
   • Sustainable Manufacturing: Why Natural Fiber Thermoplastic Composites?
5. Join our community of composite enthusiasts and professionals:
   • Follow us on social media for regular updates and discussions
   • Subscribe to our newsletter for the latest industry insights and technological advancements
6. Consider attending workshops or webinars on advanced manufacturing techniques to gain hands-on experience and network with industry experts.

Remember, the field of composite manufacturing is constantly evolving. By staying curious and engaged, you'll be well-positioned to leverage the full potential of technologies like pultrusion in your projects and career. We're excited to be part of your journey in the fascinating world of composite materials!

Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

As the pultrusion industry continues to evolve, several trends and developments are shaping its future. This chapter explores emerging technologies, market outlook, and sustainability considerations that are likely to influence the pultrusion landscape in the coming years.

Emerging Technologies

1. Advanced Process Control and Automation:
   • Implementation of Industry 4.0 concepts
   • Real-time monitoring and adaptive control systems
   • Use of artificial intelligence and machine learning for process optimization
2. In-situ Sensing and Quality Assurance:
   • Integration of fiber optic sensors for real-time monitoring of curing and structural health
   • Advanced non-destructive testing techniques for inline quality control
3. Hybrid and Multi-material Pultrusion:
   • Combination of different fiber types and resins in a single profile
   • Integration of metallic components or smart materials
4. Nano-enhanced Composites:
   • Incorporation of nanomaterials to improve mechanical, thermal, and electrical properties
   • Development of multifunctional pultruded composites
5. Additive Manufacturing Integration:
   • Combination of pultrusion with 3D printing technologies
   • Enables creation of complex, customized structures with continuous fiber reinforcement
6. High-Performance Thermoplastic Pultrusion:
   • Development of new thermoplastic resin systems for high-temperature applications
   • In-situ polymerization techniques for improved fiber-matrix adhesion
7. Green Technologies:
   • Bio-based and recyclable resin systems
   • Natural fiber reinforcements
   • Energy-efficient curing methods (e.g., UV, microwave, electron beam)

Explore innovations in composite materials

Market Outlook

The pultrusion market is poised for significant growth:

1. Geographic Expansion:
   • Increasing adoption in emerging markets, particularly in Asia-Pacific and Eastern Europe
   • Potential for market growth in regions with developing infrastructure
2. Industry-specific Growth:
   • Continued expansion in construction and infrastructure sectors
   • Increasing use in automotive and aerospace industries for lightweight applications
   • Growing demand in renewable energy sector (e.g., wind turbine components)
3. Technological Advancements:
   • Development of new resin systems and fiber types
   • Improved process efficiency and product quality driving market growth
4. Customization and Flexibility:
   • Increasing demand for tailored solutions and small-batch production
   • Development of modular and flexible pultrusion systems
5. Market Consolidation:
   • Potential for mergers and acquisitions as the industry matures
   • Collaboration between material suppliers, equipment manufacturers, and end-users
6. Regulatory Influences:
   • Stricter environmental and safety regulations driving demand for corrosion-resistant and fire-retardant pultruded products
   • Increasing focus on life-cycle assessment and sustainability

Discover where composites are used

Sustainability Considerations

Sustainability is becoming increasingly important in the pultrusion industry:

1. Energy Efficiency:
   • Development of low-energy curing technologies
   • Optimization of process parameters to reduce energy consumption
   • Use of renewable energy sources in manufacturing facilities
2. Raw Material Sustainability:
   • Increased use of recycled and bio-based fibers
   • Development of sustainable resin systems (e.g., bio-based, recyclable)
   • Reduction of volatile organic compound (VOC) emissions
3. Waste Reduction:
   • Implementation of closed-loop manufacturing systems
   • Development of in-process recycling techniques for waste materials
   • Design for recyclability and end-of-life considerations
4. Life Cycle Assessment:
   • Comprehensive evaluation of environmental impact throughout the product lifecycle
   • Development of tools for eco-design of pultruded products
5. Circular Economy Principles:
   • Design of pultruded products for easy disassembly and material recovery
   • Exploration of business models promoting product-as-a-service concepts
6. Green Building and Infrastructure:
   • Growing demand for sustainable construction materials
   • Potential for pultruded products to contribute to green building certifications
7. Regulatory Compliance:
   • Anticipation of stricter environmental regulations
   • Development of products and processes that exceed current standards

Learn about sustainable composites manufacturing

As the pultrusion industry embraces these emerging technologies, responds to market trends, and addresses sustainability concerns, it is well-positioned for continued growth and innovation. The future of pultrusion lies in its ability to provide high-performance, cost-effective, and environmentally friendly solutions to meet the evolving needs of various industries.

Recap of Key Points

Throughout this course, we've explored the pultrusion manufacturing process in detail. Let's recap the key points:

1. Definition and Basic Concept:
   • Pultrusion is a continuous manufacturing process for producing composite materials with constant cross-sections.
   • It involves pulling reinforcing fibers through a resin bath and a heated die to form a solid composite profile.
2. Historical Development:
   • Pioneered in the 1950s, pultrusion has evolved significantly over the decades.
   • The industry has grown from about 20 manufacturers in the 1960s to over 300 worldwide by 2006.
3. Process Components:
   • Key components include the reinforcement dispenser, resin impregnator, forming guides, temperature-controlled die, puller and clamp system, and cut-off saw.
   • Each component plays a crucial role in ensuring the quality and efficiency of the process.
4. Materials:
   • Reinforcements include glass, carbon, aramid, and other specialty fibers.
   • Matrix materials can be thermosetting or thermoplastic resins.
   • Fillers and additives are used to enhance specific properties or reduce costs.
5. Process Parameters and Optimization:
   • Critical parameters include pull speed, die temperature, resin viscosity, and fiber content.
   • Optimization techniques involve statistical design of experiments, numerical simulation, and real-time process monitoring.
6. Applications:
   • Pultruded products find use in diverse sectors including construction, transportation, electrical, and renewable energy industries.
   • Examples range from structural profiles and ladder rails to wind turbine components and automotive parts.
7. Innovations and Variants:
   • Injection pultrusion, microwave pultrusion, and other variants have expanded the capabilities of the process.
   • These innovations address specific challenges and open up new application areas.
8. Future Trends:
   • Emerging technologies include advanced process control, in-situ sensing, and integration with additive manufacturing.
   • The market outlook is positive, with growth expected in various geographical regions and industry sectors.
   • Sustainability is becoming increasingly important, driving developments in energy efficiency, raw material selection, and waste reduction.

Explore fundamentals of composites manufacturing

The Role of Pultrusion in Composite Manufacturing

Pultrusion plays a crucial and expanding role in the composite manufacturing landscape:

1. Continuous Production of Constant Cross-Section Profiles:
   • Pultrusion excels in producing long, straight composite profiles efficiently and consistently.
   • It fills a niche that other processes like hand lay-up or compression molding can't easily address.
2. Cost-Effective Manufacturing:
   • The continuous nature of pultrusion allows for high production rates and lower labor costs compared to many other composite manufacturing methods.
   • It's particularly cost-effective for large volume production of standard profiles.
3. High-Performance Products:
   • Pultrusion can produce composites with high fiber content and excellent alignment, resulting in superior mechanical properties.
   • The process allows for the creation of profiles with consistent quality and properties along their entire length.
4. Versatility in Material Combinations:
   • Pultrusion can work with a wide range of fiber types and resin systems, allowing for tailored material properties.
   • The process can incorporate different reinforcement architectures (unidirectional, multidirectional, hybrid) to meet specific performance requirements.
5. Sustainability Potential:
   • As the industry moves towards more sustainable practices, pultrusion offers opportunities for using bio-based resins, natural fibers, and recyclable thermoplastics.
   • The efficiency of the process and potential for waste reduction contribute to its sustainability profile.
6. Enabling New Applications:
   • Pultrusion has opened up new possibilities for using composites in structural applications, particularly in construction and infrastructure.
   • Innovations in pultrusion technology continue to expand its capabilities, allowing it to address more complex geometries and material combinations.
7. Complementing Other Manufacturing Processes:
   • Pultrusion can be combined with other processes (e.g., overbraiding, winding) to create more complex composite structures.
   • Pultruded profiles can serve as reinforcements or core materials in other composite manufacturing methods.
8. Driving Material and Process Innovations:
   • The unique requirements of pultrusion drive innovations in resin systems, fiber forms, and process control technologies.
   • These innovations often have spillover effects, benefiting the broader composite manufacturing industry.

Discover innovations in composite materials

In conclusion, pultrusion stands as a critical technology in the composite manufacturing landscape. Its ability to produce high-quality, consistent profiles efficiently makes it indispensable for many applications. As the industry continues to evolve, pultrusion is likely to play an even more significant role, driven by technological advancements, market demands, and the push for more sustainable manufacturing practices. The future of pultrusion looks bright, with ongoing innovations promising to expand its capabilities and application areas even further.

‍

References

1. Joshi, S. C. (2012). The pultrusion process for polymer matrix composites. In Manufacturing Techniques for Polymer Matrix Composites (PMCs) (pp. 381-413). Woodhead Publishing.
2. Strong, A. B. (2008). Fundamentals of Composites Manufacturing: Materials, Methods and Applications. Society of Manufacturing Engineers.
3. Starr, T. F. (2000). Pultrusion for engineers. Woodhead Publishing.
4. Reinforced Plastics. (2006). Globalisation of the pultrusion industry. Reinforced Plastics, 50(5), 38-41.
5. Baran, I., Tutum, C. C., & Hattel, J. H. (2013). The effect of thermal contact resistance on the thermosetting pultrusion process. Composites Part A: Applied Science and Manufacturing, 45, 68-77.
6. Carlone, P., Palazzo, G. S., & Pasquino, R. (2006). Pultrusion manufacturing process development by computational modelling and methods. Mathematical and Computer Modelling, 44(7-8), 701-709.
7. Beckwith, S. W. (2012). Pultrusion: The big picture. Composites Manufacturing, 28(5), 6-9.

‍

Expand Your Knowledge

We hope this comprehensive guide to pultrusion manufacturing has been informative and valuable. To further enhance your understanding of composite materials and manufacturing processes, we encourage you to:

1. Explore our other in-depth articles on composite manufacturing techniques:
   • Fundamentals of Composites Manufacturing
   • Automated Fiber Placement Process
2. Stay updated with the latest innovations in the field:
   • Innovations in Composite Materials: Real-World Applications
3. Discover how composites are transforming various industries:
   • Where Are Composites Used?
4. Learn about sustainable practices in composite manufacturing:
   • Sustainable Manufacturing: Why Natural Fiber Thermoplastic Composites?
5. Join our community of composite enthusiasts and professionals:
   • Follow us on social media for regular updates and discussions
   • Subscribe to our newsletter for the latest industry insights and technological advancements
6. Consider attending workshops or webinars on advanced manufacturing techniques to gain hands-on experience and network with industry experts.

Remember, the field of composite manufacturing is constantly evolving. By staying curious and engaged, you'll be well-positioned to leverage the full potential of technologies like pultrusion in your projects and career. We're excited to be part of your journey in the fascinating world of composite materials!

Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

As the pultrusion industry continues to evolve, several trends and developments are shaping its future. This chapter explores emerging technologies, market outlook, and sustainability considerations that are likely to influence the pultrusion landscape in the coming years.

Emerging Technologies

1. Advanced Process Control and Automation:
   • Implementation of Industry 4.0 concepts
   • Real-time monitoring and adaptive control systems
   • Use of artificial intelligence and machine learning for process optimization
2. In-situ Sensing and Quality Assurance:
   • Integration of fiber optic sensors for real-time monitoring of curing and structural health
   • Advanced non-destructive testing techniques for inline quality control
3. Hybrid and Multi-material Pultrusion:
   • Combination of different fiber types and resins in a single profile
   • Integration of metallic components or smart materials
4. Nano-enhanced Composites:
   • Incorporation of nanomaterials to improve mechanical, thermal, and electrical properties
   • Development of multifunctional pultruded composites
5. Additive Manufacturing Integration:
   • Combination of pultrusion with 3D printing technologies
   • Enables creation of complex, customized structures with continuous fiber reinforcement
6. High-Performance Thermoplastic Pultrusion:
   • Development of new thermoplastic resin systems for high-temperature applications
   • In-situ polymerization techniques for improved fiber-matrix adhesion
7. Green Technologies:
   • Bio-based and recyclable resin systems
   • Natural fiber reinforcements
   • Energy-efficient curing methods (e.g., UV, microwave, electron beam)

Explore innovations in composite materials

Market Outlook

The pultrusion market is poised for significant growth:

1. Geographic Expansion:
   • Increasing adoption in emerging markets, particularly in Asia-Pacific and Eastern Europe
   • Potential for market growth in regions with developing infrastructure
2. Industry-specific Growth:
   • Continued expansion in construction and infrastructure sectors
   • Increasing use in automotive and aerospace industries for lightweight applications
   • Growing demand in renewable energy sector (e.g., wind turbine components)
3. Technological Advancements:
   • Development of new resin systems and fiber types
   • Improved process efficiency and product quality driving market growth
4. Customization and Flexibility:
   • Increasing demand for tailored solutions and small-batch production
   • Development of modular and flexible pultrusion systems
5. Market Consolidation:
   • Potential for mergers and acquisitions as the industry matures
   • Collaboration between material suppliers, equipment manufacturers, and end-users
6. Regulatory Influences:
   • Stricter environmental and safety regulations driving demand for corrosion-resistant and fire-retardant pultruded products
   • Increasing focus on life-cycle assessment and sustainability

Discover where composites are used

Sustainability Considerations

Sustainability is becoming increasingly important in the pultrusion industry:

1. Energy Efficiency:
   • Development of low-energy curing technologies
   • Optimization of process parameters to reduce energy consumption
   • Use of renewable energy sources in manufacturing facilities
2. Raw Material Sustainability:
   • Increased use of recycled and bio-based fibers
   • Development of sustainable resin systems (e.g., bio-based, recyclable)
   • Reduction of volatile organic compound (VOC) emissions
3. Waste Reduction:
   • Implementation of closed-loop manufacturing systems
   • Development of in-process recycling techniques for waste materials
   • Design for recyclability and end-of-life considerations
4. Life Cycle Assessment:
   • Comprehensive evaluation of environmental impact throughout the product lifecycle
   • Development of tools for eco-design of pultruded products
5. Circular Economy Principles:
   • Design of pultruded products for easy disassembly and material recovery
   • Exploration of business models promoting product-as-a-service concepts
6. Green Building and Infrastructure:
   • Growing demand for sustainable construction materials
   • Potential for pultruded products to contribute to green building certifications
7. Regulatory Compliance:
   • Anticipation of stricter environmental regulations
   • Development of products and processes that exceed current standards

Learn about sustainable composites manufacturing

As the pultrusion industry embraces these emerging technologies, responds to market trends, and addresses sustainability concerns, it is well-positioned for continued growth and innovation. The future of pultrusion lies in its ability to provide high-performance, cost-effective, and environmentally friendly solutions to meet the evolving needs of various industries.

Recap of Key Points

Throughout this course, we've explored the pultrusion manufacturing process in detail. Let's recap the key points:

1. Definition and Basic Concept:
   • Pultrusion is a continuous manufacturing process for producing composite materials with constant cross-sections.
   • It involves pulling reinforcing fibers through a resin bath and a heated die to form a solid composite profile.
2. Historical Development:
   • Pioneered in the 1950s, pultrusion has evolved significantly over the decades.
   • The industry has grown from about 20 manufacturers in the 1960s to over 300 worldwide by 2006.
3. Process Components:
   • Key components include the reinforcement dispenser, resin impregnator, forming guides, temperature-controlled die, puller and clamp system, and cut-off saw.
   • Each component plays a crucial role in ensuring the quality and efficiency of the process.
4. Materials:
   • Reinforcements include glass, carbon, aramid, and other specialty fibers.
   • Matrix materials can be thermosetting or thermoplastic resins.
   • Fillers and additives are used to enhance specific properties or reduce costs.
5. Process Parameters and Optimization:
   • Critical parameters include pull speed, die temperature, resin viscosity, and fiber content.
   • Optimization techniques involve statistical design of experiments, numerical simulation, and real-time process monitoring.
6. Applications:
   • Pultruded products find use in diverse sectors including construction, transportation, electrical, and renewable energy industries.
   • Examples range from structural profiles and ladder rails to wind turbine components and automotive parts.
7. Innovations and Variants:
   • Injection pultrusion, microwave pultrusion, and other variants have expanded the capabilities of the process.
   • These innovations address specific challenges and open up new application areas.
8. Future Trends:
   • Emerging technologies include advanced process control, in-situ sensing, and integration with additive manufacturing.
   • The market outlook is positive, with growth expected in various geographical regions and industry sectors.
   • Sustainability is becoming increasingly important, driving developments in energy efficiency, raw material selection, and waste reduction.

Explore fundamentals of composites manufacturing

The Role of Pultrusion in Composite Manufacturing

Pultrusion plays a crucial and expanding role in the composite manufacturing landscape:

1. Continuous Production of Constant Cross-Section Profiles:
   • Pultrusion excels in producing long, straight composite profiles efficiently and consistently.
   • It fills a niche that other processes like hand lay-up or compression molding can't easily address.
2. Cost-Effective Manufacturing:
   • The continuous nature of pultrusion allows for high production rates and lower labor costs compared to many other composite manufacturing methods.
   • It's particularly cost-effective for large volume production of standard profiles.
3. High-Performance Products:
   • Pultrusion can produce composites with high fiber content and excellent alignment, resulting in superior mechanical properties.
   • The process allows for the creation of profiles with consistent quality and properties along their entire length.
4. Versatility in Material Combinations:
   • Pultrusion can work with a wide range of fiber types and resin systems, allowing for tailored material properties.
   • The process can incorporate different reinforcement architectures (unidirectional, multidirectional, hybrid) to meet specific performance requirements.
5. Sustainability Potential:
   • As the industry moves towards more sustainable practices, pultrusion offers opportunities for using bio-based resins, natural fibers, and recyclable thermoplastics.
   • The efficiency of the process and potential for waste reduction contribute to its sustainability profile.
6. Enabling New Applications:
   • Pultrusion has opened up new possibilities for using composites in structural applications, particularly in construction and infrastructure.
   • Innovations in pultrusion technology continue to expand its capabilities, allowing it to address more complex geometries and material combinations.
7. Complementing Other Manufacturing Processes:
   • Pultrusion can be combined with other processes (e.g., overbraiding, winding) to create more complex composite structures.
   • Pultruded profiles can serve as reinforcements or core materials in other composite manufacturing methods.
8. Driving Material and Process Innovations:
   • The unique requirements of pultrusion drive innovations in resin systems, fiber forms, and process control technologies.
   • These innovations often have spillover effects, benefiting the broader composite manufacturing industry.

Discover innovations in composite materials

In conclusion, pultrusion stands as a critical technology in the composite manufacturing landscape. Its ability to produce high-quality, consistent profiles efficiently makes it indispensable for many applications. As the industry continues to evolve, pultrusion is likely to play an even more significant role, driven by technological advancements, market demands, and the push for more sustainable manufacturing practices. The future of pultrusion looks bright, with ongoing innovations promising to expand its capabilities and application areas even further.

‍

References

1. Joshi, S. C. (2012). The pultrusion process for polymer matrix composites. In Manufacturing Techniques for Polymer Matrix Composites (PMCs) (pp. 381-413). Woodhead Publishing.
2. Strong, A. B. (2008). Fundamentals of Composites Manufacturing: Materials, Methods and Applications. Society of Manufacturing Engineers.
3. Starr, T. F. (2000). Pultrusion for engineers. Woodhead Publishing.
4. Reinforced Plastics. (2006). Globalisation of the pultrusion industry. Reinforced Plastics, 50(5), 38-41.
5. Baran, I., Tutum, C. C., & Hattel, J. H. (2013). The effect of thermal contact resistance on the thermosetting pultrusion process. Composites Part A: Applied Science and Manufacturing, 45, 68-77.
6. Carlone, P., Palazzo, G. S., & Pasquino, R. (2006). Pultrusion manufacturing process development by computational modelling and methods. Mathematical and Computer Modelling, 44(7-8), 701-709.
7. Beckwith, S. W. (2012). Pultrusion: The big picture. Composites Manufacturing, 28(5), 6-9.

‍

Expand Your Knowledge

We hope this comprehensive guide to pultrusion manufacturing has been informative and valuable. To further enhance your understanding of composite materials and manufacturing processes, we encourage you to:

1. Explore our other in-depth articles on composite manufacturing techniques:
   • Fundamentals of Composites Manufacturing
   • Automated Fiber Placement Process
2. Stay updated with the latest innovations in the field:
   • Innovations in Composite Materials: Real-World Applications
3. Discover how composites are transforming various industries:
   • Where Are Composites Used?
4. Learn about sustainable practices in composite manufacturing:
   • Sustainable Manufacturing: Why Natural Fiber Thermoplastic Composites?
5. Join our community of composite enthusiasts and professionals:
   • Follow us on social media for regular updates and discussions
   • Subscribe to our newsletter for the latest industry insights and technological advancements
6. Consider attending workshops or webinars on advanced manufacturing techniques to gain hands-on experience and network with industry experts.

Remember, the field of composite manufacturing is constantly evolving. By staying curious and engaged, you'll be well-positioned to leverage the full potential of technologies like pultrusion in your projects and career. We're excited to be part of your journey in the fascinating world of composite materials!

Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

As the pultrusion industry continues to evolve, several trends and developments are shaping its future. This chapter explores emerging technologies, market outlook, and sustainability considerations that are likely to influence the pultrusion landscape in the coming years.

Emerging Technologies

1. Advanced Process Control and Automation:
   • Implementation of Industry 4.0 concepts
   • Real-time monitoring and adaptive control systems
   • Use of artificial intelligence and machine learning for process optimization
2. In-situ Sensing and Quality Assurance:
   • Integration of fiber optic sensors for real-time monitoring of curing and structural health
   • Advanced non-destructive testing techniques for inline quality control
3. Hybrid and Multi-material Pultrusion:
   • Combination of different fiber types and resins in a single profile
   • Integration of metallic components or smart materials
4. Nano-enhanced Composites:
   • Incorporation of nanomaterials to improve mechanical, thermal, and electrical properties
   • Development of multifunctional pultruded composites
5. Additive Manufacturing Integration:
   • Combination of pultrusion with 3D printing technologies
   • Enables creation of complex, customized structures with continuous fiber reinforcement
6. High-Performance Thermoplastic Pultrusion:
   • Development of new thermoplastic resin systems for high-temperature applications
   • In-situ polymerization techniques for improved fiber-matrix adhesion
7. Green Technologies:
   • Bio-based and recyclable resin systems
   • Natural fiber reinforcements
   • Energy-efficient curing methods (e.g., UV, microwave, electron beam)

Explore innovations in composite materials

Market Outlook

The pultrusion market is poised for significant growth:

1. Geographic Expansion:
   • Increasing adoption in emerging markets, particularly in Asia-Pacific and Eastern Europe
   • Potential for market growth in regions with developing infrastructure
2. Industry-specific Growth:
   • Continued expansion in construction and infrastructure sectors
   • Increasing use in automotive and aerospace industries for lightweight applications
   • Growing demand in renewable energy sector (e.g., wind turbine components)
3. Technological Advancements:
   • Development of new resin systems and fiber types
   • Improved process efficiency and product quality driving market growth
4. Customization and Flexibility:
   • Increasing demand for tailored solutions and small-batch production
   • Development of modular and flexible pultrusion systems
5. Market Consolidation:
   • Potential for mergers and acquisitions as the industry matures
   • Collaboration between material suppliers, equipment manufacturers, and end-users
6. Regulatory Influences:
   • Stricter environmental and safety regulations driving demand for corrosion-resistant and fire-retardant pultruded products
   • Increasing focus on life-cycle assessment and sustainability

Discover where composites are used

Sustainability Considerations

Sustainability is becoming increasingly important in the pultrusion industry:

1. Energy Efficiency:
   • Development of low-energy curing technologies
   • Optimization of process parameters to reduce energy consumption
   • Use of renewable energy sources in manufacturing facilities
2. Raw Material Sustainability:
   • Increased use of recycled and bio-based fibers
   • Development of sustainable resin systems (e.g., bio-based, recyclable)
   • Reduction of volatile organic compound (VOC) emissions
3. Waste Reduction:
   • Implementation of closed-loop manufacturing systems
   • Development of in-process recycling techniques for waste materials
   • Design for recyclability and end-of-life considerations
4. Life Cycle Assessment:
   • Comprehensive evaluation of environmental impact throughout the product lifecycle
   • Development of tools for eco-design of pultruded products
5. Circular Economy Principles:
   • Design of pultruded products for easy disassembly and material recovery
   • Exploration of business models promoting product-as-a-service concepts
6. Green Building and Infrastructure:
   • Growing demand for sustainable construction materials
   • Potential for pultruded products to contribute to green building certifications
7. Regulatory Compliance:
   • Anticipation of stricter environmental regulations
   • Development of products and processes that exceed current standards

Learn about sustainable composites manufacturing

As the pultrusion industry embraces these emerging technologies, responds to market trends, and addresses sustainability concerns, it is well-positioned for continued growth and innovation. The future of pultrusion lies in its ability to provide high-performance, cost-effective, and environmentally friendly solutions to meet the evolving needs of various industries.

Recap of Key Points

Throughout this course, we've explored the pultrusion manufacturing process in detail. Let's recap the key points:

1. Definition and Basic Concept:
   • Pultrusion is a continuous manufacturing process for producing composite materials with constant cross-sections.
   • It involves pulling reinforcing fibers through a resin bath and a heated die to form a solid composite profile.
2. Historical Development:
   • Pioneered in the 1950s, pultrusion has evolved significantly over the decades.
   • The industry has grown from about 20 manufacturers in the 1960s to over 300 worldwide by 2006.
3. Process Components:
   • Key components include the reinforcement dispenser, resin impregnator, forming guides, temperature-controlled die, puller and clamp system, and cut-off saw.
   • Each component plays a crucial role in ensuring the quality and efficiency of the process.
4. Materials:
   • Reinforcements include glass, carbon, aramid, and other specialty fibers.
   • Matrix materials can be thermosetting or thermoplastic resins.
   • Fillers and additives are used to enhance specific properties or reduce costs.
5. Process Parameters and Optimization:
   • Critical parameters include pull speed, die temperature, resin viscosity, and fiber content.
   • Optimization techniques involve statistical design of experiments, numerical simulation, and real-time process monitoring.
6. Applications:
   • Pultruded products find use in diverse sectors including construction, transportation, electrical, and renewable energy industries.
   • Examples range from structural profiles and ladder rails to wind turbine components and automotive parts.
7. Innovations and Variants:
   • Injection pultrusion, microwave pultrusion, and other variants have expanded the capabilities of the process.
   • These innovations address specific challenges and open up new application areas.
8. Future Trends:
   • Emerging technologies include advanced process control, in-situ sensing, and integration with additive manufacturing.
   • The market outlook is positive, with growth expected in various geographical regions and industry sectors.
   • Sustainability is becoming increasingly important, driving developments in energy efficiency, raw material selection, and waste reduction.

Explore fundamentals of composites manufacturing

The Role of Pultrusion in Composite Manufacturing

Pultrusion plays a crucial and expanding role in the composite manufacturing landscape:

1. Continuous Production of Constant Cross-Section Profiles:
   • Pultrusion excels in producing long, straight composite profiles efficiently and consistently.
   • It fills a niche that other processes like hand lay-up or compression molding can't easily address.
2. Cost-Effective Manufacturing:
   • The continuous nature of pultrusion allows for high production rates and lower labor costs compared to many other composite manufacturing methods.
   • It's particularly cost-effective for large volume production of standard profiles.
3. High-Performance Products:
   • Pultrusion can produce composites with high fiber content and excellent alignment, resulting in superior mechanical properties.
   • The process allows for the creation of profiles with consistent quality and properties along their entire length.
4. Versatility in Material Combinations:
   • Pultrusion can work with a wide range of fiber types and resin systems, allowing for tailored material properties.
   • The process can incorporate different reinforcement architectures (unidirectional, multidirectional, hybrid) to meet specific performance requirements.
5. Sustainability Potential:
   • As the industry moves towards more sustainable practices, pultrusion offers opportunities for using bio-based resins, natural fibers, and recyclable thermoplastics.
   • The efficiency of the process and potential for waste reduction contribute to its sustainability profile.
6. Enabling New Applications:
   • Pultrusion has opened up new possibilities for using composites in structural applications, particularly in construction and infrastructure.
   • Innovations in pultrusion technology continue to expand its capabilities, allowing it to address more complex geometries and material combinations.
7. Complementing Other Manufacturing Processes:
   • Pultrusion can be combined with other processes (e.g., overbraiding, winding) to create more complex composite structures.
   • Pultruded profiles can serve as reinforcements or core materials in other composite manufacturing methods.
8. Driving Material and Process Innovations:
   • The unique requirements of pultrusion drive innovations in resin systems, fiber forms, and process control technologies.
   • These innovations often have spillover effects, benefiting the broader composite manufacturing industry.

Discover innovations in composite materials

In conclusion, pultrusion stands as a critical technology in the composite manufacturing landscape. Its ability to produce high-quality, consistent profiles efficiently makes it indispensable for many applications. As the industry continues to evolve, pultrusion is likely to play an even more significant role, driven by technological advancements, market demands, and the push for more sustainable manufacturing practices. The future of pultrusion looks bright, with ongoing innovations promising to expand its capabilities and application areas even further.

‍

References

1. Joshi, S. C. (2012). The pultrusion process for polymer matrix composites. In Manufacturing Techniques for Polymer Matrix Composites (PMCs) (pp. 381-413). Woodhead Publishing.
2. Strong, A. B. (2008). Fundamentals of Composites Manufacturing: Materials, Methods and Applications. Society of Manufacturing Engineers.
3. Starr, T. F. (2000). Pultrusion for engineers. Woodhead Publishing.
4. Reinforced Plastics. (2006). Globalisation of the pultrusion industry. Reinforced Plastics, 50(5), 38-41.
5. Baran, I., Tutum, C. C., & Hattel, J. H. (2013). The effect of thermal contact resistance on the thermosetting pultrusion process. Composites Part A: Applied Science and Manufacturing, 45, 68-77.
6. Carlone, P., Palazzo, G. S., & Pasquino, R. (2006). Pultrusion manufacturing process development by computational modelling and methods. Mathematical and Computer Modelling, 44(7-8), 701-709.
7. Beckwith, S. W. (2012). Pultrusion: The big picture. Composites Manufacturing, 28(5), 6-9.

‍

Expand Your Knowledge

We hope this comprehensive guide to pultrusion manufacturing has been informative and valuable. To further enhance your understanding of composite materials and manufacturing processes, we encourage you to:

1. Explore our other in-depth articles on composite manufacturing techniques:
   • Fundamentals of Composites Manufacturing
   • Automated Fiber Placement Process
2. Stay updated with the latest innovations in the field:
   • Innovations in Composite Materials: Real-World Applications
3. Discover how composites are transforming various industries:
   • Where Are Composites Used?
4. Learn about sustainable practices in composite manufacturing:
   • Sustainable Manufacturing: Why Natural Fiber Thermoplastic Composites?
5. Join our community of composite enthusiasts and professionals:
   • Follow us on social media for regular updates and discussions
   • Subscribe to our newsletter for the latest industry insights and technological advancements
6. Consider attending workshops or webinars on advanced manufacturing techniques to gain hands-on experience and network with industry experts.

Remember, the field of composite manufacturing is constantly evolving. By staying curious and engaged, you'll be well-positioned to leverage the full potential of technologies like pultrusion in your projects and career. We're excited to be part of your journey in the fascinating world of composite materials!

Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

As the pultrusion industry continues to evolve, several trends and developments are shaping its future. This chapter explores emerging technologies, market outlook, and sustainability considerations that are likely to influence the pultrusion landscape in the coming years.

Emerging Technologies

1. Advanced Process Control and Automation:
   • Implementation of Industry 4.0 concepts
   • Real-time monitoring and adaptive control systems
   • Use of artificial intelligence and machine learning for process optimization
2. In-situ Sensing and Quality Assurance:
   • Integration of fiber optic sensors for real-time monitoring of curing and structural health
   • Advanced non-destructive testing techniques for inline quality control
3. Hybrid and Multi-material Pultrusion:
   • Combination of different fiber types and resins in a single profile
   • Integration of metallic components or smart materials
4. Nano-enhanced Composites:
   • Incorporation of nanomaterials to improve mechanical, thermal, and electrical properties
   • Development of multifunctional pultruded composites
5. Additive Manufacturing Integration:
   • Combination of pultrusion with 3D printing technologies
   • Enables creation of complex, customized structures with continuous fiber reinforcement
6. High-Performance Thermoplastic Pultrusion:
   • Development of new thermoplastic resin systems for high-temperature applications
   • In-situ polymerization techniques for improved fiber-matrix adhesion
7. Green Technologies:
   • Bio-based and recyclable resin systems
   • Natural fiber reinforcements
   • Energy-efficient curing methods (e.g., UV, microwave, electron beam)

Explore innovations in composite materials

Market Outlook

The pultrusion market is poised for significant growth:

1. Geographic Expansion:
   • Increasing adoption in emerging markets, particularly in Asia-Pacific and Eastern Europe
   • Potential for market growth in regions with developing infrastructure
2. Industry-specific Growth:
   • Continued expansion in construction and infrastructure sectors
   • Increasing use in automotive and aerospace industries for lightweight applications
   • Growing demand in renewable energy sector (e.g., wind turbine components)
3. Technological Advancements:
   • Development of new resin systems and fiber types
   • Improved process efficiency and product quality driving market growth
4. Customization and Flexibility:
   • Increasing demand for tailored solutions and small-batch production
   • Development of modular and flexible pultrusion systems
5. Market Consolidation:
   • Potential for mergers and acquisitions as the industry matures
   • Collaboration between material suppliers, equipment manufacturers, and end-users
6. Regulatory Influences:
   • Stricter environmental and safety regulations driving demand for corrosion-resistant and fire-retardant pultruded products
   • Increasing focus on life-cycle assessment and sustainability

Discover where composites are used

Sustainability Considerations

Sustainability is becoming increasingly important in the pultrusion industry:

1. Energy Efficiency:
   • Development of low-energy curing technologies
   • Optimization of process parameters to reduce energy consumption
   • Use of renewable energy sources in manufacturing facilities
2. Raw Material Sustainability:
   • Increased use of recycled and bio-based fibers
   • Development of sustainable resin systems (e.g., bio-based, recyclable)
   • Reduction of volatile organic compound (VOC) emissions
3. Waste Reduction:
   • Implementation of closed-loop manufacturing systems
   • Development of in-process recycling techniques for waste materials
   • Design for recyclability and end-of-life considerations
4. Life Cycle Assessment:
   • Comprehensive evaluation of environmental impact throughout the product lifecycle
   • Development of tools for eco-design of pultruded products
5. Circular Economy Principles:
   • Design of pultruded products for easy disassembly and material recovery
   • Exploration of business models promoting product-as-a-service concepts
6. Green Building and Infrastructure:
   • Growing demand for sustainable construction materials
   • Potential for pultruded products to contribute to green building certifications
7. Regulatory Compliance:
   • Anticipation of stricter environmental regulations
   • Development of products and processes that exceed current standards

Learn about sustainable composites manufacturing

As the pultrusion industry embraces these emerging technologies, responds to market trends, and addresses sustainability concerns, it is well-positioned for continued growth and innovation. The future of pultrusion lies in its ability to provide high-performance, cost-effective, and environmentally friendly solutions to meet the evolving needs of various industries.

Recap of Key Points

Throughout this course, we've explored the pultrusion manufacturing process in detail. Let's recap the key points:

1. Definition and Basic Concept:
   • Pultrusion is a continuous manufacturing process for producing composite materials with constant cross-sections.
   • It involves pulling reinforcing fibers through a resin bath and a heated die to form a solid composite profile.
2. Historical Development:
   • Pioneered in the 1950s, pultrusion has evolved significantly over the decades.
   • The industry has grown from about 20 manufacturers in the 1960s to over 300 worldwide by 2006.
3. Process Components:
   • Key components include the reinforcement dispenser, resin impregnator, forming guides, temperature-controlled die, puller and clamp system, and cut-off saw.
   • Each component plays a crucial role in ensuring the quality and efficiency of the process.
4. Materials:
   • Reinforcements include glass, carbon, aramid, and other specialty fibers.
   • Matrix materials can be thermosetting or thermoplastic resins.
   • Fillers and additives are used to enhance specific properties or reduce costs.
5. Process Parameters and Optimization:
   • Critical parameters include pull speed, die temperature, resin viscosity, and fiber content.
   • Optimization techniques involve statistical design of experiments, numerical simulation, and real-time process monitoring.
6. Applications:
   • Pultruded products find use in diverse sectors including construction, transportation, electrical, and renewable energy industries.
   • Examples range from structural profiles and ladder rails to wind turbine components and automotive parts.
7. Innovations and Variants:
   • Injection pultrusion, microwave pultrusion, and other variants have expanded the capabilities of the process.
   • These innovations address specific challenges and open up new application areas.
8. Future Trends:
   • Emerging technologies include advanced process control, in-situ sensing, and integration with additive manufacturing.
   • The market outlook is positive, with growth expected in various geographical regions and industry sectors.
   • Sustainability is becoming increasingly important, driving developments in energy efficiency, raw material selection, and waste reduction.

Explore fundamentals of composites manufacturing

The Role of Pultrusion in Composite Manufacturing

Pultrusion plays a crucial and expanding role in the composite manufacturing landscape:

1. Continuous Production of Constant Cross-Section Profiles:
   • Pultrusion excels in producing long, straight composite profiles efficiently and consistently.
   • It fills a niche that other processes like hand lay-up or compression molding can't easily address.
2. Cost-Effective Manufacturing:
   • The continuous nature of pultrusion allows for high production rates and lower labor costs compared to many other composite manufacturing methods.
   • It's particularly cost-effective for large volume production of standard profiles.
3. High-Performance Products:
   • Pultrusion can produce composites with high fiber content and excellent alignment, resulting in superior mechanical properties.
   • The process allows for the creation of profiles with consistent quality and properties along their entire length.
4. Versatility in Material Combinations:
   • Pultrusion can work with a wide range of fiber types and resin systems, allowing for tailored material properties.
   • The process can incorporate different reinforcement architectures (unidirectional, multidirectional, hybrid) to meet specific performance requirements.
5. Sustainability Potential:
   • As the industry moves towards more sustainable practices, pultrusion offers opportunities for using bio-based resins, natural fibers, and recyclable thermoplastics.
   • The efficiency of the process and potential for waste reduction contribute to its sustainability profile.
6. Enabling New Applications:
   • Pultrusion has opened up new possibilities for using composites in structural applications, particularly in construction and infrastructure.
   • Innovations in pultrusion technology continue to expand its capabilities, allowing it to address more complex geometries and material combinations.
7. Complementing Other Manufacturing Processes:
   • Pultrusion can be combined with other processes (e.g., overbraiding, winding) to create more complex composite structures.
   • Pultruded profiles can serve as reinforcements or core materials in other composite manufacturing methods.
8. Driving Material and Process Innovations:
   • The unique requirements of pultrusion drive innovations in resin systems, fiber forms, and process control technologies.
   • These innovations often have spillover effects, benefiting the broader composite manufacturing industry.

Discover innovations in composite materials

In conclusion, pultrusion stands as a critical technology in the composite manufacturing landscape. Its ability to produce high-quality, consistent profiles efficiently makes it indispensable for many applications. As the industry continues to evolve, pultrusion is likely to play an even more significant role, driven by technological advancements, market demands, and the push for more sustainable manufacturing practices. The future of pultrusion looks bright, with ongoing innovations promising to expand its capabilities and application areas even further.

‍

References

1. Joshi, S. C. (2012). The pultrusion process for polymer matrix composites. In Manufacturing Techniques for Polymer Matrix Composites (PMCs) (pp. 381-413). Woodhead Publishing.
2. Strong, A. B. (2008). Fundamentals of Composites Manufacturing: Materials, Methods and Applications. Society of Manufacturing Engineers.
3. Starr, T. F. (2000). Pultrusion for engineers. Woodhead Publishing.
4. Reinforced Plastics. (2006). Globalisation of the pultrusion industry. Reinforced Plastics, 50(5), 38-41.
5. Baran, I., Tutum, C. C., & Hattel, J. H. (2013). The effect of thermal contact resistance on the thermosetting pultrusion process. Composites Part A: Applied Science and Manufacturing, 45, 68-77.
6. Carlone, P., Palazzo, G. S., & Pasquino, R. (2006). Pultrusion manufacturing process development by computational modelling and methods. Mathematical and Computer Modelling, 44(7-8), 701-709.
7. Beckwith, S. W. (2012). Pultrusion: The big picture. Composites Manufacturing, 28(5), 6-9.

‍

Expand Your Knowledge

We hope this comprehensive guide to pultrusion manufacturing has been informative and valuable. To further enhance your understanding of composite materials and manufacturing processes, we encourage you to:

1. Explore our other in-depth articles on composite manufacturing techniques:
   • Fundamentals of Composites Manufacturing
   • Automated Fiber Placement Process
2. Stay updated with the latest innovations in the field:
   • Innovations in Composite Materials: Real-World Applications
3. Discover how composites are transforming various industries:
   • Where Are Composites Used?
4. Learn about sustainable practices in composite manufacturing:
   • Sustainable Manufacturing: Why Natural Fiber Thermoplastic Composites?
5. Join our community of composite enthusiasts and professionals:
   • Follow us on social media for regular updates and discussions
   • Subscribe to our newsletter for the latest industry insights and technological advancements
6. Consider attending workshops or webinars on advanced manufacturing techniques to gain hands-on experience and network with industry experts.

Remember, the field of composite manufacturing is constantly evolving. By staying curious and engaged, you'll be well-positioned to leverage the full potential of technologies like pultrusion in your projects and career. We're excited to be part of your journey in the fascinating world of composite materials!

Definition and Basic Concept

Pultrusion is a continuous manufacturing process used to produce composite materials with constant cross-sections and significantly long lengths. The term "pultrusion" is derived from the words "pull" and "extrusion," reflecting the unique nature of this process.

In pultrusion, continuous fibers are pulled through a resin bath for impregnation, then through a heated die where the resin cures, forming a solid composite profile. This process allows for the creation of high-strength, lightweight composite products with consistent quality and properties.

Learn more about composite materials

Historical Background

The pultrusion process has a rich history dating back to the early 1950s:

• Goldsworthy is credited with pioneering the pultrusion process in the early 1950s.
• Initially, the technique was primarily used to fabricate parts requiring uniaxial performance, such as rods, poles, and handles.
• In the 1960s, there were about 20 manufacturers, primarily in the United States.
• The industry has seen continuous growth since then. By 2006, the number of pultruders worldwide had grown to approximately 300.
• The variety and quality of structural profiles produced through pultrusion have significantly increased over the years.

Advantages and Limitations

Advantages:

1. Customizable product length: Pultrusion allows for the production of any transportable length, ranging from centimeters to kilometers.
2. High fiber content: The process results in well-aligned fibers, leading to a compact, high fiber content, and strong product.
3. Low production cost: Studies have shown that pultrusion can be more cost-effective compared to other composite manufacturing methods like filament winding or prepreg hand lay-up.
4. Good production rate: The highly automatable nature of pultrusion allows for high production rates.
5. Consistent quality: With minimal human interference, pultrusion can achieve uniform quality in the finished products.
6. Excellent physical properties: Pultruded products exhibit high strength-to-weight ratios, corrosion resistance, good electrical insulation, and dimensional stability.

Limitations:

1. Shape restrictions: Pultrusion is primarily suited for producing straight, constant cross-section profiles. Manufacturing tapered or complex shapes is challenging.
2. Dimensional accuracy: The dimensional tolerances of pultruded parts may not be as precise as those achieved by other manufacturing methods.
3. Thin wall parts: Producing thin-walled components can be difficult with pultrusion.
4. Processing challenges: Issues such as resin buildup on the die, void formation, blistering, and non-uniform curing can occur during the pultrusion process.

Despite these limitations, pultrusion remains a popular and efficient method for producing continuous fiber-reinforced composite profiles, particularly for applications requiring long, straight components with consistent cross-sections.

Explore real-world applications of composite materials

Overview of the Process Steps

The pultrusion process is a continuous manufacturing method for producing composite materials with constant cross-sections. The process involves the following key steps:

1. Fiber Feeding: Continuous reinforcing fibers (rovings or mats) are pulled from a series of creels.
2. Guiding: The fibers are fed through a guiding system to ensure proper alignment.
3. Resin Impregnation: The fibers pass through a resin bath where they are thoroughly impregnated with the matrix material.
4. Preforming: The resin-soaked fibers are guided through a preforming system that shapes them close to the final profile.
5. Heating and Curing: The shaped, resin-impregnated fibers enter a heated die where the curing process begins.
6. Pulling: A pulling system draws the cured profile through the die.
7. Cutting: The fully cured pultruded profile is cut to the desired length using a cut-off saw.

Learn more about composite manufacturing processes

Key Components of Pultrusion Equipment

The pultrusion process relies on several essential components:

1. Reinforcement Dispenser: Supplies and aligns the continuous fibers or mats.
2. Resin Impregnator: Saturates the fibers with the resin matrix. This can be:
   • Dip bath (open bath)
   • Straight through bath
   • Resin injection system
3. Forming Guides: Consolidate the resin-impregnated reinforcements into the required shape.
4. Temperature Controlled Die: The heart of the pultrusion process, where the composite is shaped and cured. It can be:
   • One-piece die
   • Split cavity die
5. Puller and Clamp System: Pulls the cured profile through the die. Two common types are:
   • Hydraulic reciprocating puller
   • Continuous caterpillar-tractor type system
6. Cut-off Saw: Cuts the pultruded product into desired lengths.
7. Optional Mandrel: Used for creating hollow sections.

Materials Used in Pultrusion

Pultrusion utilizes various materials to create high-performance composite products:

1. Reinforcements:
   • Glass fibers (E, S, or A type)
   • Carbon fibers
   • Aramid fibers
   • Boron fibers
   • Thermoplastic fibers (polyesters, nylon)

Explore different types of fiber reinforcements

2. Matrix Materials:
   • Thermosetting resins:
     • Polyesters
     • Vinyl esters
     • Epoxies
     • Phenolic resins
   • Thermoplastic resins:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Learn about thermoplastic and thermoset resins

3. Fillers and Additives:
   • Calcium carbonate (volume extender)
   • Alumina silicate or clay (for corrosion resistance and electrical insulation)
   • Alumina trihydrate (for flame retardance and electrical arc resistance)
   • Initiators (to influence resin curing)
   • Mold release compounds
   • Pigments
   • Agents for surface smoothness and crack suppression

The combination of these materials allows for the creation of pultruded products with tailored properties to meet specific application requirements.

The pultrusion process relies on several key components, each playing a crucial role in the production of high-quality composite profiles. Let's examine each component in detail:

Reinforcement Dispenser

The reinforcement dispenser is where the pultrusion process begins:

• Purpose: To supply and align the fibrous reinforcement.
• Operation:
  • Reinforcements (fibers or mats) are supplied from creels.
  • Special reinforcements like knitted, woven, and braided fabrics, veils, or fiber tows can be mixed and dispensed as per product design.
  • Ceramic eyes or pulleys guide the reinforcements to avoid entanglement and rubbing.
• Considerations:
  • Care must be taken to prevent breakage and static charge buildup due to friction between dry fibrous reinforcements.

Resin Impregnator

The resin impregnator ensures thorough saturation of the reinforcement with the matrix material:

• Types:
  1. Dip Bath (Open Bath):
     • Involves a resin tank with premixed polymer and hardener.
     • Fibrous reinforcement passes through a guiding comb for alignment.
     • Bar-guides direct the reinforcement into and out of the resin dip.
     • Pros: Good impregnation
     • Cons: Can be messy
  2. Straight Through Bath:
     • Liquid resin leaks through a resin trough with forming cards.
     • Excess resin is collected and fed back into the trough.
     • Advantage: Avoids unnecessary bending of reinforcement
  3. Resin Injection System:
     • Resin is injected into dry fibrous preform just before entering the die.
     • Uses a steel chamber attached to the front end of the die.
     • Benefits: Good fiber wet-out, reduced process time, less resin waste

Forming Guides

Forming guides shape the resin-impregnated reinforcements:

• Purpose: To consolidate and densify the wet reinforcements into the required shape.
• Design Considerations:
  • Proper sizing of slots and holes
  • Appropriate clearances between forming plates
• Materials:
  • Steel: Less expensive, but hard, corrosive, and difficult to machine
  • Ultrahigh Molecular Weight Polyethylene (UHMWPE): Lighter, chemically resistant, gentle on fiber reinforcement, easy to fabricate, but wears out faster

Temperature Controlled Die

The die is crucial for shaping and curing the composite:

• Function: Compresses the resin-impregnated reinforcement, removes excess resin, and facilitates curing.
• Temperature Control:
  1. Low temperature at the entrance to avoid premature curing
  2. Gradual heating for proper curing
• Heating Methods:
  1. Electrical cartridge heaters
  2. Strip heaters
  3. Circulating oil
  4. In some cases, radio frequency radiations
• Types:
  1. One-Piece Die:
     • Provides good uniform finished part without parting lines
     • Costly to maintain, complex repairs due to poor accessibility
  2. Split Cavity Die:
     • Can be easily opened for cleaning and maintenance
     • Requires careful design to manage parting lines
• Material: Usually steel with chrome-plated interior surfaces for increased die life and improved surface finish

Puller and Clamp System

The puller and clamp system draws the cured profile through the die:

• Types:
  1. Hydraulic Reciprocating Puller:
     • Two identical units that alternately grip and pull the profile
  2. Continuous Caterpillar-Tractor Type System:
     • Used for mat/roving type composites
     • Grips clamp to the part and drag it through the die
• Consideration: Maintain sufficient distance (about 3m) between die exit and pulling device to allow cooling and strength development in the pultrudate

Cut-off Saw

The cut-off saw is the final station in the pultrusion process:

• Function: Cuts the continuous pultruded profile into desired lengths
• Features:
  • Flying cut-off saw synchronized with puller movement
  • Uses an abrasive or continuous rim diamond wheel
  • May employ a coolant spray to cool the cut-off wheel and minimize dust

Learn more about composite manufacturing processes

Understanding these components and their operations is crucial for optimizing the pultrusion process and producing high-quality composite profiles.

The quality and performance of pultruded products largely depend on the materials used in the process. Let's examine the three main categories of materials used in pultrusion:

Reinforcements (Fibers)

Reinforcements are the primary load-carrying constituents in pultruded composites:

• Function: Determine the strength and rigidity of the resulting pultrudate
• Importance: Allow the part to be pulled through the die while curing

Common types of reinforcements include:

1. Glass Fibers:
   • E-glass: Most commonly used due to its good strength and electrical properties
   • S-glass: Higher strength and modulus, used in more demanding applications
   • A-glass: Used where high chemical resistance is required
2. Carbon Fibers:
   • High strength-to-weight ratio
   • Excellent stiffness
   • Used in aerospace and high-performance applications
3. Aramid Fibers:
   • High toughness and impact resistance
   • Used in ballistic and aerospace applications
4. Boron Fibers:
   • Very high stiffness
   • Used in specialized aerospace applications
5. Thermoplastic Fibers:
   • Polyesters and nylon fibers
   • Used for specific property enhancements or as matrix materials

Learn more about fiber reinforcements

Matrix Materials (Resins)

The matrix material binds the reinforcements together and transfers loads between fibers:

• Function: Determines the level of effective bonding and load transfer between reinforcing units
• Importance: Imparts properties such as high-temperature performance, corrosion resistance, dielectric properties, flammability, and thermal conductivity

Matrix materials are divided into two main categories:

1. Thermosetting Resins:
   • Polyesters: Widely used due to low cost and good balance of properties
   • Vinyl esters: Offer improved corrosion resistance and mechanical properties
   • Epoxies: Provide excellent mechanical and thermal properties
   • Phenolic resins: Used for their fire resistance and low smoke generation
2. Thermoplastic Resins:
   • Gaining popularity due to unique advantages:
     • Better fracture toughness
     • Ability to join and form thermally
     • Recyclability
     • Lower weight than thermosets
   • Common types:
     • Polyethylenes
     • Polyurethanes
     • Polypropylenes
     • Polyamides

Explore thermoplastic and thermoset resins

Fillers and Additives

Fillers and additives are used to enhance specific performance aspects, reduce costs, or improve processability:

1. Fillers:
   • Can make up to 50 wt% of a resin formulation
   • Common types:
     • Calcium carbonate: Used as a volume extender
     • Alumina silicate or clay: Improves corrosion resistance and electrical insulation
     • Alumina trihydrate: Enhances flame retardation and electrical arc resistance
2. Additives:
   • Used to tailor specific performance or properties
   • Types include:
     • Initiators: Influence resin curing
     • Mold release compounds: e.g., metallic stearates or organic phosphate esters
     • Antimony oxide: For flame retardance
     • Pigments: For coloration
     • Agents for surface smoothness and crack suppression

The careful selection and combination of these materials allow manufacturers to create pultruded products with tailored properties to meet specific application requirements. Understanding the characteristics and interactions of these materials is crucial for optimizing the pultrusion process and achieving desired product performance.

Discover innovations in composite materials

Optimizing the pultrusion process is crucial for producing high-quality composite profiles efficiently. This chapter explores the key process parameters, optimization techniques, and quality control measures in pultrusion.

Key Process Parameters

Several parameters significantly influence the pultrusion process and product quality:

1. Pull Speed:
   • Affects the production rate and curing time
   • Influences resin wet-out and fiber alignment
2. Die Temperature:
   • Critical for proper resin curing
   • Affects the degree of cure and uniformity across the profile
3. Resin Viscosity:
   • Impacts fiber wet-out and impregnation quality
   • Affects the pulling force required
4. Fiber Content:
   • Determines the mechanical properties of the final product
   • Influences resin consumption and overall cost
5. Die Design:
   • Affects the shape and surface quality of the product
   • Influences the temperature distribution and curing profile
6. Pulling Force:
   • Relates to the ease of production and equipment requirements
   • Affected by factors like resin viscosity, die design, and fiber content

Learn more about composite manufacturing processes

Optimization Techniques

Various techniques have been developed to optimize the pultrusion process:

1. Statistical Design of Experiments:
   • Helps identify the most influential process variables
   • Allows for systematic optimization of multiple parameters
2. Numerical Simulation:
   • Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) are used to model the process
   • Helps predict temperature distributions, degree of cure, and resin flow
3. Process Monitoring:
   • Real-time monitoring of parameters like pulling force, die temperature, and resin flow
   • Allows for immediate adjustments to maintain optimal conditions
4. Die Design Optimization:
   • Use of computer-aided design tools to optimize die geometry
   • Helps achieve uniform temperature distribution and minimize pulling force
5. Material Selection:
   • Careful selection of resin systems and fiber types to match process requirements
   • Optimization of resin formulations for better curing characteristics
6. Preheating and Cooling Strategies:
   • Implementation of preheating zones for better resin impregnation
   • Optimized cooling strategies to prevent thermal stresses and improve dimensional stability

Explore innovations in composite materials

Quality Control

Maintaining consistent product quality is essential in pultrusion. Key quality control measures include:

1. In-line Monitoring:
   • Continuous monitoring of process parameters like temperature, pulling force, and resin flow
   • Allows for real-time adjustments to maintain quality
2. Non-Destructive Testing:
   • Use of techniques like ultrasonic testing or X-ray inspection to detect internal defects
   • Helps ensure structural integrity without damaging the product
3. Dimensional Checks:
   • Regular measurements to ensure profiles meet specified dimensions
   • Use of laser measurement systems for high precision
4. Surface Quality Inspection:
   • Visual and automated inspections for surface defects
   • Ensures aesthetic quality and functional performance
5. Mechanical Property Testing:
   • Periodic testing of samples for properties like tensile strength, flexural modulus, and impact resistance
   • Ensures the product meets required performance standards
6. Degree of Cure Evaluation:
   • Use of techniques like Differential Scanning Calorimetry (DSC) to assess the completeness of resin curing
   • Critical for ensuring optimal mechanical properties
7. Statistical Process Control:
   • Implementation of statistical techniques to monitor process stability and capability
   • Helps identify trends and potential issues before they affect product quality

By carefully managing these process parameters, employing optimization techniques, and implementing robust quality control measures, manufacturers can ensure the production of high-quality pultruded profiles consistently and efficiently.

Discover non-destructive testing methods for composites

Pultrusion has emerged as a versatile manufacturing process, finding applications across various industrial sectors. This chapter explores the diverse applications of pultruded products and the industries that benefit from this technology.

Industrial Sectors Using Pultrusion

Pultruded products have gained popularity in numerous industries due to their unique combination of properties, including high strength-to-weight ratio, corrosion resistance, and design flexibility. Key sectors include:

1. Construction and Infrastructure:
   • Building components
   • Bridges and pedestrian walkways
   • Cooling towers
   • Structural reinforcements
2. Transportation:
   • Automotive components
   • Rail transport
   • Marine applications
3. Electrical and Telecommunications:
   • Electrical insulators
   • Cable trays and ladders
   • Antenna components
4. Aerospace:
   • Aircraft interior components
   • Structural elements
5. Oil and Gas:
   • Offshore platforms
   • Pipelines
   • Storage tanks
6. Renewable Energy:
   • Wind turbine components
   • Solar panel frames and supports
7. Sports and Recreation:
   • Sporting goods
   • Recreational vehicles
8. Agriculture:
   • Greenhouse structures
   • Livestock containment systems

Explore where composites are used

Examples of Pultruded Products

Pultrusion technology allows for the production of a wide range of products. Some notable examples include:

1. Structural Profiles:
   • I-beams, channels, and angles for construction
   • Reinforcement bars for concrete structures
2. Ladder Rails and Rungs:
   • Corrosion-resistant and electrically insulating ladders for industrial use
3. Window and Door Frames:
   • Energy-efficient and low-maintenance building components
4. Bridge Decks and Pedestrian Bridges:
   • Lightweight, corrosion-resistant infrastructure solutions
5. Electrical Transmission Towers:
   • Non-conductive structures for power transmission
6. Cooling Tower Components:
   • Corrosion-resistant fan blades, fills, and structural elements
7. Handrails and Guardrails:
   • Safety systems for industrial and public spaces
8. Cable Trays and Conduits:
   • Lightweight, corrosion-resistant cable management systems
9. Tool Handles:
   • Ergonomic, lightweight handles for various tools
10. Fishing Rods:
    • High-performance sporting equipment
11. Light Poles:
    • Durable, lightweight alternatives to metal poles
12. Automotive Leaf Springs:
    • Lightweight suspension components for vehicles
13. Wind Turbine Blade Spars:
    • High-strength structural components for renewable energy
14. Greenhouse Structures:
    • Corrosion-resistant frames and supports
15. Marine Pilings and Seawalls:
    • Durable coastal and marine infrastructure
16. Utility Poles:
    • Lightweight, non-conductive alternatives to wooden poles

Innovation Spotlight: Emerging Applications

Recent advancements in pultrusion technology have led to new and exciting applications:

1. Hybrid Composite-Concrete Structures:
   • Combining pultruded profiles with concrete for enhanced structural performance
2. Smart Pultruded Structures:
   • Integration of sensors and monitoring systems within pultruded profiles for real-time structural health monitoring
3. Thermoplastic Pultrusions:
   • Expanding the use of recyclable and reformable thermoplastic composites in various sectors
4. Nano-enhanced Pultruded Products:
   • Incorporation of nanomaterials to enhance mechanical, electrical, or thermal properties

Discover innovations in composite materials

The versatility of the pultrusion process, combined with the excellent properties of composite materials, continues to drive the adoption of pultruded products across various industries. As technology advances and new materials are developed, the range of applications for pultruded products is expected to expand further, offering innovative solutions to complex engineering challenges.

As the pultrusion industry evolves, new techniques and process variants have emerged to address specific challenges and expand the capabilities of this manufacturing method. This chapter explores some of the key innovations and variants in pultrusion technology.

Injection Pultrusion

Injection pultrusion (IP) is a hybrid technique that combines elements of traditional pultrusion and resin transfer molding (RTM).

Key features:

• Resin is injected through top and/or bottom injection gates into dry reinforcement
• Eliminates the open resin bath used in traditional pultrusion
• Allows for higher pull speeds
• Significantly reduces volatile emissions

Advantages:

1. Improved fiber wet-out
2. Reduced environmental impact
3. Potential for higher production rates
4. Better control over resin content and distribution

Challenges:

• Controlling injection pressure
• Optimizing die design for efficient resin flow

Variants:

• Reaction Injection Pultrusion (RIP): Uses low-viscosity constituents to improve fiber impregnation and further reduce emissions

Learn more about innovations in composite materials

Microwave Pultrusion

Microwave pultrusion utilizes microwave energy for rapid, volumetric heating of the composite material during the pultrusion process.

Key features:

• Uses high-frequency electromagnetic energy for heating
• Allows for shorter die lengths and higher line speeds
• Enables the manufacture of larger section profiles

Advantages:

1. Faster curing rates
2. Reduced pulling forces
3. More uniform heating throughout the cross-section
4. Energy efficiency
5. Potential for improved material properties

Challenges:

• Design of microwave-transparent dies
• Control of the electromagnetic field distribution
• Ensuring uniform curing across the profile

Applications:

• Large-scale structural profiles
• Thick-walled components
• Rapid prototyping and small-batch production

Other Pultrusion Variants

Several other innovative pultrusion variants have been developed to address specific manufacturing needs:

1. Pulforming:
   • Combines pultrusion with compression molding
   • Allows for the production of non-straight or variable cross-section parts
   • Enables the creation of more complex geometries
2. Braiding Pultrusion:
   • Integrates braiding technology with pultrusion
   • Creates tubular composites with enhanced mechanical properties
   • Allows for optimized fiber orientation in the final product
3. UV-Assisted Bent Pultrusion:
   • Uses ultraviolet (UV) light to cure the resin outside the die
   • Enables the production of curved or bent profiles
   • Significantly reduces pulling forces
4. Thermoplastic Pultrusion:
   • Uses thermoplastic resins instead of thermosets
   • Allows for post-forming and welding of pultruded parts
   • Enhances recyclability and repairability of products
5. Sandwich Pultrusion:
   • Incorporates foam or honeycomb cores into the pultruded profile
   • Produces lightweight, high-stiffness structural elements
   • Used in applications requiring high bending stiffness
6. Hybrid Material Pultrusion:
   • Combines different types of fibers or incorporates metal elements
   • Tailors material properties for specific applications
   • Enables the creation of multifunctional composite profiles
7. Continuous Fiber 3D Printing with Pultrusion:
   • Integrates pultrusion principles with additive manufacturing
   • Allows for the creation of complex 3D structures with continuous fiber reinforcement
   • Enables rapid prototyping and customization of composite parts

Explore advanced composite manufacturing techniques

These innovations and variants in pultrusion technology continue to expand the capabilities of the process, allowing for the production of more complex, efficient, and tailored composite products. As research and development in this field progress, we can expect to see further advancements that will open up new applications and improve the overall efficiency and sustainability of composite manufacturing.

As the pultrusion industry continues to evolve, several trends and developments are shaping its future. This chapter explores emerging technologies, market outlook, and sustainability considerations that are likely to influence the pultrusion landscape in the coming years.

Emerging Technologies

1. Advanced Process Control and Automation:
   • Implementation of Industry 4.0 concepts
   • Real-time monitoring and adaptive control systems
   • Use of artificial intelligence and machine learning for process optimization
2. In-situ Sensing and Quality Assurance:
   • Integration of fiber optic sensors for real-time monitoring of curing and structural health
   • Advanced non-destructive testing techniques for inline quality control
3. Hybrid and Multi-material Pultrusion:
   • Combination of different fiber types and resins in a single profile
   • Integration of metallic components or smart materials
4. Nano-enhanced Composites:
   • Incorporation of nanomaterials to improve mechanical, thermal, and electrical properties
   • Development of multifunctional pultruded composites
5. Additive Manufacturing Integration:
   • Combination of pultrusion with 3D printing technologies
   • Enables creation of complex, customized structures with continuous fiber reinforcement
6. High-Performance Thermoplastic Pultrusion:
   • Development of new thermoplastic resin systems for high-temperature applications
   • In-situ polymerization techniques for improved fiber-matrix adhesion
7. Green Technologies:
   • Bio-based and recyclable resin systems
   • Natural fiber reinforcements
   • Energy-efficient curing methods (e.g., UV, microwave, electron beam)

Explore innovations in composite materials

Market Outlook

The pultrusion market is poised for significant growth:

1. Geographic Expansion:
   • Increasing adoption in emerging markets, particularly in Asia-Pacific and Eastern Europe
   • Potential for market growth in regions with developing infrastructure
2. Industry-specific Growth:
   • Continued expansion in construction and infrastructure sectors
   • Increasing use in automotive and aerospace industries for lightweight applications
   • Growing demand in renewable energy sector (e.g., wind turbine components)
3. Technological Advancements:
   • Development of new resin systems and fiber types
   • Improved process efficiency and product quality driving market growth
4. Customization and Flexibility:
   • Increasing demand for tailored solutions and small-batch production
   • Development of modular and flexible pultrusion systems
5. Market Consolidation:
   • Potential for mergers and acquisitions as the industry matures
   • Collaboration between material suppliers, equipment manufacturers, and end-users
6. Regulatory Influences:
   • Stricter environmental and safety regulations driving demand for corrosion-resistant and fire-retardant pultruded products
   • Increasing focus on life-cycle assessment and sustainability

Discover where composites are used

Sustainability Considerations

Sustainability is becoming increasingly important in the pultrusion industry:

1. Energy Efficiency:
   • Development of low-energy curing technologies
   • Optimization of process parameters to reduce energy consumption
   • Use of renewable energy sources in manufacturing facilities
2. Raw Material Sustainability:
   • Increased use of recycled and bio-based fibers
   • Development of sustainable resin systems (e.g., bio-based, recyclable)
   • Reduction of volatile organic compound (VOC) emissions
3. Waste Reduction:
   • Implementation of closed-loop manufacturing systems
   • Development of in-process recycling techniques for waste materials
   • Design for recyclability and end-of-life considerations
4. Life Cycle Assessment:
   • Comprehensive evaluation of environmental impact throughout the product lifecycle
   • Development of tools for eco-design of pultruded products
5. Circular Economy Principles:
   • Design of pultruded products for easy disassembly and material recovery
   • Exploration of business models promoting product-as-a-service concepts
6. Green Building and Infrastructure:
   • Growing demand for sustainable construction materials
   • Potential for pultruded products to contribute to green building certifications
7. Regulatory Compliance:
   • Anticipation of stricter environmental regulations
   • Development of products and processes that exceed current standards

Learn about sustainable composites manufacturing

As the pultrusion industry embraces these emerging technologies, responds to market trends, and addresses sustainability concerns, it is well-positioned for continued growth and innovation. The future of pultrusion lies in its ability to provide high-performance, cost-effective, and environmentally friendly solutions to meet the evolving needs of various industries.

Recap of Key Points

Throughout this course, we've explored the pultrusion manufacturing process in detail. Let's recap the key points:

1. Definition and Basic Concept:
   • Pultrusion is a continuous manufacturing process for producing composite materials with constant cross-sections.
   • It involves pulling reinforcing fibers through a resin bath and a heated die to form a solid composite profile.
2. Historical Development:
   • Pioneered in the 1950s, pultrusion has evolved significantly over the decades.
   • The industry has grown from about 20 manufacturers in the 1960s to over 300 worldwide by 2006.
3. Process Components:
   • Key components include the reinforcement dispenser, resin impregnator, forming guides, temperature-controlled die, puller and clamp system, and cut-off saw.
   • Each component plays a crucial role in ensuring the quality and efficiency of the process.
4. Materials:
   • Reinforcements include glass, carbon, aramid, and other specialty fibers.
   • Matrix materials can be thermosetting or thermoplastic resins.
   • Fillers and additives are used to enhance specific properties or reduce costs.
5. Process Parameters and Optimization:
   • Critical parameters include pull speed, die temperature, resin viscosity, and fiber content.
   • Optimization techniques involve statistical design of experiments, numerical simulation, and real-time process monitoring.
6. Applications:
   • Pultruded products find use in diverse sectors including construction, transportation, electrical, and renewable energy industries.
   • Examples range from structural profiles and ladder rails to wind turbine components and automotive parts.
7. Innovations and Variants:
   • Injection pultrusion, microwave pultrusion, and other variants have expanded the capabilities of the process.
   • These innovations address specific challenges and open up new application areas.
8. Future Trends:
   • Emerging technologies include advanced process control, in-situ sensing, and integration with additive manufacturing.
   • The market outlook is positive, with growth expected in various geographical regions and industry sectors.
   • Sustainability is becoming increasingly important, driving developments in energy efficiency, raw material selection, and waste reduction.

Explore fundamentals of composites manufacturing

The Role of Pultrusion in Composite Manufacturing

Pultrusion plays a crucial and expanding role in the composite manufacturing landscape:

1. Continuous Production of Constant Cross-Section Profiles:
   • Pultrusion excels in producing long, straight composite profiles efficiently and consistently.
   • It fills a niche that other processes like hand lay-up or compression molding can't easily address.
2. Cost-Effective Manufacturing:
   • The continuous nature of pultrusion allows for high production rates and lower labor costs compared to many other composite manufacturing methods.
   • It's particularly cost-effective for large volume production of standard profiles.
3. High-Performance Products:
   • Pultrusion can produce composites with high fiber content and excellent alignment, resulting in superior mechanical properties.
   • The process allows for the creation of profiles with consistent quality and properties along their entire length.
4. Versatility in Material Combinations:
   • Pultrusion can work with a wide range of fiber types and resin systems, allowing for tailored material properties.
   • The process can incorporate different reinforcement architectures (unidirectional, multidirectional, hybrid) to meet specific performance requirements.
5. Sustainability Potential:
   • As the industry moves towards more sustainable practices, pultrusion offers opportunities for using bio-based resins, natural fibers, and recyclable thermoplastics.
   • The efficiency of the process and potential for waste reduction contribute to its sustainability profile.
6. Enabling New Applications:
   • Pultrusion has opened up new possibilities for using composites in structural applications, particularly in construction and infrastructure.
   • Innovations in pultrusion technology continue to expand its capabilities, allowing it to address more complex geometries and material combinations.
7. Complementing Other Manufacturing Processes:
   • Pultrusion can be combined with other processes (e.g., overbraiding, winding) to create more complex composite structures.
   • Pultruded profiles can serve as reinforcements or core materials in other composite manufacturing methods.
8. Driving Material and Process Innovations:
   • The unique requirements of pultrusion drive innovations in resin systems, fiber forms, and process control technologies.
   • These innovations often have spillover effects, benefiting the broader composite manufacturing industry.
