Machine Learning-Enhanced Process Monitoring

The realm of composite manufacturing is witnessing a significant transformation with the adoption of automation, particularly through Automated Fiber Placement (AFP). This technology, known for its advanced robotic capabilities, plays a crucial role in creating complex laminated structures that are indispensable in industries like aerospace, automotive, and wind energy. These sectors have a pressing need for materials that are not only lightweight but also strong.

However, despite the advancements AFP technology brings, it's not without its challenges. Central to these challenges is the necessity for precise process monitoring. The quality of composites made using AFP, especially their interlaminar strength, which is a key factor in determining the material's reliability and performance, is largely affected by the thermal history during manufacturing. To ensure optimal interlaminar bonding, it's crucial to maintain the right thermal conditions, necessitating the ability to monitor the process in real-time.

Traditionally, the AFP process has been monitored through Finite Element Analysis (FEA) simulations. While FEA offers in-depth insights into the manufacturing process, it lacks the ability to provide real-time feedback. This discrepancy between simulation and actual manufacturing conditions creates a significant hurdle. Real-time monitoring is essential not only for ensuring quality but also for facilitating predictive maintenance, which in turn reduces downtime and increases manufacturing efficiency.

ML has emerged as a transformative solution to this challenge. In particular, the use of Artificial Neural Networks (ANN) for predicting thermal profiles during the AFP process in real-time marks a notable advancement. This approach involves creating a dataset from FEA simulations of the AFP process and then using this data to train the ML models. Once trained, these models can predict thermal profiles much faster than traditional FEA simulations.

Integrating ML into the AFP process is a major step forward in overcoming the challenges of real-time process monitoring. By bridging the gap between simulation and actual manufacturing conditions, monitoring enhanced with ML not only aims to improve the quality of composite manufacturing but also supports the broader goals of smart manufacturing and Industry 4.0. With the predictive power of ML models, manufacturers can identify potential issues early in the manufacturing process, allowing for timely interventions to prevent defects and ensure the production of high-quality composites.

SOA of Composite Manufacturing Processes

In the landscape of composite manufacturing, particularly within the realm of AFP, the pursuit of efficiency and precision confronts formidable challenges. These challenges, deeply rooted in the intricacies of the process, underscore a critical pain point: the complexity and inefficiency that currently pervade composite manufacturing. The AFP technique, while revolutionary, introduces nuanced difficulties that demand advanced solutions.

The heart of the issue lies in real-time process monitoring. The AFP process is characterized by its dependence on the thermal history of the components being manufactured. This history significantly impacts the interlaminar strength of the composites—essentially, the glue holding the layers together. Proper thermal management is crucial for ensuring strong, reliable bonds between layers. However, achieving this requires a level of precision and real-time feedback that traditional methods struggle to provide.

Finite Element Analysis (FEA) simulations have traditionally been the go-to method for predicting and analyzing the thermal profiles crucial for ensuring optimal interlaminar bonding. Yet, despite their detailed insights, FEA simulations fall short in a critical area: they are inherently slow and cannot offer the real-time data necessary for on-the-fly adjustments during the AFP process. This limitation is not just a minor inconvenience; it represents a significant bottleneck that can lead to inefficiencies, increased waste, and the potential for suboptimal product quality.

Furthermore, the complexity of the AFP process, with its numerous parameters influencing the quality of the manufactured composites, adds another layer of challenge. Parameters such as consolidation force, deposition rate, and hot gas torch (HGT) temperature must be meticulously controlled and optimized. However, the nonlinear optimization problem posed by varying these parameters complicates the pursuit of ideal product characteristics.

This complexity and inefficiency in current composite manufacturing processes underscore a pressing need for innovative solutions. The gap between the capabilities of traditional simulations and the demands of real-time monitoring and predictive maintenance in AFP manufacturing calls for a new approach. It is within this context that the potential of ML emerges as a beacon of hope. By harnessing the power of ML models to predict thermal profiles in real-time, there is a promising pathway toward overcoming these longstanding challenges.

Approach

The complexities and inefficiencies inherent in automated composite manufacturing, particularly within AFP processes, necessitate a paradigm shift. This shift involves transcending traditional methodologies in favor of innovative approaches that can seamlessly integrate with the demands of real-time monitoring and predictive maintenance. The cornerstone of this transformative journey is the adoption of artificial intelligence (AI), specifically ML, to redefine the landscape of composite manufacturing.

The methodology for integrating AI into composite manufacturing revolves around leveraging the predictive capabilities of ML to enhance process monitoring and control. The approach is structured around several pivotal steps, each designed to bridge the gap between the theoretical models provided by Finite Element Analysis (FEA) and the dynamic, real-time environment of the AFP process.

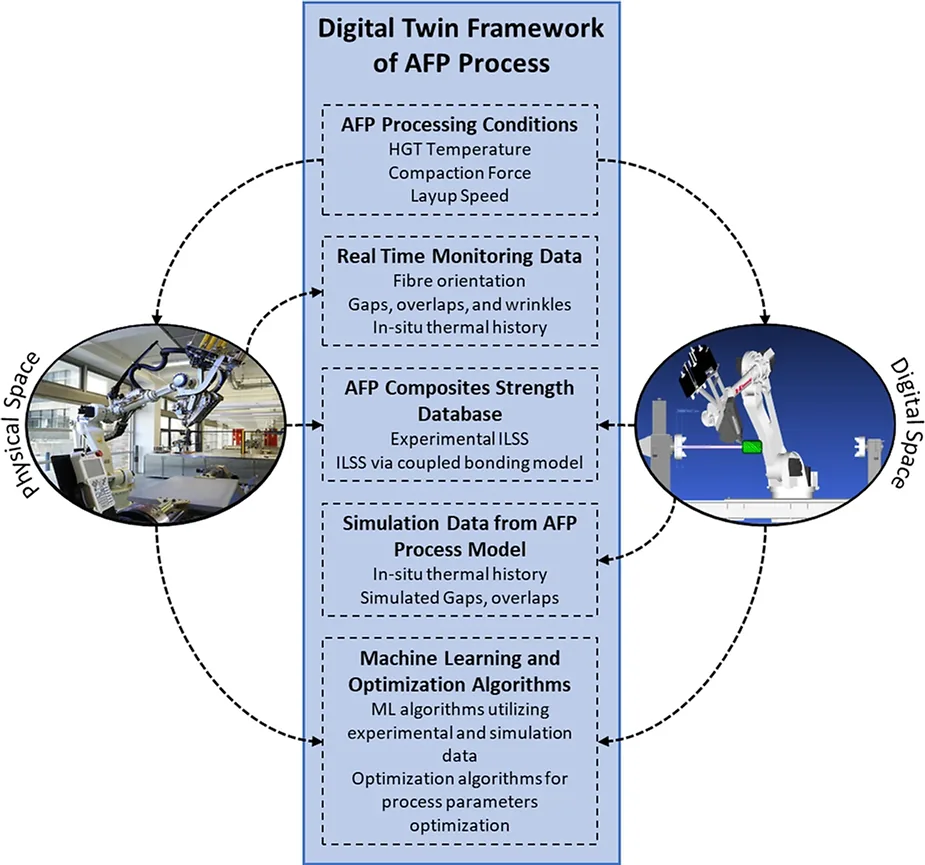

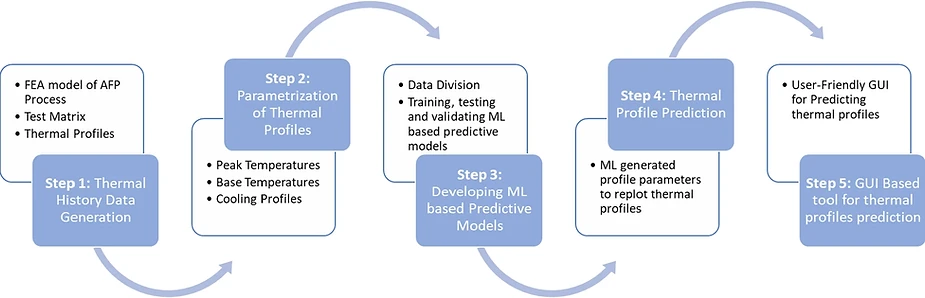

Step 1: Thermal Profiles Data Generation Using an FEA Model

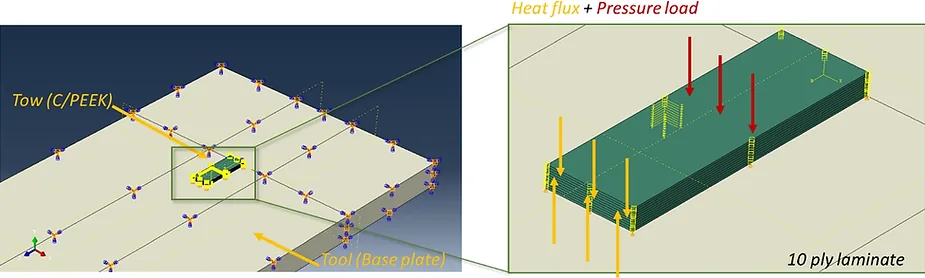

The initial step involves generating a comprehensive dataset of thermal profiles using FEA models of the AFP process. These profiles are crucial as they lay the foundation for understanding the thermal history and its impact on composite quality. The data generated from these simulations provide a detailed insight into the thermal dynamics at play during the manufacturing process.

Step 2: Parametrization of Thermal Profiles

Once the data is generated, the next step is the parametrization of thermal profiles. This involves simplifying the complex thermal data into a set of parameters that can be easily interpreted and utilized by ML algorithms. The parametrization process not only makes the data more manageable but also ensures that crucial aspects of the thermal profiles, such as peak temperatures and cooling rates, are preserved and accurately represented.

Step 3: Development of Machine Learning-Based Predictive Models

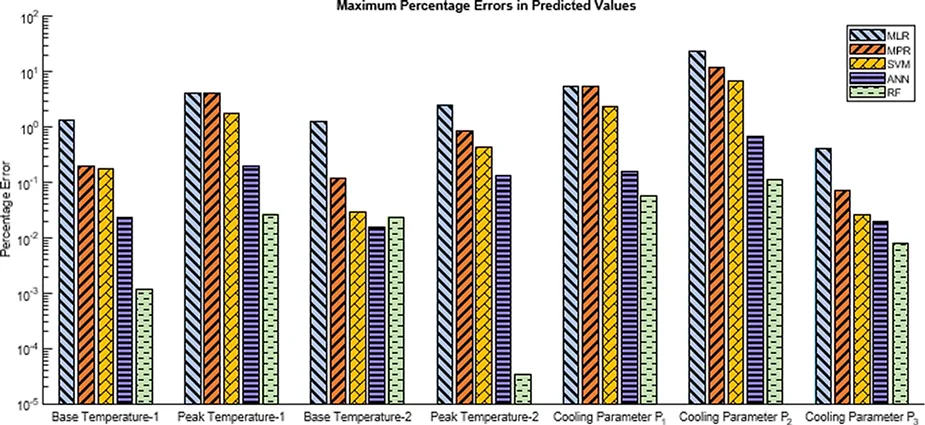

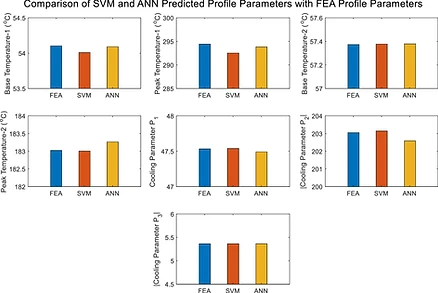

With a parametrized dataset in hand, the focus shifts to developing machine learning-based predictive models. These models are trained on the FEA-generated data, learning to predict thermal profiles based on the AFP process parameters. Various ML algorithms, including Multivariate Linear Regression, Support Vector Machine, Random Forest, and Artificial Neural Networks, are explored to identify the most effective model for accurate predictions.

Step 4: Thermal Profile Prediction

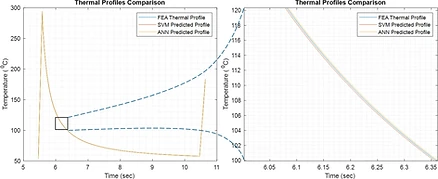

The trained ML models are then utilized for real-time thermal profile prediction. This capability is pivotal for monitoring the AFP process as it unfolds, enabling manufacturers to predict and adjust processing conditions to optimize composite quality. The ability to predict thermal profiles in real-time represents a significant leap in manufacturing intelligence, moving from reactive to proactive process control.

Step 5: GUI-Based Tool for Thermal Profile Prediction

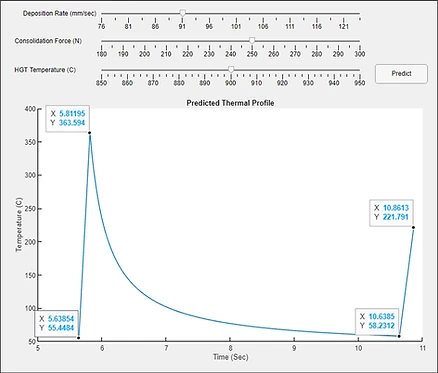

To facilitate the practical application of these predictive models, a Graphical User Interface (GUI) based tool is developed. This tool allows operators to input AFP process parameters and receive predicted thermal profiles in real-time, thereby integrating the predictive power of ML directly into the manufacturing workflow.

This methodological approach encapsulates the synergy between AI and composite manufacturing, highlighting a practical framework for the integration of machine learning into AFP processes. By transforming complex thermal data into actionable insights, machine learning empowers manufacturers to enhance efficiency, reduce waste, and ensure the production of high-quality composites. As the narrative progresses to the solution section, the focus will be on elucidating the revolutionary impact of machine learning on the future of composite manufacturing, underpinning the transition towards smarter, AI-driven manufacturing paradigms.

Revolutionizing Composite Manufacturing: Machine Learning as the Key to Efficiency and Quality

The integration of ML into automated composite manufacturing, particularly withinAFP processes, represents a pivotal shift in how the industry approaches production challenges. By leveraging the predictive power of ML, manufacturers are now equipped to address the longstanding complexities and inefficiencies that have hampered process optimization and quality assurance. This transformative approach not only enhances the efficiency of the AFP process but also elevates the quality of the composite materials produced, marking a significant advancement in the field.

The culmination of integrating ML into composite manufacturing manifests in several key areas:

Real-time Process Monitoring: Traditional methods of process monitoring, reliant on post-production quality checks and Finite Element Analysis (FEA) simulations, are reactive and often too slow for real-time adjustments. The adoption of ML-based predictive models changes this narrative by enabling real-time monitoring of thermal profiles during the AFP process. This capability allows for immediate adjustments to be made based on the predictive data, ensuring that the manufacturing conditions are always optimized for the best possible outcome.

Predictive Maintenance and Quality Assurance: Beyond monitoring, ML models offer the capability for predictive maintenance. By anticipating potential issues before they occur, manufacturers can prevent downtime and reduce waste, thereby improving overall efficiency. Furthermore, the predictive insights provided by ML models ensure that the composite materials meet stringent quality standards, crucial for applications where material failure is not an option, such as in aerospace and automotive industries.

Reduced Dependence on Costly Simulations: The reliance on FEA simulations for process planning and optimization has been a necessary but costly and time-consuming aspect of composite manufacturing. ML models, trained on data generated from these simulations, can provide accurate predictions in a fraction of the time, significantly reducing the need for extensive simulations. This not only speeds up the manufacturing process but also reduces the costs associated with simulation software and computational resources.

Adaptability and Continuous Improvement: ML models are inherently adaptable. As more data is collected from the AFP process, these models can be retrained and refined, continually improving their accuracy and predictive capabilities. This aspect of ML ensures that the manufacturing process remains at the cutting edge of efficiency and quality, adapting to new materials, designs, and requirements with ease.

The Future of Composite Manufacturing: The successful integration of ML into the AFP process is just the beginning. This approach sets a precedent for the broader adoption of AI and machine learning across various manufacturing processes, aligning with the principles of Industry 4.0. The future of composite manufacturing, therefore, lies in the continued exploration and implementation of AI technologies, driving towards a future where manufacturing processes are not only smarter and more efficient but also more sustainable and quality-driven.
