Data Management and Analysis in Automated Fiber Placement Technologies

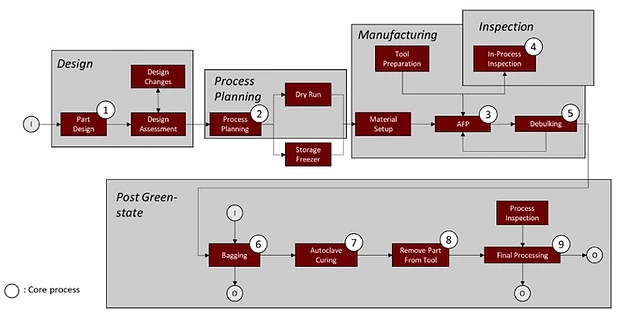

Automated Fiber Placement (AFP) is a critical technology in composite manufacturing, especially for aerospace components. AFP presents significant challenges in data management and analysis due to the complexity of its operations. The challenges arise from handling vast amounts of diverse data generated during various manufacturing stages:

• Design
• Process planning
• Manufacturing
• Inspection

Each stage produces unique data sets that need to be integrated and analyzed to ensure accuracy and quality. The complexity of data integration stems from:

• Diverse formats
• High dimensionality of collected data (numerical values from sensors, images from inspection, temporal data from manufacturing)

Data mapping is a major challenge in AFP, necessary for aligning and correlating data across different sources and formats. Effective data mapping is crucial for understanding relationships between data points and making informed decisions based on comprehensive analysis. An area not fully explored is the capability for real-time data processing, which is crucial for enabling timely adjustments during manufacturing to correct defects or deviations. Addressing data management challenges through innovative mapping techniques and integrating different data types can significantly optimize AFP operations, leading to reduced waste, increased accuracy, and higher overall efficiency.

Complexities of Data Integration and Accuracy in AFP Operations

Data integration in AFP is particularly challenging due to the multi-modal nature of the data and the high precision required in composite manufacturing. Integrating data from design, process planning, manufacturing, and inspection stages is critical for maintaining accuracy and quality.

• Each AFP stage adds complexity to data management:
• Design data includes detailed models and simulations that predict material behavior and component performance, often in the form of high-resolution point clouds or meshes.
• Process planning data involves path generation strategies and potential defect predictions.
• Manufacturing data includes real-time information on material placement, temperature, pressure, and tow tension, demanding high accuracy.
• Inspection data involves analyzing visual and sensor-based information to identify and categorize defects.
• The accuracy of data integration significantly impacts the AFP process:
• Misalignment between designed path and actual fiber placement can lead to defects compromising structural integrity.
• Inaccurate integration of inspection data can result in undetected defects passing into final production stages, potentially leading to failure.

An aspect that could be further explored is automated methods for real-time defect detection and correction, which would enhance the efficiency and reliability of AFP operations.

Advanced Mapping Techniques for Enhancing AFP Data Analysis

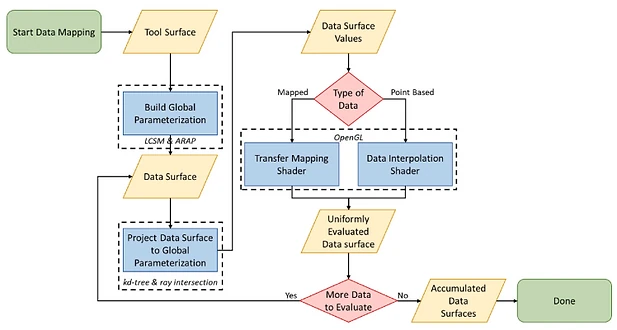

AFP relies heavily on advanced mapping techniques to manage and analyze extensive data collected during complex manufacturing processes. Effective data mapping is crucial for understanding relationships between datasets and improving accuracy and quality of composite manufacturing.

• Key mapping techniques in AFP include:

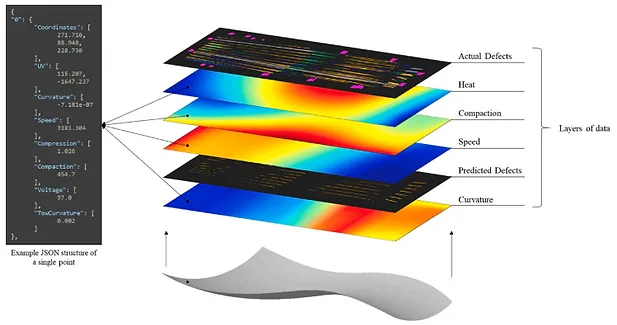

• Mapping spatial data from various sources to create a unified dataset for effective analysis.
• Fusion of spatial and temporal data, correlating data that varies over time with spatial data related to the tool surface or deposited material.

Virtual and physical data avatars simulating the manufacturing environment help in testing and validating data mapping methodologies before application in actual manufacturing scenarios. While the methodologies discussed are comprehensive, they primarily focus on data mapping for defect identification and process optimization.

A possible area not covered extensively is the application of these mapping techniques for predictive maintenance and machine learning models, which could further enhance the predictive capabilities of AFP systems.

Optimizing AFP Through Strategic Data Use

Effective data management and advanced mapping techniques in AFP lead to innovative solutions that optimize production and enhance the quality of composite structures.

• Strategic use of data in AFP involves several innovative solutions:
• Application of mapped and integrated data to optimize fiber paths and processing parameters, directly impacting quality and efficiency.
• Leveraging a unified data format to systematically improve fiber placement, reduce waste, and enhance structural integrity.
• Data-driven optimizations facilitate the manufacturing of complex, doubly-curved parts with high precision:
• Sophisticated algorithms analyze mapped data to dynamically adjust machine parameters.
• Adjustments ensure accurate fiber placement according to design specifications, regardless of part geometry complexity.
• Solutions extend to improving inspection and quality control processes:
• Integration of inspection data with design and manufacturing data allows for comprehensive evaluation of each part.
• Integrated approach helps identify potential defects at early stages, enabling prompt corrective measures.
• Significantly reduces the risk of costly reworks or product failures.

While these applications of data-driven solutions are groundbreaking, additional potential may not be fully explored:

• Scalability across different AFP setups.
• Adaptability to other forms of composite manufacturing processes.

Scalability and adaptability are crucial for broader application in the industry, ensuring the benefits of these innovations can be realized in various manufacturing environments.

References

We extend our heartfelt thanks to Alex Brasington, Joshua Halbritter, Matthew Godbold, Max Kirkpatrick, Christopher Sacco, and Ramy Harik from the University of South Carolina, who are the esteemed authors of the influential PDF "Mapping of multimodality data for manufacturing analyses in automated fiber placement." Their groundbreaking work in Automated Fiber Placement (AFP) technology and data mapping methodologies provided the foundational knowledge and insights that greatly enriched this blog.

Their meticulous research and innovative approaches have not only advanced the field of aerospace manufacturing but have also enabled us to share these complex concepts in an accessible format. We are deeply appreciative of their efforts and are privileged to highlight their contributions in our discussions.
