TLDR

SOA: Mechanical Properties in Additive Manufacturing

One of the most pressing challenges is achieving materials that combine the convenience and flexibility of 3D printing with the robust mechanical properties typically associated with traditional manufacturing methods. This challenge is particularly pronounced when it comes to producing parts for industries that demand high performance, such as aerospace, automotive, and construction. These sectors often require materials that are not only strong and durable but also lightweight and cost-effective.

Traditionally, 3D printing has relied heavily on polymers and thermoplastics, materials known for their ease of printing and ability to form complex shapes. However, these materials typically fall short in terms of mechanical strength when compared to metals or engineered composites. This gap in material properties has limited the adoption of 3D printing for certain high-stakes applications, where the failure of a part could have serious implications.

The pursuit of stronger, more durable 3D printed materials has led to innovative research into the use of carbon-fiber reinforced composites. Carbon fiber, known for its high strength-to-weight ratio, presents an attractive option for reinforcing 3D printed polymers. By integrating carbon fibers into a nylon matrix, researchers aim to create composite materials that retain the ease of printing associated with polymers while significantly enhancing their mechanical properties.

Approach

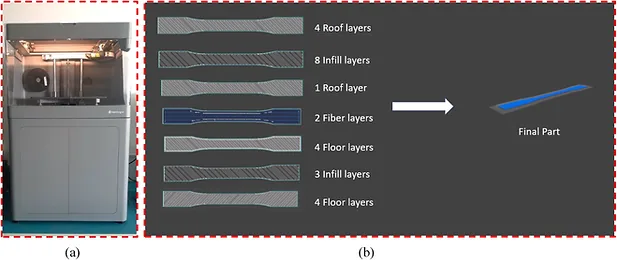

Key to this effort is the optimization of printing parameters, such as infill density and fiber orientation. Infill density, which refers to how much of the part's interior is filled with material, directly impacts the part's strength and weight. Similarly, the orientation of carbon fibers within the composite can significantly affect its tensile strength and stiffness, as the alignment of fibers can be tailored to bear loads more effectively.

Hypothesis

By meticulously analyzing the effects of these parameters on the composite's mechanical properties, significant strides have been made towards producing 3D printed parts that meet the rigorous demands of high-performance industries. This not only opens up new possibilities for the application of 3D printing technology but also marks a significant step forward in the ongoing quest to bridge the gap between additive manufacturing and traditional manufacturing methods.

the enhancement of mechanical properties in 3D printed materials is not just a technical challenge but a gateway to unlocking the full potential of additive manufacturing across a wide range of industries. The integration of carbon-fiber reinforcements into nylon composites represents a promising avenue towards achieving this goal, promising a future where 3D printed parts are synonymous with strength, durability, and innovation.

Limitations of Conventional 3D Printed Materials

3D printing, from a novel prototype production method to a cornerstone of modern manufacturing, has been nothing short of revolutionary. However, as the technology has evolved, so too have the expectations and demands placed upon it, especially from industries where the mechanical strength of components is non-negotiable. Despite the undeniable progress, a persistent challenge remains: the inherent limitations of conventional 3D printed materials in meeting these rigorous demands.

At the heart of this challenge is the nature of the materials traditionally used in 3D printing. Polymers and thermoplastics, while versatile and conducive to complex geometrical designs, often lack the strength, stiffness, and heat resistance required for high-performance applications. This discrepancy is particularly pronounced in sectors such as aerospace, automotive, and construction, where the material properties can be the difference between success and failure.

The limitations of these materials are not just theoretical concerns; they have practical implications for the design and utility of 3D printed parts. For example, while a polymer might be suitable for a prototype or non-load-bearing component, the same material could fail under the stress conditions experienced by parts in an airplane or a high-performance car. This has historically relegated 3D printed materials to the realm of prototyping and limited their use in end-use applications.

Recognizing this gap, innovators and researchers have been motivated to explore new materials and printing techniques that can enhance the mechanical properties of 3D printed parts. The quest has been to find a sweet spot - a material that combines the ease and flexibility of 3D printing with the durability and strength of traditionally manufactured components.

One promising avenue of exploration is the use of carbon-fiber reinforced composites. Carbon fiber, known for its lightweight and high-strength characteristics, offers a pathway to reinforce 3D printed polymers, potentially overcoming the limitations of conventional materials. By carefully adjusting printing parameters such as infill density and the orientation of carbon fibers, it's possible to significantly improve the mechanical properties of the printed objects.

Infill Density and Fiber Angle Optimization

The quest to enhance the mechanical properties of 3D printed parts has led to a fascinating exploration of how different printing parameters affect the final product's strength and durability. Among the myriad of variables, infill density and fiber angle stand out for their significant impact on the performance of carbon-fiber reinforced nylon composites. This exploration is not just about pushing the limits of what 3D printing can achieve; it's about understanding the nuances that turn a good design into a great one.

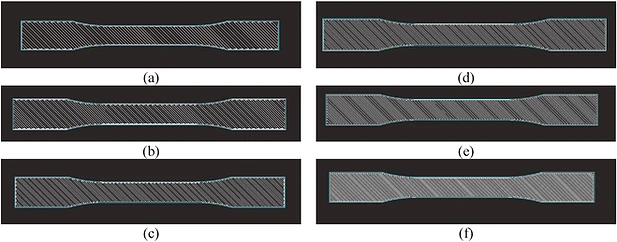

Infill density, the percentage of the interior volume of a print filled with material, is a critical parameter that directly influences the part's weight, structural integrity, and printing time. A higher infill density typically results in stronger and heavier parts, but it also requires more material and increases production time. Finding the optimal infill density is a delicate balancing act, aiming to achieve the desired strength without unnecessary waste or cost.

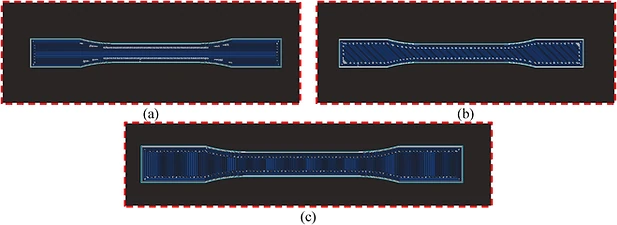

Fiber angle, the orientation of the continuous carbon fibers within the composite, plays a pivotal role in dictating the mechanical properties of the final part. Since the strength of carbon-fiber reinforced materials is highly directional, the angle at which the fibers are laid down can significantly affect the part's tensile strength, stiffness, and overall durability. Optimizing the fiber angle means aligning the fibers to bear loads most effectively, a decision that varies based on the part's specific use case.

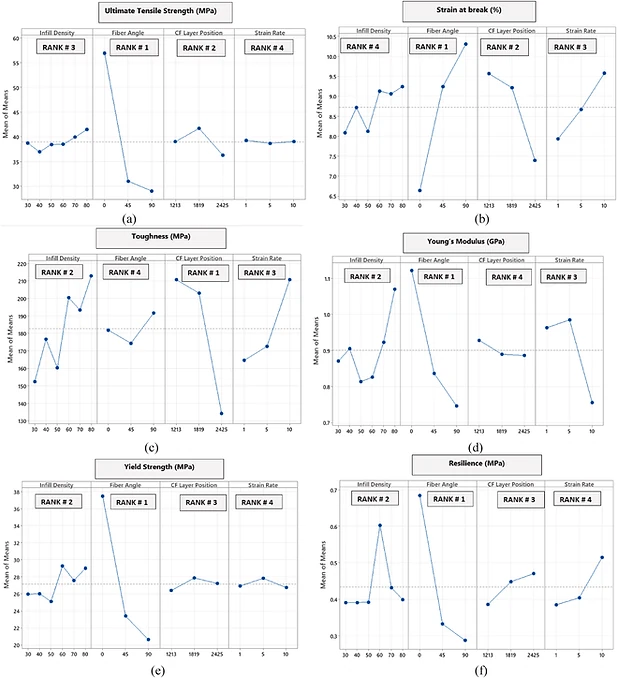

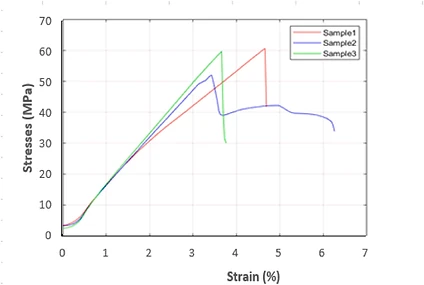

Through meticulous experimentation, it has been discovered that certain combinations of infill density and fiber angle yield markedly better results than others. For instance, a combination of high infill density and fibers oriented at specific angles can produce parts that are not only strong but also efficient in their use of material. This discovery has profound implications for additive manufacturing, offering a path toward producing parts that meet the rigorous demands of industries like aerospace, automotive, and construction.

However, the journey doesn't end with identifying the optimal settings for infill density and fiber angle. Each 3D printing project comes with its unique set of requirements and challenges. The insights gained from this exploration into infill density and fiber angle optimization serve as a foundational knowledge base. They empower designers and engineers to make informed decisions, tailor their approaches to the demands of their specific projects, and push the boundaries of what's possible with 3D printing.

the comprehensive examination of infill density and fiber angle optimization marks a significant step forward in the quest to unlock the full potential of additive manufacturing. By leveraging these insights, the industry can move closer to producing 3D printed parts that are not just functional prototypes but durable components capable of withstanding the rigors of real-world applications.

Optimizing Position of Carbon-Fiber Reinforcement

The pursuit of excellence in additive manufacturing has ushered in a new era of material science, one where the boundaries of strength and durability are continually being redefined. At the forefront of this revolution are carbon-fiber reinforced composites, materials that promise to elevate the capabilities of 3D printed parts to unprecedented levels. The journey to optimize these composites has been both challenging and enlightening, revealing the critical role of precise parameter adjustments in achieving superior durability.

The exploration into the optimization of these materials has centered around two pivotal printing parameters: infill density and fiber angle. The focus on these parameters stems from their significant influence on the mechanical properties of the printed parts. Infill density, which dictates the amount of material within the part, and fiber angle, which determines the orientation of the reinforcing carbon fibers, are both crucial in balancing strength, weight, and material efficiency.

Through a systematic approach, it has been discovered that an infill density nearing the upper echelons, coupled with a fiber angle aligned for optimal load distribution, results in parts that boast remarkable mechanical strength and durability. This optimal combination not only supports the structural integrity of the parts but also enhances their functionality in demanding applications.

The implications of these findings are far-reaching, promising to impact various industries, from aerospace to automotive, where the demand for lightweight yet strong components is ever-present. By harnessing the full potential of carbon-fiber reinforced composites, the additive manufacturing industry is set to offer solutions that were once deemed impossible. Parts that can withstand high stress, resist wear and tear, and last longer without compromising on weight or efficiency are now within reach.

However, the path to achieving superior durability in 3D printed parts is not solely about identifying the right parameters. It is also about understanding the synergies between different printing settings and how they collectively influence the final product's performance. This holistic approach to optimization underscores the complexity and potential of additive manufacturing, highlighting it as a field ripe with opportunities for innovation.

References

A heartfelt thank you to Basim El Essawi, Said Abdallah, Shafahat Ali, Abdallah Nassir Abdo Mohammed, Rahmat Agung Susantyoko, and Salman Pervaiz for their invaluable contributions to the research documented in the paper titled "Optimization of infill density fiber angle carbon fiber layer position in 3D printed continuous carbon-fiber reinforced nylon composite," published in Results in Engineering. Their meticulous research and dedication have significantly advanced our understanding of additive manufacturing, specifically in optimizing 3D printed carbon-fiber reinforced nylon composites. Their collective effort to explore the intricate effects of printing parameters on the mechanical properties of printed materials has not only enriched our understanding but also set a new benchmark for future studies in the field.
