Key Findings at a Glance:

• T1100/3960 prepreg remains stable at up to 77°F and 70% RH for 14 days
• Mechanical properties within 5% of baseline across all conditions tested
• Glass transition temperature unaffected by pre-cure environmental exposure
• Consistent laminate quality across all environmental conditions

Introduction

In the high-stakes world of aerospace engineering, the manufacturing process of composite materials is often shrouded in strict environmental controls. Temperature and humidity are watched with hawk-like precision, under the assumption that even slight variations could compromise the integrity of the final product. But what if these stringent controls aren't always necessary? A recent NASA study on T1100/3960 carbon fiber/epoxy prepreg challenges this conventional wisdom, potentially revolutionizing how we approach composite manufacturing.

The study, conducted by researchers at NASA's Marshall Space Flight Center, delves into the effects of temperature and relative humidity on T1100/3960 carbon fiber/epoxy prepreg during the critical period before layup and curing. This material, known for its high performance in aerospace applications, has been put under the microscope to determine just how sensitive it really is to environmental fluctuations.

Why does this matter? In the aerospace industry, where safety and performance are paramount, understanding the true environmental sensitivity of materials can lead to more efficient manufacturing processes, potential cost savings, and ultimately, better end products. But the implications stretch beyond aerospace - any industry utilizing high-performance composites could benefit from these insights.

Background

To fully appreciate the significance of NASA's study, it's crucial to understand the context of environmental sensitivity in composite materials and some key concepts related to their manufacturing.

Composite materials, particularly those used in aerospace applications, have long been thought to be highly sensitive to environmental conditions during the manufacturing process. This sensitivity stems from the nature of the materials themselves. Composites typically consist of strong fibers (like carbon) embedded in a polymer matrix (often epoxy). The epoxy component, being hygroscopic, can absorb moisture from the air, potentially leading to changes in its chemical structure and physical properties.

Key concepts:

1. Prepreg: Short for "pre-impregnated," this is a composite material where the fibers are already combined with the resin system. It's stored in an uncured state and must be processed (laid up and cured) to create the final composite part.
2. Curing process: This is the chemical process where the resin in the prepreg is transformed from a liquid to a solid state, binding the fibers together and forming the final composite structure.
3. Material properties: These include mechanical characteristics like strength and stiffness, as well as thermal properties like glass transition temperature. These properties can be affected by the manufacturing process and environmental conditions.

Traditionally, it's been believed that exposure to high humidity or temperature fluctuations during the pre-cure stages could lead to moisture absorption in the epoxy, potentially causing:

• Plasticization of the epoxy matrix (making it softer)
• Reduction in the glass transition temperature
• Degradation of mechanical properties in the final cured composite

As a result, composite manufacturing facilities often implement strict environmental controls, maintaining specific temperature and humidity levels. However, these controls can be costly and energy-intensive, making the manufacturing process more complex and expensive.

This is where the NASA study comes in, challenging these long-held assumptions by investigating how T1100/3960 carbon fiber/epoxy prepreg actually responds to varying environmental conditions before curing.

The Problem

In the world of high-performance composites, particularly in aerospace applications, manufacturers have long grappled with a significant challenge: how to maintain optimal environmental conditions during the pre-cure stages of composite production. The concern stems from the potential negative effects of temperature fluctuations and humidity exposure on uncured prepreg materials.

The specific problems this creates include:

1. Stringent environmental controls: Manufacturers often invest heavily in sophisticated HVAC systems to maintain precise temperature and humidity levels in their facilities. This is especially challenging in large-volume high bay areas suitable for producing sizeable composite structures.
2. Limited processing windows: Fears of material degradation due to environmental exposure can lead to very tight timeframes for layup and curing processes, potentially limiting production flexibility and efficiency.
3. Increased costs: The need for strict environmental control contributes to higher manufacturing costs, which ultimately affects the final product price.
4. Uncertainty in material performance: There's often a lack of concrete data on how specific prepreg systems respond to environmental variations, leading to conservative approaches that may be unnecessarily restrictive.
5. Potential for over-engineering: Without precise knowledge of a material's true environmental sensitivity, manufacturers might implement overly cautious practices, leading to inefficiencies in the production process.

The core of the problem lies in the balance between ensuring product quality and optimizing manufacturing efficiency. If prepreg materials are indeed highly sensitive to environmental conditions, then strict controls are necessary to maintain product integrity. However, if they are more robust than previously thought, there may be opportunities to relax some of these controls, leading to more flexible and cost-effective manufacturing processes.

This is the challenge that the NASA study on T1100/3960 carbon fiber/epoxy prepreg set out to address. By subjecting this high-performance material to various environmental conditions before curing, the researchers aimed to provide concrete data on its true sensitivity to temperature and humidity variations.

Research Approach (Solution Part 1)

To address the problem of uncertain environmental sensitivity in composite materials, NASA researchers designed a comprehensive study to evaluate the effects of temperature and relative humidity on T1100/3960 carbon fiber/epoxy prepreg. Their approach was both practical and rigorous, mimicking real-world manufacturing conditions while employing precise scientific methods.

Study Design:

The researchers created four test groups:

1. Baseline (no environmental conditioning)
2. Low humidity (23% RH at 77°F)
3. Medium humidity (50% RH at 72°F)
4. High humidity (70% RH at 77°F)

These conditions were chosen to reflect a range of environments commonly encountered in large-volume high bay manufacturing facilities.

Environmental Conditioning Process:

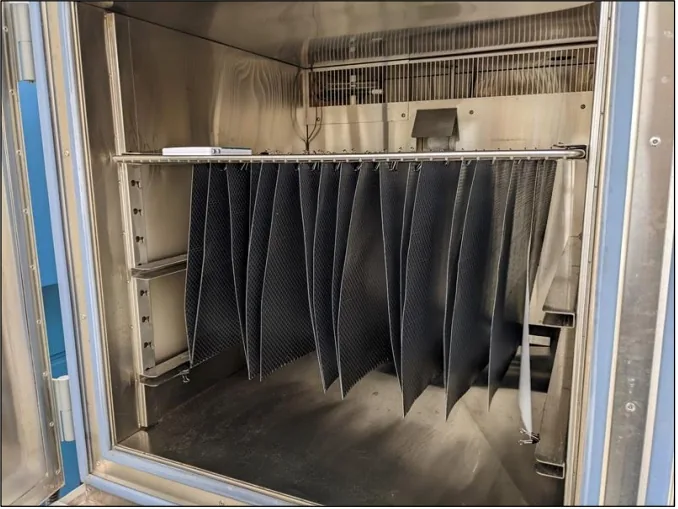

1. Prepreg plies were cut and placed in an environmental chamber.
2. One side of each ply was exposed to the chamber environment.
3. Plies were conditioned for 14 days, representing a conservative estimate of potential exposure time during manufacturing.

Testing Methods:

After conditioning, the researchers fabricated composite laminates and subjected them to a battery of tests:

1. Optical Microscopy: To visually assess laminate quality and consistency across test groups.
2. Constituent Content Determination: Using matrix burnoff (ASTM D3171, Procedure G) to verify cured laminate quality and consistency.
3. Mechanical Testing:
   a. Open Hole Compression Test (ASTM D6484): To screen for strength degradation in the composite system.
   b. Short Beam Shear Test (ASTM D2344): To screen for matrix degradation.
4. Dynamic Mechanical Analysis (DMA): To measure glass transition temperature and screen for changes due to moisture absorption.

This comprehensive approach allowed the researchers to evaluate multiple aspects of the material's performance, from visual quality to mechanical properties and thermal characteristics. By comparing the results across the different environmental exposure groups, they could determine the true impact of temperature and humidity variations on the T1100/3960 prepreg system.

This methodology provides a solution to the problem of uncertainty by generating concrete, quantitative data on the material's environmental sensitivity. It offers a template for how other composite materials could be evaluated, potentially leading to more informed and efficient manufacturing processes across the industry.

Findings and Solution (Solution Part 2)

The results of NASA's study on T1100/3960 carbon fiber/epoxy prepreg were both surprising and encouraging. Here's a breakdown of the key findings:

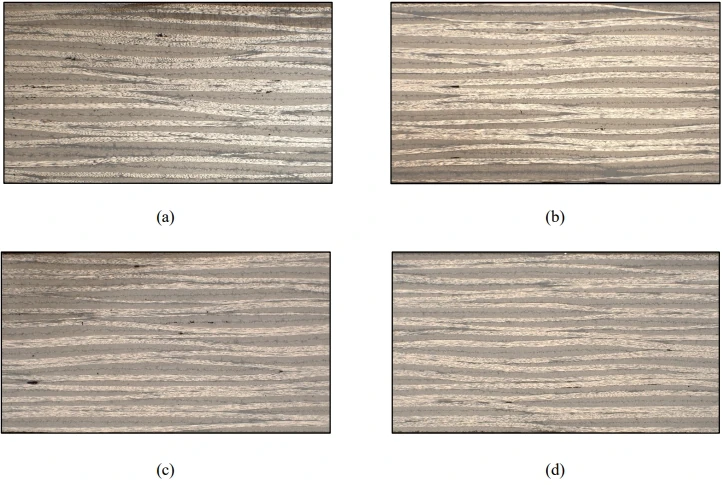

1. Laminate Quality: Optical microscopy revealed that laminate quality remained consistent across all test groups, including those exposed to high humidity environments. Only a minimal number of small voids were observed in each group, which is typical for aerospace-grade carbon fiber/epoxy composites after autoclave curing.

2. Constituent Content: Resin content values varied slightly among test groups but remained within 3.5% of the nominal resin content (35%) for all samples. This indicates that environmental conditioning did not significantly affect the resin content of the cured laminates.

3. Mechanical Properties:
   a. Open Hole Compression Strength:
   • All environmentally conditioned test groups performed within 5% of the baseline group.
   • The group exposed to 70% RH showed only a 4% reduction in strength compared to the baseline.
   b. Short Beam Shear Strength:
   • Similar to the compression results, all groups performed within 5% of the baseline.
   • Even the high humidity group (70% RH) showed only a 4.4% reduction in shear strength.

4. Glass Transition Temperature: Dynamic Mechanical Analysis (DMA) showed that glass transition temperatures for all environmentally conditioned groups were within 3% of the baseline group. This suggests that any potential plasticization of the matrix material due to moisture absorption did not significantly affect the thermal properties of the cured composite.

For those interested in a more detailed look at the thermal behavior of the material, the following figure shows representative DMA output from each test group:

These findings provide a solution to the problem of uncertainty regarding environmental sensitivity in composite manufacturing. They demonstrate that T1100/3960 prepreg is remarkably robust against variations in temperature and humidity during the pre-cure stage. Specifically:

• Exposure to up to 70% RH at 77°F for 14 days does not significantly degrade the mechanical or thermal properties of the cured composite.
• The consistency in laminate quality across all test groups indicates that the material can tolerate a range of environmental conditions without compromising structural integrity.

This solution has significant implications for composite manufacturing processes:

1. It suggests that environmental controls in manufacturing facilities using T1100/3960 prepreg may not need to be as stringent as previously thought.
2. The 14-day exposure period tested provides manufacturers with a more flexible timeframe for layup and curing processes.
3. The robustness of the material against environmental variations could potentially lead to cost savings in facility design and operation.

In essence, these findings offer a data-driven solution to the problem of overly cautious manufacturing practices, paving the way for more efficient and flexible composite production processes without compromising product quality.

Implications and Practical Takeaways

The findings from NASA's study on T1100/3960 carbon fiber/epoxy prepreg have far-reaching implications for the composite manufacturing industry, particularly in aerospace applications. Here are the key implications and practical takeaways:

1. Robustness of T1100/3960 prepreg:
   • The material demonstrates remarkable resilience to environmental variations during the pre-cure stage.
   • This robustness could translate to increased reliability in manufacturing processes and final product performance.
   Practical Takeaway: Manufacturers can have increased confidence in the stability of T1100/3960 prepreg, potentially allowing for more flexible handling and processing times.
2. Potential for more flexible manufacturing environments:
   • The study suggests that strict environmental controls (particularly for humidity) may not be as critical as previously thought for this material system.
   • Temperature and humidity ranges of up to 77°F and 70% RH appear to be acceptable for periods up to 14 days.
   Practical Takeaway: Manufacturers might be able to relax some environmental control requirements in their facilities, potentially leading to energy savings and reduced operational costs.
3. Implications for quality control and process design:
   • The consistency in laminate quality and performance across different environmental conditions suggests that minor fluctuations in temperature and humidity are less likely to cause significant quality issues.
   • This could allow for streamlined quality control processes focused on other critical parameters.
   Practical Takeaway: Quality control efforts could be reallocated to other aspects of the manufacturing process, potentially improving overall efficiency without compromising product integrity.
4. Cost savings potential:
   • Relaxed environmental control requirements could lead to reduced costs in facility design, HVAC systems, and energy consumption.
   • More flexible processing windows could improve production scheduling and throughput.
   Practical Takeaway: Manufacturers should reassess their facility designs and operational procedures to identify potential areas for cost savings based on these findings.
5. Implications for other composite systems:
   • While this study focused on T1100/3960 prepreg, it raises questions about the environmental sensitivity of other composite material systems.
   • The methodology used in this study provides a template for evaluating other materials.
   Practical Takeaway: Manufacturers and researchers should consider conducting similar studies on other prepreg systems to optimize their specific manufacturing processes.
6. Balancing caution and efficiency:
   • While the results are promising, it's important to note that these findings are specific to T1100/3960 prepreg and the conditions tested.
   • Manufacturers should still exercise due diligence in maintaining appropriate environmental controls.
   Practical Takeaway: Use these findings as a starting point for optimizing processes, but continue to monitor and validate material performance in your specific manufacturing environment.

These implications and takeaways provide a roadmap for potentially significant improvements in composite manufacturing processes, balancing the need for product quality with opportunities for increased efficiency and cost savings.

Conclusion

NASA's groundbreaking study on the effects of temperature and relative humidity on T1100/3960 carbon fiber/epoxy prepreg has challenged long-held assumptions in the composite manufacturing industry. Let's recap the key findings and consider their broader implications:

Summary of Key Findings:

1. T1100/3960 prepreg demonstrated remarkable resilience to environmental variations during the pre-cure stage, with exposure to up to 77°F and 70% RH for 14 days showing no significant adverse effects on the final cured composite.
2. Mechanical properties, including open hole compression strength and short beam shear strength, remained within 5% of baseline values across all environmental conditions tested.
3. Glass transition temperatures were consistent across all test groups, indicating that the thermal properties of the cured composite were not significantly affected by pre-cure environmental exposure.
4. Laminate quality and constituent content remained consistent, regardless of the environmental conditions during the pre-cure stage.

These findings suggest that the T1100/3960 prepreg system is more robust than previously thought, potentially allowing for more flexible and cost-effective manufacturing processes without compromising product quality.

Future Research Directions:

While this study provides valuable insights, it also opens up new avenues for further research:

1. Long-term studies: Investigating the effects of environmental exposure over even longer periods or repeated cycles of exposure.
2. Broader range of conditions: Exploring the material's performance under more extreme temperature and humidity conditions.
3. Other material systems: Applying similar methodologies to evaluate the environmental sensitivity of other prepreg systems and composite materials.
4. In-situ monitoring: Developing techniques for real-time monitoring of prepreg condition during the manufacturing process.
5. Lifecycle analysis: Studying how these pre-cure environmental exposures might affect the long-term performance and durability of the final composite structures.
