Overview of Composite Materials and Their Applications

Composite materials, often simply called composites, are engineered materials made from two or more constituent materials with significantly different physical or chemical properties. When combined, they produce a material with characteristics different from the individual components. The individual components remain separate and distinct within the finished structure, differentiating composites from mixtures and solid solutions.

Introduction to Composite Materials

Composites typically consist of:

1. Matrix: The primary phase, which is continuous and surrounds the other phase.
2. Reinforcement: The secondary phase, which is embedded in the matrix.

Common types of composites include:

• Fiber-reinforced polymers (FRP)
• Metal matrix composites (MMC)
• Ceramic matrix composites (CMC)

Composites are used in a wide range of applications due to their unique properties:

Where Are Composites Used?

1. Aerospace: Aircraft structures, spacecraft components
2. Automotive: Body panels, chassis components
3. Marine: Boat hulls, offshore platforms
4. Construction: Bridges, buildings, reinforcement bars
5. Sports Equipment: Tennis rackets, bicycle frames
6. Wind Energy: Turbine blades

Importance of Mechanical Testing in Composites

Mechanical testing of composites is crucial for several reasons:

1. Material Characterization: To determine the mechanical properties of the composite, such as strength, stiffness, and toughness.
2. Quality Control: To ensure that manufactured composites meet design specifications and industry standards.
3. Design Validation: To verify that composite structures can withstand the intended loads and environmental conditions.
4. Failure Analysis: To understand the failure modes and mechanisms of composites under various loading conditions.
5. Material Development: To aid in the development of new composite materials and manufacturing processes.
6. Certification: To meet regulatory requirements for safety-critical applications, such as in aerospace.

Mechanical Testing of Composites

Fundamentals of Composite Behavior

Stress-Strain Relationships

Composite materials exhibit unique stress-strain relationships due to their heterogeneous nature:

1. Linear Elasticity: Many composites show linear elastic behavior up to a certain stress level.
2. Anisotropy: The mechanical properties vary depending on the direction of applied load.
3. Fiber-Matrix Interaction: The stress-strain behavior is influenced by the load transfer between the fiber and matrix.
4. Progressive Failure: Composites often fail progressively, with multiple damage mechanisms occurring before final failure.

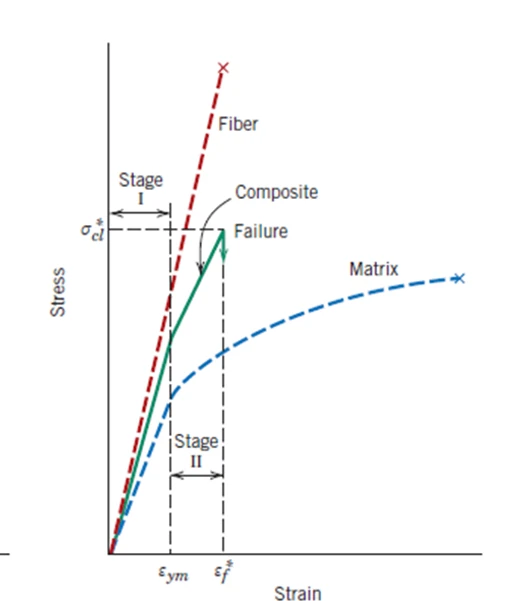

A typical stress-strain curve for a unidirectional fiber-reinforced composite loaded in the fiber direction shows:

• Initial linear elastic region
• Possible non-linear region due to matrix plasticity or fiber-matrix debonding
• Sudden drop in stress at fiber failure

Anisotropy

Anisotropy is a fundamental characteristic of many composite materials, especially fiber-reinforced composites:

1. Directional Properties: Mechanical properties such as strength and stiffness vary significantly with direction.
2. Orthotropic Behavior: Many composites exhibit orthotropic behavior, with different properties in three mutually perpendicular directions.
3. Laminate Theory: The anisotropic nature of composites necessitates the use of laminate theory for structural analysis and design.
4. Testing Implications: Anisotropy requires testing in multiple directions to fully characterize the material properties.

Understanding the anisotropic behavior of composites is crucial for:

• Proper material selection
• Accurate structural design
• Optimizing fiber orientations for specific applications

The complex behavior of composite materials, including their anisotropic nature and unique stress-strain relationships, underscores the importance of thorough and appropriate mechanical testing. These tests provide the necessary data to understand, predict, and optimize the performance of composite structures in various applications.

Tensile testing is one of the most fundamental and widely used mechanical tests for composite materials. It provides critical information about the material's strength, stiffness, and behavior under uniaxial loading conditions. The ASTM D3039 standard is the most commonly used method for conducting tensile tests on polymer matrix composite materials.

Mechanical Testing of Composites

Test Setup and Specimen Preparation

Specimen Geometry

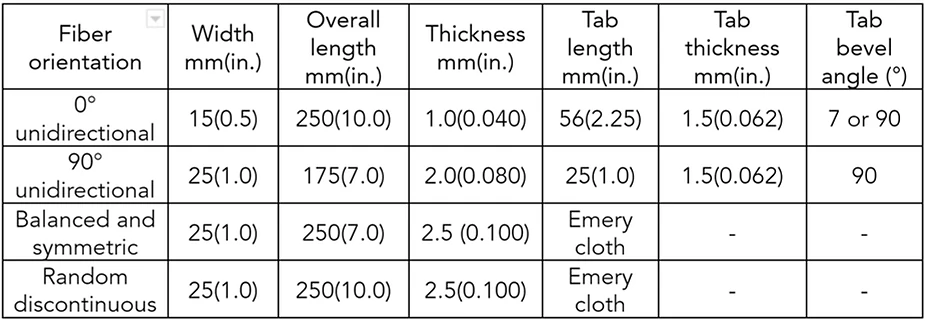

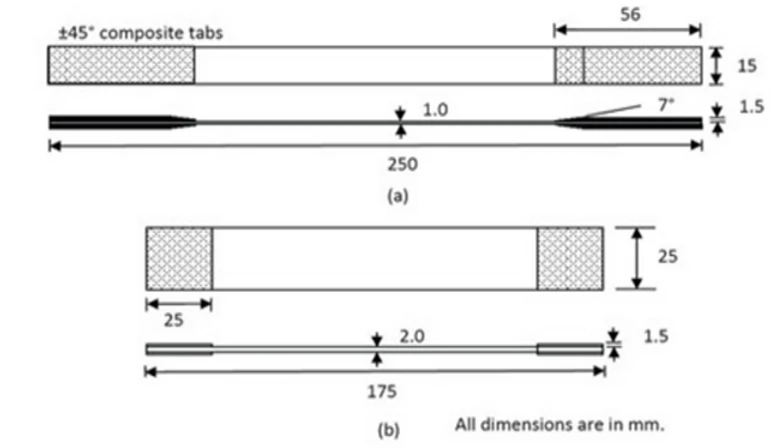

The ASTM D3039 standard specifies several key aspects of specimen geometry:

1. Shape: Typically flat strips or rectangular cross-sections
2. Dimensions: Vary based on the type of reinforcement and its orientation
   • Length: Usually 250 mm (10 in) for unidirectional and fabric composites
   • Width: Typically 25 mm (1 in) for 0° unidirectional, 25 mm (1 in) for 90° unidirectional, and 25 mm (1 in) for fabric composites
   • Thickness: Generally 2-3 mm (0.08-0.12 in), but may vary

Specimen Preparation

1. Cutting: Specimens should be cut carefully to avoid delamination or other damage. Water-jet cutting or precision sawing with diamond-coated blades is often used.
2. Tab Bonding: For some specimen types, especially those with 0° fiber orientation, end tabs are bonded to prevent grip-induced failures. Tabs are typically made of glass fiber/epoxy composite or aluminum.
3. Surface Preparation: The specimen surface should be prepared for strain gauge application if strain is to be measured directly on the specimen.

Test Setup

1. Testing Machine: A universal testing machine capable of maintaining a constant crosshead speed and accurately measuring load.
2. Grips: Hydraulic or mechanical grips that can securely hold the specimen without inducing damage or slippage.
3. Strain Measurement: Either strain gauges bonded directly to the specimen or extensometers attached to the gauge section.
4. Data Acquisition System: To record load, displacement, and strain data throughout the test.

Longitudinal and Transverse Testing

Composite materials, especially those with unidirectional reinforcement, exhibit highly anisotropic behavior. Therefore, testing in both longitudinal (0°, parallel to fibers) and transverse (90°, perpendicular to fibers) directions is crucial for a complete characterization.

Longitudinal Testing (0°)

• Provides information on fiber-dominated properties
• Typically results in higher strength and stiffness values
• Failure often occurs due to fiber breakage

Transverse Testing (90°)

• Provides information on matrix-dominated properties
• Generally results in lower strength and stiffness values
• Failure often occurs due to matrix cracking or fiber-matrix debonding

The stark difference in properties between these two orientations highlights the anisotropic nature of composite materials and the importance of testing in multiple directions.

Data Analysis and Interpretation

Key Parameters

1. Ultimate Tensile Strength (UTS): The maximum stress the material can withstand before failure.
2. Young's Modulus (E): The slope of the stress-strain curve in the linear elastic region, indicating the material's stiffness.
3. Poisson's Ratio (ν): The negative ratio of transverse strain to axial strain in the linear elastic region.
4. Strain at Failure (εf): The maximum strain the material experiences before failure.

Stress-Strain Curve Analysis

1. Linear Region: Identify the linear portion of the stress-strain curve to calculate Young's modulus.
2. Yield Point: For some composites, especially those with ductile matrices, a yield point may be observed.
3. Failure Point: The point of ultimate tensile strength and corresponding strain at failure.

Statistical Analysis

Given the inherent variability in composite materials, statistical analysis of test results is crucial:

1. Mean Values: Calculate average values for strength, modulus, and other parameters.
2. Standard Deviation: Determine the spread of the data.
3. Coefficient of Variation: Assess the relative variability of the data.

Failure Mode Analysis

Examining the failure mode of tensile specimens provides valuable insights:

1. Fiber-Dominated Failure: Typically seen in 0° specimens, characterized by fiber breakage.
2. Matrix-Dominated Failure: Common in 90° specimens, often showing matrix cracking or fiber-matrix debonding.
3. Delamination: Separation of composite layers, which may indicate manufacturing defects or inappropriate test setup.

Understanding and correctly interpreting tensile test data is crucial for:

• Material selection and qualification
• Structural design and analysis
• Quality control in manufacturing processes

Tensile testing, while seemingly straightforward, requires careful attention to specimen preparation, test execution, and data analysis to obtain reliable and meaningful results for composite materials.

Compression testing is a critical aspect of characterizing composite materials, particularly for applications where compressive loads are significant, such as in aerospace structures. The ASTM D3410 standard provides a method for determining the in-plane compressive properties of polymer matrix composite materials reinforced by high-modulus fibers.

Mechanical Testing of Composites

Test Methods and Fixtures

Compression testing of composites is more challenging than tensile testing due to the difficulty in introducing a purely compressive load without inducing buckling or other undesirable failure modes. Several test methods and fixtures have been developed to address these challenges:

1. ASTM D3410 (Procedure B) - IITRI Test Method

The Illinois Institute of Technology Research Institute (IITRI) fixture is the most commonly used method specified in ASTM D3410:

• Fixture Design: Consists of two wedge-shaped grip blocks that apply compressive load to the specimen through shear at the gripped ends.
• Load Introduction: Compressive force is applied through the tapered wedge grips, which distribute the load evenly across the specimen width.
• Alignment: The fixture design helps maintain proper alignment, reducing the risk of premature failure due to buckling.

2. ASTM D695 - Modified for Composites

While primarily designed for unreinforced plastics, this method can be adapted for composite materials:

• Fixture: Uses a simple support fixture to prevent buckling of thin specimens.
• Specimen: Typically requires thicker specimens or end tabs to prevent end-crushing failures.

3. ASTM D6641 - Combined Loading Compression (CLC) Test

This method combines end loading and shear loading:

• Fixture: Uses a compact fixture that applies both end loading and shear loading to the specimen.
• Advantages: Reduces the risk of end-crushing failures and can accommodate shorter specimens compared to ASTM D3410.

Specimen Geometry Considerations

Proper specimen geometry is crucial for obtaining valid compression test results:

1. Length-to-Thickness Ratio

• Typical Ratio: The unsupported length should be 4-6 times the specimen thickness to prevent global buckling.

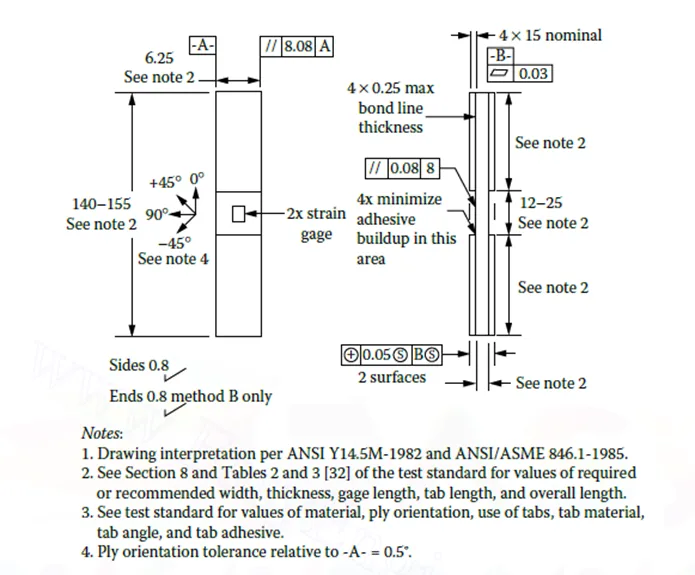

• ASTM D3410 Recommendation: Gauge length of 12-25 mm (0.5-1.0 in) for most polymer composites.

2. Width

• Standard Width: Typically 6.4-12.7 mm (0.25-0.50 in) for unidirectional composites.
• Consideration: Width should be sufficient to be representative of the material but not so wide as to induce column buckling.

3. Thickness

• Typical Range: 1-6 mm (0.040-0.24 in), depending on the material and test fixture.
• Consideration: Thicker specimens reduce the risk of buckling but may not be representative of thin laminates used in actual structures.

4. End Tabs

• Purpose: Distribute gripping forces and prevent end-crushing failures.
• Material: Often made of glass fiber/epoxy composite or aluminum.
• Geometry: Typically beveled at 30-60 degrees to provide a smooth load transition.

Challenges in Compression Testing of Composites

Compression testing of composites presents several unique challenges:

1. Buckling Prevention

• Issue: Composite specimens, especially thin laminates, are prone to buckling under compressive loads.
• Solution: Careful fixture design, proper specimen geometry, and potentially anti-buckling guides.

2. End Effects

• Issue: Stress concentrations at the loaded ends can cause premature failure.
• Solution: Use of properly designed end tabs and careful specimen preparation.

3. Alignment

• Issue: Misalignment can introduce bending moments, leading to premature or invalid failures.
• Solution: Precise machining of specimens and fixtures, and careful setup of the test apparatus.

4. Strain Measurement

• Issue: Limited space for strain gauges or extensometers in the short gauge length.
• Solution: Use of small strain gauges or non-contact strain measurement techniques like digital image correlation (DIC).

5. Failure Mode Identification

• Issue: Distinguishing between valid compressive failures and invalid modes like end-crushing or buckling.
• Solution: Careful examination of failed specimens and potentially the use of high-speed imaging during testing.

6. Environmental Effects

• Issue: Composites can be sensitive to temperature and moisture, which can significantly affect compressive properties.
• Solution: Controlled testing environment and proper conditioning of specimens before testing.

7. Material Anisotropy

• Issue: The highly directional properties of composites necessitate testing in multiple orientations.
• Solution: Conduct tests on specimens with different fiber orientations (0°, 90°, and possibly off-axis).

Compression testing of composites, while challenging, provides critical data for material characterization and structural design. Understanding these challenges and implementing appropriate solutions is key to obtaining reliable and meaningful compression test results for composite materials.

Flexural and shear testing are crucial for characterizing the mechanical behavior of composite materials under bending and shear loads. These tests provide valuable insights into the material's performance in applications where bending and shear stresses are significant.

Mechanical Testing of Composites

Flexural Testing (ASTM D7264): Three-point and Four-point Bending

Flexural testing determines a material's behavior under bending loads. The ASTM D7264 standard describes procedures for both three-point and four-point bending tests.

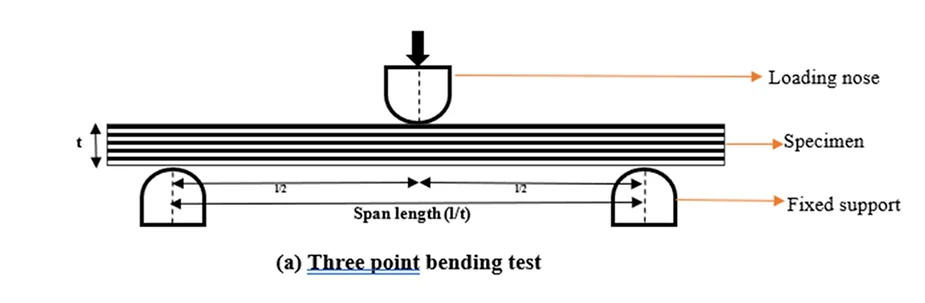

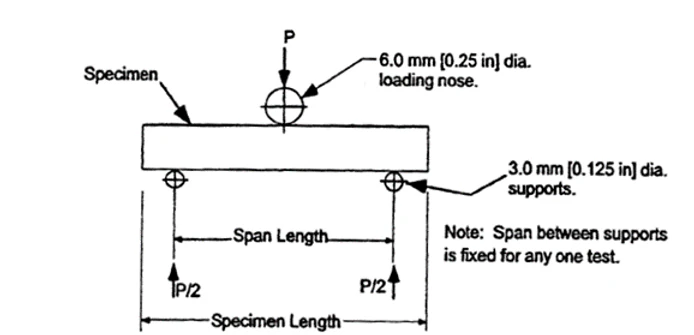

Three-point Bending

1. Test Setup:
   • The specimen is supported at two points and loaded at the midpoint.
   • Load is applied perpendicular to the specimen's long axis.
2. Key Parameters:
   • Support span
   • Loading nose diameter
   • Crosshead speed
3. Calculations:
   • Flexural Strength: σf = 3PL / (2bh²)
   • Flexural Modulus: Ef = L³m / (4bh³) Where: P = load, L = support span, b = width, h = thickness, m = slope of the load-deflection curve
4. Advantages:
   • Simple setup
   • Maximum stress at midpoint
5. Limitations:
   • High shear stresses near supports
   • Potential for localized damage at loading point

Four-point Bending

1. Test Setup:
   • The specimen is supported at two outer points and loaded at two inner points.
   • Load is distributed over a larger area of the specimen.
2. Key Parameters:
   • Support span
   • Loading span (distance between inner loading points)
   • Loading nose diameter
   • Crosshead speed
3. Calculations:
   • Flexural Strength: σf = 3PL / (4bh²)
   • Flexural Modulus: Ef = 0.21L³m / (bh³) Where: P = load, L = support span, b = width, h = thickness, m = slope of the load-deflection curve
4. Advantages:
   • Uniform bending moment between loading points
   • Reduced risk of shear failure
5. Limitations:
   • More complex setup
   • Potential for localized damage at loading points

Specimen Considerations:

• Typical dimensions: 100-200 mm length, 13-25 mm width
• Span-to-thickness ratio: typically 16:1 for three-point and 32:1 for four-point bending
• Surface quality is crucial to prevent premature failure

In-plane Shear Testing (ASTM D3518)

The ASTM D3518 test method determines the in-plane shear properties of polymer matrix composite materials reinforced by high-modulus fibers.

1. Test Principle:

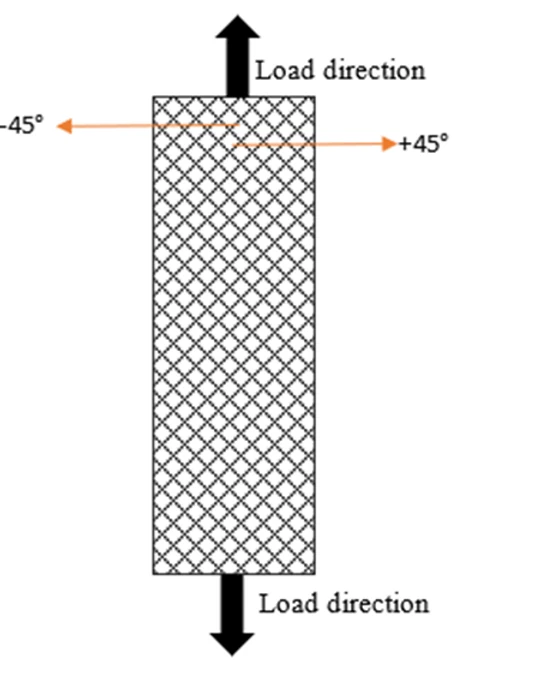

   • Uses a tensile test on a ±45° laminate to induce in-plane shear.
   • The test essentially "stretches" the ±45° fibers, creating a shear state in the material.
2. Specimen Preparation:
   • Balanced and symmetric ±45° laminate
   • Typical dimensions similar to tensile test specimens (ASTM D3039)
3. Test Procedure:
   • Conducted as a standard tensile test
   • Strain measured in both longitudinal and transverse directions
4. Calculations:
   • Shear Stress: τ12 = P / (2A)
   • Shear Strain: γ12 = εx - εy
   • Shear Modulus: G12 = Δτ12 / Δγ12 Where: P = applied load, A = cross-sectional area, εx = longitudinal strain, εy = transverse strain
5. Advantages:
   • Uses standard tensile testing equipment
   • Provides complete shear stress-strain curve
6. Limitations:
   • Limited to in-plane shear properties
   • May not be representative for all loading conditions

Interlaminar Shear Strength Testing (ASTM D2344)

The ASTM D2344 standard, also known as the Short Beam Strength (SBS) test, is used to determine the interlaminar shear strength of composite materials.

1. Test Principle:
   • Short beam subjected to three-point bending
   • The short span induces interlaminar shear failure
2. Specimen Preparation:
   • Typically unidirectional laminates
   • Length = 6 × thickness
   • Width = 2 × thickness
3. Test Setup:
   • Three-point bending configuration
   • Span length = 4 × thickness
4. Calculations:
   • Interlaminar Shear Strength: ILSS = 0.75 × P / (b × h) Where: P = maximum load, b = specimen width, h = specimen thickness
5. Advantages:
   • Simple and quick test
   • Requires small specimens
6. Limitations:
   • May not produce pure interlaminar shear failure
   • Results can be affected by stress concentrations at loading points
7. Failure Modes:
   • Interlaminar shear (desired mode)
   • Inelastic deformation
   • Flexure
   • Inelastic deformation and interlaminar shear

Interpreting the failure mode is crucial for validating the test results.

Flexural and shear testing provide essential data for understanding the behavior of composite materials under complex loading conditions. These tests, when combined with tensile and compression testing, offer a comprehensive characterization of a composite material's mechanical properties, crucial for design and analysis in various applications.

Impact and fatigue testing are crucial for understanding the behavior of composite materials under sudden loads and cyclic loading conditions. These tests provide valuable insights into a material's toughness, energy absorption capabilities, and long-term performance under repeated loading.

Mechanical Testing of Composites

Impact Testing: Charpy and Izod Tests

Impact tests measure a material's ability to absorb energy during fracture. For composite materials, these tests are particularly important in assessing damage tolerance and energy absorption capabilities.

Charpy Impact Test

1. Test Principle:
   • A notched specimen is supported as a horizontal beam
   • A pendulum strikes the specimen on the side opposite the notch
   • Energy absorbed during fracture is measured
2. Specimen Preparation:
   • Typically 55 mm x 10 mm x 10 mm for composites
   • V-notch or U-notch at the center of the specimen
3. Test Procedure:
   • Specimen is placed in the test fixture with the notch facing away from the striking edge
   • Pendulum is released from a known height
   • Energy absorbed is calculated from the difference in pendulum height before and after impact
4. Calculations:
   • Impact Energy = mgh₁ - mgh₂ Where: m = mass of pendulum, g = acceleration due to gravity, h₁ = initial height, h₂ = final height
5. Advantages:
   • Simple and widely used test
   • Good for comparing different materials
6. Limitations:
   • Results can be affected by specimen size and notch geometry
   • May not accurately represent impact behavior in real-world applications

Izod Impact Test

1. Test Principle:
   • Similar to Charpy test, but the specimen is clamped vertically
   • Pendulum strikes the specimen on the same side as the notch
2. Specimen Preparation:
   • Typically 64 mm x 12.7 mm x 3.2 mm for composites
   • V-notch at one end of the specimen
3. Test Procedure:
   • Specimen is clamped vertically with the notch facing the striking edge
   • Pendulum is released from a known height
   • Energy absorbed is calculated as in the Charpy test
4. Advantages:
   • Good for testing thin sheet materials
   • Can be used to test anisotropic materials in different orientations
5. Limitations:
   • Clamping can introduce stress concentrations
   • Results can be affected by fiber orientation in composites

Considerations for Composite Materials:

• Fiber orientation relative to impact direction significantly affects results
• Failure modes in composites (fiber breakage, matrix cracking, delamination) can be complex
• Multiple specimens with different orientations may be needed for a complete characterization

Defects and Damage in Composite Materials and Structures

Fatigue Testing (ASTM D3479): Tension-Tension and Compression-Compression

Fatigue testing assesses a material's performance under cyclic loading conditions. For composites, fatigue behavior is crucial due to their use in long-term, cyclic loading applications like wind turbine blades or aircraft structures.

General Principles of Fatigue Testing

1. Test Objective:
   • Determine the number of cycles to failure at different stress levels
   • Generate S-N curves (stress vs. number of cycles)
2. Key Parameters:
   • Maximum stress
   • Stress ratio (R = minimum stress / maximum stress)
   • Frequency of loading
   • Environmental conditions (temperature, humidity)
3. Failure Criteria:
   • Complete fracture
   • Stiffness reduction (e.g., 10% decrease in modulus)
   • Specific amount of damage or delamination

Tension-Tension Fatigue (ASTM D3479)

1. Test Setup:
   • Similar to static tensile test setup
   • Specimens typically similar to those used in tensile testing (ASTM D3039)
2. Test Procedure:
   • Apply sinusoidal tensile load varying between a minimum and maximum value
   • Typical stress ratio (R) ranges from 0.1 to 0.8
   • Frequency typically 1-10 Hz, depending on material and test objective
3. Data Analysis:
   • Plot S-N curve (stress amplitude vs. number of cycles to failure)
   • Determine fatigue limit or endurance limit, if applicable
4. Considerations for Composites:
   • Damage accumulation can be complex (matrix cracking, fiber breakage, delamination)
   • Fatigue behavior can be highly dependent on fiber orientation and layup sequence

Compression-Compression Fatigue

1. Test Setup:
   • Similar to static compression test setup
   • May require anti-buckling guides for thin specimens
2. Test Procedure:
   • Apply sinusoidal compressive load
   • Typical stress ratio (R) > 1 (e.g., R = 10)
   • Lower frequencies often used compared to tension-tension (to avoid heating)
3. Challenges:
   • Avoiding buckling, especially at high cycle counts
   • Dealing with end-crushing failures
4. Considerations for Composites:
   • Compressive fatigue often more critical than tensile fatigue for some composites
   • Matrix properties play a significant role in compressive fatigue behavior

General Considerations for Fatigue Testing of Composites

1. Environmental Effects:
   • Temperature and humidity can significantly affect fatigue life
   • Consider environmental chambers for testing in relevant conditions
2. Frequency Effects:
   • Higher frequencies can lead to internal heating, especially in thermoplastic matrix composites
   • Balance between test duration and avoiding thermal effects
3. Damage Monitoring:
   • Non-destructive techniques (e.g., acoustic emission, thermography) can be used to monitor damage progression
   • Stiffness degradation is often monitored throughout the test
4. Variability:
   • Fatigue data for composites often shows high scatter
   • Statistical analysis and multiple tests are crucial for reliable characterization
5. Failure Mode Analysis:
   • Post-test examination of failed specimens is crucial for understanding failure mechanisms
   • Different failure modes may dominate at different stress levels or cycle counts

Impact and fatigue testing provide critical information about a composite material's performance under dynamic and cyclic loading conditions. These tests are essential for predicting the long-term behavior and reliability of composite structures in various applications, from aerospace to wind energy.

Environmental factors can significantly influence the mechanical properties of composite materials. Understanding these effects is crucial for predicting long-term performance and ensuring reliability in various applications. This chapter focuses on moisture absorption, temperature effects, and combined environmental and mechanical testing.

Mechanical Testing of Composites

Moisture Absorption Testing

Moisture absorption can significantly affect the mechanical properties of polymer matrix composites, particularly those with hygroscopic matrices like epoxy.

Test Methods

1. ASTM D5229: Standard Test Method for Moisture Absorption Properties and Equilibrium Conditioning of Polymer Matrix Composite Materials a) Specimen Preparation:
   • Typically flat rectangular specimens
   • Dimensions: 25-100 mm length, 25-100 mm width, thickness as manufactured
2. b) Test Procedure:
   • Dry specimens to constant weight
   • Immerse in water or expose to controlled humidity
   • Periodically weigh specimens until equilibrium is reached
3. c) Calculations:
   • Moisture Content: M = [(W - W0) / W0] × 100% Where: W = wet weight, W0 = dry weight
4. ASTM D570: Standard Test Method for Water Absorption of Plastics
   • Similar procedure, often used for neat resin specimens

Key Considerations

1. Diffusion Kinetics:
   • Plot moisture content vs. square root of time
   • Determine diffusion coefficient
2. Edge Effects:
   • Seal specimen edges to simulate one-dimensional diffusion in thick laminates
3. Temperature Effects:
   • Higher temperatures typically accelerate moisture absorption
4. Fiber/Matrix Interface:
   • Moisture can degrade the fiber/matrix interface, affecting mechanical properties
5. Reversibility:
   • Test for property recovery after drying

Temperature Effects

Temperature can significantly affect the mechanical properties of composites, particularly the matrix-dominated properties.

Test Methods

1. ASTM D3045: Standard Practice for Heat Aging of Plastics Without Load
2. ASTM D5229: Includes procedures for elevated temperature conditioning

Key Considerations

1. Glass Transition Temperature (Tg):
   • Determine Tg using Dynamic Mechanical Analysis (DMA) or Differential Scanning Calorimetry (DSC)
   • Significant property changes occur near Tg
2. Coefficient of Thermal Expansion (CTE):
   • Measure using dilatometry or strain gauges
   • Important for predicting thermal stresses in multi-material systems
3. High-Temperature Testing:
   • Conduct mechanical tests at elevated temperatures
   • Use environmental chambers with tensile/compression testing machines
4. Low-Temperature Testing:
   • Particularly important for aerospace applications
   • Use cryogenic chambers for extreme low-temperature testing
5. Thermal Cycling:
   • Simulate real-world temperature fluctuations
   • Monitor for microcracking or delamination

Combined Environmental and Mechanical Testing

Real-world applications often involve simultaneous exposure to environmental conditions and mechanical loads. Combined testing provides more realistic performance data.

Test Methods

1. ASTM D2584: Standard Test Method for Ignition Loss of Cured Reinforced Resins
   • Used in conjunction with mechanical testing to correlate property changes with matrix degradation
2. ASTM E1640: Standard Test Method for Assignment of the Glass Transition Temperature By Dynamic Mechanical Analysis
   • Can be performed under various environmental conditions

Key Considerations

1. Hygrothermal Aging:
   • Combine moisture and temperature exposure
   • Monitor changes in mechanical properties over time
2. Stressed Environmental Exposure:
   • Apply constant load during environmental conditioning
   • Assess creep behavior under environmental exposure
3. Fatigue in Harsh Environments:
   • Conduct fatigue tests in environmental chambers
   • Assess synergistic effects of cyclic loading and environmental factors
4. UV Exposure:
   • Use weathering chambers to simulate outdoor exposure
   • Particularly important for composites used in exterior applications
5. Chemical Resistance:
   • Expose specimens to relevant chemicals (e.g., fuels, hydraulic fluids)
   • Conduct mechanical tests after exposure

Test Matrix Example

RT: Room Temperature

Data Analysis and Interpretation

1. Property Retention:
   • Calculate percentage retention of key properties (strength, modulus) after environmental exposure
2. Time-Temperature-Stress Superposition:
   • Develop models to predict long-term behavior from short-term tests at elevated temperatures
3. Failure Mode Analysis:
   • Examine how environmental factors affect failure mechanisms
4. Statistical Analysis:
   • Use design of experiments (DOE) to efficiently explore multiple environmental factors
   • Develop predictive models for property changes under various conditions
5. Microstructural Analysis:
   • Use techniques like SEM or micro-CT to correlate environmental effects with microstructural changes

Understanding the environmental effects on mechanical properties is crucial for:

• Accurate life prediction of composite structures
• Material selection for specific environmental conditions
• Development of protective measures (e.g., coatings, sealants)
• Establishment of appropriate safety factors in design

By comprehensively testing composites under various environmental conditions, engineers can ensure the long-term reliability and performance of composite structures in challenging real-world applications.

Non-destructive testing (NDT) is crucial for evaluating the integrity of composite materials and structures without causing damage. These techniques are essential for quality control during manufacturing, in-service inspection, and damage assessment. This chapter focuses on key NDT methods for composites: ultrasonic testing, thermography, and X-ray computed tomography.

Non-Destructive Testing for Composites: Different Inspection Methods

Ultrasonic Testing

Ultrasonic testing is one of the most widely used NDT methods for composites due to its versatility and effectiveness in detecting internal defects.

Principles

• High-frequency sound waves (typically 1-50 MHz) are transmitted through the material
• Reflections from defects or interfaces are analyzed

Methods

1. Pulse-Echo
   • Single transducer acts as both transmitter and receiver
   • Defects detected by reflections returning to the transducer
2. Through-Transmission
   • Separate transmitter and receiver on opposite sides of the material
   • Defects detected by attenuation or time-of-flight changes
3. Phased Array
   • Multiple element transducer
   • Allows beam steering and focusing for improved detection and imaging

Applications

• Delamination detection
• Porosity assessment
• Thickness measurement
• Foreign object detection

Advantages

• High sensitivity to internal defects
• Can inspect thick laminates
• Capable of providing depth information

Limitations

• Requires coupling medium (typically water or gel)
• Difficulty with highly attenuative or heterogeneous materials
• Complex geometries can be challenging

Thermography

Thermography uses infrared cameras to detect temperature differences on the surface of a material, which can indicate subsurface defects.

Principles

• Defects affect heat flow in the material
• Temperature differences on the surface indicate subsurface anomalies

Methods

1. Passive Thermography
   • Observes natural temperature differences
   • Useful for in-service inspections (e.g., detecting hot spots)
2. Active Thermography
   • External heat source applied (e.g., flash lamps, heat guns)
   • Observes thermal response over time
3. Lock-in Thermography
   • Periodic heating applied
   • Analyzes phase and amplitude of thermal waves

Applications

• Impact damage assessment
• Delamination detection
• Water ingress detection
• Bond quality evaluation

Advantages

• Rapid, large area inspection
• Non-contact method
• Effective for near-surface defects

Limitations

• Limited depth penetration
• Sensitivity to surface conditions
• Requires careful interpretation of thermal images

X-ray Computed Tomography (CT)

X-ray CT provides detailed 3D images of the internal structure of composites, allowing for comprehensive defect analysis.

Principles

• X-rays pass through the material and are attenuated differently by various features
• Multiple 2D X-ray images are reconstructed into a 3D volume

Methods

1. Industrial CT
   • High-power X-ray sources for large or dense components
   • High resolution for detailed analysis
2. Micro-CT
   • Very high resolution for small samples
   • Useful for microstructural analysis
3. In-situ CT
   • Combines CT scanning with mechanical testing
   • Observes damage progression in real-time

Applications

• Fiber orientation analysis
• Void content measurement
• Impact damage assessment
• Quality control of complex parts

Advantages

• Provides detailed 3D information
• Can detect a wide range of defect types
• Non-destructive cross-sectioning

Limitations

• Limited sample size (especially for high-resolution scans)
• Long acquisition and reconstruction times
• Expensive equipment
• Radiation safety concerns

Other NDT Methods for Composites

1. Acoustic Emission
   • Detects stress waves released by growing defects
   • Useful for real-time monitoring during loading
2. Shearography
   • Uses laser interferometry to detect surface deformations
   • Effective for finding debonds and delaminations
3. Radiography
   • Uses X-rays or gamma rays for 2D imaging
   • Good for detecting density variations and foreign objects
4. Eddy Current Testing
   • Limited to conductive composites (e.g., carbon fiber)
   • Useful for surface and near-surface defects
5. Laser Ultrasound
   • Non-contact ultrasonic method
   • Useful for complex geometries and high-temperature applications

Selecting the Appropriate NDT Method

Factors to consider:

• Type of defects to be detected
• Material properties (e.g., fiber type, layup)
• Component geometry and size
• Required resolution and sensitivity
• Inspection speed and cost
• Accessibility (in-service vs. manufacturing)

Integration of NDT in Composite Manufacturing and Service

1. In-process Monitoring
   • Embedding sensors (e.g., fiber optics) for real-time cure monitoring
   • Online thermography for automated manufacturing processes
2. Quality Control
   • Automated ultrasonic scanning of large components
   • CT scanning of critical or complex parts
3. In-service Inspection
   • Portable NDT equipment for field inspections
   • Structural Health Monitoring (SHM) systems for continuous monitoring
4. Data Integration and Analysis
   • Machine learning for automated defect detection
   • Digital twins incorporating NDT data for lifecycle management

Challenges and Future Trends

1. Automation and Robotics
   • Automated scanning systems for complex geometries
   • Drone-based inspections for large structures
2. Data Fusion
   • Combining multiple NDT techniques for comprehensive assessment
   • Integration of NDT data with structural analysis and prognostics
3. Advanced Signal Processing
   • AI and deep learning for defect detection and classification
   • Improved resolution and sensitivity through advanced algorithms
4. Novel Techniques
   • Terahertz imaging for non-conductive composites
   • Quantum sensing for enhanced sensitivity

Non-destructive testing is a critical aspect of ensuring the quality and reliability of composite materials and structures. By employing a combination of NDT methods and staying abreast of technological advancements, engineers and inspectors can effectively detect and characterize defects, ensuring the safety and performance of composite components throughout their lifecycle.

Proper data analysis, interpretation, and quality control are crucial for extracting meaningful information from mechanical tests on composite materials. This chapter covers statistical analysis techniques, failure mode identification, property prediction and modeling, relevant standards, and databases for composite properties.

Statistical Analysis of Test Results

Statistical analysis is essential for understanding the variability inherent in composite materials and for making reliable predictions about their properties.

Basic Statistical Measures

1. Mean (Average)
   • Calculated as the sum of all values divided by the number of observations
   • Provides a central tendency of the data
2. Standard Deviation
   • Measures the spread of data around the mean
   • Calculated as the square root of the variance
3. Coefficient of Variation (CV)
   • Ratio of standard deviation to mean, expressed as a percentage
   • Useful for comparing variability between different properties or materials

Advanced Statistical Techniques

1. Analysis of Variance (ANOVA)
   • Used to determine if there are statistically significant differences between means of different groups
   • Helpful in assessing the impact of various factors (e.g., fiber orientation, manufacturing process) on properties
2. Weibull Analysis
   • Often used for strength data in composites
   • Provides information on the probability of failure at different stress levels
3. Design of Experiments (DOE)
   • Systematic method to determine the relationship between factors affecting a process and the output of that process
   • Useful for optimizing material composition or processing parameters

Dealing with Outliers

1. Identification
   • Use statistical tests (e.g., Grubbs' test, Dixon's Q test) to identify potential outliers
2. Treatment
   • Investigate the cause of outliers (e.g., manufacturing defect, testing error)
   • Decision to include or exclude should be based on engineering judgment and documented

Reporting Results

• Report both mean and standard deviation
• Include number of specimens tested
• Provide confidence intervals where appropriate
• Use appropriate significant figures based on measurement precision

Failure Modes Identification

Understanding failure modes is crucial for improving material design and predicting long-term performance.

Common Failure Modes in Composites

1. Fiber Breakage
   • Typically occurs under tensile loading
   • Characterized by a clean break perpendicular to the fiber direction
2. Matrix Cracking
   • Often the first form of damage to occur
   • Can lead to other failure modes if not arrested
3. Delamination
   • Separation of adjacent plies
   • Often result of interlaminar stresses or impact
4. Fiber Pull-out
   • Fibers are pulled out of the matrix
   • Indicates weak fiber-matrix interface
5. Buckling
   • Common in compression testing
   • Can be global (entire specimen) or local (individual fibers)

Identification Techniques

1. Visual Inspection
   • Initial assessment of failure mode
   • Can be enhanced with magnification
2. Microscopy
   • Optical microscopy for surface analysis
   • Scanning Electron Microscopy (SEM) for detailed examination of fracture surfaces
3. X-ray CT Scanning
   • Non-destructive 3D visualization of internal damage
4. Acoustic Emission
   • Real-time monitoring of damage progression during testing

Correlation with Test Data

• Link observed failure modes to features in stress-strain curves
• Use failure mode information to validate or refine analytical models

Property Prediction and Modeling

Predictive modeling is essential for design and optimization of composite structures.

Micromechanical Models

1. Rule of Mixtures
   • Simple model for predicting longitudinal properties
   • E1 = Ef * Vf + Em * (1-Vf), where E is modulus, V is volume fraction, f is fiber, m is matrix
2. Halpin-Tsai Equations
   • More accurate for transverse and shear properties
   • Accounts for fiber geometry and packing

Laminate Theory

1. Classical Laminate Theory (CLT)
   • Predicts behavior of multi-directional laminates
   • Based on individual ply properties and stacking sequence
2. First Ply Failure Theories
   • Maximum Stress, Maximum Strain, Tsai-Wu, Tsai-Hill criteria
   • Predict the onset of damage in a laminate

Finite Element Analysis (FEA)

1. Linear Analysis
   • Predict stress distributions and deformations
   • Useful for initial design stages
2. Progressive Failure Analysis
   • Simulates damage accumulation and propagation
   • Requires advanced material models and failure criteria

Machine Learning Approaches

1. Neural Networks
   • Can predict properties based on composition and processing parameters
   • Requires large datasets for training
2. Gaussian Process Regression
   • Provides probabilistic predictions
   • Useful for uncertainty quantification

Overview of ASTM, ISO, and Other Relevant Standards

Standards ensure consistency and comparability of test results across different laboratories and organizations.

ASTM Standards

1. ASTM D3039: Tensile Properties of Polymer Matrix Composite Materials
2. ASTM D3410: Compressive Properties of Polymer Matrix Composite Materials
3. ASTM D3518: In-Plane Shear Response of Polymer Matrix Composite Materials
4. ASTM D7264: Flexural Properties of Polymer Matrix Composite Materials
5. ASTM D2344: Short-Beam Strength of Polymer Matrix Composite Materials

ISO Standards

1. ISO 527: Determination of tensile properties
2. ISO 14126: Determination of compressive properties in the in-plane direction
3. ISO 14129: Determination of the in-plane shear stress/shear strain response
4. ISO 14125: Determination of flexural properties

Other Relevant Standards

1. SACMA (Suppliers of Advanced Composite Materials Association) Recommended Methods
2. EN (European Norm) Standards
3. JIS (Japanese Industrial Standards)

Key Aspects of Standards

• Specimen geometry and preparation
• Test setup and procedure
• Data analysis and reporting requirements
• Quality control measures

Databases on Mechanical Properties of Composites

Databases are valuable resources for material selection, design, and research.

Databases on Mechanical Properties of Composites

Types of Databases

1. Public Databases
   • NIST Composites Data (US)
   • CMH-17 (Composite Materials Handbook)
   • ESDU (Engineering Sciences Data Unit)
2. Proprietary Databases
   • Maintained by material suppliers or large OEMs
   • Often require licensing or partnership agreements
3. Research Databases
   • Compiled by universities or research institutions
   • May focus on specific types of composites or properties

Information Typically Included

• Material composition (fiber type, matrix, fiber volume fraction)
• Processing methods
• Mechanical properties (strength, modulus, Poisson's ratio)
• Physical properties (density, coefficient of thermal expansion)
• Environmental data (moisture absorption, temperature effects)
• Statistical information (mean, standard deviation, number of specimens)

Utilization of Databases

1. Material Selection
   • Compare properties of different materials for specific applications
2. Design Allowables
   • Establish design values based on statistical analysis of database entries
3. Model Validation
   • Use database values to validate predictive models
4. Identifying Research Gaps
   • Determine areas where more data is needed

Challenges and Considerations

• Ensuring data quality and traceability
• Standardizing data formats for interoperability
• Keeping databases up-to-date with new materials and test methods
• Balancing open access with proprietary information

Effective data analysis, interpretation, and quality control are essential for maximizing the value of mechanical testing of composites. By employing rigorous statistical techniques, understanding failure modes, utilizing predictive models, adhering to established standards, and leveraging comprehensive databases, engineers and researchers can make informed decisions in the design, manufacture, and application of composite materials.

As composite materials and manufacturing technologies evolve, so do the testing methods required to characterize these advanced materials. This chapter focuses on testing methodologies for sandwich structures, 3D woven composites, and continuous fiber 3D printed composites.

Testing of Sandwich Structures

Sandwich structures, consisting of two thin, stiff face sheets bonded to a lightweight core, are widely used in aerospace, marine, and wind energy applications due to their high stiffness-to-weight ratio.

Key Testing Methods

1. Flexural Testing
   • ASTM C393: Standard Test Method for Core Shear Properties of Sandwich Constructions by Beam Flexure
   • Determines facing bending strength, core shear strength, and panel flexural stiffness
2. Flatwise Tensile Testing
   • ASTM C297: Standard Test Method for Flatwise Tensile Strength of Sandwich Constructions
   • Evaluates the bond strength between face sheets and core
3. Edgewise Compression Testing
   • ASTM C364: Standard Test Method for Edgewise Compressive Strength of Sandwich Constructions
   • Assesses the compressive strength of the entire sandwich structure
4. Core Shear Testing
   • ASTM C273: Standard Test Method for Shear Properties of Sandwich Core Materials
   • Determines the shear strength and modulus of the core material
5. Impact Testing
   • ASTM D7766: Standard Practice for Damage Resistance Testing of Sandwich Constructions
   • Evaluates the damage resistance of sandwich structures to impact events

Special Considerations

• Size Effects: Specimen dimensions can significantly affect results due to the heterogeneous nature of sandwich structures
• Failure Modes: Multiple failure modes (e.g., face sheet failure, core shear, indentation) can occur, requiring careful interpretation
• Environmental Effects: Moisture and temperature can dramatically affect core properties, necessitating environmental testing

Testing of 3D Woven Composites

3D woven composites offer improved through-thickness properties and damage tolerance compared to traditional laminated composites.

Key Testing Methods

1. Tensile Testing
   • Modified ASTM D3039 procedures
   • Requires larger specimens due to the scale of 3D reinforcement
2. Compression Testing
   • Adapted ASTM D6641 (Combined Loading Compression)
   • Special attention to end effects due to complex fiber architecture
3. Interlaminar Shear Strength
   • Modified short beam shear test (ASTM D2344)
   • Interpretation complicated by 3D fiber architecture
4. Fracture Toughness
   • Mode I: Double Cantilever Beam (DCB) test (ASTM D5528)
   • Mode II: End-Notched Flexure (ENF) test
   • Requires careful consideration of crack propagation through 3D structure
5. Impact Testing
   • Low-velocity impact (ASTM D7136)
   • Compression After Impact (CAI) testing (ASTM D7137)

Special Considerations

• Fiber Architecture Characterization: Micro-CT scanning to verify 3D fiber arrangement
• Scale Effects: Representative volume elements may be larger than traditional composites
• Anisotropy: Properties can vary significantly in different directions due to complex fiber architecture
• Failure Mode Analysis: Complex failure modes require advanced imaging techniques for interpretation

Testing of Continuous Fiber 3D Printed Composites

Continuous fiber 3D printing is an emerging technology that allows for complex, tailored fiber orientations within a part.

Continuous Fiber 3D Printing

Key Testing Methods

1. Tensile Testing
   • Adapted ASTM D3039
   • Special consideration for print direction and fiber orientation
2. Flexural Testing
   • Modified ASTM D7264
   • Attention to layer interfaces and fiber continuity
3. Interlaminar Shear Strength
   • Short beam shear test (ASTM D2344)
   • Critical for assessing layer bonding quality
4. Compression Testing
   • Adapted ASTM D6641
   • Important for assessing fiber alignment and matrix properties
5. Fatigue Testing
   • Modified ASTM D3479
   • Crucial for understanding long-term performance of printed parts

Special Considerations

• Anisotropy: Properties can vary significantly based on print direction and fiber placement strategy
• Void Content: 3D printing process may introduce more voids than traditional manufacturing methods
• Fiber-Matrix Interface: Quality of impregnation during printing affects mechanical properties
• Residual Stresses: Thermal gradients during printing can introduce residual stresses
• Surface Finish: May affect test results, especially in fatigue testing

Emerging Test Methods

1. In-situ Testing
   • Real-time monitoring of mechanical properties during the printing process
   • Utilizes embedded sensors or non-destructive testing techniques
2. Multi-material Testing
   • Characterization of interfaces between different materials in multi-material prints
   • Requires development of new test standards
3. Functionally Graded Material Testing
   • Evaluating properties of parts with continuously varying composition or fiber orientation
   • Necessitates new approaches to data analysis and interpretation

Common Challenges in Advanced Composite Testing

1. Specimen Preparation
   • Complex geometries and reinforcement architectures can make specimen preparation challenging
   • Ensuring consistent and representative specimens is crucial
2. Data Interpretation
   • Advanced composites often exhibit complex failure modes
   • Requires sophisticated analysis techniques and often multi-scale modeling
3. Standardization
   • Many advanced composite forms lack established testing standards
   • Researchers often need to adapt existing standards or develop new methodologies
4. Property Variability
   • Advanced manufacturing techniques can introduce new sources of variability
   • Requires robust statistical analysis and potentially larger sample sizes
5. Scale Effects
   • Properties measured on small test specimens may not accurately represent full-scale component behavior
   • Necessitates careful consideration of scaling laws and validation through component-level testing

Future Trends in Advanced Composite Testing

1. Digital Twin Integration
   • Combining physical testing with real-time simulation for improved prediction and optimization
2. Machine Learning Applications
   • Using AI to predict properties, optimize test plans, and interpret complex data sets
3. High-Throughput Testing
   • Developing rapid testing methods to keep pace with accelerated material development cycles
4. Multi-scale Testing
   • Integrating nano, micro, and macro-scale testing for a comprehensive understanding of material behavior
5. In-situ and Online Monitorin
   • Developing techniques for real-time property measurement during manufacturing and in service

Advanced composite testing presents unique challenges but also opportunities for innovation. As materials and manufacturing technologies continue to evolve, testing methodologies must adapt to provide accurate, reliable data for design, quality control, and certification of these advanced materials.

As composite materials continue to evolve and find new applications, the methods for testing and analyzing these materials are also advancing. This chapter explores the future trends in composite testing, with a focus on automation and artificial intelligence, and examines case studies in key industrial sectors.

Automation in Testing

Automation is revolutionizing composite testing, offering increased efficiency, repeatability, and data quality.

Key Areas of Automation

1. Specimen Preparation
   • Automated cutting and machining systems
   • Robotic handling and positioning of specimens
2. Test Execution
   • Automated loading and unloading of test machines
   • Robotic systems for non-destructive testing (e.g., automated ultrasonic scanning)
3. Data Collection
   • High-speed data acquisition systems
   • Integration of multiple sensor types (load, strain, acoustic emission, etc.)
4. Environmental Control
   • Automated conditioning chambers
   • Precise control of temperature and humidity during testing

Emerging Technologies

1. Robotic Testing Cells
   • Fully automated test execution for multiple specimen types
   • Integration of various test methods in a single cell
2. In-situ Process Monitoring
   • Real-time monitoring of manufacturing processes
   • Automated quality control during production
3. Digital Thread Implementation
   • Tracking of specimens from manufacturing through testing and analysis
   • Ensures data integrity and traceability
4. Internet of Things (IoT) Integration
   • Connected test equipment for remote monitoring and control
   • Real-time data sharing and analysis

Benefits and Challenges

Benefits:

• Increased throughput and efficiency
• Improved repeatability and reduced human error
• Enhanced data quality and consistency

Challenges:

• High initial investment costs
• Need for specialized maintenance and calibration
• Potential loss of flexibility in test procedures

Machine Learning and AI in Data Analysis

Artificial Intelligence (AI) and Machine Learning (ML) are transforming the way composite test data is analyzed and interpreted.

The Shift in Composite Manufacturing from Traditional to Intelligent

Applications of AI/ML in Composite Testing

1. Automated Defect Detection
   • Machine learning algorithms for identifying defects in non-destructive testing images
   • Real-time quality assessment during manufacturing
2. Property Prediction
   • Neural networks for predicting mechanical properties based on composition and processing parameters
   • Reduced need for extensive physical testing
3. Failure Mode Classification
   • AI-powered image analysis for categorizing failure modes
   • Automated post-test analysis of fracture surfaces
4. Optimization of Test Parameters
   • Machine learning algorithms to optimize test conditions and sample sizes
   • Adaptive testing procedures based on real-time data analysis
5. Data Mining and Pattern Recognition
   • Extracting insights from large datasets of historical test results
   • Identifying correlations between manufacturing parameters and material properties

Advanced AI/ML Techniques

1. Deep Learning
   • Convolutional Neural Networks (CNNs) for image-based defect detection
   • Recurrent Neural Networks (RNNs) for time-series data analysis in fatigue testing
2. Generative Adversarial Networks (GANs)
   • Generating synthetic test data to augment limited physical test results
   • Creating digital twins of composite structures
3. Reinforcement Learning
   • Optimizing test procedures and manufacturing processes
   • Adaptive control of automated test systems
4. Natural Language Processing (NLP)
   • Automated analysis of test reports and research papers
   • Extracting knowledge from unstructured data sources

Challenges and Considerations

• Data Quality and Quantity: ML models require large, high-quality datasets for training
• Interpretability: Ensuring that AI/ML decisions can be explained and validated
• Integration with Existing Systems: Compatibility with current data management and analysis tools
• Ethical Considerations: Addressing bias in datasets and algorithms

Case Studies in Industrial Applications

Examining real-world applications of advanced composite testing in key industries provides insight into current practices and future directions.

Aerospace Industry

Case Study: Next-Generation Aircraft Wing

• Challenge: Develop and certify a composite wing structure with improved performance and reduced weight
• Testing Approach:
  • Multi-scale testing from coupon to full-scale components
  • Automated NDT for large-scale parts using robotic systems
  • AI-powered data analysis for predicting long-term fatigue performance
• Outcomes:
  • 20% weight reduction compared to previous generation
  • Improved damage tolerance and fatigue life
  • Reduced certification time through virtual testing and AI-assisted data interpretation

Automotive Industry

Case Study: Electric Vehicle Battery Enclosure

• Challenge: Design a lightweight, crash-resistant composite battery enclosure for electric vehicles
• Testing Approach:
  • High-throughput impact testing using automated test cells
  • Machine learning algorithms for optimizing fiber orientations
  • In-situ monitoring of manufacturing process to ensure consistent quality
• Outcomes:
  • 30% weight reduction compared to metallic alternatives
  • Improved crash energy absorption
  • Reduced development time through AI-assisted design optimization

Wind Energy Industry

Case Study: Next-Generation Wind Turbine Blades

• Challenge: Develop longer, more durable wind turbine blades for offshore applications
• Testing Approach:
  • Automated full-scale fatigue testing of blade sections
  • AI-powered structural health monitoring systems
  • Digital twin integration for predicting maintenance needs
• Outcomes:
  • 25% increase in blade length without proportional weight increase
  • Improved fatigue life and reduced maintenance requirements
  • Enhanced predictive maintenance capabilities through AI analysis of operational data

Future Outlook

The future of composite testing is likely to see:

1. Increased Integration of Physical and Virtual Testing
   • Hybrid testing approaches combining physical tests with real-time simulation
   • Reduced reliance on extensive physical testing through validated virtual models
2. Advanced Sensors and Non-Destructive Evaluation
   • Development of embedded sensors for real-time monitoring of composite structures
   • Novel NDT techniques for assessing complex 3D printed or woven composites
3. Sustainability Focus
   • Testing methodologies for recycled and bio-based composites
   • Life cycle assessment integration into material testing and selection processes
4. Multifunctional Composites
   • Testing protocols for composites with integrated sensing, self-healing, or energy harvesting capabilities
   • New standards for evaluating non-traditional composite properties
5. Artificial Intelligence Advancements
   • AI systems capable of autonomous test planning and execution
   • Continuous learning algorithms that improve with each test performed

The future of composite testing is characterized by increased automation, intelligent data analysis, and a holistic approach to material characterization and structural performance. As composites continue to push the boundaries of material capabilities, testing methodologies will evolve to meet these new challenges, enabling the development of safer, more efficient, and more sustainable composite structures across various industries.

References

1. Tong, L., Mouritz, A. P., & Bannister, M. K. (2002). 3D Fibre Reinforced Polymer Composites. Elsevier Science.
2. Bakis, C. E., et al. (2002). Fiber-Reinforced Polymer Composites for Construction—State-of-the-Art Review. Journal of Composites for Construction, 6(2), 73-87.
3. Giurgiutiu, V. (2015). Structural Health Monitoring of Aerospace Composites. Academic Press.
4. Ehrenstein, G. W. (2006). Polymeric Materials: Structure, Properties, Applications. Carl Hanser Verlag GmbH & Co. KG.
5. Rana, S., & Fangueiro, R. (2016). Advanced Composite Materials for Aerospace Engineering: Processing, Properties and Applications. Woodhead Publishing.
6. Njuguna, J. (2016). Lightweight Composite Structures in Transport: Design, Manufacturing, Analysis and Performance. Woodhead Publishing.
7. Zhou, H., et al. (2021). Machine learning for composite materials: A comprehensive review. Composites Part A: Applied Science and Manufacturing, 150, 106633.
8. Groves, R. M., et al. (2021). Optical Methods for Non-Destructive Testing of Fiber Composites: A Review. Sensors, 21(14), 4824.
9. Luo, Y., et al. (2020). Manufacturing and 3D, 4D and 5D Printing of Multifunctional Composites: A Review. Composites Part B: Engineering, 187, 107741.
10. Tancogne-Dejean, T., et al. (2022). Additive manufacturing of advanced and functional composites: A review of current understandings and challenges. Advanced Materials, 34(12), 2110143.

Continuing Your Journey in Advanced Composite Materials

As we conclude this comprehensive course on "Mechanical Testing of Advanced Fibre Composites," we encourage you to continue your journey in this exciting and rapidly evolving field:

1. Stay Informed: Follow the latest developments in composite materials and testing methods by regularly checking industry journals and attending conferences.
2. Engage in Continuous Learning: Consider pursuing advanced courses or certifications in specific areas of composite testing that align with your interests or career goals.
3. Join Professional Networks: Become a member of professional organizations such as the Society for the Advancement of Material and Process Engineering (SAMPE) or the American Composites Manufacturers Association (ACMA) to network with peers and access valuable resources.
4. Participate in Research: If you're in academia or have the opportunity, engage in research projects to contribute to the advancement of composite testing methodologies.
5. Apply Your Knowledge: Look for opportunities to apply the concepts learned in this course to real-world problems in your workplace or academic projects.
6. Share Your Insights: Consider presenting at conferences or writing articles about your experiences and insights in composite testing to contribute to the community's knowledge base.
7. Explore Automation and AI: Investigate how you can integrate automation and AI techniques into your current testing processes to improve efficiency and data analysis.
8. Sustainability Focus: Consider how you can contribute to the development of more sustainable composite materials and testing methods in your work.
9. Interdisciplinary Collaboration: Seek opportunities to collaborate with professionals from other disciplines to bring new perspectives to composite testing challenges.
10. Feedback and Improvement: We value your feedback on this course. Please share your thoughts and suggestions for improvement to help us enhance the learning experience for future students.

Remember, the field of composite materials and testing is dynamic and continually evolving. Your ongoing engagement and contribution will not only advance your career but also help shape the future of this critical technology sector.

For more information and resources, visit our website: AddComposites - Advancing Composite Manufacturing

Thank you for participating in this course, and we wish you success in your future endeavors in the world of advanced composite materials!

Overview of Composite Materials and Their Applications

Composite materials, often simply called composites, are engineered materials made from two or more constituent materials with significantly different physical or chemical properties. When combined, they produce a material with characteristics different from the individual components. The individual components remain separate and distinct within the finished structure, differentiating composites from mixtures and solid solutions.

Introduction to Composite Materials

Composites typically consist of:

1. Matrix: The primary phase, which is continuous and surrounds the other phase.
2. Reinforcement: The secondary phase, which is embedded in the matrix.

Common types of composites include:

• Fiber-reinforced polymers (FRP)
• Metal matrix composites (MMC)
• Ceramic matrix composites (CMC)

Composites are used in a wide range of applications due to their unique properties:

Where Are Composites Used?

1. Aerospace: Aircraft structures, spacecraft components
2. Automotive: Body panels, chassis components
3. Marine: Boat hulls, offshore platforms
4. Construction: Bridges, buildings, reinforcement bars
5. Sports Equipment: Tennis rackets, bicycle frames
6. Wind Energy: Turbine blades

Importance of Mechanical Testing in Composites

Mechanical testing of composites is crucial for several reasons:

1. Material Characterization: To determine the mechanical properties of the composite, such as strength, stiffness, and toughness.
2. Quality Control: To ensure that manufactured composites meet design specifications and industry standards.
3. Design Validation: To verify that composite structures can withstand the intended loads and environmental conditions.
4. Failure Analysis: To understand the failure modes and mechanisms of composites under various loading conditions.
5. Material Development: To aid in the development of new composite materials and manufacturing processes.
6. Certification: To meet regulatory requirements for safety-critical applications, such as in aerospace.

Mechanical Testing of Composites

Fundamentals of Composite Behavior

Stress-Strain Relationships

Composite materials exhibit unique stress-strain relationships due to their heterogeneous nature:

1. Linear Elasticity: Many composites show linear elastic behavior up to a certain stress level.
2. Anisotropy: The mechanical properties vary depending on the direction of applied load.
3. Fiber-Matrix Interaction: The stress-strain behavior is influenced by the load transfer between the fiber and matrix.
4. Progressive Failure: Composites often fail progressively, with multiple damage mechanisms occurring before final failure.

A typical stress-strain curve for a unidirectional fiber-reinforced composite loaded in the fiber direction shows:

• Initial linear elastic region
• Possible non-linear region due to matrix plasticity or fiber-matrix debonding
• Sudden drop in stress at fiber failure

Anisotropy

Anisotropy is a fundamental characteristic of many composite materials, especially fiber-reinforced composites:

1. Directional Properties: Mechanical properties such as strength and stiffness vary significantly with direction.
2. Orthotropic Behavior: Many composites exhibit orthotropic behavior, with different properties in three mutually perpendicular directions.
3. Laminate Theory: The anisotropic nature of composites necessitates the use of laminate theory for structural analysis and design.
4. Testing Implications: Anisotropy requires testing in multiple directions to fully characterize the material properties.

Understanding the anisotropic behavior of composites is crucial for:

• Proper material selection
• Accurate structural design
• Optimizing fiber orientations for specific applications

The complex behavior of composite materials, including their anisotropic nature and unique stress-strain relationships, underscores the importance of thorough and appropriate mechanical testing. These tests provide the necessary data to understand, predict, and optimize the performance of composite structures in various applications.

Tensile testing is one of the most fundamental and widely used mechanical tests for composite materials. It provides critical information about the material's strength, stiffness, and behavior under uniaxial loading conditions. The ASTM D3039 standard is the most commonly used method for conducting tensile tests on polymer matrix composite materials.

Mechanical Testing of Composites

Test Setup and Specimen Preparation

Specimen Geometry

The ASTM D3039 standard specifies several key aspects of specimen geometry:

1. Shape: Typically flat strips or rectangular cross-sections
2. Dimensions: Vary based on the type of reinforcement and its orientation
   • Length: Usually 250 mm (10 in) for unidirectional and fabric composites
   • Width: Typically 25 mm (1 in) for 0° unidirectional, 25 mm (1 in) for 90° unidirectional, and 25 mm (1 in) for fabric composites
   • Thickness: Generally 2-3 mm (0.08-0.12 in), but may vary

Specimen Preparation

1. Cutting: Specimens should be cut carefully to avoid delamination or other damage. Water-jet cutting or precision sawing with diamond-coated blades is often used.
2. Tab Bonding: For some specimen types, especially those with 0° fiber orientation, end tabs are bonded to prevent grip-induced failures. Tabs are typically made of glass fiber/epoxy composite or aluminum.
3. Surface Preparation: The specimen surface should be prepared for strain gauge application if strain is to be measured directly on the specimen.

Test Setup

1. Testing Machine: A universal testing machine capable of maintaining a constant crosshead speed and accurately measuring load.
2. Grips: Hydraulic or mechanical grips that can securely hold the specimen without inducing damage or slippage.
3. Strain Measurement: Either strain gauges bonded directly to the specimen or extensometers attached to the gauge section.
4. Data Acquisition System: To record load, displacement, and strain data throughout the test.

Longitudinal and Transverse Testing

Composite materials, especially those with unidirectional reinforcement, exhibit highly anisotropic behavior. Therefore, testing in both longitudinal (0°, parallel to fibers) and transverse (90°, perpendicular to fibers) directions is crucial for a complete characterization.

Longitudinal Testing (0°)

• Provides information on fiber-dominated properties
• Typically results in higher strength and stiffness values
• Failure often occurs due to fiber breakage

Transverse Testing (90°)

• Provides information on matrix-dominated properties
• Generally results in lower strength and stiffness values
• Failure often occurs due to matrix cracking or fiber-matrix debonding

The stark difference in properties between these two orientations highlights the anisotropic nature of composite materials and the importance of testing in multiple directions.

Data Analysis and Interpretation

Key Parameters

1. Ultimate Tensile Strength (UTS): The maximum stress the material can withstand before failure.
2. Young's Modulus (E): The slope of the stress-strain curve in the linear elastic region, indicating the material's stiffness.
3. Poisson's Ratio (ν): The negative ratio of transverse strain to axial strain in the linear elastic region.
4. Strain at Failure (εf): The maximum strain the material experiences before failure.

Stress-Strain Curve Analysis

1. Linear Region: Identify the linear portion of the stress-strain curve to calculate Young's modulus.
2. Yield Point: For some composites, especially those with ductile matrices, a yield point may be observed.
3. Failure Point: The point of ultimate tensile strength and corresponding strain at failure.

Statistical Analysis

Given the inherent variability in composite materials, statistical analysis of test results is crucial:

1. Mean Values: Calculate average values for strength, modulus, and other parameters.
2. Standard Deviation: Determine the spread of the data.
3. Coefficient of Variation: Assess the relative variability of the data.

Failure Mode Analysis

Examining the failure mode of tensile specimens provides valuable insights:

1. Fiber-Dominated Failure: Typically seen in 0° specimens, characterized by fiber breakage.
2. Matrix-Dominated Failure: Common in 90° specimens, often showing matrix cracking or fiber-matrix debonding.
3. Delamination: Separation of composite layers, which may indicate manufacturing defects or inappropriate test setup.

Understanding and correctly interpreting tensile test data is crucial for:

• Material selection and qualification
• Structural design and analysis
• Quality control in manufacturing processes

Tensile testing, while seemingly straightforward, requires careful attention to specimen preparation, test execution, and data analysis to obtain reliable and meaningful results for composite materials.

Compression testing is a critical aspect of characterizing composite materials, particularly for applications where compressive loads are significant, such as in aerospace structures. The ASTM D3410 standard provides a method for determining the in-plane compressive properties of polymer matrix composite materials reinforced by high-modulus fibers.

Mechanical Testing of Composites

Test Methods and Fixtures

Compression testing of composites is more challenging than tensile testing due to the difficulty in introducing a purely compressive load without inducing buckling or other undesirable failure modes. Several test methods and fixtures have been developed to address these challenges:

1. ASTM D3410 (Procedure B) - IITRI Test Method

The Illinois Institute of Technology Research Institute (IITRI) fixture is the most commonly used method specified in ASTM D3410:

• Fixture Design: Consists of two wedge-shaped grip blocks that apply compressive load to the specimen through shear at the gripped ends.
• Load Introduction: Compressive force is applied through the tapered wedge grips, which distribute the load evenly across the specimen width.
• Alignment: The fixture design helps maintain proper alignment, reducing the risk of premature failure due to buckling.

2. ASTM D695 - Modified for Composites

While primarily designed for unreinforced plastics, this method can be adapted for composite materials:

• Fixture: Uses a simple support fixture to prevent buckling of thin specimens.
• Specimen: Typically requires thicker specimens or end tabs to prevent end-crushing failures.

3. ASTM D6641 - Combined Loading Compression (CLC) Test

This method combines end loading and shear loading:

• Fixture: Uses a compact fixture that applies both end loading and shear loading to the specimen.
• Advantages: Reduces the risk of end-crushing failures and can accommodate shorter specimens compared to ASTM D3410.

Specimen Geometry Considerations

Proper specimen geometry is crucial for obtaining valid compression test results:

1. Length-to-Thickness Ratio

• Typical Ratio: The unsupported length should be 4-6 times the specimen thickness to prevent global buckling.
• ASTM D3410 Recommendation: Gauge length of 12-25 mm (0.5-1.0 in) for most polymer composites.

2. Width

• Standard Width: Typically 6.4-12.7 mm (0.25-0.50 in) for unidirectional composites.
• Consideration: Width should be sufficient to be representative of the material but not so wide as to induce column buckling.

3. Thickness

• Typical Range: 1-6 mm (0.040-0.24 in), depending on the material and test fixture.
• Consideration: Thicker specimens reduce the risk of buckling but may not be representative of thin laminates used in actual structures.

4. End Tabs

• Purpose: Distribute gripping forces and prevent end-crushing failures.
• Material: Often made of glass fiber/epoxy composite or aluminum.
• Geometry: Typically beveled at 30-60 degrees to provide a smooth load transition.

Challenges in Compression Testing of Composites

Compression testing of composites presents several unique challenges:

1. Buckling Prevention

• Issue: Composite specimens, especially thin laminates, are prone to buckling under compressive loads.
• Solution: Careful fixture design, proper specimen geometry, and potentially anti-buckling guides.

2. End Effects

• Issue: Stress concentrations at the loaded ends can cause premature failure.
• Solution: Use of properly designed end tabs and careful specimen preparation.

3. Alignment

• Issue: Misalignment can introduce bending moments, leading to premature or invalid failures.
• Solution: Precise machining of specimens and fixtures, and careful setup of the test apparatus.

4. Strain Measurement

• Issue: Limited space for strain gauges or extensometers in the short gauge length.
• Solution: Use of small strain gauges or non-contact strain measurement techniques like digital image correlation (DIC).

5. Failure Mode Identification

• Issue: Distinguishing between valid compressive failures and invalid modes like end-crushing or buckling.
• Solution: Careful examination of failed specimens and potentially the use of high-speed imaging during testing.

6. Environmental Effects

• Issue: Composites can be sensitive to temperature and moisture, which can significantly affect compressive properties.
• Solution: Controlled testing environment and proper conditioning of specimens before testing.

7. Material Anisotropy

• Issue: The highly directional properties of composites necessitate testing in multiple orientations.
• Solution: Conduct tests on specimens with different fiber orientations (0°, 90°, and possibly off-axis).

Compression testing of composites, while challenging, provides critical data for material characterization and structural design. Understanding these challenges and implementing appropriate solutions is key to obtaining reliable and meaningful compression test results for composite materials.

Flexural and shear testing are crucial for characterizing the mechanical behavior of composite materials under bending and shear loads. These tests provide valuable insights into the material's performance in applications where bending and shear stresses are significant.

Mechanical Testing of Composites

Flexural Testing (ASTM D7264): Three-point and Four-point Bending

Flexural testing determines a material's behavior under bending loads. The ASTM D7264 standard describes procedures for both three-point and four-point bending tests.

Three-point Bending

1. Test Setup:
   • The specimen is supported at two points and loaded at the midpoint.
   • Load is applied perpendicular to the specimen's long axis.
2. Key Parameters:
   • Support span
   • Loading nose diameter
   • Crosshead speed
3. Calculations:
   • Flexural Strength: σf = 3PL / (2bh²)
   • Flexural Modulus: Ef = L³m / (4bh³) Where: P = load, L = support span, b = width, h = thickness, m = slope of the load-deflection curve
4. Advantages:
   • Simple setup
   • Maximum stress at midpoint
5. Limitations:
   • High shear stresses near supports
   • Potential for localized damage at loading point

Four-point Bending

1. Test Setup:
   • The specimen is supported at two outer points and loaded at two inner points.
   • Load is distributed over a larger area of the specimen.
2. Key Parameters:
   • Support span
   • Loading span (distance between inner loading points)
   • Loading nose diameter
   • Crosshead speed
3. Calculations:
   • Flexural Strength: σf = 3PL / (4bh²)
   • Flexural Modulus: Ef = 0.21L³m / (bh³) Where: P = load, L = support span, b = width, h = thickness, m = slope of the load-deflection curve
4. Advantages:
   • Uniform bending moment between loading points
   • Reduced risk of shear failure
5. Limitations:
   • More complex setup
   • Potential for localized damage at loading points

Specimen Considerations:

• Typical dimensions: 100-200 mm length, 13-25 mm width
• Span-to-thickness ratio: typically 16:1 for three-point and 32:1 for four-point bending
• Surface quality is crucial to prevent premature failure

In-plane Shear Testing (ASTM D3518)

The ASTM D3518 test method determines the in-plane shear properties of polymer matrix composite materials reinforced by high-modulus fibers.

1. Test Principle:
   • Uses a tensile test on a ±45° laminate to induce in-plane shear.
   • The test essentially "stretches" the ±45° fibers, creating a shear state in the material.
2. Specimen Preparation:
   • Balanced and symmetric ±45° laminate
   • Typical dimensions similar to tensile test specimens (ASTM D3039)
3. Test Procedure:
   • Conducted as a standard tensile test
   • Strain measured in both longitudinal and transverse directions
4. Calculations:
   • Shear Stress: τ12 = P / (2A)
   • Shear Strain: γ12 = εx - εy
   • Shear Modulus: G12 = Δτ12 / Δγ12 Where: P = applied load, A = cross-sectional area, εx = longitudinal strain, εy = transverse strain
5. Advantages:
   • Uses standard tensile testing equipment
   • Provides complete shear stress-strain curve
6. Limitations:
   • Limited to in-plane shear properties
   • May not be representative for all loading conditions

Interlaminar Shear Strength Testing (ASTM D2344)

The ASTM D2344 standard, also known as the Short Beam Strength (SBS) test, is used to determine the interlaminar shear strength of composite materials.

1. Test Principle:
   • Short beam subjected to three-point bending
   • The short span induces interlaminar shear failure
2. Specimen Preparation:
   • Typically unidirectional laminates
   • Length = 6 × thickness
   • Width = 2 × thickness
3. Test Setup:
   • Three-point bending configuration
   • Span length = 4 × thickness
4. Calculations:
   • Interlaminar Shear Strength: ILSS = 0.75 × P / (b × h) Where: P = maximum load, b = specimen width, h = specimen thickness
5. Advantages:
   • Simple and quick test
   • Requires small specimens
6. Limitations:
   • May not produce pure interlaminar shear failure
   • Results can be affected by stress concentrations at loading points
7. Failure Modes:
   • Interlaminar shear (desired mode)
   • Inelastic deformation
   • Flexure
   • Inelastic deformation and interlaminar shear

Interpreting the failure mode is crucial for validating the test results.

Flexural and shear testing provide essential data for understanding the behavior of composite materials under complex loading conditions. These tests, when combined with tensile and compression testing, offer a comprehensive characterization of a composite material's mechanical properties, crucial for design and analysis in various applications.

Impact and fatigue testing are crucial for understanding the behavior of composite materials under sudden loads and cyclic loading conditions. These tests provide valuable insights into a material's toughness, energy absorption capabilities, and long-term performance under repeated loading.

Mechanical Testing of Composites

Impact Testing: Charpy and Izod Tests

Impact tests measure a material's ability to absorb energy during fracture. For composite materials, these tests are particularly important in assessing damage tolerance and energy absorption capabilities.

Charpy Impact Test

1. Test Principle:
   • A notched specimen is supported as a horizontal beam
   • A pendulum strikes the specimen on the side opposite the notch
   • Energy absorbed during fracture is measured
2. Specimen Preparation:
   • Typically 55 mm x 10 mm x 10 mm for composites
   • V-notch or U-notch at the center of the specimen
3. Test Procedure:
   • Specimen is placed in the test fixture with the notch facing away from the striking edge
   • Pendulum is released from a known height
   • Energy absorbed is calculated from the difference in pendulum height before and after impact
4. Calculations:
   • Impact Energy = mgh₁ - mgh₂ Where: m = mass of pendulum, g = acceleration due to gravity, h₁ = initial height, h₂ = final height
5. Advantages:
   • Simple and widely used test
   • Good for comparing different materials
6. Limitations:
   • Results can be affected by specimen size and notch geometry
   • May not accurately represent impact behavior in real-world applications

Izod Impact Test

1. Test Principle:
   • Similar to Charpy test, but the specimen is clamped vertically
   • Pendulum strikes the specimen on the same side as the notch
2. Specimen Preparation:
   • Typically 64 mm x 12.7 mm x 3.2 mm for composites
   • V-notch at one end of the specimen
3. Test Procedure:
   • Specimen is clamped vertically with the notch facing the striking edge
   • Pendulum is released from a known height
   • Energy absorbed is calculated as in the Charpy test
4. Advantages:
   • Good for testing thin sheet materials
   • Can be used to test anisotropic materials in different orientations
5. Limitations:
   • Clamping can introduce stress concentrations
   • Results can be affected by fiber orientation in composites

Considerations for Composite Materials:

• Fiber orientation relative to impact direction significantly affects results
• Failure modes in composites (fiber breakage, matrix cracking, delamination) can be complex
• Multiple specimens with different orientations may be needed for a complete characterization

Defects and Damage in Composite Materials and Structures

Fatigue Testing (ASTM D3479): Tension-Tension and Compression-Compression

Fatigue testing assesses a material's performance under cyclic loading conditions. For composites, fatigue behavior is crucial due to their use in long-term, cyclic loading applications like wind turbine blades or aircraft structures.

General Principles of Fatigue Testing

1. Test Objective:
   • Determine the number of cycles to failure at different stress levels
   • Generate S-N curves (stress vs. number of cycles)
2. Key Parameters:
   • Maximum stress
   • Stress ratio (R = minimum stress / maximum stress)
   • Frequency of loading
   • Environmental conditions (temperature, humidity)
3. Failure Criteria:
   • Complete fracture
   • Stiffness reduction (e.g., 10% decrease in modulus)
   • Specific amount of damage or delamination

Tension-Tension Fatigue (ASTM D3479)

1. Test Setup:
   • Similar to static tensile test setup
   • Specimens typically similar to those used in tensile testing (ASTM D3039)
2. Test Procedure:
   • Apply sinusoidal tensile load varying between a minimum and maximum value
   • Typical stress ratio (R) ranges from 0.1 to 0.8
   • Frequency typically 1-10 Hz, depending on material and test objective
3. Data Analysis:
   • Plot S-N curve (stress amplitude vs. number of cycles to failure)
   • Determine fatigue limit or endurance limit, if applicable
4. Considerations for Composites:
   • Damage accumulation can be complex (matrix cracking, fiber breakage, delamination)
   • Fatigue behavior can be highly dependent on fiber orientation and layup sequence

Compression-Compression Fatigue

1. Test Setup:
   • Similar to static compression test setup
   • May require anti-buckling guides for thin specimens
2. Test Procedure:
   • Apply sinusoidal compressive load
   • Typical stress ratio (R) > 1 (e.g., R = 10)
   • Lower frequencies often used compared to tension-tension (to avoid heating)
3. Challenges:
   • Avoiding buckling, especially at high cycle counts
   • Dealing with end-crushing failures
4. Considerations for Composites:
   • Compressive fatigue often more critical than tensile fatigue for some composites
   • Matrix properties play a significant role in compressive fatigue behavior

General Considerations for Fatigue Testing of Composites

1. Environmental Effects:
   • Temperature and humidity can significantly affect fatigue life
   • Consider environmental chambers for testing in relevant conditions
2. Frequency Effects:
   • Higher frequencies can lead to internal heating, especially in thermoplastic matrix composites
   • Balance between test duration and avoiding thermal effects
3. Damage Monitoring:
   • Non-destructive techniques (e.g., acoustic emission, thermography) can be used to monitor damage progression
   • Stiffness degradation is often monitored throughout the test
4. Variability:
   • Fatigue data for composites often shows high scatter
   • Statistical analysis and multiple tests are crucial for reliable characterization
5. Failure Mode Analysis:
   • Post-test examination of failed specimens is crucial for understanding failure mechanisms
   • Different failure modes may dominate at different stress levels or cycle counts

Impact and fatigue testing provide critical information about a composite material's performance under dynamic and cyclic loading conditions. These tests are essential for predicting the long-term behavior and reliability of composite structures in various applications, from aerospace to wind energy.

Environmental factors can significantly influence the mechanical properties of composite materials. Understanding these effects is crucial for predicting long-term performance and ensuring reliability in various applications. This chapter focuses on moisture absorption, temperature effects, and combined environmental and mechanical testing.

Mechanical Testing of Composites

Moisture Absorption Testing

Moisture absorption can significantly affect the mechanical properties of polymer matrix composites, particularly those with hygroscopic matrices like epoxy.

Test Methods

1. ASTM D5229: Standard Test Method for Moisture Absorption Properties and Equilibrium Conditioning of Polymer Matrix Composite Materials a) Specimen Preparation:
   • Typically flat rectangular specimens
   • Dimensions: 25-100 mm length, 25-100 mm width, thickness as manufactured
2. b) Test Procedure:
   • Dry specimens to constant weight
   • Immerse in water or expose to controlled humidity
   • Periodically weigh specimens until equilibrium is reached
3. c) Calculations:
   • Moisture Content: M = [(W - W0) / W0] × 100% Where: W = wet weight, W0 = dry weight
4. ASTM D570: Standard Test Method for Water Absorption of Plastics
   • Similar procedure, often used for neat resin specimens

Key Considerations

1. Diffusion Kinetics:
   • Plot moisture content vs. square root of time
   • Determine diffusion coefficient
2. Edge Effects:
   • Seal specimen edges to simulate one-dimensional diffusion in thick laminates
3. Temperature Effects:
   • Higher temperatures typically accelerate moisture absorption
4. Fiber/Matrix Interface:
   • Moisture can degrade the fiber/matrix interface, affecting mechanical properties
5. Reversibility:
   • Test for property recovery after drying

Temperature Effects

Temperature can significantly affect the mechanical properties of composites, particularly the matrix-dominated properties.

Test Methods

1. ASTM D3045: Standard Practice for Heat Aging of Plastics Without Load
2. ASTM D5229: Includes procedures for elevated temperature conditioning

Key Considerations

1. Glass Transition Temperature (Tg):
   • Determine Tg using Dynamic Mechanical Analysis (DMA) or Differential Scanning Calorimetry (DSC)
   • Significant property changes occur near Tg
2. Coefficient of Thermal Expansion (CTE):
   • Measure using dilatometry or strain gauges
   • Important for predicting thermal stresses in multi-material systems
3. High-Temperature Testing:
   • Conduct mechanical tests at elevated temperatures
   • Use environmental chambers with tensile/compression testing machines
4. Low-Temperature Testing:
   • Particularly important for aerospace applications
   • Use cryogenic chambers for extreme low-temperature testing
5. Thermal Cycling:
   • Simulate real-world temperature fluctuations
   • Monitor for microcracking or delamination

Combined Environmental and Mechanical Testing

Real-world applications often involve simultaneous exposure to environmental conditions and mechanical loads. Combined testing provides more realistic performance data.

Test Methods

1. ASTM D2584: Standard Test Method for Ignition Loss of Cured Reinforced Resins
   • Used in conjunction with mechanical testing to correlate property changes with matrix degradation
2. ASTM E1640: Standard Test Method for Assignment of the Glass Transition Temperature By Dynamic Mechanical Analysis
   • Can be performed under various environmental conditions

Key Considerations

1. Hygrothermal Aging:
   • Combine moisture and temperature exposure
   • Monitor changes in mechanical properties over time
2. Stressed Environmental Exposure:
   • Apply constant load during environmental conditioning
   • Assess creep behavior under environmental exposure
3. Fatigue in Harsh Environments:
   • Conduct fatigue tests in environmental chambers
   • Assess synergistic effects of cyclic loading and environmental factors
4. UV Exposure:
   • Use weathering chambers to simulate outdoor exposure
   • Particularly important for composites used in exterior applications
5. Chemical Resistance:
   • Expose specimens to relevant chemicals (e.g., fuels, hydraulic fluids)
   • Conduct mechanical tests after exposure

Test Matrix Example

RT: Room Temperature

Data Analysis and Interpretation

1. Property Retention:
   • Calculate percentage retention of key properties (strength, modulus) after environmental exposure
2. Time-Temperature-Stress Superposition:
   • Develop models to predict long-term behavior from short-term tests at elevated temperatures
3. Failure Mode Analysis:
   • Examine how environmental factors affect failure mechanisms
4. Statistical Analysis:
   • Use design of experiments (DOE) to efficiently explore multiple environmental factors
   • Develop predictive models for property changes under various conditions
5. Microstructural Analysis:
   • Use techniques like SEM or micro-CT to correlate environmental effects with microstructural changes

Understanding the environmental effects on mechanical properties is crucial for:

• Accurate life prediction of composite structures
• Material selection for specific environmental conditions
• Development of protective measures (e.g., coatings, sealants)
• Establishment of appropriate safety factors in design

By comprehensively testing composites under various environmental conditions, engineers can ensure the long-term reliability and performance of composite structures in challenging real-world applications.

Non-destructive testing (NDT) is crucial for evaluating the integrity of composite materials and structures without causing damage. These techniques are essential for quality control during manufacturing, in-service inspection, and damage assessment. This chapter focuses on key NDT methods for composites: ultrasonic testing, thermography, and X-ray computed tomography.

Non-Destructive Testing for Composites: Different Inspection Methods

Ultrasonic Testing

Ultrasonic testing is one of the most widely used NDT methods for composites due to its versatility and effectiveness in detecting internal defects.

Principles

• High-frequency sound waves (typically 1-50 MHz) are transmitted through the material
• Reflections from defects or interfaces are analyzed

Methods

1. Pulse-Echo
   • Single transducer acts as both transmitter and receiver
   • Defects detected by reflections returning to the transducer
2. Through-Transmission
   • Separate transmitter and receiver on opposite sides of the material
   • Defects detected by attenuation or time-of-flight changes
3. Phased Array
   • Multiple element transducer
   • Allows beam steering and focusing for improved detection and imaging

Applications

• Delamination detection
• Porosity assessment
• Thickness measurement
• Foreign object detection

Advantages

• High sensitivity to internal defects
• Can inspect thick laminates
• Capable of providing depth information

Limitations

• Requires coupling medium (typically water or gel)
• Difficulty with highly attenuative or heterogeneous materials
• Complex geometries can be challenging

Thermography

Thermography uses infrared cameras to detect temperature differences on the surface of a material, which can indicate subsurface defects.

Principles

• Defects affect heat flow in the material
• Temperature differences on the surface indicate subsurface anomalies

Methods

1. Passive Thermography
   • Observes natural temperature differences
   • Useful for in-service inspections (e.g., detecting hot spots)
2. Active Thermography
   • External heat source applied (e.g., flash lamps, heat guns)
   • Observes thermal response over time
3. Lock-in Thermography
   • Periodic heating applied
   • Analyzes phase and amplitude of thermal waves

Applications

• Impact damage assessment
• Delamination detection
• Water ingress detection
• Bond quality evaluation

Advantages

• Rapid, large area inspection
• Non-contact method
• Effective for near-surface defects

Limitations

• Limited depth penetration
• Sensitivity to surface conditions
• Requires careful interpretation of thermal images

X-ray Computed Tomography (CT)

X-ray CT provides detailed 3D images of the internal structure of composites, allowing for comprehensive defect analysis.

Principles

• X-rays pass through the material and are attenuated differently by various features
• Multiple 2D X-ray images are reconstructed into a 3D volume

Methods

1. Industrial CT
   • High-power X-ray sources for large or dense components
   • High resolution for detailed analysis
2. Micro-CT
   • Very high resolution for small samples
   • Useful for microstructural analysis
3. In-situ CT
   • Combines CT scanning with mechanical testing
   • Observes damage progression in real-time

Applications

• Fiber orientation analysis
• Void content measurement
• Impact damage assessment
• Quality control of complex parts

Advantages

• Provides detailed 3D information
• Can detect a wide range of defect types
• Non-destructive cross-sectioning

Limitations

• Limited sample size (especially for high-resolution scans)
• Long acquisition and reconstruction times
• Expensive equipment
• Radiation safety concerns

Other NDT Methods for Composites

1. Acoustic Emission
   • Detects stress waves released by growing defects
   • Useful for real-time monitoring during loading
2. Shearography
   • Uses laser interferometry to detect surface deformations
   • Effective for finding debonds and delaminations
3. Radiography
   • Uses X-rays or gamma rays for 2D imaging
   • Good for detecting density variations and foreign objects
4. Eddy Current Testing
   • Limited to conductive composites (e.g., carbon fiber)
   • Useful for surface and near-surface defects
5. Laser Ultrasound
   • Non-contact ultrasonic method
   • Useful for complex geometries and high-temperature applications

Selecting the Appropriate NDT Method

Factors to consider:

• Type of defects to be detected
• Material properties (e.g., fiber type, layup)
• Component geometry and size
• Required resolution and sensitivity
• Inspection speed and cost
• Accessibility (in-service vs. manufacturing)

Integration of NDT in Composite Manufacturing and Service

1. In-process Monitoring
   • Embedding sensors (e.g., fiber optics) for real-time cure monitoring
   • Online thermography for automated manufacturing processes
2. Quality Control
   • Automated ultrasonic scanning of large components
   • CT scanning of critical or complex parts
3. In-service Inspection
   • Portable NDT equipment for field inspections
   • Structural Health Monitoring (SHM) systems for continuous monitoring
4. Data Integration and Analysis
   • Machine learning for automated defect detection
   • Digital twins incorporating NDT data for lifecycle management

Challenges and Future Trends

1. Automation and Robotics
   • Automated scanning systems for complex geometries
   • Drone-based inspections for large structures
2. Data Fusion
   • Combining multiple NDT techniques for comprehensive assessment
   • Integration of NDT data with structural analysis and prognostics
3. Advanced Signal Processing
   • AI and deep learning for defect detection and classification
   • Improved resolution and sensitivity through advanced algorithms
4. Novel Techniques
   • Terahertz imaging for non-conductive composites
   • Quantum sensing for enhanced sensitivity

Non-destructive testing is a critical aspect of ensuring the quality and reliability of composite materials and structures. By employing a combination of NDT methods and staying abreast of technological advancements, engineers and inspectors can effectively detect and characterize defects, ensuring the safety and performance of composite components throughout their lifecycle.

Overview of Composite Materials and Their Applications

Composite materials, often simply called composites, are engineered materials made from two or more constituent materials with significantly different physical or chemical properties. When combined, they produce a material with characteristics different from the individual components. The individual components remain separate and distinct within the finished structure, differentiating composites from mixtures and solid solutions.

Introduction to Composite Materials

Composites typically consist of:

1. Matrix: The primary phase, which is continuous and surrounds the other phase.
2. Reinforcement: The secondary phase, which is embedded in the matrix.

Common types of composites include:

• Fiber-reinforced polymers (FRP)
• Metal matrix composites (MMC)
• Ceramic matrix composites (CMC)

Composites are used in a wide range of applications due to their unique properties:

Where Are Composites Used?

1. Aerospace: Aircraft structures, spacecraft components
2. Automotive: Body panels, chassis components
3. Marine: Boat hulls, offshore platforms
4. Construction: Bridges, buildings, reinforcement bars
5. Sports Equipment: Tennis rackets, bicycle frames
6. Wind Energy: Turbine blades

Importance of Mechanical Testing in Composites

Mechanical testing of composites is crucial for several reasons:

1. Material Characterization: To determine the mechanical properties of the composite, such as strength, stiffness, and toughness.
2. Quality Control: To ensure that manufactured composites meet design specifications and industry standards.
3. Design Validation: To verify that composite structures can withstand the intended loads and environmental conditions.
4. Failure Analysis: To understand the failure modes and mechanisms of composites under various loading conditions.
5. Material Development: To aid in the development of new composite materials and manufacturing processes.
6. Certification: To meet regulatory requirements for safety-critical applications, such as in aerospace.

Mechanical Testing of Composites

Fundamentals of Composite Behavior

Stress-Strain Relationships

Composite materials exhibit unique stress-strain relationships due to their heterogeneous nature:

1. Linear Elasticity: Many composites show linear elastic behavior up to a certain stress level.
2. Anisotropy: The mechanical properties vary depending on the direction of applied load.
3. Fiber-Matrix Interaction: The stress-strain behavior is influenced by the load transfer between the fiber and matrix.
4. Progressive Failure: Composites often fail progressively, with multiple damage mechanisms occurring before final failure.

A typical stress-strain curve for a unidirectional fiber-reinforced composite loaded in the fiber direction shows:

• Initial linear elastic region
• Possible non-linear region due to matrix plasticity or fiber-matrix debonding
• Sudden drop in stress at fiber failure

Anisotropy

Anisotropy is a fundamental characteristic of many composite materials, especially fiber-reinforced composites:

1. Directional Properties: Mechanical properties such as strength and stiffness vary significantly with direction.
2. Orthotropic Behavior: Many composites exhibit orthotropic behavior, with different properties in three mutually perpendicular directions.
3. Laminate Theory: The anisotropic nature of composites necessitates the use of laminate theory for structural analysis and design.
4. Testing Implications: Anisotropy requires testing in multiple directions to fully characterize the material properties.

Understanding the anisotropic behavior of composites is crucial for:

• Proper material selection
• Accurate structural design
• Optimizing fiber orientations for specific applications

The complex behavior of composite materials, including their anisotropic nature and unique stress-strain relationships, underscores the importance of thorough and appropriate mechanical testing. These tests provide the necessary data to understand, predict, and optimize the performance of composite structures in various applications.

Tensile testing is one of the most fundamental and widely used mechanical tests for composite materials. It provides critical information about the material's strength, stiffness, and behavior under uniaxial loading conditions. The ASTM D3039 standard is the most commonly used method for conducting tensile tests on polymer matrix composite materials.

Mechanical Testing of Composites

Test Setup and Specimen Preparation

Specimen Geometry

The ASTM D3039 standard specifies several key aspects of specimen geometry:

1. Shape: Typically flat strips or rectangular cross-sections
2. Dimensions: Vary based on the type of reinforcement and its orientation
   • Length: Usually 250 mm (10 in) for unidirectional and fabric composites
   • Width: Typically 25 mm (1 in) for 0° unidirectional, 25 mm (1 in) for 90° unidirectional, and 25 mm (1 in) for fabric composites
   • Thickness: Generally 2-3 mm (0.08-0.12 in), but may vary

Specimen Preparation

1. Cutting: Specimens should be cut carefully to avoid delamination or other damage. Water-jet cutting or precision sawing with diamond-coated blades is often used.
2. Tab Bonding: For some specimen types, especially those with 0° fiber orientation, end tabs are bonded to prevent grip-induced failures. Tabs are typically made of glass fiber/epoxy composite or aluminum.
3. Surface Preparation: The specimen surface should be prepared for strain gauge application if strain is to be measured directly on the specimen.

Test Setup

1. Testing Machine: A universal testing machine capable of maintaining a constant crosshead speed and accurately measuring load.
2. Grips: Hydraulic or mechanical grips that can securely hold the specimen without inducing damage or slippage.
3. Strain Measurement: Either strain gauges bonded directly to the specimen or extensometers attached to the gauge section.
4. Data Acquisition System: To record load, displacement, and strain data throughout the test.

Longitudinal and Transverse Testing

Composite materials, especially those with unidirectional reinforcement, exhibit highly anisotropic behavior. Therefore, testing in both longitudinal (0°, parallel to fibers) and transverse (90°, perpendicular to fibers) directions is crucial for a complete characterization.

Longitudinal Testing (0°)

• Provides information on fiber-dominated properties
• Typically results in higher strength and stiffness values
• Failure often occurs due to fiber breakage

Transverse Testing (90°)

• Provides information on matrix-dominated properties
• Generally results in lower strength and stiffness values
• Failure often occurs due to matrix cracking or fiber-matrix debonding

The stark difference in properties between these two orientations highlights the anisotropic nature of composite materials and the importance of testing in multiple directions.

Data Analysis and Interpretation

Key Parameters

1. Ultimate Tensile Strength (UTS): The maximum stress the material can withstand before failure.
2. Young's Modulus (E): The slope of the stress-strain curve in the linear elastic region, indicating the material's stiffness.
3. Poisson's Ratio (ν): The negative ratio of transverse strain to axial strain in the linear elastic region.
4. Strain at Failure (εf): The maximum strain the material experiences before failure.

Stress-Strain Curve Analysis

1. Linear Region: Identify the linear portion of the stress-strain curve to calculate Young's modulus.
2. Yield Point: For some composites, especially those with ductile matrices, a yield point may be observed.
3. Failure Point: The point of ultimate tensile strength and corresponding strain at failure.

Statistical Analysis

Given the inherent variability in composite materials, statistical analysis of test results is crucial:

1. Mean Values: Calculate average values for strength, modulus, and other parameters.
2. Standard Deviation: Determine the spread of the data.
3. Coefficient of Variation: Assess the relative variability of the data.

Failure Mode Analysis

Examining the failure mode of tensile specimens provides valuable insights:

1. Fiber-Dominated Failure: Typically seen in 0° specimens, characterized by fiber breakage.
2. Matrix-Dominated Failure: Common in 90° specimens, often showing matrix cracking or fiber-matrix debonding.
3. Delamination: Separation of composite layers, which may indicate manufacturing defects or inappropriate test setup.

Understanding and correctly interpreting tensile test data is crucial for:

• Material selection and qualification
• Structural design and analysis
• Quality control in manufacturing processes

Tensile testing, while seemingly straightforward, requires careful attention to specimen preparation, test execution, and data analysis to obtain reliable and meaningful results for composite materials.

Compression testing is a critical aspect of characterizing composite materials, particularly for applications where compressive loads are significant, such as in aerospace structures. The ASTM D3410 standard provides a method for determining the in-plane compressive properties of polymer matrix composite materials reinforced by high-modulus fibers.

Mechanical Testing of Composites

Test Methods and Fixtures

Compression testing of composites is more challenging than tensile testing due to the difficulty in introducing a purely compressive load without inducing buckling or other undesirable failure modes. Several test methods and fixtures have been developed to address these challenges:

1. ASTM D3410 (Procedure B) - IITRI Test Method

The Illinois Institute of Technology Research Institute (IITRI) fixture is the most commonly used method specified in ASTM D3410:

• Fixture Design: Consists of two wedge-shaped grip blocks that apply compressive load to the specimen through shear at the gripped ends.
• Load Introduction: Compressive force is applied through the tapered wedge grips, which distribute the load evenly across the specimen width.
• Alignment: The fixture design helps maintain proper alignment, reducing the risk of premature failure due to buckling.

2. ASTM D695 - Modified for Composites

While primarily designed for unreinforced plastics, this method can be adapted for composite materials:

• Fixture: Uses a simple support fixture to prevent buckling of thin specimens.
• Specimen: Typically requires thicker specimens or end tabs to prevent end-crushing failures.

3. ASTM D6641 - Combined Loading Compression (CLC) Test

This method combines end loading and shear loading:

• Fixture: Uses a compact fixture that applies both end loading and shear loading to the specimen.
• Advantages: Reduces the risk of end-crushing failures and can accommodate shorter specimens compared to ASTM D3410.

Specimen Geometry Considerations

Proper specimen geometry is crucial for obtaining valid compression test results:

1. Length-to-Thickness Ratio

• Typical Ratio: The unsupported length should be 4-6 times the specimen thickness to prevent global buckling.
• ASTM D3410 Recommendation: Gauge length of 12-25 mm (0.5-1.0 in) for most polymer composites.

2. Width

• Standard Width: Typically 6.4-12.7 mm (0.25-0.50 in) for unidirectional composites.
• Consideration: Width should be sufficient to be representative of the material but not so wide as to induce column buckling.

3. Thickness

• Typical Range: 1-6 mm (0.040-0.24 in), depending on the material and test fixture.
• Consideration: Thicker specimens reduce the risk of buckling but may not be representative of thin laminates used in actual structures.

4. End Tabs

• Purpose: Distribute gripping forces and prevent end-crushing failures.
• Material: Often made of glass fiber/epoxy composite or aluminum.
• Geometry: Typically beveled at 30-60 degrees to provide a smooth load transition.

Challenges in Compression Testing of Composites

Compression testing of composites presents several unique challenges:

1. Buckling Prevention

• Issue: Composite specimens, especially thin laminates, are prone to buckling under compressive loads.
• Solution: Careful fixture design, proper specimen geometry, and potentially anti-buckling guides.

2. End Effects

• Issue: Stress concentrations at the loaded ends can cause premature failure.
• Solution: Use of properly designed end tabs and careful specimen preparation.

3. Alignment

• Issue: Misalignment can introduce bending moments, leading to premature or invalid failures.
• Solution: Precise machining of specimens and fixtures, and careful setup of the test apparatus.

4. Strain Measurement

• Issue: Limited space for strain gauges or extensometers in the short gauge length.
• Solution: Use of small strain gauges or non-contact strain measurement techniques like digital image correlation (DIC).

5. Failure Mode Identification

• Issue: Distinguishing between valid compressive failures and invalid modes like end-crushing or buckling.
• Solution: Careful examination of failed specimens and potentially the use of high-speed imaging during testing.

6. Environmental Effects

• Issue: Composites can be sensitive to temperature and moisture, which can significantly affect compressive properties.
• Solution: Controlled testing environment and proper conditioning of specimens before testing.

7. Material Anisotropy

• Issue: The highly directional properties of composites necessitate testing in multiple orientations.
• Solution: Conduct tests on specimens with different fiber orientations (0°, 90°, and possibly off-axis).

Compression testing of composites, while challenging, provides critical data for material characterization and structural design. Understanding these challenges and implementing appropriate solutions is key to obtaining reliable and meaningful compression test results for composite materials.

Flexural and shear testing are crucial for characterizing the mechanical behavior of composite materials under bending and shear loads. These tests provide valuable insights into the material's performance in applications where bending and shear stresses are significant.

Mechanical Testing of Composites

Flexural Testing (ASTM D7264): Three-point and Four-point Bending

Flexural testing determines a material's behavior under bending loads. The ASTM D7264 standard describes procedures for both three-point and four-point bending tests.

Three-point Bending

1. Test Setup:
   • The specimen is supported at two points and loaded at the midpoint.
   • Load is applied perpendicular to the specimen's long axis.
2. Key Parameters:
   • Support span
   • Loading nose diameter
   • Crosshead speed
3. Calculations:
   • Flexural Strength: σf = 3PL / (2bh²)
   • Flexural Modulus: Ef = L³m / (4bh³) Where: P = load, L = support span, b = width, h = thickness, m = slope of the load-deflection curve
4. Advantages:
   • Simple setup
   • Maximum stress at midpoint
5. Limitations:
   • High shear stresses near supports
   • Potential for localized damage at loading point

Four-point Bending

1. Test Setup:
   • The specimen is supported at two outer points and loaded at two inner points.
   • Load is distributed over a larger area of the specimen.
2. Key Parameters:
   • Support span
   • Loading span (distance between inner loading points)
   • Loading nose diameter
   • Crosshead speed
3. Calculations:
   • Flexural Strength: σf = 3PL / (4bh²)
   • Flexural Modulus: Ef = 0.21L³m / (bh³) Where: P = load, L = support span, b = width, h = thickness, m = slope of the load-deflection curve
4. Advantages:
   • Uniform bending moment between loading points
   • Reduced risk of shear failure
5. Limitations:
   • More complex setup
   • Potential for localized damage at loading points

Specimen Considerations:

• Typical dimensions: 100-200 mm length, 13-25 mm width
• Span-to-thickness ratio: typically 16:1 for three-point and 32:1 for four-point bending
• Surface quality is crucial to prevent premature failure

In-plane Shear Testing (ASTM D3518)

The ASTM D3518 test method determines the in-plane shear properties of polymer matrix composite materials reinforced by high-modulus fibers.

1. Test Principle:
   • Uses a tensile test on a ±45° laminate to induce in-plane shear.
   • The test essentially "stretches" the ±45° fibers, creating a shear state in the material.
2. Specimen Preparation:
   • Balanced and symmetric ±45° laminate
   • Typical dimensions similar to tensile test specimens (ASTM D3039)
3. Test Procedure:
   • Conducted as a standard tensile test
   • Strain measured in both longitudinal and transverse directions
4. Calculations:
   • Shear Stress: τ12 = P / (2A)
   • Shear Strain: γ12 = εx - εy
   • Shear Modulus: G12 = Δτ12 / Δγ12 Where: P = applied load, A = cross-sectional area, εx = longitudinal strain, εy = transverse strain
5. Advantages:
   • Uses standard tensile testing equipment
   • Provides complete shear stress-strain curve
6. Limitations:
   • Limited to in-plane shear properties
   • May not be representative for all loading conditions

Interlaminar Shear Strength Testing (ASTM D2344)

The ASTM D2344 standard, also known as the Short Beam Strength (SBS) test, is used to determine the interlaminar shear strength of composite materials.

1. Test Principle:
   • Short beam subjected to three-point bending
   • The short span induces interlaminar shear failure
2. Specimen Preparation:
   • Typically unidirectional laminates
   • Length = 6 × thickness
   • Width = 2 × thickness
3. Test Setup:
   • Three-point bending configuration
   • Span length = 4 × thickness
4. Calculations:
   • Interlaminar Shear Strength: ILSS = 0.75 × P / (b × h) Where: P = maximum load, b = specimen width, h = specimen thickness
5. Advantages:
   • Simple and quick test
   • Requires small specimens
6. Limitations:
   • May not produce pure interlaminar shear failure
   • Results can be affected by stress concentrations at loading points
7. Failure Modes:
   • Interlaminar shear (desired mode)
   • Inelastic deformation
   • Flexure
   • Inelastic deformation and interlaminar shear

Interpreting the failure mode is crucial for validating the test results.

Flexural and shear testing provide essential data for understanding the behavior of composite materials under complex loading conditions. These tests, when combined with tensile and compression testing, offer a comprehensive characterization of a composite material's mechanical properties, crucial for design and analysis in various applications.

Impact and fatigue testing are crucial for understanding the behavior of composite materials under sudden loads and cyclic loading conditions. These tests provide valuable insights into a material's toughness, energy absorption capabilities, and long-term performance under repeated loading.

Mechanical Testing of Composites

Impact Testing: Charpy and Izod Tests

Impact tests measure a material's ability to absorb energy during fracture. For composite materials, these tests are particularly important in assessing damage tolerance and energy absorption capabilities.

Charpy Impact Test

1. Test Principle:
   • A notched specimen is supported as a horizontal beam
   • A pendulum strikes the specimen on the side opposite the notch
   • Energy absorbed during fracture is measured
2. Specimen Preparation:
   • Typically 55 mm x 10 mm x 10 mm for composites
   • V-notch or U-notch at the center of the specimen
3. Test Procedure:
   • Specimen is placed in the test fixture with the notch facing away from the striking edge
   • Pendulum is released from a known height
   • Energy absorbed is calculated from the difference in pendulum height before and after impact
4. Calculations:
   • Impact Energy = mgh₁ - mgh₂ Where: m = mass of pendulum, g = acceleration due to gravity, h₁ = initial height, h₂ = final height
5. Advantages:
   • Simple and widely used test
   • Good for comparing different materials
6. Limitations:
   • Results can be affected by specimen size and notch geometry
   • May not accurately represent impact behavior in real-world applications

Izod Impact Test

1. Test Principle:
   • Similar to Charpy test, but the specimen is clamped vertically
   • Pendulum strikes the specimen on the same side as the notch
2. Specimen Preparation:
   • Typically 64 mm x 12.7 mm x 3.2 mm for composites
   • V-notch at one end of the specimen
3. Test Procedure:
   • Specimen is clamped vertically with the notch facing the striking edge
   • Pendulum is released from a known height
   • Energy absorbed is calculated as in the Charpy test
4. Advantages:
   • Good for testing thin sheet materials
   • Can be used to test anisotropic materials in different orientations
5. Limitations:
   • Clamping can introduce stress concentrations
   • Results can be affected by fiber orientation in composites

Considerations for Composite Materials:

• Fiber orientation relative to impact direction significantly affects results
• Failure modes in composites (fiber breakage, matrix cracking, delamination) can be complex
• Multiple specimens with different orientations may be needed for a complete characterization

Defects and Damage in Composite Materials and Structures

Fatigue Testing (ASTM D3479): Tension-Tension and Compression-Compression

Fatigue testing assesses a material's performance under cyclic loading conditions. For composites, fatigue behavior is crucial due to their use in long-term, cyclic loading applications like wind turbine blades or aircraft structures.

General Principles of Fatigue Testing

1. Test Objective:
   • Determine the number of cycles to failure at different stress levels
   • Generate S-N curves (stress vs. number of cycles)
2. Key Parameters:
   • Maximum stress
   • Stress ratio (R = minimum stress / maximum stress)
   • Frequency of loading
   • Environmental conditions (temperature, humidity)
3. Failure Criteria:
   • Complete fracture
   • Stiffness reduction (e.g., 10% decrease in modulus)
   • Specific amount of damage or delamination

Tension-Tension Fatigue (ASTM D3479)

1. Test Setup:
   • Similar to static tensile test setup
   • Specimens typically similar to those used in tensile testing (ASTM D3039)
2. Test Procedure:
   • Apply sinusoidal tensile load varying between a minimum and maximum value
   • Typical stress ratio (R) ranges from 0.1 to 0.8
   • Frequency typically 1-10 Hz, depending on material and test objective
3. Data Analysis:
   • Plot S-N curve (stress amplitude vs. number of cycles to failure)
   • Determine fatigue limit or endurance limit, if applicable
4. Considerations for Composites:
   • Damage accumulation can be complex (matrix cracking, fiber breakage, delamination)
   • Fatigue behavior can be highly dependent on fiber orientation and layup sequence

Compression-Compression Fatigue

1. Test Setup:
   • Similar to static compression test setup
   • May require anti-buckling guides for thin specimens
2. Test Procedure:
   • Apply sinusoidal compressive load
   • Typical stress ratio (R) > 1 (e.g., R = 10)
   • Lower frequencies often used compared to tension-tension (to avoid heating)
3. Challenges:
   • Avoiding buckling, especially at high cycle counts
   • Dealing with end-crushing failures
4. Considerations for Composites:
   • Compressive fatigue often more critical than tensile fatigue for some composites
   • Matrix properties play a significant role in compressive fatigue behavior

General Considerations for Fatigue Testing of Composites

1. Environmental Effects:
   • Temperature and humidity can significantly affect fatigue life
   • Consider environmental chambers for testing in relevant conditions
2. Frequency Effects:
   • Higher frequencies can lead to internal heating, especially in thermoplastic matrix composites
   • Balance between test duration and avoiding thermal effects
3. Damage Monitoring:
   • Non-destructive techniques (e.g., acoustic emission, thermography) can be used to monitor damage progression
   • Stiffness degradation is often monitored throughout the test
4. Variability:
   • Fatigue data for composites often shows high scatter
   • Statistical analysis and multiple tests are crucial for reliable characterization
5. Failure Mode Analysis:
   • Post-test examination of failed specimens is crucial for understanding failure mechanisms
   • Different failure modes may dominate at different stress levels or cycle counts

Impact and fatigue testing provide critical information about a composite material's performance under dynamic and cyclic loading conditions. These tests are essential for predicting the long-term behavior and reliability of composite structures in various applications, from aerospace to wind energy.

Environmental factors can significantly influence the mechanical properties of composite materials. Understanding these effects is crucial for predicting long-term performance and ensuring reliability in various applications. This chapter focuses on moisture absorption, temperature effects, and combined environmental and mechanical testing.

Mechanical Testing of Composites

Moisture Absorption Testing

Moisture absorption can significantly affect the mechanical properties of polymer matrix composites, particularly those with hygroscopic matrices like epoxy.

Test Methods

1. ASTM D5229: Standard Test Method for Moisture Absorption Properties and Equilibrium Conditioning of Polymer Matrix Composite Materials a) Specimen Preparation:
   • Typically flat rectangular specimens
   • Dimensions: 25-100 mm length, 25-100 mm width, thickness as manufactured
2. b) Test Procedure:
   • Dry specimens to constant weight
   • Immerse in water or expose to controlled humidity
   • Periodically weigh specimens until equilibrium is reached
3. c) Calculations:
   • Moisture Content: M = [(W - W0) / W0] × 100% Where: W = wet weight, W0 = dry weight
4. ASTM D570: Standard Test Method for Water Absorption of Plastics
   • Similar procedure, often used for neat resin specimens

Key Considerations

1. Diffusion Kinetics:
   • Plot moisture content vs. square root of time
   • Determine diffusion coefficient
2. Edge Effects:
   • Seal specimen edges to simulate one-dimensional diffusion in thick laminates
3. Temperature Effects:
   • Higher temperatures typically accelerate moisture absorption
4. Fiber/Matrix Interface:
   • Moisture can degrade the fiber/matrix interface, affecting mechanical properties
5. Reversibility:
   • Test for property recovery after drying

Temperature Effects

Temperature can significantly affect the mechanical properties of composites, particularly the matrix-dominated properties.

Test Methods

1. ASTM D3045: Standard Practice for Heat Aging of Plastics Without Load
2. ASTM D5229: Includes procedures for elevated temperature conditioning

Key Considerations

1. Glass Transition Temperature (Tg):
   • Determine Tg using Dynamic Mechanical Analysis (DMA) or Differential Scanning Calorimetry (DSC)
   • Significant property changes occur near Tg
2. Coefficient of Thermal Expansion (CTE):
   • Measure using dilatometry or strain gauges
   • Important for predicting thermal stresses in multi-material systems
3. High-Temperature Testing:
   • Conduct mechanical tests at elevated temperatures
   • Use environmental chambers with tensile/compression testing machines
4. Low-Temperature Testing:
   • Particularly important for aerospace applications
   • Use cryogenic chambers for extreme low-temperature testing
5. Thermal Cycling:
   • Simulate real-world temperature fluctuations
   • Monitor for microcracking or delamination

Combined Environmental and Mechanical Testing

Real-world applications often involve simultaneous exposure to environmental conditions and mechanical loads. Combined testing provides more realistic performance data.

Test Methods

1. ASTM D2584: Standard Test Method for Ignition Loss of Cured Reinforced Resins
   • Used in conjunction with mechanical testing to correlate property changes with matrix degradation
2. ASTM E1640: Standard Test Method for Assignment of the Glass Transition Temperature By Dynamic Mechanical Analysis
   • Can be performed under various environmental conditions

Key Considerations

1. Hygrothermal Aging:
   • Combine moisture and temperature exposure
   • Monitor changes in mechanical properties over time
2. Stressed Environmental Exposure:
   • Apply constant load during environmental conditioning
   • Assess creep behavior under environmental exposure
3. Fatigue in Harsh Environments:
   • Conduct fatigue tests in environmental chambers
   • Assess synergistic effects of cyclic loading and environmental factors
4. UV Exposure:
   • Use weathering chambers to simulate outdoor exposure
   • Particularly important for composites used in exterior applications
5. Chemical Resistance:
   • Expose specimens to relevant chemicals (e.g., fuels, hydraulic fluids)
   • Conduct mechanical tests after exposure

Test Matrix Example

RT: Room Temperature

Data Analysis and Interpretation

1. Property Retention:
   • Calculate percentage retention of key properties (strength, modulus) after environmental exposure
2. Time-Temperature-Stress Superposition:
   • Develop models to predict long-term behavior from short-term tests at elevated temperatures
3. Failure Mode Analysis:
   • Examine how environmental factors affect failure mechanisms
4. Statistical Analysis:
   • Use design of experiments (DOE) to efficiently explore multiple environmental factors
   • Develop predictive models for property changes under various conditions
5. Microstructural Analysis:
   • Use techniques like SEM or micro-CT to correlate environmental effects with microstructural changes

Understanding the environmental effects on mechanical properties is crucial for:

• Accurate life prediction of composite structures
• Material selection for specific environmental conditions
• Development of protective measures (e.g., coatings, sealants)
• Establishment of appropriate safety factors in design

By comprehensively testing composites under various environmental conditions, engineers can ensure the long-term reliability and performance of composite structures in challenging real-world applications.

Non-destructive testing (NDT) is crucial for evaluating the integrity of composite materials and structures without causing damage. These techniques are essential for quality control during manufacturing, in-service inspection, and damage assessment. This chapter focuses on key NDT methods for composites: ultrasonic testing, thermography, and X-ray computed tomography.

Non-Destructive Testing for Composites: Different Inspection Methods

Ultrasonic Testing

Ultrasonic testing is one of the most widely used NDT methods for composites due to its versatility and effectiveness in detecting internal defects.

Principles

• High-frequency sound waves (typically 1-50 MHz) are transmitted through the material
• Reflections from defects or interfaces are analyzed

Methods

1. Pulse-Echo
   • Single transducer acts as both transmitter and receiver
   • Defects detected by reflections returning to the transducer
2. Through-Transmission
   • Separate transmitter and receiver on opposite sides of the material
   • Defects detected by attenuation or time-of-flight changes
3. Phased Array
   • Multiple element transducer
   • Allows beam steering and focusing for improved detection and imaging

Applications

• Delamination detection
• Porosity assessment
• Thickness measurement
• Foreign object detection

Advantages

• High sensitivity to internal defects
• Can inspect thick laminates
• Capable of providing depth information

Limitations

• Requires coupling medium (typically water or gel)
• Difficulty with highly attenuative or heterogeneous materials
• Complex geometries can be challenging

Thermography

Thermography uses infrared cameras to detect temperature differences on the surface of a material, which can indicate subsurface defects.

Principles

• Defects affect heat flow in the material
• Temperature differences on the surface indicate subsurface anomalies

Methods

1. Passive Thermography
   • Observes natural temperature differences
   • Useful for in-service inspections (e.g., detecting hot spots)
2. Active Thermography
   • External heat source applied (e.g., flash lamps, heat guns)
   • Observes thermal response over time
3. Lock-in Thermography
   • Periodic heating applied
   • Analyzes phase and amplitude of thermal waves

Applications

• Impact damage assessment
• Delamination detection
• Water ingress detection
• Bond quality evaluation

Advantages

• Rapid, large area inspection
• Non-contact method
• Effective for near-surface defects

Limitations

• Limited depth penetration
• Sensitivity to surface conditions
• Requires careful interpretation of thermal images

X-ray Computed Tomography (CT)

X-ray CT provides detailed 3D images of the internal structure of composites, allowing for comprehensive defect analysis.

Principles

• X-rays pass through the material and are attenuated differently by various features
• Multiple 2D X-ray images are reconstructed into a 3D volume

Methods

1. Industrial CT
   • High-power X-ray sources for large or dense components
   • High resolution for detailed analysis
2. Micro-CT
   • Very high resolution for small samples
   • Useful for microstructural analysis
3. In-situ CT
   • Combines CT scanning with mechanical testing
   • Observes damage progression in real-time

Applications

• Fiber orientation analysis
• Void content measurement
• Impact damage assessment
• Quality control of complex parts

Advantages

• Provides detailed 3D information
• Can detect a wide range of defect types
• Non-destructive cross-sectioning

Limitations

• Limited sample size (especially for high-resolution scans)
• Long acquisition and reconstruction times
• Expensive equipment
• Radiation safety concerns

Other NDT Methods for Composites

1. Acoustic Emission
   • Detects stress waves released by growing defects
   • Useful for real-time monitoring during loading
2. Shearography
   • Uses laser interferometry to detect surface deformations
   • Effective for finding debonds and delaminations
3. Radiography
   • Uses X-rays or gamma rays for 2D imaging
   • Good for detecting density variations and foreign objects
4. Eddy Current Testing
   • Limited to conductive composites (e.g., carbon fiber)
   • Useful for surface and near-surface defects
5. Laser Ultrasound
   • Non-contact ultrasonic method
   • Useful for complex geometries and high-temperature applications

Selecting the Appropriate NDT Method

Factors to consider:

• Type of defects to be detected
• Material properties (e.g., fiber type, layup)
• Component geometry and size
• Required resolution and sensitivity
• Inspection speed and cost
• Accessibility (in-service vs. manufacturing)

Integration of NDT in Composite Manufacturing and Service

1. In-process Monitoring
   • Embedding sensors (e.g., fiber optics) for real-time cure monitoring
   • Online thermography for automated manufacturing processes
2. Quality Control
   • Automated ultrasonic scanning of large components
   • CT scanning of critical or complex parts
3. In-service Inspection
   • Portable NDT equipment for field inspections
   • Structural Health Monitoring (SHM) systems for continuous monitoring
4. Data Integration and Analysis
   • Machine learning for automated defect detection
   • Digital twins incorporating NDT data for lifecycle management

Challenges and Future Trends

1. Automation and Robotics
   • Automated scanning systems for complex geometries
   • Drone-based inspections for large structures
2. Data Fusion
   • Combining multiple NDT techniques for comprehensive assessment
   • Integration of NDT data with structural analysis and prognostics
3. Advanced Signal Processing
   • AI and deep learning for defect detection and classification
   • Improved resolution and sensitivity through advanced algorithms
4. Novel Techniques
   • Terahertz imaging for non-conductive composites
   • Quantum sensing for enhanced sensitivity

Non-destructive testing is a critical aspect of ensuring the quality and reliability of composite materials and structures. By employing a combination of NDT methods and staying abreast of technological advancements, engineers and inspectors can effectively detect and characterize defects, ensuring the safety and performance of composite components throughout their lifecycle.

Proper data analysis, interpretation, and quality control are crucial for extracting meaningful information from mechanical tests on composite materials. This chapter covers statistical analysis techniques, failure mode identification, property prediction and modeling, relevant standards, and databases for composite properties.

Statistical Analysis of Test Results

Statistical analysis is essential for understanding the variability inherent in composite materials and for making reliable predictions about their properties.

Basic Statistical Measures

1. Mean (Average)
   • Calculated as the sum of all values divided by the number of observations
   • Provides a central tendency of the data
2. Standard Deviation
   • Measures the spread of data around the mean
   • Calculated as the square root of the variance
3. Coefficient of Variation (CV)
   • Ratio of standard deviation to mean, expressed as a percentage
   • Useful for comparing variability between different properties or materials

Advanced Statistical Techniques

1. Analysis of Variance (ANOVA)
   • Used to determine if there are statistically significant differences between means of different groups
   • Helpful in assessing the impact of various factors (e.g., fiber orientation, manufacturing process) on properties
2. Weibull Analysis
   • Often used for strength data in composites
   • Provides information on the probability of failure at different stress levels
3. Design of Experiments (DOE)
   • Systematic method to determine the relationship between factors affecting a process and the output of that process
   • Useful for optimizing material composition or processing parameters

Dealing with Outliers

1. Identification
   • Use statistical tests (e.g., Grubbs' test, Dixon's Q test) to identify potential outliers
2. Treatment
   • Investigate the cause of outliers (e.g., manufacturing defect, testing error)
   • Decision to include or exclude should be based on engineering judgment and documented

Reporting Results

• Report both mean and standard deviation
• Include number of specimens tested
• Provide confidence intervals where appropriate
• Use appropriate significant figures based on measurement precision

Failure Modes Identification

Understanding failure modes is crucial for improving material design and predicting long-term performance.

Common Failure Modes in Composites

1. Fiber Breakage
   • Typically occurs under tensile loading
   • Characterized by a clean break perpendicular to the fiber direction
2. Matrix Cracking
   • Often the first form of damage to occur
   • Can lead to other failure modes if not arrested
3. Delamination
   • Separation of adjacent plies
   • Often result of interlaminar stresses or impact
4. Fiber Pull-out
   • Fibers are pulled out of the matrix
   • Indicates weak fiber-matrix interface
5. Buckling
   • Common in compression testing
   • Can be global (entire specimen) or local (individual fibers)

Identification Techniques

1. Visual Inspection
   • Initial assessment of failure mode
   • Can be enhanced with magnification
2. Microscopy
   • Optical microscopy for surface analysis
   • Scanning Electron Microscopy (SEM) for detailed examination of fracture surfaces
3. X-ray CT Scanning
   • Non-destructive 3D visualization of internal damage
4. Acoustic Emission
   • Real-time monitoring of damage progression during testing

Correlation with Test Data

• Link observed failure modes to features in stress-strain curves
• Use failure mode information to validate or refine analytical models

Property Prediction and Modeling

Predictive modeling is essential for design and optimization of composite structures.

Micromechanical Models

1. Rule of Mixtures
   • Simple model for predicting longitudinal properties
   • E1 = Ef * Vf + Em * (1-Vf), where E is modulus, V is volume fraction, f is fiber, m is matrix
2. Halpin-Tsai Equations
   • More accurate for transverse and shear properties
   • Accounts for fiber geometry and packing

Laminate Theory

1. Classical Laminate Theory (CLT)
   • Predicts behavior of multi-directional laminates
   • Based on individual ply properties and stacking sequence
2. First Ply Failure Theories
   • Maximum Stress, Maximum Strain, Tsai-Wu, Tsai-Hill criteria
   • Predict the onset of damage in a laminate

Finite Element Analysis (FEA)

1. Linear Analysis
   • Predict stress distributions and deformations
   • Useful for initial design stages
2. Progressive Failure Analysis
   • Simulates damage accumulation and propagation
   • Requires advanced material models and failure criteria

Machine Learning Approaches

1. Neural Networks
   • Can predict properties based on composition and processing parameters
   • Requires large datasets for training
2. Gaussian Process Regression
   • Provides probabilistic predictions
   • Useful for uncertainty quantification

Overview of ASTM, ISO, and Other Relevant Standards

Standards ensure consistency and comparability of test results across different laboratories and organizations.

ASTM Standards

1. ASTM D3039: Tensile Properties of Polymer Matrix Composite Materials
2. ASTM D3410: Compressive Properties of Polymer Matrix Composite Materials
3. ASTM D3518: In-Plane Shear Response of Polymer Matrix Composite Materials
4. ASTM D7264: Flexural Properties of Polymer Matrix Composite Materials
5. ASTM D2344: Short-Beam Strength of Polymer Matrix Composite Materials

ISO Standards

1. ISO 527: Determination of tensile properties
2. ISO 14126: Determination of compressive properties in the in-plane direction
3. ISO 14129: Determination of the in-plane shear stress/shear strain response
4. ISO 14125: Determination of flexural properties

Other Relevant Standards

1. SACMA (Suppliers of Advanced Composite Materials Association) Recommended Methods
2. EN (European Norm) Standards
3. JIS (Japanese Industrial Standards)

Key Aspects of Standards

• Specimen geometry and preparation
• Test setup and procedure
• Data analysis and reporting requirements
• Quality control measures

Databases on Mechanical Properties of Composites

Databases are valuable resources for material selection, design, and research.

Databases on Mechanical Properties of Composites

Types of Databases

1. Public Databases
   • NIST Composites Data (US)
   • CMH-17 (Composite Materials Handbook)
   • ESDU (Engineering Sciences Data Unit)
2. Proprietary Databases
   • Maintained by material suppliers or large OEMs
   • Often require licensing or partnership agreements
3. Research Databases
   • Compiled by universities or research institutions
   • May focus on specific types of composites or properties

Information Typically Included

• Material composition (fiber type, matrix, fiber volume fraction)
• Processing methods
• Mechanical properties (strength, modulus, Poisson's ratio)
• Physical properties (density, coefficient of thermal expansion)
• Environmental data (moisture absorption, temperature effects)
• Statistical information (mean, standard deviation, number of specimens)

Utilization of Databases

1. Material Selection
   • Compare properties of different materials for specific applications
2. Design Allowables
   • Establish design values based on statistical analysis of database entries
3. Model Validation
   • Use database values to validate predictive models
4. Identifying Research Gaps
   • Determine areas where more data is needed

Challenges and Considerations

• Ensuring data quality and traceability
• Standardizing data formats for interoperability
• Keeping databases up-to-date with new materials and test methods
• Balancing open access with proprietary information

Effective data analysis, interpretation, and quality control are essential for maximizing the value of mechanical testing of composites. By employing rigorous statistical techniques, understanding failure modes, utilizing predictive models, adhering to established standards, and leveraging comprehensive databases, engineers and researchers can make informed decisions in the design, manufacture, and application of composite materials.

As composite materials and manufacturing technologies evolve, so do the testing methods required to characterize these advanced materials. This chapter focuses on testing methodologies for sandwich structures, 3D woven composites, and continuous fiber 3D printed composites.

Testing of Sandwich Structures

Sandwich structures, consisting of two thin, stiff face sheets bonded to a lightweight core, are widely used in aerospace, marine, and wind energy applications due to their high stiffness-to-weight ratio.

Key Testing Methods

1. Flexural Testing
   • ASTM C393: Standard Test Method for Core Shear Properties of Sandwich Constructions by Beam Flexure
   • Determines facing bending strength, core shear strength, and panel flexural stiffness
2. Flatwise Tensile Testing
   • ASTM C297: Standard Test Method for Flatwise Tensile Strength of Sandwich Constructions
   • Evaluates the bond strength between face sheets and core
3. Edgewise Compression Testing
   • ASTM C364: Standard Test Method for Edgewise Compressive Strength of Sandwich Constructions
   • Assesses the compressive strength of the entire sandwich structure
4. Core Shear Testing
   • ASTM C273: Standard Test Method for Shear Properties of Sandwich Core Materials
   • Determines the shear strength and modulus of the core material
5. Impact Testing
   • ASTM D7766: Standard Practice for Damage Resistance Testing of Sandwich Constructions
   • Evaluates the damage resistance of sandwich structures to impact events

Special Considerations

• Size Effects: Specimen dimensions can significantly affect results due to the heterogeneous nature of sandwich structures
• Failure Modes: Multiple failure modes (e.g., face sheet failure, core shear, indentation) can occur, requiring careful interpretation
• Environmental Effects: Moisture and temperature can dramatically affect core properties, necessitating environmental testing

Testing of 3D Woven Composites

3D woven composites offer improved through-thickness properties and damage tolerance compared to traditional laminated composites.

Key Testing Methods

1. Tensile Testing
   • Modified ASTM D3039 procedures
   • Requires larger specimens due to the scale of 3D reinforcement
2. Compression Testing
   • Adapted ASTM D6641 (Combined Loading Compression)
   • Special attention to end effects due to complex fiber architecture
3. Interlaminar Shear Strength
   • Modified short beam shear test (ASTM D2344)
   • Interpretation complicated by 3D fiber architecture
4. Fracture Toughness
   • Mode I: Double Cantilever Beam (DCB) test (ASTM D5528)
   • Mode II: End-Notched Flexure (ENF) test
   • Requires careful consideration of crack propagation through 3D structure
5. Impact Testing
   • Low-velocity impact (ASTM D7136)
   • Compression After Impact (CAI) testing (ASTM D7137)

Special Considerations

• Fiber Architecture Characterization: Micro-CT scanning to verify 3D fiber arrangement
• Scale Effects: Representative volume elements may be larger than traditional composites
• Anisotropy: Properties can vary significantly in different directions due to complex fiber architecture
• Failure Mode Analysis: Complex failure modes require advanced imaging techniques for interpretation

Testing of Continuous Fiber 3D Printed Composites

Continuous fiber 3D printing is an emerging technology that allows for complex, tailored fiber orientations within a part.

Continuous Fiber 3D Printing

Key Testing Methods

1. Tensile Testing
   • Adapted ASTM D3039
   • Special consideration for print direction and fiber orientation
2. Flexural Testing
   • Modified ASTM D7264
   • Attention to layer interfaces and fiber continuity
3. Interlaminar Shear Strength
   • Short beam shear test (ASTM D2344)
   • Critical for assessing layer bonding quality
4. Compression Testing
   • Adapted ASTM D6641
   • Important for assessing fiber alignment and matrix properties
5. Fatigue Testing
   • Modified ASTM D3479
   • Crucial for understanding long-term performance of printed parts

Special Considerations

• Anisotropy: Properties can vary significantly based on print direction and fiber placement strategy
• Void Content: 3D printing process may introduce more voids than traditional manufacturing methods
• Fiber-Matrix Interface: Quality of impregnation during printing affects mechanical properties
• Residual Stresses: Thermal gradients during printing can introduce residual stresses
• Surface Finish: May affect test results, especially in fatigue testing

Emerging Test Methods

1. In-situ Testing
   • Real-time monitoring of mechanical properties during the printing process
   • Utilizes embedded sensors or non-destructive testing techniques
2. Multi-material Testing
   • Characterization of interfaces between different materials in multi-material prints
   • Requires development of new test standards
3. Functionally Graded Material Testing
   • Evaluating properties of parts with continuously varying composition or fiber orientation
   • Necessitates new approaches to data analysis and interpretation

Common Challenges in Advanced Composite Testing

1. Specimen Preparation
   • Complex geometries and reinforcement architectures can make specimen preparation challenging
   • Ensuring consistent and representative specimens is crucial
2. Data Interpretation
   • Advanced composites often exhibit complex failure modes
   • Requires sophisticated analysis techniques and often multi-scale modeling
3. Standardization
   • Many advanced composite forms lack established testing standards
   • Researchers often need to adapt existing standards or develop new methodologies
4. Property Variability
   • Advanced manufacturing techniques can introduce new sources of variability
   • Requires robust statistical analysis and potentially larger sample sizes
5. Scale Effects
   • Properties measured on small test specimens may not accurately represent full-scale component behavior
   • Necessitates careful consideration of scaling laws and validation through component-level testing

Future Trends in Advanced Composite Testing
