Unified Hardware Architectures

Modern hybrid systems like Addcomposites' AFP-XS exemplify the physical integration of AFP and filament winding through multi-process toolheads that operate on shared robotic platforms ^[1][6]. These systems feature:

• Interchangeable compaction mechanisms that alternate between AFP's localized pressure application and filament winding's continuous tension control ^[5][12]
• Adaptive tensioning systems capable of handling both AFP's low-tension placement (5–15 N) and winding's high-tension requirements (50–200 N) ^[3][6]
• Thermal management modules with dual-mode operation for in-situ consolidation of thermoplastics and controlled resin infusion during thermoset winding ^[13][14]

The AFP-XS configuration enables process switching within software through just advanced planning module, compared to traditional 8+ hour changeovers between separate AFP and winding systems ^[6][11]. This hardware convergence reduces footprint requirements by 100% while maintaining full functionality of both technologies ^[5][11].

Software Control Systems

AddPath's integrated programming environment represents a breakthrough in hybrid process control, combining:

• Non-geodesic path planning algorithms that optimize fiber trajectories across AFP and winding zones ^[3][8]
• Real-time process adaptation using machine vision feedback to adjust tension, heat, and placement parameters during mode transitions ^[5][6]
• Multi-physics simulation modules predicting residual stresses and deformation risks when combining winding's continuous fibers with AFP's segmented tows ^[15][16]

This software integration enables first-pass success rates exceeding 92% for complex hybrid layups, compared to 65–75% for separately programmed processes ^[5][6].

Production Efficiency Gains

Hybrid systems demonstrate 80–85% cycle time reductions through strategic process allocation:

• Filament winding handles 70–80% of symmetric, high-speed winding sections at 500–1000 mm/sec ^[2][6]
• AFP concurrently places complex reinforcement features at 200–500 mm/sec with 0.5 mm placement accuracy ^[5][9]

Material utilization improvements reach 22% through:

• Waste reduction from AFP's precise ply tailoring at joint transitions ^[3][8]
• Hybrid material streaming enabling simultaneous dry fiber winding and prepreg tape placement ^[6][14]

Cost Structure Optimization

Lifecycle cost analyses show 50-60% savings over 5 years compared to maintaining separate AFP and winding systems ^[5][6]:

Data aggregated from ^[5][6][11]

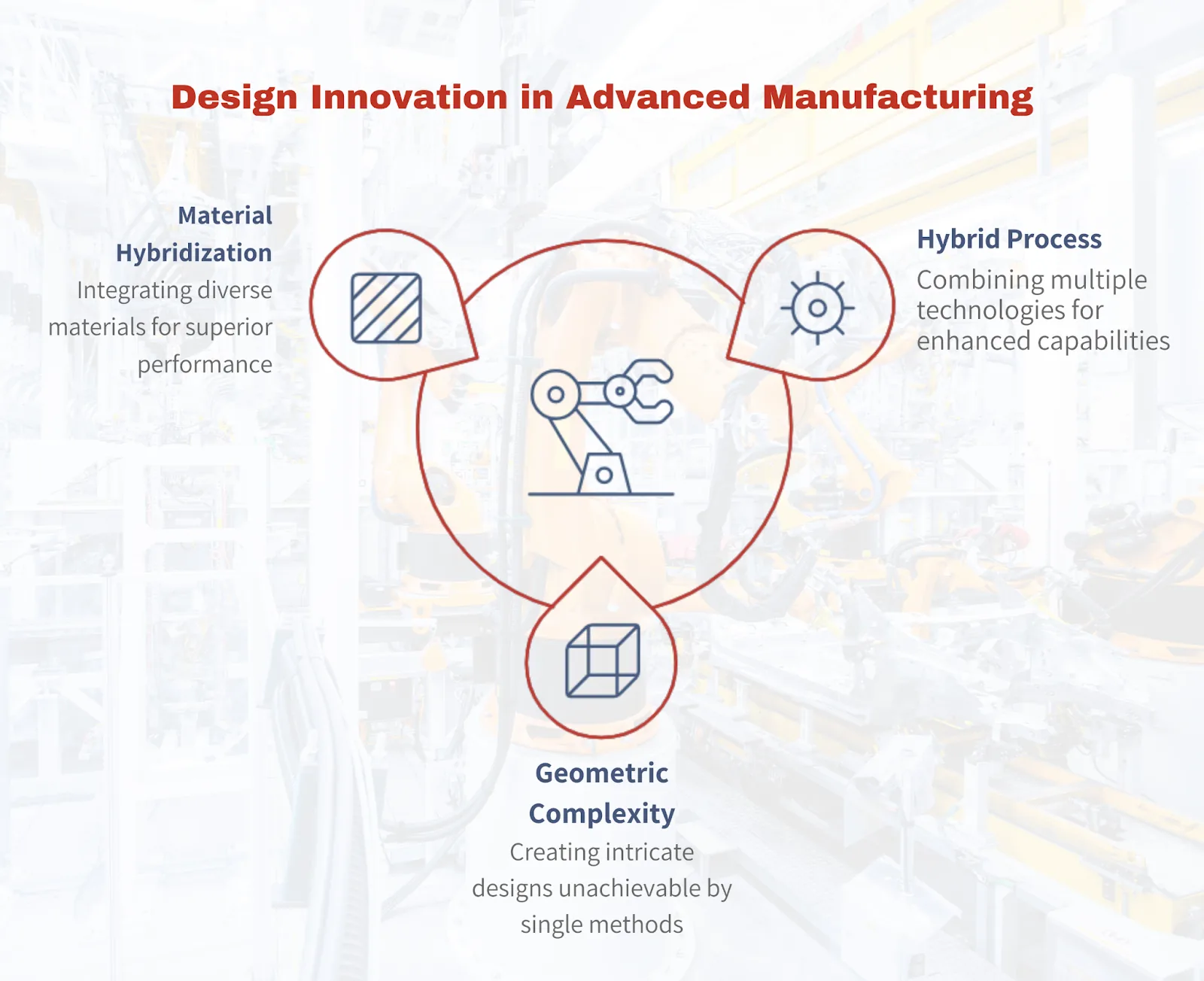

Geometric Complexity Expansion

The hybrid process enables novel configurations unachievable with individual technologies:

• Asymmetric pressure vessels with AFP-reinforced domes (35° helical winding + ±45° AFP bands) ^[8][12]
• Variable-thickness tubes transitioning from 6 mm wound sections to 12 mm AFP-stiffened regions ^[5][9]
• Integrally stiffened structures combining winding's 0° hoop layers with AFP's 3D rib networks ^[6][11]

Use Case: Next-gen hydrogen tanks demonstrate 41% weight reduction through:

• A 15-layer wound CFRP shell (0°/±85°)
• Localized AFP reinforcement (T700SC/PEKK tapes) at port junctions
• An integrated thermoplastic liner via simultaneous SCF3D printing ^[6][10]

Material Hybridization Strategies

Process compatibility with diverse material forms enables:

• Thermoplastic winding enables winding with aerospace grade PEEK ^[13][16]
• Multi-scale reinforcement blending 50 gsm spread-tow fabrics with 12k filament wound strands ^[5][14]
• Functional grading through alternating conductive (CF) and insulating (GF) winding layers ^[6][9]

In-Situ Consolidation Breakthroughs

Hybrid systems overcome traditional thermoplastic processing limits through:

• Dual-laser systems maintaining 380–420°C consolidation temperatures during AFP–winding transitions ^[10][13]
• Pressure-on-demand rollers applying 0.5–5 MPa compaction force tailored to material state ^[14][16]
• Crystallization control via IR preheating and active cooling for PEEK/CF laminates ^[15][16]

Sustainable Manufacturing Benefits

The integration supports circular economy objectives through:

• In-process recyclate incorporation (up to 30% regrind in PA6 winding fibers) ^[6][13]
• Repairability features enabling local AFP patching of wound structures ^[5][9]

End-of-life disassembly via targeted thermal debonding of hybrid joints ^[13][16]

Aerospace: Next-Gen Launcher Components

ArianeGroup's prototype cryogenic tank demonstrates hybrid manufacturing advantages:

• 5.4 m diameter Al–Li liner
• Hybrid CFRP overwrap consisting of:

  • 80% filament wound T800SC/Epoxy (0°/±25°)
  • AFP-added 3D lattice reinforcement (IM7/PEKK)
• 28% mass reduction vs. an all-wound design
• 45% faster production vs. the previous AFP-only approach ^[5][11]

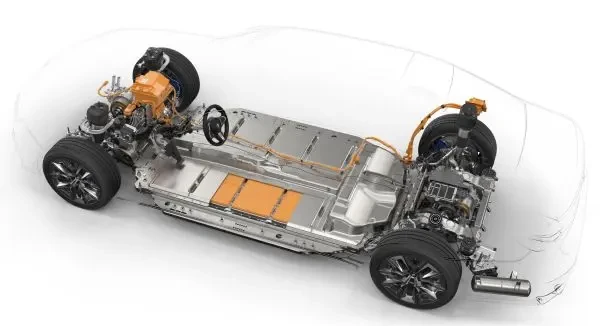

Automotive: Structural Battery Enclosures

BMW's Neue Klasse platform utilizes:

• Glass fiber wound side beams (20 m/min)
• AFP-placed CFRP crossmembers with embedded cooling channels
• Hybrid jointing using induction-welded thermoplastic tabs
• 19% improved torsional stiffness vs. an all-wound design ^[6][10]

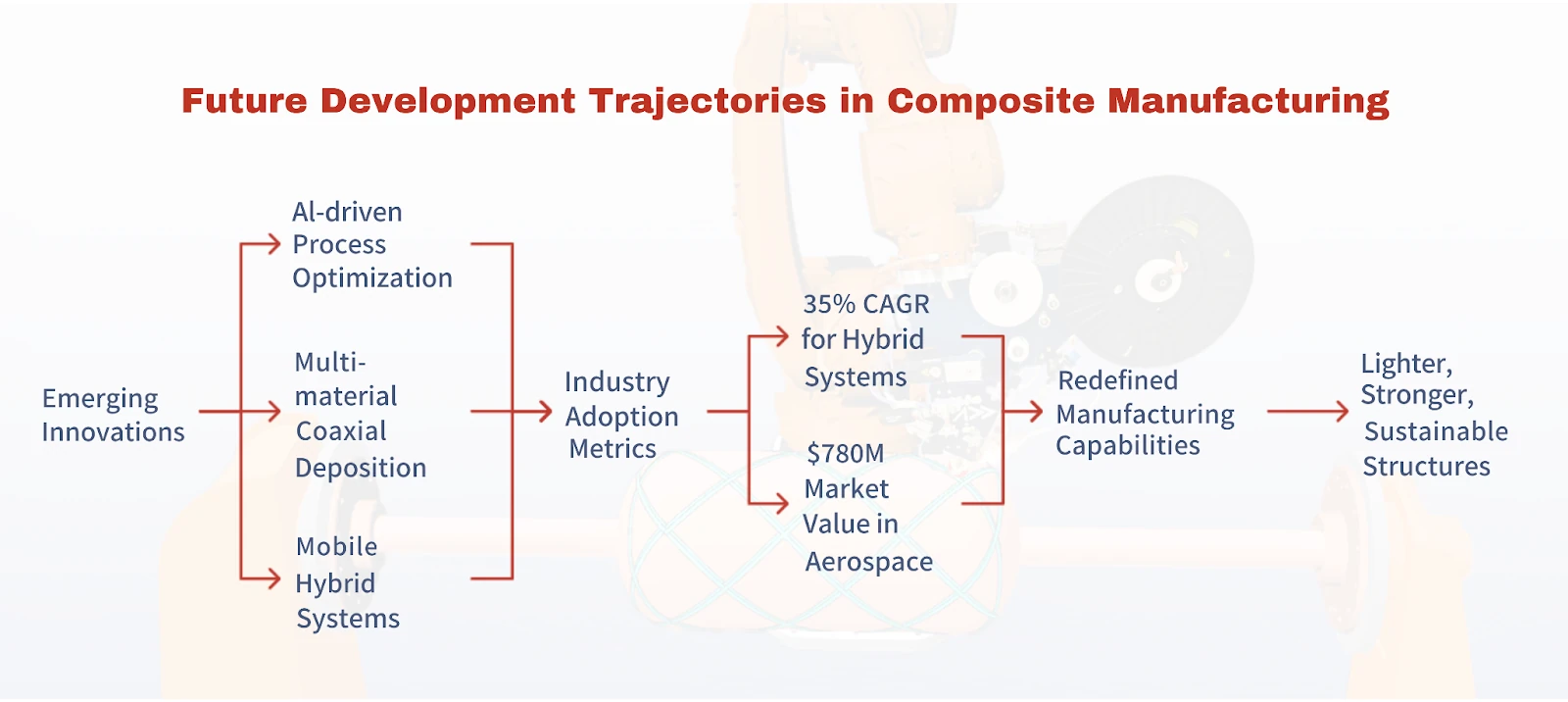

Emerging innovations focus on:

• AI-driven process optimization using digital twins to predict optimal AFP–winding allocations ^[5][6]
• Multi-material coaxial deposition enabling simultaneous winding of CF/Epoxy and AFP placement of GF/PEKK ^[13][14]
• Mobile hybrid systems combining robotic AFP with portable winding units for field repairs ^[9][11]

Industry adoption metrics project:

• A 35% CAGR for hybrid AFP–winding systems through 2030
• A $780M market value in aerospace alone by 2028 ^[5][6]

This technological convergence redefines composite manufacturing capabilities, enabling lighter, stronger, and more sustainable structures across industries. Manufacturers adopting hybrid systems position themselves at the forefront of advanced materials innovation while realizing significant operational efficiencies.
