Mechanical Properties of Honeycomb Structures

Honeycomb structures have captivated the interest of researchers and engineers due to their remarkable mechanical properties, which are predominantly attributed to their unique unit cell configurations.

• These materials are ultra-light and exhibit exceptional strength and stiffness relative to their weight.
• Applications span across aerospace, automotive, packaging, and biomedical implants.
• Enhancing the mechanical properties of traditional honeycomb structures remains a challenge due to design and material limitations.

The primary hurdle is the reliance of honeycombs' mechanical properties on their geometric configuration rather than the material properties of the matrix itself.

• The mechanical properties of honeycombs depend more on their geometric configuration than the material properties of the matrix.
• This dependency limits performance improvements through traditional material selection and processing techniques.
• Classical honeycomb configurations (triangular, square, hexagonal, circular) have been extensively explored, leaving limited room for substantial enhancements without innovative design interventions.

Another significant challenge arises from the manufacturing processes of honeycomb structures.

• Manufacturing processes often introduce defects and inconsistencies, adversely affecting mechanical properties and performance.
• Achieving precision and uniformity in honeycomb microstructure is crucial but challenging, especially for complex or large-scale applications

Furthermore, the quest for materials with not only higher stiffness and strength but also advanced functional properties,

• There is a demand for materials with higher stiffness, strength, negative Poisson’s ratio (NPR), and high energy absorption capability.
• These advanced functional properties require meticulous control over microstructural characteristics, difficult through conventional design and manufacturing approaches.

Given these challenges, there is a compelling need for innovative design strategies that transcend the limitations of traditional honeycomb materials. The pursuit of such advancements aims to unlock new possibilities in engineering and technology, heralding a new era of materials with unparalleled performance and functionality.

Pain Points of Traditional Honeycomb Materials

Traditional honeycomb materials, despite their widespread adoption across numerous industries for their lightweight and strength, encounter specific pain points that limit their application and performance potential. These challenges stem from their intrinsic material and design characteristics, which, while providing significant benefits, also introduce limitations in adaptability, functional properties, and manufacturing precision.

• One of the primary pain points is the inherent limitation in enhancing the mechanical properties of traditional honeycombs due to their reliance on unit cell configuration over the material properties of the matrix itself. This reliance creates a bottleneck in optimizing honeycomb materials for advanced applications, as the scope for improvement through material selection is inherently restricted. The mechanical properties, such as stiffness and strength, are thus confined by the geometric limitations of the cell design, posing a significant challenge in pushing the boundaries of what traditional honeycombs can achieve.
• Moreover, the manufacturing process of honeycomb structures often leads to defects, including inconsistencies in cell size and shape, misalignments, and variations in wall thickness. These defects can significantly impact the mechanical properties of the honeycomb, leading to reduced strength, stiffness, and energy absorption capabilities. Achieving high precision and uniformity in honeycomb structures, especially for complex designs and large-scale applications, remains a daunting challenge with current manufacturing technologies.
• Additionally, traditional honeycomb materials are challenged by their limited functional properties. While they offer excellent specific strength and stiffness, expanding their functionality to include properties such as negative Poisson’s ratio (NPR), high energy absorption, and thermal expansion control is difficult with classical configurations. These advanced properties are increasingly demanded for innovative applications in aerospace, automotive, and biomedical devices, requiring a departure from traditional design paradigms.

The quest for materials that not only meet the mechanical requirements but also offer advanced functional properties necessitates a reevaluation of the design and manufacturing approaches for honeycomb structures.

Advanced Design Strategies for Honeycomb Enhancements

The quest to transcend the inherent limitations of traditional honeycomb structures has led to the exploration and adoption of advanced design strategies. These innovative approaches aim to significantly enhance the mechanical properties and functional capabilities of honeycomb materials, thereby expanding their application spectrum. By reimagining the fundamental design principles of honeycomb structures, researchers and engineers have introduced hierarchical, graded, disordered designs, alongside meso-scale innovations such as hybrid configurations, curved ligaments, and reinforced struts, each addressing specific pain points of traditional materials.

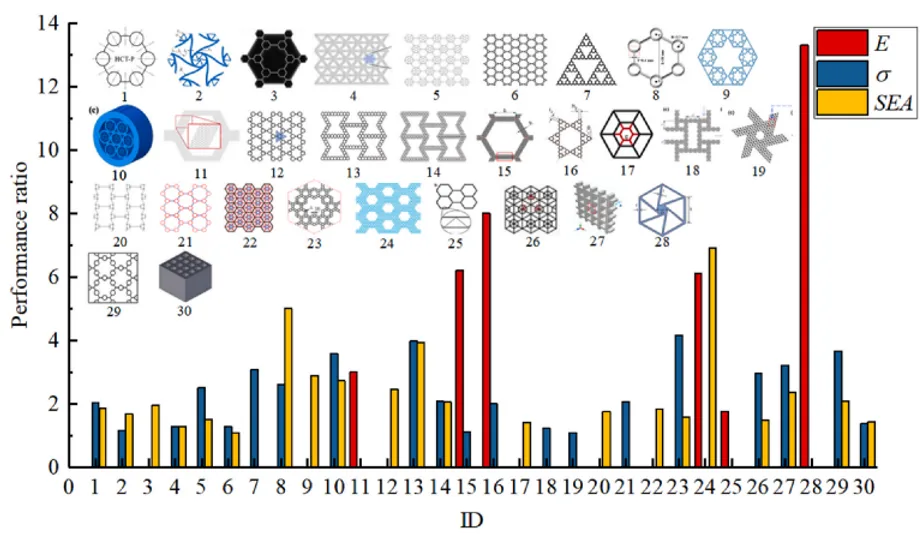

Hierarchical Design: Inspired by natural structures, hierarchical honeycomb designs introduce multiple levels of structural organization within a single material. This approach not only improves mechanical properties such as stiffness and strength but also introduces new functionalities by varying the configuration from macro to nano scales. Hierarchical designs have shown promise in achieving higher specific energy absorption and enhanced mechanical resilience, paving the way for materials with tailored properties for specific applications.

Graded Structures: Functionally graded honeycombs exhibit spatial variations in their material composition or geometric configuration, providing a gradient of properties within a single structure. This strategy enhances the performance of honeycomb materials under varied loading conditions, offering improved energy absorption, stiffness, and strength. Graded designs allow for the optimization of honeycomb materials for specific performance criteria, making them highly adaptable to complex engineering requirements.

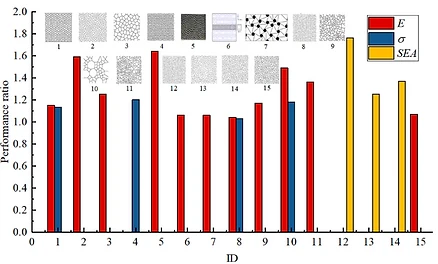

Disordered Configurations: Embracing irregularity, disordered honeycomb designs mimic the stochastic nature of natural materials, offering enhanced toughness and resistance to failure. By introducing variability in cell sizes, shapes, and distributions, disordered honeycombs can exhibit unique mechanical properties, including improved energy absorption and damage tolerance, challenging the paradigm of uniformity in material design.

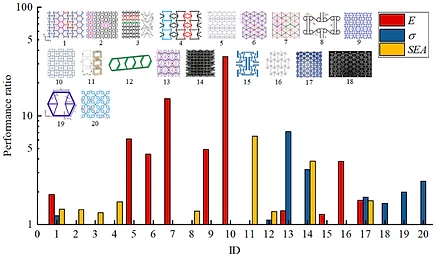

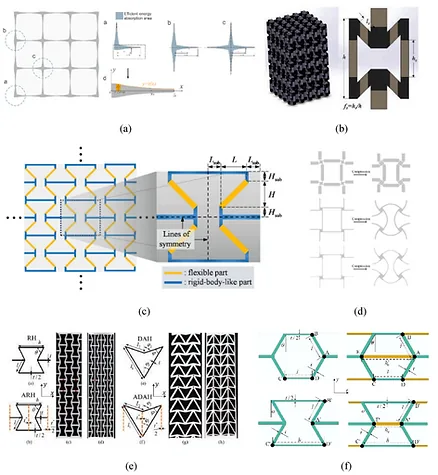

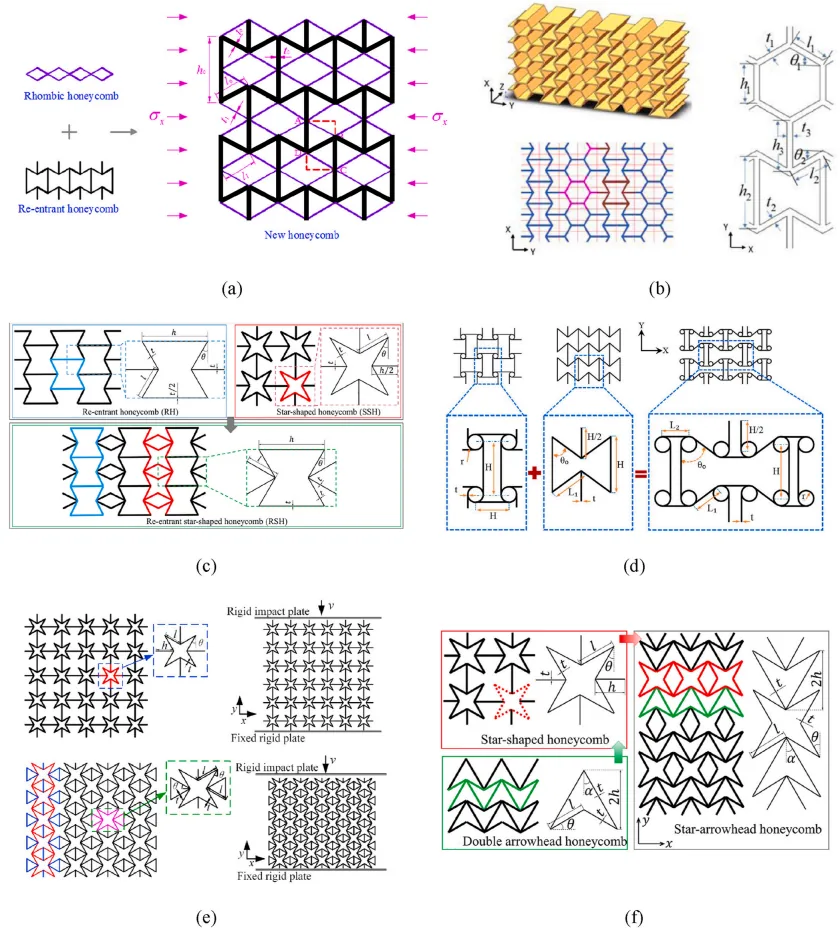

Meso-Scale Innovations: At the meso-scale, hybrid configurations combine the benefits of multiple traditional geometries, offering a synergistic enhancement of mechanical properties. Curved ligaments introduce flexibility and resilience, enabling honeycombs to absorb higher energy impacts. Reinforced struts strengthen critical areas within the honeycomb, significantly improving load-bearing capabilities without compromising weight efficiency.

New Possibilities with Novel Honeycomb Materials

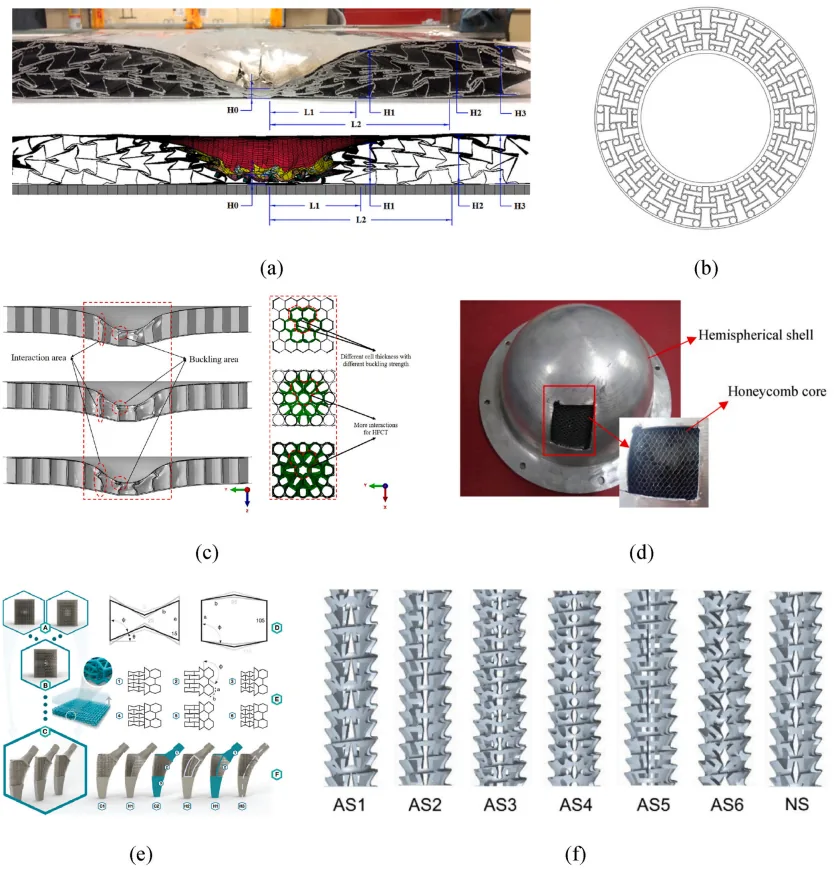

The advent of advanced design strategies for honeycomb materials has not only addressed existing limitations but has also unlocked a myriad of new possibilities across various fields. By pushing the boundaries of mechanical properties and introducing innovative functionalities, enhanced honeycomb structures are paving the way for revolutionary applications in aerospace, automotive, biomedical engineering, and beyond.

• Aerospace and Automotive Applications: The enhanced mechanical properties of honeycombs, such as higher specific stiffness and strength, coupled with improved energy absorption capabilities, are particularly beneficial in aerospace and automotive industries. These sectors demand materials that can withstand extreme conditions while minimizing weight to improve efficiency and performance. Advanced honeycomb designs are finding their place in the construction of lightweight body parts, energy-absorbing panels, and resilient structural components, contributing to safer, more fuel-efficient vehicles and aircraft.
• Biomedical Engineering: The versatility of enhanced honeycomb materials extends into biomedical applications, where their unique properties can be tailored for specific needs. The introduction of hierarchical and graded designs has led to the development of implants and prosthetics with optimized porosity and mechanical properties, mimicking the natural structure of bone and tissue for improved integration and functionality. Furthermore, the controlled deformation capabilities of advanced honeycombs offer potential in developing protective gear and impact-absorbing devices, enhancing patient safety and treatment outcomes.
• Energy Absorption and Protection: The superior energy absorption capabilities of advanced honeycomb materials make them ideal for protective structures in various contexts, from sports equipment to military armor. Innovations in disordered configurations and reinforced struts have resulted in materials that can dissipate impact energy more effectively, providing enhanced protection against shocks and collisions.
• Architectural and Infrastructure Projects: The architectural and civil engineering sectors benefit from the lightweight and high-strength characteristics of advanced honeycomb materials. Their application in building facades, roofing, and flooring systems not only reduces structural weight but also provides improved insulation and energy efficiency. Furthermore, the aesthetic versatility of honeycomb structures, combined with their functional benefits, offers architects and designers new creative possibilities.
• Emerging Technologies and Sustainability: Enhanced honeycomb materials are at the forefront of emerging technologies, including energy storage, filtration, and nanofabrication. Their unique microstructures can be engineered for specific functionalities, such as high surface area for catalysis or porosity for filtration. Additionally, the focus on materials that can be manufactured with less waste and energy input aligns with global sustainability goals, offering pathways to greener technologies and practices.


References

We extend our gratitude to Chang Qi, Feng Jiang, Shu Yang, and their colleagues for their invaluable contributions detailed in "Advanced honeycomb designs for improving mechanical properties: A review". Their pioneering research offers a deep dive into innovative honeycomb structures, marking a significant stride in materials science. Their dedication to exploring hierarchical, graded, and disordered designs, as well as meso-scale innovations, has illuminated the path toward leveraging these materials across a spectrum of applications. This work not only enriches our understanding but also sets the stage for future advancements in the design and utilization of honeycomb structures. Thank you for your profound impact on the field.
