Hydrogen Tank Design and Production for Sustainable Transportation
January 23, 2025
This is some text inside of a div block.
The transportation sector stands at a critical juncture in its evolution toward sustainability, contributing significantly to global greenhouse gas emissions at 29% of the total. As we pursue cleaner alternatives, hydrogen has emerged as a promising solution for sustainable transportation, offering a pathway to zero-emission mobility. The key to unlocking hydrogen's potential lies in effective storage solutions, particularly in the design and production of hydrogen tanks.
Hydrogen's appeal as a sustainable fuel source stems from its unique characteristics. When used in fuel cells, it produces only water vapor as a byproduct, making it an environmentally friendly alternative to fossil fuels. The versatility of hydrogen production methods, particularly through renewable energy sources, further enhances its sustainability credentials. Moreover, hydrogen vehicles can be refueled quickly, comparable to conventional gasoline vehicles, and offer impressive driving ranges due to hydrogen's high energy density.
The journey to sustainable hydrogen production encompasses various methods, each with distinct environmental implications. Steam Methane Reforming (SMR), while cost-effective, generates significant carbon emissions. In contrast, electrolysis powered by renewable energy represents a cleaner alternative, though it requires substantial energy input. Emerging methods like thermochemical processes and biomass gasification show promise for sustainable hydrogen production but need further technological advancement.

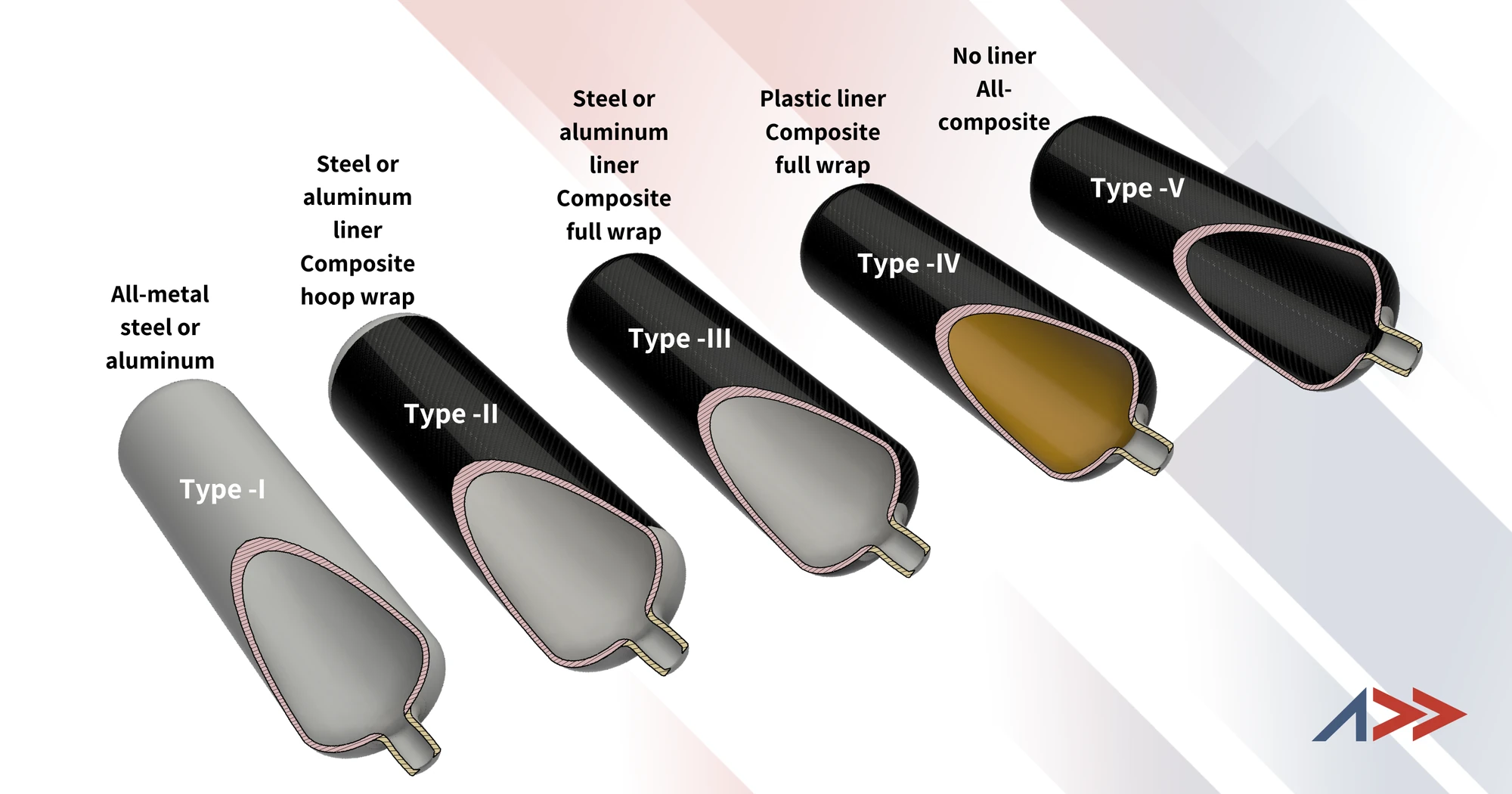

Modern hydrogen storage solutions primarily utilize Composite Overwrapped Pressure Vessels (COPVs). These tanks have evolved through several types, each offering unique advantages:
Type 1 tanks, constructed entirely of steel, provide a cost-effective solution for stationary storage but are too heavy for most mobile applications. Type 2 tanks incorporate partial composite reinforcement, offering a middle ground between cost and weight. Type 3 tanks, featuring aluminum liners with full carbon fiber composite overwrap, significantly reduce weight while maintaining high pressure capacity.
Type 4 tanks represent the current state-of-the-art, using polymer liners with full carbon fiber composite overwrap. These tanks achieve the highest storage density and lightest weight, making them ideal for automotive applications despite their higher manufacturing costs.
The choice of materials plays a crucial role in hydrogen tank performance. For liners, materials range from steel and aluminum to high-density polyethylene and polyamide, each selected based on specific application requirements. The composite overwrap typically utilizes carbon fiber for its exceptional strength-to-weight ratio and resistance to hydrogen embrittlement.
Manufacturing processes have evolved significantly, with Automated Fiber Placement (AFP) and filament winding emerging as preferred methods for producing composite overwrap layers. These techniques ensure precise fiber placement and consistent quality, critical for safety and performance.
Safety remains paramount in hydrogen tank design. Tanks undergo extensive testing, including burst tests, pressure cycling, drop tests, and fire resistance evaluations. Advanced leak detection methods and sophisticated sensor systems ensure operational safety throughout the tank's lifecycle.
The field continues to evolve with promising innovations. Research into new composite materials aims to further improve strength-to-weight ratios and permeation resistance. Smart tank technologies incorporating IoT capabilities enable real-time monitoring and predictive maintenance. Alternative storage methods, such as metal hydrides and carbon nanotubes, are being explored for potential future applications.
The future of sustainable transportation increasingly points toward hydrogen as a key enabler. As technology advances and costs decrease, hydrogen tanks will play a crucial role in this transition. Current developments in materials, manufacturing processes, and safety systems continue to push the boundaries of what's possible in hydrogen storage, bringing us closer to a clean energy future in transportation.
The journey toward widespread adoption of hydrogen-powered vehicles depends significantly on ongoing improvements in tank technology. Through continued innovation and development in this field, we move closer to achieving sustainable transportation goals while maintaining the highest safety and performance standards.
