TLDR

Optimizing Fiber Placement for Composite Structures

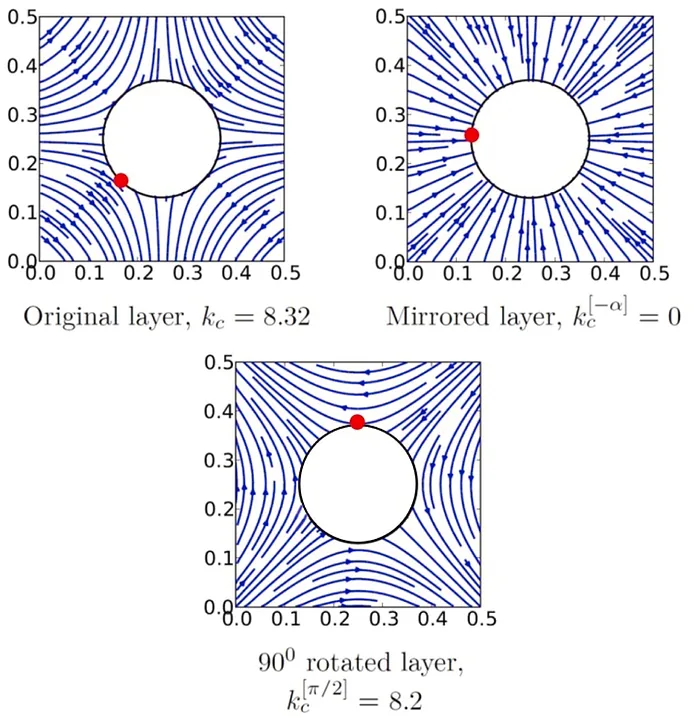

Example for fiber orientations for the original layer (top, left), the mirrored layer (top, right), and for the by 90◦ rotated layer (bottom). The numbers 𝑘𝑐 (in m−1) show  the maximum curvature (MFCC) for each layer and the red dots show the corresponding locations.

Composite materials, especially those reinforced with carbon or glass fibers, are widely used in aerospace and other high-performance applications due to their high strength-to-weight ratio and the ability to tailor their properties according to specific load requirements. However, optimizing the fiber placement in these materials is a complex problem. Traditional methods often fall short in balancing performance enhancement with manufacturability constraints.

The main challenge in optimizing fiber placement lies in the need to control the fiber curvature accurately. High curvature can lead to defects such as fiber wrinkling, tow overlaps, and gaps, which compromise the structural integrity of the composite. Therefore, a method that can optimize fiber paths while adhering to manufacturability constraints is essential.

To address this, a new numerical optimization method has been developed: the Iso-Contour Method. This method leverages an artificial surface defined by a small number of control points to manage fiber orientation smoothly across the composite structure. By doing so, it ensures that constraints like maximum fiber curvature (MFCC) and average fiber curvature (AFCC) are explicitly respected.

The Iso-Contour Method has been validated through several test cases, including simple plates under static loads and more complex structures like wingbox ribs. These validations have demonstrated that the method can produce optimal fiber orientations that significantly enhance structural performance while remaining within manufacturable limits.

Challenges in Managing Fiber Curvature and Ensuring Manufacturability

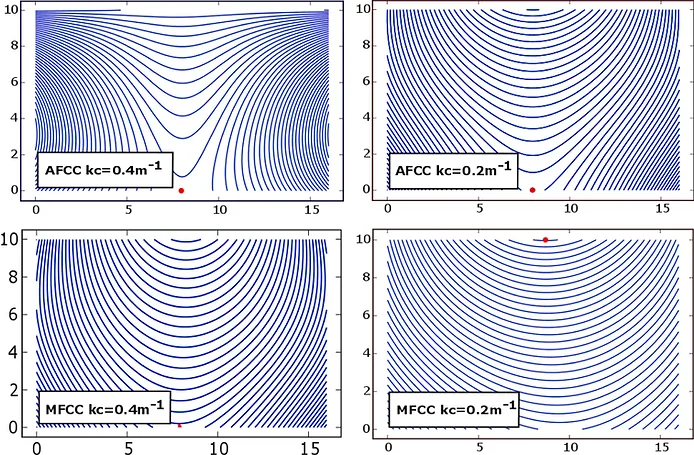

Results of the first test case for AFCC constraints (top row) and MFCC constraints (bottom row). Red dots indicate points of maximum curvature.

One of the most pressing challenges in the optimization of fiber-steered composite materials is managing fiber curvature to ensure manufacturability. Composite materials, while highly customizable in terms of their mechanical properties, pose significant challenges during the manufacturing process, especially when automated fiber placement (AFP) techniques are used.

Key Challenges:

  1. Fiber Curvature Constraints:
    1. High curvature in fiber paths can lead to several manufacturing defects, including fiber wrinkling, tow overlaps, and gaps. These defects compromise the structural integrity and performance of the composite material.
    2. Maximum Fiber Curvature Constraint (MFCC) and Average Fiber Curvature Constraint (AFCC) are critical parameters that must be controlled to avoid these defects. Ensuring these constraints are met requires sophisticated optimization techniques.
  2. Manufacturing Defects:
    1. Tow Gaps and Overlaps: Gaps occur when there is insufficient overlap between adjacent fiber tows, while overlaps can lead to local thickening and weak points.
    2. Wrinkling/Buckling: Excessive fiber curvature can cause fibers to wrinkle or buckle, leading to reduced mechanical properties and potential failure points.
    3. Tow Misalignment and Pull-up: Misalignment occurs when fibers are not laid along the intended path, and pull-up happens when fibers lift from the surface during placement, both of which degrade the composite’s performance.
  3. Optimization Complexity:
    1. The optimization of fiber paths involves managing a high number of design parameters, including fiber orientations, layer thicknesses, and stacking sequences. This complexity is compounded by the need to ensure continuous and smooth fiber paths.
    2. The objectives and constraints in fiber optimization are often non-convex and multi-modal, making it difficult to find a unique solution that meets all requirements.
  4. Computational Demands:
    1. Performing high-fidelity simulations and optimizations that accurately capture the behavior of fiber-reinforced composites is computationally intensive. The need to balance accuracy with computational feasibility is a significant challenge.

The Iso-Contour Method addresses these challenges by providing a novel approach to fiber path optimization that explicitly integrates curvature constraints into the optimization process. This method ensures that the resulting fiber paths are not only optimal in terms of performance but also manufacturable, thereby mitigating the common defects associated with high fiber curvature.

Introducing the Iso-Contour Method for Efficient Fiber Placement

The Iso-Contour Method is a novel optimization technique designed to enhance the performance and manufacturability of fiber-steered composite materials. This method addresses the complex challenge of managing fiber curvature constraints while optimizing the fiber paths for improved structural performance.

Key Features of the Iso-Contour Method:

  1. Artificial Surface Generation:
    1. The Iso-Contour Method begins by creating an artificial parametric surface over the 2D structural domain of the composite material. This surface is defined and controlled by a relatively small number of strategically placed control points.
    2. These control points can be distributed regularly or flexibly to fit specific geometric features of the structure, such as holes or edges, enhancing the method's adaptability to various designs.
  2. Iso-Contour Lines for Fiber Path Control:
    1. Fiber paths are aligned with the iso-contour lines of the artificial surface. These iso-contours represent lines of constant height on the surface, guiding the fiber directions smoothly across the composite.
    2. The smoothness and continuity of the fiber paths are inherently controlled by the smoothness of the artificial surface, ensuring that abrupt changes in fiber direction, which can lead to manufacturing defects, are avoided.
  3. Handling Curvature Constraints:
    1. The method incorporates Maximum Fiber Curvature Constraint (MFCC) and Average Fiber Curvature Constraint (AFCC) directly into the optimization process. This ensures that the optimized fiber paths are manufacturable and free from high curvature-induced defects.
    2. By utilizing mathematical formulations, the method calculates the fiber curvature based on the partial derivatives of the surface heights, allowing precise control over the curvature at every point.
  4. Optimization Process:
    1. The heights at the control points serve as the primary design variables in the optimization process. The objective is to find the optimal configuration of these heights to achieve the desired fiber orientations while satisfying curvature constraints.

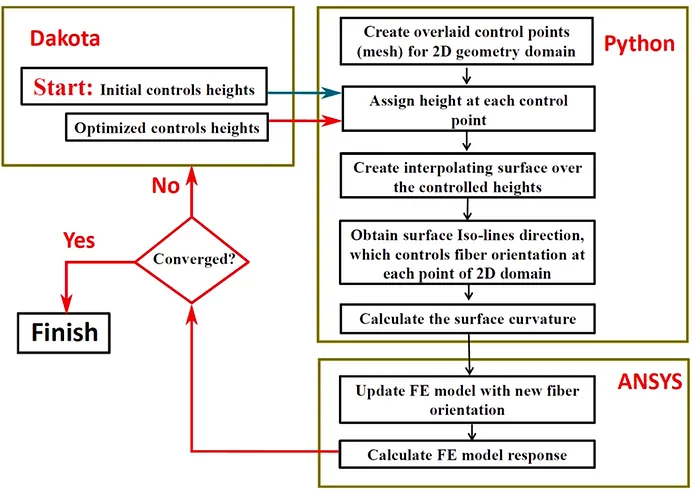

    2. The optimization employs a combination of global and local search strategies. Typically, an evolutionary algorithm is used for the global search phase, followed by a local optimizer, such as COBYLA, for fine-tuning the solution.
    3. This two-stage optimization approach ensures a comprehensive exploration of the design space and efficient convergence to an optimal solution.
  5. Validation and Applications:
    1. The Iso-Contour Method has been validated through multiple test cases, demonstrating its effectiveness in optimizing fiber paths for various composite structures. These test cases include plates under static loads and more complex configurations like wingbox ribs.
    2. In practical applications, the method has shown significant improvements in structural performance while ensuring manufacturability. For instance, in the optimization of a wingbox rib, the method effectively balanced stiffness enhancement with curvature constraints.

Advantages:

  • Reduced Design Complexity: By using a low-dimensional parametrization of the artificial surface, the Iso-Contour Method simplifies the optimization problem, making it computationally feasible.
  • Improved Manufacturability: Explicit incorporation of curvature constraints ensures that the optimized designs are practical and manufacturable, reducing the risk of defects.
  • Enhanced Performance: The method achieves optimal fiber orientations that enhance the structural properties of the composite, such as stiffness, buckling resistance, and load-carrying capacity.

How Iso-Contour Method i.e. Advanced Optimization Technique Works

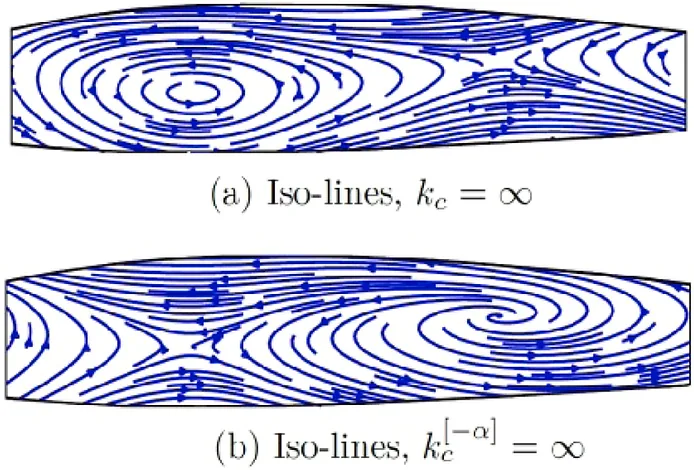

Fiber orientations for the unconstrained case; (results are derived for the  4-layer composite with [±𝛼]𝑠).

The Iso-Contour Method provides a robust solution for optimizing fiber-steered composite structures, significantly enhancing their structural performance while ensuring manufacturability. Here’s how this advanced optimization technique works and the solutions it offers:

1. Parametric Surface Control:

  • The Iso-Contour Method employs an artificial surface defined by a grid of control points. This surface dictates the fiber paths through its iso-contours, ensuring smooth and continuous fiber orientations across the composite structure.
  • By adjusting the heights of the control points, the method effectively manages the fiber curvature, ensuring that both Maximum Fiber Curvature Constraint (MFCC) and Average Fiber Curvature Constraint (AFCC) are respected.

2. Integrated Curvature Constraints:

  • The method explicitly incorporates curvature constraints into the optimization process, addressing one of the major challenges in the manufacturability of fiber-steered composites.
  • Mathematical formulations allow precise calculation of fiber curvature, which is essential for avoiding manufacturing defects such as tow overlaps, gaps, and fiber wrinkling.

3. Two-Stage Optimization Approach:

  • The optimization process is divided into two stages. An evolutionary algorithm is used initially to explore the global design space, followed by a local optimization phase using methods like COBYLA (Constrained Optimization BY Linear Approximations) to refine the solution.
  • This approach ensures a comprehensive search for optimal fiber paths, balancing performance improvements with manufacturability constraints.

4. Validation and Practical Applications:

  • The Iso-Contour Method has been validated through several test cases, including simple plates under static loads and more complex structures like wingbox ribs. These validations confirm the method’s capability to produce optimal, manufacturable fiber paths.
  • In practical applications, such as optimizing the ribs of an aircraft wingbox, the method demonstrated significant improvements in structural stiffness and buckling resistance, while adhering to curvature constraints.

5. Results and Performance Improvements:

  • For example, in optimizing a wingbox rib, the method was able to enhance the stiffness of the rib by adjusting fiber paths to align with the iso-contours of the artificial surface. This not only improved the load-carrying capacity but also ensured that the fiber paths were manufacturable, avoiding defects related to high curvature.
  • Test cases showed that even with stringent curvature constraints, the optimized designs outperformed traditional unidirectional laminates, proving the efficacy of the Iso-Contour Method.

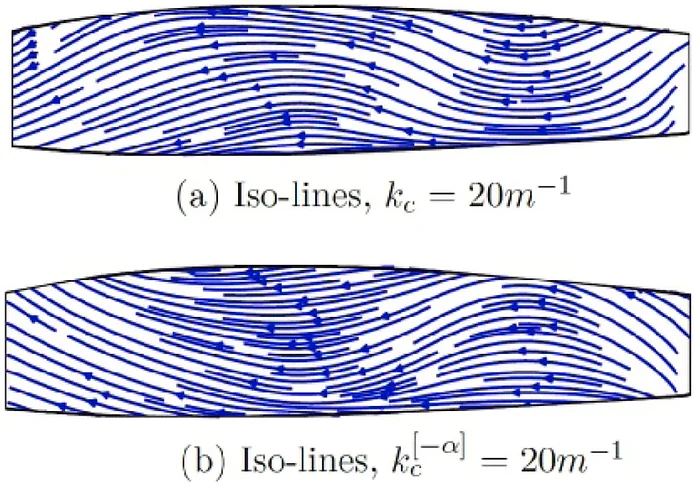

Fiber orientations for the constrained case with an MFCC with 𝑘𝑐 = 20m−1;  (results are derived for the 4-layer composite with [±𝛼]𝑠).

Benefits of the Iso-Contour Method:

  • Enhanced Structural Performance: By optimizing fiber orientations, the method improves critical structural properties such as stiffness, buckling resistance, and load-carrying capacity.
  • Manufacturability Assurance: Explicit curvature constraints ensure that the optimized fiber paths are practical and can be manufactured without defects.
  • Efficiency and Flexibility: The method’s low-dimensional parametrization and two-stage optimization approach make it computationally efficient while offering flexibility to adapt to various design requirements.
  • Broad Applicability: The Iso-Contour Method is applicable to a wide range of composite structures, from simple plates to complex aerospace components, making it a versatile tool for engineers and researchers.

References

We would like to extend our heartfelt thanks to the authors, Anna Arsenyeva, Fabian Duddeck, and Harvey M. Thompson, for their invaluable contributions to this blog. Their groundbreaking work, as detailed in the paper "An Iso-Contour Method for Automated Fiber Placement Optimization of Composite Structures," has provided a wealth of knowledge and insights. This blog post would not have been possible without their innovative research and dedication to advancing the field of composite materials. Thank you for your commitment to excellence and for sharing your expertise with the broader engineering and research community.
