Overview

The hand layup of pre-impregnated woven materials is still a large part of the composite manufacturing industry, requiring the skills and experience of a human workforce to form flat plies into complex shapes. It is capable of producing high-performance and complex parts but can be an expensive and variable process. The actual methods and techniques used by workers to manipulate flat sheets of composite material into shape during layup are described in this article.

Techniques

One-handed guiding

One hand holds the prepreg securely onto the mold surface while the other hand is used to grasp the ply and move it in order to align it with a datum on the mold surface, as can be seen in Figure. Once aligned, the grasping hand generally lowered the prepreg onto the mold surface, and then both hands were used to stick it down.

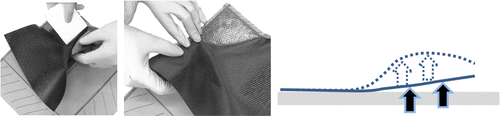

(Left) ‘One-handed guiding’ in use during task 1. (Right) Schematic force diagram of technique (not to scale)
(Left) ‘One-handed guiding’ in use during task. (Right) Schematic force diagram of technique

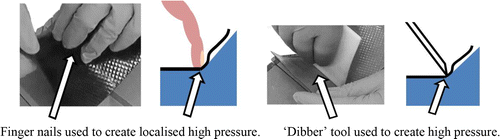

Corner consolidation methods (Top) participant using fingernails to get prepreg into the corner, (Bottom) participant using dibber tool

Corner consolidation methods (Top) participant using finger nails to get prepreg into the corner, (Bottom) participant using dibber tool (not to scale)
Corner consolidation methods (Top) participant using finger nails to get prepreg into the corner, (Bottom) participant using dibber tool

Two-handed guiding

Both hands grasp the ply in order to position the ply on the mold. Often one or both hands then stick the prepreg to the surface once it is aligned. This can also be used to ‘shape’ the ply to fit in or around a mold, as can be seen in the Figure below.

‘Two-handed guiding’ used to both position and shape a ply during Task. (Right) Schematic force diagram of technique
‘Two-handed guiding’ used to both position and shape a ply during Task. (Right) Schematic force diagram of technique

Manual folding

One or both hands are used to manipulate the prepreg out-of-plane in order to create organized and manageable folds in the prepreg, often to deal with a material excess in the prepreg, as seen in the Figure below

Example of folding material to accommodate the shear
Example of folding material to accommodate the shear

Hoop shearing

Fingers, thumbs, or other molds are arranged into a single curved front, which is slowly moved across a region of prepreg, sticking it to the mold while also creating a ‘hoop’ stress in the folded region of the material, which in turn creates shear. The figure below  (A, B) shows two examples of Hoop shearing using either fingers or thumbs to form a single front, C schematic of the Hoop shearing technique from the side view, D schematic of the Hoop shearing technique from the top view

Double-tension shearing

Both hands grasp the reinforcement at two separate locations, which are along a line ± 45° to the fiber directions and apply tension in opposing directions to create shear, as shown in the figure below

(Left) Double-tension shearing used during Task. (Right) Schematic force diagram of technique
(Left) Double-tension shearing used during Task. (Right) Schematic force diagram of technique

Tension-secured shearing

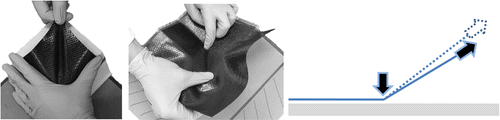

One hand grasps the prepreg and applies tension in order to create shear, while the other hand secures the prepreg to the mold surface in order to prevent slippage, as seen in the figure below. Once shear is created, the ply is either released or lowered onto the mold surface to be stuck down.

Tension-secured shearing
Tension-secured shearing

Tension and sticking

The same as tension-secured shearing but the securing hand slides along the ply, sticking down the prepreg at the same time as shearing, as seen in the figure below

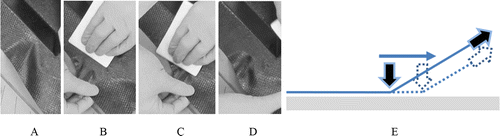

‘Tension and sticking’. (A) Prepreg requiring shear, (B) tension applied, (C) Prepreg smoothed while under tension, (D) sheared prepreg, and (E) schematic force diagram of technique
Tension and sticking (A) Prepreg requiring shear (B) tension applied (C) Prepreg smoothed (D) sheared prepreg (E) schematic force diagram

Mold interaction shearing

The ply is pushed into a recessed region of the mold, which creates sufficient tension in the ply to create the required shear deformation, as seen in the figure below

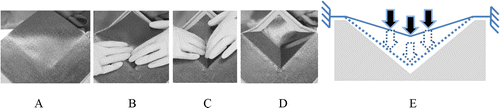

A Ply consolidated up to the recess, B pushing ply into the recess, while creating shear, C ply contacts tool and shearing is completed, D sheared ply, E schematic
A Ply consolidated up to the recess, B pushing ply into the recess, while creating shear, C ply contacts tool and shearing is completed, D sheared ply, E schematic

Summary

The hand lay-up techniques described here do provide the complete picture but gives a general idea about the process and how to interact with different geometry while draping the given prepreg.
