In the realm of composite materials, the intricacies of winding patterns and fiber stacking are not just minute details—they are pivotal elements that dictate the strength, durability, and overall performance of the final product. The blog delves into the heart of these techniques, unraveling the complexities and presenting them in a manner that both industry veterans and budding researchers can appreciate with the following key points

  • Significance of winding patterns: It highlights how winding patterns are crucial for optimizing the mechanical properties of composite structures.
  • Fiber stacking techniques: The introduction outlines various fiber stacking techniques and their applications in different composite materials.
  • Impact on performance: It discusses the impact of winding patterns and fiber stacking on the performance characteristics of composites.
  • Design considerations: The section includes a discussion on design considerations that must be taken into account when selecting winding patterns and stacking sequences.
  • Advanced applications: The introduction hints at advanced applications and the latest developments in the field of composite material fabrication.

The Basic Theory of Winding Patterns and Fiber Stacking

Overview of Filament Winding Techniques

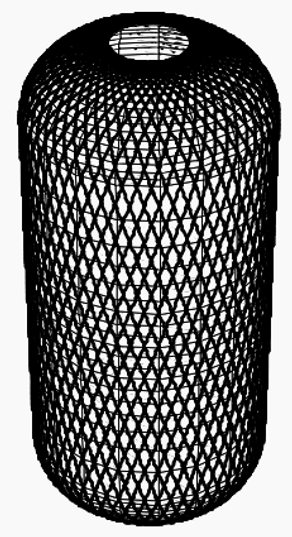

Filament wound composite pressure vessel
Filament wound composite pressure vessel

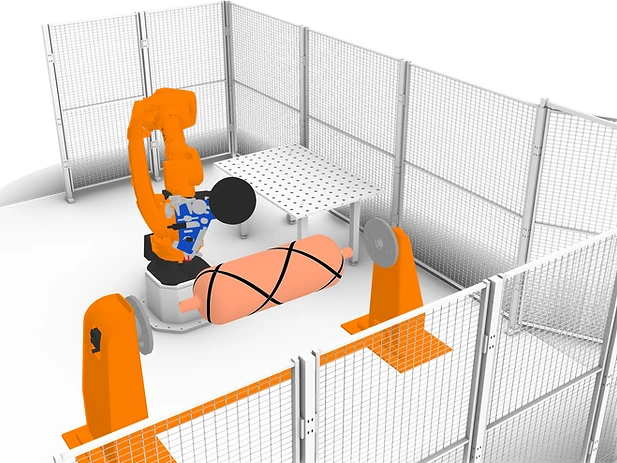

Filament winding is a fabrication process used to create composite materials with high strength-to-weight ratios. It involves winding filaments under tension over a rotating mandrel. The mandrel's shape dictates the final shape of the composite material, and the winding pattern determines the structural integrity and performance of the final product.

The Role of Winding Patterns in Structural Integrity

Winding patterns are crucial in filament winding as they affect the composite's mechanical properties and structural integrity. A suitable winding pattern ensures full and rotationally symmetric coverage, homogeneous thickness in the circumferential direction, and appropriate roving overlap according to the desired number of layers. The repetitive nature of the winding process means that each layer must be precisely placed adjacent to the previous one, with overlaps adjusted to achieve the desired laminate thickness and fiber volume fraction.

How Fiber Stacking Contributes to Composite Performance

Fiber stacking, or the arrangement of fiber bundles in a composite, contributes significantly to the performance of the final product. The orientation and overlap of fibers affect the load distribution and the ability of the composite to withstand various stresses. For instance, a 50% overlap is preferred for two layers, while a 25% overlap is suitable for four layers, ensuring uniform thickness and strength across the composite.

The design process must consider the dimensions of the fiber bundle, as these will influence the winding pattern. The width and thickness of the fiber bundle, if not accounted for, can lead to inhomogeneities in the pattern and, consequently, in the structural performance of the composite.

Technical Aspects and Formulas

Determination of the effective fibre width at the equator
Determination of the effective fibre width at the equator

The creation of winding patterns involves solving a first-order Diophantine equation, which is a relationship between integer numbers that governs the pattern. The equation takes into account the dimensions of the fiber bundle and the desired overlap, leading to an algorithm that can generate suitable patterns for a given set of parameters.

For example, the condition for full coverage at the equator of a wound body is given by the equation:

neq​⋅beff​=2πR

where neq​ is the number of fiber bundles at the equator, beff​ is the effective width of the fiber bundle at the equator, and R is the radius of the body at the equator.

The basic theory of winding patterns and fiber stacking is a complex interplay of geometry, physics, and material science. The precise control of winding patterns and fiber stacking is essential in creating composites that meet specific performance criteria.

2. Decoding the Pattern Generating Algorithm

The filament winding process in composite material manufacturing relies heavily on the precision of winding patterns. These patterns are responsible for the distribution of fibers across the structure, directly influencing its mechanical properties and integrity. The algorithm for generating these patterns is a complex yet fascinating aspect of composite design, involving a blend of mathematics and material science.

Introduction to the Algorithm for Generating Winding Patterns

Winding pattern terminology
Winding pattern terminology

The algorithm's primary goal is to create a winding pattern that ensures the optimal placement of fiber bundles, thereby achieving the desired structural integrity and performance. The process begins with the setting of input parameters, which are dictated by the scalar value of the winding angle, denoted as 'β'. This angle is independent and considered a control parameter, while the eccentricity value 'ε' and the fiber bundle thickness 't' are fixed.

Step-by-Step Explanation of How the Algorithm Works

To construct a suitable pattern, the algorithm considers 'β' as the main control parameter, with the dimensionless fiber bundle width 'B' associated with it. On the equatorial circumference, the fiber bundle occupies an arc corresponding to an angle 'Φβ', which is derived from the equation:

Φβ​=B⋅cos(β)

This angle, in conjunction with 'ΦK(β)', determines the pattern parameters, which are initially real numbers. A perfect pattern is achieved when the Diophantine equations are satisfied for a particular 'β-value', meaning all involved products should be integers. However, this simultaneous satisfaction of conditions is generally not possible, necessitating a specialized strategy to identify potential solution intervals for 'β' and to select the best solutions to minimize undesired fiber bundle overlap.

The Importance of Precision in Pattern Generation

The algorithm operates by localizing 'β-values' that provide integer numbers for 'p(β)', 'k(β)', and 'n(β)', which are points where the value of the stepped lines changes. These values, along with the bounds '[βmin, βmax]', define the intervals potentially containing a solution. The algorithm then identifies intervals containing a possible winding pattern by ensuring that the interval bounds satisfy a set of mathematical conditions.

Every interval that meets these conditions contains three integers that satisfy the Diophantine equation automatically for the assumed number of layers. The algorithm denotes the leading solution by '{p+, k+, dn+}' and the lagging one by '{p-, k-, dn-}'. The corresponding required 'ΦK-angles' can then be found by specific equations provided in the text.

Pattern pattern-generating algorithm is a critical component in the filament winding process, ensuring that the fiber bundles are placed accurately to achieve the desired structural properties. Its precision directly impacts the quality of the resulting product, particularly in terms of laminate coherence and thickness distribution.

Understanding Laminate Thickness Variation in Filament Winding

In the realm of filament winding, the concept of laminate thickness is pivotal. It's not just a matter of layering fibers; it's about precision engineering that dictates the performance of the final composite structure. Here's a deep dive into the intricacies of laminate thickness variation and how it's managed in the filament winding process.

The Concept of Laminate Thickness in Filament Winding

Laminate thickness in filament winding refers to the depth of the fiber layers that are applied to the mold. This thickness is not arbitrary; it is a calculated feature that directly influences the mechanical properties of the final product. The dimensionless radial coordinate of the fiber bundle centerline, denoted by β, and the dimensionless radius of the outer bundle edge, represented by ′β′, are crucial in determining the laminate thickness.

Factors Causing Variations in Thickness

Several factors contribute to variations in laminate thickness during the winding process:

  • Fiber Bundle Dimensions: The width and thickness of the fiber bundle play a significant role in the resulting pattern and, consequently, the laminate thickness. For geodesic fiber trajectories, the construction of a suitable winding pattern depends entirely on these dimensions.
  • Coverage and Overlap: Full and rotationally symmetric coverage, homogeneous thickness in the circumferential direction, and roving overlap according to the desired number of fully completed layers are essential for achieving the right laminate thickness.
  • Winding Angle: The effective width of the fiber at the equator, which depends on the winding angle, is a determining factor for full coverage and, thus, the overall thickness.

Techniques to Control and Optimize Laminate Thickness

To manage and optimize laminate thickness, the following techniques are employed:

  • Pattern Design Strategies: These strategies range from selecting applicable bandwidths to a pattern or distributing a number of bundles with the least sacrifice of homogeneity.
  • Algorithmic Calculations: The use of dimensionless coordinates and the application of equations like Tcomplete​=cY^2 help in predicting the averaged fiber bed thickness across the meridian.
  • Thickness Description at the Polar Area: Special consideration is given to the polar areas where the thickness tends to infinity. The grey surface, multiplied by the number of circuits, should be equal to π(β2−1)Tpolar​, leading to a more complex calculation for these critical zones.
  • Adjusting the Number of Circuits: Increasing the number of circuits can help in reducing variations and achieving a more uniform laminate thickness.

By understanding and controlling these factors, engineers can ensure that the laminate thickness is consistent, which is crucial for the structural integrity and performance of the final composite product. The decisions taken during the design stage have a significant impact on the quality of the resulting product, especially in terms of laminate coherence and thickness distribution.

Practical Application: An Example of Filament Winding

Filament winding is a fabrication technique used extensively in the manufacturing of composite materials, particularly for creating items with a cylindrical shape such as pipes, tanks, and pressure vessels. The process involves winding filaments under tension over a rotating mandrel, which is then cured to form a rigid structure.

Real-World Example Illustrating the Application of Winding Patterns

A pertinent example of filament winding can be found in the aerospace industry, where it is used to manufacture components such as rocket motor casings and fuselage sections for aircraft. In this context, the winding patterns are critical as they determine the directional strength characteristics of the final product. For instance, helical winding patterns are often employed to provide longitudinal strength, while hoop windings enhance the circumferential strength.

Relevance to Industry Practices

The example of aerospace components showcases the relevance of filament winding in industry practices. It highlights the importance of selecting appropriate winding patterns to meet specific strength requirements, which is crucial in applications where safety and performance are paramount. The technique's ability to produce lightweight yet strong structures is particularly valued in the aerospace sector, where reducing weight without compromising strength is a constant challenge.

Key Takeaways for New Researchers

For new researchers, this example underscores the importance of understanding the interplay between winding patterns and the mechanical properties of the final composite structure. It also emphasizes the need for precision in the winding process, as variations in tension or alignment can significantly affect the performance of the component. Additionally, researchers should note the following key points:

  • The selection of materials for the filaments and the matrix is as crucial as the winding pattern itself.
  • The curing process, which often involves heat and pressure, must be carefully controlled to ensure the integrity of the composite material.
  • Advanced simulation tools can be invaluable in predicting the outcomes of different winding patterns and material choices before actual manufacturing.

Filament winding is a prime example of how advanced manufacturing techniques are being applied to meet the stringent demands of modern industry. For researchers and practitioners alike, understanding the nuances of this process can lead to innovations that push the boundaries of material performance.

Conclusion

we recognize the pivotal role these elements play in the composites industry. Understanding the intricacies of winding patterns and the strategic placement of fibers is not just a matter of technical proficiency, but a cornerstone for innovation and advancement in the field.

  • Understanding Winding Patterns and Fiber Stacking:
    • Essential for technical proficiency in composite material design.
    • Directly influences the strength, flexibility, and durability of the final product.
  • Impact of Winding Patterns:
    • Patterns dictate performance characteristics crucial to the material's application.
    • Different patterns (e.g., hoop winding, helical winding) serve specific functional needs.
  • Significance of Fiber Stacking:
    • Determines the composite's load-bearing capabilities and failure responses.
    • Each fiber layer's orientation is a strategic choice impacting overall structural integrity.
  • Real-World Industry Implications:
    • Practical knowledge drives innovation in the composites industry.
    • Empowers engineers to create materials that are lighter and stronger.
  • Future Exploration and Innovation:
    • The industry stands on the brink of potential advancements through design and material science.
    • Computational modeling and automation are unlocking new possibilities for complex structures.
