In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

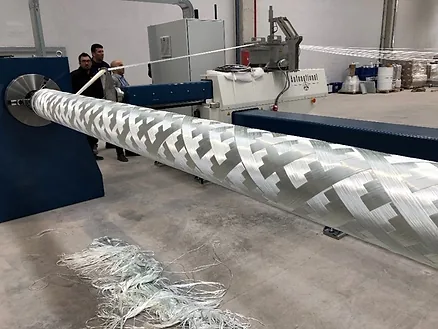

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

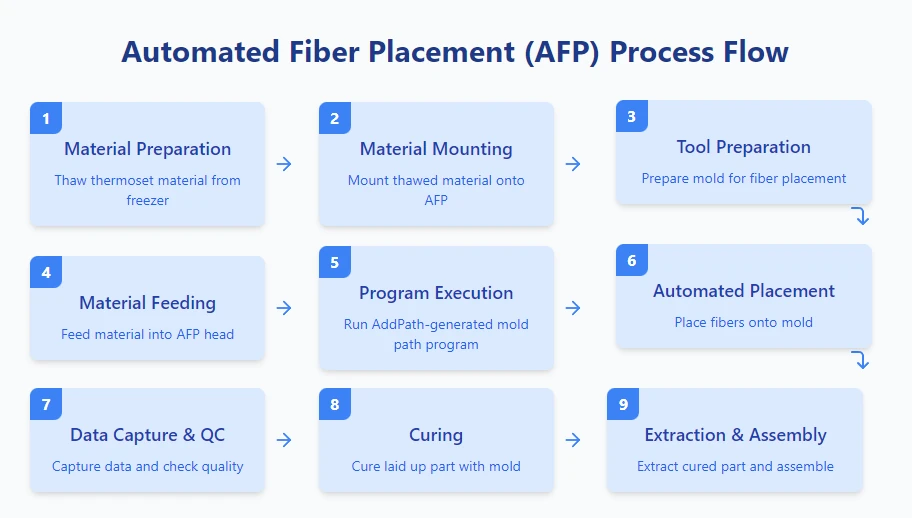

A. Overview of AFP Technology

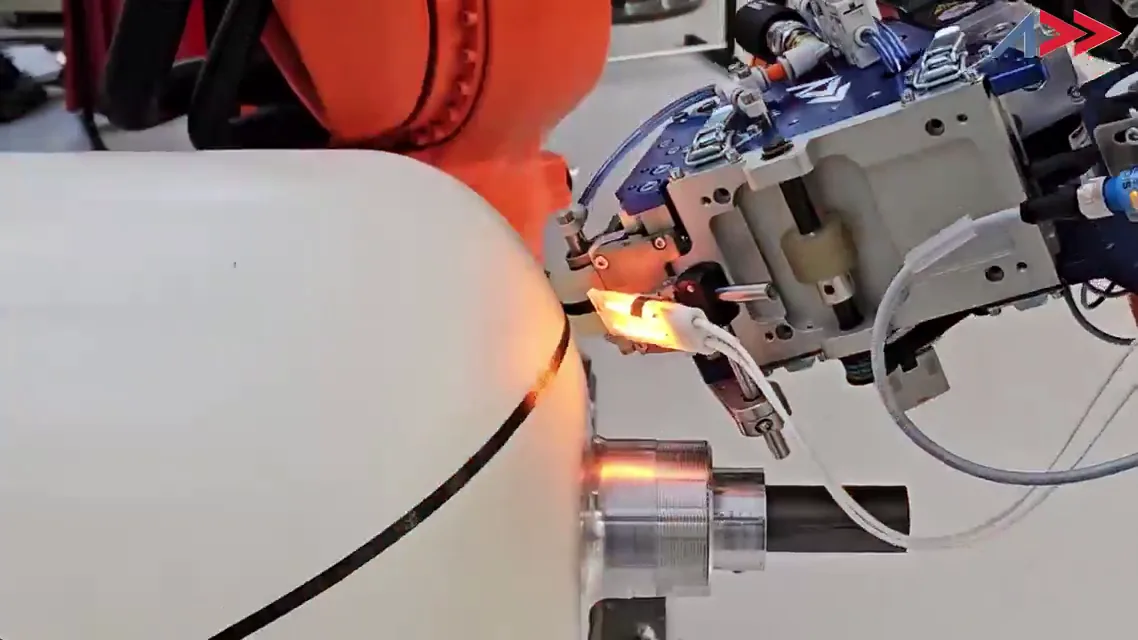

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

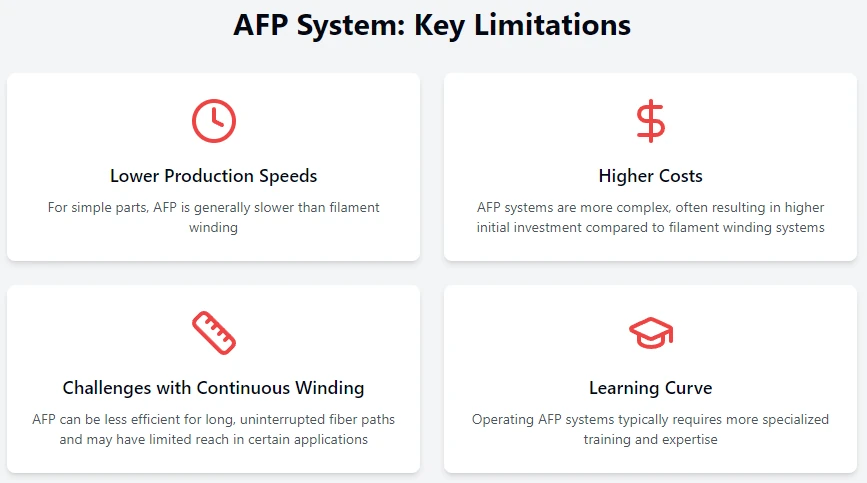

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

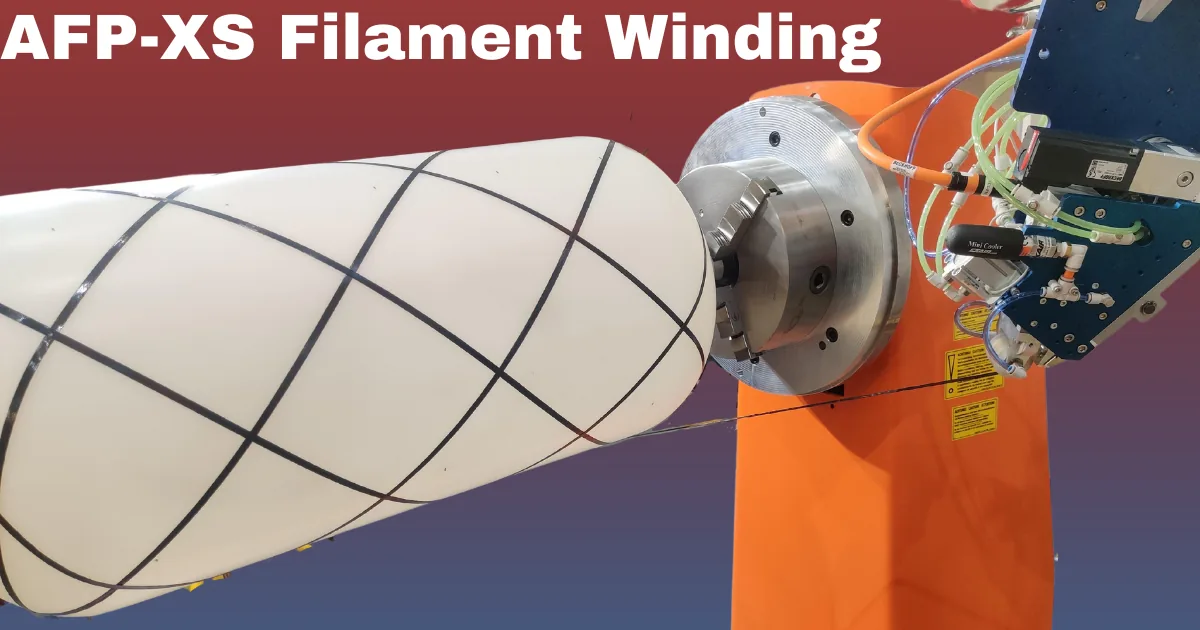

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

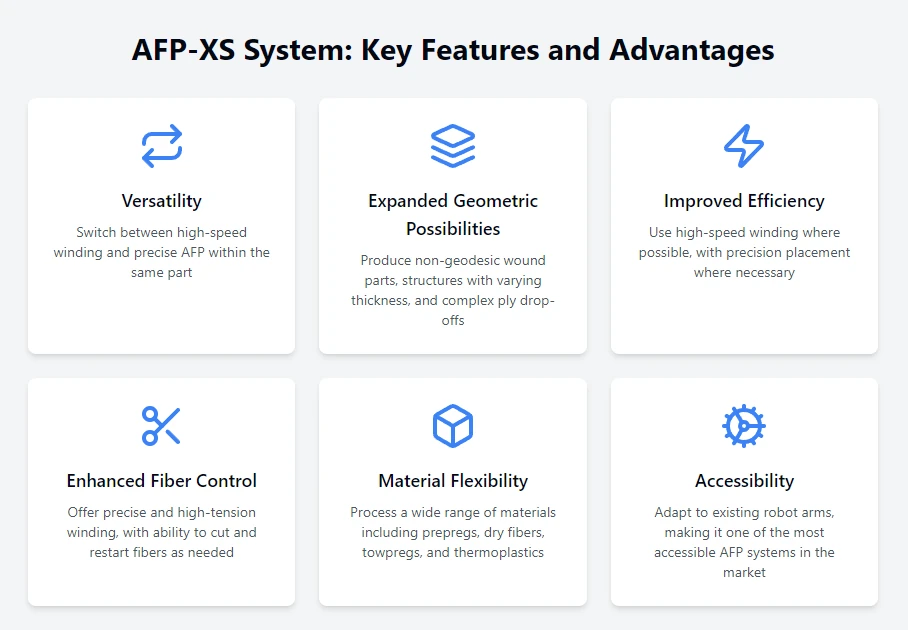

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

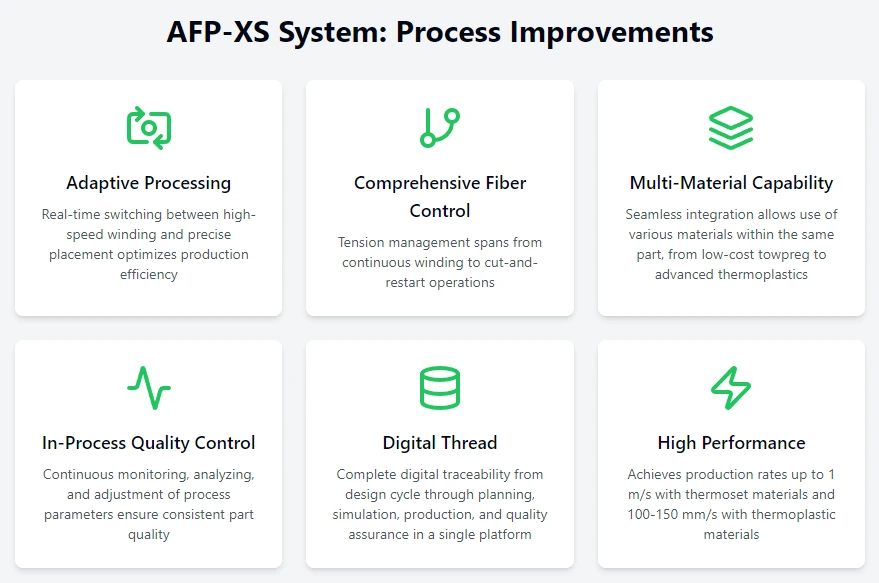

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

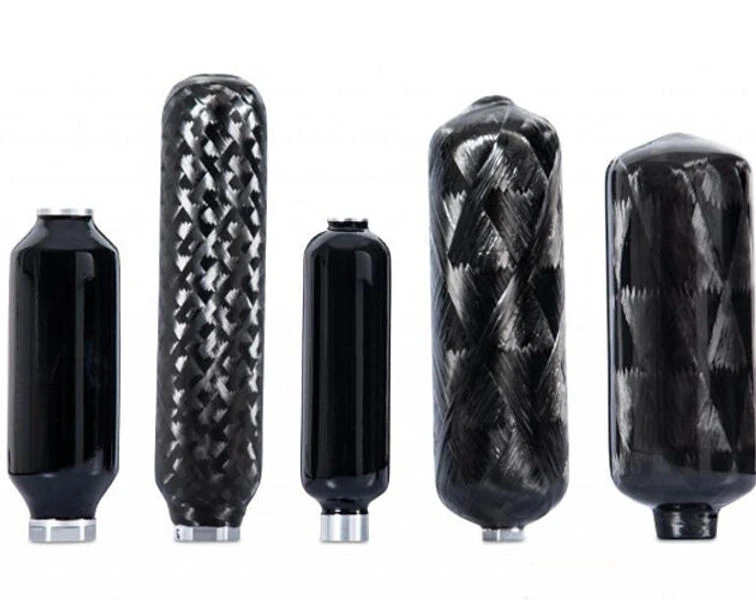

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

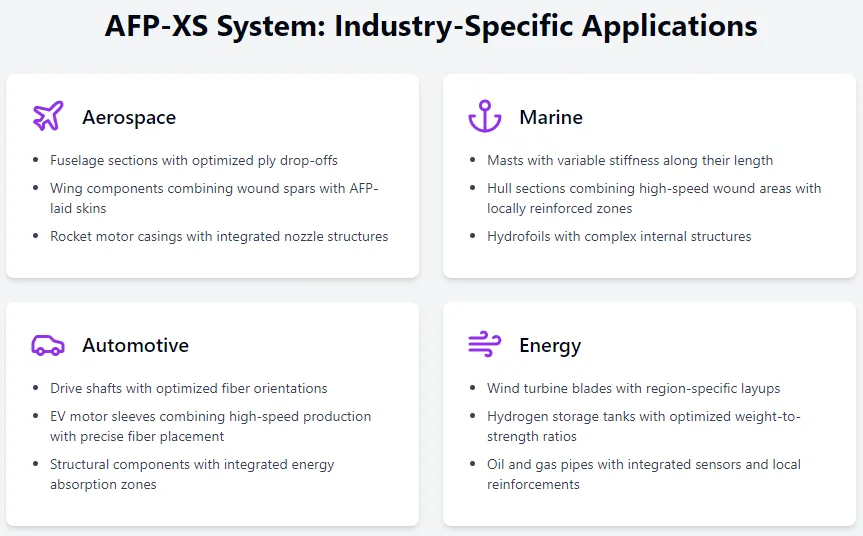

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

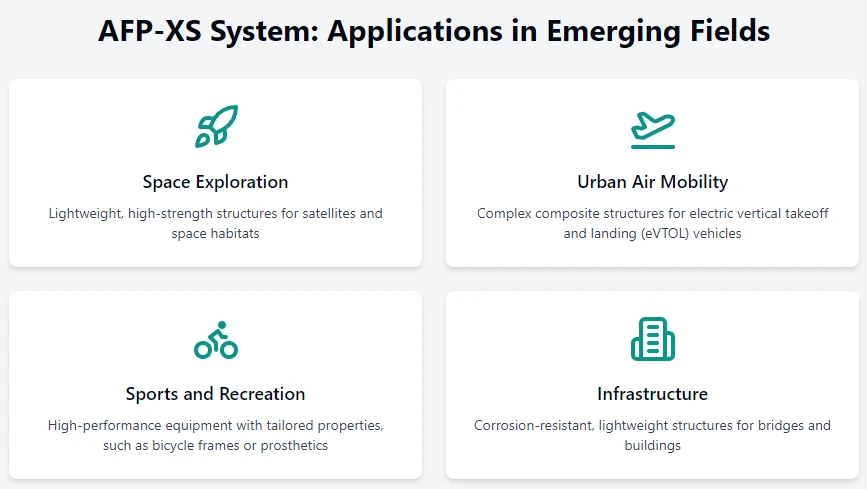

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

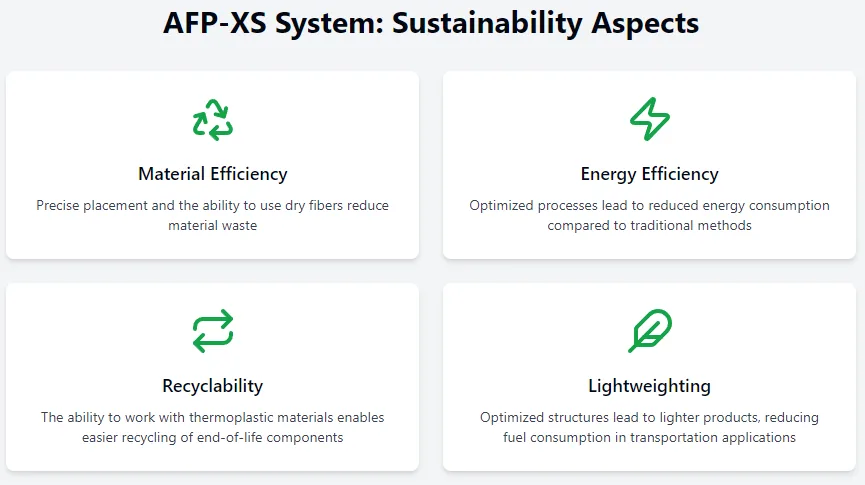

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

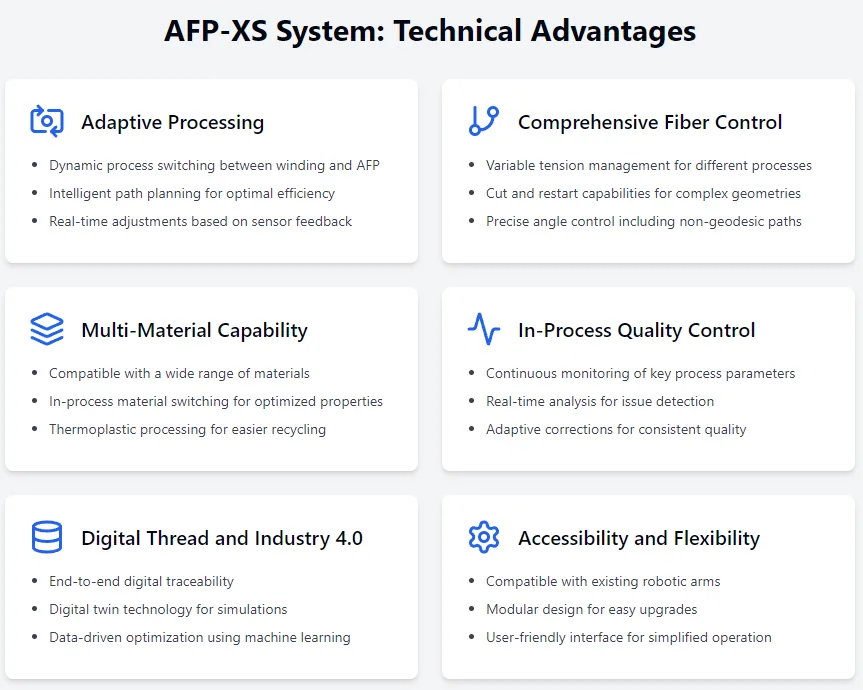

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

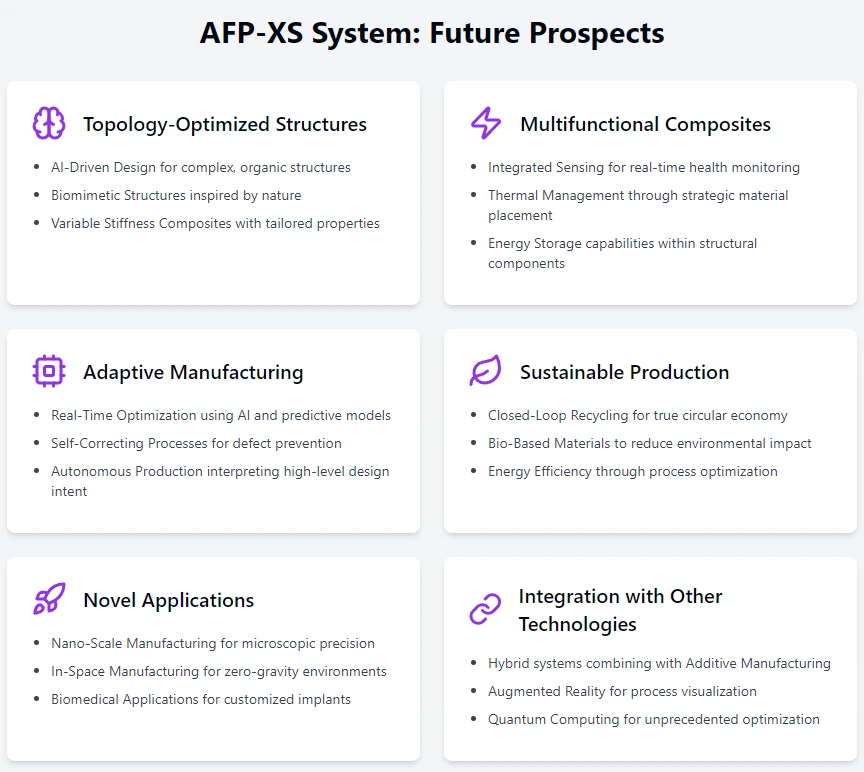

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

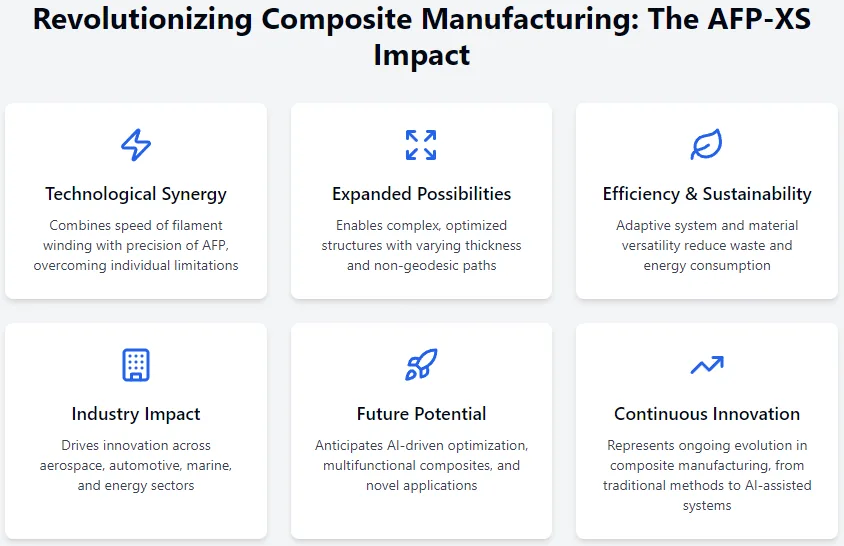

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍

In the ever-evolving landscape of composite manufacturing, a groundbreaking fusion of technologies is set to redefine the boundaries of what's possible. Imagine a production system capable of weaving spacecraft components that are lighter than air yet stronger than steel. This isn't science fiction—it's the reality emerging from the integration of two game-changing technologies: Filament Winding and Automated Fiber Placement (AFP).

For years, these technologies have existed as separate entities, each with its own strengths and limitations. Filament winding has long been a cornerstone of composite manufacturing, particularly for axially symmetric hollow parts. Meanwhile, AFP systems brought new levels of precision and flexibility to the field. Now, with the advent of the AFP-XS system from Addcomposites, we're witnessing a technological convergence that promises to revolutionize composite manufacturing.

This blog post delves into the technical intricacies of this integration, exploring how it addresses the limitations of both technologies while opening up new possibilities for design and production. We'll examine the challenges overcome in merging these technologies, the resulting capabilities, and the implications for various industries, from aerospace to automotive.

As we pull back the curtain on this manufacturing revolution, prepare to challenge everything you thought you knew about composites manufacturing. Whether you're a seasoned industry professional or a curious enthusiast, this deep dive into the fusion of filament winding and AFP technologies promises to expand your understanding of what's possible in the world of advanced materials and manufacturing.

Let's embark on this technical journey, exploring the past, present, and future of composite manufacturing technology.

‍

Filament winding has been a cornerstone of composite manufacturing for decades, particularly excelling in the production of axially symmetric hollow parts. This process involves winding continuous reinforcement fibers onto a rotating mandrel in a precise geometric pattern, creating strong, lightweight structures.

‍

A. Explanation of the Process

In filament winding, fibers are fed through a resin bath or are pre-impregnated with resin, then wound onto a rotating mandrel. The fiber delivery system moves along the length of the mandrel, precisely controlling the angle and position of the fibers. This process continues layer by layer until the desired thickness and strength are achieved.

B. Types: Wet Winding vs. Dry Winding

Filament winding primarily consists of two methods:

1. Wet Winding: In this method, dry fibers are impregnated with resin during the winding process. The fibers pass through a resin bath just before being applied to the mandrel.
2. Dry Winding: This method utilizes pre-impregnated fibers (prepregs). The resin is already integrated with the fibers before the winding process begins.

Each method has its advantages in terms of cost-effectiveness, production volume, and part quality.

C. Strengths and Limitations

Filament winding offers several key strengths:

1. Cost-effectiveness: Generally, filament winding systems have lower equipment costs compared to AFP systems.
2. High production rates: The process is particularly efficient for simple, symmetrical parts.
3. Excellent fiber control: It provides consistent tension management for hollow structures.

However, traditional filament winding also has limitations:

1. Geometric constraints: The process is primarily limited to geodesic paths and cannot handle negative curvatures.
2. Limited complexity: There's difficulty in producing parts with specific fiber orientations, varying thickness, or local reinforcements.

These limitations have historically restricted the application of filament winding to certain types of parts and industries, setting the stage for the development of more advanced technologies like AFP.

‍

Automated Fiber Placement (AFP) represents a significant advancement in composite manufacturing technology, bringing new levels of precision and flexibility to the field. Developed to overcome some of the limitations of traditional filament winding, AFP has opened up new possibilities in composite part design and production.

A. Overview of AFP Technology

AFP systems use a robotic arm or gantry to precisely place multiple pre-impregnated fiber tows or thermoset/thermoplastic tapes onto a mold or mandrel. The system can cut, restart, and precisely position these narrow strips of composite material, allowing for the creation of complex geometries and structures.

Key components of an AFP system typically include:

1. A fiber placement head
2. A material delivery system
3. A compaction system
4. Heating elements for tack control
5. A precise motion control system
6. Sophisticated software for path planning and control

B. Key Strengths

AFP technology offers several significant advantages:

1. Complex Geometries: AFP can create non-geodesic paths and variable thickness structures, allowing for more intricate and optimized designs.
2. Precision Placement: The system provides accurate control of individual tows or tapes, enabling precise fiber orientation and positioning.
3. Material Versatility: AFP is compatible with a wide range of materials, including slitted thermoset, thermoplastic, dry fiber, and towpreg materials.
4. Reduced Waste: The ability to precisely place material and cut/restart as needed significantly reduces material waste compared to traditional methods.
5. Consistency and Repeatability: Automated processes ensure high consistency across parts, critical for industries with strict quality requirements.

C. Limitations

Despite its advanced capabilities, AFP also has some limitations:

1. Lower Production Speeds: For simple parts, AFP is generally slower than filament winding.
2. Higher Costs: AFP systems are more complex, often resulting in higher initial investment compared to filament winding systems.
3. Challenges with Continuous Winding: AFP can be less efficient for long, uninterrupted fiber paths and may have limited reach in certain applications.
4. Learning Curve: Operating AFP systems typically requires more specialized training and expertise.

These strengths and limitations have positioned AFP as a powerful technology for producing complex, high-performance composite parts, particularly in industries like aerospace where precision and design flexibility are crucial.

‍

The AFP-XS system from Addcomposites represents a significant leap forward in composite manufacturing technology, seamlessly integrating the capabilities of filament winding and Automated Fiber Placement (AFP). This fusion addresses the limitations of both technologies while combining their strengths, opening up new possibilities in composite part design and production.

A. Introduction to the Integrated System

The AFP-XS system is a ground-up redesign that considers both AFP and filament winding processes as part of a single, cohesive unit. This integration is achieved through:

1. Unified Hardware: A single system capable of performing both AFP and filament winding processes.
2. Comprehensive Automation: Sensors and actuators designed to support both technologies.
3. Integrated Software: A single software platform for motion planning and control of both AFP and filament winding operations.

This holistic approach allows for seamless transitions between AFP and filament winding processes, enabling the production of complex parts that were previously impossible or impractical to manufacture.

B. Key Features and Advantages

The integration of these technologies in the AFP-XS system offers several key advantages:

1. Versatility: The system can switch between high-speed winding for simple sections and precise AFP for complex areas within the same part.
2. Expanded Geometric Possibilities: It can produce non-geodesic wound parts, structures with varying thickness, and complex ply drop-offs.
3. Improved Efficiency: High-speed winding is used where possible, with precision placement employed where necessary.
4. Enhanced Fiber Control: The system offers precise and high-tension winding, with the ability to cut and restart fibers as needed.
5. Material Flexibility: The AFP-XS is capable of processing a wide range of materials, including traditional prepregs, dry fibers, towpregs, and thermoplastics.
6. Accessibility: The system can be adapted to existing robot arms, making it one of the most accessible AFP systems in the market.

C. Process Improvements

The AFP-XS system introduces several process improvements:

1. Adaptive Processing: Real-time switching between high-speed winding and precise placement optimizes production efficiency.
2. Comprehensive Fiber Control: Tension management spans from continuous winding to cut-and-restart operations.
3. Multi-Material Capability: Seamless integration allows the use of various materials within the same part, from low-cost towpreg to advanced thermoplastics.
4. In-Process Quality Control: Continuous monitoring, analyzing, and adjustment of process parameters ensure consistent part quality.
5. Digital Thread: Complete digital traceability from design cycle through planning, simulation, production, and quality assurance in a single platform.
6. High Performance: The system can achieve production rates of up to one meter per second with thermoset materials and 100-150 millimeters per second with thermoplastic materials.

These features and improvements make the AFP-XS system a powerful tool for producing complex, high-performance composite parts across various industries, from aerospace and automotive to marine and energy.

‍

The integration of filament winding and AFP technologies in the AFP-XS system opens up a wide range of new possibilities in composite manufacturing. This section explores some of the key applications and industry-specific use cases that showcase the potential of this revolutionary technology.

A. Examples of New Structures Made Possible

The AFP-XS system enables the production of previously unattainable or impractical structures:

1. Asymmetric Pressure Vessels: Unlike traditional filament winding, the AFP-XS can create pressure vessels with non-uniform shapes, optimized for specific applications.
2. Complex Tubes and Sleeves: The system can produce tubes and sleeves with varying wall thicknesses, optimized fiber paths, and integrated features.
3. Structures with Integral Stiffeners: The ability to switch between winding and placement allows for the creation of parts with built-in reinforcements.
4. Components with Region-Specific Properties: By utilizing different materials and layup strategies within the same part, engineers can optimize performance for specific load cases.

B. Industry-Specific Applications

1. Aerospace
   • Fuselage sections with optimized ply drop-offs
   • Wing components combining wound spars with AFP-laid skins
   • Rocket motor casings with integrated nozzle structures
2. Marine
   • Masts with variable stiffness along their length
   • Hull sections combining high-speed wound areas with locally reinforced zones
   • Hydrofoils with complex internal structures
3. Automotive
   • Drive shafts with optimized fiber orientations
   • EV motor sleeves combining high-speed production with precise fiber placement
   • Structural components with integrated energy absorption zones
4. Energy
   • Wind turbine blades with region-specific layups
   • Hydrogen storage tanks with optimized weight-to-strength ratios
   • Oil and gas pipes with integrated sensors and local reinforcements

C. Emerging Applications

The versatility of the AFP-XS system is also enabling new applications in emerging fields:

1. Space Exploration: Lightweight, high-strength structures for satellites and space habitats
2. Urban Air Mobility: Complex composite structures for electric vertical takeoff and landing (eVTOL) vehicles
3. Sports and Recreation: High-performance equipment with tailored properties, such as bicycle frames or prosthetics
4. Infrastructure: Corrosion-resistant, lightweight structures for bridges and buildings

D. Sustainability Aspects

The AFP-XS system also contributes to more sustainable manufacturing practices:

1. Material Efficiency: Precise placement and the ability to use dry fibers reduce material waste.
2. Energy Efficiency: Optimized processes lead to reduced energy consumption compared to traditional methods.
3. Recyclability: The ability to work with thermoplastic materials enables easier recycling of end-of-life components.
4. Lightweighting: Optimized structures lead to lighter products, reducing fuel consumption in transportation applications.

‍

The AFP-XS system's integration of filament winding and AFP technologies yields several significant technical advantages. These advancements not only enhance the manufacturing process but also expand the possibilities for composite part design and production.

A. Adaptive Processing

One of the most notable features of the AFP-XS system is its ability to adapt in real-time between high-speed winding and precise placement:

1. Dynamic Process Switching: The system can seamlessly transition between filament winding and AFP processes within the same part, optimizing for speed or precision as needed.
2. Intelligent Path Planning: Advanced algorithms determine the most efficient manufacturing strategy for each section of a part, balancing production speed with required precision.
3. Real-time Adjustments: The system can make on-the-fly adjustments to process parameters based on feedback from integrated sensors, ensuring consistent quality throughout the part.

B. Comprehensive Fiber Control

The AFP-XS system offers unprecedented control over fiber placement and tension:

1. Variable Tension Management: The system can maintain precise control over fiber tension, from the high tensions required in filament winding to the lower tensions used in AFP.
2. Cut and Restart Capabilities: Unlike traditional filament winding, the AFP-XS can cut and restart fibers as needed, allowing for complex ply drops and local reinforcements.
3. Precise Angle Control: The system can achieve a wide range of fiber angles, including non-geodesic paths that were challenging or impossible with traditional filament winding.

C. Multi-Material Capability

The AFP-XS system's versatility extends to its ability to work with a wide range of materials:

1. Material Compatibility: The system can process everything from low-cost towpreg to advanced thermoplastic tapes, enabling cost-effective production of high-performance parts.
2. In-Process Material Switching: Different materials can be used within the same part, allowing for optimization of properties in specific areas.
3. Thermoplastic Processing: The system's ability to work with thermoplastic materials opens up new possibilities for in-situ consolidation and easier recycling of end-of-life components.

D. In-Process Quality Control

The AFP-XS system incorporates advanced quality control measures directly into the manufacturing process:

1. Continuous Monitoring: Integrated sensors continuously monitor key process parameters such as fiber tension, placement accuracy, and consolidation pressure.
2. Real-time Analysis: Advanced algorithms analyze sensor data in real-time, detecting and flagging potential issues as they occur.
3. Adaptive Corrections: The system can make automatic adjustments to correct minor issues, ensuring consistent quality throughout the production run.

E. Digital Thread and Industry 4.0 Integration

The AFP-XS system embraces the principles of Industry 4.0, offering complete digital integration throughout the manufacturing process:

1. End-to-End Traceability: Every aspect of the production process, from initial design to final quality assurance, is digitally tracked and recorded.
2. Digital Twin Technology: A virtual representation of the physical part is created and updated in real-time during production, allowing for advanced simulations and predictive maintenance.
3. Data-Driven Optimization: Machine learning algorithms analyze production data to continuously improve process parameters and part quality over time.

F. Accessibility and Flexibility

Despite its advanced capabilities, the AFP-XS system is designed for accessibility and ease of integration:

1. Robotic Arm Compatibility: The system can be adapted to work with a wide range of existing robotic arms, reducing the barrier to entry for many manufacturers.
2. Modular Design: The modular nature of the system allows for easy upgrades and customization to meet specific production needs.
3. User-Friendly Interface: Despite its complexity, the system features an intuitive user interface that simplifies operation and reduces the learning curve for operators.

‍

As we look to the future, the integration of filament winding and AFP technologies in systems like the AFP-XS opens up exciting possibilities for further advancement in composite manufacturing. This section explores some of the emerging trends and potential developments that could shape the future of this technology.

A. Topology-Optimized Structures

The flexibility of the AFP-XS system sets the stage for the creation of highly optimized structures:

1. AI-Driven Design: Machine learning algorithms could generate complex, organic designs optimized for specific load cases and manufacturing constraints.
2. Biomimetic Structures: Drawing inspiration from nature, future composite parts could mimic the efficiency and resilience of biological structures.
3. Variable Stiffness Composites: Advanced fiber placement strategies could create parts with tailored stiffness properties throughout their structure.

B. Multifunctional Composites

Future developments may see the AFP-XS system creating parts that go beyond structural functions:

1. Integrated Sensing: Embedding sensors directly into composite structures during manufacture could enable real-time health monitoring of parts.
2. Thermal Management: Strategic placement of different materials could create composites with optimized thermal properties.
3. Energy Storage: Future composites might incorporate materials for energy storage, creating structural batteries or capacitors.

C. Adaptive Manufacturing

The AFP-XS system is poised to become even more intelligent and adaptive:

1. Real-Time Optimization: AI systems could continuously adjust manufacturing parameters based on real-time feedback and predictive models.
2. Self-Correcting Processes: Advanced sensor systems and control algorithms could detect and correct defects during the manufacturing process.
3. Autonomous Production: Future systems might be capable of interpreting high-level design intent and autonomously determining the best manufacturing strategy.

D. Sustainable Production

Sustainability will likely play an increasingly important role in future developments:

1. Closed-Loop Recycling: Advancements in thermoplastic composites and in-situ recycling could enable true closed-loop production systems.
2. Bio-Based Materials: Integration of bio-based fibers and resins could reduce the environmental impact of composite production.
3. Energy Efficiency: Continued optimization of the manufacturing process could significantly reduce energy consumption.

E. Novel Applications

As the technology advances, we can expect to see it applied in new and unexpected ways:

1. Nano-Scale Manufacturing: Miniaturization of the technology could enable precise fiber placement at microscopic scales.
2. In-Space Manufacturing: Adapted versions of the technology could be used to create large structures in zero-gravity environments.
3. Biomedical Applications: Highly customized, biocompatible structures could be created for medical implants or tissue engineering scaffolds.

F. Integration with Other Technologies

The future may see the AFP-XS system integrated with other cutting-edge technologies:

1. Additive Manufacturing: Hybrid systems could combine fiber placement with 3D printing for even greater design freedom.
2. Augmented Reality: AR systems could assist operators and provide real-time visualization of the manufacturing process.
3. Quantum Computing: As quantum computers become more accessible, they could enable unprecedented levels of optimization in both design and manufacturing processes.

‍

As we've explored throughout this blog, the integration of filament winding and Automated Fiber Placement (AFP) technologies, exemplified by systems like the AFP-XS, represents a significant leap forward in composite manufacturing. This fusion of technologies is not merely an incremental improvement, but a transformative approach that is reshaping the landscape of advanced materials production.

Key Takeaways:

1. Technological Synergy: By combining the speed and efficiency of filament winding with the precision and flexibility of AFP, the integrated system overcomes the limitations of each individual technology while amplifying their strengths.
2. Expanded Possibilities: The ability to produce complex, optimized structures with varying thickness, non-geodesic paths, and region-specific properties opens up new design possibilities across multiple industries.
3. Efficiency and Sustainability: The adaptive nature of the integrated system, coupled with its material versatility, contributes to more efficient and sustainable manufacturing processes, reducing waste and energy consumption.
4. Industry Impact: From aerospace and automotive to marine and energy sectors, the technology is enabling the production of lighter, stronger, and more efficient components, driving innovation across industries.
5. Future Potential: As the technology continues to evolve, we can anticipate even more exciting developments, including AI-driven optimization, multifunctional composites, and novel applications in emerging fields.

The integration of filament winding and AFP technologies represents more than just a new manufacturing method; it's a paradigm shift in how we approach the design and production of composite structures. As this technology matures and becomes more widely adopted, we can expect to see increasingly sophisticated, efficient, and sustainable composite products entering the market.

The journey of composite manufacturing, from traditional hand layup to today's integrated, AI-assisted systems, is a testament to human ingenuity and the relentless pursuit of technological advancement. As we look to the future, it's clear that the integration of filament winding and AFP is not the end point of this journey, but rather a springboard for even more exciting innovations to come.

The composite manufacturing revolution is here, and it's transforming our world, one fiber at a time.

‍

Discover the future of composite manufacturing with Addcomposites! Here's how you can get involved:

1. Stay Informed: Subscribe to our newsletter to receive the latest updates, news, and developments in AFP systems and services. Knowledge is power, and by staying informed, you'll always have the upper hand. Subscribe Now
2. Experience Our Technology: Try our cutting-edge simulation software for a firsthand experience of the versatility and capability of our AFP systems. You'll see how our technology can transform your production line. Try Simulation
3. Join the Collaboration: Engage with us and other technical centers across various industries. By joining this collaborative platform, you'll get to share ideas, innovate, and influence the future of AFP. Join Collaboration
4. Get Hands-On: Avail our educational rentals for university projects or semester-long programs. Experience how our AFP systems bring about a revolution in composite manufacturing and leverage this opportunity for academic and research pursuits. Request for Educational Rental
5. Take the Next Step: Request a quotation for our AFP systems. Whether you're interested in the AFP-XS, AFP-X, or SCF3D, we are committed to offering cost-effective solutions tailored to your needs. Take the plunge and prepare your production line for the next generation of composite manufacturing. Request Quotation

At Addcomposites, we are dedicated to revolutionizing composite manufacturing. Our AFP systems and comprehensive support services are waiting for you to harness. So, don't wait – get started on your journey to the future of manufacturing today!

‍
