Welcome to our comprehensive course on the design and development of sustainable compressed hydrogen storage tanks. As the world moves towards cleaner energy solutions, hydrogen fuel cell technology is emerging as a key player in the future of advanced mobility and energy storage. This course aims to provide you with a thorough understanding of the challenges, technologies, and considerations involved in creating safe, lightweight, and competitive hydrogen storage solutions.

Course Objectives

By the end of this course, you will:

1. Understand the need for lighter and more reliable hydrogen tanks
2. Be familiar with different types of hydrogen tanks and their applications
3. Gain insights into various manufacturing methods, including traditional and cutting-edge techniques
4. Learn how to select appropriate materials for liners, matrices, and fibers
5. Master the design process for high-pressure hydrogen tanks
6. Understand the testing, certification, and regulatory landscape for hydrogen storage systems

Course Structure

1. Why do we need lighter hydrogen tanks?

• The role of hydrogen in decarbonization
• Challenges in hydrogen storage for mobility applications
• The importance of weight reduction in tank design

2. What is a Hydrogen Tank & Tank-Types

• Basic concepts of hydrogen storage
• Classification of tank types (Type I to Type V)
• Advantages and applications of each tank type

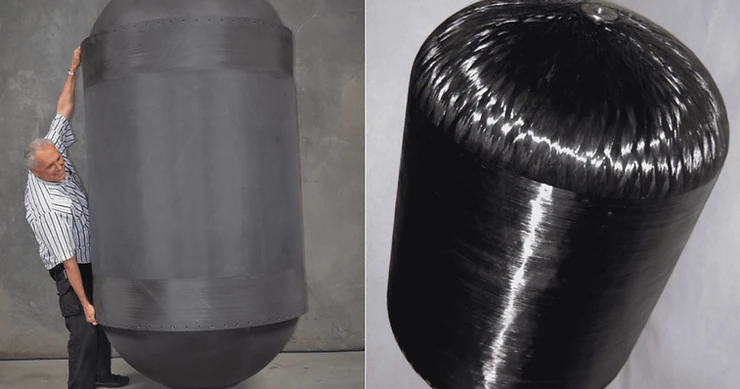

3. Filament winding hydrogen tanks (Thermoset)

• Overview of filament winding technology
• Wet filament winding vs. towpreg winding
• Benefits and limitations of thermoset composites

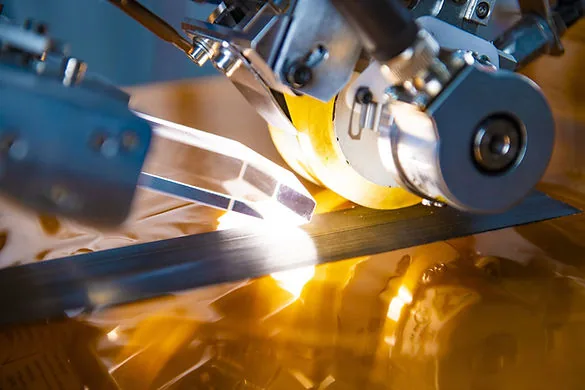

4. Thermoplastic Tape Winding of Hydrogen Tank

• Introduction to thermoplastic composites
• The thermoplastic tape winding process
• Advantages for sustainable manufacturing

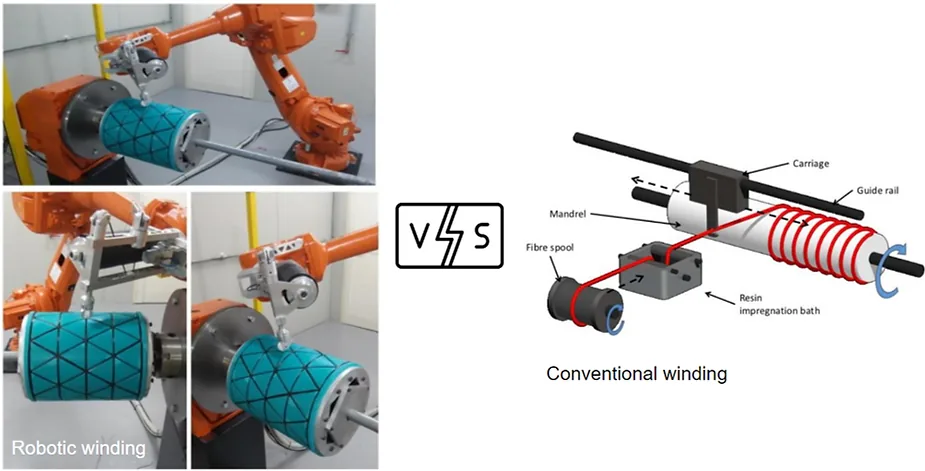

5. Traditional Filament winding vs. Robotic Winding

• Comparison of winding technologies
• Advantages of robotic winding for complex geometries
• Future trends in automated manufacturing

6. How to select the right Hydrogen tanks Liners, Matrix, and Fiber materials

• Material considerations for liners (metal vs. polymer)
• Thermoset vs. thermoplastic matrices
• Fiber reinforcement options (carbon, glass, basalt)

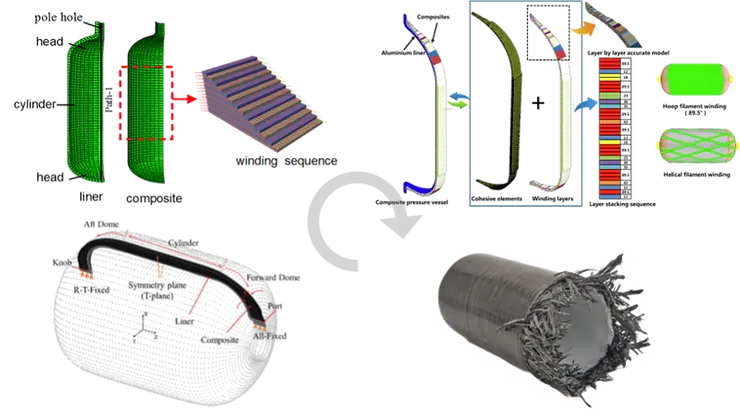

7. Optimal design for composite high-pressure hydrogen storage tank

• Design methodology and considerations
• Finite Element Analysis (FEA) for tank design
• Failure analysis and burst pressure prediction

8. Hydrogen storage tanks: testing, certification, codes & standards

• Overview of regulations, codes, and standards
• Testing procedures for hydrogen tanks
• Certification process and future trends

Key Takeaways

1. Lightweight design is crucial for the adoption of hydrogen fuel cell vehicles
2. Material selection significantly impacts tank performance and sustainability
3. Advanced manufacturing methods like thermoplastic tape winding offer sustainability benefits
4. Optimal design requires balancing multiple factors including safety, performance, and cost
5. Rigorous testing and certification are essential for ensuring the safety of hydrogen storage systems

Who Should Take This Course

This course is ideal for:

• Engineers and designers in the automotive and energy sectors
• Researchers in materials science and sustainable energy
• Professionals involved in the hydrogen economy and infrastructure development
• Students pursuing advanced degrees in related fields

Looking Ahead

As we progress through this course, you'll gain a comprehensive understanding of the intricate world of hydrogen storage tank development. From materials science to advanced manufacturing techniques, from complex design processes to stringent safety standards, this course will equip you with the knowledge needed to contribute to the exciting field of sustainable energy storage.

Are you ready to dive into the future of clean energy storage? Let's begin our journey into the design and development of sustainable compressed hydrogen storage tanks!

Start with Chapter 1: Why do we need lighter hydrogen tanks?

Welcome to the first chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the critical need for lighter hydrogen tanks and their impact on the future of sustainable energy.

The Weight Challenge in Hydrogen Storage

As we transition towards a hydrogen-based economy, one of the most significant challenges we face is the storage and transportation of hydrogen. Traditional storage methods often result in heavy tanks, which can limit the efficiency and practicality of hydrogen-powered systems, especially in mobile applications.

The Impact of Tank Weight

1. Energy Efficiency: Heavier tanks require more energy to transport, reducing the overall efficiency of hydrogen-powered vehicles.
2. Range Limitations: In transportation, heavier tanks mean less hydrogen can be carried, limiting the range of vehicles.
3. Payload Reduction: For commercial vehicles, heavier tanks reduce the available payload capacity.
4. Performance Issues: Additional weight can negatively impact vehicle handling and performance.

The Need for Lightweight Solutions

Developing lighter hydrogen tanks is crucial for several reasons:

1. Improved Vehicle Performance: Lighter tanks contribute to better fuel economy, increased range, and enhanced overall performance of hydrogen-powered vehicles.
2. Increased Adoption: More efficient and practical hydrogen storage solutions can accelerate the adoption of hydrogen technology across various sectors.
3. Cost Reduction: Lighter tanks often require less material, potentially reducing manufacturing costs and making hydrogen technology more economically viable.
4. Versatility: Lightweight tanks open up new possibilities for hydrogen use in portable applications and aerospace.

Challenges in Developing Lighter Tanks

Creating lighter hydrogen tanks isn't without its challenges. Engineers and researchers must navigate:

1. Safety Concerns: Ensuring that lighter materials can withstand high pressures and meet stringent safety standards.
2. Material Properties: Developing materials that are both lightweight and impermeable to tiny hydrogen molecules.
3. Manufacturing Complexities: Implementing advanced manufacturing techniques like Automated Fiber Placement (AFP) to create complex, lightweight structures.
4. Cost Considerations: Balancing the use of advanced materials with economic feasibility.

Innovative Approaches to Lightweight Tank Design

Researchers and manufacturers are exploring various strategies to reduce tank weight:

1. Advanced Composites: Utilizing carbon fiber reinforced polymers (CFRP) to create strong, lightweight tank structures. Learn more about composite materials in our introduction.
2. Novel Geometries: Designing tank shapes that optimize the strength-to-weight ratio.
3. Multi-layer Constructions: Combining different materials to achieve the best balance of weight, strength, and permeability.
4. Nanomaterials: Investigating the potential of materials like graphene to enhance strength while reducing weight.

The Broader Impact of Lighter Hydrogen Tanks

The development of lighter hydrogen tanks has implications beyond just transportation:

1. Renewable Energy Storage: Lighter tanks could make large-scale hydrogen storage more feasible for grid applications.
2. Portable Power Solutions: Enabling more efficient and practical portable fuel cells for remote or emergency use.
3. Aerospace Applications: Facilitating the use of hydrogen in aircraft and spacecraft, where weight is a critical factor.

Looking Ahead: The Future of Hydrogen Storage

As we continue to innovate in the field of hydrogen storage, we can expect:

1. Integration of Smart Technologies: Incorporating sensors and IoT capabilities for real-time monitoring and improved safety.
2. Advancements in Materials Science: Ongoing research into new materials that could revolutionize hydrogen storage.
3. Standardization and Regulation: Development of new standards to accommodate innovative tank designs and materials.

Conclusion

The need for lighter hydrogen tanks is driving innovation across multiple disciplines, from materials science to manufacturing techniques. As we progress in this field, we're not just solving a technical challenge – we're paving the way for a more sustainable, hydrogen-powered future.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll delve deeper into the specific technologies and methodologies used to create these cutting-edge storage solutions.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll explore the different types of hydrogen tanks and their applications.

Back to Course Overview

Welcome to the second chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the fundamental concept of hydrogen tanks and delve into the various types of tanks used in different applications.

Understanding Hydrogen Tanks

A hydrogen tank, also known as a hydrogen cylinder or hydrogen storage vessel, is a specialized container designed to store hydrogen gas under high pressure. These tanks play a crucial role in the hydrogen economy, enabling the storage and transportation of hydrogen for various applications, from fuel cell vehicles to industrial processes.

Key Features of Hydrogen Tanks:

1. High Pressure Resistance: Typically designed to withstand pressures of 350 to 700 bar (5,000 to 10,000 psi).
2. Low Permeability: Constructed to minimize hydrogen leakage.
3. Lightweight Design: Especially important for mobile applications, as discussed in our previous chapter on lighter hydrogen tanks.
4. Safety Features: Includes pressure relief devices and other safety mechanisms.

Classification of Hydrogen Tanks

The industry classifies hydrogen tanks into five main types, each with unique characteristics and applications:

Type I: All-Metal Tanks

• Construction: Entirely made of metal, usually steel or aluminum.
• Advantages: Simple construction, low cost.
• Disadvantages: Heavy, limiting their use in mobile applications.
• Applications: Stationary storage, industrial use.

Type II: Metal Liner with Composite Hoop Wrap

• Construction: Metal liner (usually steel or aluminum) with a composite material wrapped around the cylinder part.
• Advantages: Lighter than Type I, higher pressure capacity.
• Disadvantages: Still relatively heavy for mobile applications.
• Applications: Improved performance in stationary and some mobile applications.

Type III: Metal Liner with Full Composite Wrap

• Construction: Thin metal liner (usually aluminum) fully wrapped with composite materials.
• Advantages: Significantly lighter than Type I and II, high pressure capacity.
• Disadvantages: More complex manufacturing process.
• Applications: Automotive, aerospace, portable applications.

Type IV: Polymer Liner with Full Composite Wrap

• Construction: Polymer liner (usually high-density polyethylene or polyamide) fully wrapped with composite materials.
• Advantages: Lightest option, excellent for high-pressure storage.
• Disadvantages: Higher manufacturing cost, potential for higher permeation rates.
• Applications: Automotive (especially fuel cell vehicles), aerospace, portable applications.

Type V: Linerless All-Composite

• Construction: Entirely made of composite materials without a separate liner.
• Advantages: Potential for even lighter weight, reduced permeation compared to Type IV.
• Disadvantages: Complex manufacturing, still in development stages.
• Applications: Future automotive and aerospace applications.

For a more detailed comparison of these tank types, refer to our article on Types of Hydrogen Tanks: Technological Differences and Advantages Explained.

Manufacturing Techniques

The manufacturing process varies depending on the tank type:

• Metal Tanks: Traditional metal forming techniques like deep drawing or spinning.
• Composite Wrapping: Utilizes advanced processes like filament winding or Automated Fiber Placement (AFP).
• Polymer Liners: Often manufactured using blow molding or rotational molding techniques.

Learn more about these manufacturing techniques in our chapter on composite manufacturing methods.

Choosing the Right Tank Type

Selecting the appropriate tank type depends on several factors:

1. Application: Mobile vs. stationary use.
2. Pressure Requirements: Higher pressure applications generally require more advanced tank types.
3. Weight Constraints: Critical for mobile applications like vehicles.
4. Cost Considerations: More advanced types typically come with higher costs.
5. Regulatory Requirements: Different regions may have specific regulations for hydrogen storage.

For guidance on material selection, refer to our guide on How to Select the Right Hydrogen Tanks Liners, Matrix, and Fiber Materials.

Future Trends in Hydrogen Tank Design

As we continue to innovate in the field of hydrogen storage, we're seeing exciting developments:

• Advanced Materials: Research into novel composites and nanomaterials for improved performance.
• Smart Tanks: Integration of sensors and IoT capabilities for real-time monitoring.
• Improved Manufacturing: Development of more efficient and cost-effective production methods, such as AFP for hydrogen tank production.
• Standardization: Efforts to create global standards for hydrogen tank design and testing.

Conclusion

Understanding the different types of hydrogen tanks is crucial for designing and developing sustainable compressed hydrogen storage solutions. Each type offers unique advantages and challenges, and the choice depends on the specific application and requirements.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore the manufacturing techniques, material selection, and design optimization for these advanced storage systems.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll discuss the manufacturing techniques for composite hydrogen tanks.

Back to Course Overview

Welcome to the third chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the filament winding process for manufacturing thermoset composite hydrogen tanks, a crucial technique in creating lightweight and strong storage solutions.

Introduction to Filament Winding

Filament winding is a manufacturing technique primarily used to create hollow, circular, or oval-shaped composite parts. It's particularly well-suited for producing high-pressure vessels like hydrogen tanks, where strength, weight, and durability are critical factors.

Key Advantages of Filament Winding:

1. High Strength-to-Weight Ratio: Ideal for lightweight hydrogen tanks, as discussed in our earlier chapters.
2. Precise Fiber Orientation: Allows for optimized strength in specific directions.
3. Consistency: Automated process ensures repeatable quality.
4. Scalability: Suitable for various tank sizes and production volumes.

The Filament Winding Process for Thermoset Composites

Step 1: Mandrel Preparation

• A mandrel, typically made of metal or soluble material, is prepared to form the inner shape of the tank.
• For Type III and Type IV tanks, the liner is used as the mandrel.

Step 2: Fiber Impregnation

• Continuous fiber tows (usually carbon or glass) are passed through a resin bath.
• The resin used is a thermoset polymer, typically epoxy.

Step 3: Winding

• The impregnated fibers are wound onto the rotating mandrel.
• A computer-controlled delivery head precisely places the fibers.
• Different winding patterns are used: some text
  • Hoop Winding: Fibers laid nearly perpendicular to the mandrel axis.
  • Helical Winding: Fibers laid at an angle to the mandrel axis.
  • Polar Winding: Fibers laid from pole to pole.

Step 4: Curing

• Once winding is complete, the entire assembly is cured.
• Curing typically involves heat and sometimes pressure to set the thermoset resin.

Step 5: Mandrel Removal

• After curing, the mandrel is removed.
• For soluble mandrels, this is done through dissolution.

Winding Patterns and Their Importance

The strength and performance of the tank heavily depend on the winding pattern:

Hoop Winding:

• Nearly 90° to the mandrel axis.
• Provides circumferential strength.
• Efficient for cylindrical sections.

Helical Winding:

• Fibers laid at angles between 5° and 80°.
• Provides both longitudinal and circumferential strength.
• Critical for dome sections and overall tank integrity.

Combination Patterns:

• Most tanks use a combination of hoop and helical windings.
• Optimizes strength in all directions.

Learn more about composite layup strategies in our chapter on composite design principles.

Thermoset Resins in Filament Winding

Thermoset resins, particularly epoxies, are commonly used in filament winding for hydrogen tanks due to their:

1. High Strength: Excellent mechanical properties when cured.
2. Chemical Resistance: Important for long-term hydrogen storage.
3. Thermal Stability: Maintains properties across a wide temperature range.
4. Low Shrinkage: Ensures dimensional stability during curing.

However, thermosets also have some limitations:

• Limited Shelf Life: Once mixed, they have a finite working time.
• Non-Recyclable: Cannot be melted and reshaped after curing.
• Longer Processing Time: Require time for curing.

For a comparison with thermoplastic alternatives, see our chapter on thermoplastic composite tanks.

Advanced Filament Winding Technologies

Modern filament winding for hydrogen tanks often incorporates advanced technologies:

• Multi-Axis Winding: Allows for complex geometries and optimized fiber placement.
• In-Situ Consolidation: Combines winding and curing for faster production.
• Automated Fiber Placement (AFP): Offers more precise control over fiber placement. Learn more about AFP in our dedicated chapter.

Quality Control and Testing

Ensuring the quality of filament-wound tanks is crucial:

• Non-Destructive Testing: Techniques like ultrasonic inspection to check for defects.
• Burst Testing: Verifying the tank's ability to withstand high pressures.
• Permeation Testing: Especially important for hydrogen storage.

For more on testing procedures, see our chapter on hydrogen tank certification and testing.

Environmental Considerations

While thermoset composites offer excellent performance, their environmental impact is a concern:

• End-of-Life: Challenges in recycling cured thermoset composites.
• Emissions: Potential VOC emissions during the winding and curing process.

Efforts are ongoing to develop more sustainable thermoset resins and recycling methods.

Conclusion

Filament winding with thermoset composites is a cornerstone technology in the production of high-performance hydrogen tanks. Its ability to create lightweight, strong, and durable structures makes it ideal for the demanding requirements of hydrogen storage.

As we continue our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore alternative manufacturing methods and materials, each offering unique advantages in our quest for optimal hydrogen storage solutions.

Ready to learn about cutting-edge alternatives? Continue to the next chapter where we'll discuss thermoplastic tape winding for hydrogen tanks.

Back to Course Overview

Welcome to the fourth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the innovative technique of thermoplastic tape winding for manufacturing hydrogen tanks, a method that offers unique advantages in terms of sustainability and performance.

Introduction to Thermoplastic Tape Winding

Thermoplastic Tape Winding (TTW) is an advanced manufacturing process that combines the principles of filament winding with the benefits of thermoplastic composites. This technique is gaining traction in the production of high-performance hydrogen tanks due to its potential for faster processing, improved recyclability, and enhanced mechanical properties.

Key Advantages of Thermoplastic Tape Winding:

1. Rapid Processing: No need for long curing cycles, unlike thermoset composites.
2. Recyclability: Thermoplastics can be melted and reshaped, promoting sustainability.
3. Improved Impact Resistance: Typically offers better toughness than thermoset alternatives.
4. Potential for Welding: Allows for more design flexibility and easier repairs.

The Thermoplastic Tape Winding Process

Step 1: Material Preparation

• Pre-impregnated thermoplastic tapes (prepregs) are used, typically consisting of carbon or glass fibers in a thermoplastic matrix like PEEK, PEKK, or PA12.

Step 2: Mandrel Setup

• Similar to thermoset filament winding, a mandrel is prepared, often incorporating the liner for Type III or Type IV tanks.

Step 3: Winding

• The thermoplastic tape is heated to its melting point just before placement on the mandrel.
• A computer-controlled head precisely places and consolidates the tape onto the mandrel.
• Various winding patterns are used to optimize strength and performance.

Step 4: In-Situ Consolidation

• Unlike thermoset winding, consolidation occurs during the winding process.
• Heat and pressure are applied to fuse the newly placed tape with the underlying layers.

Step 5: Cooling

• The wound structure is cooled to solidify the thermoplastic matrix.
• Cooling rates can be controlled to optimize crystallinity and mechanical properties.

Key Technological Challenges Thermoplastic Tape Winding Process

1. Temperature Control

• Precise temperature management is crucial for proper consolidation.
• Too low: inadequate bonding; Too high: material degradation.
• Solution: Advanced heating systems (e.g., laser, IR) with real-time temperature monitoring.

2. Tape Placement Accuracy

• Gaps and overlaps can significantly affect tank performance.
• Solution: High-precision robotics and advanced control systems.

3. Crystallinity Management

• Crystallinity affects mechanical properties and permeability.
• Solution: Controlled cooling rates and potential post-processing heat treatments.

4. First Ply Adhesion

• Ensuring proper bonding to the liner or first layer is critical.
• Solution: Surface preparation techniques and specialized first-ply materials.

Materials for Thermoplastic Tape Winding

Common thermoplastic matrices used in hydrogen tank production include:

PEEK (Polyether Ether Ketone):

• Excellent mechanical properties and chemical resistance.
• High temperature resistance.

PEKK (Polyetherketoneketone):

• Similar to PEEK with improved processing characteristics.
• Lower melting temperature than PEEK.

PA12 (Polyamide 12):

• Good balance of properties and cost.
• Lower processing temperatures than PEEK/PEKK.

For more on material selection, see our chapter on composite materials for hydrogen tanks.

Advanced Techniques in Thermoplastic Tape Winding

In-Situ Crystallization Control

• Manipulating cooling rates during winding to optimize crystallinity.
• Potential for creating tailored properties in different tank regions.

Hybrid Processes

• Combining thermoplastic tape winding with other processes like Automated Fiber Placement (AFP) for complex geometries.

Smart Manufacturing Integration

• Incorporating sensors for real-time process monitoring and quality control.
• Potential for AI-driven process optimization.

Environmental and Sustainability Aspects

Thermoplastic composites offer significant advantages in terms of sustainability:

• Recyclability: Can be melted and reshaped, allowing for easier recycling.
• Reduced Waste: Potential for reuse of production scraps.
• Energy Efficiency: No need for autoclave curing, reducing energy consumption.

However, challenges remain in establishing efficient recycling processes for composite structures. Learn more about sustainability in composites in our dedicated chapter.

Performance Comparison: Thermoplastic vs. Thermoset Tanks

While both materials can produce high-performance tanks, they have distinct characteristics:

• Impact Resistance: Thermoplastics generally offer superior toughness.
• Chemical Resistance: Both can be formulated for excellent resistance, but thermosets often have an edge.
• High-Temperature Performance: High-performance thermoplastics like PEEK can match or exceed many thermosets.
• Processing Speed: Thermoplastics offer faster production cycles.

For a detailed comparison, refer to our chapter on material selection for hydrogen tanks.

Future Trends and Research Directions

The field of thermoplastic tape winding for hydrogen tanks is rapidly evolving:

• Novel Materials: Development of new thermoplastic matrices and fiber combinations.
• Process Optimization: Advancements in heating technologies and placement accuracy.
• Multifunctional Designs: Integrating additional functionalities like sensors or thermal management.
• Scaling Up: Addressing challenges in producing larger tanks for industrial applications.

Conclusion

Thermoplastic tape winding represents a significant advancement in the manufacture of hydrogen tanks, offering a compelling combination of performance, processing speed, and sustainability. As we continue to innovate in this field, thermoplastic composites are likely to play an increasingly important role in the design and development of sustainable compressed hydrogen storage tanks.

Ready to explore more manufacturing techniques? Continue to the next chapter where we'll discuss the comparison between traditional and robotic winding methods.

Back to Course Overview

Welcome to the fifth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore and compare two key manufacturing techniques: traditional filament winding and the more advanced robotic winding. Understanding these methods is crucial for optimizing the production of high-performance hydrogen tanks.

Introduction to Winding Technologies

Winding techniques are fundamental in the production of composite pressure vessels, including hydrogen tanks. As we've discussed in our previous chapters on filament winding and thermoplastic tape winding, these methods allow for the creation of strong, lightweight structures ideal for hydrogen storage.

Traditional Filament Winding

Overview

Traditional filament winding is a well-established manufacturing process that has been used for decades in the production of cylindrical and spherical pressure vessels.

Key Characteristics:

• Simplicity: Relatively straightforward process and machinery.
• Cost-Effectiveness: Lower initial investment compared to robotic systems.
• Limitations: Primarily suited for axially symmetric shapes.

Process Description:

• Fibers are fed through a resin bath and wound onto a rotating mandrel.
• The fiber delivery head moves along the length of the mandrel.
• Winding angles are controlled by the rotation of the mandrel and the movement of the delivery head.

Advantages:

• Well-understood process with established design principles.
• Suitable for high-volume production of simple shapes.
• Lower initial capital investment.

Limitations:

• Limited to mostly cylindrical or spherical shapes.
• Less flexibility in fiber placement and orientation.
• May require more manual intervention for complex parts.

Robotic Winding

Overview

Robotic winding leverages advanced robotics and control systems to enhance the capabilities of the winding process.

Key Characteristics:

• Flexibility: Can produce a wider range of shapes and geometries.
• Precision: Offers more accurate fiber placement and orientation control.
• Automation: Reduces the need for manual intervention.

Process Description:

• A robotic arm equipped with a fiber delivery head moves around a stationary or rotating mandrel.
• Advanced control systems allow for complex movement patterns and precise fiber placement.
• Can incorporate multiple axes of motion for intricate winding patterns.

Advantages:

• Ability to produce complex, non-geodesic winding patterns.
• Enhanced control over fiber tension and placement.
• Potential for higher consistency and repeatability.
• Can integrate with Automated Fiber Placement (AFP) techniques.

Limitations:

• Higher initial investment cost.
• Requires more advanced programming and control systems.
• May have lower production speed for simple parts compared to traditional methods.

Comparative Analysis

1. Geometry Complexity some text
   • Traditional: Limited to axially symmetric shapes.
   • Robotic: Can handle complex, asymmetric geometries.
2. Fiber Orientation Control some text
   • Traditional: Limited to helical and hoop winding patterns.
   • Robotic: Offers precise control for optimized fiber orientations.
3. Production Speed some text
   • Traditional: Generally faster for simple, cylindrical parts.
   • Robotic: May be slower for simple parts but faster for complex geometries.
4. Cost some text
   • Traditional: Lower initial investment, higher labor costs.
   • Robotic: Higher initial investment, lower long-term labor costs.
5. Quality and Consistency some text
   • Traditional: Consistent for simple parts, may vary with complexity.
   • Robotic: High consistency across various geometries.
6. Material Compatibility some text
   • Traditional: Well-suited for thermoset composites.
   • Robotic: Adaptable to both thermoset and thermoplastic materials.

Applications in Hydrogen Tank Manufacturing

Traditional Filament Winding

• Ideal for Type II and some Type III tanks with cylindrical designs.
• Commonly used in mass production of standardized tank designs.

Robotic Winding

• Preferred for advanced Type III and Type IV tanks with complex dome shapes.
• Enables the production of optimized tank designs with variable fiber orientations.
• Facilitates the integration of features like bosses and mounting points.

Future Trends and Innovations

• Hybrid Systems: Combining traditional and robotic winding for optimized production.
• In-Process Monitoring: Integration of sensors for real-time quality control.
• AI and Machine Learning: Optimizing winding patterns and process parameters.
• Multi-Material Winding: Combining different fiber types or thermoplastic and thermoset materials in a single process.

Considerations for Sustainable Manufacturing

When choosing between traditional and robotic winding for sustainable hydrogen tank production, consider:

• Energy Efficiency: Robotic systems may offer more energy-efficient operation.
• Material Utilization: Advanced robotic systems can optimize material usage, reducing waste.
• Longevity and Adaptability: Robotic systems offer more flexibility for future design changes.
• Quality and Durability: Higher precision in robotic winding may lead to longer-lasting products.

For more on sustainable manufacturing practices, see our chapter on sustainability in composite production.

Conclusion

Both traditional filament winding and robotic winding have their place in the manufacture of hydrogen storage tanks. The choice between them depends on factors such as production volume, geometric complexity, desired performance characteristics, and available investment.

As we continue to innovate in the Design and Development of Sustainable Compressed Hydrogen Storage Tank, the integration and optimization of these winding technologies will play a crucial role in producing efficient, safe, and sustainable hydrogen storage solutions.

Ready to dive deeper into the materials used in hydrogen tanks? Continue to the next chapter where we'll explore the selection of liners, matrices, and fiber materials for optimal tank performance.

Back to Course Overview

Welcome to the sixth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the intricate process of selecting the optimal materials for hydrogen tanks, focusing on liners, matrix materials, and fiber reinforcements.

The performance, safety, and efficiency of a hydrogen tank heavily depend on the materials used in its construction. As we've discussed in our previous chapters on tank types and manufacturing methods, the choice of materials can significantly impact the tank's weight, strength, permeability, and overall sustainability.

Liner Selection

The liner serves as a barrier between the stored hydrogen and the composite structure, playing a critical role in preventing hydrogen permeation.

Metal Liners

Advantages:

• Excellent impermeability to hydrogen
• High strength and stiffness
• Good thermal conductivity

Disadvantages:

• Higher weight compared to polymeric liners
• Potential for hydrogen embrittlement (especially in steel)

Common Materials:

• Aluminum Alloys: some text
  • Lightweight
  • Good formability
  • Resistant to hydrogen embrittlement
• Stainless Steel: some text
  • High strength
  • Excellent corrosion resistance
  • Higher weight

Polymer Liners

Advantages:

• Significantly lighter than metal liners
• Excellent fatigue resistance
• No risk of hydrogen embrittlement

Disadvantages:

• Higher hydrogen permeation rates
• Lower thermal conductivity

Common Materials:

• High-Density Polyethylene (HDPE): some text
  • Good chemical resistance
  • Low cost
  • Limited temperature range
• Polyamide (PA): some text
  • Better mechanical properties than HDPE
  • Good temperature resistance
  • Higher cost

Linerless Designs

For certain applications, especially in aerospace, linerless tank designs are being explored:

• Utilizes the composite structure itself as a barrier
• Extremely lightweight
• Challenging to achieve required impermeability

Matrix Selection: Thermoset vs. Thermoplastic

The matrix material holds the reinforcing fibers together and transfers loads between them.

Thermoset Matrices

Advantages:

• Excellent chemical resistance
• High temperature resistance
• Low viscosity during processing (good fiber wet-out)

Disadvantages:

• Limited shelf life
• Longer processing times (curing required)
• Difficult to recycle

Common Materials:

• Epoxy: some text
  • High strength and stiffness
  • Excellent adhesion to fibers
  • Good chemical resistance
• Cyanate Ester: some text
  • Superior hot/wet performance
  • Low moisture absorption
  • Higher cost

Thermoplastic Matrices

Advantages:

• Faster processing (no curing required)
• Recyclable
• Better impact resistance

Disadvantages:

• Higher processing temperatures
• Higher viscosity (can be challenging for fiber wet-out)

Common Materials:

• Polyether Ether Ketone (PEEK): some text
  • Excellent mechanical properties
  • High temperature resistance
  • Chemical resistance
• Polyamide (PA): some text
  • Good balance of properties
  • Lower cost than PEEK
  • Easier to process

For more on the comparison between thermoset and thermoplastic composites, see our dedicated chapter.

Fiber Reinforcements

Fibers provide the primary structural strength in composite hydrogen tanks.

Carbon Fiber

Advantages:

• Highest specific strength and stiffness
• Excellent fatigue resistance
• Low coefficient of thermal expansion

Disadvantages:

• Higher cost
• Potential for galvanic corrosion with metal fittings

Glass Fiber

Advantages:

• Lower cost than carbon fiber
• Good specific strength
• Excellent insulating properties

Disadvantages:

• Lower stiffness than carbon fiber
• Higher density

Hybrid Fiber Solutions

Some designs utilize a combination of fiber types:

• Carbon fiber for high-stress areas
• Glass fiber for impact resistance or cost reduction

Learn more about fiber reinforcements in our comprehensive guide.

Material Selection Considerations

When selecting materials for hydrogen tanks, consider the following factors:

1. Operating Pressure: Higher pressures require stronger materials.
2. Weight Requirements: Critical for mobile applications.
3. Temperature Range: Both cryogenic and high-temperature applications need special consideration.
4. Permeability: Crucial for long-term hydrogen storage.
5. Cost: Balance between performance and economic viability.
6. Manufacturing Process: Filament winding and automated fiber placement may have different material requirements.
7. Regulatory Compliance: Ensure materials meet safety standards and regulations.
8. Sustainability: Consider the environmental impact and recyclability of materials.

Future Trends in Material Development

• Nano-enhanced Matrices: Incorporating nanoparticles to improve barrier properties and strength.
• Bio-based Composites: Developing sustainable alternatives to petroleum-based resins.
• Smart Materials: Integrating sensing capabilities for real-time monitoring.
• Multifunctional Composites: Materials that can store hydrogen and provide structural support.

Conclusion

Selecting the right combination of liner, matrix, and fiber materials is crucial for developing high-performance, safe, and sustainable hydrogen storage tanks. As we continue our journey through the Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore how these material choices influence the overall tank design and performance.

Ready to learn how these materials come together in the tank design process? Continue to the next chapter where we'll delve into the optimal design strategies for composite high-pressure hydrogen storage tanks.

Back to Course Overview

Welcome to the seventh chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the intricate process of optimizing the design of composite high-pressure hydrogen storage tanks, bringing together the knowledge from our previous chapters on materials, manufacturing processes, and tank types.

Optimal Tank Design

Designing a high-pressure hydrogen storage tank involves balancing multiple factors including safety, performance, weight, cost, and sustainability. The goal is to create a tank that can safely store hydrogen at high pressures while being as light and efficient as possible.

Design Considerations

1. Safety some text
   • Must withstand operating pressures with a significant safety margin
   • Leak-before-burst design philosophy
   • Resistance to impact, fire, and other potential hazards
2. Performance some text
   • Maximize hydrogen storage capacity
   • Minimize permeation and leakage
   • Ensure long-term durability
3. Weight some text
   • Critical for mobile applications (e.g., vehicles)
   • Balance between strength and lightweight design
4. Cost some text
   • Material selection
   • Manufacturing process optimization
   • Scalability for mass production
5. Sustainability some text
   • Use of recyclable or eco-friendly materials where possible
   • Design for end-of-life considerations

Design Methodology

Step 1: Define Requirements

• Operating pressure
• Storage capacity
• Weight constraints
• Environmental conditions (temperature range, exposure to elements)
• Regulatory requirements (e.g., UN GTR 13)

Step 2: Material Selection

Refer to our previous chapter on material selection for detailed guidance. Key considerations include:

• Liner material (metal vs. polymer)
• Composite matrix (thermoset vs. thermoplastic)
• Fiber reinforcement (carbon, glass, or hybrid)

Step 3: Geometric Design

• Cylindrical body with dome ends is the most common configuration
• Optimize dome shape for stress distribution
• Consider boss design for inlet/outlet

Step 4: Layup Design

• Determine optimal fiber orientations
• Design for hoop and axial stress resistance
• Consider using Automated Fiber Placement (AFP) for precise layup control

Step 5: Finite Element Analysis (FEA)

• Create a detailed FEA model of the tank
• Analyze stress distribution under various load conditions
• Iterate design to optimize stress patterns

Advanced Design Techniques

Topology Optimization

• Use computational tools to optimize material distribution
• Can lead to novel, organic shapes that maximize strength-to-weight ratio

Multi-Objective Optimization

• Balance multiple design goals (e.g., weight, cost, performance)
• Use algorithms to find optimal trade-offs

Design for Manufacturing

• Consider the limitations and capabilities of your chosen manufacturing process
• Optimize design for filament winding or automated fiber placement

Failure Analysis and Strength Prediction

Failure Modes to Consider

• Liner failure (leakage or burst)
• Composite overwrap failure
• Boss or fitting failure
• Delamination between layers

Progressive Failure Analysis

• Model the sequential failure of individual plies
• Predict ultimate failure load and mode

Burst Pressure Prediction

• Critical for safety certification
• Use analytical models and FEA to predict burst pressure
• Validate predictions with physical testing

Optimizing for Sustainability

Material Efficiency

• Minimize material usage through optimized design
• Consider using recycled or recyclable materials where possible

Design for Recyclability

• If using thermoplastic composites, design for potential recycling
• Consider ease of separating components at end-of-life

Life Cycle Assessment (LCA)

• Evaluate the environmental impact of your design choices
• Consider energy use, emissions, and resource consumption across the entire life cycle

Certification and Testing Considerations

Design with certification requirements in mind:

• Hydrostatic burst test
• Cycling tests (ambient and extreme temperatures)
• Fire resistance test
• Impact resistance test

For more details on testing and certification, see our chapter on hydrogen tank safety and regulations.

Future Trends in Tank Design

• Smart Tanks: Integrating sensors for real-time monitoring of pressure, temperature, and structural health
• Multifunctional Designs: Tanks that serve as structural elements in vehicles
• Biomimetic Designs: Inspired by natural structures for optimal strength-to-weight ratios
• AI-Assisted Design: Using machine learning to optimize tank designs based on vast datasets of performance data

Conclusion

Optimal design of composite high-pressure hydrogen storage tanks is a complex, multidisciplinary challenge. It requires a deep understanding of materials, manufacturing processes, and structural mechanics, as well as consideration of safety, performance, and sustainability factors.

As we continue our journey through the Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore how these design principles are applied in real-world scenarios and how they interact with manufacturing processes and regulatory requirements.

Ready to see how these optimized designs are put to the test? Continue to the next chapter where we'll delve into the testing, certification, and regulatory landscape for hydrogen storage tanks.

Back to Course Overview

Welcome to the eighth and final chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the rigorous testing procedures, certification processes, and the complex landscape of codes and standards that govern the development and deployment of hydrogen storage tanks.

Introduction

The safety and reliability of hydrogen storage tanks are paramount, given the high pressures involved and the unique properties of hydrogen. As we've seen in our previous chapters on design and materials, creating a high-performance tank is only part of the journey. Ensuring that these tanks meet stringent safety standards is equally important.

Regulations, Codes, and Standards (RCS)

Regulations

• Legally binding rules developed by governmental bodies
• Example: UN GTR No. 13 for hydrogen and fuel cell vehicles

Codes

• Specify requirements for design, materials, and procedures
• Often adopted into law by local jurisdictions
• Example: ASME Boiler and Pressure Vessel Code

Standards

• Detailed technical specifications
• Usually voluntary but often referenced in regulations
• Example: ISO 19881 for gaseous hydrogen storage

Key RCS for Different Applications

1. Automotive some text
   • UN GTR No. 13
   • SAE J2579
   • EC79 (European Union)
2. Stationary Storage some text
   • ASME Section VIII
   • NFPA 2 (Hydrogen Technologies Code)
3. Transportable Containers some text
   • ISO 11119 series
   • DOT FMCSS 304
4. Aerospace some text
   • NASA AIAA G-095 (for spacecraft applications)

Testing and Certification Process

1. Design Qualification Tests

Burst Test

• Objective: Verify the tank's ultimate strength
• Procedure: Pressurize until failure
• Requirement: Must exceed minimum burst pressure ratio (typically 2.25 times service pressure)

Cycle Test

• Objective: Verify fatigue life
• Procedure: Pressurize and depressurize repeatedly (typically 5,000 to 11,000 cycles)
• Requirement: No failure before reaching the specified number of cycles

Environmental Exposure Tests

• Objective: Verify resistance to various environmental conditions
• Tests include: some text
  • Extreme temperature cycling
  • Salt spray exposure
  • Fluid exposure (e.g., road salt, oils)

Fire Resistance Test

• Objective: Ensure safe behavior in case of fire
• Procedure: Expose pressurized tank to engulfing flame
• Requirement: Tank must vent contents through pressure relief device without rupture

2. Production Tests

Hydrostatic Proof Test

• Every tank is pressurized to 1.5 times service pressure
• No leakage or permanent deformation allowed

Leak Test

• Every tank is checked for leaks using hydrogen or helium gas

3. Batch Tests

Burst Test

• One tank per batch is tested to destruction
• Must meet minimum burst pressure requirement

Material Tests

• Verify properties of liner and composite materials

Certification Process

1. Design Review: Submit detailed design documentation to certification body
2. Witness Testing: Certification body observes qualification tests
3. Manufacturing Audit: Inspection of production facilities and processes
4. Documentation Review: Final review of all test reports and manufacturing records
5. Certificate Issuance: If all requirements are met, a certificate of conformity is issued

Safety Considerations

Leak-Before-Burst Design

• Tanks are designed to develop small, detectable leaks before catastrophic failure
• Achieved through careful material selection and layup design

Pressure Relief Devices (PRDs)

• Mandatory for most applications
• Designed to safely vent contents in case of over-pressurization or fire

Impact Resistance

• Tanks must withstand specified impact loads without rupture
• May include drop tests and penetration tests

Future Trends in Testing and Certification

Non-Destructive Evaluation (NDE) Techniques

• Advanced methods like acoustic emission and thermography for in-service inspection

Digital Twin Technology

• Using real-time data to predict tank behavior and remaining life

Harmonization of Global Standards

• Efforts to create more unified international standards for hydrogen storage

Certification for New Materials and Processes

• Developing standards for novel materials like linerless tanks and advanced manufacturing methods

Sustainability Considerations in Standards

As discussed in our chapter on sustainable design, future standards are likely to incorporate:

• Life cycle assessment requirements
• Recyclability criteria
• Carbon footprint considerations

Conclusion

The rigorous testing, certification processes, and adherence to codes and standards are crucial in ensuring the safety and reliability of hydrogen storage tanks. As we've explored throughout this Design and Development of Sustainable Compressed Hydrogen Storage Tank course, creating high-performance, safe, and sustainable hydrogen storage solutions requires a holistic approach that considers materials, design, manufacturing, and regulatory compliance.

By understanding and adhering to these standards, we can accelerate the adoption of hydrogen technologies while ensuring public safety and confidence in these critical components of a sustainable energy future.

Thank you for joining us on this comprehensive journey through the world of hydrogen storage tank development. We hope this course has provided you with valuable insights and knowledge to contribute to the advancement of sustainable energy solutions.

Back to Course Overview | Enroll in More Courses

Welcome to our comprehensive course on the design and development of sustainable compressed hydrogen storage tanks. As the world moves towards cleaner energy solutions, hydrogen fuel cell technology is emerging as a key player in the future of advanced mobility and energy storage. This course aims to provide you with a thorough understanding of the challenges, technologies, and considerations involved in creating safe, lightweight, and competitive hydrogen storage solutions.

Course Objectives

By the end of this course, you will:

1. Understand the need for lighter and more reliable hydrogen tanks
2. Be familiar with different types of hydrogen tanks and their applications
3. Gain insights into various manufacturing methods, including traditional and cutting-edge techniques
4. Learn how to select appropriate materials for liners, matrices, and fibers
5. Master the design process for high-pressure hydrogen tanks
6. Understand the testing, certification, and regulatory landscape for hydrogen storage systems

Course Structure

1. Why do we need lighter hydrogen tanks?

• The role of hydrogen in decarbonization
• Challenges in hydrogen storage for mobility applications
• The importance of weight reduction in tank design

2. What is a Hydrogen Tank & Tank-Types

• Basic concepts of hydrogen storage
• Classification of tank types (Type I to Type V)
• Advantages and applications of each tank type

3. Filament winding hydrogen tanks (Thermoset)

• Overview of filament winding technology
• Wet filament winding vs. towpreg winding
• Benefits and limitations of thermoset composites

4. Thermoplastic Tape Winding of Hydrogen Tank

• Introduction to thermoplastic composites
• The thermoplastic tape winding process
• Advantages for sustainable manufacturing

5. Traditional Filament winding vs. Robotic Winding

• Comparison of winding technologies
• Advantages of robotic winding for complex geometries
• Future trends in automated manufacturing

6. How to select the right Hydrogen tanks Liners, Matrix, and Fiber materials

• Material considerations for liners (metal vs. polymer)
• Thermoset vs. thermoplastic matrices
• Fiber reinforcement options (carbon, glass, basalt)

7. Optimal design for composite high-pressure hydrogen storage tank

• Design methodology and considerations
• Finite Element Analysis (FEA) for tank design
• Failure analysis and burst pressure prediction

8. Hydrogen storage tanks: testing, certification, codes & standards

• Overview of regulations, codes, and standards
• Testing procedures for hydrogen tanks
• Certification process and future trends

Key Takeaways

1. Lightweight design is crucial for the adoption of hydrogen fuel cell vehicles
2. Material selection significantly impacts tank performance and sustainability
3. Advanced manufacturing methods like thermoplastic tape winding offer sustainability benefits
4. Optimal design requires balancing multiple factors including safety, performance, and cost
5. Rigorous testing and certification are essential for ensuring the safety of hydrogen storage systems

Who Should Take This Course

This course is ideal for:

• Engineers and designers in the automotive and energy sectors
• Researchers in materials science and sustainable energy
• Professionals involved in the hydrogen economy and infrastructure development
• Students pursuing advanced degrees in related fields

Looking Ahead

As we progress through this course, you'll gain a comprehensive understanding of the intricate world of hydrogen storage tank development. From materials science to advanced manufacturing techniques, from complex design processes to stringent safety standards, this course will equip you with the knowledge needed to contribute to the exciting field of sustainable energy storage.

Are you ready to dive into the future of clean energy storage? Let's begin our journey into the design and development of sustainable compressed hydrogen storage tanks!

Start with Chapter 1: Why do we need lighter hydrogen tanks?

Welcome to the first chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the critical need for lighter hydrogen tanks and their impact on the future of sustainable energy.

The Weight Challenge in Hydrogen Storage

As we transition towards a hydrogen-based economy, one of the most significant challenges we face is the storage and transportation of hydrogen. Traditional storage methods often result in heavy tanks, which can limit the efficiency and practicality of hydrogen-powered systems, especially in mobile applications.

The Impact of Tank Weight

1. Energy Efficiency: Heavier tanks require more energy to transport, reducing the overall efficiency of hydrogen-powered vehicles.
2. Range Limitations: In transportation, heavier tanks mean less hydrogen can be carried, limiting the range of vehicles.
3. Payload Reduction: For commercial vehicles, heavier tanks reduce the available payload capacity.
4. Performance Issues: Additional weight can negatively impact vehicle handling and performance.

The Need for Lightweight Solutions

Developing lighter hydrogen tanks is crucial for several reasons:

1. Improved Vehicle Performance: Lighter tanks contribute to better fuel economy, increased range, and enhanced overall performance of hydrogen-powered vehicles.
2. Increased Adoption: More efficient and practical hydrogen storage solutions can accelerate the adoption of hydrogen technology across various sectors.
3. Cost Reduction: Lighter tanks often require less material, potentially reducing manufacturing costs and making hydrogen technology more economically viable.
4. Versatility: Lightweight tanks open up new possibilities for hydrogen use in portable applications and aerospace.

Challenges in Developing Lighter Tanks

Creating lighter hydrogen tanks isn't without its challenges. Engineers and researchers must navigate:

1. Safety Concerns: Ensuring that lighter materials can withstand high pressures and meet stringent safety standards.
2. Material Properties: Developing materials that are both lightweight and impermeable to tiny hydrogen molecules.
3. Manufacturing Complexities: Implementing advanced manufacturing techniques like Automated Fiber Placement (AFP) to create complex, lightweight structures.
4. Cost Considerations: Balancing the use of advanced materials with economic feasibility.

Innovative Approaches to Lightweight Tank Design

Researchers and manufacturers are exploring various strategies to reduce tank weight:

1. Advanced Composites: Utilizing carbon fiber reinforced polymers (CFRP) to create strong, lightweight tank structures. Learn more about composite materials in our introduction.
2. Novel Geometries: Designing tank shapes that optimize the strength-to-weight ratio.
3. Multi-layer Constructions: Combining different materials to achieve the best balance of weight, strength, and permeability.
4. Nanomaterials: Investigating the potential of materials like graphene to enhance strength while reducing weight.

The Broader Impact of Lighter Hydrogen Tanks

The development of lighter hydrogen tanks has implications beyond just transportation:

1. Renewable Energy Storage: Lighter tanks could make large-scale hydrogen storage more feasible for grid applications.
2. Portable Power Solutions: Enabling more efficient and practical portable fuel cells for remote or emergency use.
3. Aerospace Applications: Facilitating the use of hydrogen in aircraft and spacecraft, where weight is a critical factor.

Looking Ahead: The Future of Hydrogen Storage

As we continue to innovate in the field of hydrogen storage, we can expect:

1. Integration of Smart Technologies: Incorporating sensors and IoT capabilities for real-time monitoring and improved safety.
2. Advancements in Materials Science: Ongoing research into new materials that could revolutionize hydrogen storage.
3. Standardization and Regulation: Development of new standards to accommodate innovative tank designs and materials.

Conclusion

The need for lighter hydrogen tanks is driving innovation across multiple disciplines, from materials science to manufacturing techniques. As we progress in this field, we're not just solving a technical challenge – we're paving the way for a more sustainable, hydrogen-powered future.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll delve deeper into the specific technologies and methodologies used to create these cutting-edge storage solutions.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll explore the different types of hydrogen tanks and their applications.

Back to Course Overview

Welcome to the second chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the fundamental concept of hydrogen tanks and delve into the various types of tanks used in different applications.

Understanding Hydrogen Tanks

A hydrogen tank, also known as a hydrogen cylinder or hydrogen storage vessel, is a specialized container designed to store hydrogen gas under high pressure. These tanks play a crucial role in the hydrogen economy, enabling the storage and transportation of hydrogen for various applications, from fuel cell vehicles to industrial processes.

Key Features of Hydrogen Tanks:

1. High Pressure Resistance: Typically designed to withstand pressures of 350 to 700 bar (5,000 to 10,000 psi).
2. Low Permeability: Constructed to minimize hydrogen leakage.
3. Lightweight Design: Especially important for mobile applications, as discussed in our previous chapter on lighter hydrogen tanks.
4. Safety Features: Includes pressure relief devices and other safety mechanisms.

Classification of Hydrogen Tanks

The industry classifies hydrogen tanks into five main types, each with unique characteristics and applications:

Type I: All-Metal Tanks

• Construction: Entirely made of metal, usually steel or aluminum.
• Advantages: Simple construction, low cost.
• Disadvantages: Heavy, limiting their use in mobile applications.
• Applications: Stationary storage, industrial use.

Type II: Metal Liner with Composite Hoop Wrap

• Construction: Metal liner (usually steel or aluminum) with a composite material wrapped around the cylinder part.
• Advantages: Lighter than Type I, higher pressure capacity.
• Disadvantages: Still relatively heavy for mobile applications.
• Applications: Improved performance in stationary and some mobile applications.

Type III: Metal Liner with Full Composite Wrap

• Construction: Thin metal liner (usually aluminum) fully wrapped with composite materials.
• Advantages: Significantly lighter than Type I and II, high pressure capacity.
• Disadvantages: More complex manufacturing process.
• Applications: Automotive, aerospace, portable applications.

Type IV: Polymer Liner with Full Composite Wrap

• Construction: Polymer liner (usually high-density polyethylene or polyamide) fully wrapped with composite materials.
• Advantages: Lightest option, excellent for high-pressure storage.
• Disadvantages: Higher manufacturing cost, potential for higher permeation rates.
• Applications: Automotive (especially fuel cell vehicles), aerospace, portable applications.

Type V: Linerless All-Composite

• Construction: Entirely made of composite materials without a separate liner.
• Advantages: Potential for even lighter weight, reduced permeation compared to Type IV.
• Disadvantages: Complex manufacturing, still in development stages.
• Applications: Future automotive and aerospace applications.

For a more detailed comparison of these tank types, refer to our article on Types of Hydrogen Tanks: Technological Differences and Advantages Explained.

Manufacturing Techniques

The manufacturing process varies depending on the tank type:

• Metal Tanks: Traditional metal forming techniques like deep drawing or spinning.
• Composite Wrapping: Utilizes advanced processes like filament winding or Automated Fiber Placement (AFP).
• Polymer Liners: Often manufactured using blow molding or rotational molding techniques.

Learn more about these manufacturing techniques in our chapter on composite manufacturing methods.

Choosing the Right Tank Type

Selecting the appropriate tank type depends on several factors:

1. Application: Mobile vs. stationary use.
2. Pressure Requirements: Higher pressure applications generally require more advanced tank types.
3. Weight Constraints: Critical for mobile applications like vehicles.
4. Cost Considerations: More advanced types typically come with higher costs.
5. Regulatory Requirements: Different regions may have specific regulations for hydrogen storage.

For guidance on material selection, refer to our guide on How to Select the Right Hydrogen Tanks Liners, Matrix, and Fiber Materials.

Future Trends in Hydrogen Tank Design

As we continue to innovate in the field of hydrogen storage, we're seeing exciting developments:

• Advanced Materials: Research into novel composites and nanomaterials for improved performance.
• Smart Tanks: Integration of sensors and IoT capabilities for real-time monitoring.
• Improved Manufacturing: Development of more efficient and cost-effective production methods, such as AFP for hydrogen tank production.
• Standardization: Efforts to create global standards for hydrogen tank design and testing.

Conclusion

Understanding the different types of hydrogen tanks is crucial for designing and developing sustainable compressed hydrogen storage solutions. Each type offers unique advantages and challenges, and the choice depends on the specific application and requirements.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore the manufacturing techniques, material selection, and design optimization for these advanced storage systems.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll discuss the manufacturing techniques for composite hydrogen tanks.

Back to Course Overview

Welcome to the third chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the filament winding process for manufacturing thermoset composite hydrogen tanks, a crucial technique in creating lightweight and strong storage solutions.

Introduction to Filament Winding

Filament winding is a manufacturing technique primarily used to create hollow, circular, or oval-shaped composite parts. It's particularly well-suited for producing high-pressure vessels like hydrogen tanks, where strength, weight, and durability are critical factors.

Key Advantages of Filament Winding:

1. High Strength-to-Weight Ratio: Ideal for lightweight hydrogen tanks, as discussed in our earlier chapters.
2. Precise Fiber Orientation: Allows for optimized strength in specific directions.
3. Consistency: Automated process ensures repeatable quality.
4. Scalability: Suitable for various tank sizes and production volumes.

The Filament Winding Process for Thermoset Composites

Step 1: Mandrel Preparation

• A mandrel, typically made of metal or soluble material, is prepared to form the inner shape of the tank.
• For Type III and Type IV tanks, the liner is used as the mandrel.

Step 2: Fiber Impregnation

• Continuous fiber tows (usually carbon or glass) are passed through a resin bath.
• The resin used is a thermoset polymer, typically epoxy.

Step 3: Winding

• The impregnated fibers are wound onto the rotating mandrel.
• A computer-controlled delivery head precisely places the fibers.
• Different winding patterns are used: some text
  • Hoop Winding: Fibers laid nearly perpendicular to the mandrel axis.
  • Helical Winding: Fibers laid at an angle to the mandrel axis.
  • Polar Winding: Fibers laid from pole to pole.

Step 4: Curing

• Once winding is complete, the entire assembly is cured.
• Curing typically involves heat and sometimes pressure to set the thermoset resin.

Step 5: Mandrel Removal

• After curing, the mandrel is removed.
• For soluble mandrels, this is done through dissolution.

Winding Patterns and Their Importance

The strength and performance of the tank heavily depend on the winding pattern:

Hoop Winding:

• Nearly 90° to the mandrel axis.
• Provides circumferential strength.
• Efficient for cylindrical sections.

Helical Winding:

• Fibers laid at angles between 5° and 80°.
• Provides both longitudinal and circumferential strength.
• Critical for dome sections and overall tank integrity.

Combination Patterns:

• Most tanks use a combination of hoop and helical windings.
• Optimizes strength in all directions.

Learn more about composite layup strategies in our chapter on composite design principles.

Thermoset Resins in Filament Winding

Thermoset resins, particularly epoxies, are commonly used in filament winding for hydrogen tanks due to their:

1. High Strength: Excellent mechanical properties when cured.
2. Chemical Resistance: Important for long-term hydrogen storage.
3. Thermal Stability: Maintains properties across a wide temperature range.
4. Low Shrinkage: Ensures dimensional stability during curing.

However, thermosets also have some limitations:

• Limited Shelf Life: Once mixed, they have a finite working time.
• Non-Recyclable: Cannot be melted and reshaped after curing.
• Longer Processing Time: Require time for curing.

For a comparison with thermoplastic alternatives, see our chapter on thermoplastic composite tanks.

Advanced Filament Winding Technologies

Modern filament winding for hydrogen tanks often incorporates advanced technologies:

• Multi-Axis Winding: Allows for complex geometries and optimized fiber placement.
• In-Situ Consolidation: Combines winding and curing for faster production.
• Automated Fiber Placement (AFP): Offers more precise control over fiber placement. Learn more about AFP in our dedicated chapter.

Quality Control and Testing

Ensuring the quality of filament-wound tanks is crucial:

• Non-Destructive Testing: Techniques like ultrasonic inspection to check for defects.
• Burst Testing: Verifying the tank's ability to withstand high pressures.
• Permeation Testing: Especially important for hydrogen storage.

For more on testing procedures, see our chapter on hydrogen tank certification and testing.

Environmental Considerations

While thermoset composites offer excellent performance, their environmental impact is a concern:

• End-of-Life: Challenges in recycling cured thermoset composites.
• Emissions: Potential VOC emissions during the winding and curing process.

Efforts are ongoing to develop more sustainable thermoset resins and recycling methods.

Conclusion

Filament winding with thermoset composites is a cornerstone technology in the production of high-performance hydrogen tanks. Its ability to create lightweight, strong, and durable structures makes it ideal for the demanding requirements of hydrogen storage.

As we continue our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore alternative manufacturing methods and materials, each offering unique advantages in our quest for optimal hydrogen storage solutions.

Ready to learn about cutting-edge alternatives? Continue to the next chapter where we'll discuss thermoplastic tape winding for hydrogen tanks.

Back to Course Overview

Welcome to the fourth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the innovative technique of thermoplastic tape winding for manufacturing hydrogen tanks, a method that offers unique advantages in terms of sustainability and performance.

Introduction to Thermoplastic Tape Winding

Thermoplastic Tape Winding (TTW) is an advanced manufacturing process that combines the principles of filament winding with the benefits of thermoplastic composites. This technique is gaining traction in the production of high-performance hydrogen tanks due to its potential for faster processing, improved recyclability, and enhanced mechanical properties.

Key Advantages of Thermoplastic Tape Winding:

1. Rapid Processing: No need for long curing cycles, unlike thermoset composites.
2. Recyclability: Thermoplastics can be melted and reshaped, promoting sustainability.
3. Improved Impact Resistance: Typically offers better toughness than thermoset alternatives.
4. Potential for Welding: Allows for more design flexibility and easier repairs.

The Thermoplastic Tape Winding Process

Step 1: Material Preparation

• Pre-impregnated thermoplastic tapes (prepregs) are used, typically consisting of carbon or glass fibers in a thermoplastic matrix like PEEK, PEKK, or PA12.

Step 2: Mandrel Setup

• Similar to thermoset filament winding, a mandrel is prepared, often incorporating the liner for Type III or Type IV tanks.

Step 3: Winding

• The thermoplastic tape is heated to its melting point just before placement on the mandrel.
• A computer-controlled head precisely places and consolidates the tape onto the mandrel.
• Various winding patterns are used to optimize strength and performance.

Step 4: In-Situ Consolidation

• Unlike thermoset winding, consolidation occurs during the winding process.
• Heat and pressure are applied to fuse the newly placed tape with the underlying layers.

Step 5: Cooling

• The wound structure is cooled to solidify the thermoplastic matrix.
• Cooling rates can be controlled to optimize crystallinity and mechanical properties.

Key Technological Challenges Thermoplastic Tape Winding Process

1. Temperature Control

• Precise temperature management is crucial for proper consolidation.
• Too low: inadequate bonding; Too high: material degradation.
• Solution: Advanced heating systems (e.g., laser, IR) with real-time temperature monitoring.

2. Tape Placement Accuracy

• Gaps and overlaps can significantly affect tank performance.
• Solution: High-precision robotics and advanced control systems.

3. Crystallinity Management

• Crystallinity affects mechanical properties and permeability.
• Solution: Controlled cooling rates and potential post-processing heat treatments.

4. First Ply Adhesion

• Ensuring proper bonding to the liner or first layer is critical.
• Solution: Surface preparation techniques and specialized first-ply materials.

Materials for Thermoplastic Tape Winding

Common thermoplastic matrices used in hydrogen tank production include:

PEEK (Polyether Ether Ketone):

• Excellent mechanical properties and chemical resistance.
• High temperature resistance.

PEKK (Polyetherketoneketone):

• Similar to PEEK with improved processing characteristics.
• Lower melting temperature than PEEK.

PA12 (Polyamide 12):

• Good balance of properties and cost.
• Lower processing temperatures than PEEK/PEKK.

For more on material selection, see our chapter on composite materials for hydrogen tanks.

Advanced Techniques in Thermoplastic Tape Winding

In-Situ Crystallization Control

• Manipulating cooling rates during winding to optimize crystallinity.
• Potential for creating tailored properties in different tank regions.

Hybrid Processes

• Combining thermoplastic tape winding with other processes like Automated Fiber Placement (AFP) for complex geometries.

Smart Manufacturing Integration

• Incorporating sensors for real-time process monitoring and quality control.
• Potential for AI-driven process optimization.

Environmental and Sustainability Aspects

Thermoplastic composites offer significant advantages in terms of sustainability:

• Recyclability: Can be melted and reshaped, allowing for easier recycling.
• Reduced Waste: Potential for reuse of production scraps.
• Energy Efficiency: No need for autoclave curing, reducing energy consumption.

However, challenges remain in establishing efficient recycling processes for composite structures. Learn more about sustainability in composites in our dedicated chapter.

Performance Comparison: Thermoplastic vs. Thermoset Tanks

While both materials can produce high-performance tanks, they have distinct characteristics:

• Impact Resistance: Thermoplastics generally offer superior toughness.
• Chemical Resistance: Both can be formulated for excellent resistance, but thermosets often have an edge.
• High-Temperature Performance: High-performance thermoplastics like PEEK can match or exceed many thermosets.
• Processing Speed: Thermoplastics offer faster production cycles.

For a detailed comparison, refer to our chapter on material selection for hydrogen tanks.

Future Trends and Research Directions

The field of thermoplastic tape winding for hydrogen tanks is rapidly evolving:

• Novel Materials: Development of new thermoplastic matrices and fiber combinations.
• Process Optimization: Advancements in heating technologies and placement accuracy.
• Multifunctional Designs: Integrating additional functionalities like sensors or thermal management.
• Scaling Up: Addressing challenges in producing larger tanks for industrial applications.

Conclusion

Thermoplastic tape winding represents a significant advancement in the manufacture of hydrogen tanks, offering a compelling combination of performance, processing speed, and sustainability. As we continue to innovate in this field, thermoplastic composites are likely to play an increasingly important role in the design and development of sustainable compressed hydrogen storage tanks.

Ready to explore more manufacturing techniques? Continue to the next chapter where we'll discuss the comparison between traditional and robotic winding methods.

Back to Course Overview

Welcome to the fifth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore and compare two key manufacturing techniques: traditional filament winding and the more advanced robotic winding. Understanding these methods is crucial for optimizing the production of high-performance hydrogen tanks.

Introduction to Winding Technologies

Winding techniques are fundamental in the production of composite pressure vessels, including hydrogen tanks. As we've discussed in our previous chapters on filament winding and thermoplastic tape winding, these methods allow for the creation of strong, lightweight structures ideal for hydrogen storage.

Traditional Filament Winding

Overview

Traditional filament winding is a well-established manufacturing process that has been used for decades in the production of cylindrical and spherical pressure vessels.

Key Characteristics:

• Simplicity: Relatively straightforward process and machinery.
• Cost-Effectiveness: Lower initial investment compared to robotic systems.
• Limitations: Primarily suited for axially symmetric shapes.

Process Description:

• Fibers are fed through a resin bath and wound onto a rotating mandrel.
• The fiber delivery head moves along the length of the mandrel.
• Winding angles are controlled by the rotation of the mandrel and the movement of the delivery head.

Advantages:

• Well-understood process with established design principles.
• Suitable for high-volume production of simple shapes.
• Lower initial capital investment.

Limitations:

• Limited to mostly cylindrical or spherical shapes.
• Less flexibility in fiber placement and orientation.
• May require more manual intervention for complex parts.

Robotic Winding

Overview

Robotic winding leverages advanced robotics and control systems to enhance the capabilities of the winding process.

Key Characteristics:

• Flexibility: Can produce a wider range of shapes and geometries.
• Precision: Offers more accurate fiber placement and orientation control.
• Automation: Reduces the need for manual intervention.

Process Description:

• A robotic arm equipped with a fiber delivery head moves around a stationary or rotating mandrel.
• Advanced control systems allow for complex movement patterns and precise fiber placement.
• Can incorporate multiple axes of motion for intricate winding patterns.

Advantages:

• Ability to produce complex, non-geodesic winding patterns.
• Enhanced control over fiber tension and placement.
• Potential for higher consistency and repeatability.
• Can integrate with Automated Fiber Placement (AFP) techniques.

Limitations:

• Higher initial investment cost.
• Requires more advanced programming and control systems.
• May have lower production speed for simple parts compared to traditional methods.

Comparative Analysis

1. Geometry Complexity some text
   • Traditional: Limited to axially symmetric shapes.
   • Robotic: Can handle complex, asymmetric geometries.
2. Fiber Orientation Control some text
   • Traditional: Limited to helical and hoop winding patterns.
   • Robotic: Offers precise control for optimized fiber orientations.
3. Production Speed some text
   • Traditional: Generally faster for simple, cylindrical parts.
   • Robotic: May be slower for simple parts but faster for complex geometries.
4. Cost some text
   • Traditional: Lower initial investment, higher labor costs.
   • Robotic: Higher initial investment, lower long-term labor costs.
5. Quality and Consistency some text
   • Traditional: Consistent for simple parts, may vary with complexity.
   • Robotic: High consistency across various geometries.
6. Material Compatibility some text
   • Traditional: Well-suited for thermoset composites.
   • Robotic: Adaptable to both thermoset and thermoplastic materials.

Applications in Hydrogen Tank Manufacturing

Traditional Filament Winding

• Ideal for Type II and some Type III tanks with cylindrical designs.
• Commonly used in mass production of standardized tank designs.

Robotic Winding

• Preferred for advanced Type III and Type IV tanks with complex dome shapes.
• Enables the production of optimized tank designs with variable fiber orientations.
• Facilitates the integration of features like bosses and mounting points.

Future Trends and Innovations

• Hybrid Systems: Combining traditional and robotic winding for optimized production.
• In-Process Monitoring: Integration of sensors for real-time quality control.
• AI and Machine Learning: Optimizing winding patterns and process parameters.
• Multi-Material Winding: Combining different fiber types or thermoplastic and thermoset materials in a single process.

Considerations for Sustainable Manufacturing

When choosing between traditional and robotic winding for sustainable hydrogen tank production, consider:

• Energy Efficiency: Robotic systems may offer more energy-efficient operation.
• Material Utilization: Advanced robotic systems can optimize material usage, reducing waste.
• Longevity and Adaptability: Robotic systems offer more flexibility for future design changes.
• Quality and Durability: Higher precision in robotic winding may lead to longer-lasting products.

For more on sustainable manufacturing practices, see our chapter on sustainability in composite production.

Conclusion

Both traditional filament winding and robotic winding have their place in the manufacture of hydrogen storage tanks. The choice between them depends on factors such as production volume, geometric complexity, desired performance characteristics, and available investment.

As we continue to innovate in the Design and Development of Sustainable Compressed Hydrogen Storage Tank, the integration and optimization of these winding technologies will play a crucial role in producing efficient, safe, and sustainable hydrogen storage solutions.

Ready to dive deeper into the materials used in hydrogen tanks? Continue to the next chapter where we'll explore the selection of liners, matrices, and fiber materials for optimal tank performance.

Back to Course Overview

Welcome to the sixth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the intricate process of selecting the optimal materials for hydrogen tanks, focusing on liners, matrix materials, and fiber reinforcements.

The performance, safety, and efficiency of a hydrogen tank heavily depend on the materials used in its construction. As we've discussed in our previous chapters on tank types and manufacturing methods, the choice of materials can significantly impact the tank's weight, strength, permeability, and overall sustainability.

Liner Selection

The liner serves as a barrier between the stored hydrogen and the composite structure, playing a critical role in preventing hydrogen permeation.

Metal Liners

Advantages:

• Excellent impermeability to hydrogen
• High strength and stiffness
• Good thermal conductivity

Disadvantages:

• Higher weight compared to polymeric liners
• Potential for hydrogen embrittlement (especially in steel)

Common Materials:

• Aluminum Alloys: some text
  • Lightweight
  • Good formability
  • Resistant to hydrogen embrittlement
• Stainless Steel: some text
  • High strength
  • Excellent corrosion resistance
  • Higher weight

Polymer Liners

Advantages:

• Significantly lighter than metal liners
• Excellent fatigue resistance
• No risk of hydrogen embrittlement

Disadvantages:

• Higher hydrogen permeation rates
• Lower thermal conductivity

Common Materials:

• High-Density Polyethylene (HDPE): some text
  • Good chemical resistance
  • Low cost
  • Limited temperature range
• Polyamide (PA): some text
  • Better mechanical properties than HDPE
  • Good temperature resistance
  • Higher cost

Linerless Designs

For certain applications, especially in aerospace, linerless tank designs are being explored:

• Utilizes the composite structure itself as a barrier
• Extremely lightweight
• Challenging to achieve required impermeability

Matrix Selection: Thermoset vs. Thermoplastic

The matrix material holds the reinforcing fibers together and transfers loads between them.

Thermoset Matrices

Advantages:

• Excellent chemical resistance
• High temperature resistance
• Low viscosity during processing (good fiber wet-out)

Disadvantages:

• Limited shelf life
• Longer processing times (curing required)
• Difficult to recycle

Common Materials:

• Epoxy: some text
  • High strength and stiffness
  • Excellent adhesion to fibers
  • Good chemical resistance
• Cyanate Ester: some text
  • Superior hot/wet performance
  • Low moisture absorption
  • Higher cost

Thermoplastic Matrices

Advantages:

• Faster processing (no curing required)
• Recyclable
• Better impact resistance

Disadvantages:

• Higher processing temperatures
• Higher viscosity (can be challenging for fiber wet-out)

Common Materials:

• Polyether Ether Ketone (PEEK): some text
  • Excellent mechanical properties
  • High temperature resistance
  • Chemical resistance
• Polyamide (PA): some text
  • Good balance of properties
  • Lower cost than PEEK
  • Easier to process

For more on the comparison between thermoset and thermoplastic composites, see our dedicated chapter.

Fiber Reinforcements

Fibers provide the primary structural strength in composite hydrogen tanks.

Carbon Fiber

Advantages:

• Highest specific strength and stiffness
• Excellent fatigue resistance
• Low coefficient of thermal expansion

Disadvantages:

• Higher cost
• Potential for galvanic corrosion with metal fittings

Glass Fiber

Advantages:

• Lower cost than carbon fiber
• Good specific strength
• Excellent insulating properties

Disadvantages:

• Lower stiffness than carbon fiber
• Higher density

Hybrid Fiber Solutions

Some designs utilize a combination of fiber types:

• Carbon fiber for high-stress areas
• Glass fiber for impact resistance or cost reduction

Learn more about fiber reinforcements in our comprehensive guide.

Material Selection Considerations

When selecting materials for hydrogen tanks, consider the following factors:

1. Operating Pressure: Higher pressures require stronger materials.
2. Weight Requirements: Critical for mobile applications.
3. Temperature Range: Both cryogenic and high-temperature applications need special consideration.
4. Permeability: Crucial for long-term hydrogen storage.
5. Cost: Balance between performance and economic viability.
6. Manufacturing Process: Filament winding and automated fiber placement may have different material requirements.
7. Regulatory Compliance: Ensure materials meet safety standards and regulations.
8. Sustainability: Consider the environmental impact and recyclability of materials.

Future Trends in Material Development

• Nano-enhanced Matrices: Incorporating nanoparticles to improve barrier properties and strength.
• Bio-based Composites: Developing sustainable alternatives to petroleum-based resins.
• Smart Materials: Integrating sensing capabilities for real-time monitoring.
• Multifunctional Composites: Materials that can store hydrogen and provide structural support.

Conclusion

Selecting the right combination of liner, matrix, and fiber materials is crucial for developing high-performance, safe, and sustainable hydrogen storage tanks. As we continue our journey through the Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore how these material choices influence the overall tank design and performance.

Ready to learn how these materials come together in the tank design process? Continue to the next chapter where we'll delve into the optimal design strategies for composite high-pressure hydrogen storage tanks.

Back to Course Overview

Welcome to our comprehensive course on the design and development of sustainable compressed hydrogen storage tanks. As the world moves towards cleaner energy solutions, hydrogen fuel cell technology is emerging as a key player in the future of advanced mobility and energy storage. This course aims to provide you with a thorough understanding of the challenges, technologies, and considerations involved in creating safe, lightweight, and competitive hydrogen storage solutions.

Course Objectives

By the end of this course, you will:

1. Understand the need for lighter and more reliable hydrogen tanks
2. Be familiar with different types of hydrogen tanks and their applications
3. Gain insights into various manufacturing methods, including traditional and cutting-edge techniques
4. Learn how to select appropriate materials for liners, matrices, and fibers
5. Master the design process for high-pressure hydrogen tanks
6. Understand the testing, certification, and regulatory landscape for hydrogen storage systems

Course Structure

1. Why do we need lighter hydrogen tanks?

• The role of hydrogen in decarbonization
• Challenges in hydrogen storage for mobility applications
• The importance of weight reduction in tank design

2. What is a Hydrogen Tank & Tank-Types

• Basic concepts of hydrogen storage
• Classification of tank types (Type I to Type V)
• Advantages and applications of each tank type

3. Filament winding hydrogen tanks (Thermoset)

• Overview of filament winding technology
• Wet filament winding vs. towpreg winding
• Benefits and limitations of thermoset composites

4. Thermoplastic Tape Winding of Hydrogen Tank

• Introduction to thermoplastic composites
• The thermoplastic tape winding process
• Advantages for sustainable manufacturing

5. Traditional Filament winding vs. Robotic Winding

• Comparison of winding technologies
• Advantages of robotic winding for complex geometries
• Future trends in automated manufacturing

6. How to select the right Hydrogen tanks Liners, Matrix, and Fiber materials

• Material considerations for liners (metal vs. polymer)
• Thermoset vs. thermoplastic matrices
• Fiber reinforcement options (carbon, glass, basalt)

7. Optimal design for composite high-pressure hydrogen storage tank

• Design methodology and considerations
• Finite Element Analysis (FEA) for tank design
• Failure analysis and burst pressure prediction

8. Hydrogen storage tanks: testing, certification, codes & standards

• Overview of regulations, codes, and standards
• Testing procedures for hydrogen tanks
• Certification process and future trends

Key Takeaways

1. Lightweight design is crucial for the adoption of hydrogen fuel cell vehicles
2. Material selection significantly impacts tank performance and sustainability
3. Advanced manufacturing methods like thermoplastic tape winding offer sustainability benefits
4. Optimal design requires balancing multiple factors including safety, performance, and cost
5. Rigorous testing and certification are essential for ensuring the safety of hydrogen storage systems

Who Should Take This Course

This course is ideal for:

• Engineers and designers in the automotive and energy sectors
• Researchers in materials science and sustainable energy
• Professionals involved in the hydrogen economy and infrastructure development
• Students pursuing advanced degrees in related fields

Looking Ahead

As we progress through this course, you'll gain a comprehensive understanding of the intricate world of hydrogen storage tank development. From materials science to advanced manufacturing techniques, from complex design processes to stringent safety standards, this course will equip you with the knowledge needed to contribute to the exciting field of sustainable energy storage.

Are you ready to dive into the future of clean energy storage? Let's begin our journey into the design and development of sustainable compressed hydrogen storage tanks!

Start with Chapter 1: Why do we need lighter hydrogen tanks?

Welcome to the first chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the critical need for lighter hydrogen tanks and their impact on the future of sustainable energy.

The Weight Challenge in Hydrogen Storage

As we transition towards a hydrogen-based economy, one of the most significant challenges we face is the storage and transportation of hydrogen. Traditional storage methods often result in heavy tanks, which can limit the efficiency and practicality of hydrogen-powered systems, especially in mobile applications.

The Impact of Tank Weight

1. Energy Efficiency: Heavier tanks require more energy to transport, reducing the overall efficiency of hydrogen-powered vehicles.
2. Range Limitations: In transportation, heavier tanks mean less hydrogen can be carried, limiting the range of vehicles.
3. Payload Reduction: For commercial vehicles, heavier tanks reduce the available payload capacity.
4. Performance Issues: Additional weight can negatively impact vehicle handling and performance.

The Need for Lightweight Solutions

Developing lighter hydrogen tanks is crucial for several reasons:

1. Improved Vehicle Performance: Lighter tanks contribute to better fuel economy, increased range, and enhanced overall performance of hydrogen-powered vehicles.
2. Increased Adoption: More efficient and practical hydrogen storage solutions can accelerate the adoption of hydrogen technology across various sectors.
3. Cost Reduction: Lighter tanks often require less material, potentially reducing manufacturing costs and making hydrogen technology more economically viable.
4. Versatility: Lightweight tanks open up new possibilities for hydrogen use in portable applications and aerospace.

Challenges in Developing Lighter Tanks

Creating lighter hydrogen tanks isn't without its challenges. Engineers and researchers must navigate:

1. Safety Concerns: Ensuring that lighter materials can withstand high pressures and meet stringent safety standards.
2. Material Properties: Developing materials that are both lightweight and impermeable to tiny hydrogen molecules.
3. Manufacturing Complexities: Implementing advanced manufacturing techniques like Automated Fiber Placement (AFP) to create complex, lightweight structures.
4. Cost Considerations: Balancing the use of advanced materials with economic feasibility.

Innovative Approaches to Lightweight Tank Design

Researchers and manufacturers are exploring various strategies to reduce tank weight:

1. Advanced Composites: Utilizing carbon fiber reinforced polymers (CFRP) to create strong, lightweight tank structures. Learn more about composite materials in our introduction.
2. Novel Geometries: Designing tank shapes that optimize the strength-to-weight ratio.
3. Multi-layer Constructions: Combining different materials to achieve the best balance of weight, strength, and permeability.
4. Nanomaterials: Investigating the potential of materials like graphene to enhance strength while reducing weight.

The Broader Impact of Lighter Hydrogen Tanks

The development of lighter hydrogen tanks has implications beyond just transportation:

1. Renewable Energy Storage: Lighter tanks could make large-scale hydrogen storage more feasible for grid applications.
2. Portable Power Solutions: Enabling more efficient and practical portable fuel cells for remote or emergency use.
3. Aerospace Applications: Facilitating the use of hydrogen in aircraft and spacecraft, where weight is a critical factor.

Looking Ahead: The Future of Hydrogen Storage

As we continue to innovate in the field of hydrogen storage, we can expect:

1. Integration of Smart Technologies: Incorporating sensors and IoT capabilities for real-time monitoring and improved safety.
2. Advancements in Materials Science: Ongoing research into new materials that could revolutionize hydrogen storage.
3. Standardization and Regulation: Development of new standards to accommodate innovative tank designs and materials.

Conclusion

The need for lighter hydrogen tanks is driving innovation across multiple disciplines, from materials science to manufacturing techniques. As we progress in this field, we're not just solving a technical challenge – we're paving the way for a more sustainable, hydrogen-powered future.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll delve deeper into the specific technologies and methodologies used to create these cutting-edge storage solutions.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll explore the different types of hydrogen tanks and their applications.

Back to Course Overview

Welcome to the second chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the fundamental concept of hydrogen tanks and delve into the various types of tanks used in different applications.

Understanding Hydrogen Tanks

A hydrogen tank, also known as a hydrogen cylinder or hydrogen storage vessel, is a specialized container designed to store hydrogen gas under high pressure. These tanks play a crucial role in the hydrogen economy, enabling the storage and transportation of hydrogen for various applications, from fuel cell vehicles to industrial processes.

Key Features of Hydrogen Tanks:

1. High Pressure Resistance: Typically designed to withstand pressures of 350 to 700 bar (5,000 to 10,000 psi).
2. Low Permeability: Constructed to minimize hydrogen leakage.
3. Lightweight Design: Especially important for mobile applications, as discussed in our previous chapter on lighter hydrogen tanks.
4. Safety Features: Includes pressure relief devices and other safety mechanisms.

Classification of Hydrogen Tanks

The industry classifies hydrogen tanks into five main types, each with unique characteristics and applications:

Type I: All-Metal Tanks

• Construction: Entirely made of metal, usually steel or aluminum.
• Advantages: Simple construction, low cost.
• Disadvantages: Heavy, limiting their use in mobile applications.
• Applications: Stationary storage, industrial use.

Type II: Metal Liner with Composite Hoop Wrap

• Construction: Metal liner (usually steel or aluminum) with a composite material wrapped around the cylinder part.
• Advantages: Lighter than Type I, higher pressure capacity.
• Disadvantages: Still relatively heavy for mobile applications.
• Applications: Improved performance in stationary and some mobile applications.

Type III: Metal Liner with Full Composite Wrap

• Construction: Thin metal liner (usually aluminum) fully wrapped with composite materials.
• Advantages: Significantly lighter than Type I and II, high pressure capacity.
• Disadvantages: More complex manufacturing process.
• Applications: Automotive, aerospace, portable applications.

Type IV: Polymer Liner with Full Composite Wrap

• Construction: Polymer liner (usually high-density polyethylene or polyamide) fully wrapped with composite materials.
• Advantages: Lightest option, excellent for high-pressure storage.
• Disadvantages: Higher manufacturing cost, potential for higher permeation rates.
• Applications: Automotive (especially fuel cell vehicles), aerospace, portable applications.

Type V: Linerless All-Composite

• Construction: Entirely made of composite materials without a separate liner.
• Advantages: Potential for even lighter weight, reduced permeation compared to Type IV.
• Disadvantages: Complex manufacturing, still in development stages.
• Applications: Future automotive and aerospace applications.

For a more detailed comparison of these tank types, refer to our article on Types of Hydrogen Tanks: Technological Differences and Advantages Explained.

Manufacturing Techniques

The manufacturing process varies depending on the tank type:

• Metal Tanks: Traditional metal forming techniques like deep drawing or spinning.
• Composite Wrapping: Utilizes advanced processes like filament winding or Automated Fiber Placement (AFP).
• Polymer Liners: Often manufactured using blow molding or rotational molding techniques.

Learn more about these manufacturing techniques in our chapter on composite manufacturing methods.

Choosing the Right Tank Type

Selecting the appropriate tank type depends on several factors:

1. Application: Mobile vs. stationary use.
2. Pressure Requirements: Higher pressure applications generally require more advanced tank types.
3. Weight Constraints: Critical for mobile applications like vehicles.
4. Cost Considerations: More advanced types typically come with higher costs.
5. Regulatory Requirements: Different regions may have specific regulations for hydrogen storage.

For guidance on material selection, refer to our guide on How to Select the Right Hydrogen Tanks Liners, Matrix, and Fiber Materials.

Future Trends in Hydrogen Tank Design

As we continue to innovate in the field of hydrogen storage, we're seeing exciting developments:

• Advanced Materials: Research into novel composites and nanomaterials for improved performance.
• Smart Tanks: Integration of sensors and IoT capabilities for real-time monitoring.
• Improved Manufacturing: Development of more efficient and cost-effective production methods, such as AFP for hydrogen tank production.
• Standardization: Efforts to create global standards for hydrogen tank design and testing.

Conclusion

Understanding the different types of hydrogen tanks is crucial for designing and developing sustainable compressed hydrogen storage solutions. Each type offers unique advantages and challenges, and the choice depends on the specific application and requirements.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore the manufacturing techniques, material selection, and design optimization for these advanced storage systems.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll discuss the manufacturing techniques for composite hydrogen tanks.

Back to Course Overview

Welcome to the third chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the filament winding process for manufacturing thermoset composite hydrogen tanks, a crucial technique in creating lightweight and strong storage solutions.

Introduction to Filament Winding

Filament winding is a manufacturing technique primarily used to create hollow, circular, or oval-shaped composite parts. It's particularly well-suited for producing high-pressure vessels like hydrogen tanks, where strength, weight, and durability are critical factors.

Key Advantages of Filament Winding:

1. High Strength-to-Weight Ratio: Ideal for lightweight hydrogen tanks, as discussed in our earlier chapters.
2. Precise Fiber Orientation: Allows for optimized strength in specific directions.
3. Consistency: Automated process ensures repeatable quality.
4. Scalability: Suitable for various tank sizes and production volumes.

The Filament Winding Process for Thermoset Composites

Step 1: Mandrel Preparation

• A mandrel, typically made of metal or soluble material, is prepared to form the inner shape of the tank.
• For Type III and Type IV tanks, the liner is used as the mandrel.

Step 2: Fiber Impregnation

• Continuous fiber tows (usually carbon or glass) are passed through a resin bath.
• The resin used is a thermoset polymer, typically epoxy.

Step 3: Winding

• The impregnated fibers are wound onto the rotating mandrel.
• A computer-controlled delivery head precisely places the fibers.
• Different winding patterns are used: some text
  • Hoop Winding: Fibers laid nearly perpendicular to the mandrel axis.
  • Helical Winding: Fibers laid at an angle to the mandrel axis.
  • Polar Winding: Fibers laid from pole to pole.

Step 4: Curing

• Once winding is complete, the entire assembly is cured.
• Curing typically involves heat and sometimes pressure to set the thermoset resin.

Step 5: Mandrel Removal

• After curing, the mandrel is removed.
• For soluble mandrels, this is done through dissolution.

Winding Patterns and Their Importance

The strength and performance of the tank heavily depend on the winding pattern:

Hoop Winding:

• Nearly 90° to the mandrel axis.
• Provides circumferential strength.
• Efficient for cylindrical sections.

Helical Winding:

• Fibers laid at angles between 5° and 80°.
• Provides both longitudinal and circumferential strength.
• Critical for dome sections and overall tank integrity.

Combination Patterns:

• Most tanks use a combination of hoop and helical windings.
• Optimizes strength in all directions.

Learn more about composite layup strategies in our chapter on composite design principles.

Thermoset Resins in Filament Winding

Thermoset resins, particularly epoxies, are commonly used in filament winding for hydrogen tanks due to their:

1. High Strength: Excellent mechanical properties when cured.
2. Chemical Resistance: Important for long-term hydrogen storage.
3. Thermal Stability: Maintains properties across a wide temperature range.
4. Low Shrinkage: Ensures dimensional stability during curing.

However, thermosets also have some limitations:

• Limited Shelf Life: Once mixed, they have a finite working time.
• Non-Recyclable: Cannot be melted and reshaped after curing.
• Longer Processing Time: Require time for curing.

For a comparison with thermoplastic alternatives, see our chapter on thermoplastic composite tanks.

Advanced Filament Winding Technologies

Modern filament winding for hydrogen tanks often incorporates advanced technologies:

• Multi-Axis Winding: Allows for complex geometries and optimized fiber placement.
• In-Situ Consolidation: Combines winding and curing for faster production.
• Automated Fiber Placement (AFP): Offers more precise control over fiber placement. Learn more about AFP in our dedicated chapter.

Quality Control and Testing

Ensuring the quality of filament-wound tanks is crucial:

• Non-Destructive Testing: Techniques like ultrasonic inspection to check for defects.
• Burst Testing: Verifying the tank's ability to withstand high pressures.
• Permeation Testing: Especially important for hydrogen storage.

For more on testing procedures, see our chapter on hydrogen tank certification and testing.

Environmental Considerations

While thermoset composites offer excellent performance, their environmental impact is a concern:

• End-of-Life: Challenges in recycling cured thermoset composites.
• Emissions: Potential VOC emissions during the winding and curing process.

Efforts are ongoing to develop more sustainable thermoset resins and recycling methods.

Conclusion

Filament winding with thermoset composites is a cornerstone technology in the production of high-performance hydrogen tanks. Its ability to create lightweight, strong, and durable structures makes it ideal for the demanding requirements of hydrogen storage.

As we continue our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore alternative manufacturing methods and materials, each offering unique advantages in our quest for optimal hydrogen storage solutions.

Ready to learn about cutting-edge alternatives? Continue to the next chapter where we'll discuss thermoplastic tape winding for hydrogen tanks.

Back to Course Overview

Welcome to the fourth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the innovative technique of thermoplastic tape winding for manufacturing hydrogen tanks, a method that offers unique advantages in terms of sustainability and performance.

Introduction to Thermoplastic Tape Winding

Thermoplastic Tape Winding (TTW) is an advanced manufacturing process that combines the principles of filament winding with the benefits of thermoplastic composites. This technique is gaining traction in the production of high-performance hydrogen tanks due to its potential for faster processing, improved recyclability, and enhanced mechanical properties.

Key Advantages of Thermoplastic Tape Winding:

1. Rapid Processing: No need for long curing cycles, unlike thermoset composites.
2. Recyclability: Thermoplastics can be melted and reshaped, promoting sustainability.
3. Improved Impact Resistance: Typically offers better toughness than thermoset alternatives.
4. Potential for Welding: Allows for more design flexibility and easier repairs.

The Thermoplastic Tape Winding Process

Step 1: Material Preparation

• Pre-impregnated thermoplastic tapes (prepregs) are used, typically consisting of carbon or glass fibers in a thermoplastic matrix like PEEK, PEKK, or PA12.

Step 2: Mandrel Setup

• Similar to thermoset filament winding, a mandrel is prepared, often incorporating the liner for Type III or Type IV tanks.

Step 3: Winding

• The thermoplastic tape is heated to its melting point just before placement on the mandrel.
• A computer-controlled head precisely places and consolidates the tape onto the mandrel.
• Various winding patterns are used to optimize strength and performance.

Step 4: In-Situ Consolidation

• Unlike thermoset winding, consolidation occurs during the winding process.
• Heat and pressure are applied to fuse the newly placed tape with the underlying layers.

Step 5: Cooling

• The wound structure is cooled to solidify the thermoplastic matrix.
• Cooling rates can be controlled to optimize crystallinity and mechanical properties.

Key Technological Challenges Thermoplastic Tape Winding Process

1. Temperature Control

• Precise temperature management is crucial for proper consolidation.
• Too low: inadequate bonding; Too high: material degradation.
• Solution: Advanced heating systems (e.g., laser, IR) with real-time temperature monitoring.

2. Tape Placement Accuracy

• Gaps and overlaps can significantly affect tank performance.
• Solution: High-precision robotics and advanced control systems.

3. Crystallinity Management

• Crystallinity affects mechanical properties and permeability.
• Solution: Controlled cooling rates and potential post-processing heat treatments.

4. First Ply Adhesion

• Ensuring proper bonding to the liner or first layer is critical.
• Solution: Surface preparation techniques and specialized first-ply materials.

Materials for Thermoplastic Tape Winding

Common thermoplastic matrices used in hydrogen tank production include:

PEEK (Polyether Ether Ketone):

• Excellent mechanical properties and chemical resistance.
• High temperature resistance.

PEKK (Polyetherketoneketone):

• Similar to PEEK with improved processing characteristics.
• Lower melting temperature than PEEK.

PA12 (Polyamide 12):

• Good balance of properties and cost.
• Lower processing temperatures than PEEK/PEKK.

For more on material selection, see our chapter on composite materials for hydrogen tanks.

Advanced Techniques in Thermoplastic Tape Winding

In-Situ Crystallization Control

• Manipulating cooling rates during winding to optimize crystallinity.
• Potential for creating tailored properties in different tank regions.

Hybrid Processes

• Combining thermoplastic tape winding with other processes like Automated Fiber Placement (AFP) for complex geometries.

Smart Manufacturing Integration

• Incorporating sensors for real-time process monitoring and quality control.
• Potential for AI-driven process optimization.

Environmental and Sustainability Aspects

Thermoplastic composites offer significant advantages in terms of sustainability:

• Recyclability: Can be melted and reshaped, allowing for easier recycling.
• Reduced Waste: Potential for reuse of production scraps.
• Energy Efficiency: No need for autoclave curing, reducing energy consumption.

However, challenges remain in establishing efficient recycling processes for composite structures. Learn more about sustainability in composites in our dedicated chapter.

Performance Comparison: Thermoplastic vs. Thermoset Tanks

While both materials can produce high-performance tanks, they have distinct characteristics:

• Impact Resistance: Thermoplastics generally offer superior toughness.
• Chemical Resistance: Both can be formulated for excellent resistance, but thermosets often have an edge.
• High-Temperature Performance: High-performance thermoplastics like PEEK can match or exceed many thermosets.
• Processing Speed: Thermoplastics offer faster production cycles.

For a detailed comparison, refer to our chapter on material selection for hydrogen tanks.

Future Trends and Research Directions

The field of thermoplastic tape winding for hydrogen tanks is rapidly evolving:

• Novel Materials: Development of new thermoplastic matrices and fiber combinations.
• Process Optimization: Advancements in heating technologies and placement accuracy.
• Multifunctional Designs: Integrating additional functionalities like sensors or thermal management.
• Scaling Up: Addressing challenges in producing larger tanks for industrial applications.

Conclusion

Thermoplastic tape winding represents a significant advancement in the manufacture of hydrogen tanks, offering a compelling combination of performance, processing speed, and sustainability. As we continue to innovate in this field, thermoplastic composites are likely to play an increasingly important role in the design and development of sustainable compressed hydrogen storage tanks.

Ready to explore more manufacturing techniques? Continue to the next chapter where we'll discuss the comparison between traditional and robotic winding methods.

Back to Course Overview

Welcome to the fifth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore and compare two key manufacturing techniques: traditional filament winding and the more advanced robotic winding. Understanding these methods is crucial for optimizing the production of high-performance hydrogen tanks.

Introduction to Winding Technologies

Winding techniques are fundamental in the production of composite pressure vessels, including hydrogen tanks. As we've discussed in our previous chapters on filament winding and thermoplastic tape winding, these methods allow for the creation of strong, lightweight structures ideal for hydrogen storage.

Traditional Filament Winding

Overview

Traditional filament winding is a well-established manufacturing process that has been used for decades in the production of cylindrical and spherical pressure vessels.

Key Characteristics:

• Simplicity: Relatively straightforward process and machinery.
• Cost-Effectiveness: Lower initial investment compared to robotic systems.
• Limitations: Primarily suited for axially symmetric shapes.

Process Description:

• Fibers are fed through a resin bath and wound onto a rotating mandrel.
• The fiber delivery head moves along the length of the mandrel.
• Winding angles are controlled by the rotation of the mandrel and the movement of the delivery head.

Advantages:

• Well-understood process with established design principles.
• Suitable for high-volume production of simple shapes.
• Lower initial capital investment.

Limitations:

• Limited to mostly cylindrical or spherical shapes.
• Less flexibility in fiber placement and orientation.
• May require more manual intervention for complex parts.

Robotic Winding

Overview

Robotic winding leverages advanced robotics and control systems to enhance the capabilities of the winding process.

Key Characteristics:

• Flexibility: Can produce a wider range of shapes and geometries.
• Precision: Offers more accurate fiber placement and orientation control.
• Automation: Reduces the need for manual intervention.

Process Description:

• A robotic arm equipped with a fiber delivery head moves around a stationary or rotating mandrel.
• Advanced control systems allow for complex movement patterns and precise fiber placement.
• Can incorporate multiple axes of motion for intricate winding patterns.

Advantages:

• Ability to produce complex, non-geodesic winding patterns.
• Enhanced control over fiber tension and placement.
• Potential for higher consistency and repeatability.
• Can integrate with Automated Fiber Placement (AFP) techniques.

Limitations:

• Higher initial investment cost.
• Requires more advanced programming and control systems.
• May have lower production speed for simple parts compared to traditional methods.

Comparative Analysis

1. Geometry Complexity some text
   • Traditional: Limited to axially symmetric shapes.
   • Robotic: Can handle complex, asymmetric geometries.
2. Fiber Orientation Control some text
   • Traditional: Limited to helical and hoop winding patterns.
   • Robotic: Offers precise control for optimized fiber orientations.
3. Production Speed some text
   • Traditional: Generally faster for simple, cylindrical parts.
   • Robotic: May be slower for simple parts but faster for complex geometries.
4. Cost some text
   • Traditional: Lower initial investment, higher labor costs.
   • Robotic: Higher initial investment, lower long-term labor costs.
5. Quality and Consistency some text
   • Traditional: Consistent for simple parts, may vary with complexity.
   • Robotic: High consistency across various geometries.
6. Material Compatibility some text
   • Traditional: Well-suited for thermoset composites.
   • Robotic: Adaptable to both thermoset and thermoplastic materials.

Applications in Hydrogen Tank Manufacturing

Traditional Filament Winding

• Ideal for Type II and some Type III tanks with cylindrical designs.
• Commonly used in mass production of standardized tank designs.

Robotic Winding

• Preferred for advanced Type III and Type IV tanks with complex dome shapes.
• Enables the production of optimized tank designs with variable fiber orientations.
• Facilitates the integration of features like bosses and mounting points.

Future Trends and Innovations

• Hybrid Systems: Combining traditional and robotic winding for optimized production.
• In-Process Monitoring: Integration of sensors for real-time quality control.
• AI and Machine Learning: Optimizing winding patterns and process parameters.
• Multi-Material Winding: Combining different fiber types or thermoplastic and thermoset materials in a single process.

Considerations for Sustainable Manufacturing

When choosing between traditional and robotic winding for sustainable hydrogen tank production, consider:

• Energy Efficiency: Robotic systems may offer more energy-efficient operation.
• Material Utilization: Advanced robotic systems can optimize material usage, reducing waste.
• Longevity and Adaptability: Robotic systems offer more flexibility for future design changes.
• Quality and Durability: Higher precision in robotic winding may lead to longer-lasting products.

For more on sustainable manufacturing practices, see our chapter on sustainability in composite production.

Conclusion

Both traditional filament winding and robotic winding have their place in the manufacture of hydrogen storage tanks. The choice between them depends on factors such as production volume, geometric complexity, desired performance characteristics, and available investment.

As we continue to innovate in the Design and Development of Sustainable Compressed Hydrogen Storage Tank, the integration and optimization of these winding technologies will play a crucial role in producing efficient, safe, and sustainable hydrogen storage solutions.

Ready to dive deeper into the materials used in hydrogen tanks? Continue to the next chapter where we'll explore the selection of liners, matrices, and fiber materials for optimal tank performance.

Back to Course Overview

Welcome to the sixth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the intricate process of selecting the optimal materials for hydrogen tanks, focusing on liners, matrix materials, and fiber reinforcements.

The performance, safety, and efficiency of a hydrogen tank heavily depend on the materials used in its construction. As we've discussed in our previous chapters on tank types and manufacturing methods, the choice of materials can significantly impact the tank's weight, strength, permeability, and overall sustainability.

Liner Selection

The liner serves as a barrier between the stored hydrogen and the composite structure, playing a critical role in preventing hydrogen permeation.

Metal Liners

Advantages:

• Excellent impermeability to hydrogen
• High strength and stiffness
• Good thermal conductivity

Disadvantages:

• Higher weight compared to polymeric liners
• Potential for hydrogen embrittlement (especially in steel)

Common Materials:

• Aluminum Alloys: some text
  • Lightweight
  • Good formability
  • Resistant to hydrogen embrittlement
• Stainless Steel: some text
  • High strength
  • Excellent corrosion resistance
  • Higher weight

Polymer Liners

Advantages:

• Significantly lighter than metal liners
• Excellent fatigue resistance
• No risk of hydrogen embrittlement

Disadvantages:

• Higher hydrogen permeation rates
• Lower thermal conductivity

Common Materials:

• High-Density Polyethylene (HDPE): some text
  • Good chemical resistance
  • Low cost
  • Limited temperature range
• Polyamide (PA): some text
  • Better mechanical properties than HDPE
  • Good temperature resistance
  • Higher cost

Linerless Designs

For certain applications, especially in aerospace, linerless tank designs are being explored:

• Utilizes the composite structure itself as a barrier
• Extremely lightweight
• Challenging to achieve required impermeability

Matrix Selection: Thermoset vs. Thermoplastic

The matrix material holds the reinforcing fibers together and transfers loads between them.

Thermoset Matrices

Advantages:

• Excellent chemical resistance
• High temperature resistance
• Low viscosity during processing (good fiber wet-out)

Disadvantages:

• Limited shelf life
• Longer processing times (curing required)
• Difficult to recycle

Common Materials:

• Epoxy: some text
  • High strength and stiffness
  • Excellent adhesion to fibers
  • Good chemical resistance
• Cyanate Ester: some text
  • Superior hot/wet performance
  • Low moisture absorption
  • Higher cost

Thermoplastic Matrices

Advantages:

• Faster processing (no curing required)
• Recyclable
• Better impact resistance

Disadvantages:

• Higher processing temperatures
• Higher viscosity (can be challenging for fiber wet-out)

Common Materials:

• Polyether Ether Ketone (PEEK): some text
  • Excellent mechanical properties
  • High temperature resistance
  • Chemical resistance
• Polyamide (PA): some text
  • Good balance of properties
  • Lower cost than PEEK
  • Easier to process

For more on the comparison between thermoset and thermoplastic composites, see our dedicated chapter.

Fiber Reinforcements

Fibers provide the primary structural strength in composite hydrogen tanks.

Carbon Fiber

Advantages:

• Highest specific strength and stiffness
• Excellent fatigue resistance
• Low coefficient of thermal expansion

Disadvantages:

• Higher cost
• Potential for galvanic corrosion with metal fittings

Glass Fiber

Advantages:

• Lower cost than carbon fiber
• Good specific strength
• Excellent insulating properties

Disadvantages:

• Lower stiffness than carbon fiber
• Higher density

Hybrid Fiber Solutions

Some designs utilize a combination of fiber types:

• Carbon fiber for high-stress areas
• Glass fiber for impact resistance or cost reduction

Learn more about fiber reinforcements in our comprehensive guide.

Material Selection Considerations

When selecting materials for hydrogen tanks, consider the following factors:

1. Operating Pressure: Higher pressures require stronger materials.
2. Weight Requirements: Critical for mobile applications.
3. Temperature Range: Both cryogenic and high-temperature applications need special consideration.
4. Permeability: Crucial for long-term hydrogen storage.
5. Cost: Balance between performance and economic viability.
6. Manufacturing Process: Filament winding and automated fiber placement may have different material requirements.
7. Regulatory Compliance: Ensure materials meet safety standards and regulations.
8. Sustainability: Consider the environmental impact and recyclability of materials.

Future Trends in Material Development

• Nano-enhanced Matrices: Incorporating nanoparticles to improve barrier properties and strength.
• Bio-based Composites: Developing sustainable alternatives to petroleum-based resins.
• Smart Materials: Integrating sensing capabilities for real-time monitoring.
• Multifunctional Composites: Materials that can store hydrogen and provide structural support.

Conclusion

Selecting the right combination of liner, matrix, and fiber materials is crucial for developing high-performance, safe, and sustainable hydrogen storage tanks. As we continue our journey through the Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore how these material choices influence the overall tank design and performance.

Ready to learn how these materials come together in the tank design process? Continue to the next chapter where we'll delve into the optimal design strategies for composite high-pressure hydrogen storage tanks.

Back to Course Overview

Welcome to the seventh chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the intricate process of optimizing the design of composite high-pressure hydrogen storage tanks, bringing together the knowledge from our previous chapters on materials, manufacturing processes, and tank types.

Optimal Tank Design

Designing a high-pressure hydrogen storage tank involves balancing multiple factors including safety, performance, weight, cost, and sustainability. The goal is to create a tank that can safely store hydrogen at high pressures while being as light and efficient as possible.

Design Considerations

1. Safety some text
   • Must withstand operating pressures with a significant safety margin
   • Leak-before-burst design philosophy
   • Resistance to impact, fire, and other potential hazards
2. Performance some text
   • Maximize hydrogen storage capacity
   • Minimize permeation and leakage
   • Ensure long-term durability
3. Weight some text
   • Critical for mobile applications (e.g., vehicles)
   • Balance between strength and lightweight design
4. Cost some text
   • Material selection
   • Manufacturing process optimization
   • Scalability for mass production
5. Sustainability some text
   • Use of recyclable or eco-friendly materials where possible
   • Design for end-of-life considerations

Design Methodology

Step 1: Define Requirements

• Operating pressure
• Storage capacity
• Weight constraints
• Environmental conditions (temperature range, exposure to elements)
• Regulatory requirements (e.g., UN GTR 13)

Step 2: Material Selection

Refer to our previous chapter on material selection for detailed guidance. Key considerations include:

• Liner material (metal vs. polymer)
• Composite matrix (thermoset vs. thermoplastic)
• Fiber reinforcement (carbon, glass, or hybrid)

Step 3: Geometric Design

• Cylindrical body with dome ends is the most common configuration
• Optimize dome shape for stress distribution
• Consider boss design for inlet/outlet

Step 4: Layup Design

• Determine optimal fiber orientations
• Design for hoop and axial stress resistance
• Consider using Automated Fiber Placement (AFP) for precise layup control

Step 5: Finite Element Analysis (FEA)

• Create a detailed FEA model of the tank
• Analyze stress distribution under various load conditions
• Iterate design to optimize stress patterns

Advanced Design Techniques

Topology Optimization

• Use computational tools to optimize material distribution
• Can lead to novel, organic shapes that maximize strength-to-weight ratio

Multi-Objective Optimization

• Balance multiple design goals (e.g., weight, cost, performance)
• Use algorithms to find optimal trade-offs

Design for Manufacturing

• Consider the limitations and capabilities of your chosen manufacturing process
• Optimize design for filament winding or automated fiber placement

Failure Analysis and Strength Prediction

Failure Modes to Consider

• Liner failure (leakage or burst)
• Composite overwrap failure
• Boss or fitting failure
• Delamination between layers

Progressive Failure Analysis

• Model the sequential failure of individual plies
• Predict ultimate failure load and mode

Burst Pressure Prediction

• Critical for safety certification
• Use analytical models and FEA to predict burst pressure
• Validate predictions with physical testing

Optimizing for Sustainability

Material Efficiency

• Minimize material usage through optimized design
• Consider using recycled or recyclable materials where possible

Design for Recyclability

• If using thermoplastic composites, design for potential recycling
• Consider ease of separating components at end-of-life

Life Cycle Assessment (LCA)

• Evaluate the environmental impact of your design choices
• Consider energy use, emissions, and resource consumption across the entire life cycle

Certification and Testing Considerations

Design with certification requirements in mind:

• Hydrostatic burst test
• Cycling tests (ambient and extreme temperatures)
• Fire resistance test
• Impact resistance test

For more details on testing and certification, see our chapter on hydrogen tank safety and regulations.

Future Trends in Tank Design

• Smart Tanks: Integrating sensors for real-time monitoring of pressure, temperature, and structural health
• Multifunctional Designs: Tanks that serve as structural elements in vehicles
• Biomimetic Designs: Inspired by natural structures for optimal strength-to-weight ratios
• AI-Assisted Design: Using machine learning to optimize tank designs based on vast datasets of performance data

Conclusion

Optimal design of composite high-pressure hydrogen storage tanks is a complex, multidisciplinary challenge. It requires a deep understanding of materials, manufacturing processes, and structural mechanics, as well as consideration of safety, performance, and sustainability factors.

As we continue our journey through the Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore how these design principles are applied in real-world scenarios and how they interact with manufacturing processes and regulatory requirements.

Ready to see how these optimized designs are put to the test? Continue to the next chapter where we'll delve into the testing, certification, and regulatory landscape for hydrogen storage tanks.

Back to Course Overview

Welcome to the eighth and final chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this crucial chapter, we'll explore the rigorous testing procedures, certification processes, and the complex landscape of codes and standards that govern the development and deployment of hydrogen storage tanks.

Introduction

The safety and reliability of hydrogen storage tanks are paramount, given the high pressures involved and the unique properties of hydrogen. As we've seen in our previous chapters on design and materials, creating a high-performance tank is only part of the journey. Ensuring that these tanks meet stringent safety standards is equally important.

Regulations, Codes, and Standards (RCS)

Regulations

• Legally binding rules developed by governmental bodies
• Example: UN GTR No. 13 for hydrogen and fuel cell vehicles

Codes

• Specify requirements for design, materials, and procedures
• Often adopted into law by local jurisdictions
• Example: ASME Boiler and Pressure Vessel Code

Standards

• Detailed technical specifications
• Usually voluntary but often referenced in regulations
• Example: ISO 19881 for gaseous hydrogen storage

Key RCS for Different Applications

1. Automotive some text
   • UN GTR No. 13
   • SAE J2579
   • EC79 (European Union)
2. Stationary Storage some text
   • ASME Section VIII
   • NFPA 2 (Hydrogen Technologies Code)
3. Transportable Containers some text
   • ISO 11119 series
   • DOT FMCSS 304
4. Aerospace some text
   • NASA AIAA G-095 (for spacecraft applications)

Testing and Certification Process

1. Design Qualification Tests

Burst Test

• Objective: Verify the tank's ultimate strength
• Procedure: Pressurize until failure
• Requirement: Must exceed minimum burst pressure ratio (typically 2.25 times service pressure)

Cycle Test

• Objective: Verify fatigue life
• Procedure: Pressurize and depressurize repeatedly (typically 5,000 to 11,000 cycles)
• Requirement: No failure before reaching the specified number of cycles

Environmental Exposure Tests

• Objective: Verify resistance to various environmental conditions
• Tests include: some text
  • Extreme temperature cycling
  • Salt spray exposure
  • Fluid exposure (e.g., road salt, oils)

Fire Resistance Test

• Objective: Ensure safe behavior in case of fire
• Procedure: Expose pressurized tank to engulfing flame
• Requirement: Tank must vent contents through pressure relief device without rupture

2. Production Tests

Hydrostatic Proof Test

• Every tank is pressurized to 1.5 times service pressure
• No leakage or permanent deformation allowed

Leak Test

• Every tank is checked for leaks using hydrogen or helium gas

3. Batch Tests

Burst Test

• One tank per batch is tested to destruction
• Must meet minimum burst pressure requirement

Material Tests

• Verify properties of liner and composite materials

Certification Process

1. Design Review: Submit detailed design documentation to certification body
2. Witness Testing: Certification body observes qualification tests
3. Manufacturing Audit: Inspection of production facilities and processes
4. Documentation Review: Final review of all test reports and manufacturing records
5. Certificate Issuance: If all requirements are met, a certificate of conformity is issued

Safety Considerations

Leak-Before-Burst Design

• Tanks are designed to develop small, detectable leaks before catastrophic failure
• Achieved through careful material selection and layup design

Pressure Relief Devices (PRDs)

• Mandatory for most applications
• Designed to safely vent contents in case of over-pressurization or fire

Impact Resistance

• Tanks must withstand specified impact loads without rupture
• May include drop tests and penetration tests

Future Trends in Testing and Certification

Non-Destructive Evaluation (NDE) Techniques

• Advanced methods like acoustic emission and thermography for in-service inspection

Digital Twin Technology

• Using real-time data to predict tank behavior and remaining life

Harmonization of Global Standards

• Efforts to create more unified international standards for hydrogen storage

Certification for New Materials and Processes

• Developing standards for novel materials like linerless tanks and advanced manufacturing methods

Sustainability Considerations in Standards

As discussed in our chapter on sustainable design, future standards are likely to incorporate:

• Life cycle assessment requirements
• Recyclability criteria
• Carbon footprint considerations

Conclusion

The rigorous testing, certification processes, and adherence to codes and standards are crucial in ensuring the safety and reliability of hydrogen storage tanks. As we've explored throughout this Design and Development of Sustainable Compressed Hydrogen Storage Tank course, creating high-performance, safe, and sustainable hydrogen storage solutions requires a holistic approach that considers materials, design, manufacturing, and regulatory compliance.

By understanding and adhering to these standards, we can accelerate the adoption of hydrogen technologies while ensuring public safety and confidence in these critical components of a sustainable energy future.

Thank you for joining us on this comprehensive journey through the world of hydrogen storage tank development. We hope this course has provided you with valuable insights and knowledge to contribute to the advancement of sustainable energy solutions.

Back to Course Overview | Enroll in More Courses

Welcome to our comprehensive course on the design and development of sustainable compressed hydrogen storage tanks. As the world moves towards cleaner energy solutions, hydrogen fuel cell technology is emerging as a key player in the future of advanced mobility and energy storage. This course aims to provide you with a thorough understanding of the challenges, technologies, and considerations involved in creating safe, lightweight, and competitive hydrogen storage solutions.

Course Objectives

By the end of this course, you will:

1. Understand the need for lighter and more reliable hydrogen tanks
2. Be familiar with different types of hydrogen tanks and their applications
3. Gain insights into various manufacturing methods, including traditional and cutting-edge techniques
4. Learn how to select appropriate materials for liners, matrices, and fibers
5. Master the design process for high-pressure hydrogen tanks
6. Understand the testing, certification, and regulatory landscape for hydrogen storage systems

Course Structure

1. Why do we need lighter hydrogen tanks?

• The role of hydrogen in decarbonization
• Challenges in hydrogen storage for mobility applications
• The importance of weight reduction in tank design

2. What is a Hydrogen Tank & Tank-Types

• Basic concepts of hydrogen storage
• Classification of tank types (Type I to Type V)
• Advantages and applications of each tank type

3. Filament winding hydrogen tanks (Thermoset)

• Overview of filament winding technology
• Wet filament winding vs. towpreg winding
• Benefits and limitations of thermoset composites

4. Thermoplastic Tape Winding of Hydrogen Tank

• Introduction to thermoplastic composites
• The thermoplastic tape winding process
• Advantages for sustainable manufacturing

5. Traditional Filament winding vs. Robotic Winding

• Comparison of winding technologies
• Advantages of robotic winding for complex geometries
• Future trends in automated manufacturing

6. How to select the right Hydrogen tanks Liners, Matrix, and Fiber materials

• Material considerations for liners (metal vs. polymer)
• Thermoset vs. thermoplastic matrices
• Fiber reinforcement options (carbon, glass, basalt)

7. Optimal design for composite high-pressure hydrogen storage tank

• Design methodology and considerations
• Finite Element Analysis (FEA) for tank design
• Failure analysis and burst pressure prediction

8. Hydrogen storage tanks: testing, certification, codes & standards

• Overview of regulations, codes, and standards
• Testing procedures for hydrogen tanks
• Certification process and future trends

Key Takeaways

1. Lightweight design is crucial for the adoption of hydrogen fuel cell vehicles
2. Material selection significantly impacts tank performance and sustainability
3. Advanced manufacturing methods like thermoplastic tape winding offer sustainability benefits
4. Optimal design requires balancing multiple factors including safety, performance, and cost
5. Rigorous testing and certification are essential for ensuring the safety of hydrogen storage systems

Who Should Take This Course

This course is ideal for:

• Engineers and designers in the automotive and energy sectors
• Researchers in materials science and sustainable energy
• Professionals involved in the hydrogen economy and infrastructure development
• Students pursuing advanced degrees in related fields

Looking Ahead

As we progress through this course, you'll gain a comprehensive understanding of the intricate world of hydrogen storage tank development. From materials science to advanced manufacturing techniques, from complex design processes to stringent safety standards, this course will equip you with the knowledge needed to contribute to the exciting field of sustainable energy storage.

Are you ready to dive into the future of clean energy storage? Let's begin our journey into the design and development of sustainable compressed hydrogen storage tanks!

Start with Chapter 1: Why do we need lighter hydrogen tanks?

Welcome to the first chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the critical need for lighter hydrogen tanks and their impact on the future of sustainable energy.

The Weight Challenge in Hydrogen Storage

As we transition towards a hydrogen-based economy, one of the most significant challenges we face is the storage and transportation of hydrogen. Traditional storage methods often result in heavy tanks, which can limit the efficiency and practicality of hydrogen-powered systems, especially in mobile applications.

The Impact of Tank Weight

1. Energy Efficiency: Heavier tanks require more energy to transport, reducing the overall efficiency of hydrogen-powered vehicles.
2. Range Limitations: In transportation, heavier tanks mean less hydrogen can be carried, limiting the range of vehicles.
3. Payload Reduction: For commercial vehicles, heavier tanks reduce the available payload capacity.
4. Performance Issues: Additional weight can negatively impact vehicle handling and performance.

The Need for Lightweight Solutions

Developing lighter hydrogen tanks is crucial for several reasons:

1. Improved Vehicle Performance: Lighter tanks contribute to better fuel economy, increased range, and enhanced overall performance of hydrogen-powered vehicles.
2. Increased Adoption: More efficient and practical hydrogen storage solutions can accelerate the adoption of hydrogen technology across various sectors.
3. Cost Reduction: Lighter tanks often require less material, potentially reducing manufacturing costs and making hydrogen technology more economically viable.
4. Versatility: Lightweight tanks open up new possibilities for hydrogen use in portable applications and aerospace.

Challenges in Developing Lighter Tanks

Creating lighter hydrogen tanks isn't without its challenges. Engineers and researchers must navigate:

1. Safety Concerns: Ensuring that lighter materials can withstand high pressures and meet stringent safety standards.
2. Material Properties: Developing materials that are both lightweight and impermeable to tiny hydrogen molecules.
3. Manufacturing Complexities: Implementing advanced manufacturing techniques like Automated Fiber Placement (AFP) to create complex, lightweight structures.
4. Cost Considerations: Balancing the use of advanced materials with economic feasibility.

Innovative Approaches to Lightweight Tank Design

Researchers and manufacturers are exploring various strategies to reduce tank weight:

1. Advanced Composites: Utilizing carbon fiber reinforced polymers (CFRP) to create strong, lightweight tank structures. Learn more about composite materials in our introduction.
2. Novel Geometries: Designing tank shapes that optimize the strength-to-weight ratio.
3. Multi-layer Constructions: Combining different materials to achieve the best balance of weight, strength, and permeability.
4. Nanomaterials: Investigating the potential of materials like graphene to enhance strength while reducing weight.

The Broader Impact of Lighter Hydrogen Tanks

The development of lighter hydrogen tanks has implications beyond just transportation:

1. Renewable Energy Storage: Lighter tanks could make large-scale hydrogen storage more feasible for grid applications.
2. Portable Power Solutions: Enabling more efficient and practical portable fuel cells for remote or emergency use.
3. Aerospace Applications: Facilitating the use of hydrogen in aircraft and spacecraft, where weight is a critical factor.

Looking Ahead: The Future of Hydrogen Storage

As we continue to innovate in the field of hydrogen storage, we can expect:

1. Integration of Smart Technologies: Incorporating sensors and IoT capabilities for real-time monitoring and improved safety.
2. Advancements in Materials Science: Ongoing research into new materials that could revolutionize hydrogen storage.
3. Standardization and Regulation: Development of new standards to accommodate innovative tank designs and materials.

Conclusion

The need for lighter hydrogen tanks is driving innovation across multiple disciplines, from materials science to manufacturing techniques. As we progress in this field, we're not just solving a technical challenge – we're paving the way for a more sustainable, hydrogen-powered future.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll delve deeper into the specific technologies and methodologies used to create these cutting-edge storage solutions.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll explore the different types of hydrogen tanks and their applications.

Back to Course Overview

Welcome to the second chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the fundamental concept of hydrogen tanks and delve into the various types of tanks used in different applications.

Understanding Hydrogen Tanks

A hydrogen tank, also known as a hydrogen cylinder or hydrogen storage vessel, is a specialized container designed to store hydrogen gas under high pressure. These tanks play a crucial role in the hydrogen economy, enabling the storage and transportation of hydrogen for various applications, from fuel cell vehicles to industrial processes.

Key Features of Hydrogen Tanks:

1. High Pressure Resistance: Typically designed to withstand pressures of 350 to 700 bar (5,000 to 10,000 psi).
2. Low Permeability: Constructed to minimize hydrogen leakage.
3. Lightweight Design: Especially important for mobile applications, as discussed in our previous chapter on lighter hydrogen tanks.
4. Safety Features: Includes pressure relief devices and other safety mechanisms.

Classification of Hydrogen Tanks

The industry classifies hydrogen tanks into five main types, each with unique characteristics and applications:

Type I: All-Metal Tanks

• Construction: Entirely made of metal, usually steel or aluminum.
• Advantages: Simple construction, low cost.
• Disadvantages: Heavy, limiting their use in mobile applications.
• Applications: Stationary storage, industrial use.

Type II: Metal Liner with Composite Hoop Wrap

• Construction: Metal liner (usually steel or aluminum) with a composite material wrapped around the cylinder part.
• Advantages: Lighter than Type I, higher pressure capacity.
• Disadvantages: Still relatively heavy for mobile applications.
• Applications: Improved performance in stationary and some mobile applications.

Type III: Metal Liner with Full Composite Wrap

• Construction: Thin metal liner (usually aluminum) fully wrapped with composite materials.
• Advantages: Significantly lighter than Type I and II, high pressure capacity.
• Disadvantages: More complex manufacturing process.
• Applications: Automotive, aerospace, portable applications.

Type IV: Polymer Liner with Full Composite Wrap

• Construction: Polymer liner (usually high-density polyethylene or polyamide) fully wrapped with composite materials.
• Advantages: Lightest option, excellent for high-pressure storage.
• Disadvantages: Higher manufacturing cost, potential for higher permeation rates.
• Applications: Automotive (especially fuel cell vehicles), aerospace, portable applications.

Type V: Linerless All-Composite

• Construction: Entirely made of composite materials without a separate liner.
• Advantages: Potential for even lighter weight, reduced permeation compared to Type IV.
• Disadvantages: Complex manufacturing, still in development stages.
• Applications: Future automotive and aerospace applications.

For a more detailed comparison of these tank types, refer to our article on Types of Hydrogen Tanks: Technological Differences and Advantages Explained.

Manufacturing Techniques

The manufacturing process varies depending on the tank type:

• Metal Tanks: Traditional metal forming techniques like deep drawing or spinning.
• Composite Wrapping: Utilizes advanced processes like filament winding or Automated Fiber Placement (AFP).
• Polymer Liners: Often manufactured using blow molding or rotational molding techniques.

Learn more about these manufacturing techniques in our chapter on composite manufacturing methods.

Choosing the Right Tank Type

Selecting the appropriate tank type depends on several factors:

1. Application: Mobile vs. stationary use.
2. Pressure Requirements: Higher pressure applications generally require more advanced tank types.
3. Weight Constraints: Critical for mobile applications like vehicles.
4. Cost Considerations: More advanced types typically come with higher costs.
5. Regulatory Requirements: Different regions may have specific regulations for hydrogen storage.

For guidance on material selection, refer to our guide on How to Select the Right Hydrogen Tanks Liners, Matrix, and Fiber Materials.

Future Trends in Hydrogen Tank Design

As we continue to innovate in the field of hydrogen storage, we're seeing exciting developments:

• Advanced Materials: Research into novel composites and nanomaterials for improved performance.
• Smart Tanks: Integration of sensors and IoT capabilities for real-time monitoring.
• Improved Manufacturing: Development of more efficient and cost-effective production methods, such as AFP for hydrogen tank production.
• Standardization: Efforts to create global standards for hydrogen tank design and testing.

Conclusion

Understanding the different types of hydrogen tanks is crucial for designing and developing sustainable compressed hydrogen storage solutions. Each type offers unique advantages and challenges, and the choice depends on the specific application and requirements.

In the next chapters of our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore the manufacturing techniques, material selection, and design optimization for these advanced storage systems.

Ready to dive deeper into the world of hydrogen storage? Continue to the next chapter where we'll discuss the manufacturing techniques for composite hydrogen tanks.

Back to Course Overview

Welcome to the third chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the filament winding process for manufacturing thermoset composite hydrogen tanks, a crucial technique in creating lightweight and strong storage solutions.

Introduction to Filament Winding

Filament winding is a manufacturing technique primarily used to create hollow, circular, or oval-shaped composite parts. It's particularly well-suited for producing high-pressure vessels like hydrogen tanks, where strength, weight, and durability are critical factors.

Key Advantages of Filament Winding:

1. High Strength-to-Weight Ratio: Ideal for lightweight hydrogen tanks, as discussed in our earlier chapters.
2. Precise Fiber Orientation: Allows for optimized strength in specific directions.
3. Consistency: Automated process ensures repeatable quality.
4. Scalability: Suitable for various tank sizes and production volumes.

The Filament Winding Process for Thermoset Composites

Step 1: Mandrel Preparation

• A mandrel, typically made of metal or soluble material, is prepared to form the inner shape of the tank.
• For Type III and Type IV tanks, the liner is used as the mandrel.

Step 2: Fiber Impregnation

• Continuous fiber tows (usually carbon or glass) are passed through a resin bath.
• The resin used is a thermoset polymer, typically epoxy.

Step 3: Winding

• The impregnated fibers are wound onto the rotating mandrel.
• A computer-controlled delivery head precisely places the fibers.
• Different winding patterns are used: some text
  • Hoop Winding: Fibers laid nearly perpendicular to the mandrel axis.
  • Helical Winding: Fibers laid at an angle to the mandrel axis.
  • Polar Winding: Fibers laid from pole to pole.

Step 4: Curing

• Once winding is complete, the entire assembly is cured.
• Curing typically involves heat and sometimes pressure to set the thermoset resin.

Step 5: Mandrel Removal

• After curing, the mandrel is removed.
• For soluble mandrels, this is done through dissolution.

Winding Patterns and Their Importance

The strength and performance of the tank heavily depend on the winding pattern:

Hoop Winding:

• Nearly 90° to the mandrel axis.
• Provides circumferential strength.
• Efficient for cylindrical sections.

Helical Winding:

• Fibers laid at angles between 5° and 80°.
• Provides both longitudinal and circumferential strength.
• Critical for dome sections and overall tank integrity.

Combination Patterns:

• Most tanks use a combination of hoop and helical windings.
• Optimizes strength in all directions.

Learn more about composite layup strategies in our chapter on composite design principles.

Thermoset Resins in Filament Winding

Thermoset resins, particularly epoxies, are commonly used in filament winding for hydrogen tanks due to their:

1. High Strength: Excellent mechanical properties when cured.
2. Chemical Resistance: Important for long-term hydrogen storage.
3. Thermal Stability: Maintains properties across a wide temperature range.
4. Low Shrinkage: Ensures dimensional stability during curing.

However, thermosets also have some limitations:

• Limited Shelf Life: Once mixed, they have a finite working time.
• Non-Recyclable: Cannot be melted and reshaped after curing.
• Longer Processing Time: Require time for curing.

For a comparison with thermoplastic alternatives, see our chapter on thermoplastic composite tanks.

Advanced Filament Winding Technologies

Modern filament winding for hydrogen tanks often incorporates advanced technologies:

• Multi-Axis Winding: Allows for complex geometries and optimized fiber placement.
• In-Situ Consolidation: Combines winding and curing for faster production.
• Automated Fiber Placement (AFP): Offers more precise control over fiber placement. Learn more about AFP in our dedicated chapter.

Quality Control and Testing

Ensuring the quality of filament-wound tanks is crucial:

• Non-Destructive Testing: Techniques like ultrasonic inspection to check for defects.
• Burst Testing: Verifying the tank's ability to withstand high pressures.
• Permeation Testing: Especially important for hydrogen storage.

For more on testing procedures, see our chapter on hydrogen tank certification and testing.

Environmental Considerations

While thermoset composites offer excellent performance, their environmental impact is a concern:

• End-of-Life: Challenges in recycling cured thermoset composites.
• Emissions: Potential VOC emissions during the winding and curing process.

Efforts are ongoing to develop more sustainable thermoset resins and recycling methods.

Conclusion

Filament winding with thermoset composites is a cornerstone technology in the production of high-performance hydrogen tanks. Its ability to create lightweight, strong, and durable structures makes it ideal for the demanding requirements of hydrogen storage.

As we continue our Design and Development of Sustainable Compressed Hydrogen Storage Tank course, we'll explore alternative manufacturing methods and materials, each offering unique advantages in our quest for optimal hydrogen storage solutions.

Ready to learn about cutting-edge alternatives? Continue to the next chapter where we'll discuss thermoplastic tape winding for hydrogen tanks.

Back to Course Overview

Welcome to the fourth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore the innovative technique of thermoplastic tape winding for manufacturing hydrogen tanks, a method that offers unique advantages in terms of sustainability and performance.

Introduction to Thermoplastic Tape Winding

Thermoplastic Tape Winding (TTW) is an advanced manufacturing process that combines the principles of filament winding with the benefits of thermoplastic composites. This technique is gaining traction in the production of high-performance hydrogen tanks due to its potential for faster processing, improved recyclability, and enhanced mechanical properties.

Key Advantages of Thermoplastic Tape Winding:

1. Rapid Processing: No need for long curing cycles, unlike thermoset composites.
2. Recyclability: Thermoplastics can be melted and reshaped, promoting sustainability.
3. Improved Impact Resistance: Typically offers better toughness than thermoset alternatives.
4. Potential for Welding: Allows for more design flexibility and easier repairs.

The Thermoplastic Tape Winding Process

Step 1: Material Preparation

• Pre-impregnated thermoplastic tapes (prepregs) are used, typically consisting of carbon or glass fibers in a thermoplastic matrix like PEEK, PEKK, or PA12.

Step 2: Mandrel Setup

• Similar to thermoset filament winding, a mandrel is prepared, often incorporating the liner for Type III or Type IV tanks.

Step 3: Winding

• The thermoplastic tape is heated to its melting point just before placement on the mandrel.
• A computer-controlled head precisely places and consolidates the tape onto the mandrel.
• Various winding patterns are used to optimize strength and performance.

Step 4: In-Situ Consolidation

• Unlike thermoset winding, consolidation occurs during the winding process.
• Heat and pressure are applied to fuse the newly placed tape with the underlying layers.

Step 5: Cooling

• The wound structure is cooled to solidify the thermoplastic matrix.
• Cooling rates can be controlled to optimize crystallinity and mechanical properties.

Key Technological Challenges Thermoplastic Tape Winding Process

1. Temperature Control

• Precise temperature management is crucial for proper consolidation.
• Too low: inadequate bonding; Too high: material degradation.
• Solution: Advanced heating systems (e.g., laser, IR) with real-time temperature monitoring.

2. Tape Placement Accuracy

• Gaps and overlaps can significantly affect tank performance.
• Solution: High-precision robotics and advanced control systems.

3. Crystallinity Management

• Crystallinity affects mechanical properties and permeability.
• Solution: Controlled cooling rates and potential post-processing heat treatments.

4. First Ply Adhesion

• Ensuring proper bonding to the liner or first layer is critical.
• Solution: Surface preparation techniques and specialized first-ply materials.

Materials for Thermoplastic Tape Winding

Common thermoplastic matrices used in hydrogen tank production include:

PEEK (Polyether Ether Ketone):

• Excellent mechanical properties and chemical resistance.
• High temperature resistance.

PEKK (Polyetherketoneketone):

• Similar to PEEK with improved processing characteristics.
• Lower melting temperature than PEEK.

PA12 (Polyamide 12):

• Good balance of properties and cost.
• Lower processing temperatures than PEEK/PEKK.

For more on material selection, see our chapter on composite materials for hydrogen tanks.

Advanced Techniques in Thermoplastic Tape Winding

In-Situ Crystallization Control

• Manipulating cooling rates during winding to optimize crystallinity.
• Potential for creating tailored properties in different tank regions.

Hybrid Processes

• Combining thermoplastic tape winding with other processes like Automated Fiber Placement (AFP) for complex geometries.

Smart Manufacturing Integration

• Incorporating sensors for real-time process monitoring and quality control.
• Potential for AI-driven process optimization.

Environmental and Sustainability Aspects

Thermoplastic composites offer significant advantages in terms of sustainability:

• Recyclability: Can be melted and reshaped, allowing for easier recycling.
• Reduced Waste: Potential for reuse of production scraps.
• Energy Efficiency: No need for autoclave curing, reducing energy consumption.

However, challenges remain in establishing efficient recycling processes for composite structures. Learn more about sustainability in composites in our dedicated chapter.

Performance Comparison: Thermoplastic vs. Thermoset Tanks

While both materials can produce high-performance tanks, they have distinct characteristics:

• Impact Resistance: Thermoplastics generally offer superior toughness.
• Chemical Resistance: Both can be formulated for excellent resistance, but thermosets often have an edge.
• High-Temperature Performance: High-performance thermoplastics like PEEK can match or exceed many thermosets.
• Processing Speed: Thermoplastics offer faster production cycles.

For a detailed comparison, refer to our chapter on material selection for hydrogen tanks.

Future Trends and Research Directions

The field of thermoplastic tape winding for hydrogen tanks is rapidly evolving:

• Novel Materials: Development of new thermoplastic matrices and fiber combinations.
• Process Optimization: Advancements in heating technologies and placement accuracy.
• Multifunctional Designs: Integrating additional functionalities like sensors or thermal management.
• Scaling Up: Addressing challenges in producing larger tanks for industrial applications.

Conclusion

Thermoplastic tape winding represents a significant advancement in the manufacture of hydrogen tanks, offering a compelling combination of performance, processing speed, and sustainability. As we continue to innovate in this field, thermoplastic composites are likely to play an increasingly important role in the design and development of sustainable compressed hydrogen storage tanks.

Ready to explore more manufacturing techniques? Continue to the next chapter where we'll discuss the comparison between traditional and robotic winding methods.

Back to Course Overview

Welcome to the fifth chapter of our comprehensive course on the Design and Development of Sustainable Compressed Hydrogen Storage Tank. In this chapter, we'll explore and compare two key manufacturing techniques: traditional filament winding and the more advanced robotic winding. Understanding these methods is crucial for optimizing the production of high-performance hydrogen tanks.

Introduction to Winding Technologies

Winding techniques are fundamental in the production of composite pressure vessels, including hydrogen tanks. As we've discussed in our previous chapters on filament winding and thermoplastic tape winding, these methods allow for the creation of strong, lightweight structures ideal for hydrogen storage.

Traditional Filament Winding

Overview

Traditional filament winding is a well-established manufacturing process that has been used for decades in the production of cylindrical and spherical pressure vessels.

Key Characteristics:

• Simplicity: Relatively straightforward process and machinery.
• Cost-Effectiveness: Lower initial investment compared to robotic systems.
• Limitations: Primarily suited for axially symmetric shapes.

Process Description:

• Fibers are fed through a resin bath and wound onto a rotating mandrel.
• The fiber delivery head moves along the length of the mandrel.
• Winding angles are controlled by the rotation of the mandrel and the movement of the delivery head.

Advantages:

• Well-understood process with established design principles.
• Suitable for high-volume production of simple shapes.
• Lower initial capital investment.

Limitations:

• Limited to mostly cylindrical or spherical shapes.
• Less flexibility in fiber placement and orientation.
• May require more manual intervention for complex parts.

Robotic Winding

Overview

Robotic winding leverages advanced robotics and control systems to enhance the capabilities of the winding process.

Key Characteristics:

• Flexibility: Can produce a wider range of shapes and geometries.
• Precision: Offers more accurate fiber placement and orientation control.
• Automation: Reduces the need for manual intervention.

Process Description:

• A robotic arm equipped with a fiber delivery head moves around a stationary or rotating mandrel.
• Advanced control systems allow for complex movement patterns and precise fiber placement.
• Can incorporate multiple axes of motion for intricate winding patterns.

Advantages:

• Ability to produce complex, non-geodesic winding patterns.
• Enhanced control over fiber tension and placement.
• Potential for higher consistency and repeatability.
• Can integrate with Automated Fiber Placement (AFP) techniques.

Limitations:

• Higher initial investment cost.
• Requires more advanced programming and control systems.
• May have lower production speed for simple parts compared to traditional methods.

Comparative Analysis

1. Geometry Complexity some text
   • Traditional: Limited to axially symmetric shapes.
   • Robotic: Can handle complex, asymmetric geometries.
2. Fiber Orientation Control some text
   • Traditional: Limited to helical and hoop winding patterns.
   • Robotic: Offers precise control for optimized fiber orientations.
3. Production Speed some text
   • Traditional: Generally faster for simple, cylindrical parts.
   • Robotic: May be slower for simple parts but faster for complex geometries.
4. Cost some text
   • Traditional: Lower initial investment, higher labor costs.
   • Robotic: Higher initial investment, lower long-term labor costs.
5. Quality and Consistency some text
   • Traditional: Consistent for simple parts, may vary with complexity.
   • Robotic: High consistency across various geometries.
6. Material Compatibility some text
   • Traditional: Well-suited for thermoset composites.
   • Robotic: Adaptable to both thermoset and thermoplastic materials.

Applications in Hydrogen Tank Manufacturing

Traditional Filament Winding

• Ideal for Type II and some Type III tanks with cylindrical designs.
• Commonly used in mass production of standardized tank designs.

Robotic Winding

• Preferred for advanced Type III and Type IV tanks with complex dome shapes.
• Enables the production of optimized tank designs with variable fiber orientations.
• Facilitates the integration of features like bosses and mounting points.

Future Trends and Innovations

• Hybrid Systems: Combining traditional and robotic winding for optimized production.
• In-Process Monitoring: Integration of sensors for real-time quality control.
• AI and Machine Learning: Optimizing winding patterns and process parameters.
• Multi-Material Winding: Combining different fiber types or thermoplastic and thermoset materials in a single process.

Considerations for Sustainable Manufacturing

When choosing between traditional and robotic winding for sustainable hydrogen tank production, consider:

• Energy Efficiency: Robotic systems may offer more energy-efficient operation.
• Material Utilization: Advanced robotic systems can optimize material usage, reducing waste.
• Longevity and Adaptability: Robotic systems offer more flexibility for future design changes.
• Quality and Durability: Higher precision in robotic winding may lead to longer-lasting products.

For more on sustainable manufacturing practices, see our chapter on sustainability in composite production.

Conclusion

Both traditional filament winding and robotic winding have their place in the manufacture of hydrogen storage tanks. The choice between them depends on factors such as production volume, geometric complexity, desired performance characteristics, and available investment.

As we continue to innovate in the Design and Development of Sustainable Compressed Hydrogen Storage Tank, the integration and optimization of these winding technologies will play a crucial role in producing efficient, safe, and sustainable hydrogen storage solutions.
