Challenges in Hydrogen Storage Efficiency and Composite Utilization

Hydrogen is increasingly seen as a key player in the clean energy transition, particularly within the transportation sector through fuel cell electric vehicles (FCEVs). However, hydrogen storage presents significant challenges due to its low density and high diffusivity. Current solutions involve high-pressure storage in composite pressure vessels (CPVs), utilizing materials such as carbon fiber to enhance strength while minimizing weight. Yet, the full potential of these materials is not being tapped, primarily due to economic and technological limitations.

There are several key challenges in improving hydrogen storage efficiency and composite utilization in type IV composite pressure vessels (CPVs):

1. The dimensionless number (DN) shows that only a small percentage (around 20%) of the full mechanical potential of the composite material is being utilized at the burst pressure level in current 70 MPa type IV CPVs. This indicates there is significant room to optimize the composite structure and increase its efficiency.
2. To increase the DN value closer to 100% and fully leverage the composite's capabilities, the overall loading on the composite structure needs to be increased by achieving better fiber orientation. This likely requires developing new manufacturing processes that can orient the fibers more optimally.
3. With current filament winding processes used to manufacture CPVs, a large portion of the carbon fibers are not fully loaded to their maximum potential at burst pressure, as shown by finite element analysis. Achieving more uniform fiber loading is a challenge.
4. The composite laminate porosity in CPVs can reach 4-8% today. Reducing porosity could help improve the mechanical properties and efficiency of the composite structure.
5. Finding an ideal solution that minimizes the composite mass used while withstanding the pressure loads is difficult, as manufacturing processes to produce such an optimized ideal composite structure do not yet exist according to the paper.

Underutilization of Composite Materials in High-Pressure Vessel Structures

the underutilization of composite materials in current high-pressure vessel structures, specifically type IV composite pressure vessels (CPVs) for hydrogen storage, can be summarized as follows:

1. Low dimensionless number (DN) values: The proposed DN, which quantifies the efficiency of the composite structure, shows that only around 17-22% of the composite material's potential is being utilized at the burst pressure level in state-of-the-art 70 MPa type IV CPVs. This indicates a significant underutilization of the composite's strength capabilities.
2. Non-optimal fiber orientation: The current filament winding manufacturing processes used for CPVs do not optimally orient the fibers to fully utilize their strength potential. Finite element analysis shows that a large portion of the carbon fibers are not loaded to their maximum capacity at burst pressure.

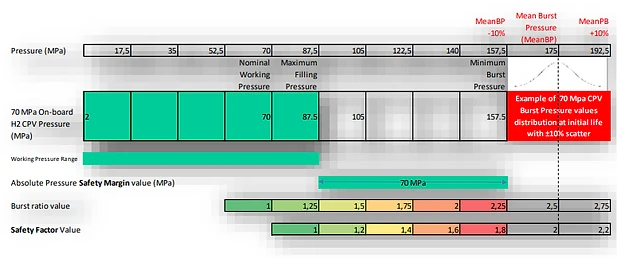

3. Safety factors and burst pressure ratios: CPVs are designed with safety factors and burst pressure ratios (e.g., 2.25 for 70 MPa CPVs) that limit the operating pressure range and the actual stress experienced by the composite material during regular use. This results in the composite being underutilized during normal operation.
4. Localized stress concentrations: Stress concentrations in certain areas of the CPV structure, such as the dome regions, can lead to localized composite failure while the majority of the structure remains underutilized. This uneven stress distribution contributes to the overall underutilization of the composite material.
5. Porosity: The presence of porosity in the composite laminate (4-8% in current CPVs) reduces the effective mechanical properties and contributes to the underutilization of the composite's potential strength.

Innovative Approaches to Optimize Composite Usage in Hydrogen Storage Tanks

Optimizing the use of composites in hydrogen storage tanks is pivotal for enhancing efficiency and reducing costs. The approach involves refining the material selection process, improving fiber orientation, and perfecting the matrix properties to ensure that the tanks are not only strong but also lightweight and cost-effective.

Several approaches can be considered to optimize composite usage in hydrogen storage tanks, particularly in type IV composite pressure vessels (CPVs). These include:

1. Maximizing the dimensionless number (DN): By aiming to increase the DN value closer to 100% during the design phase, the utilization of the composite material can be significantly improved. This involves optimizing the composite structure to withstand higher stresses and make better use of the material's strength potential.
2. Improving fiber orientation: Developing new manufacturing processes that can achieve better fiber orientation is crucial for optimizing composite usage. By aligning the fibers more effectively in the direction of the principal stresses, the composite's strength potential can be better utilized, reducing the amount of material needed.
3. Enhancing fiber loading uniformity: Ensuring that all fibers are loaded uniformly and to their maximum potential during operation can significantly improve composite utilization. This may involve refining the filament winding process, optimizing the winding patterns, or exploring alternative manufacturing techniques.
4. Reducing porosity: Minimizing the porosity in the composite laminate can enhance its mechanical properties and contribute to better utilization of the material. Improved manufacturing processes, better resin impregnation techniques, and optimized curing cycles can help reduce porosity.
5. Topology optimization: Employing advanced computational methods, such as topology optimization, can help design more efficient composite structures. By optimizing the material distribution and geometry, the composite usage can be minimized while still meeting the required strength and stiffness criteria.
6. Hybrid composite structures: Exploring the use of hybrid composite materials, such as combining carbon fibers with other high-performance fibers (e.g., glass or aramid), can potentially lead to more optimized designs. Hybrid structures can take advantage of the unique properties of different fiber types to achieve better overall performance and composite utilization.
7. Advanced failure criteria and safety factors: Refining the failure criteria and safety factors used in the design process can help push the limits of composite utilization while still ensuring safe operation. By better understanding the failure mechanisms and the actual safety margins required, designers can optimize the composite structure more effectively.

Advancing Composite Pressure Vessel Design for Optimal Efficiency

Advancing composite pressure vessel (CPV) design for optimal efficiency in the future would likely involve a multi-faceted approach. This could include:

1. Developing advanced design tools and methodologies:

• Refining the dimensionless number (DN) concept and integrating it into the design process to guide optimization efforts and evaluate the efficiency of composite structures.
• Advancing topology optimization techniques to create more efficient composite layouts and geometries.
• Improving finite element analysis (FEA) methods to better predict stress distributions, failure modes, and the overall performance of CPVs.

1. Manufacturing processes:

• Developing new filament winding techniques or alternative manufacturing methods that enable better fiber orientation and more uniform fiber loading.
• Optimizing process parameters, such as winding patterns, tension control, and resin impregnation, to minimize defects and improve the quality of the composite structure.
• Exploring additive manufacturing technologies for creating complex, optimized composite geometries.

1. Investigating advanced composite materials:

• Researching and developing new fiber types, resin systems, and hybrid compositions that offer improved mechanical properties, damage tolerance, and compatibility with hydrogen environments.
• Exploring the use of nanocomposites and functionally graded materials to optimize the performance of CPVs.

1. Enhancing testing and validation methods:

• Conducting extensive experimental studies to better understand the behavior of composite materials under high-pressure hydrogen conditions.
• Developing advanced non-destructive evaluation (NDE) techniques to assess the quality and integrity of CPVs during manufacturing and in-service inspections.
• Establishing comprehensive testing and validation protocols to ensure the reliability and safety of optimized CPV designs.

1. Collaborating across disciplines and industries:

• Fostering collaboration among material scientists, mechanical engineers, manufacturing experts, and hydrogen technology specialists to drive innovation in CPV design and optimization.
• Engaging with industry partners, research institutions, and regulatory bodies to establish standards, guidelines, and best practices for the design and certification of optimized CPVs.

1. Leveraging data-driven approaches and machine learning:

• Collecting and analyzing large datasets from CPV testing, manufacturing, and in-service performance to identify patterns, correlations, and improvement opportunities.
• Applying machine learning algorithms to optimize CPV designs, predict failure modes, and assist in material selection and process optimization.

By pursuing these approaches and continually advancing the knowledge base surrounding composite materials and high-pressure vessel design, researchers and engineers can work towards developing highly optimized CPVs for hydrogen storage applications.
