In the race to develop lighter, stronger, and more sustainable materials, continuous fiber reinforced polymer composites (CFRPCs) have emerged as a game-changing solution. These advanced materials have already transformed industries like aerospace, automotive, and renewable energy, with composite materials now making up more than 50% of modern aircraft like the A350XWB. But despite their impressive capabilities, traditional manufacturing methods have held back their widespread adoption.
CFRPCs offer several compelling advantages over traditional materials:
However, traditional manufacturing methods have presented significant hurdles:
Additive Manufacturing (AM), commonly known as 3D printing, is revolutionizing how we approach CFRPC manufacturing. Since 2014, when the first patents for 3D printing CFRPCs were introduced, this technology has opened new possibilities for designing and fabricating complex composite structures with high performance and lower costs.
The marriage of composite materials with 3D printing technology brings several transformative advantages:
As outlined in our guide on automated fiber placement, modern 3D printing techniques have evolved to handle both thermoplastic and thermoset composites, offering unprecedented control over fiber placement and orientation. This technological advancement is bridging the gap between advanced materials and innovative structures, making high-performance composites more accessible than ever before.
The integration of 3D printing with CFRPC manufacturing represents more than just a new production method – it's a paradigm shift in how we approach material design and structural optimization. As we explore the various aspects of this technology in the following sections, we'll see how it's not only solving traditional manufacturing challenges but also opening new possibilities for innovation in materials and design.
Whether you're an engineer, researcher, or industry professional, understanding the capabilities and potential of 3D printed CFRPCs is becoming increasingly crucial in today's rapidly evolving manufacturing landscape. Let's dive deeper into the materials, processes, and applications that make this technology so transformative.

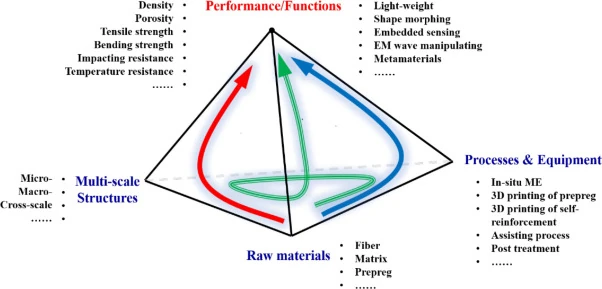

The performance of 3D printed continuous fiber reinforced polymer composites (CFRPCs) heavily depends on the careful selection of two key components: the reinforcing fibers and the polymer matrix. Understanding these materials and their interactions is crucial for successful composite manufacturing.

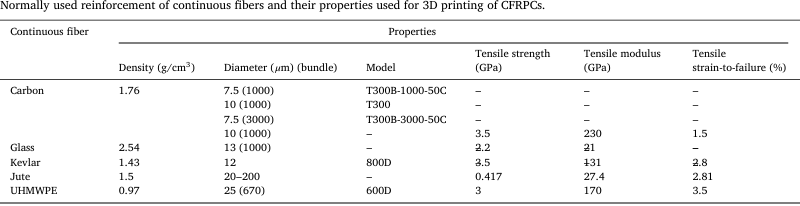

As detailed in our guide to Fiber Reinforcements, several types of continuous fibers can be used in 3D printing applications, each bringing unique properties to the final composite:
The heavyweight champion of composite reinforcement, carbon fiber offers:
The most commonly used variant is the T300 carbon fiber, available in different bundle sizes (1K, 3K, etc.). The 1K bundle, with its extremely thin diameter, is particularly well-suited for 3D printing applications, allowing for precise fiber placement and better impregnation.
A cost-effective alternative offering:
Specialized applications benefit from Kevlar's unique properties:
As highlighted in our article on Sustainable Composites, natural fibers like jute are gaining attention for:

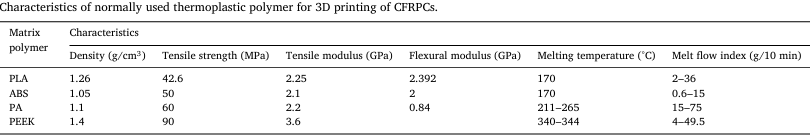

The choice of matrix material significantly influences both the manufacturing process and final properties. As explained in our comprehensive guide to Fiber-reinforced Plastics Composites, two main categories dominate:
These materials offer several advantages for 3D printing:
Standard Thermoplastics:
Engineering Thermoplastics:
While less common in 3D printing due to processing challenges, thermosets offer:
When choosing materials for 3D printed CFRPCs, several factors must be considered:
The selection of appropriate materials is crucial for achieving desired performance while maintaining manufacturability. As we'll explore in the next section, these materials must work in harmony with the 3D printing process to create successful composite parts.

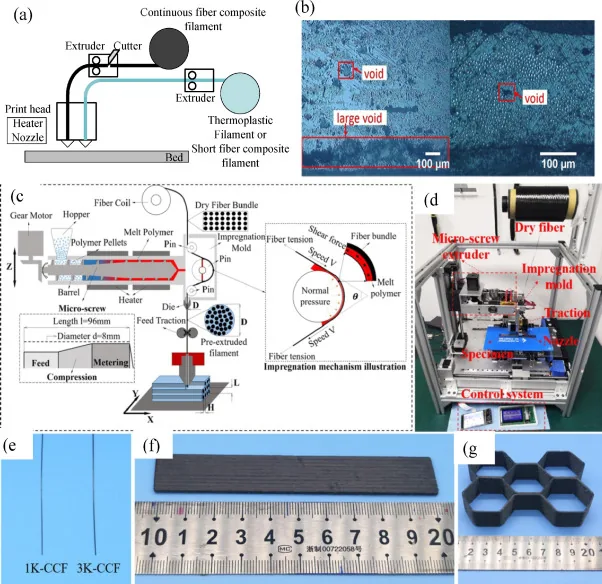

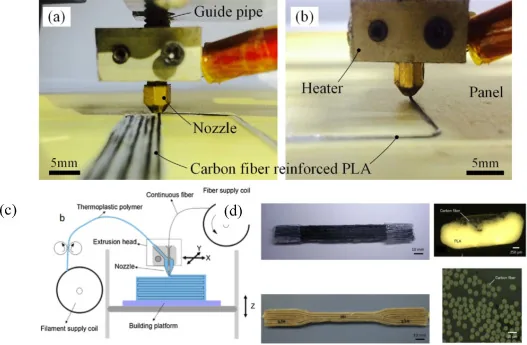

The transformation of raw materials into high-performance continuous fiber reinforced polymer composites (CFRPCs) through 3D printing involves sophisticated processes and equipment. Let's explore the main approaches and technologies that make this possible.
As detailed in our guide to Overview of 3D Printing of Continuous Fiber Composites, in-situ material extrusion represents one of the most direct approaches to CFRPC manufacturing.
The process involves:
Automated Fiber Placement (AFP) using pre-impregnated materials represents a more controlled approach to 3D printing CFRPCs.

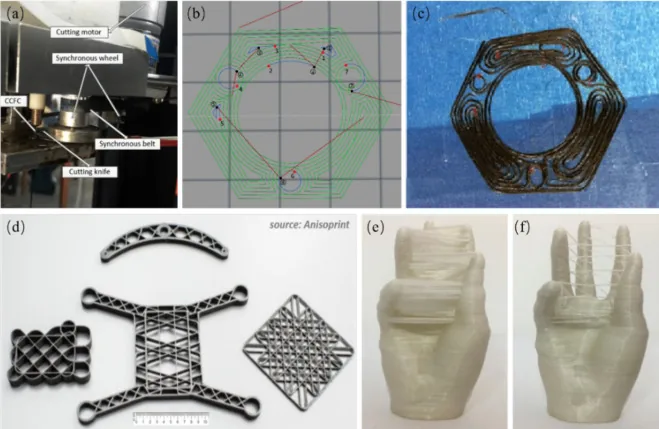

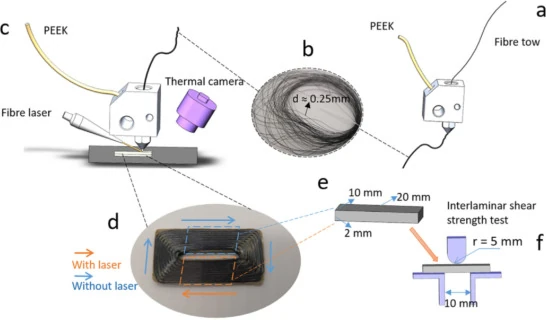

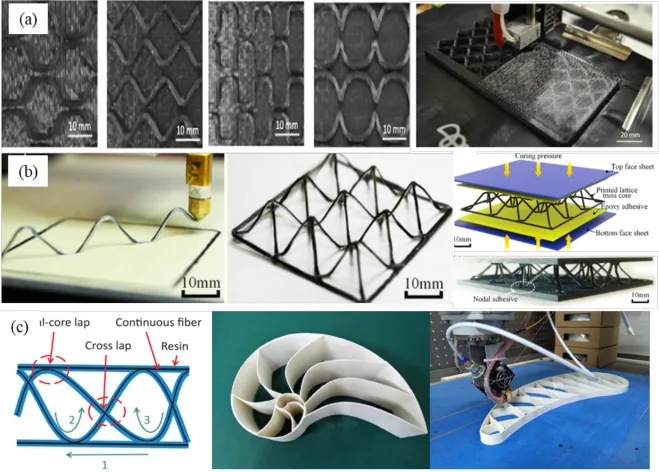

Several technologies have been developed to improve the 3D printing process of CFRPCs:
For complex geometries requiring:
Modern CFRPC 3D printing systems incorporate sophisticated monitoring and control systems, as outlined in our article on Process Monitoring AI for AFP Composites Manufacturing:
The final properties of 3D printed CFRPCs often depend on post-processing steps:
When choosing a CFRPC 3D printing process, several factors need to be considered:
The selection of the appropriate process pathway is crucial for achieving the desired balance of performance, quality, and cost in the final composite parts. As we'll explore in the next section, these processes enable a wide range of applications across various industries.

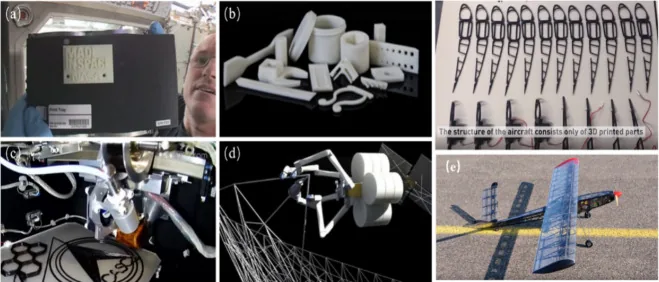

The unique combination of design freedom offered by 3D printing and the exceptional properties of continuous fiber reinforced polymer composites (CFRPCs) has opened up exciting applications across multiple industries. Let's explore how these advanced materials are transforming various sectors.
As highlighted in The Composite Sky: Advanced Materials Defining Modern Aerospace, the aerospace industry has been an early adopter and primary driver of CFRPC technology.
The journey of 3D printed composites in space has been remarkable:
For aerospace applications, specific materials are preferred:

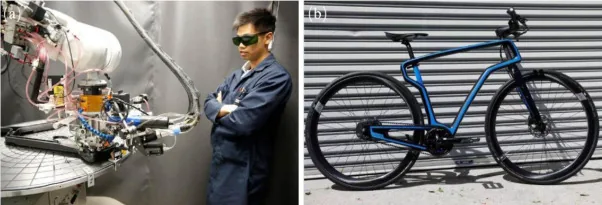

The accessibility of 3D printed CFRPCs has revolutionized consumer product manufacturing, as detailed in Innovations in Composite Materials: Real-World Applications.
A prime example of successful commercialization:
The adoption of 3D printed CFRPCs in industrial applications has shown impressive results:
As outlined in Manufacturing and Recycling of Carbon Fiber Thermoplastic Composites, new applications are constantly being developed:
When implementing 3D printed CFRPCs in any application, several factors need to be evaluated:
The future of 3D printed CFRPCs looks promising, with potential applications in:
As technology continues to evolve, particularly in areas outlined in Advancing Composite Manufacturing with Machine Learning, we can expect to see even more innovative applications emerge, pushing the boundaries of what's possible with these advanced materials.
As we stand at the intersection of materials science and advanced manufacturing, the future of 3D printed continuous fiber reinforced polymer composites (CFRPCs) holds immense promise. Let's explore the key trends and challenges that will shape the evolution of this transformative technology.

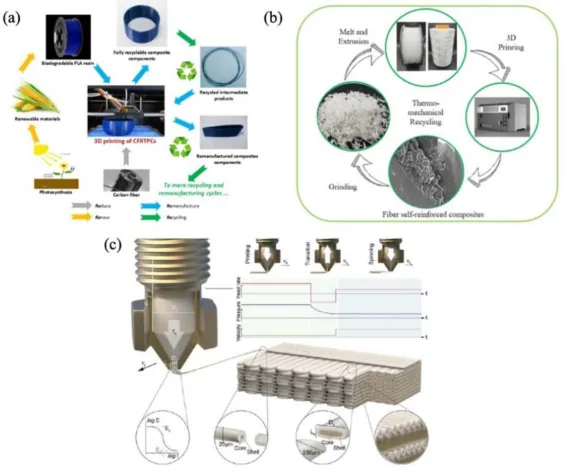

The push towards sustainability is revolutionizing how we approach composite manufacturing, as detailed in Sustainable Composites: Natural Fiber and Automated Placement.
The future of CFRPC manufacturing is becoming increasingly intelligent, as outlined in How to advance composite manufacturing with Machine Learning, Computer Vision, and Digital Twin.

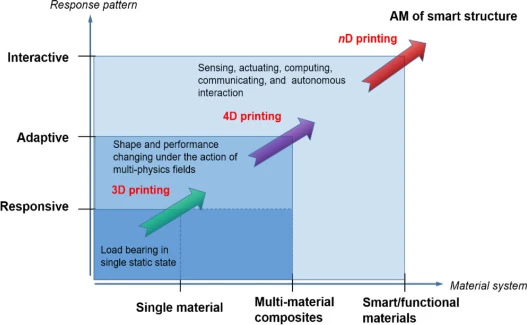

The future of CFRPCs extends beyond structural applications, as highlighted in The AI Advantage: Supercharging Continuous Fiber Composite Design.
To realize the full potential of 3D printed CFRPCs, several key areas require focused development:
The future of 3D printed CFRPCs is not just about manufacturing—it's about creating a new paradigm in materials and structures. As outlined in The Shift in Composite Manufacturing: From Traditional to Intelligent, we're moving toward a more connected, sustainable, and intelligent manufacturing ecosystem.
The convergence of advanced materials, smart manufacturing, and sustainability will drive the next generation of innovations in this field. Success will require continued collaboration between research institutions, industry partners, and technology developers to overcome current challenges and capitalize on emerging opportunities.
As we move forward, the key to unlocking the full potential of 3D printed CFRPCs lies in embracing these new technologies while maintaining a focus on practical implementation and real-world applications. The future is not just about making better parts—it's about revolutionizing how we approach design, manufacturing, and sustainability in the composite industry.
This blog post is based on the comprehensive review paper:
Tian, X., Todoroki, A., Liu, T. et al. (2022). "3D Printing of Continuous Fiber Reinforced Polymer Composites: Development, Application, and Prospective." Chinese Journal of Mechanical Engineering: Additive Manufacturing Frontiers 1, 100016.
