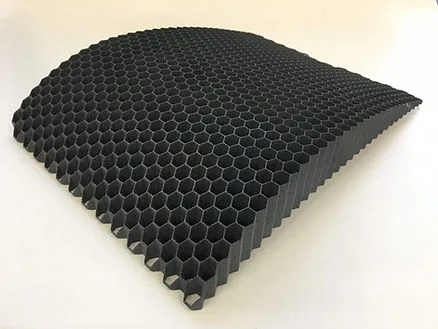

Enhancing Mechanical Properties of 3D Printed Honeycomb Structures

The research into the enhancement of mechanical properties of 3D printed honeycomb structures through continuous carbon fiber reinforcement explores the intersection of material science and additive manufacturing techniques. This innovative approach leverages the strengths of continuous fibers and 3D printing to overcome the traditional limitations faced by honeycomb structures in various industrial applications.

Key Insights:

• Material Selection and Design: The study focuses on the use of Polyamide (PA) as the polymer matrix and continuous carbon fiber (CCF) for reinforcement. This combination is chosen for its potential to significantly improve the specific strength and modulus of the structures while maintaining lightweight characteristics.
• Manufacturing Challenges: Traditional manufacturing methods for continuous fiber-reinforced polymers (CFRPs) often involve complex, multi-step processes and expensive equipment. The advent of 3D printing technologies, particularly Fused Deposition Modeling (FDM), presents a novel, mold-less approach to creating structures with customized materials and complex geometries. This method addresses the production challenges by enabling integrated manufacturing of continuous fiber-reinforced polymer honeycomb structures (CFRPHSs).
• Impact of Printing Path Planning: The study reveals that the path planning for fiber deposition critically influences the arrangement and orientation of fibers within the honeycomb structure, thereby affecting its mechanical properties. Researchers have developed advanced printing path planning techniques to optimize the mechanical performance of CFRPHSs.
• Experimental Findings: Through a series of design experiments, including the fabrication of honeycomb structures with varying core shapes and printing paths, it was found that bending properties improve with increased core density. Specifically, structures with a rhombus core shape and optimized path planning exhibited the strongest bending properties. This improvement is attributed to the strategic distribution of fibers and the reduction of structural defects at the nodes and path corners.

Challenges in Fiber Dislocation and Bending Behaviors

In exploring the enhancement of mechanical properties of 3D printed honeycomb structures, a significant challenge is managing fiber dislocation and optimizing bending behaviors. Continuous Carbon Fiber Reinforced Polymers (CCFRPs) are central to this pursuit, offering high specific strength and modulus, crucial for load-bearing components and energy absorbers. However, the path planning for continuous fiber plays a pivotal role in the emergence of structural defects and, by extension, the mechanical properties of the printed object.

Key Challenges:

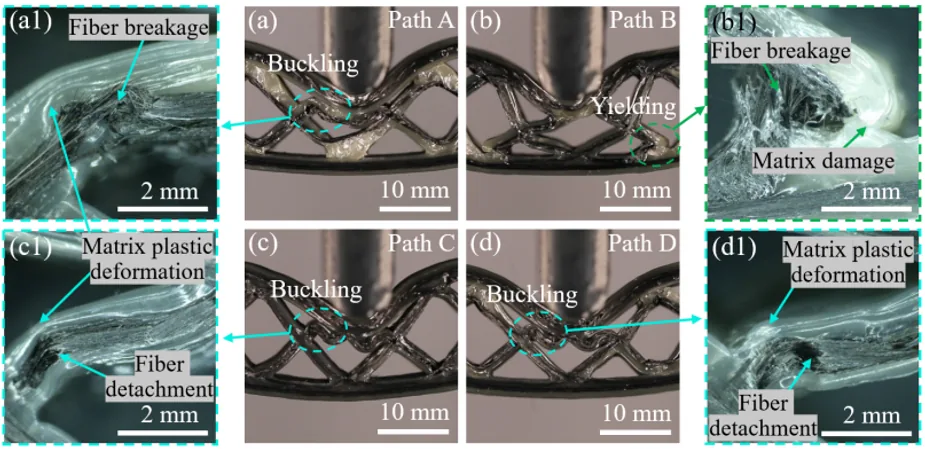

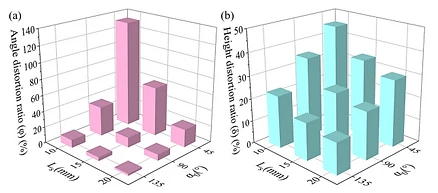

• Fiber Dislocation at Path Corners: The transition points or corners in the printing path are critical areas where fiber dislocation tends to occur. This dislocation leads to nodes filled with pure polymer instead of reinforced fiber, resulting in uneven stiffness distribution across the honeycomb structure. The degree of fiber dislocation is influenced by the path corner's angle and the length of straight paths forming the corner.
• Bending Performance Affected by Printing Paths: The bending behavior of these structures is significantly impacted by the printing path chosen. For instance, honeycomb structures with a staggered trapezoidal path showed markedly higher specific load capacity and flexural stiffness. This is because the fiber distributions and resulting structural defects from the printing paths determine the stiffness distribution in the loading region, influencing stress distribution and failure modes.

Investigative Focus:

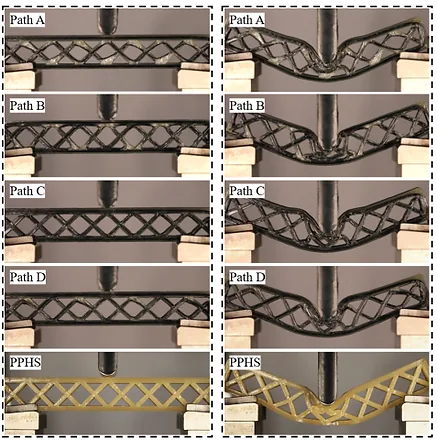

The study meticulously explores how different printing paths influence the distribution and orientation of continuous fibers within the honeycomb structures. Through three-point bending tests, it has been found that the choice of printing path has a substantial effect on the mechanical behaviors of the CFRPHSs, particularly their bending performance. A key finding is that structures printed with a staggered trapezoidal path exhibit the best performance due to optimal fiber distribution and minimized structural defects.

Structural Integrity and Mechanical Performance:

The structural integrity and mechanical performance of 3D printed honeycomb structures are closely tied to the path planning of continuous fibers. The challenges of fiber dislocation and the subsequent impact on bending behaviors underscore the need for meticulous design and execution in the printing process. Addressing these challenges involves not only understanding the material and structural dynamics at play but also leveraging advanced path planning strategies to mitigate defects and optimize mechanical properties.

This research highlights the complex interplay between printing path design, material distribution, and mechanical performance, offering insights into overcoming the inherent challenges of fabricating high-performance 3D printed honeycomb structures with continuous fiber reinforcement.

Advanced Path Planning Techniques for Optimized Printing

The study delves into the optimization of 3D printing paths for continuous carbon fiber reinforced polymer honeycomb structures (CFRPHSs), aiming to mitigate the challenges posed by fiber dislocation and to enhance the bending performance of the structures.

1. One-Stroke Printing Path Requirement:

Due to the absence of fiber jumping and cutting features in most FDM printers, a one-stroke printing path planning is essential. This approach ensures the integrity of continuous carbon fiber (CCF) by eliminating the need for fiber cutting or jumping, thus preserving the continuity and strength of the fibers throughout the printing process.

2. Layer-by-Layer Stacking Mechanism:

The manufacturing process relies on a layer-by-layer stacking mechanism specific to FDM. By designing a single-layer printing path and repeating it in the Z-direction, the process leverages the FDM's flexibility in path planning. This strategy allows for the crossing or non-crossing of printing paths at the nodes, leading to either fiber interleaving or adjacency, which significantly impacts the mechanical properties of the printed structure.

3. Optimized Printing Paths for Enhanced Bending Performance:

The research highlights the creation of optimized printing paths to improve the bending properties of CFRPHSs. By analyzing the effects of different path designs on fiber distribution and structural integrity, the study identifies specific patterns that optimize the mechanical performance. For example, a staggered trapezoidal path has been shown to provide superior specific load capacity and flexural stiffness due to its efficient fiber distribution and minimized structural defects.

4. Fiber Distribution Modes:

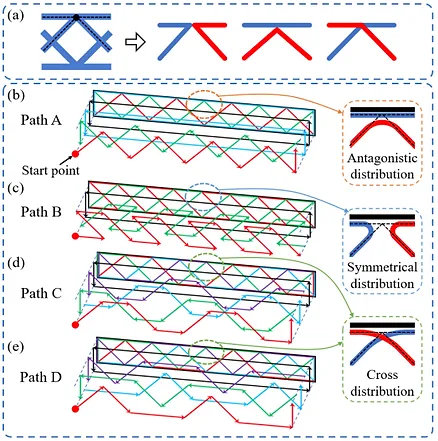

The study categorizes the nodes' fiber distribution modes into symmetrical, antagonistic, and cross-distribution based on the chosen printing paths. These modes determine the mechanical behavior of the CFRPHSs under load, highlighting the critical role of path planning in achieving desired performance outcomes.

Achieving Superior Bending Properties with Optimized 3D Printing Paths

The culmination of research into the path planning and bending behaviors of 3D printed continuous carbon fiber reinforced polymer honeycomb structures (CFRPHSs) has demonstrated a clear pathway to significantly enhance the mechanical performance of these structures. The study’s focused examination on optimized 3D printing paths reveals the profound impact these paths have on bending properties, which is critical for a wide array of applications from aerospace to automotive industries where strength-to-weight ratio is paramount.

Optimized Printing Paths and Mechanical Performance

The research found that the specific printing path selected plays a crucial role in the distribution and orientation of continuous fibers within the honeycomb structures, directly affecting their bending performance. Among the different paths investigated, the staggered trapezoidal path emerged as superior, providing the highest specific load capacity and flexural stiffness. This optimized path ensures a more effective load transfer and better utilization of the honeycomb core's supporting function, leading to enhanced structural integrity and performance under stress.

Key Findings:

• Fiber Distribution Modes: Three primary fiber distribution modes at the nodes—symmetrical, antagonistic, and cross distribution—were identified. These modes influence the structural stiffness and load distribution across the honeycomb structure, directly impacting its bending behavior.
• Structural Defects and Performance: The presence of structural defects, particularly at the nodes due to fiber dislocation, was found to significantly affect the mechanical properties. Optimizing the printing path can mitigate these defects, leading to a uniform stiffness distribution and improved bending performance.
• Enhancement of Bending Performance: The staggered trapezoidal path, by allowing for a strong connection between the core and face sheets, exhibits the highest bending performance. This configuration fully leverages the structural advantages of the honeycomb design, achieving a specific load capacity of 68.33 ± 2.25 N/g and flexural stiffness of 627.70 ± 38.78 N/mm.
